Hodedah HIBT70-G User manual

Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
HODEDAH ®
ITEM # HIBT70-G
SINGLE BED
2 people
120 mins
1 YR LTD
2 Boxs
www.Hodedah.com 1| Page
Product Dimensions: Height 39.17" x Width 42.32" x Depth 85.66"
Weight Capacity Per Drawer 20lbs
Weight Capacity Per Shelf 20lbs

HODEDAH ®
www.Hodedah.com 2| Page
DO NOT RETURN PRODUCT TO THE STORE
Phone WebsiteEmail
Questions, need parts, we are here to help!
WARRANTY
WARNING
If parts are missing or damaged please contact our customer service team and we will
gladly ship your replacement parts FREE of charge within ONE YEAR of purchase!
Hodedah warrants this product to be free from defects in materials and workmanship and agrees to
remedy any such defect. This warranty covers one year from the date of original purchase. This is solely
limited to replacement of defective parts and no assembly for labor is included. This warranty does not
apply to any product that has been improperly assembled, subjected to misuse, abuse or which has been
altered or repaired in any way. To obtain warranty service, original purchaser must present the following;
original bill of sale, date of purchase, where the product was purchased and images if applicable.
Components replaced warranted through the remainder of the original warranty only. The defective part
will be replaced without charge, subject to the terms and conditions described above.
Mon - Fri | 9:30 am to 5pm EST Send us an email
FOR PROMPT, RELIABLE SERVICE PLEASE HAVE YOUR INSTRUCTION MANUAL READY
Visit our website to open a case
1 - 855 - HODEDAH
1 - 855 - 463 -3324
[email protected] www.Hodedah.com
·This product contains small parts, keep away from children.
·This product contains plastic bags, keep away from children.
·Serious or fatal crushing injuries can occur from furniture tip-over. To help
prevent this, place heaviest items on the lower shelves and drawers. Do not set
heavy objects on top shelves and drawers.
·Never allow children to climb or hang on drawers, shelves and doors.
·Never open more than one drawer at a time.
·The use of tip-over restraints may reduce but not eliminate the risk of tip-over.

HODEDAH ®
www.Hodedah.com 3| Page
Product Care and Maintenance
Let's get started…
·Never open more than one drawer at a time.
·The use of tip-over restranits may reduce but not eliminate the risk of tip-over.
·Make sure you receive all boxes. If your item is packed in one box, box count will read 1
of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second
box will read 2 of 2.
·Read each step carefully. It is very important that each step is performed in the correct
order. If these steps are not followed in sequence, assembly difficulties will occur.
·Work in a spacious level area, preferably carpet, near the place the unit will be used.
·DO NO USE power tools to assemble your furniture, it will strip and damage parts.
·Your package should include the following hardware and parts. Parts are labeled or
stamped on the raw edge. Please inspect contents to ensure you have received all
components. If you are missing any hardware or parts please contact customer
service right away before assembly.
Helpful hints, read before beginning assembly
Assembly Tools Required (not supplied)
·Wipe clean with dry soft cloth, never use chemicals or cleaning products they will
damage the finish.
·Avoid placing your furniture in direct sunlight, as sunlight causes fading.
·Never push, drag or pull your furniture, to move to a new location carefully with
two or more people carry the unit to its new location.
·Avoid extreme changes in temperature by arranging furniture away from radiators,
heat and air vents and air conditioning units.
Hammer Phillips Screwdriver No Power Tools NeededTape Measure

HODEDAH ®
www.Hodedah.com 4| Page

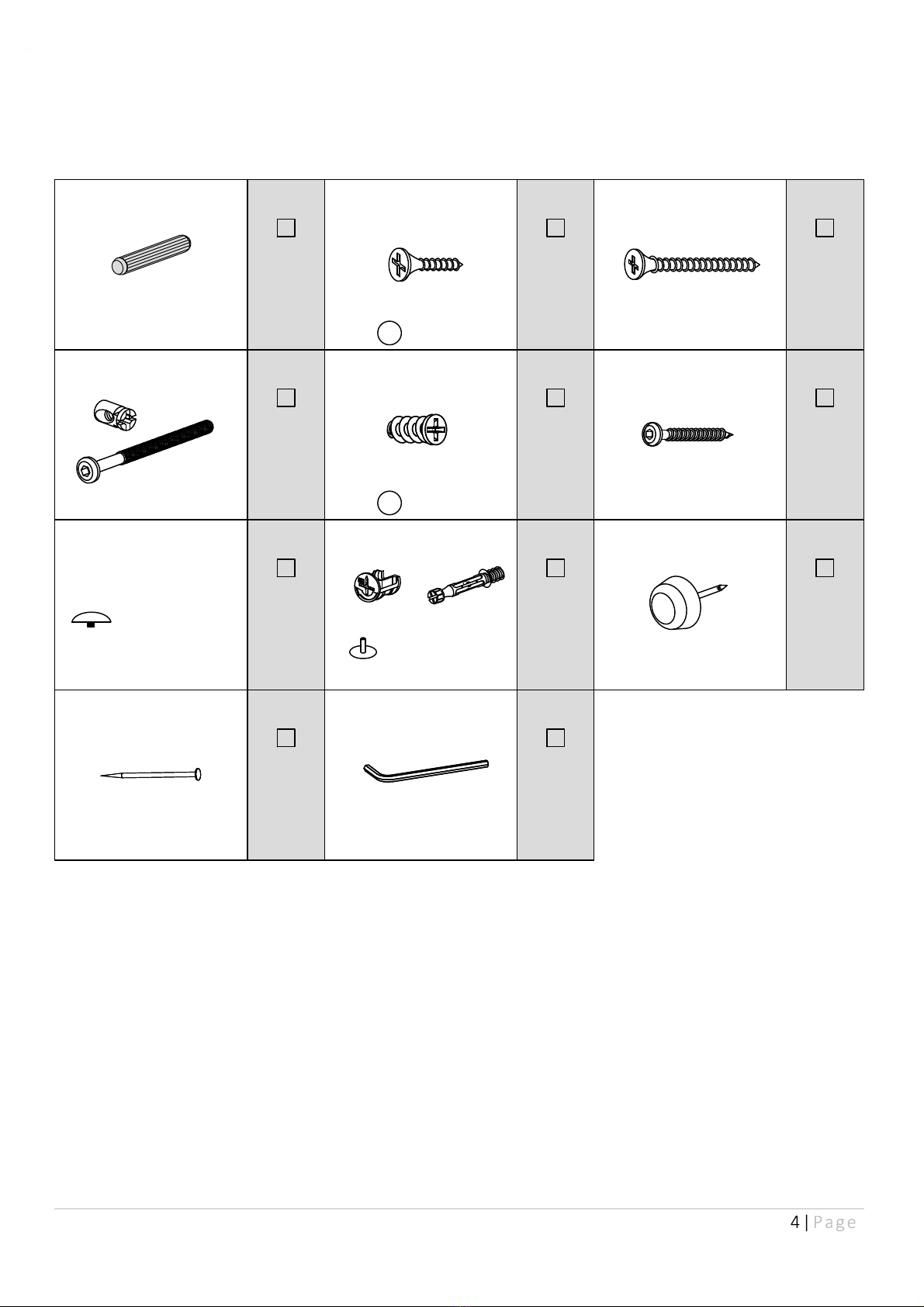

Hardware List
1QTY 2QTY 3QTY
QTY 5QTY 6QTY
Pvc Dowel
7QTY 9QTY
Nail
QTY
Allen Key
16 Pcs
14
QTY QTY
4
58 Pcs
12 Pcs
Screw M6 x 40mm
Screw M3.5 x 14mm
*For # 13 Drawer Slides
Screw M4 x 32mm
18 Sets
Screw M6.2 x 9mm
*For # 12 Drawer Slides
Pvc Cap
19 Sets
Pvc Cap
Mini Fix
19 Pcs
10
11
18 Pcs 39 Pcs
Nail Leg
12 Sets
JCBC-Bolt M6x60mm
16 Pcs
50 Pcs 1 Pc

HODEDAH ®
www.Hodedah.com 5| Page

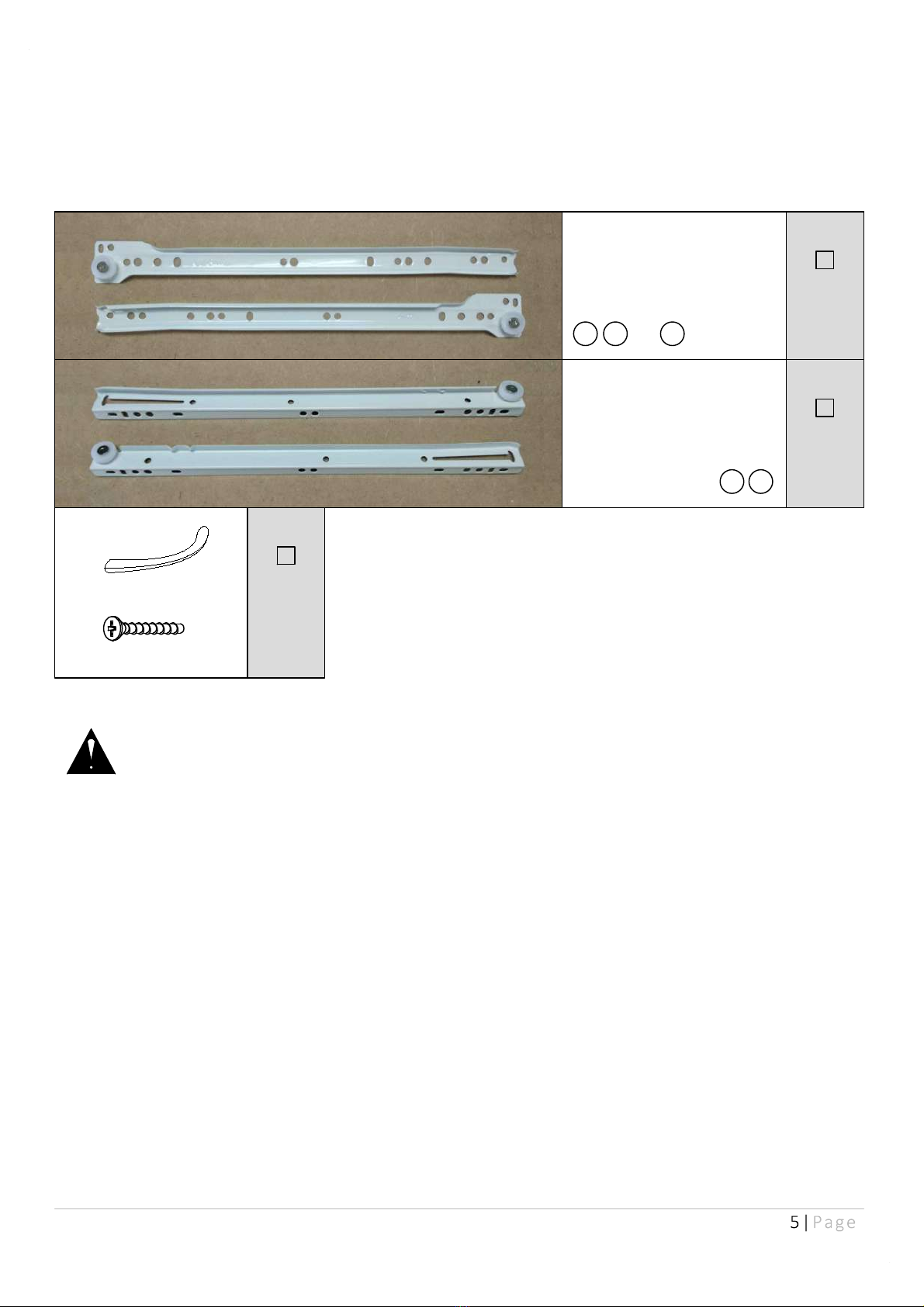

Accessories
8QTY
Handle 3 Pcs
6 Pcs
12
13
Drawer Slide - A
*Fix On Side Panels
QTY
3 Sets
QTY
3 Sets
*Fix On Side Panels T U
Drawer Slide - B
H K & O
Screw M4 X 20mm
* Fix On Side Panels Ⓗ, Ⓚ
* Fix On Side Panels Ⓚ, Ⓞ
* Fix On Drawer Side Panels Ⓣ
* Fix On Drawer Side Panels Ⓤ
Important
1. Before you throw the package, please use the
Check Box to identify the parts and hardware to
ensure that you have everything you need.
2. Check and measure the bolts before applying them
to parts.
3. Do not completely tighten all hardware until the
entire assembly is complete, unless indicated
otherwise.

HODEDAH ®
www.Hodedah.com 6| Page
AQTY
1 Pc
BQTY CQTY
DQTY
2 Pcs
EQTY FQTY
GQTY HQTY IQTY

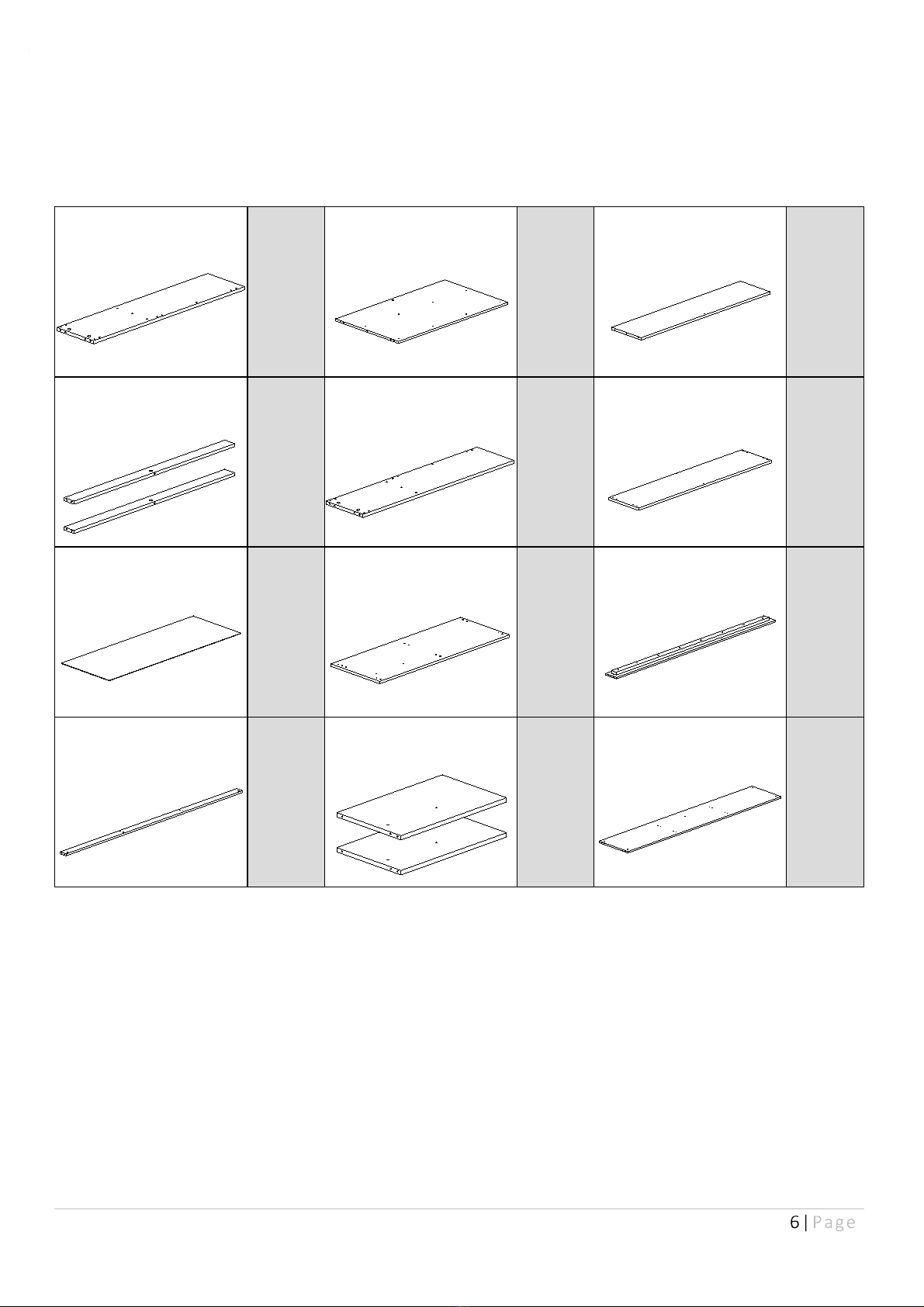

Parts List
JQTY KQTY QTY L
Head Board Panel
1050 x 395 x 15 mm
Headboard Right Side
Panel
975 x 238 x 15mm
Headboard Stand Panel
1039 x 600 x 15mm
Stand Panel (Side Rail)
488 x 297 x 15mm
Headboard Back Panel
1066 x 387 x 3mm
Front & Back Strengthering
Panel (Headboard)
1039 x 64 x 15mm
Headboard Left Side
Panel
975 x 238 x 15mm
Left Side Rail (Lower)
1905 x 64 x 15 mm
Left Side Rail (Upper)
1905 x 130 x 15 mm
Headboard Top Panel
1075 x 240 x 15mm
Keadboard Fixed Panel
1039 x 237 x 15mm
Center Panel
1905 x 354 x 15mm
1 Pc 1 Pc
1 Pc
1 Pc 1 Pc 1 Pc
1 Pc 1 Pc2 Pcs
1 Pc

HODEDAH ®
www.Hodedah.com 7| Page
QTY
MQTY NQTY
O
QTY
PQTY
QQTY
R
QTY
SQTY
TQTY

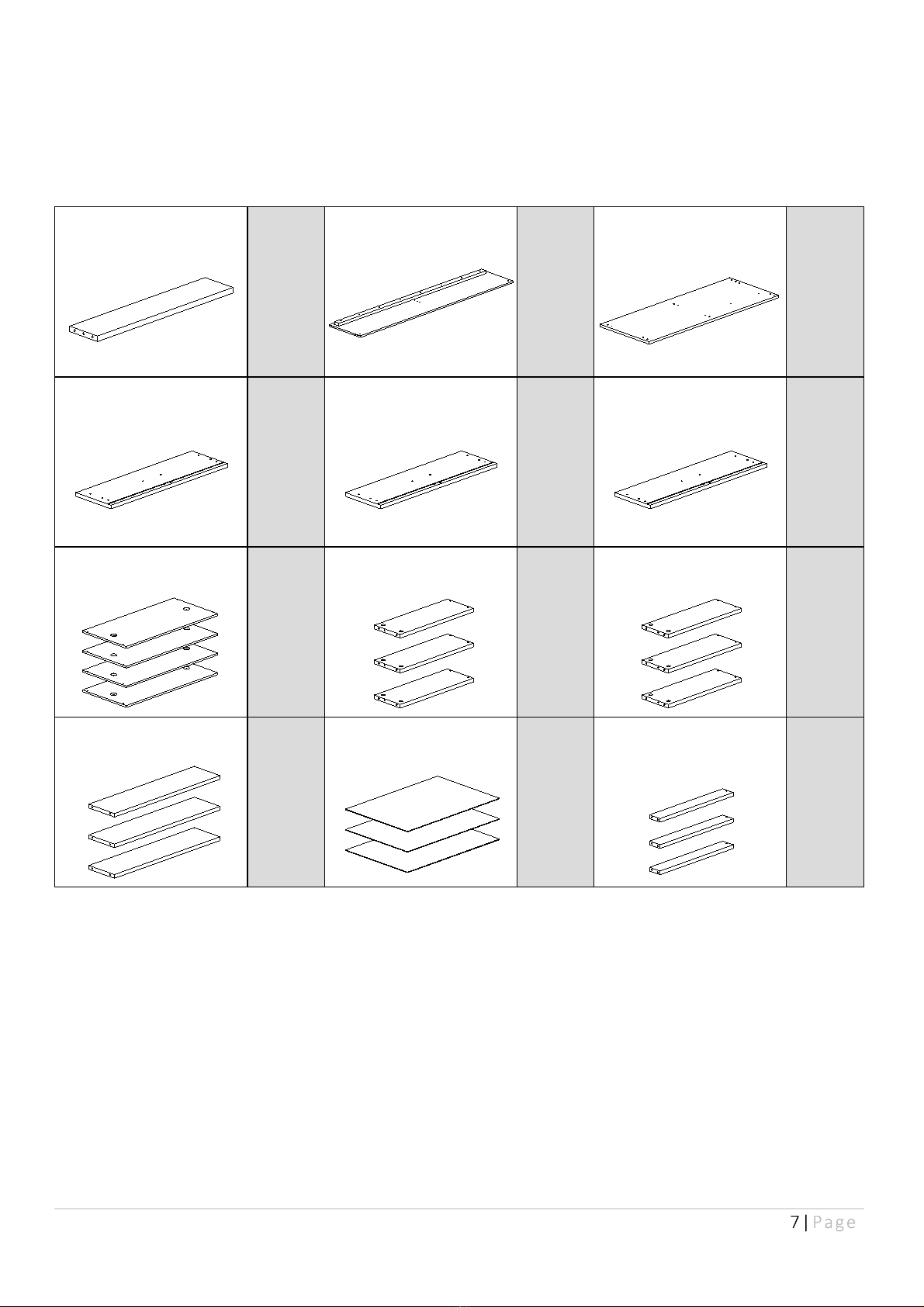

Parts List
Left Drawer Side Panels
394 x 140 x 15mm
Mid Drawer Panel
629 x 190 x 15mm
Right Side Panel
1905 x 392 x 15mm
Mattress Panels
988 x 475 x 15mm
Center Support
487 x 100 x 15mm
Right Drawer Panel
629 x 190 x 15mm
Foot Board Panel
1050 x 395 x 15 mm
Left Drawer Panel
629 x 190 x 15mm
VQTY
Drawer End Panels
569 x 138 x 15mm
U
1 Pc 1 Pc 1 Pc
2 Pcs 2 Pcs 2 Pcs
3 Pcs3 Pcs
4 Pcs
3 Pcs
Right Drawer Side Panels
394 x 140 x 15mm
WQTY
Drawer Base Panels
596 x 400 x 3mm
3 Pcs
XQTY
Drawer Base Supporting
Panels
394 x 56 x 15mm
3 Pcs

HODEDAH ®
www.Hodedah.com 8| Page

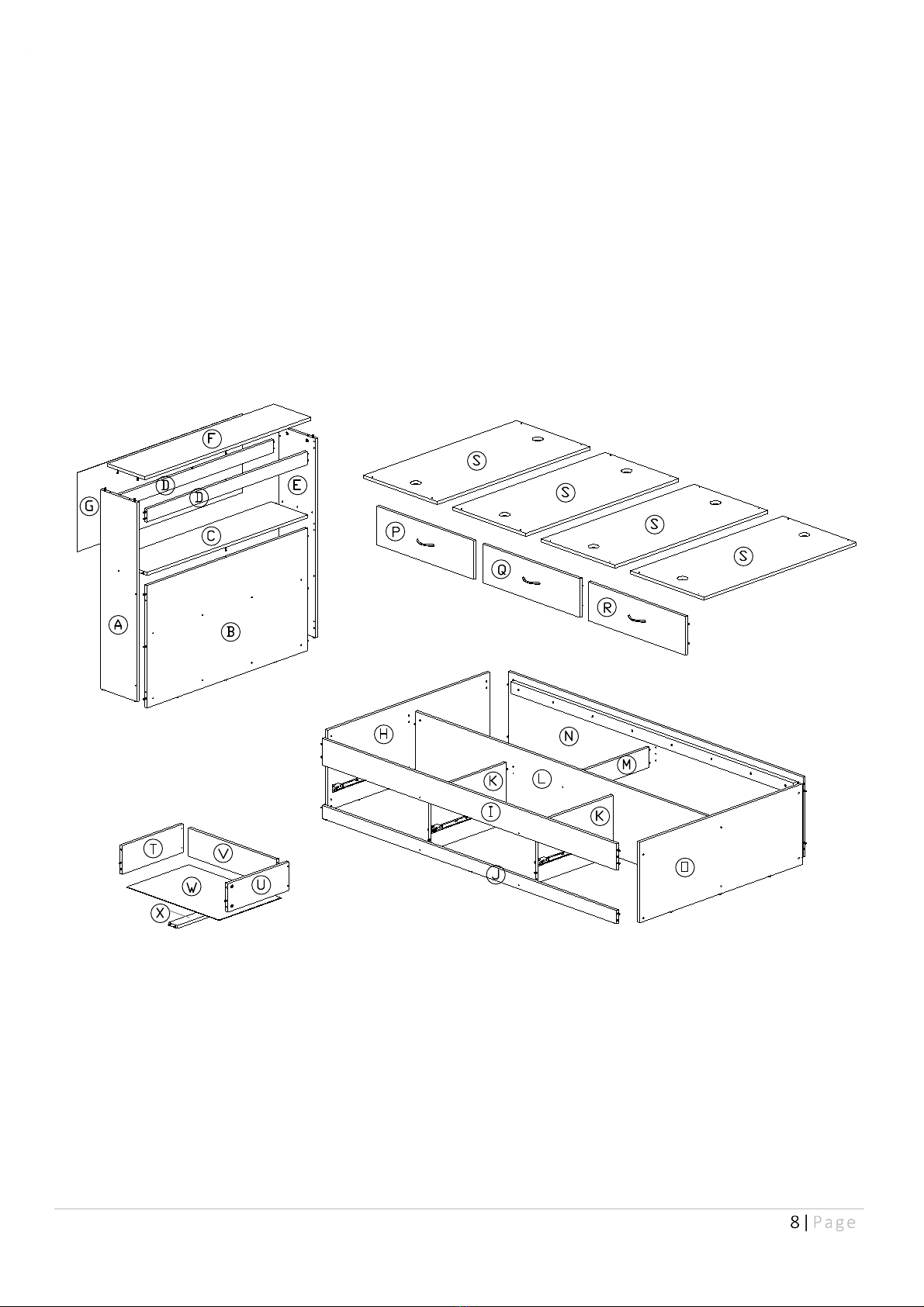

The Breakdown
x3

HODEDAH ®
www.Hodedah.com 9| Page
Pre - Assembly
PANEL
B
PANEL
C
PANEL
D x2
PANEL
F
PANEL
E
PANEL A
10 Nail Leg
6 Pcs.
9Mini Fix
7 Pcs.
9Mini Fix
7 Pcs.
1Pvc Dowel
22 Pcs.

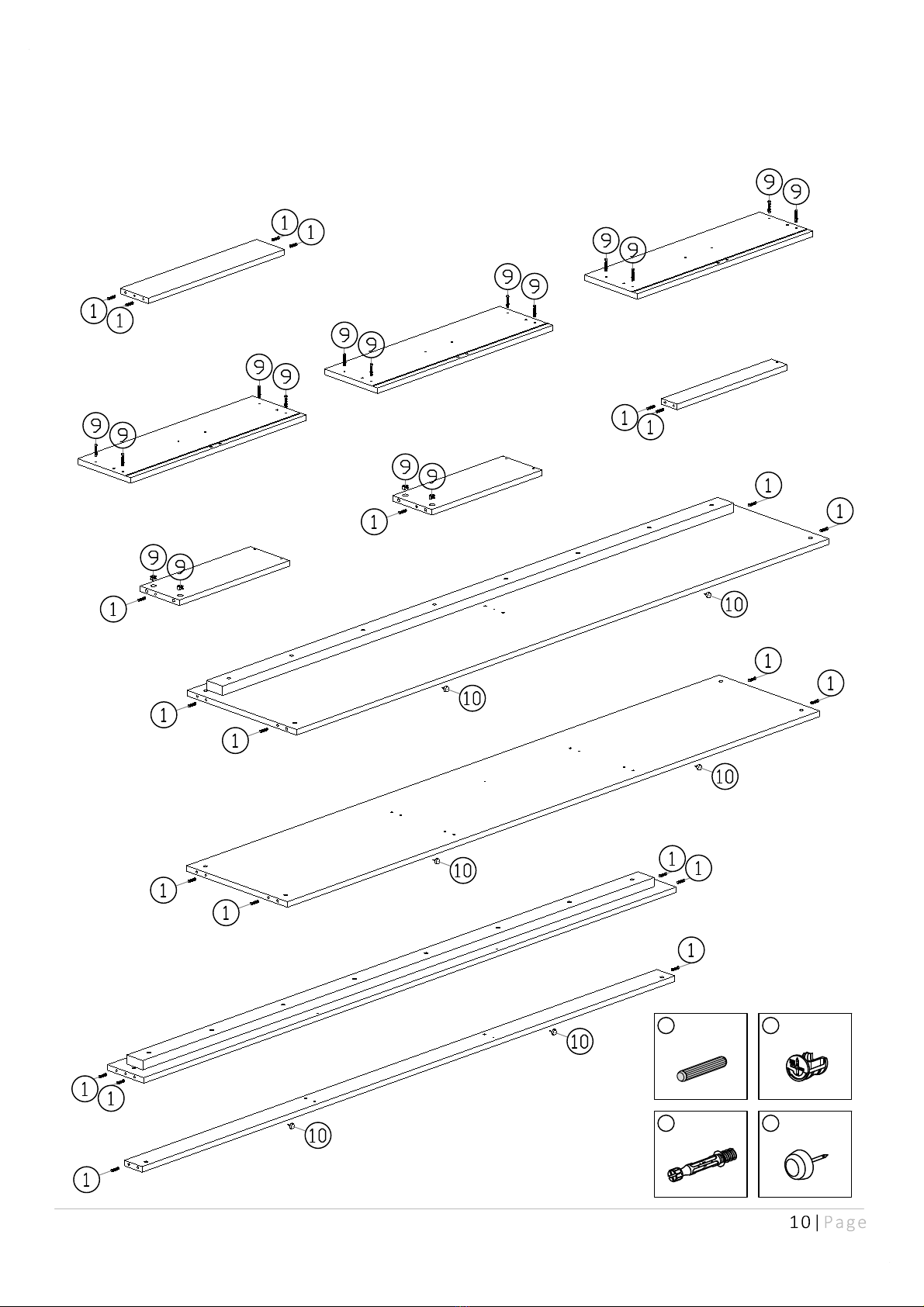

Insert the mini fix ⑨(nuts) with the cross arrow mark
facing upward and aim to panel A, E, P, Q,
R, T, U & X 's top thru holes. (As shown)
( Refer page 10 )
Nail Protection Nail ⑩, provided with hammer onto the
bottom edge of panel A, B，E, H, J, L &
Nas shown.
( Refer page 10 )
Insert the PVC dowels ①to panel
A, B, C, D, E, K, I, J, L, M,
N, T & X’s non-thru holes as shown, using
hammer to tap them in.
( Refer page 10 )

PANEL
N
PANEL
L
PANEL
I
PANEL
J
HODEDAH ®
www.Hodedah.com 10| Page
Pre - Assembly
10 Nail Leg
6 Pcs.
1Pvc Dowel
30 Pcs.
PANEL
M
PANEL
R
PANEL
Q
PANEL
P
PANEL
T x3
PANEL
U x3
PANEL
X x3
9Mini Fix
12 Pcs.
9Mini Fix
12 Pcs.

HODEDAH ®
www.Hodedah.com
Pre - Assembly
PANEL
K x2
PANEL
O
PANEL
H
10 Nail Leg
6 Pcs.
1Pvc Dowel
6 Pcs.
11| Page
5
Screw M6.2 x 9mm
12 Pcs.

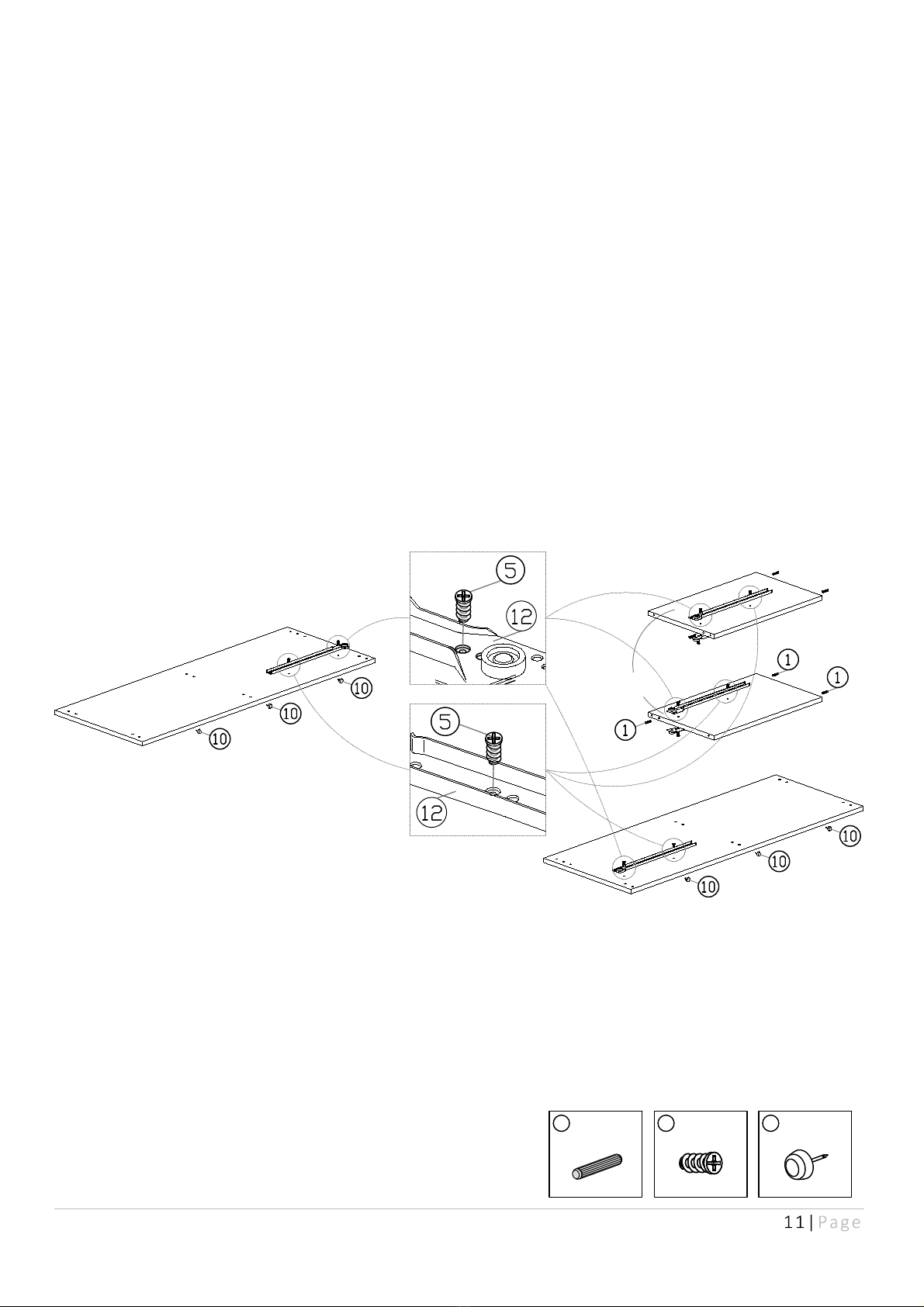

Place the drawer slide A ⑫onto the 2 holes area shown at panel H，Kand
O. Then tighten it with 2 screws ⑤.

HODEDAH ®
www.Hodedah.com 12| Page
Assembly Of Drawers
2
Screw M3.5 x 14mm
18 Pcs. 3
Screw M4 x 32mm
15 Pcs. 8Handle
3 Pcs. 8
Screw M4 X 18mm
6 Pcs.
x3
(1)
(3)
(2)
11 Nail
24 Pcs.

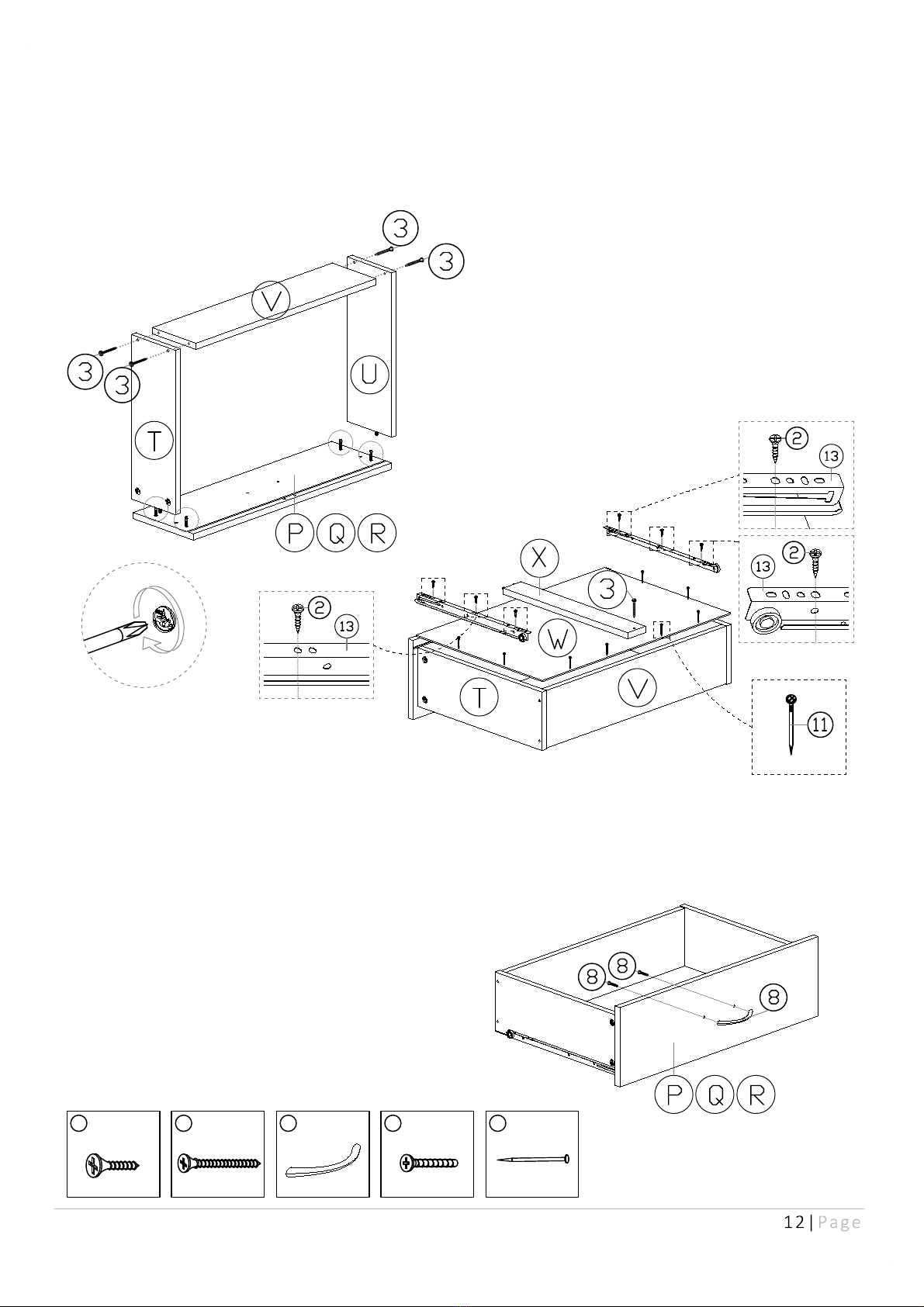

A. Place panel Tand U on each side of panel
P,Q &R with Panel Tand U's PVC
dowel insert to panel
P,Q &R 's non-thru hole and Panel P,Q
&R 's mini fix screws insert into Panel Tand
U's thru as shown.
Then tighten mini fix on panel Tand U
clockwise to lock mini fix up.
-Next tighten screw ④to panel Tand U's
upper thru holes to fix up to the panel V.
B. Flip drawer with bottom side up, place panel Wonto
the drawer and align properly. Then nail the nails
provided with hammer on the border of panel Was
shown.The gap between 2 nails is about 100mm.
-After that, place a drawer slide B ⑲with the small
white roller facing outward and with other end tip
touching panel P, Q& Ronto each bottom side (angle)
edge
of panel Tand U. Then tighten 3 screws ⑧on each
drawer slide B ⑲(as shown).
-Put drawer supporting Xonto middle of panel Wand
inserting drawer supporting X's dowels onto non-thru
holes at Panel P, Q& R, then tighten screw ⑨to drawer
supporting X's thru hole to fix it onto panel Wand
panel V.
C. Flip the drawer over.
-Tighten 2 screw ⑧from inner side of panel H into
the handle ⑧holes.

HODEDAH ®
www.Hodedah.com 13| Page
Assembly Of Set A
6
Screw M6 x 40mm
6 Pcs.

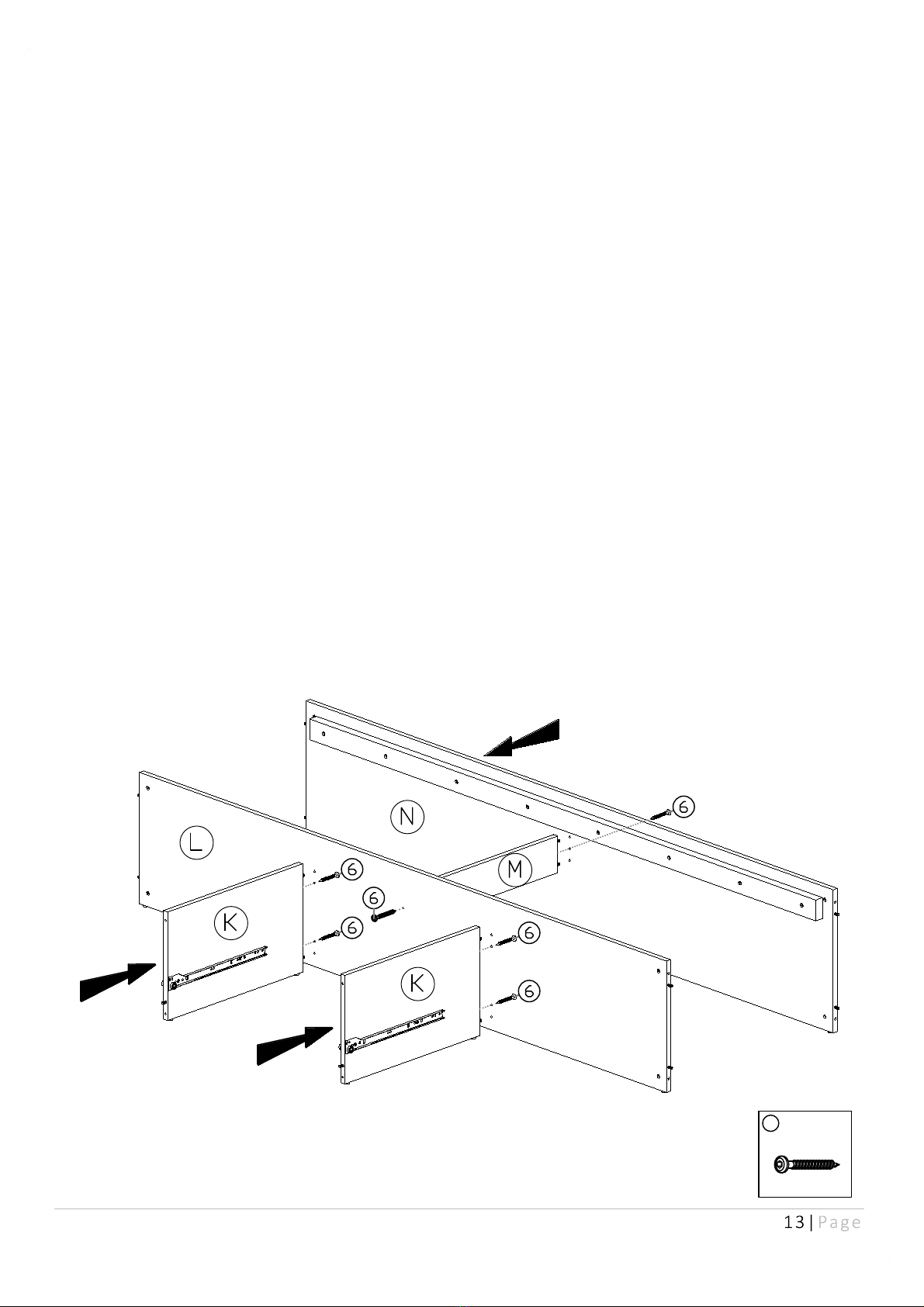

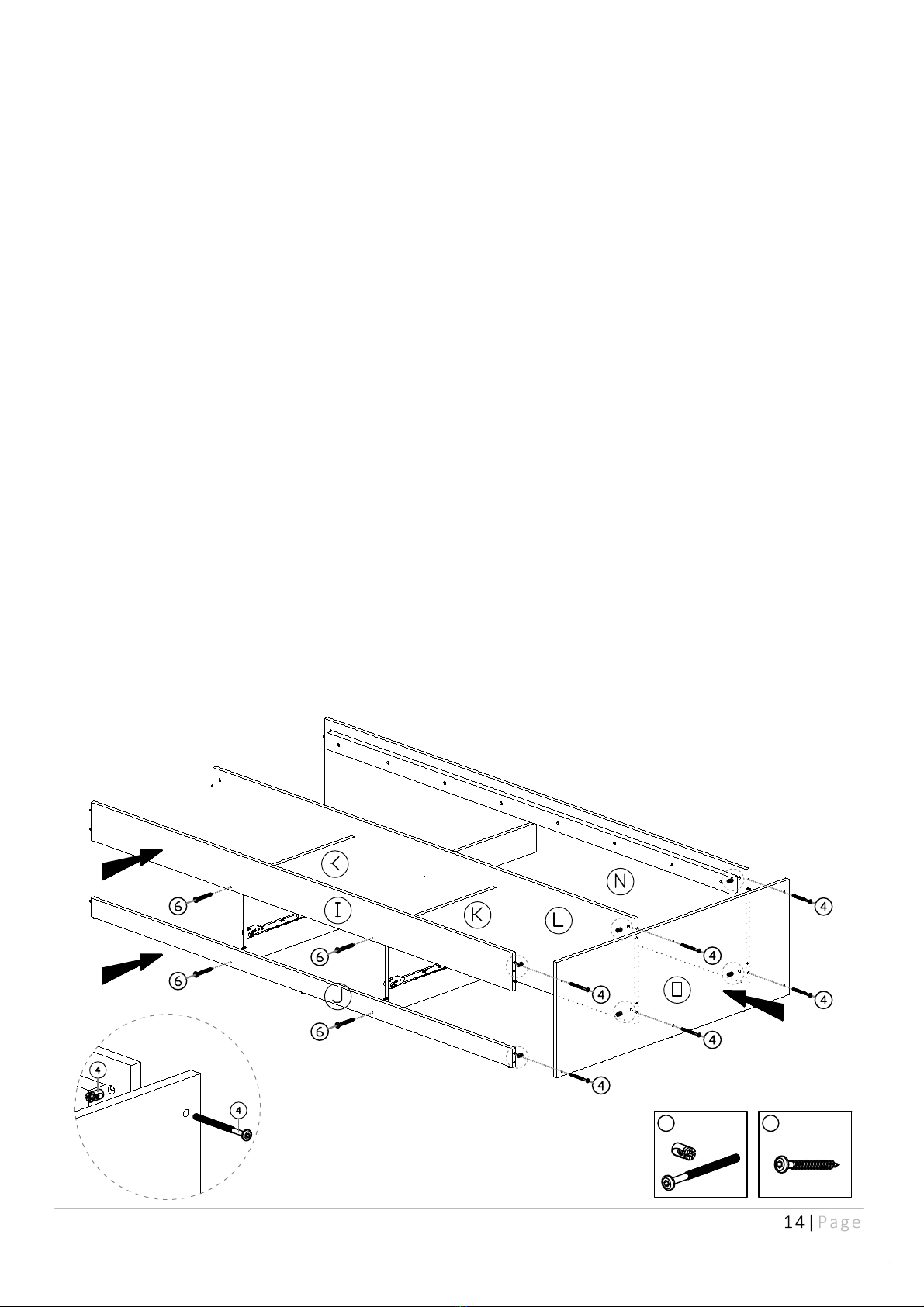

- Fix both panel Konto Panel Lby inserting the dowels
onto the respective non-thru holes at panel L.
- Use Allen Key ⑭ to tighten 4 screws ⑥from thru-holes of
panel Lto non-thru hole of both panel Kas shown.
- Fix panel Mto panel Land Nby inserting the dowels onto the
respective non-thru holes at panel Land N.
- Use Allen Key ⑭ to tighten 4 screws ⑥from thru-holes of panel
Land Nto non-thru hole of panel Mas shown.
Step 1

HODEDAH ®
www.Hodedah.com 14| Page
Assembly Of Set A
4
JCBC-Bolt M6x60mm
6 Sets. 6
Screw M6 x 40mm
4 Pcs.
- Fix panel Iand Jonto panel Kby inserting the dowels onto the respective
non-thru holes at panel Iand K.
- Use Allen Key ⑭to tighten 4 screws ⑥from thru-holes of panel Iand Jto
non-thru hole of both panel Kas shown.
- Insert 6 barrel nuts ④to non-thru holes at Panel I, J, L& N.
- Fix panel O onto panel I, J, L& N. Align properly by inserting the dowel of
Panel I, J, L& Nonto non-thru holes of panel O.
- Pushing & light tapping of panel Oto have panel I, J, L& Nfix tightly.
- Then insert 6 screws ④onto thru holes at Panel O. Use Allen Key ⑭to tighten
all screws ④.
Step 2

HODEDAH ®
www.Hodedah.com 15| Page

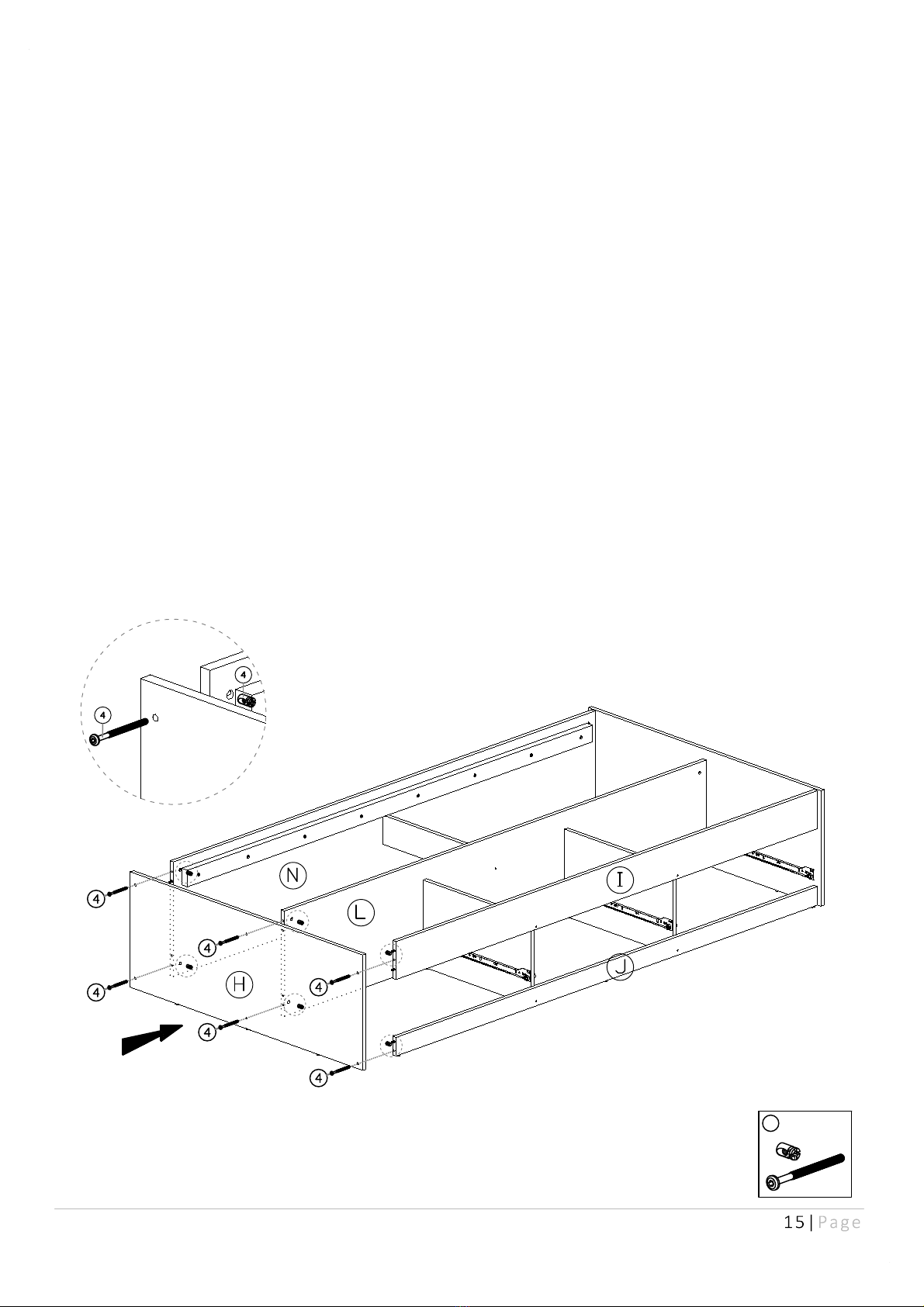

Assembly Of Set A
4
JCBC-Bolt M6x60mm
6 Sets.
- Insert 6 barrel nuts ④to non-thru holes at Panel I, J, L& Nas shown.
- Fix panel Honto panel I, J, L& N. Align properly by inserting the dowel of
Panel I, J, L& Nonto non-thru holes of panel H.
- Pushing & light tapping of panel Hto have panel I, J, L& Nfix tightly.
- Then insert 6 screws ④onto thru holes at Panel H. Use Allen Key ⑭to tighten
all screws ④.
Step 3

HODEDAH ®
www.Hodedah.com 16| Page
Assembly Of Set A
3
Screw M4 x 32mm
16 Pcs.

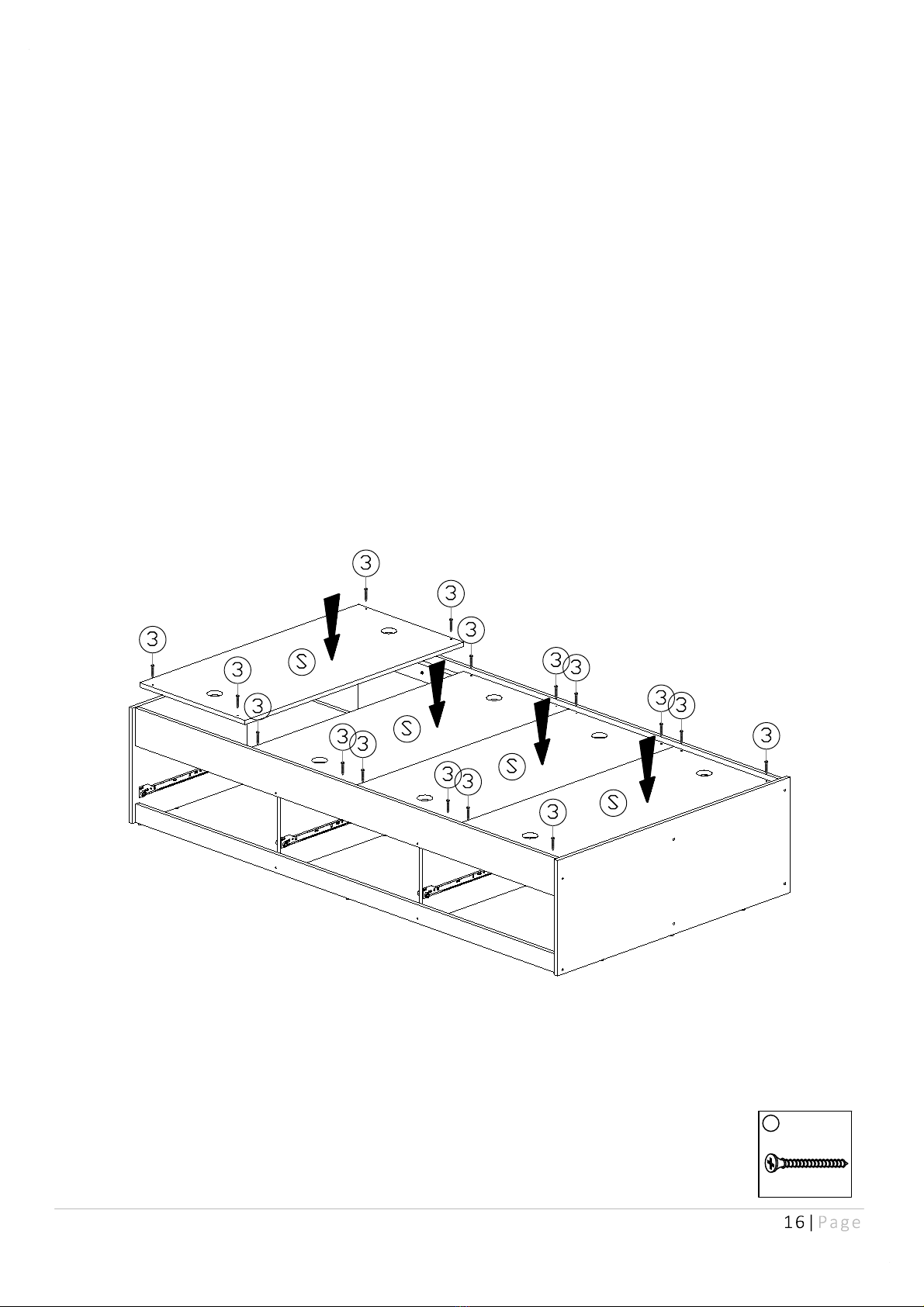

- Place 4 panels Sonto the middle of bed.
- Insert screws ③onto the thru holes at Panel S.
Step 4

HODEDAH ®
www.Hodedah.com 17| Page
Assembly Of Set A

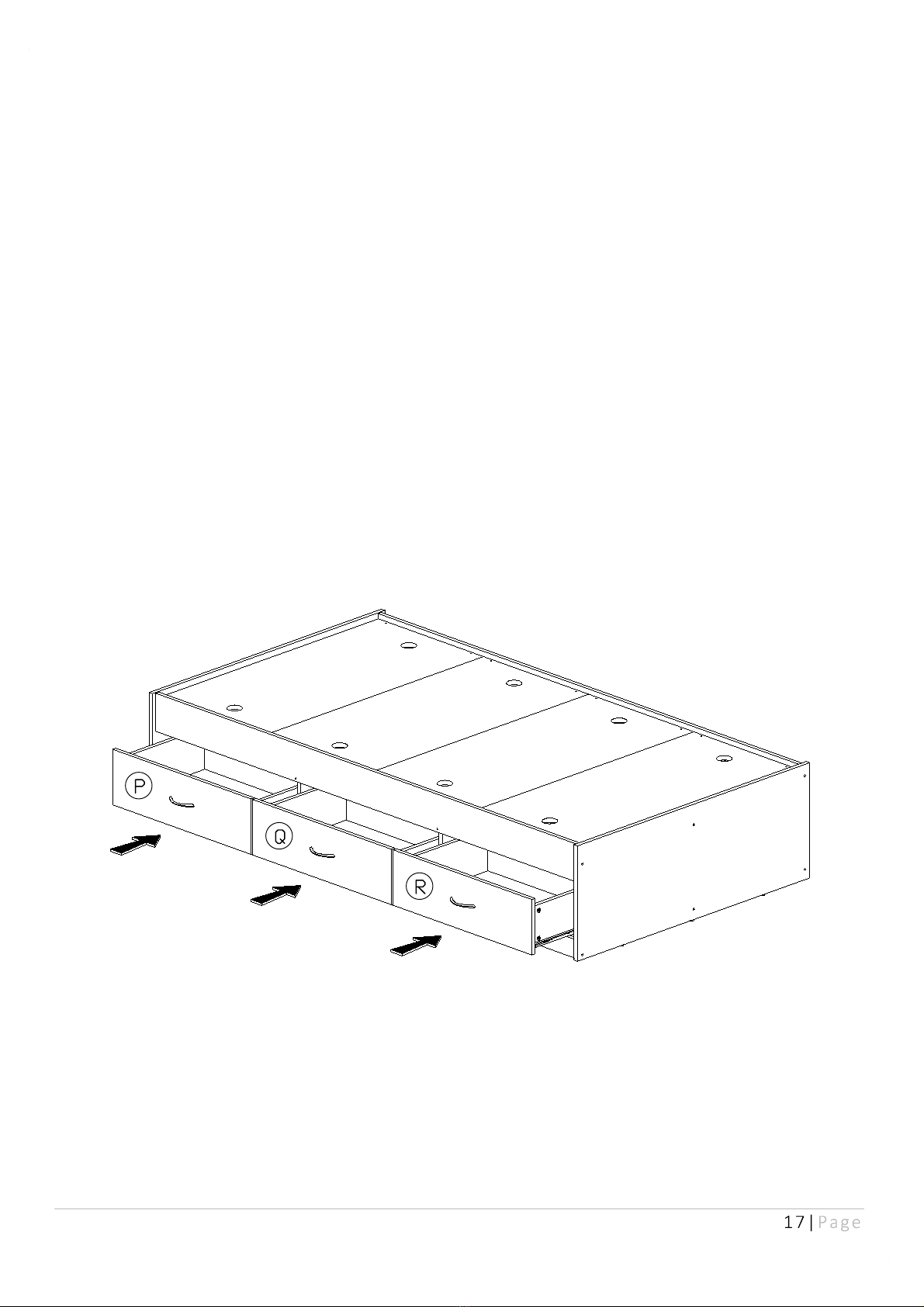

Take drawers and slide them (the white rollers at drawer slide at
both side of drawers are to go into the track of the slides at each
side panel.) all the way gently.
Step 5

HODEDAH ®
www.Hodedah.com 18| Page
Assembly Of Set B
360°
6
Screw M6 x 40mm
6 Pcs.

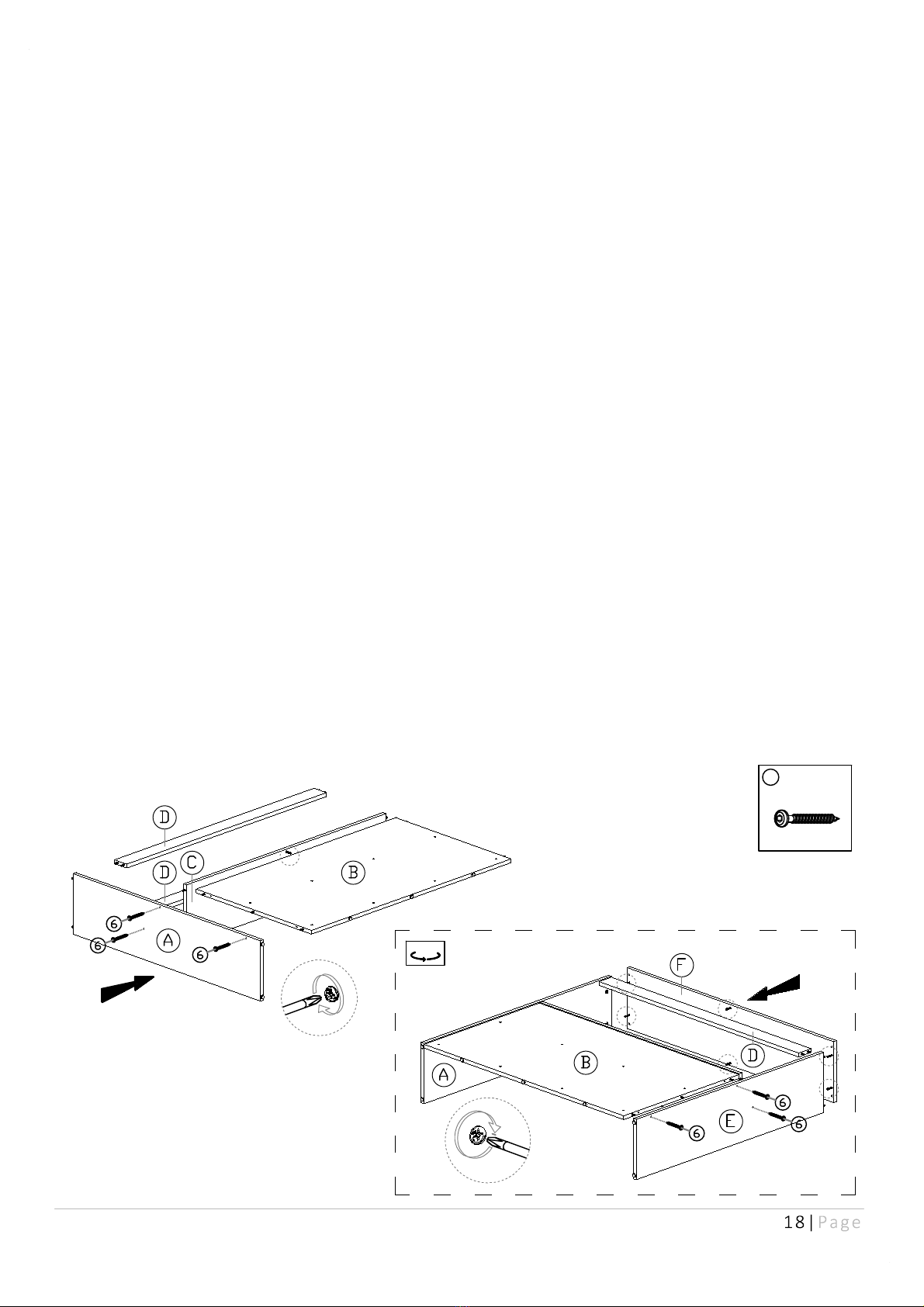

- Fix panel Bonto panel Cby inserting the dowels onto the respective non-thru
holes at panel C.
- Fix panel Aonto panel B, C& Dby inserting the dowels onto the respective
non-thru holes at panel A.
- Use Allen key ⑭ to tighten 3 screws ⑥ from the thru-holes of panel Ato non-thru
holes of panel B& C.
-Fix panel Eonto panel B, C& Dby inserting the dowels onto the respective
non-thru holes at panel E.
- Use Allen key ⑭ to tighten 3 screws ⑥ from the thru-holes of panel Eto non-thru
holes of panel B& C.
- Fix panel F onto panel A, E& D. Align properly by inserting the dowel of Panel
A, E& Donto non-thru holes of panel F.
-Pushing & light tapping of panel F to have panel A, E& Dfix tightly.
Step 1

HODEDAH ®
www.Hodedah.com 19| Page
Assembly Of Set B
11 Nail
26 Pcs.
- Place panel Gonto panel A, E& Fas shown.
- Then, align the Panel Gproperly for nailing.
-Use Hammer to nail Then use hammer to nail the nails
one by one and at center of 4
side edges. Gap between 2 nails should be about
100mm for all.
Step 2

HODEDAH ®
www.Hodedah.com 20| Page
Assembly Of Set B
7Pvc Cap
16 Pcs.
3
Screw M4 x 32mm
8 Pcs.

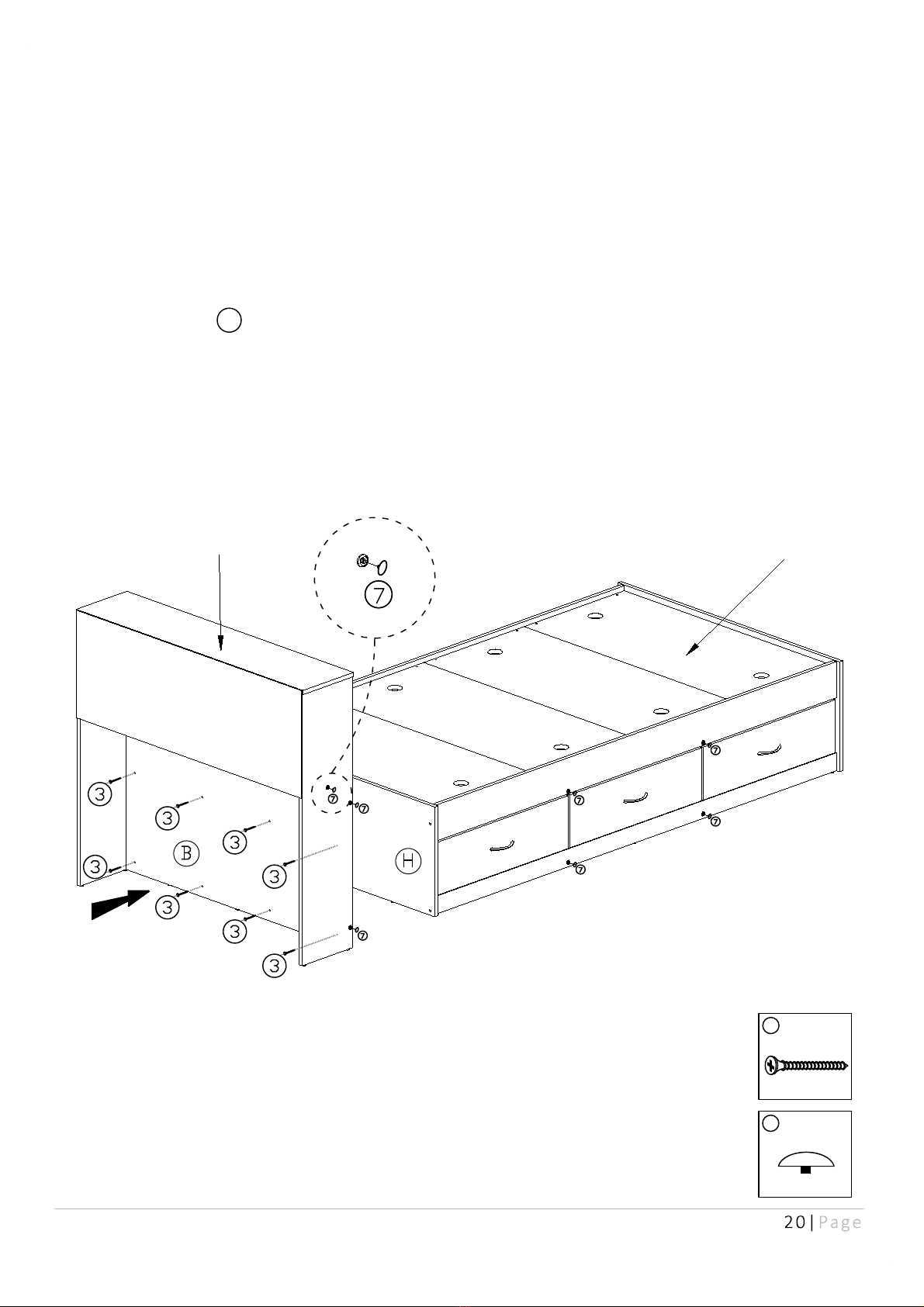

- Joint the completed set A to set B.
- Insert 8 screws 3 from the inner of set B.
- Cover all the screws 's head with the PVC cap provided by pushing the cover's
stem onto the hole of screw head one by one.
Step 3
Set A
Set B
