Hodedah HI K78 User manual

1
Hodedah
www.hodedah.com
support @hodedah.com
ASSEMBLY INSTRUCTION
HI K78 (MICROWAVE CART)
~ Before assembly, please read the instructions ~
~ Keep these instructions for future reference ~
~ Follow these steps to assemble the Microwave Cart ~
FRONT VIEW BACK VIEW
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT INFORMATION ABOUT ASSEMBLY AND
SAFETY. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Drawer Front Panel
1 pc
760 x 140 x 15mm
L
2
Hodedah
www.hodedah.com
support @hodedah.com

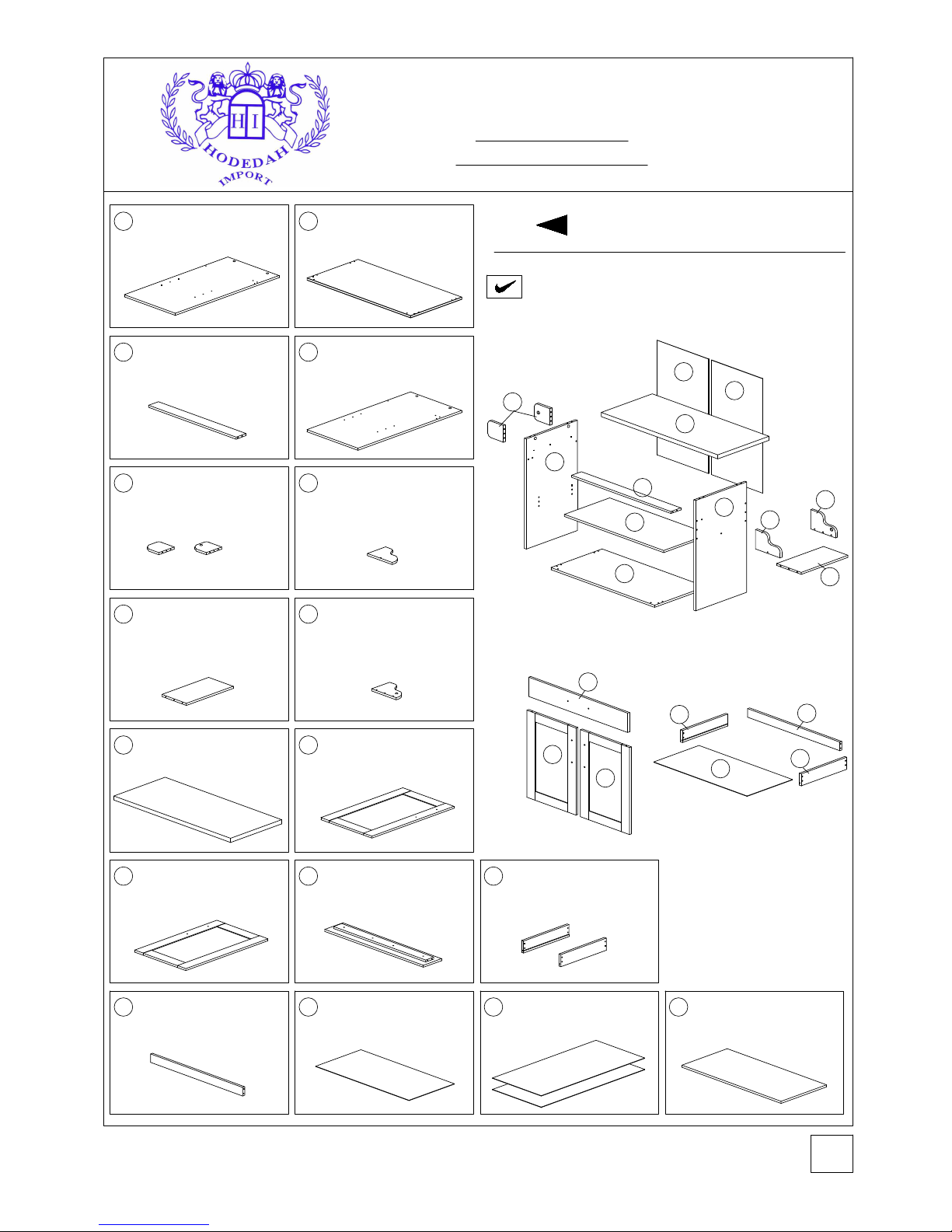

Parts
Left Side Panel
1 pc
800 x 394 x 15mm
ABottom Panel
1 pc
800 x 395 x 15mm
B
D
Back Strengthening Panel
1 pc
767 x 76 x 15mm
C
Small Rack Side Panel
(Left)
1 pc
190 x 140 x 15mm
F
G
Hanger Panels
2 pcs
120 x 120 x 15mm
E
Left Door
1 pc
633 x 379 x 15mm
J
Top Panel
1 pc
900 x 395 x 30mm
I
Drawer Side Panels
2 pcs
350 x 87 x 15mm
M
Right Door
1 pc
633 x 379 x 15mm
K
Drawer End Panels
1 pc
711 x 62 x 15mm
NDrawer Base Panel
1 pc
721 x 350 x 2.5mm
OBack Panels
2 pcs
841 x 396 x 2.5mm
PAdjust Panel
1 pc
766 x 350 x 15mm
Q
Right Side Panel
1 pc
800 x 394 x 15mm
Small Rack Side Panel
(Right)
1 pc
190 x 140 x 15mm
H
Small Rack Base Panel
1 pc
361 x 189 x 15mm
The parts of the product are packed in one box.
There are inner box(es) or package(s) that included components
and accessories required to complete the assembly
I) Main Unit :
II) Door & Drawer :
A
B
C
D
E
F
G
H
I
J
K
L
M
MN
O
P
P
Q

25MM
3
Hodedah
www.hodedah.com
support @hodedah.com

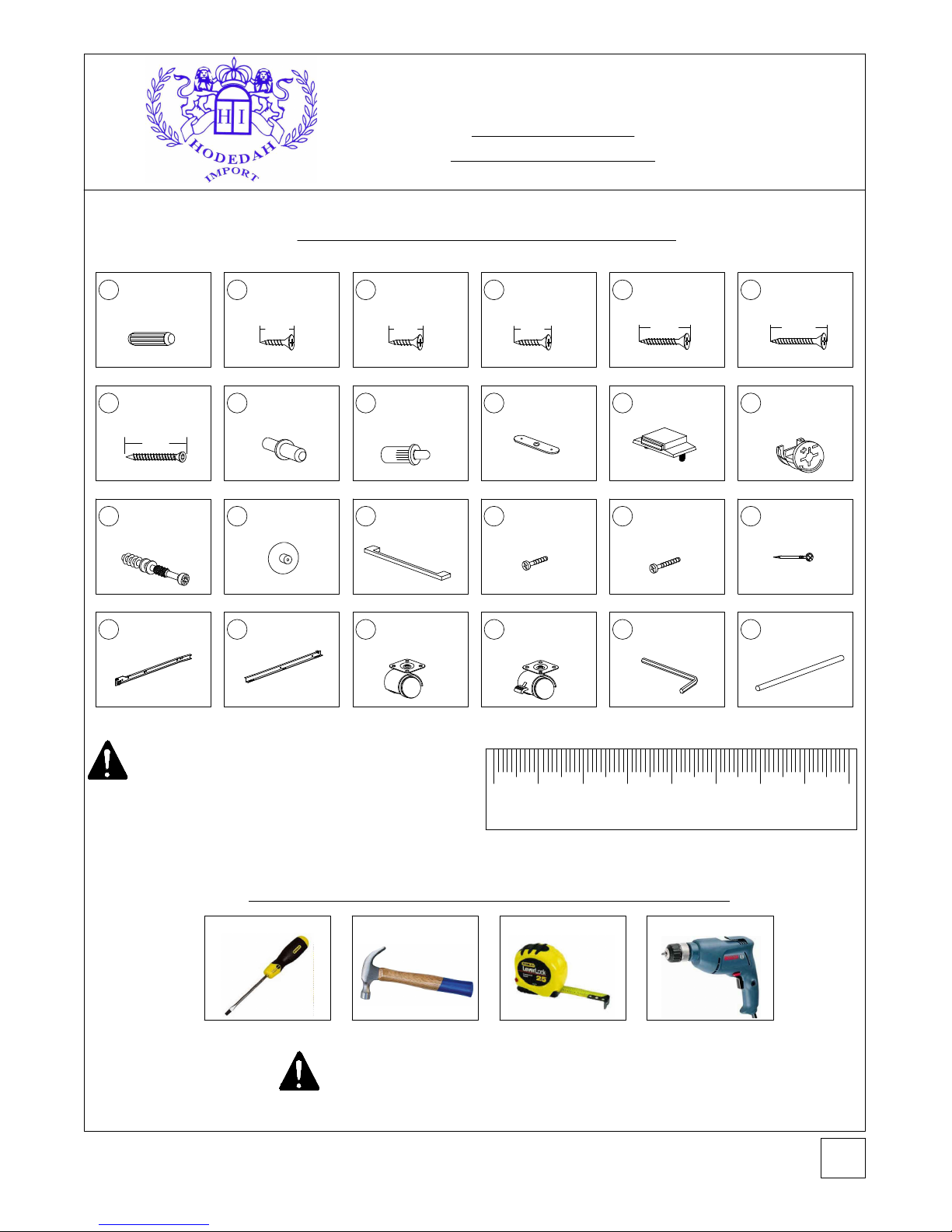

Hardware And Accessories
IMPORTANT
Check the measure of the bolts on the scale below or with
a measuring tape before applying them in the parts
Observe correctly the application and the position of each bolt
accessory, as the step-by-step instructions, before applying
them in the parts.
Plastic Dowel
M8 x 25mm
22 pcs
1CB Screw
M3 x 12mm
2 pcs
2CB Screw
M3.5 x 12mm
12 pcs
3CB Screw
M3.5 x 16mm
16 pcs
4CB Screw
M4 x 25mm
2 pcs
5CB Screw
M4 x 35mm
8 pcs
6
CSK Cap Screw
M6 x 40mm
13 pcs
7Shelf Support
4 pcs
8Door Support
Spring
4 pcs
9Magnet Plate
2 pcs
10 Magnet
2 pcs
11 Minifix 5654
- Housing
4 pcs
12
Minifix 5654
- Screw
4 pcs
13 Pvc Cap
17 pcs
14 Handle 2379
160mm - Pvc
3 pcs
15 P/H Screw
M4 x 24mm
4 pcs
16 17 Nail
40 pcs
18
Drawer Slide - A
350mm
2 pcs
19 Plate Castor
(Without Lock)
2 pcs
21 Allen Key
1 pc
23 Hanging Rod
380mm
2 pc
P/H Screw
M4 x 40mm
2 pcs
* Fix On Side Panels
Drawer Slide - B
350mm
2 pcs
20
* Fix On Drawer Side Panels
Plate Castor
(With Lock)
2 pcs
22 24
12MM 12MM 16MM 35MM
40MM
Required Or Recommended Tools
IMPORTANT !
The required or recommended tools for
assembly are not supplied with the product.
Sample Screwdriver Sample Hammer Sample Measuring Tape Sample Electric Screwdriver
010 20 30 40 50 60 70 70

- This product contains small components, please ensure that they are
kept away from small children.
- THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE
REFERENCE.
STOP
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, email our customer
service. We will gladly ship your replacement parts
FREE of charge.
email us at
[email protected]
For prompt, reliable service; please have your
assembly manual ready.
Need Parts or Assistance?
4
Hodedah
www.hodedah.com
support @hodedah.com

Thank you for purchasing from Hodedah
To learn more about hodedah and our products visit
www.hodedah.com
READ BEFORE BEGINNING ASSEMBLY
- Read each step carefully. It is very important that each step of instruction is performed in the
correct order. If these steps are not followed in sequence, assembly difficulties will occur.
- Make sure all parts are included. Most parts are labeled or stamped on the raw edge.
- Work in spacious area, preferably on a carpet, near the place the unit will be used.
- Do not use power tools to assemble your furniture. Power tools may strip or damage the parts.
HELPFUL HINTS
- Call us if you need assistance.
- Move your new furniture carefully, with two people lift and carry the unit to it's new location.
- Never push, drag or pull your furniture (especially on carpet).
Warranty Information
Hodedah warrants this product to be free from defects in material and workmanship agrees to
remedy any such defect. This warranty covers one year from the date of original purchase. This is
solely limited to be repair or replacement of defective parts and no assembly labor is included.
This warranty does not apply to any product which has been improperly assembled, subjected to
misuse or abuse or which has been altered or repaired in any way.
To obtain warranty, purchaser must present original bill of sale. Components repaired or
replaced warranted through the remainder of the original warranty period only. The defective
components will be repaired or replaced without charge, subject to the terms and conditions
described above.
For help with assembly, identifying parts, product information or to
order parts, please contact us :
Call us at :
718-456-0505
Monday - Friday
9:00am - 5:00pm
Visit our website :
www.hodedah.com
5
Hodedah
www.hodedah.com
support @hodedah.com

6
Hodedah
www.hodedah.com
support @hodedah.com

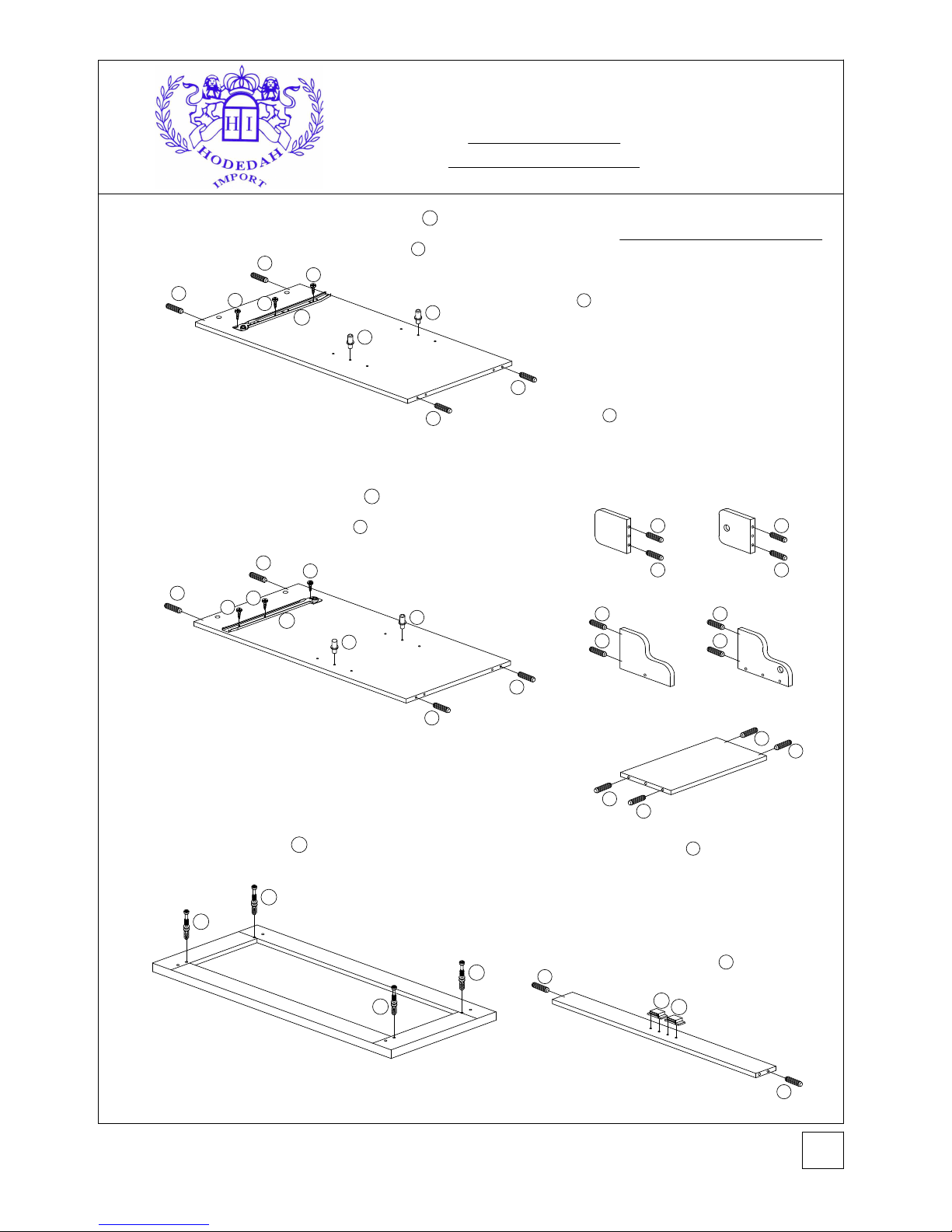

Pre - Assembly
PANEL A
Place the drawer slide A 19 onto the 3
marking area shown at side panel A. Then
tighten it with 3 screw 3 .
Insert the PVC dowels 1 to panel A & D's
non-thru holes as shown, using hammer
gently to tap them in.
Insert 2 shelf support 8 into
panel A & D's non-thru holes as
shown.
3
1
19
8
3
3
1
1
1
8
PANEL D
1
8
1
1
1
8
3
3
3
1
1
PANEL E
1
1
1
PANEL F
1
1
1
PANEL H
11
1
1
PANEL G
1
1
11 11
Insert the 2 magnet 11 to panel C
non-thru holes as shown.
PANEL C
6
Hodedah
www.hodedah.com
support @hodedah.com
Pre - Assembly
Place the drawer slide A 19 onto the 3
marking area shown at side panel D. Then
tighten it with 3 screw 3 .
13
13
13
13
Insert 4 Minifix screw 12 to panel I base
non-thru holes as shown.
PANEL I
19
Insert the PVC dowels 1 to panel C, E, F, G & H's
non-thru holes as shown, using hammer gently
to tap them in.

7
Hodedah
www.hodedah.com
support @hodedah.com

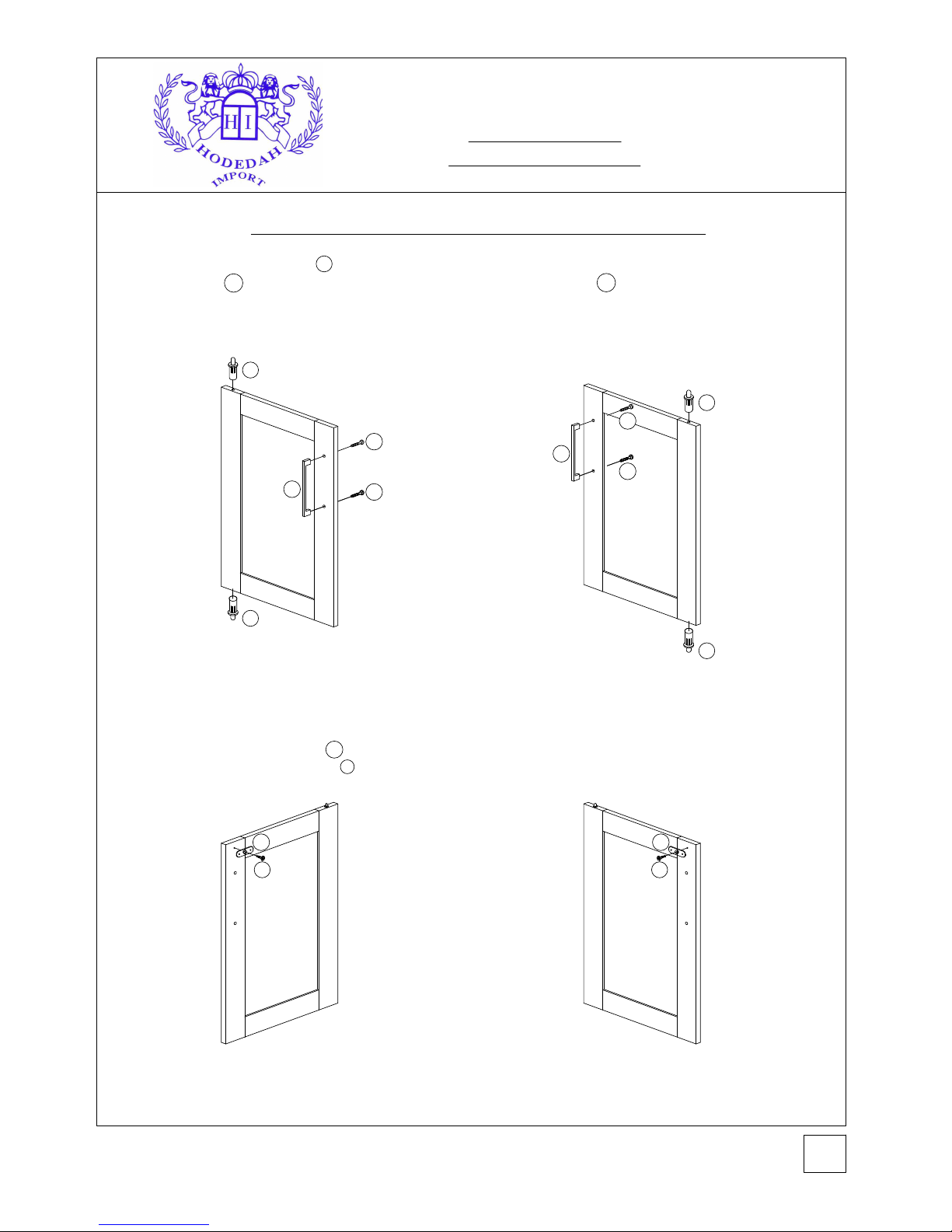

Door Panel Assembly Instruction Step 1
* Insert 2 door support spring 9 into panels J & K's non-thru holes as shown.
* Fix 2 handles 15 into panel J & K's thru holes as shown. Tighten 2 screw 16 from inner side of
panel J & K into the handle holes.
9
9
9
9
15
16
16
16
16
15
10
2
J
J K
10
2
K
Tighten 1 magnet plate 10 to panel J & K
as shown by using 1 screw 2 .

8
Hodedah
www.hodedah.com
support @hodedah.com

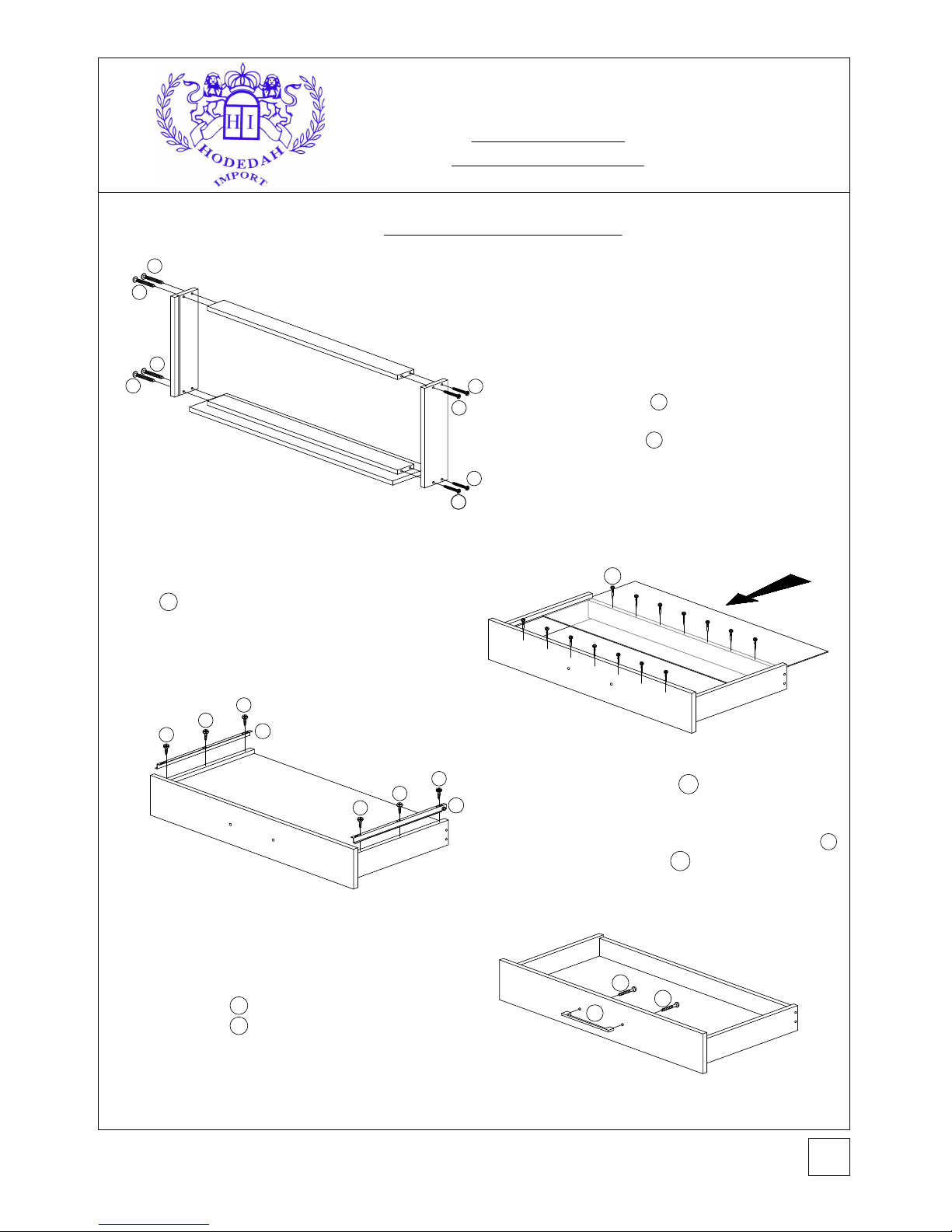

Assembly Of Drawer
- Place Panel M on each side of Panel L as shown.
- Then, tighten screw 6 to Panel M's lower thru
holes to fix them onto Panel L.
- Next tighten screw 6 to Panel M's upper thru
holes to fix up to the Panel N.
MN
M
L
6
6
6
66
6
6
66
( 1 )
18
O
L
M
M
( 2 )
- Flip drawer with bottom side up, place panel O
onto groove at both panel M's. Then, nail the
nails 18 provided with hammer on the border
of panel M as shown. The gap between 2 nails
is about 100mm.
- Place the drawer slide B 20 with the small
white roller facing outward and with other end
tip touching panel L onto each bottok side
(angle) edge of panel M. Then tighten 3 screws 3
on each drawer slide B 20 (as shown).
O
M
L
3
20
20
3
3
3
3
3( 3 )
15
17
17
- Flip the drawer over.
- Tighten 2 screw 17 from inner side of panel L
into the handle 15 holes. L
COMPLETED
( 4 )

9
Hodedah
www.hodedah.com
support @hodedah.com

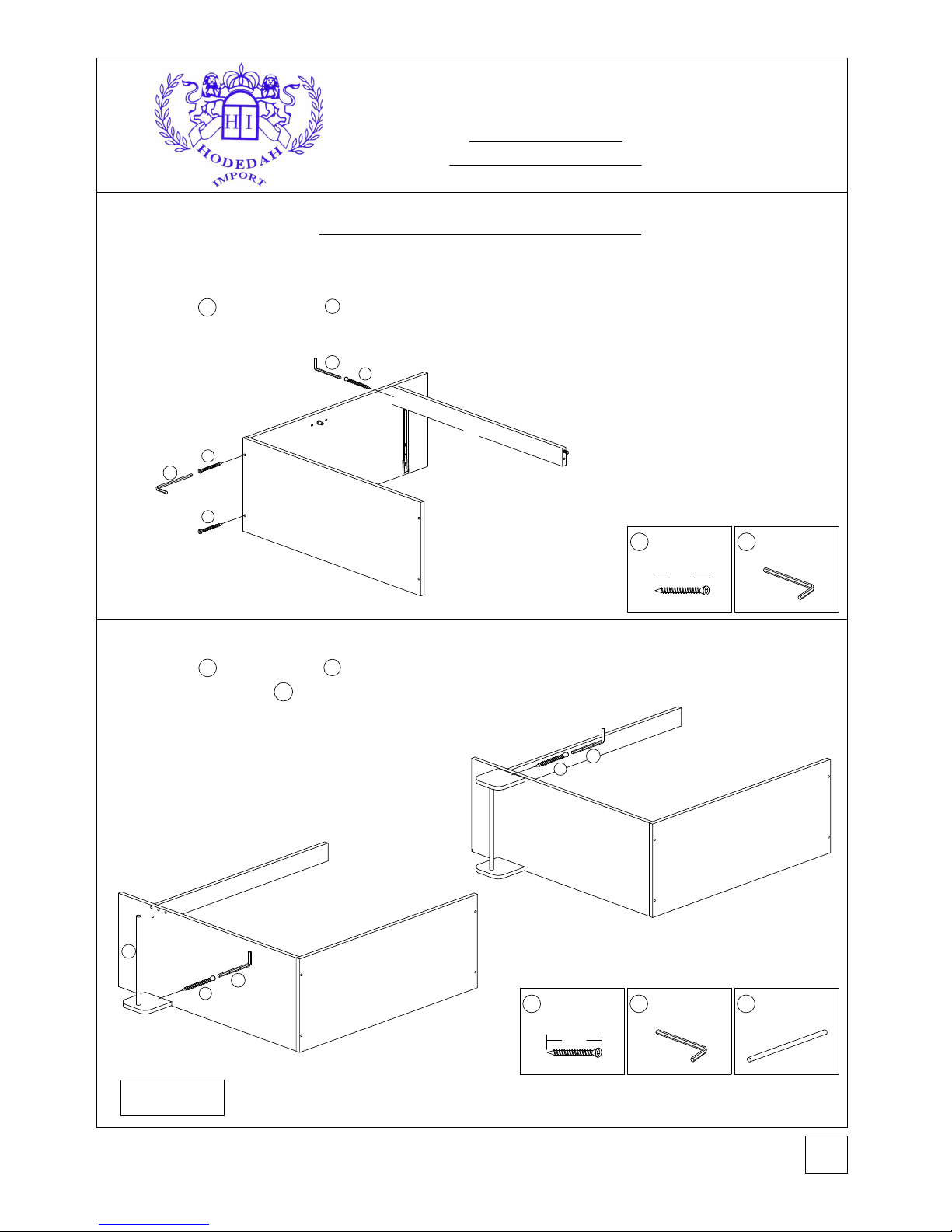

Assembly Instruction Step 1
Fix Panel A onto Panel B by inserting the dowels onto the respective non-thru holes at Panel B.
Next, fix Panel C onto Panel A by inserting the dowels onto the non-thru holes at panel A.
Use allen key 23 to tighten 3 screw 7 from the thru-holes of panel A & B to non-thru hole of Panel B & C, as shown.
A
B
C
23
7
7
7
23
CSK Cap Screw
M6 x 40mm
3 pcs
7Allen Key
1 pc
23
40MM
CSK Cap Screw
M6 x 40mm
2 pcs
7Hanging rod
380mm
1 pc
24
40MM
Allen Key
1 pc
23
Fix Panel E by inserting the dowels onto the respecting non-thru holes at Panel A.
Use allen key 23 to tighten 1 screw 7 from the thru-holes of panel A to non-thru hole of Panel E, as shown.
Next, place 1 Hanging Rod 24 onto non-thru hole at Panel E.
CAUTION When inserting the Dowels to non-thru holes, don't push to hard. Otherwise, the side
panels (A, C & E) may be damage.
E
A
7
23
24
7
23
E
A

10
Hodedah
www.hodedah.com
support @hodedah.com
Assembly Instruction Step 2
Fix Panel B & C onto Panel D by inserting the dowels onto the respective non-thru holes at Panel D.
Use allen key 23 to tighten 3 screw 7 from the thru-holes of panel B & D to non-thru hole of Panel A & C, as shown.
CSK Cap Screw
M6 x 40mm
3 pcs
7Allen Key
1 pc
23
40MM
CSK Cap Screw
M6 x 40mm
2 pcs
7Hanging rod
380mm
1 pc
24
40MM
Allen Key
1 pc
23
Fix Panel G by inserting the dowels onto the respecting non-thru holes at Panel H.
Use allen key 23 to tighten 1 screw 7 from the thru-holes of panel H to non-thru hole of Panel G, as shown.
Next, place 1 Hanging Rod 24 onto non-thru hole at Panel H.
Then, fix Panel G by inserting the dowels onto the respecting non-thru holes at Panel F.
Use allen key 23 to tighten 1 screw 7 from the thru-holes of panel F to non-thru hole of Panel G, as shown.
CAUTION When inserting the Dowels to non-thru holes, don't push to hard. Otherwise, the side
panels (C, D & G) may be damage.
7
7
23 7
23
7
23
BD
C
7
23
H
G24
F

11
Hodedah
www.hodedah.com
support @hodedah.com
Assembly Instruction Step 3
Fix the completed assemble of Panel F, G & H onto Panel D by inserting the dowels onto the respective non-thru holes
at Panel D.
Using Allen key 23 to tighten 3 screw 7 from the 3 thru holes of Panel D, one by one.
CAUTION When inserting the Dowels to non-thru holes, don't push to hard. Otherwise, the side
panels (F & H) may be damage.
7
7
23
7
CSK Cap Screw
M6 x 40mm
3 pcs
7Allen Key
1 pc
23
40MM

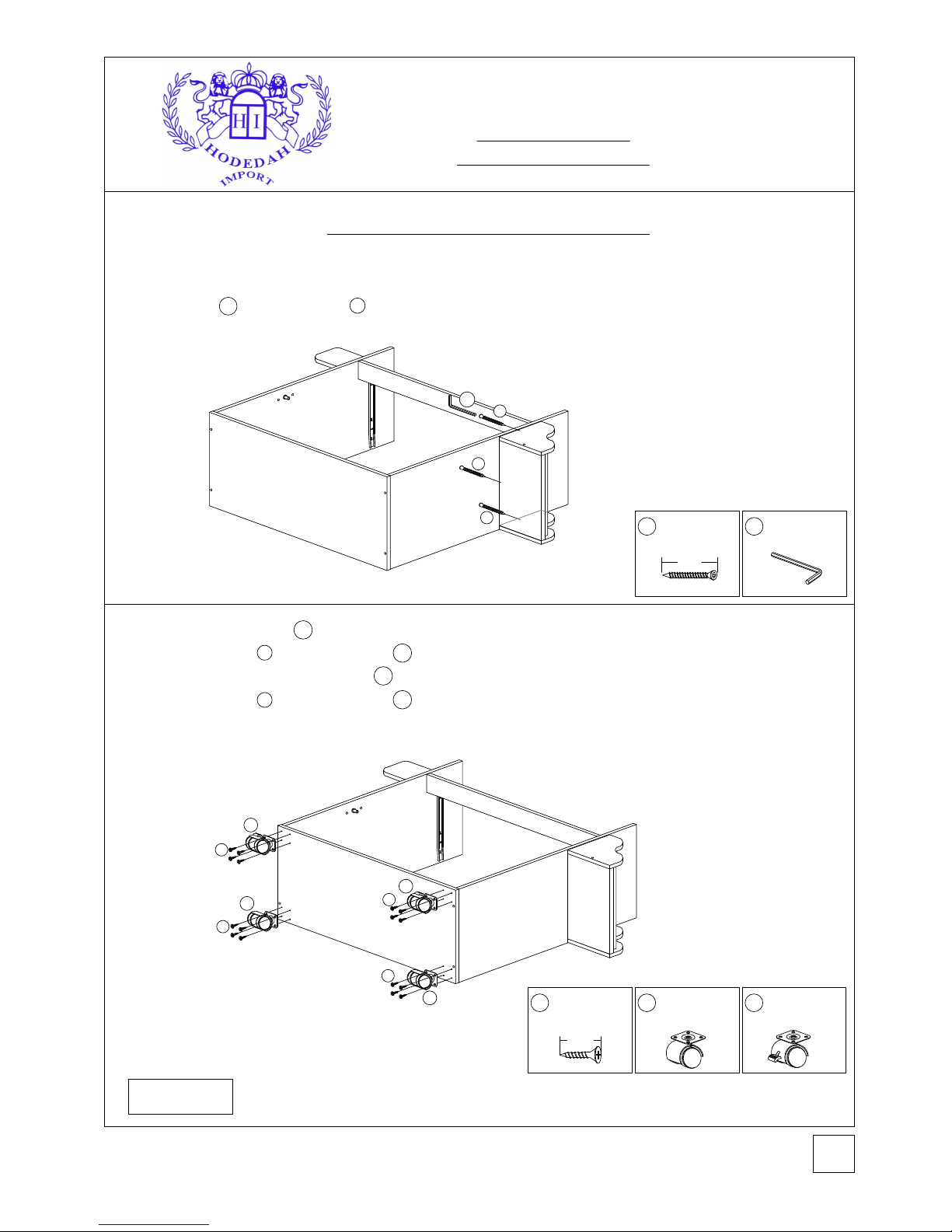

Place 2 Plate castor with lock 22 onto front side of Panel B.
Then, tighten 4 screws 4 for each Plate castor 22 to Panel B.
After that, place 2 Plate castor without lock 21 onto back side of Panel B.
Then, tighten 4 screws 4 for each Plate castor 21 to Panel B.
F
G
H
Plate Castor
(Without Lock)
2 pcs
21
4CB Screw
M3.5 x 16mm
12 pcs
D
Plate Castor
(With Lock)
2 pcs
22
16MM
22
4
22
21
4
21
4
4
Hodedah
www.hodedah.com
support @hodedah.com
Assembly Instruction Step 3
Fix the completed assemble of Panel F, G & H onto Panel D by inserting the dowels onto the respective non-thru holes
at Panel D.
Using Allen key 23 to tighten 3 screw 7 from the 3 thru holes of Panel D, one by one.
CAUTION When inserting the Dowels to non-thru holes, don't push to hard. Otherwise, the side
panels (F & H) may be damage.

12
Hodedah
www.hodedah.com
support @hodedah.com
Assembly Instruction Step 4
Lift up the main unit carefully and let it stand up properly.
Fix Panel I onto Panels A & D. Align properly by inserting the dowel of Panel A & D onto non-thru holes of Panel I.
Pushing & light tapping of Panel I to have Panel I, Panel A & panel D fix tightly.
Insert 4 Minifix housing 12 onto non-thru holes at Panel A & D.
Use Allen key 23 to tighten 4 minifix 12 housing from the non-thru holes of Panel A & D.
Minifix 5654 -
Housing
4 pcs
Allen Key
1 pc
2312
Place 2 Back Panels O onto back of the main unit. Then, align them properly for nailing.
Then, use hammer to nail the 47 nails 18 one by one at centre of 4 side edges. Gap between 2 nails should be about 100mm
for all.
Nail
26 pcs
18
Hammer
23
12
12
12
12
18
O
AD
P
P

13
Hodedah
www.hodedah.com
support @hodedah.com
Assembly Instruction Step 5
Put adjusting panels Q onto shelf supports as shown.
Take Drawer and slide them (the white rolles at drawer slide at both side of drawers are to go into the track of the slides at
each side panel) all the way gently.
Q
Insert Door fitting 9 at the lower of Door Panel J onto the non-thru hole at the Panel B.
Then, push the door fitting 9 at the upper of Door panel J & insert the door fitting onto the non-thru hole at the Panel B.
Repeat same step for the Door Panel K.
9
9
9
J
K
L
Pvc Cap
17 pcs
14
14
Cover all thye screw 7 and
minifix housing 12 's head
with Pvc cap 14 provided by
pushing cover's stem onto the
hole of screw heads one by
one for all screws.

14
Hodedah
www.hodedah.com
support @hodedah.com
Completion
In the interest of our environment please dispose of all packaging thoughtfully.
