MEGASPIN 420 –SPLIT FUNCTION, TO HIDE THE WEIGHTS BEHIND THE SPOKES

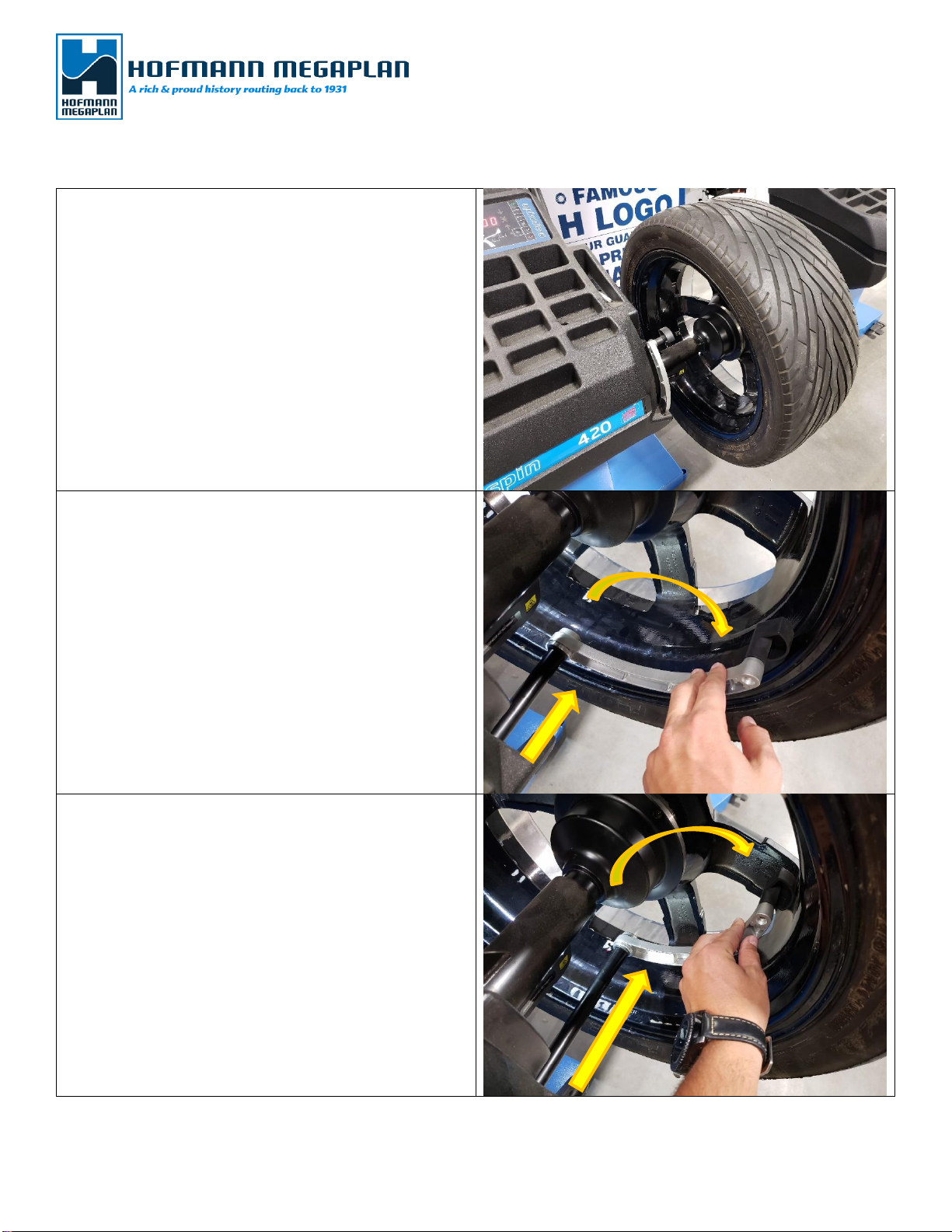

PLACE THE WHEEL ON THE BALANCER MAKING SURE TO
USE THE CORRECT CONE SIZE AND LOCK THE WINGNUT
TIGHT
PUSH THE ARM IN THE FIRST POSITION (WHERE THE
FIRST STICK-ON WEIGHT WILL BE PLACED)
PUSH THE ARM FURTHER TO THE SECOND POSITION
(WHERE THE SECOND STICK-ON WEIGHT WILL BE
PLACED)

DO NOT RETURN THE ARM IN RESTING POSITION BEFORE
GETTING BOTH PLACEMENTS

FM07-18 2
5800 Massachusetts Ave.,
Indianapolis, IN 46218
[phone]
[e-mail]
THE MACHINE RECOGNIZES AUTOMATICALLY THAT WE
ARE TRYING TO BALANCE AN ALUMINUM WHEEL
BRING THE ARM BACK TO ITS STARTING POSITION
CLOSE THE HOOD TO SPIN THE WHEEL

FM07-18 3
5800 Massachusetts Ave.,
Indianapolis, IN 46218
[phone]
[e-mail]
AT THE END OF THE SPIN OPEN THE HOOD AND ROTATE
MANUALLY THE WHEEL IN THE OUTSIDE ANGULAR
POSITION
PRESS AND HOLD THE SPLIT BUTTON
ROTATE MANUALLY THE WHEEL UNTIL THE LASER IS
BEHIND THE FIRST SPOKE.
RELEASE THE BUTTON.

FM07-18 4
5800 Massachusetts Ave.,
Indianapolis, IN 46218
[phone]
[e-mail]
ROTATE MANUALLY THE WHEEL UNTIL THE LASER IS
BEHIND THE SECOND SPOKE.
PRESS THE SPLIT BUTTON ONCE TO CONFIRM
PLACE THE INDICATED WEIGHT BEHIND THE SECOND
SPOKE
ROTATE MANUALLY THE WHEEL IN POSITION BEHIND THE
FIRST SPOKE AND PLACE THE INDICATED WEIGHT.

FM07-18 5
5800 Massachusetts Ave.,
Indianapolis, IN 46218
[phone]
[e-mail]
ROTATE MANUALLY THE WHEEL IN THE INSIDE POSITION
PLACE THE STICK-ON WEIGHT IN THE CORRECT
POSITION USING THE LASER DOT.THE LASER DOT
NEEDS TO BE PLACED CENTERED,ON THE INNER SIDE
OF THE WHEEL WEIGHT.
CLOSE THE HOOD TO SPIN THE WHEEL

FM07-18 6
5800 Massachusetts Ave.,
Indianapolis, IN 46218
[phone]
[e-mail]
WHEEL BALANCED
