Hoggi SHARKY Operating instructions

EN
SHARKY
Service instructions

Servic instructions for toilet wheelchair SHARKY
1 Model identication & basic conguration
 1.1 Model identication (label)_____________________________________________________ 4
 1.2 Basic conguration __________________________________________________________ 4
2 Overview SHARKY
 2. Overview __________________________________________________________________ 5
3 Common information
 3.1 Preface ___________________________________________________________________ 6
 3.2 Material information__________________________________________________________ 7
 3.3 Application_________________________________________________________________ 7
 3.4 Declaration of conformity______________________________________________________ 7
 3.5 Terms of warranty ___________________________________________________________ 7
 3.6 Service and repairs __________________________________________________________ 8
 3.7 customer services ___________________________________________________________ 8
 3.8 Packing and shipping instructions _______________________________________________ 8
4 Safety instructions
4.1 Meaning of symbols _________________________________________________________ 9
4.2 Common safety instructions ___________________________________________________ 9
5 Required tools and maintenance schedule
 5.1 Required tools _____________________________________________________________ 10
 5.2 Maintenance schedule ____________________________________________________11-12
6 Seat settings
 6.1 Seat height _______________________________________________________________ 13
 6.2 Tilt in space _______________________________________________________________ 13
 6.3 Seat depth ________________________________________________________________ 14
 6.4 Seat width ______________________________________________________________15-16
 6.5 Back angle adjustment ____________________________________________________16-17
 6.6 Detachable foot rest hanger __________________________________________________ 17
 6.7 Foot rest system _________________________________________________________18-20
 6.8 Folding with seat unit______________________________________________________20-21
 6.9 Detaching seat unit _______________________________________________________21-23
 6.10 Detachable arm rest with height adjustment ______________________________________ 23
7 Maintenance schedule
 7.1 Seat unit _________________________________________________________________ 24
 7.2 Back unit _________________________________________________________________ 25
 7.3 PU-side pads______________________________________________________________ 25
 7.4 Shower- and Toilet base ___________________________________________________25-27
 7.5 wheels ___________________________________________________________________ 27
 7.6 pushbar __________________________________________________________________ 27
 7.7 Foot rest system ___________________________________________________________ 28
 7.8 head rest system ___________________________________________________________ 29
 7.9 Lateral pads_______________________________________________________________ 29
 7.10 Belt systems ______________________________________________________________ 30

 7.11 Arm rests _________________________________________________________________ 31
 7.12 Therapy table _____________________________________________________________ 31
 7.13 Abduktion block ____________________________________________________________ 32
 7.14 Toilet bucket ______________________________________________________________ 32
 7.15 Bathtub subframe __________________________________________________________ 33
 7.16 Toiletadapter ______________________________________________________________ 33
8 Exchange of wearing parts
 8.1 wheels ___________________________________________________________________ 34
 8.2 Seat- and back pads ________________________________________________________ 34
9 Operating life
 9. SHARKY operating life ______________________________________________________ 35
10 Specications
 10. SHARKY Specications _____________________________________________________ 35

4
1 Model identication
1.1 Model identication (label)
 The SHARKY label is is mounted on the bottom right frame of the mobility base
Hoggi GmbH
Eulerstr. 27
56235 Ransbach-Baumbach
MADE IN GERMANY
(01)04047349096062(21)202178999
3401-2000-022
SHARKY
Gr. 1
2021178999
2021/04/30
max. load
60kg
Hoggi GmbH
Eulerstr. 27
56235 Ransbach-Baumbach
MADE IN GERMANY
(01)04047349096062(21)202178999
3401-2000-022
SHARKY
Gr. 1
2021178999
2021/04/30
max. load
60kg
Hoggi GmbH
Eulerstr. 27
56235 Ransbach-Baumbach
MADE IN GERMANY
(01)04047349096062(21)202178999
3401-2000-022
SHARKY
Gr. 1
2021178999
2021/04/30
max. load
60kg
CE-label
Article number
size / Type
Serial number
Classication / Product name
Year of manufacture
Manufacturer
Place of manufacture
Maximum load /
load capacity
1.2 Basic conguration
Mobility base
- compact foldable
- height adjustable, override toilet height 43-52 cm
- Tilt in space (seat angle) -10° bis 45°
Seat unit
- detachable (quick release)
- PU-pads back, seat and hip support
- closable hygiene insert
- back angle adjustable, foladble and detachable
size 1:
- seat width 24, 27, 30 cm
- seat depth 27-36 cm
- back height 42 cm
- back rest angle 72-120°
- max. load: 60 kg
size 2 in planning
UDI Code
Colour code

5
2 SHARKY Overview
1
2
3
4
5
1. Back unit
2. Seat unit
3. Mobility base
4. Foot rest system
5. wheels

6
3 Common Information
3.1 Preface
Thank you for selecting the SHARKY toilet wheelchair We have designed this high-quality
product to make your life safer and easier, and we’ve included this manual to help you use
and care for it.
Please read the following instructions to make sure you use this product as recommended. If
you have any further questions, or if you have any problems, please contact your healthcare
provider.
We hope that SHARKY meets your expectations.
We reserve technical modications regarding the specied model in this manual. Before
using the rehab pushchair the rst time, this manual has to be read and understood by
patient and support personnel in oder to ensure asafe handling with the rehab pushchair.
Regular maintenance is important -it increases safety and prolongs the life of the product.
Every rehab product should be checked and serviced once ayear.
However, it is recommended to check, readjust and, if necessary, service products with
ahigh frequency of use, with users in growth or users with achanging clinical picture at
6-month intervals.
Only original spare parts should be used for all service and maintenance work.
The service and maintenance work described here should only be carried out by trained
specialist personnel and not by the user of the aid.
These service and maintenance instructions refer to the respective spare parts catalogs and
operating instructions of the products described. Please use all documents together.
Use the maintenance schedule (Chapter 5.2, Checklist to tick off) as acopy template.
Retain completed maintenance schedules and provide acopy to the customer.
SHARKY instruction manual 1910-0050-EN
SHARKY  Spare parts catalogue 1910-1050-EN
3.2 Material information
The standard and production parts used in SHARKY (screws, nuts, washers, bolts, etc.)
are made of stainless steel. Underframes and other frame construction are made of
powder-coated aluminum and stainless steel.
Seat and back surfaces, as well as side panel cover and grid handles are injection molded
from a plastic material. Corresponding upholstery parts are made of ame retardant,
waterproof polyurethane foam.
Neoprene is additionally used for the strapping systems.

7
3.3 Application
SHARKY toilet wheelchair for children is used for indoor and daily use in the wet area. It
serves children and adolescents with a decit in sitting and standing up for individual use
in daily care/hygiene or toilet training.
Different bases ensure a variety of uses such as use as a commode chair, commode
attachment, bathtub insert or mobile positioning option for daily personal hygiene.
Assistance may be required due to:
• Atypical muscle tone     • Joint contractures  
• Loss of limbs (dysmelia/lower limb amputation) • Joint defects
• Limb defect and / or deformity    • General weakness
- There are no known contraindications when used as intended
The SHARKY toilet wheelchair is able to be used indoor as well as for further service.
For further service the product has to be cleaned and sanitised efciently. Afterwards the
product has to be checked concerning condition, wearout and damage by an authorised
technician. All damaged and inapropptiate parts need to be changed.
Please see also the service manual for detailled information.
3.4 Declaration of conformity
HOGGI GmbH as manufacturer declares under sole responsibility that the rehab-push-
chair for kids and adolescents
SHARKY meets the general safety and performance requirements to Annex I of the
Regulation (EU) 2017/745 of the European Parliament and of the Council. Harmonised
European Standards have been applied. Applicable harmonized standards hav e been
applied. SHARKY meets the requirements of ISO 7176-8, DIN EN ISO 12182 and DIN EN
ISO 12183.
3.5 Terms of warranty
Warranty applies only when the product is used according to the specied conditions and
for the intended purposes, following all manufacturer’s recommendations.The
manufacturer is not responsible for damages caused by components and spare parts not
approved by the manufacturer. See also § 8 of terms and conditions on: www.hoggi.de

8
3.6 Service and repairs
Service and repairs on the SHARKY toilet wheelchair may only be carried out by your
specialist dealer. In case of problems, contact your responsible specialist dealer. In case of
repairs, you will only receive original spare parts there. Spare parts and replacement units
are available during the entire service life of the product, but only for a maximum of 2
years after the sale of the last product in this series.
The toilet wheelchair is custom made for the rst time user. Therefore, no replacement
wheelchair is available in the initial conguration. In order to ensure a correct spare parts
delivery the serial no. of your toilet wheelchair is required.
We are happy to help you nd a dealer close to you.
You can reach us at: [email protected]
3.7 Customer service
Our customer service will be happy to answer any technical questions you may have.
Please refer to the last page for contact addresses and telephone numbers.
3.8 Packing and shipping instructions
If SHARKY has to be sent back to the manufacturer for repair or exchange, the product
must be thoroughly cleaned/disinfected beforehand and put in a hygienically safe
condition.
Packaging is done by wrapping the product in a clean lm, ideally with air cushions and
the subsequent use of a sufciently large cardboard box, so that no transport damage can
occur.

9
4 Safety instructions
4.1 Meaning of symbols
Caution!
Warning of possible danger of accident and injury. Warning of possible technical
damage.
Information!
About use of product.
Information!
For service-personnel.
Attention!
Read manual before use!
4.2 Common safety instructions
For all maintenance and repair work, you should generally observe afew points:
Attention!
Familiarize yourself with the functions of the product. If you are not familiar with the
product, study the user manual before testing. If no user mauals are available, request
them from us. You can also download documents from our homepage at: www.hoggi.de
Attention!
Study the service and maintenance instructions before starting work.
Attention!
Use suitable tools (see page 4 ff.).
Attention!
Wear suitable clothing and, if necessary, gloves and protective goggles.
Attention!
Secure the product from tipping over or falling down, e.g. from the workbench.
Attention!
Clean / disinfect the product before starting the test. If necessary, observe the instructions
in the user manual and product-specic test instructions.
Note!
Screws and nuts with thread locking are used for alarge number of screw connections.
If you have to open such screw connections, replace the respective nut or screw with
one with new thread locking. If new nuts or bolts with thread locking are not available,
use liquid thread locking compound with medium strength (e.g. Loctite 241 or Euro Lock
A24.20).

10
5Required tools and maintenance schedule
5.1 Required tools
The following list shows the tools and utilities required for service.
Reversible ratchet and sockets
size 8-24
Torque wrench
Measuring ranges 5-50 Nm
Wrench
Size 6-24
Hexagon wrench
Gr. 3-6
Screwdriver
Blade width 2.5 3.5 and 5.5
Phillips screwdriver
Size 2
Plastic hammer Hammer approx. 300 gCarpet knife with sickle and
standard blade
Side cutter Liquid thread locking
„medium strength
Riveting pliers for rivets up to
5mm

11
Maintenance schedule SHARKY
Toilet wheelchair
Customer:
...............................................
Pos. Area Check(Checklist to tick off )
Serial number:
.......................................
1.)
Function / setting
(like manual)
2.)
none
damage / defor-
mation
3.)
Screw connections
1. Basic product
1.1 Seat unit - Seat adjustments
- Detaching/Attaching/Locking
- Pads (Fixation / Hygiene)
o
o
o
o
o
o
o
1.2 Back unit - Back rest adjustment
- Detachable back
- Pads (Fixation / Hygiene)
o
o
o
o
o
o
o
o
o
1.3 PU-side pads - Seat width
- Hygiene
o
o
o
1.4 Mobility base - Height adjustment
- tilting unit
- Foldable
o
o
o
o
o
o
o
o
o
1.5 Wheels -Brakes
- Swivelling
- Running
o
o
o
o
o
o
o
Notes:
5.2 Checklist Maintenance schedule

12
1.)
Function / setting
(like manual)
2.)
none
damage /
deformation
3.)
Screw
connections
2. Accessories
2.1 Pushbar - Wearing off
- Fixation
o
o
o
oo
2.2 Foot rest system - Angle adjustment
- Detaching / Attaching
- Foot board angle- / Height adjustment
o
o
o
o
o
o
o
o
o
2.3 Head rest system - Height adjustment
- Angle adjustment
- Pads
o
o
o
o
o
o
o
o
o
2.4 Thoraxpelotten - Pads
- Mechanism (swing / height adjusment)
o
o
o
o
o
o
2.5 Belt systems
lap belt, Breast-shoulder harness,
Pelvic retraction belt,
Anklehuggers, Calf support
- Buckles
- Hygiene
o
o
o o
2.6 Arm rests - Height adjustment
- Pads
- Hygiene
o
o
o
o
o
o
2.7 Therapy table - Clamping o o o
2.8 Abduktion block & Splash guard - Fixation
- Pads
- Hygiene
o
o
o
o
o
o
2.9 Toilet bucket - Fixation
- Bucket
- Hygiene
o
o
o
o
o
o
2.10 Bath subframe - Suction cups
- Fixation
o
o
o
o
o
o
2.11 Toilet adapter - Fixation o o o
Do the settings on the base frame
meet the user‘s requirements? o
Notes:
Maintenance was performed by: .............................................................. on: ......................................

13
6. Seat adjustments
6.1 Seat height
The seat height of SHARKY is adjusted by means of the engaging
leverson on the telescopic tubes. By sliding the tube up and
down on the support strut, an adjustment range of 43-52 cm is
achieved in 4steps.
The height adjustment must not be operated during use with the
child!
Seat height:
high
Sear
height:
low

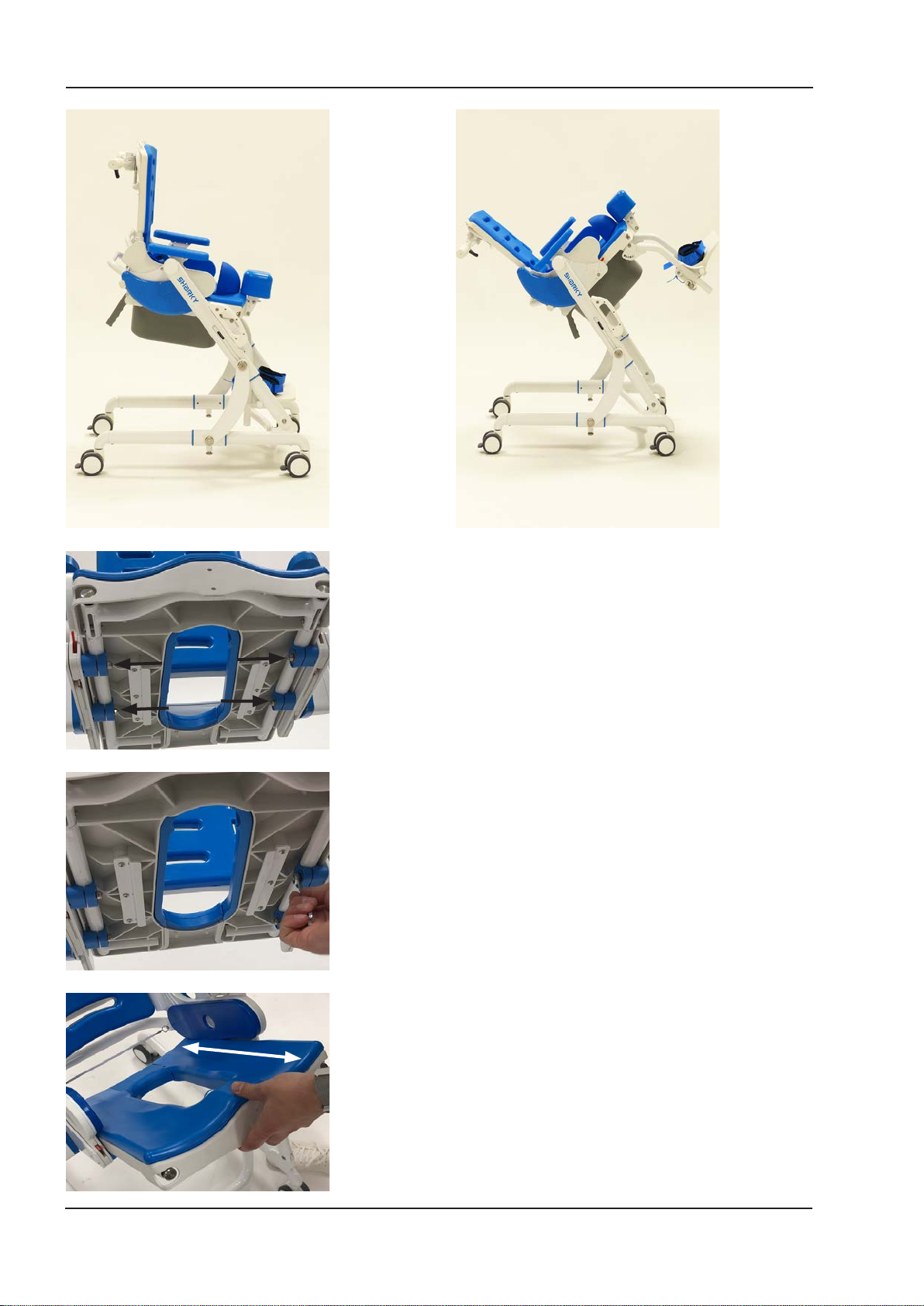

6.2 Tilt in space
SHARKY offers tilt in space from -10° to +45°.
12 positions of approx. 4.5° each can be individually adjusted.
Tilt is engaged by alocking bolt cable on the rear side.
SHARKY offers seat angle adjustment from -10° to +45°.

14
TIS:
Maximum
+45°
TIS
Minimum -10°
6.3 Seat depth
The seat depth of SHARKY is adjusted by loosening the 4 marked screw
connections under the seat surface.
The adjustment range is 27-37 cm.
The M6 nuts are loosened briey with a suitable socket or wrench.
The seat plate can now be moved forward or backward.
Tighten the screws again and make sure that the seat plate can no
longer be moved!

15
6.4 Seat width
The seat width of SHARKY is changed by replacing the side pads.
There are 3 different sizes. Thus, the following seat widths can be
realized with the different seat unit sizes:
Size 1: 24, 27, 30 cm
Size 2: 29, 32, 35 cm
The side pads can be easily removed from the holder.
To attach another pad, pull it over the edge of the retaining plate by
sliding it on from the front.
Seat width 30 cm
Seat width 27 cm

16
Seat width 24 cm
6.5 Back angle adjustment
SHARKY offers back angle adjustment from 72° to 120°.
8positions of approx. 6° each can be individually adjusted
The angle adjustment is triggered by alocking bolt cable on the rear
side.
For asmall folding size, the back can be folded down completely.
Minimum angle ~72°

17
Maximum angle ~120°
6.6 Detachable back
Via the two snap buttons on the rear side, the back unit can be
removed.
Press in the pins with your thumbs.
Remove the back unit upwards from the holder.
To reinsert the back unit, simply push it back into the holder and let it
snap into place.

18
Footrest angle
-The footboard angle can be adjusted by loosening the screw
connection and moving it in the slotted hole of the bracketbetween
80° and 100°.
-The footboard can be swivelled upwards with the help of alocking bolt
under the footboard.
Loosen the wing nut.
Adjustment for short lower leg lengths.
Adjustment for large lower leg lengths.
6.7 Footrest system
Lower leg leght:
The lower leg length is adjusted by loosening the wing screws on the
footrest bearing and then moving the footrest vertically on the frame.

19
Footrest hanger
The knee angle can be adjusted between 78° and 138° via alocking
bolt under the front edge of the seat plate.
Strongly angled
Medium setting
Removing and attaching the footrest
The smallest knee angle must not be preset for removing and attaching
the footrest!
It is recommended to tilt the seat to 45° beforehand!
Tighten the two heads of the tension catches with your index ngers.
Secure the footrest to the bars with your hands.
Straight angle
Push the footrest towards the rear so that the holder comes out of the
slots.

20
Remove footrest
To hook in, insert the footrest back into the slots.
Make sure that the eyelets are hooked behind the locking shafts of the
seat frame.
Finally, swing the footrest forwards again until you hear the catches click
into place.
6.8 Folding with seat unit
SHARKY can also be folded easily with the seat unit integrated.
The folding process should not be carried out in the lowest seat
position, as this can lead to collisions and damage to the mobility
base.
