Home Decorators Collection EDENFIELD Series User manual

THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this Avondale Grove
collection electric fireplace media mantel. We strive to continually create quality products designed to enhance your home. Visit us online
to see our full line of products available for your home improvement needs. Thank you for choosing Home Decorators Collection!
Model # 239-118-165-Y
# 239-118-121-Y
# 239-118-48-Y
Item # 1003063516
# 1003063510
# 1003063513
USE AND CARE GUIDE
EDENFIELD COLLECTION: ELECTRIC FIREPLACE MEDIA MANTEL
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
04-19-2018
IMPORTANT INSTRUCTIONS
PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING APPLIANCE
WARNING!
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, AN ELECTRICAL SHOCK OR FIRE MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

2
Table of Contents
1-YEAR WARRANTY
WHAT IS COVERED
The manufacturer warrants that your new electric replace is free from manufacturing and material defects for a period of one year from
date of purchase, subject to the following conditions and limitations.
This electric replace must be installed and operated at all times in accordance with the instructions furnished with the product. Any
alteration, willful abuse, accident, or misuse of the product shall nullify this warranty. This warranty is non-transferrable, and is made to the
original owner, provided that the purchase was made through an authorized supplier of the manufacturer. This warranty is limited to the
repair or replacement of part(s) found to be defective in material or workmanship, provided that such part(s) have been subjected to normal
conditions of use and service, after said defect is conrmed by the manufacturer’s inspection. The manufacturer may, at its discretion, fully
discharge all obligations with respect to this warranty by refunding the wholesale price of the defective part(s).
WHAT IS NOT COVERED
Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s), repair, replacement,
or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume responsibility for same. Further, the
manufacturer will not be responsible for any incidental, indirect, or consequential damages, except as provided by law.
All other warranties - expressed or implied - with respect to the product, its components and accessories, or any obligations/liabilities on
the part of the manufacturer are hereby expressly excluded. The manufacturer neither assumes, nor authorizes any third party to assume,
on its behalf, any other liabilities with respect to the sale of this product. The warranties as outlined within this document do not apply to
nonmanufacturer accessories used in conjunction with the installation of this product.
This warranty does not cover the lightbulb(s) included with the replace.
This warranty is void if: the replace has been operated in atmospheres contaminated by chlorine, uorine, or other damaging chemicals;
the replace is subjected to prolonged periods of dampness or condensation; the replace is altered, willfully abused, damaged by accident,
or misused in any way.
If warranty service is needed, contact the Customer Service Team at 1-800-986-3460 from 8 a.m. - 7 p.m., EST, Monday-Friday,
9 a.m. - 6 p.m., EST, Saturday or visit www.homedepot.com/homedecorators.
Make sure you have your warranty, your sales receipt, and the model/serial number of your product.
DO NOT ATTEMPT TO DO ANY SERVICE WORK YOURSELF.
Warranty
Table of Contents....................................2
Warranty ..........................................2
Pre-Assembly ......................................3
Planning Assembly .................................3
Tools Required ....................................3
Hardware Included .................................3
Package Contents..................................4
Assembly ..........................................5
Care and Cleaning ..................................11
Shelf Weight Capacity ...............................11
Service Parts ................................... 11-12
Troubleshooting....................................13
This Product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California
to cause cancer and developmental harm.
For more information go to www.p65Warnings.ca.gov
WARNING

3
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
Pre-Assembly
Part Description Quantity
AA Bolt 26 + 2 extra
BB Dowel 4 + 1 extra
CC Knob 2
DD Back Panel Screw 32 + 6 extra
EE Hinge 4
FF Shelf Pin 16 + 2 extra
GG Hinge Screw 8
GGFFEEDDCCBBAA
PLANNING ASSEMBLY
Before you begin assembly, locate the instructions and hardware. Compare all parts with the Hardware Included and Package Contents
lists. Be sure you have all the parts and can identify them. A helping hand is always good. Assemble your mantel with an adult assistant if
possible. Some pieces are heavy and will need to be held by a helper. Assembly time will take approximately 30-60 minutes.
Before assembly, use scissors to unwrap the parts from the packaging. Do not use a box cutter or exacto-knife, as you may cut into the
mantel pieces inside the box and damage the nish. Check for the red hardware bag located inside the packaging. Do not discard any
pieces. Use an appropriate screwdriver to insert and tighten all screws.
TOOLS REQUIRED
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Safety goggles Phillips screwdriver

4
Part Description Quantity
A Top Panel 1
B Base Panel 1
C Media Shelf 1
D Side Panel 2
E Adjustable Shelf 4
F Left Inside Panel 1
G Right Inside Panel 1
Part Description Quantity
H Cabinet Door 2
J Side Back Panel 2
K Upper Back Panel 1
LTop Trim 1
MLeft Trim 1
NRight Trim 1
Pre-Assembly (continued)
A
D
D
J
J
K
L
M
B
E
E
E
E
F
G
H
H
N
C

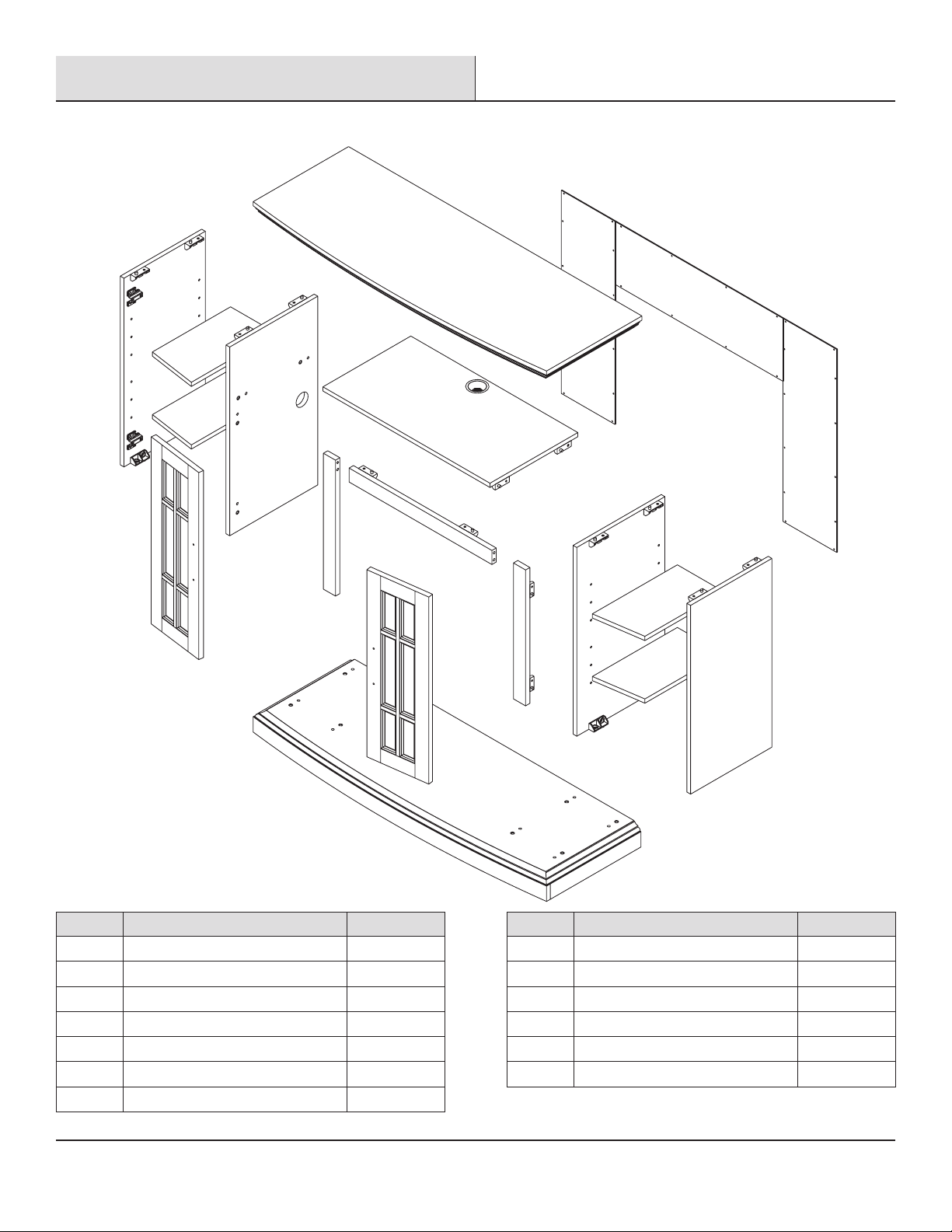

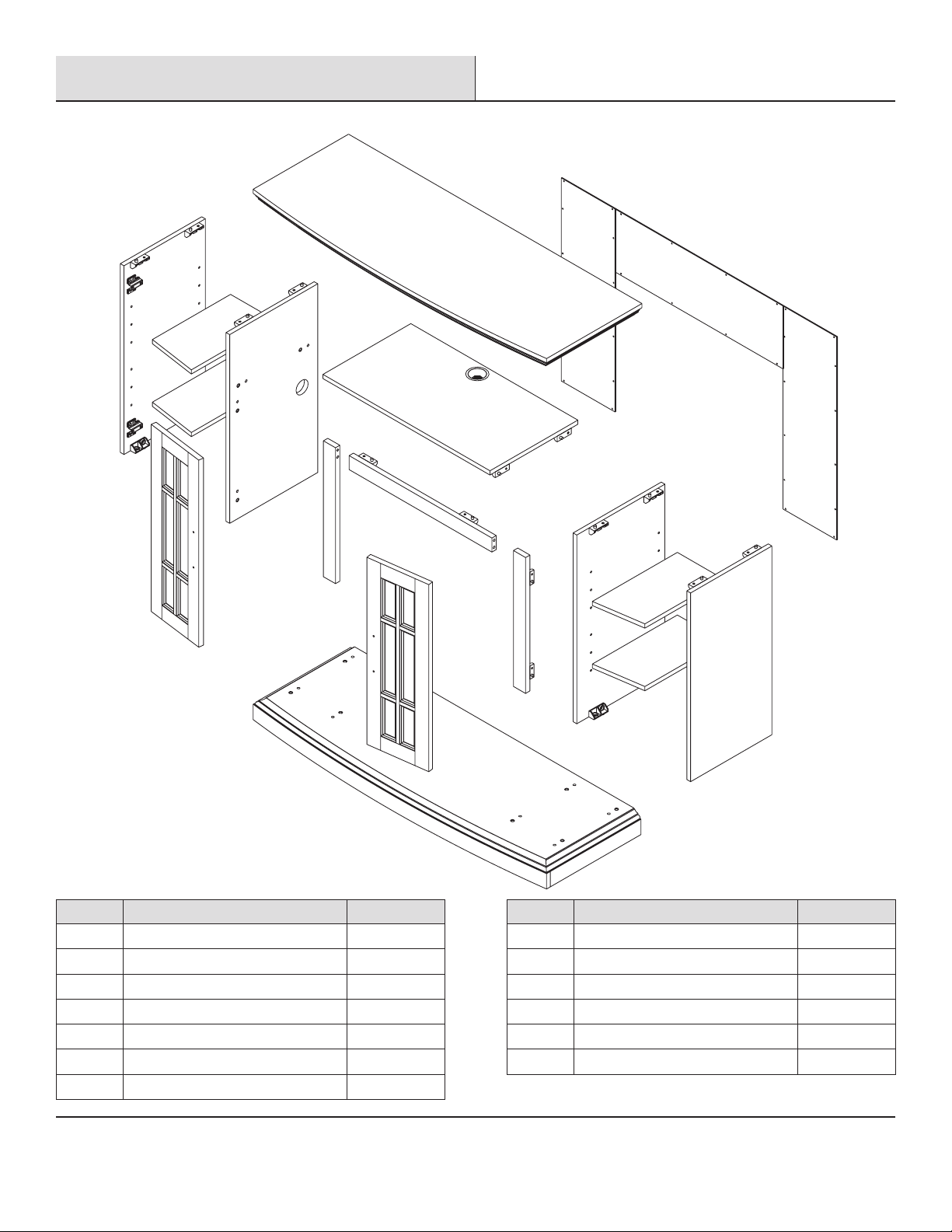

PACKAGE CONTENTS

5
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
Assembly
1
Attaching the trim to side panels
□Locate the inside panels (F & G) and place on a soft
surface to protect the nish.
□Attach the left trim (M) and right trim (N) to the inside
panels by turning the bolts (AA) clockwise through the
connector. Do not strip the bolts (AA) by overtightening.
M
F
G
N
AA
AA
2
Attaching the top trim to media
base
□Locate the media shelf (C) and place on a soft
surface to protect the nish.
□Attach the top trim (L) to the media shelf by turning
two bolts (AA) clockwise through the connector. Do
not strip the bolts (AA) by overtightening. L
C

6
Assembly (continued)
3
Attaching the media shelf
□Insert four wood dowels (BB) into the unthreaded holes
in the media shelf assembly (C).
□Line up the four wood dowels (BB) in the media shelf
(C) with the unthreaded holes in the left and right inside
panel (G & F).
□Press together rmly until ush.
□Insert four bolts (AA) into the connector on the media
shelf (C).
□Attach the left and right inside panels (G & F) to the
media shelf assembly (C) by turning the bolts (AA)
clockwise. Do no strip the bolts (AA) by overtightening.
4
Attaching the base
□Locate the base panel (B). Attach the base panel (B) to
the media shelf assembly by inserting four bolts (AA)
through the connectors and turning clockwise. Do not
strip the bolts (AA) by overtightening.
F
F
C
C
G
G
B
AA
AA
BB

7
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
D
D
B
A
AA
AA
Assembly (continued)
5
Attaching the side panels
□Line up the connectors on the side panels (D) with
holes on the base (B).
□Attach the left and right side panels (D) to the base
assembly by inserting four bolts (AA) through the
connector in the side panels and turning clockwise.
Do not strip the bolts (AA) by overtightening.
6
Attaching the top panel
□Line up the connectors on the side and inside panels with
the holes on the top panel (A)
□Attach the top panel (A) to the assembly by inserting eight
bolts (AA) through the connectors on the side and inner
panels and turning clockwise. Do not strip the bolts (AA) by
overtightening.

8
Assembly (continued)
7
Attaching the back panels
□Locate the back panels (J & K) and line them up to the back
of the media console with the nished side facing in.
□Insert and tighten thirty-two screws (DD) to attach the back
panels (J & K) to the media console.
□Do not strip the screws (DD) by overtightening.
DD
GG
H x2
EE
J
J
K
8
Attaching hardware onto the doors
□Locate the two cabinet doors (H) and place on a soft
surface to protect the nish.
□Attach four hinges (EE) to the cabinet doors (H) by
inserting eight hinge screws (GG) and turning clockwise.
Do not strip the hinge screws (GG) by overtightening.

9
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
H
H
CC
Assembly (continued)
9 Attaching the doors
□Line up the hinges in the left and right doors (H) with
the hinge plates in the left and right side panels.
□Tighten the screws to attach the hinges to the hinge
plates. Do not strip the screws by overtightening.
10
Attaching the knobs
□Attach the handles (CC) to the left and right doors
(H) by inserting the bolts through the doors (H) and
turning clockwise into the knobs (CC). Do not strip
the bolts by overtightening.

10
Assembly (continued)
11
Installing the shelves
□Locate the four shelves (E) and place them on a soft surface
to protect the nish.
□Insert the sixteen shelf pins (FF) into the interior of the side
panels (D, F & G). Be sure to insert the pins parallel to one
another to ensure the shelves (E) are level.
□Insert the shelves (E) onto the shelf pins (FF).
12
Installing the rebox
□Insert the rebox into the media console through the back
opening.
□Push the rebox forward through the back opening until the metal
trim of the rebox in ush with the side panels (F & G).
□Once the rebox is in position attach the two mounting brackets
included with the rebox by inserting and tightening four screws
through the mounting brackets into the media console.
□Do not strip the screws by overtightening.
FF
E
E
E
E

11
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
Service Parts
Care & Cleaning
□Always turn the heater OFF and unplug the power cord from the outlet before cleaning.
□Cleaning of the control panel, located in the upper right-hand corner of the replace behind the sliding control panel cover, is to be
done only using a soft cloth, slightly dampened in water (if needed, a small amount of dish soap can be added to the water) and dried
using a clean, dry soft cloth. Cleaning of the screen diffuser is to be done using only water and lint free cloth. DO NOT use any abrasive
cleaners on the diffusing screen.
Shelf Weight Capacity
95 lbs (43.1 kg)
50 lbs (22.7 kg)
20 lbs (9.1 kg)
50 lbs (22.7 kg)
A
D
D
J
J
K
L
M
B
E
E
E
E
F
G
H
H
N
C

12
Service Parts (continued)
Part Description Quantity Part Number
23-118-165-Y
Aged White Finish
Part Number
23-118-121-Y
Burnished Walnut Finish
Part Number
23-118-48-Y
Espresso Finish
A Top Panel 1 20-01-060 20-01-073 20-01-086
B Base Panel 1 20-01-061 20-01-074 20-01-087
C Media Shelf 1 20-01-062 20-01-075 20-01-088
D Side Panel 2 20-01-063 20-01-076 20-01-089
E Adjustable Shelf 4 20-01-064 20-01-077 20-01-090
F Left Inside Panel 1 20-01-065 20-01-078 20-01-091
G Right Inside Panel 1 20-01-066 20-01-079 20-01-092
H Cabinet Door 2 20-01-067 20-01-080 20-01-093
J Side Back Panel 2 20-01-068 20-01-081 20-01-094
K Upper Back Panel 1 20-01-069 20-01-082 20-01-095
LTop Trim 1 20-01-070 20-01-083 20-01-096
MLeft Trim 1 20-01-071 20-01-084 20-01-097
NRight Trim 1 20-01-072 20-01-085 20-01-098
Hardware Pack 1 20-09-587 20-09-590 20-09-591
Manual 1 20-10-332

13
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
Troubleshooting
Problem Possible Cause Solution
The replace does
not operate.
The power light is ON but
the ame effect is not
visible.
There is excessive noise
when the heater is
operating.
The heater is not
operating.
□The replace is not plugged in.
□A circuit breaker is tripped or a
fuse blown.
□The ON/OFF switch is defective.
□There is loose wiring.
□The replace is not operating
correctly.
□LED strip is not functioning.
□There is loose wiring.
□The blower is dirty or clogged.
□The heater assembly is defective.
□The heater is not operating
correctly.
□The heater switch is defective.
□The heater assembly is defective.
□There is loose wiring.
□The vents are dirty or clogged.
□Make sure the replace is plugged in
to a standard 120V outlet.
□Check additional appliances on the
circuit; ideally the replace should be
on a dedicated 15-amp circuit.
□Call customer service.
□Call customer service.
□Refer to the operating instructions.
□Call customer service.
□Call customer service.
□Refer to Maintenance of Motors in the Care and
Maintenance section of the rebox manual.
□Call customer service.
□Refer to the operating instructions.
□Call customer service.
□Call customer service.
□Call customer service.
□Unplug the unit. Clear the vent area
of dust and debris. Wait ten minutes,
plug the unit in again and turn on the
heater.
If you have any questions regarding the product, please call Home Depot Customer Service, 1-800-986-3460, 8 a.m. – 7 p.m. EST,
Monday – Friday, 9 a.m. - 6 p.m., EST, Saturday.
The power light is ON but
the ember bed ame is not
ickering.
□LED strip is not functioning.
□There is loose wiring.
There is excessive noise
when the ame is ON but
the heater is OFF.
□The rotating ame reector shaft is
rubbing against the housing.
□The ame reector shaft motor is
defective.
□Open the back of the rebox and reposition the ame
reector shaft. Turn off the unit prior to servicing.
□Call customer service.
□Call customer service.
□Call customer service.

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
Printed in China
Manufactured by: GHP Group, Inc. • 6440 W. Howard St. • Niles, IL 60714-3302

GRACIAS
Apreciamos la confianza depositada en Home Decorators Collection por medio de la compra de esta chimenea eléctrica con repisa. Nos
esforzamos para crear continuamente productos de calidad diseñados para mejorar su hogar. Visítenos en internet para ver nuestra línea
completa de productos disponibles para el mejoramiento de su hogar. ¡Gracias por elegir Home Decorators Collection!
GUÍA DE USO Y CUIDADO
COLECCIÓN EDENFIELD: CHIMENEA ELÉCTRICA CON REPISA
¿Preguntas, problemas o partes faltantes? Antes de regresar a la tienda,
llame al servicio de atención al cliente de Home Decorators Collection
8 a.m. - 7 p.m., Hora del Este de lunes a viernes, 9 a.m. - 6 p.m., Hora del Este de Sábado
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
INSTRUCCIONES IMPORTANTES
POR FAVOR, LEA ESTE MANUAL ANTES DE LA INSTALACIÓN Y USO DEL DISPOSITIVO
¡ADVERTENCIA!
SI LA INFORMACIÓN EN ESTE MANUAL NO SE SIGUE CON EXACTITUD, PUEDE RESULTAR UN CHOQUE ELÉCTRICO O INCENDIO
OCASIONANDO DAÑOS A LA PROPIEDAD, LESIONES PERSONALES O LA MUERTE.
INSTALADOR: Deje este manual con el dispositivo.
CONSUMIDOR: Conserve este manual para uso futuro.
Modelo # 239-118-165-Y
# 239-118-121-Y
# 239-118-48-Y
Artículo # 1003063516
# 1003063510
# 1003063513
2in x 3in Instruction Manual
PARA UN
ENSAMBLE RÁPIDO
DE ESTE PRODUCTO, BUSQUE
LAS INSTRUCCIONES 3D EN
DESCARGUE
EL APP GRATIS
Antes de empezar

16
Tabla de contenido
GARANTÍA DE 1 AÑO
LO QUE ESTÁ CUBIERTO
El fabricante garantiza que su nueva chimenea eléctrica está libre de defectos de fabricación y materiales por un periodo de un año a partir
de la fecha de compra, sujeto a las siguientes condiciones y limitaciones.
Esta chimenea eléctrica debe ser instalada y operada en todo momento de acuerdo con las instrucciones proporcionadas con el producto.
Cualquier alteración, abuso intencionado, accidente o mal uso del producto anulará esta garantía. Esta garantía es intransferible y es hecha
al propietario original, siempre que la compra fue hecha mediante un proveedor autorizado del fabricante. Esta garantía está limitada a la
reparación o reemplazo de pieza(s) que se encuentren defectuosas en materiales o mano de obra, siempre que tal(es) pieza(s) hayan estado
sujetas a condiciones normales de uso y servicio, luego de que dicho defecto sea conrmado por la inspección de fabricante. El fabricante
puede, a su discreción, liberar de todas las obligaciones, con respecto a esta garantía mediante el reembolso del precio al por mayor de la(s)
pieza(s) defectuosa(s).
LO QUE NO ESTÁ CUBIERTO
Cualquier instalación, trabajo, construcción, transporte u otros costos/gastos que surjan de pieza(s) defectuosa(s), reparación, reemplazo u
otra cosa similar, no será cubierta por esta garantía y tampoco el fabricante asumirá responsabilidad por lo mismo. Además, el fabricante no
será responsable de ningún daño incidental, indirecto o consecuente, excepto como lo establezca la ley.
Todas las otras garantías, expresas o implícitas, con respecto al producto, sus componentes y accesorios, o cualquier obligación/
responsabilidad civil sobre la pieza del fabricante, por la presente se excluyen expresamente. El fabricante tampoco asume, ni autoriza a
ninguna tercera parte a asumir, en su nombre, cualquier otra responsabilidad civil con respecto a la venta de este producto. Las garantías
como están descritas dentro de este documento, no aplican a accesorios que no son del fabricante usadas junto con la instalación de este
producto.
Esta garantía no cubre la(s) bombilla(s) incluidas con la chimenea.
Esta garantía no tiene validez si: la chimenea ha sido operada en atmósferas contaminadas con cloro, úor u otro químico dañino; la
chimenea está sujeta a periodos prolongados de humedad o condensación; la chimenea es alterada, maltratada intencionalmente, dañada
por accidente o usada incorrectamente en cualquier manera.
Si se necesita servicio de garantía, póngase en contacto con el Equipo de Servicio al Cliente llamando 1-800-986-3460, 8 a.m. - 7 p.m., Hora
del Este de lunes a viernes, 9 a.m. - 6 p.m., Hora del Este de Sábado o visite www.homedepot.com/homedecorators.
Asegúrese de tener su garantía, su recibo de venta y el número de modelo/serie de su producto.
NO INTENTE HACER TRABAJO DE SERVICIO USTED MISMO.
Garantía
Tabla de contenido .................................16
Garantía ..........................................16
Pre-ensamblaje ....................................17
Planicación del ensamblaje ........................17
Herramientas necesarias ...........................17
Piezas incluidas ..................................17
Contenido del paquete .............................18
Ensamblaje .......................................19
Cuidado y limpieza .................................25
Capacidad de carga de la repisa .......................25
Piezas de servicio ...............................25-26
Resolución de fallas ................................27
Este producto puede exponerlo a sustancias químicas como el di(2-etilhexil) ftalato (DEHP) que, según el estado de California,
puede provocar cáncer y daños del desarrollo.
Para obtener más información, visite www.p65Warnings.ca.gov
ADVERTENCIA

17
HOMEDEPOT.COM/HOMEDECORATORS
Favor contactar al 1-800-986-3460 para mayor asistencia.
Pre-ensamblaje
NOTA: Las herramientas son no mostradas en su tamaño real.
PIEZAS INCLUÍDAS
HERRAMIENTAS REQUERIDAS
PLANIFICACION DEL ENSAMBLAJE
Antes de iniciar el ensamblaje localice las instrucciones y las piezas. Compare todas las piezas con la lista de piezas incluidas y contenido
del embalaje. Asegúrese de tener todas las piezas y de que pueda identicarlas. Siempre es bueno contar con ayuda. Ensámblelo con
asistencia de una persona adulta si es posible. Algunas piezas son pesadas y necesitará ayuda. El tiempo de ensamblaje se estima entre
30-60 minutos.
Antes de ensamblar, utilice tijeras para sacar las piezas del embalaje. No utilice una navaja o cuchillo exacto, ya que podría cortar las piezas
dentro de la caja y dañar el acabado. Busque la bolsa roja de herramientas situada en el interior del empaque. No deseche ninguna pieza.
Utilice un destornillador apropiado para insertar y ajustar todos los tornillos.
Pieza Descripción Cantidad
AA Tornillo 26 + 2 extra
BB Clavija 4 + 1 extra
CC Tiradores 2
DD Panel posterior del tornillo 32 + 6 extra
EE Bisagra 4
FF Clavija para estantes 16 + 2 extra
GG Tornillo de bisagra 8
GGFFEEDDCCBBAA
Gafas de seguridad Desarmador Phillips

18
Pre-ensamblaje (continuación)
CONTENIDO DEL PAQUETE
Pieza Descripción Cantidad
A Panel superior 1
B Panel de base 1
C Repisa multimedia 1
D Panel lateral 2
E Repisa ajustable 4
F Panel interior izquierdo 1
G Panel interior derecho 1
Pieza Descripción Cantidad
H Puerta del mueble 2
J Panel trasero lateral 2
K Panel trasero superior 1
L Moldura superior 1
M Moldura izquierdo 1
N Moldura derecho 1
A
D
D
J
J
K
L
M
B
E
E
E
E
F
G
H
H
N
C

19
HOMEDEPOT.COM/HOMEDECORATORS
Favor contactar al 1-800-986-3460 para mayor asistencia.
Ensamblaje
M
F
G
N
AA
AA
L
C
1
Colocación de las molduras en los
paneles laterales
□Localice los paneles interiores (F y G) y colóquelos sobre
una supercie suave para proteger el acabado.
□Fije la moldura izquierda (M) y la moldura derecha (N)
a los paneles interiores girando los tornillos (AA) en el
sentido de las agujas del reloj a través del conector. No
dañe los tornillos (AA) apretándolos demasiado.
2
Colocación de la moldura
superior en la base multimedia
□Localice la repisa multimedia (C) y colóquela sobre
una supercie suave para proteger el acabado.
□Fije la moldura superior (L) a la repisa multimedia
haciendo girar los dos tornillos (AA) en el sentido de
las agujas del reloj a través de los conectores. No
dañe los tornillos (AA) apretándolos demasiado.

20
Ensamblaje (continuación)
F
F
C
C
G
G
B
AA
AA
BB
3
Colocación de la repisa
multimedia
□Inserte cuatro clavijas de madera (BB) dentro de los
oricios sin rosca en la repisa multimedia (C).
□Alinee las cuatro clavijas de madera (BB) en la repisa
multimedia (C) con los oricios sin rosca en los paneles
interiores izquierdo y derecho (G y F).
□Presiónelos uno contra otro rmemente hasta que estén
al ras.
□Inserte cuatro tornillos (AA) dentro de los conectores en
la repisa multimedia (C).
□Fije los paneles interiores izquierdo y derecho (G y F) a
la repisa multimedia (C) girando los tornillos (AA) en el
sentido de las agujas del reloj. No dañe los tornillos (AA)
apretándolos demasiado.
4 Colocación de la base
□Localice el panel de base (B). Fije el panel de base (B)
al ensamblaje de la repisa multimedia insertando cuatro
tornillos (AA) a través de los conectores y girando en el
sentido de las agujas del reloj. No dañe los tornillos (AA)
apretándolos demasiado.
