1
NO TOUCH
INFRARED THERMOMETER
INSTRUCTION MANUAL
Model: NT17
P/N: TIE-210
Le manuel in francais
commence a la page 23
El manual en Espanol
empieza en la pagina 46

1
TABLE OF CONTENTS
Introduction .................................................... 3
Important Information Before Use ................ 5
Product Identication..................................... 7
Description of LCD Display ........................... 8
Battery Installation......................................... 9
Switching Between Fahrenheit or Celsius.. 10
Switching between 4 Kinds
of Scan Modes.............................................. 10
Tips for Measuring Human Temperature .... 11
Measuring Human Temperature .................. 12

2
Measuring Object/Liquid Temperature........ 13
Memory Function ......................................... 14
Care and Maintenance................................. 15
Applied Standards........................................ 15
Error Codes .................................................. 16
Technical Specication ................................ 17
EMC Tables................................................... 18
Warranty........................................................ 22

3
INTRODUCTION
Utilizing infrared technology, this thermometer
takes temperatures in seconds by measuring
heat generated by the surface skin of the fore-
head or other objects. This product conforms to
the provisions of the EC directive MDD (93/42/
EEC). Please note that this product is not
intended to serve as a substitute for the advice
of a physician or medical professional.
Features include:
• 6 Device Functions
Human Body/Object/Night Mode Option/
Fever Alarm/30 User Memory/Backlight
• Night Mode Option
Switch to Night mode to reduce the
interference of buzzer during your baby
sleeping.
• Red LED Light for Fever Alarm
This device has the LED light to remind user
their readings are over 100.4°F (38°C) and plus
the beep sound only in Human Body Mode.
• 30 User Memory

4
• Illuminated Backlight Display
• °F/°C Switch-able Function
• One-second Reading
• Auto power off for power saving
• Low-battery Indicator
Indications for battery condition and
measuring range.
• Large LCD Display
• Economic design and convenience:
This is a “Non-contact” medical thermometer
that enables temperature readings, designed
for sanitary conditions, cleanliness, and
convenience. Simply move the thermometer
close to the subject's forehead or object at
the distance indicated by the device.
• Instant Measurement
By using our unique technology, users can
get their precise body temperature instantly
and accurate.

5
IMPORTANT INFORMATION
BEFORE USE
When using your thermometer, basic
precautions should always be followed. Please
read and follow all instructions and warnings
before using this product. Save these instructions
for future reference.
• Do not disassemble, repair, or remodel the
thermometer.
• Be sure to clean the thermometer lens after
each use, refer to the care and maintenance
section.
• Avoid direct nger contact with the lens.
• No modication of this equipment is allowed.
• It is recommended that user may take 3
temperatures. If they are different, use the
highest reading.
• Do not expose the thermometer to extreme
temperature, very high humidity, or direct
sunlight.
• Avoid extreme shock or dropping the device.
• Before the measurement, patients and
thermometer should stay in steady state room
condition for at least 30 minutes.

6
• Avoid measuring temperature in 30 minutes
after exercise, bathing, or returning from
outdoor.
• To protect the environment, dispose of empty
batteries at appropriate collection sites accord-
ing to national or local regulations.
• It is ill-advised to disassemble the thermometer.
• Please use the thermometer solely for its
intended purpose.
• Carefully hold the device when in use to avoid
dropping the device.
• Allow one minute between successive measure-
ments as slight variations may occur if measure-
ments are taken over a short period of time. Use
average temperatures instead.
• There are no absolute body temperature stan-
dards. Keep reliable records of your personal
temperature to serve as a reference for judging
a fever.
• Under any circumstances, the temperature
taking result is ONLY for reference. Before
taking any medical action, please consult your
physician.

7

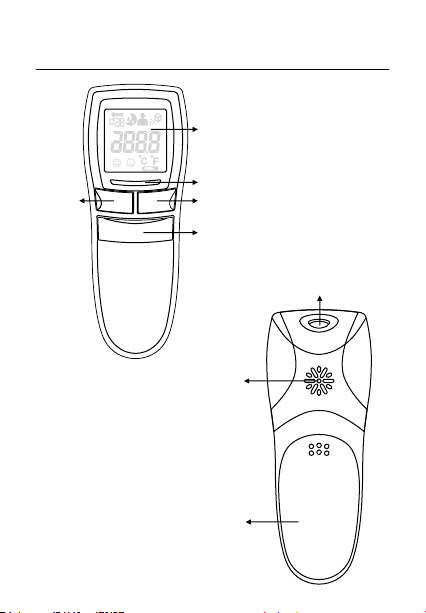

PRODUCT IDENTIFICATION
LCD Display
Measurement Sensor
Memory
Button
Buzzer
Red LED Light for Fever Alarm
(Only in Human Mode)
Power/ Scan & Measure
Button
Human/Object Button
Battery Compartment Lid

8
DESCRIPTION OF LCD DISPLAY
Scan in
Progress Night
Mode
Human Scan
Mode
Object Scan
Mode
Degrees of
Temperature
Frowning Face
(Indicating
temperature is
equal or higher
than 38°C
or 100.4°F)
Smiling Face
(Indicating
temperature is
lower than 38°C
or 100.4°F)
Memory
Symbol
and Sets
of Records
Celsius Scale
Fahrenheit Scale
Low battery
Warning

9
BATTERY INSTALLATION
Low Battery Warning:
When the battery power becomes low, the low battery
symbol “b” will appear on the display. The thermom-
eter can still be used during this time, but the batteries
should be replaced as soon as possible. If the batteries
run out completely, “Lo” will be displayed along with the
low battery symbol. In this case, the batteries will need
to be replaced before using the thermometer again.
Replacing the Battery:
1. Gently slide the battery cover back.
2. Carefully remove the old
batteries and properly
discard.
3. Insert new batteries (Two
1.5V alkaline AAA Size)
according to the proper
polarity.
4. Slide the battery cover
back on.
NOTE: Battery-operated
1.Please properly dispose of the batteries away from small
children and heat.
2.It is recommended to remove the batteries if the unit will
not be used for an extended period of time.
3.For long durations of non-operation, please remove all
batteries from the device.
4.Batteries must be disposed of in accordance with local
environmental and institutional policies.
5.Dispose of used batteries in accordance with the
applicable legal regulations. Never dispose of batteries in
the normal household waste.

10
SWITCHING BETWEEN
FAHRENHEIT OR CELSIUS
Your thermometer can display results in either
degrees Celsius (°C) or degrees Fahrenheit
(°F). To switch between Celsius and
Fahrenheit, while the unit is on press and
hold both the Human/Object button and the
Memory button for approximately 3 seconds.
This will change the mode to either °C or °F.
Once the thermometer beeps, at which time
the mode has been changed and you may
release the buttons.
SWITCHING BETWEEN
4 KINDS OF SCAN MODE
1.Under power on status, you can press the Human/
Object button to switch different scan mode. There
are 4 kinds of mode which including Human, Object,
Human/Night, and Object/Night mode (in order).
2.The beep sounds will be closed when your choice in
Human/Night mode, and Object/Night mode, and the
Moon symbol will appears on the LCD in both Night
mode.
°F °F °F °F
°F °F °F °F
Human Mode Object Mode Human Mode
& Night Mode
Object Mode
& Night Mode
NOTE:
Each press will comes with a beep sound to ensure
the setting is activated. (Except both Night modes).
°F °F °F °F
Refer to
instruction

11
TIPS FOR MEASURING
HUMAN TEMPERATURE
Bear in mind that the thermometer needs to have been
in the room in which the measurement is taken for at
least 30 minutes before use.
• Attempting to take temperature readings from sites
on the body other than the forehead may produce
inaccurate results.
• The patient should remain still while the reading is
being taken.
• Infrared forehead temperature readings are equivalent
to oral temperature readings. In all of these cases,
please consult your doctor.
• Readings taken while asleep should not be compared
directly to readings taken while awake, as body
temperature while asleep is typically lower.
• Do not take body temperature readings within 30
minutes of being outdoors, exercising or bathing
°F °F °F °F
Refer to
instruction

12

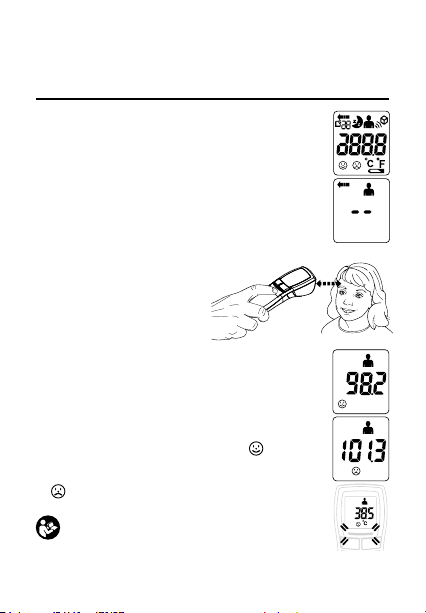

MEASURING HUMAN
TEMPERATURE
1.Press the Power button to turn the
thermometer on. The unit will run a self-test
and all symbols on the display will
momentarily appear.
2.Ensure that the thermometer is in Human
mode; the Human symbol will be on the
display. To alternate between modes press
and release the Human/Object Mode
button until you see the desired measure-
ment symbol on the display.
3.Press and hold the “Scan &
measure button”, aiming the
Measurement Sensor
at the person's forehead,
holding the thermometer
approximately 0.5~3cm.
But don’t touch the
forehead.
4.Release the “Scan & measure button”.
In about a second, you will hear a short
beep means this temperature reading has
been completed and accompany with a
back-light.
5.If the temperature measurement is below
38°C (100.4°F), a “Smiling Face ” will
appear next to the reading. If the reading is
38°C (100.4°F) or above, a “Frowning Face
” will be displayed and the RED LED
light up.
Fever Alarm: Only in Human Mode
and Human/Night Mode
6.After about 30 seconds after use, the thermometer will
automatically beep and shut off.
°F °F °F °F
Refer to
instruction
0. 5~ 3 cm
°F
°F
0. 5~ 3 cm
°F
°F
0. 5~ 3 cm
°F
°F
0. 5~ 3 cm
°F
°F

13
MEASURING OBJECT/LIQUID
TEMPERATURE
1. Press the Power button to turn the
thermometer on. All symbols on the display
will momentarily appear.
2. Ensure that the thermometer is in Object
mode; the Object symbol will be on the
display. To alternate between modes press
and release the Human/Object Mode
button until you see the desired
measurement symbol on the display.
3. Press and hold the “Scan & measure
button”, aiming the Measurement
Sensor at the object, holding the
thermometer approximately
0.5~3 cm.
4. Release the “Scan &
measure button” and the
temperature reading will
be displayed.
5. After about 30 seconds after use,
the thermometer will automatically beep
and shut off.
0. 5~ 3 cm
°F
0. 5~ 3 cm
°F
0. 5~ 3 cm
°F

14
MEMORY FUNCTION
Memory Recall:
You can recall up to 30 measurements currently stored
in memory to share with your physician or trained
healthcare professional.
1. When the device is on, press once briey
on the "MEM button", then pass it again to
show the last measurement accompanied
by “ ”symbol.
2.The “ ” symbol or “ ” symbol will appear
with each measurement stored in memory to indicate
whether a person or object temperature was taken.
3.Each press of the same button recalls a previous
measurement, so “ ” then all the way to “ ”.
Memory Deletion:
1.Under power on status, you may keep press MEM
Button for more than 3 seconds to delete all the
readings.
2.You will see "--" on display and “sound four short
beeps”, that mean all the memories are cleared.
3.Automatically on the 31st measurement:
when the 30 memories have been used up,
any new measurement will be recorded with
“ ” and the oldest memory deleted
without you having to do anything.
All the readings will be cleared no matter record
in Human mode or Object mode.
°F
°F
°F
°F
°F
°F
°F
°F
°F
°F
°F
°F
°F °F °F °F
Refer to
instruction

15
CARE AND MAINTENANCE
• Lens/ Measurement Sensor:
Gently clean with an alcohol
swab. Do not use water to
wash the thermometer lens
directly.
• Thermometer:
Clean with a soft, dry cloth.
Do not use water to rinse the
device.
This product conforms to the provisions
of the EC directive MDD (93/42/EEC).
The following standards apply to design
and/or manufacture of the products:
• ASTM E1965-98
Standard Specication for Infrared
Thermometers for Intermittent
Determination of Patient Temperature.
• ISO 14971
Medical devices-Application of risk
management to medical devices. The
Classication according to IEC/EN
60601-1 sub-claues 5:
• Internally powered equipment
• IPX0
• Equipment not suitable for use in the
presence of a ammable anaesthetic
mixture with air or with oxygen or
nitrous oxide
• Continuous operation
APPLIED STANDARDS

16
ERROR CODES
When a malfunction or incorrect temperature
measurement occurs, an error message will appear as
described below.
LCD DISPLAY CAUSE SOLUTION
The temperature
measured is higher
than
1. Human
thermometer
mode:
43°C (109.4°F)
2. Object
temperature
mode:
100°C (212.0°F)
Operate the
thermometer only
between the
specied
temperature ranges.
If necessary,
clean the sensor tip.
In the event of a
repeated error
message, contact
your retailer or
Customer Services.
The temperature
measured is higher
than
1. Human
thermometer
mode:
34°C (93.2°F)
2. Object
temperature
mode:
0°C (32.0°F)
The operating
temperature is not
in the range from
16°C~40°C
(60.8°F to 104°F)
Operate the
thermometer only
between the specied
temperature ranges.
12
12
12

TECHNICAL SPECIFICATION
• Measuring range :
Human Body: 34°C~43°C (93.2°F~109.4°F)
Object: 0°C~100°C (32.0°F~212.0°F)
• Calibration Accuracy:
Human Body: 36°C~39°C (96.8°F~102.2°F): ± 0.2°C
else: ± 0.3°C
Object: 20°C : ± 1°C
> 20°C: ± 5%
• Display resolution: 0.1°C
• Operating environment:
16°C~40°C (60.8°F~104°F)
with relative humidity up to 95% (non condensing)
• Storage/ Transportation environment:
-20°C~+50°C (-4°F~+122°F)
with relative humidity up to 95% (non condensing)
• Power supply: 2 x 1.5V AAA size alkaline batteries
• Weight: approx. 80g (with batteries)
• Dimensions: approx. 128.5mm×48.83mm×38.85mm
(L×W×H)
• Operation Distance: 0.5~3 cm
≦
16°C
40°C
-2 0°C
50°C
34°C
43
°C
0
°C
100°C
36°C
39°C
≦
16°C
40°C
-2 0°C
50°C
34°C
43°C
0°C
100°C
36°C
39°C
≦
16°C
40°C
-2 0°C
50°C
34°C
43°C
0°C
100°C
36°C
39°C
≦
16°C
40°C
-2 0°C
50°C
34°C
43°C
0°C
100°C
36°C
39°C
≦
16°C
40°C
-
20°C
50°C
34°C
43°C
0°C
100°C
36°C
39°C
17

EMC TABLES
Guidance and manufacturer's declaration-electromagnetic emissions
The TIE-210 Thermometer is intended for use in the electromagnetic
environment specied below. The customer or the user of the TIE-210
Thermometer should assure that it is used in such an environment.
Emissions test Compliance Electromagnetic
environment guidance
RF emissions
CISPR 11 Group 1 The TIE-210 Thermometer uses RF
energy only for its
internal function.
Therefore, its RF emis-
sions are very low
and are not likely to
cause any
interference in nearby
electronic
equipment.
RF emissions
CISPR 11 Class B The TIE-210 Thermometer is
suitable for use in
all establishments,
including domestic
establishments and
those directly
connected to the
public lowvoltage
power supply network
that supplies buildings
used for domestic
purposes.
Harmonic
emissions
IEC 61000-3-2
Not applicable
Voltage
fluctuations/
flicker emissions
IEC 61000-3-3
Not applicable
18

19
EMC TABLES
Guidance and manufacturer's declaration-electromagnetic immunity
The TIE-210 Thermometer is intended for use in the electromagnetic
environment specied below. The customer or the user of the TIE-210
Thermometer should assure that it is used in such an environment.
Immunity test IEC 60601
test level Compliance level Electromagnetic environment-guidance
Electrostatic
discharge
(ESD)
IEC 61000-4-2
± 6 kV
contact
± 8 kV air
± 6 kV
contact
± 8 kV air
Floors should be wood,
concrete or ceramic tile.
If floors are covered with
synthetic material, the
relative humidity should
be at least 30 %.
Power
frequency
(50/60 Hz)
magnetic eld
IEC 61000-4-8
3 A/m 3 A/m Power frequency
magnetic fields should
be at levels characteristic
of a typical location in
a typical commercial or
hospital environment.
