Homing Gold Fort User manual

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
0
- 0 -
Operation Manual
2016
Be sure read thisOperation Manual before using yourmachine to ensure safe operation
WARNING

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
1
- 1 -
CONTENTS
1. SpecificationsandParameter................... ........1.
2. Checking thePackage Contents........... ...............2.
3. Location Installation and Moving........... ..........3.
4. Connectingthe powercord and ground........ ..........5.
5. Overall construction (Componentsand theirnames)... ..6.
6. Howto play......................... ... ...10.
7. Adjustment ............. .......... .............11.
8. Operation Manual..... ......................... ......12.
9. Attached drawing............. ............... ......13.
10. I/OChart
11. Produce Licence(Copy)

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
2
- 2 -
1．Specifications
(1)Rated power supply :AC 220v- 110V±5% 60Hz；
(2)Power Consumption:Min powerconsumption：480W；
:Max power consumption：1000W；
(3)Dimensions:W1675×D1500×H2000（mm）；
(4)Weight:About200kg；
Note：We will not inform the changingof the parameterin the upon else.

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
3
- 3 -

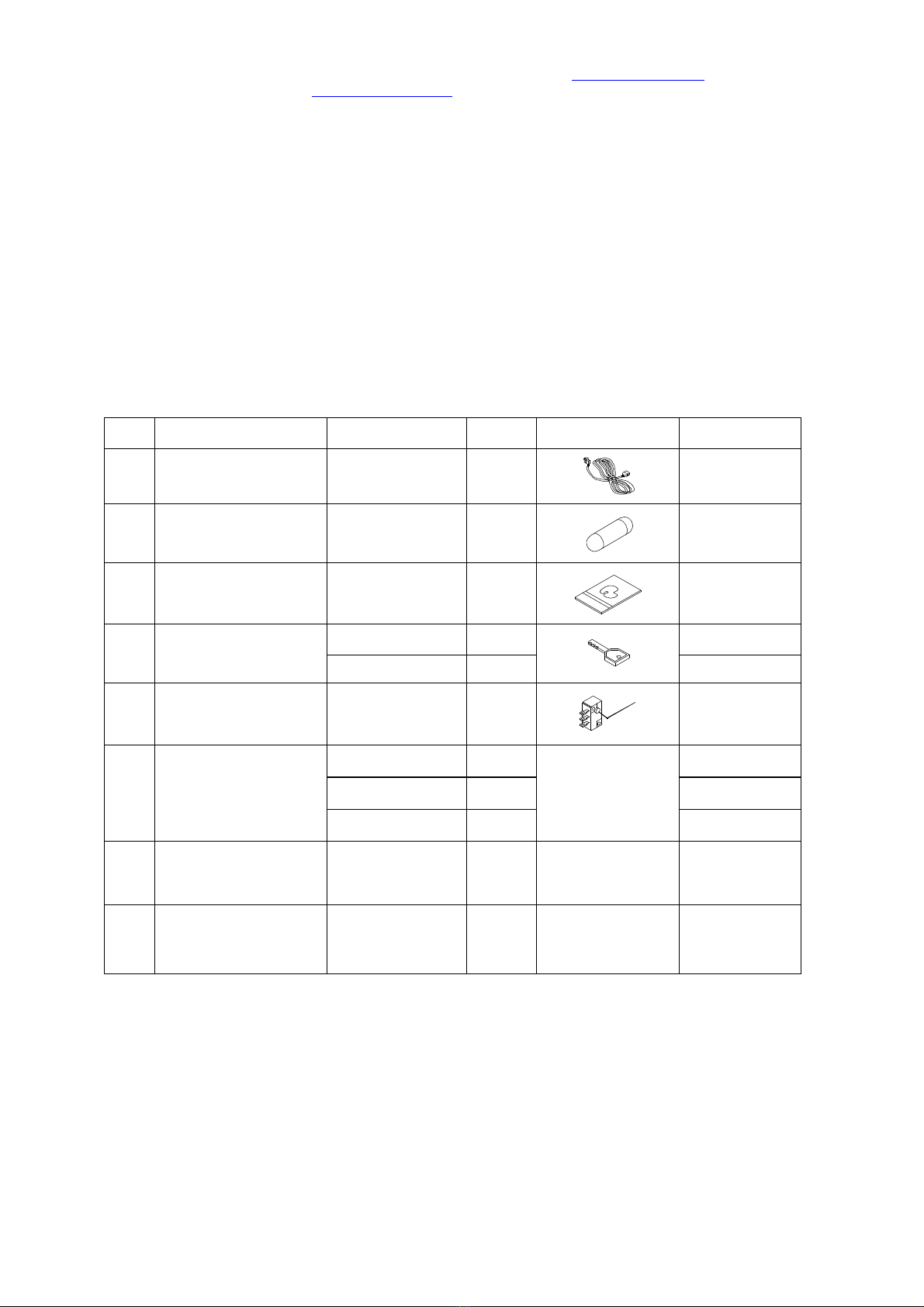

2．Checking the packagecontents
Whenpacked andshippedthis machine consists of the following:
(1)Body Assy:1unit
(2)Accessories：
No. Component Specification Qty Illustration Note
1 Powerwire 1 5m 1
2 Fuse φ5-20mm 1 6AFor 220V
3 Operation manual 1
4 Keys 6086 1
6083
1
5 Micro SW 3
6
7
8

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
4
- 4 -

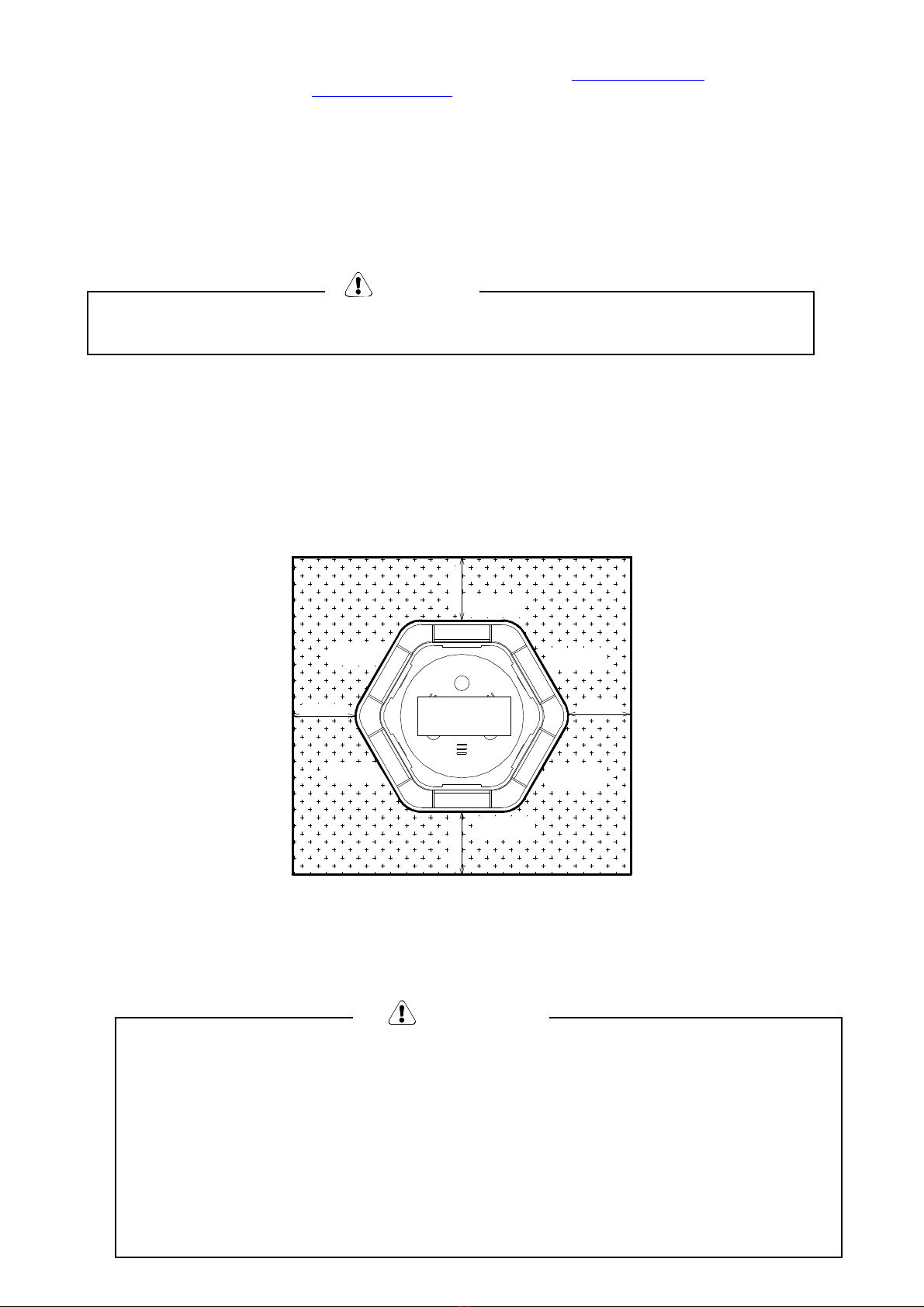

3.Location Installation and Moving
3-1.Playzoneas installed
3-2.Scope forLocation:
Set aplay zoneas illustratedinthe figurebelow to prevent
customersleaving this machinefrom getting intocontactwithobservers
andpassers-by
500mm
500mm 500mm
500mm
Playarea
Playarea Playarea
Playarea
Playarea Playarea
MainAssy
3-3.Locations toavoid installing:
●This is an indoormachine butnot a outdoor, so don’t put it outside。
WARNING
This machine is designed forindooruse. Neverinstall this machine
outdoors orat any of the following:
●Locations exposed to direct sunlight.
●Locations subjected to rainorwaterleakage.
●Damp dust orhot places.
●Close to a heating instrument.
●Shaking place.
WARNING

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
5
- 5 -
3-4.Fixation forthe machine.
Installthis machineat aplane position,Adjust the highof thefour
leveladjustors,lowerthem until thecastersareabout 5mmfrom floor
level(soastorotate freely).
Level adjust
Move
Caster
Fix
●Turnoff the powerandunplug the powerplug before moving
the machine.
●Ifthe castercan’t run in moving, please replace it.
●The unbending moving turnoverand transport will attaint the
machine.
●Ensure the use the rightway while moving turning overand
transport.
NOTIC

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
6
- 6 -
4．Connecting the power cord and the grounding
4-1．Theunderside connection：
Iftheroom isused thewirelayout inthe floor,then connectto the
underside socket, thedetailexplainas the followingFig
Inletbox
Powercord
5．Overallconstruction (Components and theirnames)
5-1．The0utlook
●Do not put any heavy things on the cord, orit will attaint the power
cord then case a fire an electric shockorleakage.
●To pull out the powerplug, donot pull the cord. Always hold the power
plug to pull it out.
●Do not touchthe powerplug with a wet hand to avoid electric shock.
●Do not draw and twist the cord.
●Do not place the cord neara heating device.
●Do not place the cord where the player easy to touchorkick.
●Runthis machine with a right supply voltage and fuse.
WARNNING

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
7
- 7 -
1.RotatingSignboardAssy
2.Insert coin.
3.Play field
4.Pushboard
5.Outing ticket
6.Coin box
5-2．RotatingSignboardAssy：
Roating Signboard
Speaker
PowerBox
Fan
1）.Rotatingsignboard：Itisactas aadornment.
2）.Speaker：Pay outtheplaymusic.
3）.Fan：Use to dispeltheheat.
4）.Power Box：
①.This machine’ssupplyvoltage is“220V±5% 50Hz”.
②.The fuse’sspecificationis“220V6A”φ5-20mm.
③.Powerswitch, Turnon it to supply power.
④.Ground terminal：Useto connect thegroundcord.
⑤.Network
socket：Use to
connect the
machine.
Powerswitch
Powerbox
Groundterminal
Powersocket
Fusesocket
Worknetsocket

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
8
- 8 -

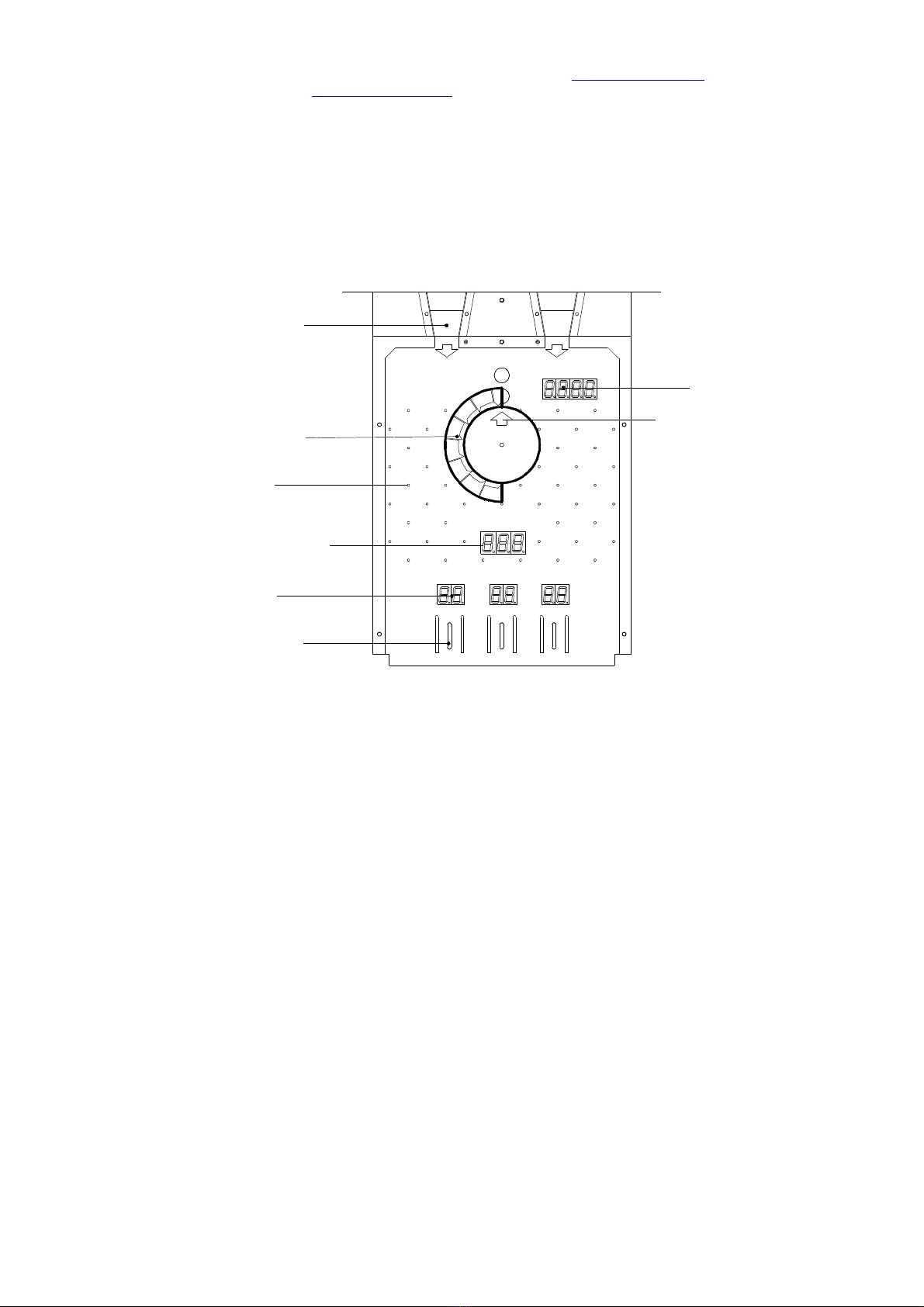

5-3．Playfield
W
go
20
30
40
50
60
70
JP
WIN BONUS
I N
WINBONUS
JACKPOT
Dropping coin slot
Turntablescore
Bar
WIN BONUS LED
W.I.N LED
Pointer
JP LED
W.I.N. switch
1）． Dropping Coin slot：The coinenters the play field through here.
2）． JACKPOTLED：Displaythe JPscore.
3）． Turntable score：Show thescorein veryarea.
4）． Pointer：Indicate which areascorein the game.
5）． Bar：Slowdown thedroppingcoin.
6）． WIN BONUS LED：Displaythe score ofWIN BONUSprize.
7）． WIN LED：Displayascorewhenthe coin touchaletterofW.I.N
switch.
8）． Letter switch:If thecointouches it, willgetscorethattheW.I.N
LED showed.
5-4．Coin pushboard：

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
9
- 9 -
Pushing board
Coinboard
Coindroppingfunnel
Sliding gold
1) Pushing board：Poweron, thispart will move back and forth topush out
the coin.
2) Coin board:Locat the coins.
3) Dropping coin funnel：The coin witch were pushedout,
4) Slidinggold:Thecoinspushthissliding gold move to draw the
turntable rotate.
5-6．Outingdoor:
Outingticket
Door
Lock
1）Lock：Lock 6086.
2）Door：Openit to install tickets servicingandcheck up the machine.
3）Outing ticket：the ticket prize willbe paidout fromit.
5-6．Coinbox：

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
10
- 10 -
Lock
Coin box
1）Lock：Lock 6083.
2）Coin box：Carry coins.

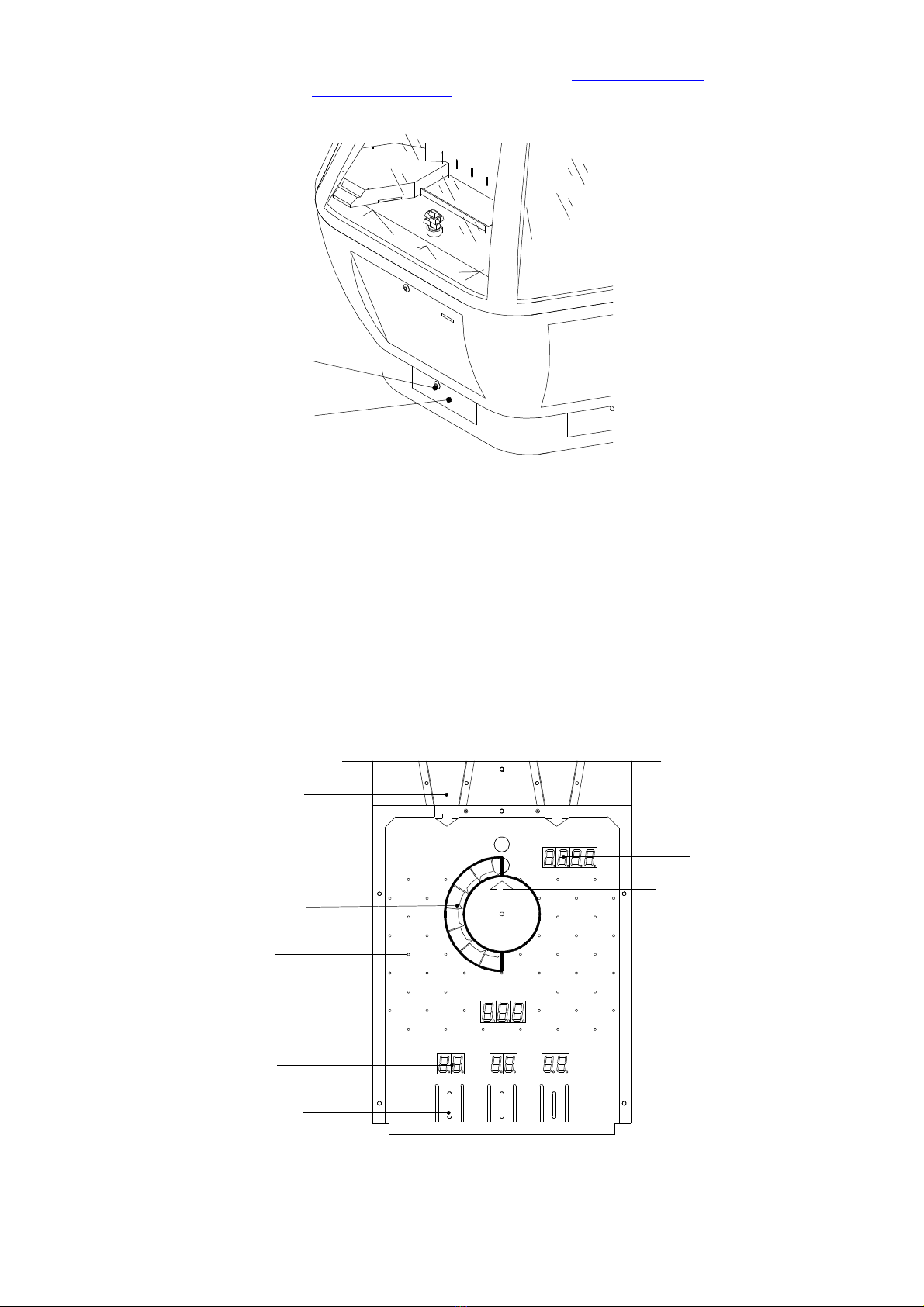

6．HOW TO PLAY
W
go
20
30
40
50
60
70
JP
WIN BONUS
I N
WINBONUS
JACKPOT
Dropping coin slot
Turntablescore
Bar
WIN BONUS LED
W.I.N LED
Pointer
JP LED
W.I.N. switch
1. Insertcoinstryingto pushgoldbar forwardto move turntable

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
11
- 11 -
towards jackpot.
2. Lighting the letterW.I.N wins value that the bonus LED displayed.
3. Lighting eachletter winsit’sownvalue.
4. Coin in win-the 2nd time turnslight off letter.
1. Adjustment
7.1The parameter
①W.I.N letterscore：Adjustthescorewhenwin theletterprize.Itis
controlledby SW11～SW12.
②JP+？：Adjustthatwhetherincreasesthe scoreof JPin pace with
addingofthe number of insertingcoin. The mean of JP+1 is when 0you
insertcoineverytime,then the scoreofJPincrease1. The meanof
JP+0isthat thescore ofJPdon’tincrease,itis regular.It iscontrolled
by SW13.
③JPValue：Adjustthescore of JP,it controlled bySW14 SW16.
④The lowest tickets: Adjust thatwhetherpayoutthelowesttickets when
theplayer did notgetanyscore byinsertingcoin.Itiscontrolled by SW
17 SW18.
⑤Tickets/coin: Adjust that insertone cointhenpayout how many tickets.
It is regular.Itiscontrolled bySW21 SW24.
⑥Tickets/droppingcoin: Adjust thatdropone cointhenpayouthow
many tickets. Itiscontrolled bySW25 SW27.
⑦Thescore of turntable:Adjustthe score of eacharea ontheturntable.
It controlled bySW28.
※Toadjustthe parameter to knowthe moreplease referthe I/O chart and
the mainboard figure.
Note: The initial setting in capitalization.

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
12
- 12 -
7.2The DIP
DIPON
21 65 7834
1 43 87562
ON DIP
IC
(PLAYC8F)
We do not inform the change of the mentionin above!
7.3The test button
1. Coin counter: It recorded the coins that playerinserted.
2. Ticket counter: It recorded the tickets that the machine had payout.
Coin Counter Ticket Counter
Volume Control Ticket Reset

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
13
- 13 -
3. Volume Control: Control the volume of the play music.
4. TicketReset: Ifthe game experiences aticket jamthe game will holdthe
value of tickets owed anddisplay them inthe Bonuswindow,Afterthe
jam is cleared and the reset buttonis pressed the game will resume the
ticket payout.
2. Operation manual

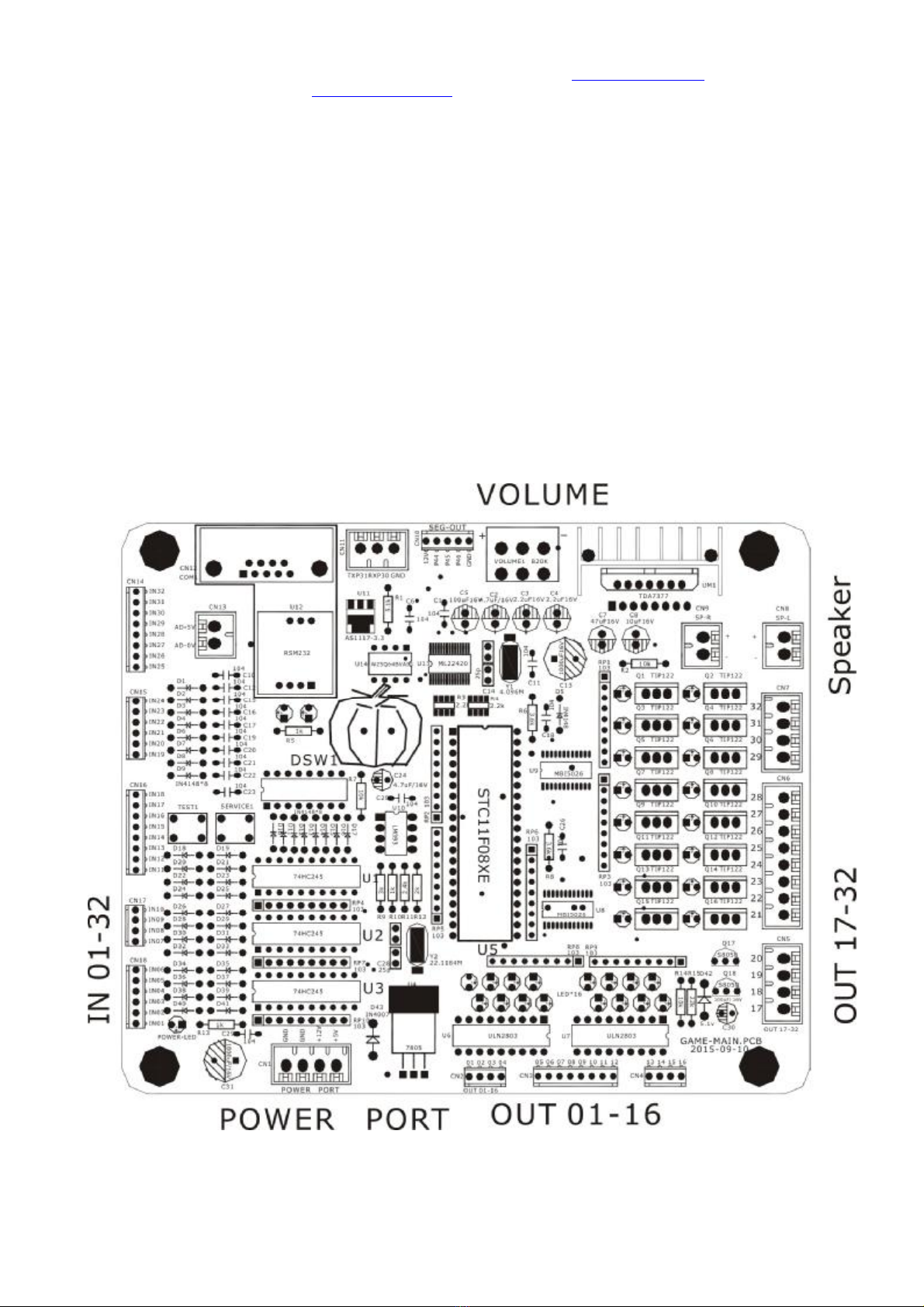

The plane figure of main-board

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
14
- 14 -
8-1.Install and test
①.Besure tocheck thatyou havereceivedall packages as theAccessories
chart before installingthe machine.
②.Installthismachine atasmooth position andadjust the leveladjustor
and fix to thefloor.
③.Poweron themachine when completeinstallation, please check the
function ofeach partofthe machine before service, if anytroubleis
found, take appropriate actionsto settle isfirst.
8-2.Maintenanceand inspections
1.Run andcheck the machine before beginningservicein veryday.
2.Wipe off dirtgently withasoft cloth.
3.Thenew machineshouldbecheck the functionof eachpartwhen beused
overone month.
4.Often to check the machine.
9. Attach drawing
9-1．Theoutside part
●Make sure that the powerswitch is OFFwhen servicing the machine.
●Choose the appropriate fittings to replace the wrong part.
●Do notremodel this machine withoutpermissionDonotcarry outany
tasknotcovered inthis OperationManual. Unauthorized remodeling
may result in anunexpected risk.
●Do notputthings onordamage powercords toavoidcausingafireor
electric shock.
WARNING

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
15
- 15 -
NO
Name
Qty
Specification
Note
1 Up Fiberglasscover 1
2 Coinchutetower 12
3 Upper door plate 6
4 Upper door lock 6
5 Upper door 6
6 Upper door fixbar 6
7 False coin funnel 6
8 Lock fixer 6
9 Glass door lock 6
10 Glass door 6
11Glass fix bar 6
12 Rack board 6
13 Fiberglasspedestal 1
14 Door lock (Down) 6
15 Door plate(down) 6
16 Counter 6
17 Chainbolt 6
18 Junction 12
19 Ticket counter 6
20 Ticketbox 6
21 Level adjustor 6
22 Casterfixer 6
23 Caster 6 2
24 Lamp box 6
9-2．Signboard element
NO
Name
Qty
Specification
Note

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
16
- 16 -
1 Power box 1
2 SignboardPCB bracket 1
3 SignboardPCB board 2
4 Fluorescentlight. 2
5 Fan cover 2
6 Signboard 1
7 Lamp PCB board 72
8 Lamp cover 72
9 Signboarddischargefan 1
10 Directionbushing 1
11 Signboardplate 2
12 Power box 1
13 Discharge Fan6
14 Circleboard 1
15 Discharge Fan 3
16 Speaker 3
17
Signboard wheeling part
1
9-2-1．Signboard wheeling part

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
17
- 17 -
NO
Name
Qty
Specification
Note
1 Directionbushing 1
2 Insulator1
3 Joint board 1
4 Nylon bushing 1
5 Copper bushing 1
6 Insulatebushing 1
7 Copper bushing 1
8 Nylon bushing 1
9 Transmissionshaft 1
10 Key 1
11 Bearing 1 6006-2Z
12 Bearingbase1
13 Organizationbracket 1
14 Motor bracket 1
15 Motor 1 60YY220V6W 1：250
16 Supportingaxes 4
17 Brush 2
18 Bracket 2
19 Brushbracket 1
20 Spring fixedboard1
21 Spring 1
22 Brushbracket 1
9-3．TheDropping coin and Pushing coinAssy

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
18
- 18 -
NO
Name
Qty
Specification
Note
1
PCBBracket
6
2
L
ED lamp Bracket
6
3
Blub
36
4
LED
6
5
LED bracket
6
6
Directlamp
12
7
Directlamp base
12
8
Bracket
1
9
Sensor bracket
6
10
Coin door
12
11
Space board
6
12
Main plate cover
6
13
TurntableAssy
6
14
Wheel Assy
6
15
M
ain plant
6
16
Rope wheel
6
17
Micro
-
SW
18
18
Sideprotector
6
19
Block coin pole
6
20
Litter signboard plate
6
21
Ringlight
6
22
Base board
6
23
LittleLamp box bracket
6
24
Spring
12
25
Eatcoinadjustor
12
26
Gold stac
k
6
27
Pushing base
6
28
Coverboard
12
29
Eatcoinfunnel
6
30
Coin block pole
6
31
Slidingtrack bracket
6
32
Slidingtrack
6
33
Slidingtrack base
6
34
C
apacitance
base
1
35
Dropping coin funnel
6
36
Base board
1
37
Pus
hing coin component
1
38
String Ferrule
2

HomingGame Gold FortCoinPusher Game MachineManual. www.hominggame.com
[e-mail]:[phone]
19
- 19 -
39
Slidingtrack
12
40
Slidingtrack bracket
12
9-3-1．Turntable Gold stack part
NO
Name
Qty
Specification
Note
1 Turntableplate 1
2 Turntableareascore1
3 String axle 1
4 Bearing 2 6002-2Z
5 String wheel 1
6 Sensor board 1
7 Washer 2 Φ15
8 Retractor 1 MD-7，220V，50Hz
9 Spring base1 1
10 Spring 1
11 Spring base2 1
12 Spring bracket 1
13 Drawing string 1 Φ0.8
14 Turntablebracket 1
15 Bearing 1 6005-2Z
16 String wheel base 1
17 Washer 1 Φ25
18 String wheel 2 1
19 Drawing string 1 Φ0.8
20 Gold stack base 1
21 Wheel 1
22 Bearing 1 D=10,d=3,B=4
23 Drawing string 1 Φ0.8
24 Gold stack 1
25 Gold stack base 1
26 MovingASSYbase 1
27 Slip-proof ring 1
28 Moving bar 1
