Homing Helicopter Kiddie Ride User manual

HomingGame New Helicopter Kiddie Ride Manual
www.hominggame.com [e-mail]
wechat,Whatsapp,Mobile:[phone]
1

HomingGame New Helicopter Kiddie Ride Manual
www.hominggame.com [e-mail]
wechat,Whatsapp,Mobile:[phone]
2
Please read the manual first before operating this machine.
Please pay attention to the items marked in “note”.
Safety Attentions
1) Certain part of the game is with high voltage. Adjust the game by
technician. Do not open the game door unless maintenance or parts
replacement is required.
2) Please switch off the power before checking and maintenance.
3) Please switch off the power before opening the game door.
4) Fire extinguisher equiment must be nearby the game.
5) The game must be located properly to avoid damages.
Improper Locations:
Place direc t ly
exposed to sunshine
Humid area Place w ith high
temperature
Place w ith c orros s iv e
air and liguid
R ough area or plac e
w ith s trong shake
Place w ith mas s ive
dus t
Notes of Usage
1) The voltage range of the game should be 105V~115V or 215V~225V.
The proper voltage should be 110V/220V. The specific voltage accords
to the date plate on the back door of the game.
2) The plug must be plugged in tightly but keep the power cords not be

HomingGame New Helicopter Kiddie Ride Manual
www.hominggame.com [e-mail]
wechat,Whatsapp,Mobile:[phone]
3
too tight.
3) Please properly adjust the coin mech and the game settings when use at
the first time.
4) Please regularly check all the functions of the game when operate.
Notes of Maintenance
1) Be sure to check and maintance the game regularly.
2) Switch off the power before replacing the parts of the game.
3) The parts for replacement should be the same model as the old one.
4) Please check the connection and voltage output after replacing the
power supply.
5) The voltage range of the PCB should be 5.1V-5.4V.
6) Check whether the game has creepage and the voltage before repairing
the PCB.
Notes of Clean
1) Please use clean and soft colth to clean the game.
2) Prevent damaging the surface of the game, please do not use the
following cleanser:
 Alterative Cleanser;
 Acidic Cleanser;
 Insecticide, sterilized water, alcohol or other chemical cleanser.
Notes of Moving and Shipping
1) Properly disassemble the game for necessary moving and shipping.
2) Prevent the game from hitting or being attrite during movement.
3) Protecting the case when move the game.

HomingGame New Helicopter Kiddie Ride Manual
www.hominggame.com [e-mail]
wechat,Whatsapp,Mobile:[phone]
4
CONTENT
1. GAME INTRODUCTION ........................................................... 错误！未定义书签。
2. OPERATION ................................................................................... 错误！未定义书签。
3. TECHNICAL PARAMETER .........................................................................................
4. INSTALLATION ............................................................................ 错误！未定义书签。
4.1 CHOOSE A PROPER LOCATION ...........................................................................
4.2 CONNECT TO THE POWER .................................................................................
5. CHECK BEFORE AND AFTER OPERATION .....................................................
6. DAILY OPERATIONI ....................................................................................................
6.1 CONNECT TO THE POWER .................................................................................
6.2 KEEP RECORD ..................................................................................................
7. ADJUSTMENT .................................................................................................................
7.1 ADJUST THE COIN MECH ...................................................................................
7.2 ADJUST THE VOLUME .......................................................................................
8. CHECK AND MAINTENANCE .................................................................................
8.1 DAILY CHECK ..................................................................................................
8.2 DAILY MAINTENANCE ......................................................................................
9. TROUBLESHOOTING ..................................................................................................
10 SCHEMATIC DIAGRAM .............................................................................................

HomingGame New Helicopter Kiddie Ride Manual
www.hominggame.com [e-mail]
wechat,Whatsapp,Mobile:[phone]
5
1. GAME INTRODUCTION
These special kiddie rides with creative outlook and attractive sound effects.
Kids on the rides will feel the movements with special music. These rides will
be one of the most popular series in your FEC!!
Fetures:
Creative, realistic, colorful outlook;
Integrated main board provides stable and reliable performance;
High-quality coin mech fit for various coins;
2. OPERATION
Insert coin and the game will start automatically. Kids can drive the steering
wheel, press the buttons to play different music and sound effects.
3. TECHNICAL PARAMETER
Voltage: AC 220V/110V（50/60HZ）
Max. current: 5A/10A
Max. power: 550W/1200W
(Please refer to the nameplate on the back of the game for actual used voltage/
current/ power.)
Diameter of coin: φ21mm ~ φ30mm
Thickness of coin: 1.2mm ~ 2.5mm
Capacity of coin box: about 1800 pcs with coin size φ25mm*1.5mm
Lacation Required: indoor use; temperature: -5~40°C ; no contact with any
corrosive, greasiness and dirt.

HomingGame New Helicopter Kiddie Ride Manual
www.hominggame.com [e-mail]
wechat,Whatsapp,Mobile:[phone]
6

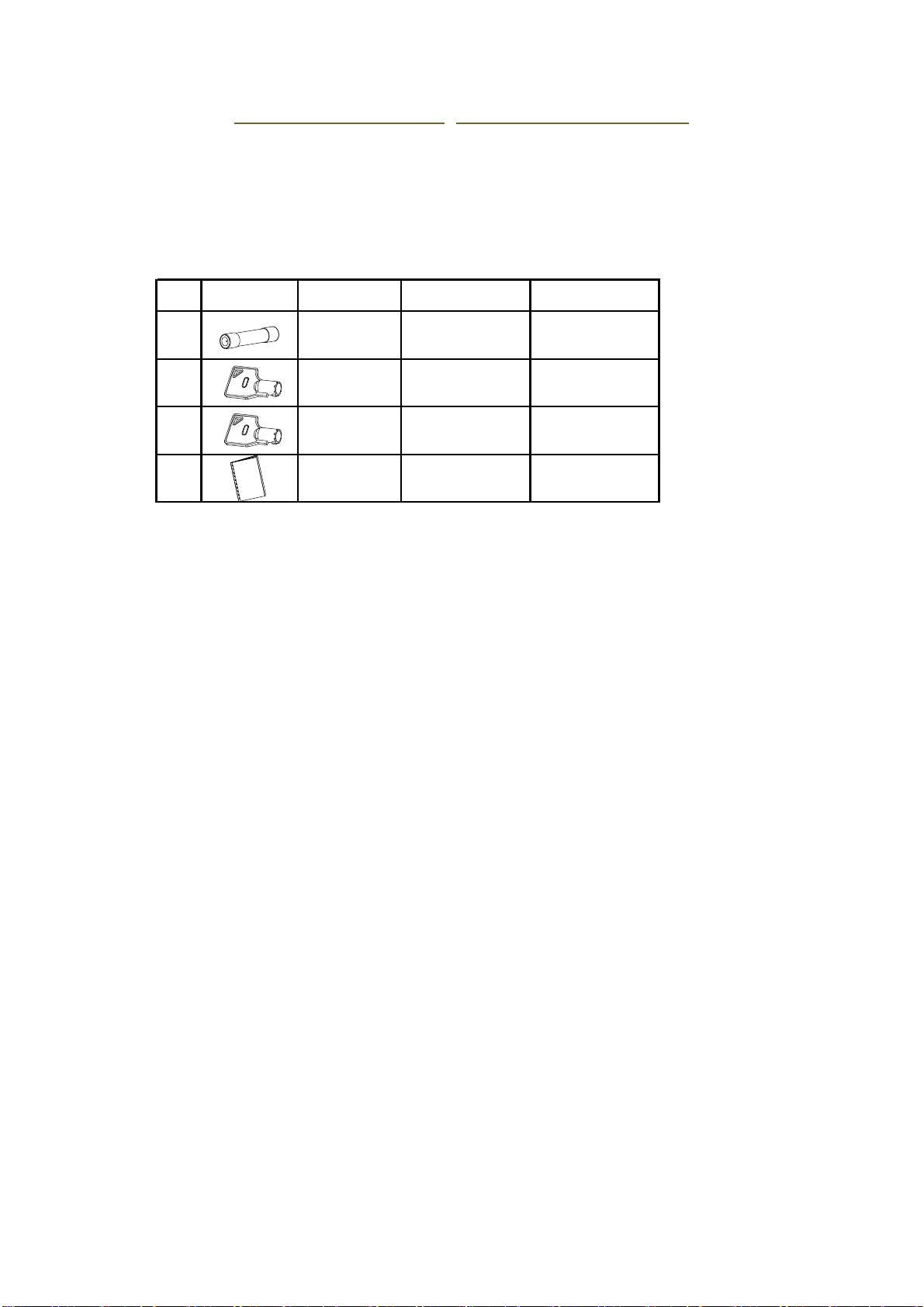

Parts shipped with the game:
NO. DRAWING NAME SPEC./MODEL QTY
1 FUSE 10A/15(large) 2
2 KEY 1285＃2
3 KEY 1396＃2
4 MANUAL 1
OPERATION MANUAL
Note: No further notice will be given in case of changing the parameters
of the game. We will not undertake any responsibilities if the game is
modified without proper technical guidance.
4. INSTALLATION
4.1 Choose a proper location:
Please make sure there will be 0.5m space around the game and the game
must be put on the flat floor.
4.2 Connect to the power
1) Check if the parts inside the game are loose and all the plugs should be
properly plug into the connector.
2) Check if the GND of the game are properly connected.
3) Check whether the resistance of GND of the power is more than 100
megohm.
4) Connect the wires: take out the wires, then connect the wire to the filter

HomingGame New Helicopter Kiddie Ride Manual
www.hominggame.com [e-mail]
wechat,Whatsapp,Mobile:[phone]
7
of the game and socket.

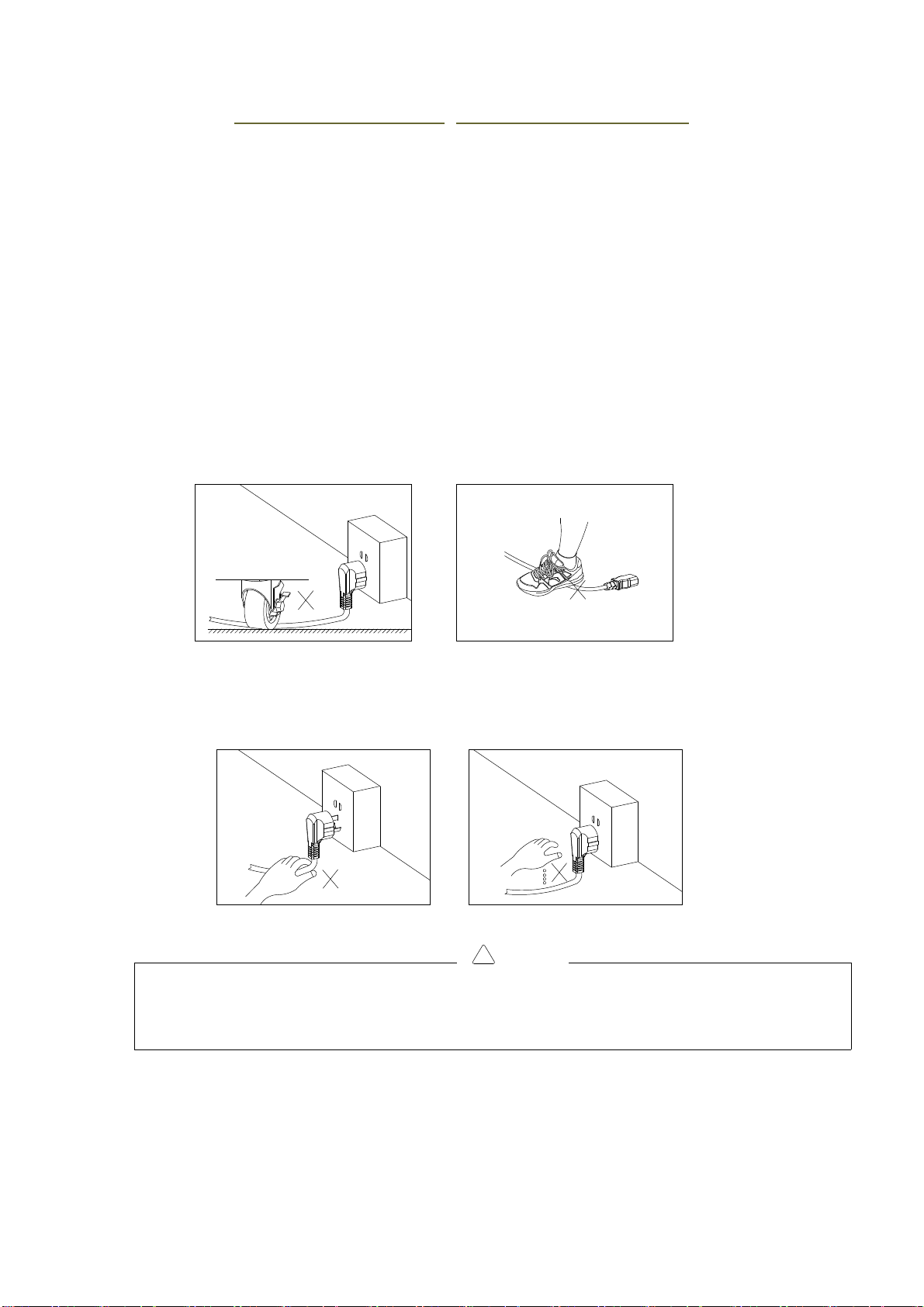

ATTENTIONS:
A) Please make sure the power cord is not pressed by wheel,
foundation, etc. Otherwise, it will damage the wire to cause short
circuit, even fire. Do not use strong power to extend and wring the
wires. Do not make the wire be near to the high temperature object.
Properly put the wire to avoid any kicking or treading.
B) Hold the plug to pull it out from the socket. Do not touch the plug
with wet hands.
AAAA
！warning
Before inputing the power, please check the resistance between input port and GND. Make
sure the connection is proper.

HomingGame New Helicopter Kiddie Ride Manual
www.hominggame.com [e-mail]
wechat,Whatsapp,Mobile:[phone]
8
5) Game settings:
Descriptions:
1. Open the coin door to find out the DIP SW1 on main board.
2. Please follow the below setting chart to set
DIP SW1
SETTING
1 2 3 4 5 6 7 8
No. of coin per
play
1 coin OFF OFF
2 coins ON OFF
3 coins OFF ON
5 coins ON ON
Game time per
play
60 sec OFF OFF
90 sec ON OFF
120 sec OFF ON
180 sec ON ON
Time for waiting
the DEMO music
plays
120 sec OFF OFF
180 sec ON OFF
90 sec OFF ON
60 sec ON ON
DEMO music play
or not
Disable OFF
Play ON
No. of coin per play: This setting can decide how many coins player need to
insert for one play.
Game time per play: This setting can decide how long one play will last.
box for PCB
NAME:BLYAOBAI IO PCB
DIP
ON
78
6
5 4
3
2
1
SW1
setting board
SW1 DIP switches

HomingGame New Helicopter Kiddie Ride Manual
www.hominggame.com [e-mail]
wechat,Whatsapp,Mobile:[phone]
9
5. CHECK BEFORE AND AFTER OPERATION
Please check the game before daily operation
Items to be checked:
 Confirm the wires are securely connected and without defects.
 Confirm the game is firmly fixed.
 Check if the game case is without defects and burrs
 Check if the game is without dirt and properly sticked on with marks.
 Swith on the game.
 Check and confirm all the lights can work properly.
 Check and confirm the background music can work properly.
 Check and confirm the coin mech and sound effect is proper.
 Confirm the movements are proper.
6. DAILY OPERATION
6.1 Connect to the power
1) Check if the coin mech can work properly.
2) Check if the game can move properly.
3) Check if the game has unusual sound.
4) Check if the rider sits properly before operation.
6.2 Keep record
There is a coin box and a coin meter inside the game. Please collect coins and
keep record of the coin meter after operation.

HomingGame New Helicopter Kiddie Ride Manual
www.hominggame.com [e-mail]
wechat,Whatsapp,Mobile:[phone]
10
7. ADJUSTMENT
7.1 Adjust the coin mech
Drawing:
Descriptions:
1) Please take out the plastic coin from sample coin chute and replace it
with token.
2) Adjust the COIN signal wavelength to 50MS.
3) Adjust the micro-adjust resistance of token tolerance. Clockwise:
increase the sensitivity of token tolerence, that is, the range of
accepting the token tolerance will be larger. Counterclockwise:
decrease the sensitivity, that is, the range will be smaller and choose the
token more strictly.
micro-adjusting resistance
sample coin chute
power/signal input port
COIN signal
wavelength sw
Remove
Backeard
To
Replace
Coin
ELECTRONIC COIN SELECTOR
Model:902AT
Lines Guide of connector:
White Line Notmal Close (N.C.)
Green Line Normal Open (N.O.)
Gray Line
Yellow Line
Red Line
Black Line
Counter
DC+12V
GND(Ground)
+
-
TIMER SWITCH
Slow Madium Fast

HomingGame New Helicopter Kiddie Ride Manual
www.hominggame.com [e-mail]
wechat,Whatsapp,Mobile:[phone]
11
7.2 Adjust the volume
Descriptions:
1. Open the coin door to find out the volume potentiometer.
2. Turn the volume potentiometer to adjust the volume. Clockwisely turn the
potentiometer to increase the volume; counterclockwisely will decrease the
volume.
8. CHECK AND MAINTANENCE
8.1 Daily check
ITEMS DESCRIPTIONS
box for PCB
NAME:BLYAOBAI IO PCB
DIP
ON
78 6
5
4
3
2
1
SW1
volume potentiometer
！warning
Please check and maintain the game by technicians.
Please power off the game when check and maintain.
Please do not put any tools into cabinet, otherwise it will cause problem.
After checking, please tightly screw the screws and close the door.

HomingGame New Helicopter Kiddie Ride Manual
www.hominggame.com [e-mail]
wechat,Whatsapp,Mobile:[phone]
12
Coin mech Check if the coin mech can work properly.
Sound effect
button
Check if the buttons can work properly.
Sound Check if the game has proper sound
Motor for shaking Check if the motor can work properly.
Lights Check if all the lights can work properly.
Temperature /
Humidity
Check if the temperature and humidity are properly.
8.2 Daily maintanence
ITEMS DESCRIPTIONS
Cabinet Clean the cabinet with water and paper.
PCB Clean the PCB with brush.

HomingGame New Helicopter Kiddie Ride Manual
www.hominggame.com [e-mail]
wechat,Whatsapp,Mobile:[phone]
13
9. TROUBLESHOOTING
ITEMS PROBLEMS CAUSES SOLUTIONS
Need to adjust the coin mech. Adjust the coin mech.
Wire of signal for coin mech is loose. Check the connection.
The coin mech is bad. Replace the coin mech.
Need to adjust the coin mech. Increase the sensitivity of coin mech.
The material of coin is different. Change the coins.
The sw wire for the button is loose. Check the connection.
The sw of button is bad. Replace the m icro switch.
The connection of light is bad. Properly connect the light.
The light is burnt. Replace the light.
Light signal port on main board is bad. Replace/repair the light.
The connection of light is bad. Properly connect the light.
The light is burnt. Replace the light.
The wire for m otor is loose. Check the connection and voltage of motor.
The capacitance of motor creeps. Replace the capacitance.
The relay for motor is bad. Replace the relay.
The speaker is bad. Replace the speaker.
The wire for sound signal is loose. Check the connection.
The volume is too low. Increase the volume.
No AC110V/220V input. Check the connection and voltage.
The fuse is burnt. Replace the fuse.
No voltage output in power supply. Replace/repair the power supply.
The output voltage is too low in power
supply.
Increase the voltage ouput of power supply to 12.5V.
The main board is bad. Replace the main board.
No movement
after powering on.
POWER
Some coins can
not be inserted.
No movement
MOTOR FOR
SHAKING
CONTROLLABLE
FLASH LIGHT
LIGHT
No soundSPEAKER
The light can not
be lighted.
SOUND EFFECT
BUTTON No action
COIN MECH
The light can not
be lighted.
Can't insert coin.

HomingGame New Helicopter Kiddie Ride Manual
www.hominggame.com [e-mail]
wechat,Whatsapp,Mobile:[phone]
14
10. SCHEMATIC DIAGRAM
flash light
(controllable)
flash light
(controllable)
flash light
(controllable)
light 3 for speaker
light 2 for speaker
light board for
speaker
Bla3
O3-O4
Pi2
W2
Br2
W1
Pi1
Grey1
Pu1
B1
G1
Y1
Br1
Pi2
W2
Br2
W1
Pi1
Grey1
Pu1
B1
G1
Y1
Br1
Bla3
O3-04
Bla3
O3
O4
Bla1-2
R1-2
Bla1-1
R1-1
Bla1-1
R1-1
Bla1-2
R1-2
02
Bla2
01
Bla1
flash light
Y1-2
G1-2
01-02
main board
motor for shaking
M
solid relay
light board for
speaker
flash light
(controllable)
song button
3
2
1
coin
mech
1
2
3
sound effect button 1
sound effect button 2
coin meter
4" speaker, 15W
+
-
-
+
GND
+12V
2
3
1 1
3
2
CN3
GND
sound output B
CN4
5
2
3
4
11
4
3
2
5
sound output A
N/A
sound output A
sound output B
15
14
13
12
11
10
song button
15
14
11
12
13
10
GND
+12V
N/A
sound effect button 2
sound effect button 1
light output 1
light output 2
START light
coin meter
fuse
DP1
6 6
light 1 for speaker
8
9
7 7
9
8
motor control
5
2
3
4
1 1
4
3
2
5
220V power input
coin signal
E
GND
12V
220V
220V
power
supply
Bla1-Bla2
1 2 3 4 5 6
654321
G1-1 Y1-1
Y/G1-1
Y1-2
G1-2
6P connector
