Homing KEY MASTER User manual

key masterA2.5 Version Manual www.hominggame.com [e-mail]
whatsapp:[phone]
KEYMASTER
Manual
A2.5）

key masterA2.5 Version Manual www.hominggame.com
1
1、Presentation 2
2、Matters needattention 2
3、Specification 2
4、Accessories 3
5、How to play 3
6、Mother board’s function 4
7、Account checking 5
8、Adjusting and testing 6-9
9、Winning probability setting 9-11
10、SMS functionsetting-----------------------------11-14
11、Set the alarm system--------15
12 Function statement 15-16
13、rectify the shooting coordinates point ..16
14、Trouble shooting 17
Notice: In order to guarantee the safety,please read the
following terms carefully.

key masterA2.5 Version Manual www.hominggame.com
2
1.Presentation
Congratulations! You exactlybought the gift machine “Key master”,
andthis model isextremly full
of challenges.It is popular withmany countriesand cities, tooking thefancy of players andproducing
so much favourablecomment from holders. Weadvise you toreadthroughouttheInstructionsso
that you can be familiar
with the usage of thismachine. It is welcome to your coming telegramand
telephone callsifany questions oradvices.
Wewillsolve your problems with sincere
management ,which is the faith of our company
2. Matters need attention
Matters need attention inInstallation
1) Installing or removing this product, please contact the relevant technical personnel first.
2) Theproduct is applied indoor, avoiding wet places.
3) Theproduct shouldnotbe installed inthebelow places:
Places are wet or leaking
Places with the greenhousefacilities directly affecting.
Places with the floor tilt, uneven or vibration.
4) Be in AC220V, with the wire holed greater than 10A
5) Please don’t place theoutlet onthefloor otherwise itmay lead to an accident.
6) Please don'tuse the outlet with many pins, it may lead to fire hazard or electric shock.
Use caution:
1) Be sure to turn off the power when verifying andchecking up. Please don't use the water to clear up the
machine inside directly, otherwise it may happen to leakage causeby mislead actions, and lead to a fire hazard or
an electric shock.
2) All consumables should be specifications.
3) To prohibit the action of resolving and altering this product, it may causeto a fault. Our company is not
responsible for such cases.
4) In order toimprove the quality, it is possible to change the specification without prior notice
3.Specifications
Exterior Appearance D90*W98*H183（cm）
Weight About 230KG
Power AC110V
Electric Supply About 150W
Implement Token

key masterA2.5 Version Manual www.hominggame.com
3
Coin Box Capacity About 5000 coins
4.Accessory
Instruction Book 1 piece
Micro switch .............. . 4 piece
Wire 1piece
5.How to play
1)Insert operated coins,strat the game
2)Control the left-right movement of the key by joystick . Press and hold the button tolift the key.
3)Aim at the right slot and release the button,the key enter intotheslot.

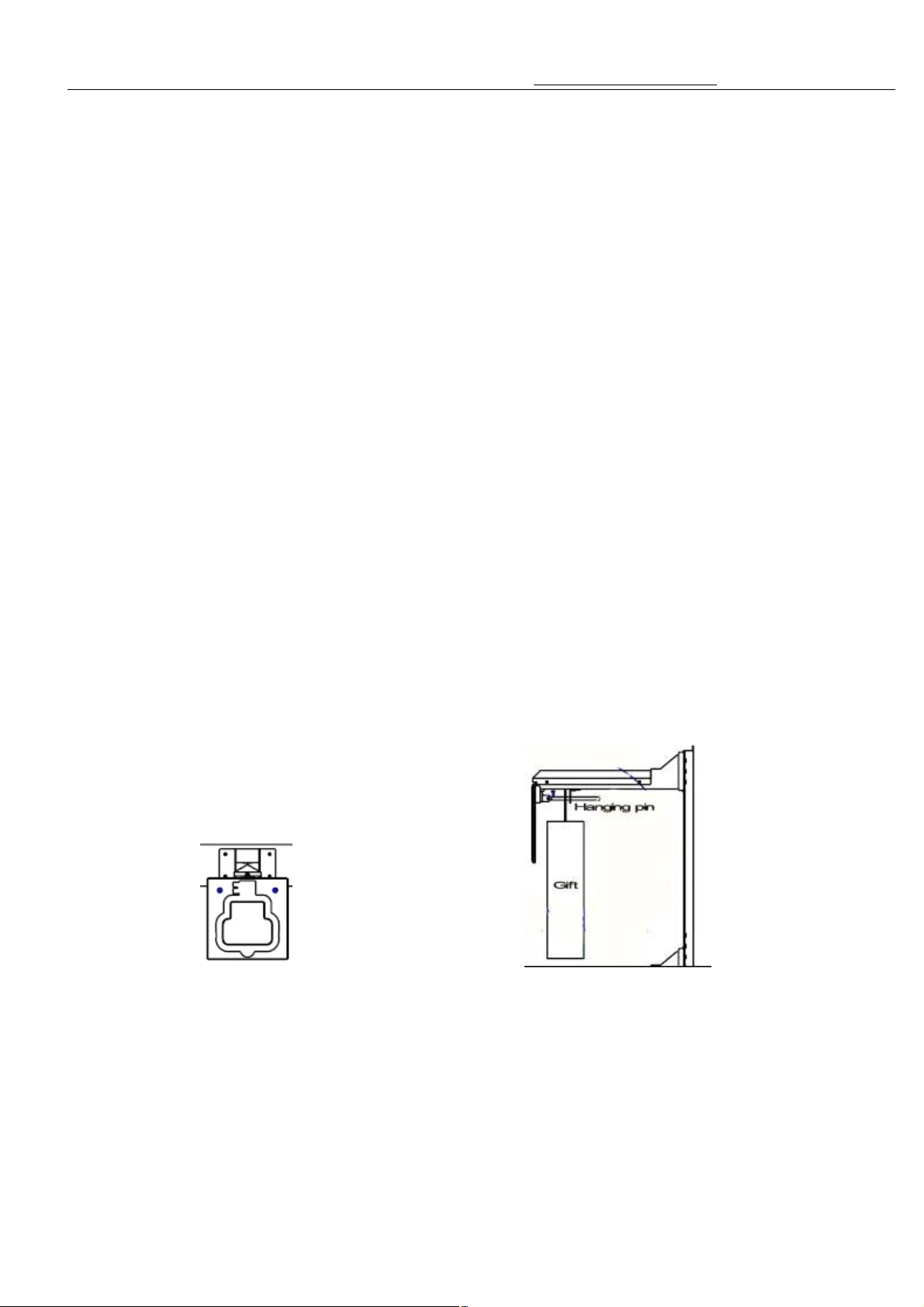

4)If the Key manage to go through the slot ,The keywilltwist to unlocks the lock and pull out the gift hanging pin .
5) The gift drop off frompin and falls to the prize basket ..
Spot Hanging gift

key masterA2.5 Version Manual www.hominggame.com
4
6.Illustration of main-board's function
(Direction is :From Left To Right)
1、LED 1(Mode 1) (as the pic shown above)------Shows total amount of Inserted coins
2LED 2(Mode 2) (as the pic shown above):-------Shows total amount of gift payout
3、LED 3(Mode 3) (as the pic shown above) ----Settingthe Credit(Signal) Per game
LED 4)Mode 4) (as the pic shown above)-----Setting the Demo music and Playing Music/ Setting the play
game time
4LED 5(Mode 5)(as the pic shown above)------Setting Each Hook(Hanger) coordinate(Automatically)
5、LED 6(Mode 6) (as the pic shown above)-------“Checking”,”Testing”,”Clear”
6LED 7(Mode 7)(as the pic shown above)-------Setting the probability for each line or for each individual
7LED 8(Mode 8)(as the pic shown above)-------- SMSfunction setting
8Mode 9(the LED1 and LED2turn on)---------------Set the alarm system
9MODE Button:-----------------------Use this button tochange mode.
10 UPButton -------- In the appointed mode state,Use it to adjust(increase) the number
11 DOWN Button ----- In the appointed mode state,Use it to adjust(Reduce) the number
12 ENTER Button:-------- In the appointed mode state ,Use this button to make a confirmation.
13 CLEAR Button-In the appointed mode state ,Use this button to delete data or return to previous or
LED1
——
LED8

key masterA2.5 Version Manual www.hominggame.com
5
“Exit”
14 TEST Button—In the appointed mode state,Use this button to test or “shift
7.Account Checking
The way tocheck account :press “Mode”
button, said enter mode one when the LED1 light on .Continue to press
“Mode”button, said enter mode two when the LED2 light on .And so on......
Mode 1—Shows Total amount of inserted coins
Mode 2---Shows Total amount of gift payout
Notice:
There are permanent data(Total inserted coins quantity and Total gifts given out quantity) store in the
mainboard, can not through the “clear”way to delete ,except the motherboard broken.
How to check these permanent data ? the way is as follows:
1. Press the“Mode”button to select the“Mode 8”(LED 8 light”) .Shows “8F - - - - ”
2.Press the “Enter”button, appear “8A0000”
3.Use the “UP”and “DOWN”button to imput the permanent data account checking password.The factoryDefault
setting password is “0003”,press the “enter”buttonto confirm
4.will shows the LED1 and LED8 are on atthesame time, the digital tube will shows the total amounts of insterted
coins quantity,such as the following picture shows“000608”,Means the total amount inserted coins is 608pcs
5. press the “Test”button, will shows the LED2 AND LED8 are on atthesame time, the digital tube
will shows the
total amount of gifts given out quantity.Such as the following pictures shows“000004”,means the total mount of
giftsgiven out is 4 pcs.

key masterA2.5 Version Manual www.hominggame.com
6
6. Press the “Test”button to shiftLED1toLED2or LED2 toLED1 ,toseethequantity numbers. Press the“Clear”
button to exit.
(About the owner management password setting ,the following will be mentioned. Has the permanent
memory function ,it’s convenience for the owner manage and supervise)
8.Adjusting and Testing

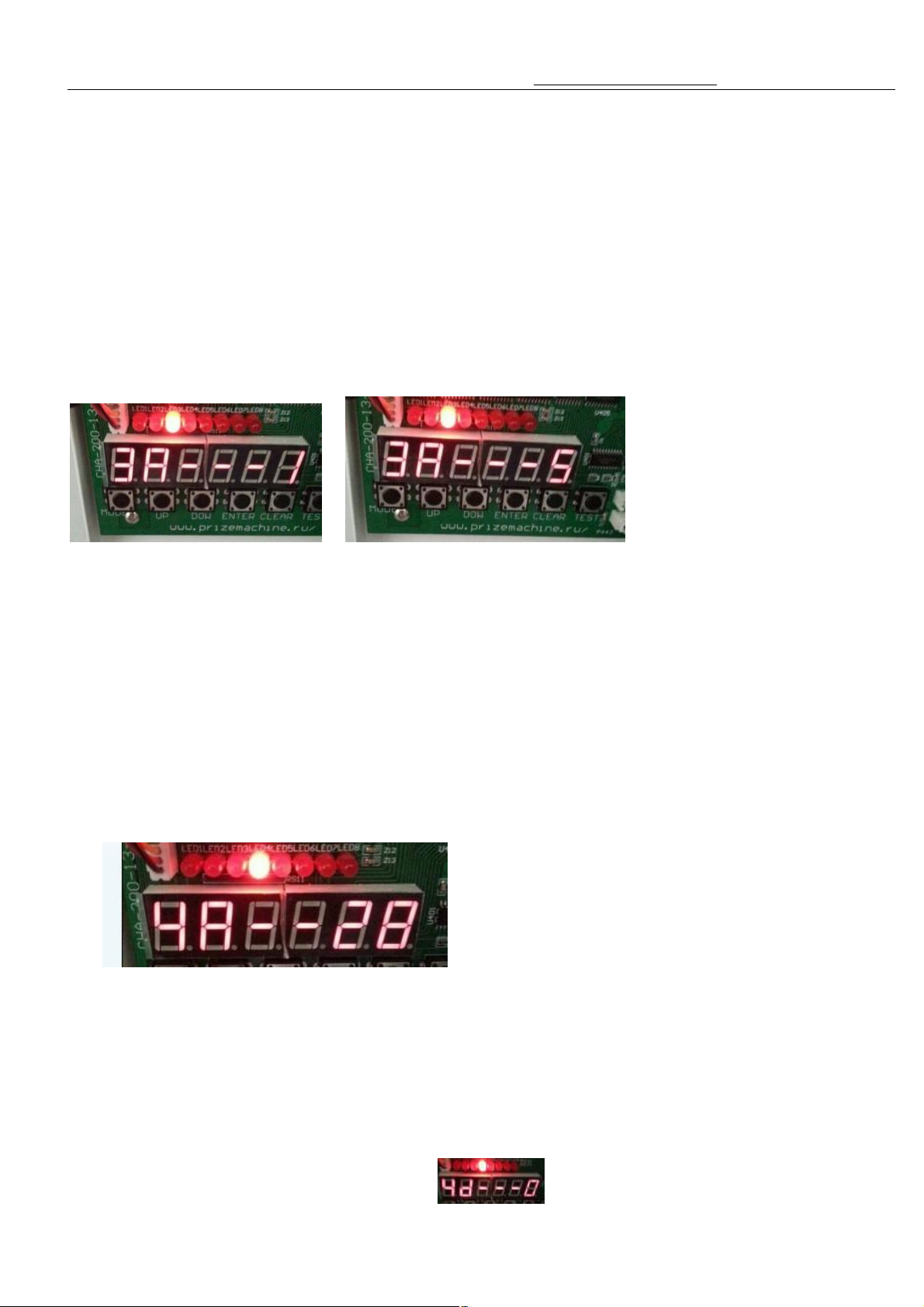

(1)Settingcredit of every game : Enter mode 3 tosetting.
Method of enter mode 3:press“MODE”,when LED3 light means enter，show“3A- - - X”
Adjust the credit from 1 pcs(Minimum) to 5 pcs(Maximum)by pressing “Up”or “Down”Button
Will shows “3A- - - 1”To “3A- - -5”,asfollows:
1. “3A- - -1”= 1 Credit = 1 signal= 1 Game
2. “3A- - - 2”= 2 Credits = 2 signal = 1 Game
3. “3A- - - 3”= 3 Credits = 3 signal = 1 Game
4. “3A- - - 4”= 4 Credits = 4 signal = 1 Game
5. “3A- - - 5”= 5 Credits = 5 signal = 1 Game
(2)Setting the play game time
Press “MODE”button to light up theLED 4,The tube screen shows“4A- - - x”, Press the “Up”and “
Down
“button to adjust the game time. The game time range is : from20 seconds ( Minimum) to 60 Seconds (Maximum)
As the above pictures shows “4A- - 28”means the playing game time is 28 seconds.
(Notice: the suggestion is 25 secondsor 30 seconds)
(3)Setting the Demo music playing time and the method of game music and domo music
Under Mode 4 ,press the“TEST”button ,the tube screen shows“4B - - - x”
you can press“UP”or “DOWN”button to set the music display or not.
“4b- - - 0”means do notdisplay the demo music

key masterA2.5 Version Manual www.hominggame.com
7
“4b- - - 1”means play 1 demo music interval 1 min
“4b - - - 2”means play 1 demo music interval 2 min
“4b - - - 3”means play 1 demo music interval 3 min
“4b- - - 4”means play 1 demo music interval 4 min
“4b- - - 5 “means play play 1 demo music interval 5 min
“4b - - - 6 “means play demo music all the time
Method of change game music and demo music :
1. Establish a new file in the computer
2. Theformat of demo music and game playing music require is MP3 format .If 96k frequency canbe put into36
0
seconds music (the time of total music(Demo+Playing) less than 360 seconds)
3. Choose the music you like, save it into the new file.each music separately named it“0001”,“0002”, “0003”,
“0004”……andso on,All thesemusic number(name)should be arranged.(“0001”music list No.1, “0002”
music No.2 ……and so on)

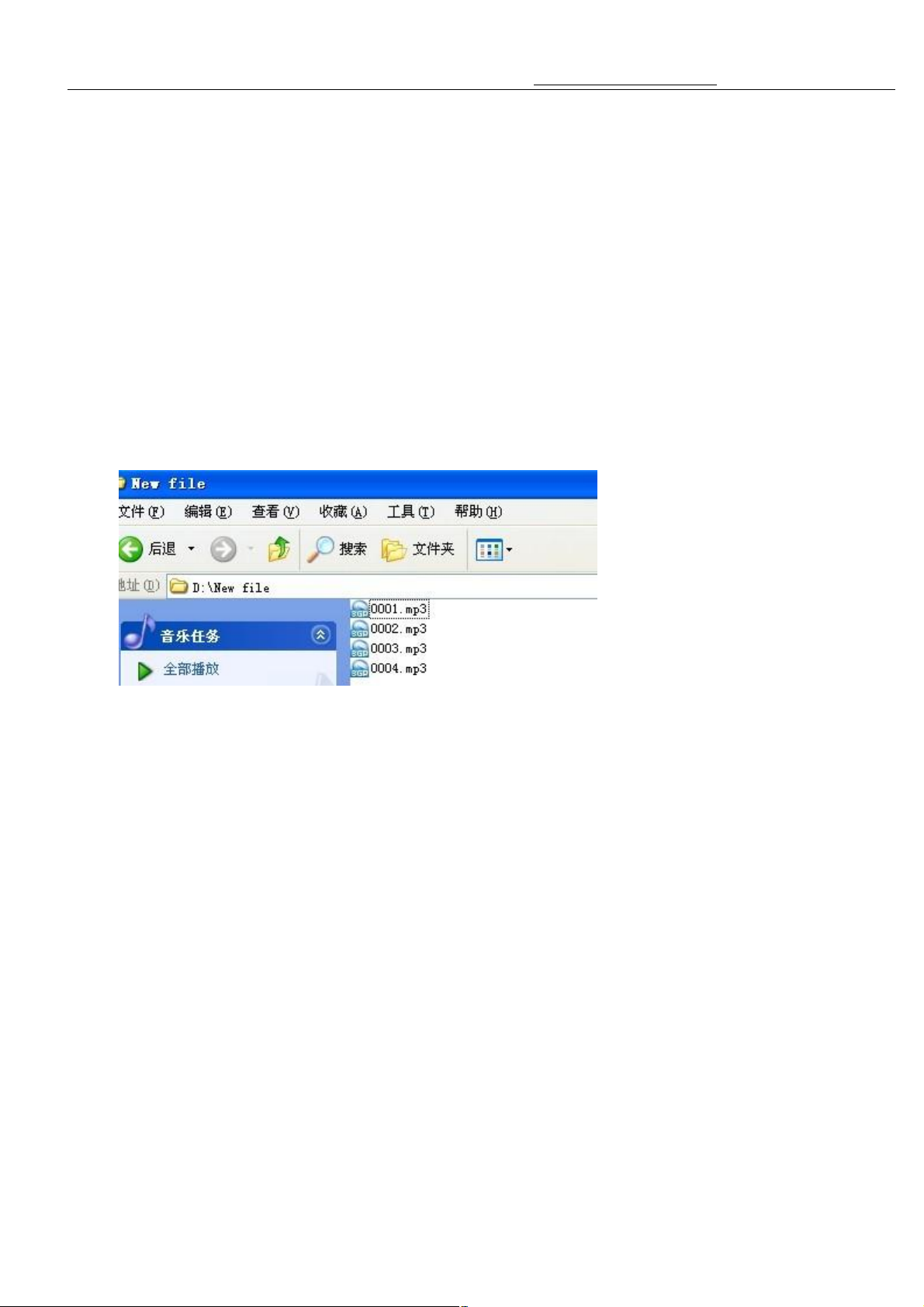

4. After finish these arrangement( such as the above picture shows)

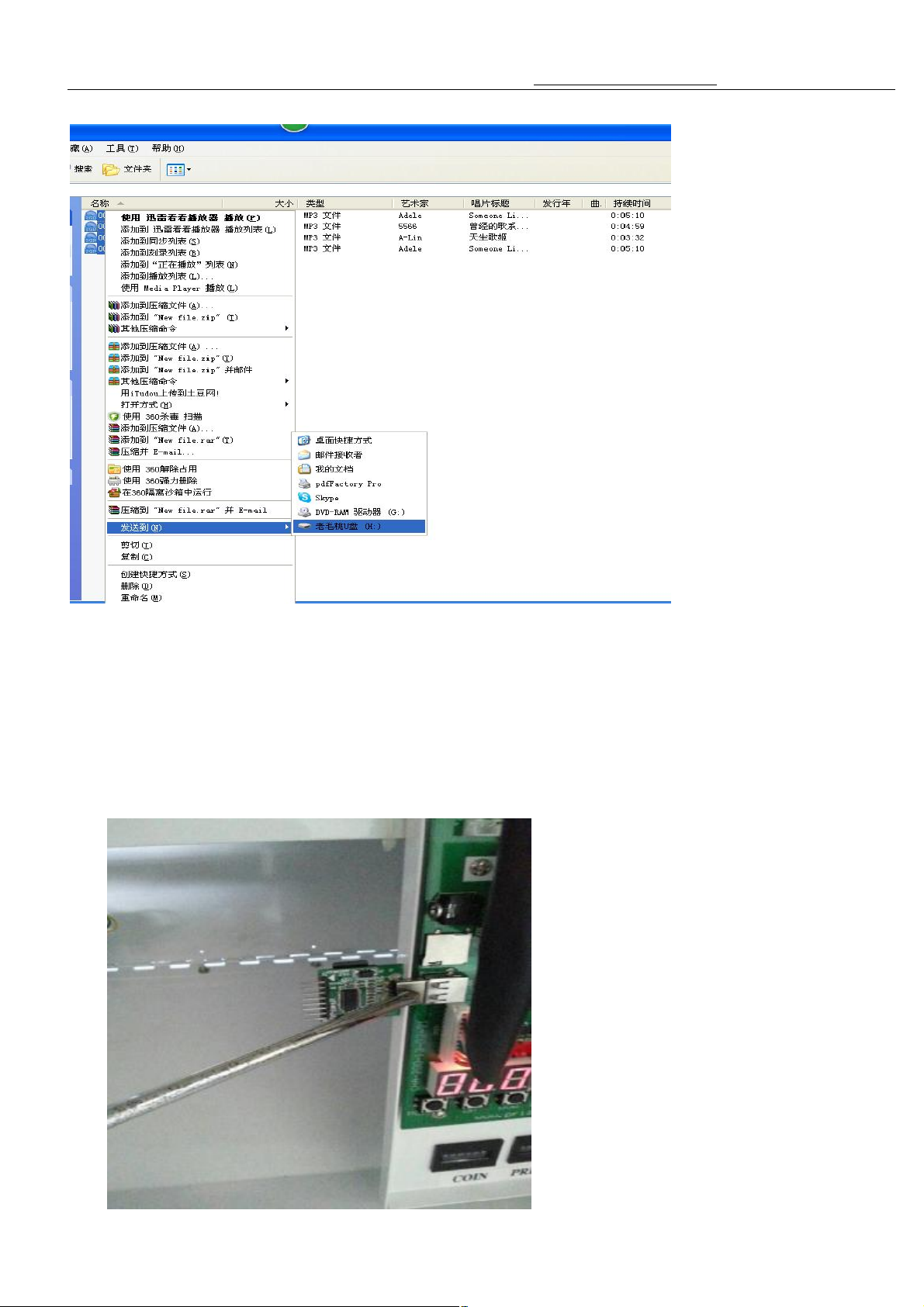

5. And thenconnect theUdisk with the Computer,select all the new file music(arranged as per the title),and
send them to the U disk..

key masterA2.5 Version Manual www.hominggame.com
8
6. USB connect：Method of change game music and domo music：
Press "CLEAR" button more than 3
second under the setting domo music mode,the digital shine is ok
7. SD connect：
If press "ENTER" button more than3 secondunder the setting domo music mode,the digital
shine is ok.

key masterA2.5 Version Manual www.hominggame.com
9
(Notice:First part is demo music 0001,0002.another part is game music 0003，0004)then choose way。
4）Settingevery prize hook coordinate
Press the MODE button to light up the LED 5。
1Under the mode 5,Press "ENTER" button, machines will Auto fi
nd the coordinate( Notice:when the key goes
through the lock hole easily in the first step,please adjust thegift hook andthen re-setting the coordinateagain )
2When LED shine means have saving this hole coordinate.
3Notice：Can not power off,during setting the coordinate,or else, cannotsave coordinatedata.。
When X
position is not right ,canusehand toajust thehook。.（
Make sure eachrow all hook in the same horizontal
level）
5）
Confirm the origin point
Press the MODE button to light up the LED 6。(In the Mode 6 state)
1Press “ENTER”button under themode 6, push key will auto move the first hole
,andup ,pass thehole.It will go
on to next hole after finish first one.It will come back after finish 15 hole.（If push key
can not go through the
hole need to come back to mode 5 to calibration.
2Press “TEST”buttonunder themode 6,Pushrodwill move from leftto right and up and push.（
Test every switch
and pushrod.
3Press “UP”button under themode 6,will increase10credit(use for thetechnical wo
rker to test the game
machine)
Press“CLEAR”button willclear the credit which shows on the console
,if Press“CLEAR”more than 10
second,will clear the amount credit andamount prize have out.
(Accountshows in themainboard digital
tube ,in themode 1 mode 2 shows number will clear )
4Press“DOWN”more than 10second，will clear the coins account when LED anddigital off.
(Notice:it will affect the prize probability)
9.Setting theProbability
1）Press the MODE button to light up the LED 7

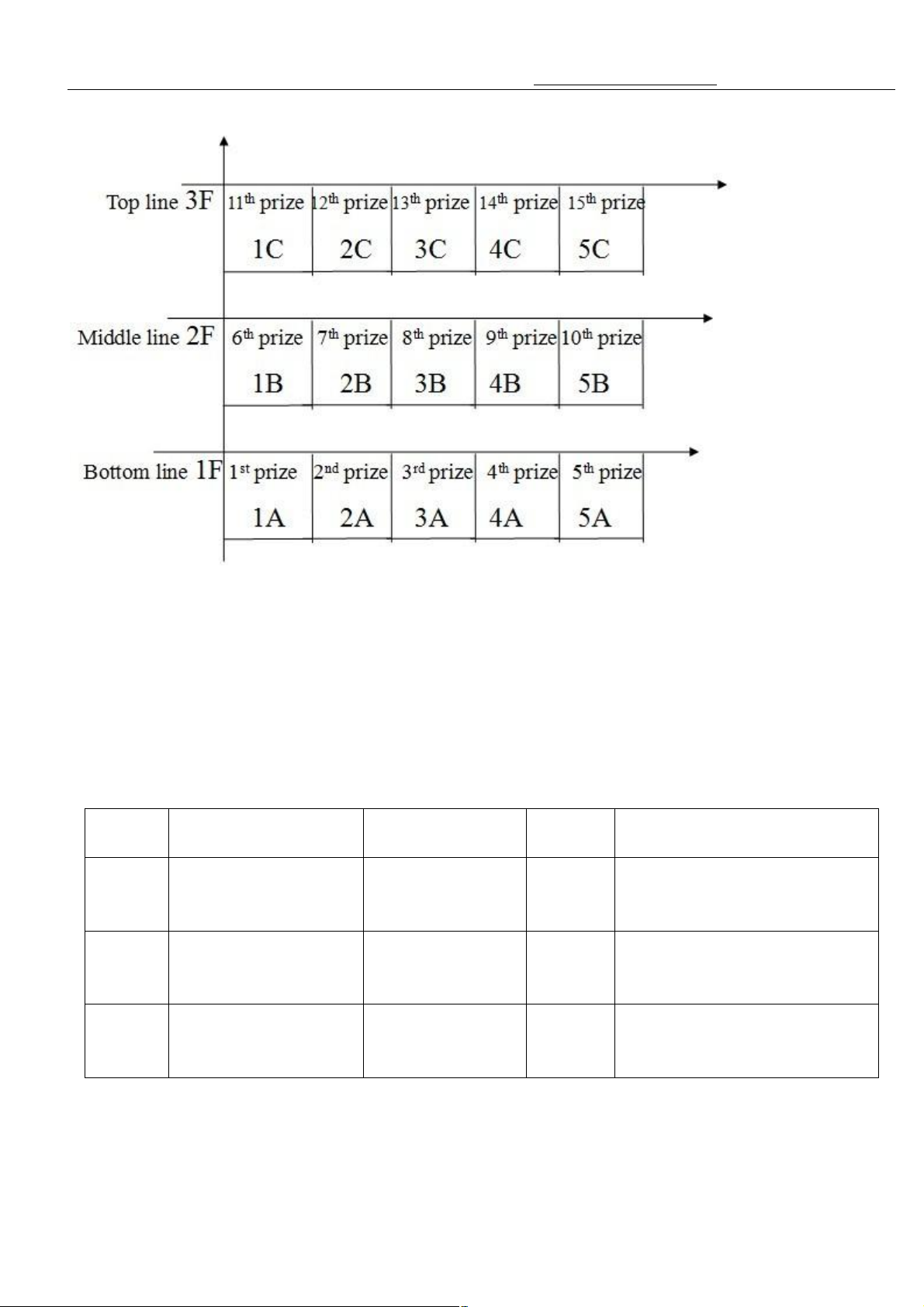

1，Setting every line probability,under mode7, the digital tube display 1F0005，1F means the first line(bottom line)
probability，5means setting coins（means when insert 5coins then have change to win the prize on the first line），
press "UP" and "DOWN"button to set the winning probability of this line of
lattice ,after finishingit, press "ENTER"
button to set the winning probability of next line of lattice.

key masterA2.5 Version Manual www.hominggame.com
10
Digital
Tube Item Setting Range Default SET Explanation
1F The winning
probability of the first
line of lattice
0-5000 10 probability=giftvalue+profit
coin for the unit)
2F The winning
probability of the
second line of lattice
0-5000 20 probability=giftvalue+profit
coin for the unit）
3F The winning
probability of the third
line of lattice
0-5000 30 probability=giftvalue+profit
coin for the unit）
(Notice :In the mode 7,press the “Test”buttonto shift(change) the setting prizeprobability for each
line or for each hole(individual) )

key masterA2.5 Version Manual www.hominggame.com
11
Setting for each line , each line ,5 holes has the same prize ratio(probability)
Setting for each individual, each hole has itsown prize ratio(probability)
2，Setting every hole probability(Individual), under mode7, the digital tube display1A0005，1Ameans the
first hole probability，5 means setting coins（means when insert 5 coins then hav
e change to win the prize on the
first line）， press "UP" and "DOWN" button to set thewinning probability of this hole of lattice ,after finishing it,
press "ENTER" button to set the winning probability of next hole of lattice.
Digital
Tube Item Setting Range Default SET Explanation
1A The 1 hole probability 0-5000 10 probability=giftvalue+profit
coin for the unit)
2A The 2 hole probability 0-5000 10 probability=giftvalue+profit
coin for the unit)
3A The 3 hole probability 0-5000 10 probability=gift value+profit
coin for the unit)
4A The 4 hole probability 0-5000 10 probability=giftvalue+profit
coin for the unit)
5A The 5 hole probability 0-5000 10 probability=giftvalue+profit
coin for the unit)
1B The 6 hole probability 0-5000 20 probability=giftvalue+profit
coin for the unit)
2B The 7 hole probability 0-5000 20 probability=giftvalue+profit
coin for the unit)
3B The 8 hole probability 0-5000 20 probability=giftvalue+profit
coin for the unit)
4B The 9 hole probability 0-5000 20 probability=giftvalue+profit
coin for the unit)
5B The 10 hole
probability 0-5000 20 probability=giftvalue+profit
coin for the unit)
1C The 11hole
probability 0-5000 30 probability=giftvalue+profit
coin for the unit)
2C The 12 hole
probability 0-5000 30 probability=giftvalue+profit
coin for the unit)
3C The 13 hole
probability 0-5000 30 probability=giftvalue+profit
coin for the unit)
4C The 14 hole
probability 0-5000 30 probability=giftvalue+profit
coin for the unit)
5C The 15 hole
probability 0-5000 30 probability=giftvalue+profit
coin for the unit)

key masterA2.5 Version Manual www.hominggame.com
12
10.SMS function setting
(1)SET NEW OWNER PASSWORD
Undermode 8 ,press the “ENTER”button ,
the digital tube shows 8AXXXX,,
use“UP”or “DOW”button to enter“0001”,
press “ENTER”button ,
the digital tube shows 1F0000,
then begin to use“UP”or “DOW”button to
input a new owner password to instead of-
the original one“0001”,
press “ENTER”to confirm the new password .
(2) SET NEW SMS MANAGEMENT PASSWORD
Press “TEST”button to shift to 2F0000,
this is the section of setting SMS management password .
use ‘UP”or “DOW”button to input the-
new SMS management password to-
replace the original one“0002”,
press”ENTER”to confirm the new password .
(3) SET NEWACCOUNT CHECKING PASSWORD.
Press “TEST”to shift to 3F0000,
this is the un removable account-
checking password setting .
Use “UP”or “DOW”button to input thenew one to replace the“0003”.
UnderMode8,theSMS Default ManagementPassword is:0002
Digital
tube
shows
Function Setting
Range Factory Defalut setting(Password
)
Instructions
1b--XX Set mobile account checking
password 0000-9999 0000
When finish the password setting
in the mainboard,The owner want
to checkingor setting by mobile
phonemessage .Thepassword
should edit relevant Capital
letter.(Ameans Number 0, B
means Number 1,……J means
Number 9 )
Forexample: if want to account
checking , as the default
password is“0000”, soyou
2b--XX mobile setting winning
probability password
0000-9999 0011
3b--XX mobile set the credit for game 0000-9999 0022
4b--XX Mobile number recognization
password 0000-9999 0033
Display Ref Range Default
Setting
Password
1F000 New owner password 0-9999 0001
2F000 New SMS
management
password
0-9999 0002
3F000
New un removable
account checking 0-9999 0003

key masterA2.5 Version Manual www.hominggame.com
13
only edit the message
“AAAA”and send to the
game machine .If password is
correct, you can receive a
feedback message to you to see
the account
(4)Set mobile account checking password
Under mode 8(8AXXXX) ,input the SMS management password
(The default management password
is :0002)
,press “ENTER”, the digital tube shows 1bxxxx, begin to set the accounting checking password,use“UP’
or “D
OW”button to input the new password .“UP”button for the tens digits, “DOWN”button for the single digits.
Press press the “ENTER”button ,the tube twinkles meaning the machine records the password you set .When the
owner want to check accountvia messag
e,type thepassword using English letter (Ameans 0,Bmeans 1,C means
2 ,D means 3 and so on ) , Forexample : when setting the mobile account checking password is:”0010”
in the
mainboard. So ,the relevant mobile checking password is “AABA”. Andthen the
owner use his/her management
mobile phone to edit amessage “AABA”(Notice:Need capital),
andsendtothe machine .You can get back a
message showing : Un-counter-xxxxxxf( unremovable credit-PermanentData)
Un-prize counter-xxxxxx(un removable prize- Permanent Data )
Counter credits-xxxxxxx(total credit,show on in the motherboard digital tube)
Counter prizes-xxxxxxx( total amount of gift payout,show on in the motherboard digital tube)
(5)mobile setting winning probability password
Under mode 8(8AXXXX) ,input theSMS management password (Default password is :0002),press “ENTER”
button ,and then press the “Test”button ,to let thedigital tube shows 2bxxxx
,begin to set the Mobile winning
probability setting password ,use “UP’or “DOW”button to input
the new password .“UP”button for the tens digits,
“DOWN”button for the single digits. Press press the “ENTER”button,thetubetwinkles meaning themachine
records the password you set .When the owner want to set the winning probability by mobile, type
the message ,(0
should type A ,1 should type B ,2 should type 3 )
(Notice: The message edit format for setting the probability by mobile phone between for each line and
for
each individual is different).
For example setting winning probability password is “0011”inthe mainboard. S
oswitch in the mobile
phone message checking password is“AABB”(capital)
AABBA0100,0200,0300,0400,0500 The line1 hooks setting
This settingfor thedifferent line each individual
prize ratio(probability) needsend3message to
finish this step

key masterA2.5 Version Manual www.hominggame.com
14
AABBB0100,0200,0300,0400,0500 The line2 hooks setting
AABBC0100,0200,0300,0400,0500 The line 3 hooks setting
AABBA means change the bottom line each prize individual prize ratio(Probability)
0100 means the first prize prize ratio is 100;
0200 means the second prize prize ratio is 200;
0300 means the third prize prize ratio is 300;
0400 means the fourth prize prize ratio is 400;
0500 means the fifth hook’s ratio is 500.
AABBB means checking the middle line eachprize individual prize ratio
……
AABBC means checking the top line eachprize individual prize ratio
……
(Notice :in this situation shouldneed send3 different messages to themachine to set the 3 different line
s for each
prize prize probability individual)
AABB0100,0200,0300
0100 means bottome line the prize (include 5 hooks) ratio is 100;
0200 means middle line (include 5 hooks) ratio is 200;
0300 means top line (include 5 hooks) ratio is 300;
Notice when setting the ratio:
1. the ratio number must 0001≥X≤5000,
2. the ratio number must keep four-digits, and the“0”isnecessary.
If setting is successful ,the owner can get back a message“OK”,otherwise get a “unsuccessful”.
(6)mobile set the credit for game
Under mode 8(8AXXXX) ,input the SMS management password ,press “ENTER”,and then press the “Test”
button , to let the digital tube shows3bxxxx
, begin to set the Mobile winning probability setting password ,use“UP’
or “DOW”button to input the new password .“UP”butt
on for the tens digits, “DOWN”button for the single digits.
Press press the “ENTER”button ,the tube twinkles meaning the machine records the password you set .When the
owner want to set the credit ,text message .(0 should type A,1 should type B,2 shou
ld type 3 )Sample :
AACC1.(Notice: this function to change howmany credits(signal) per game)
This setting for the eachlineprize probability of
the 3line (inthesame line,eachprize has the
sam
eprobability.(One message sending OK)

key masterA2.5 Version Manual www.hominggame.com
15

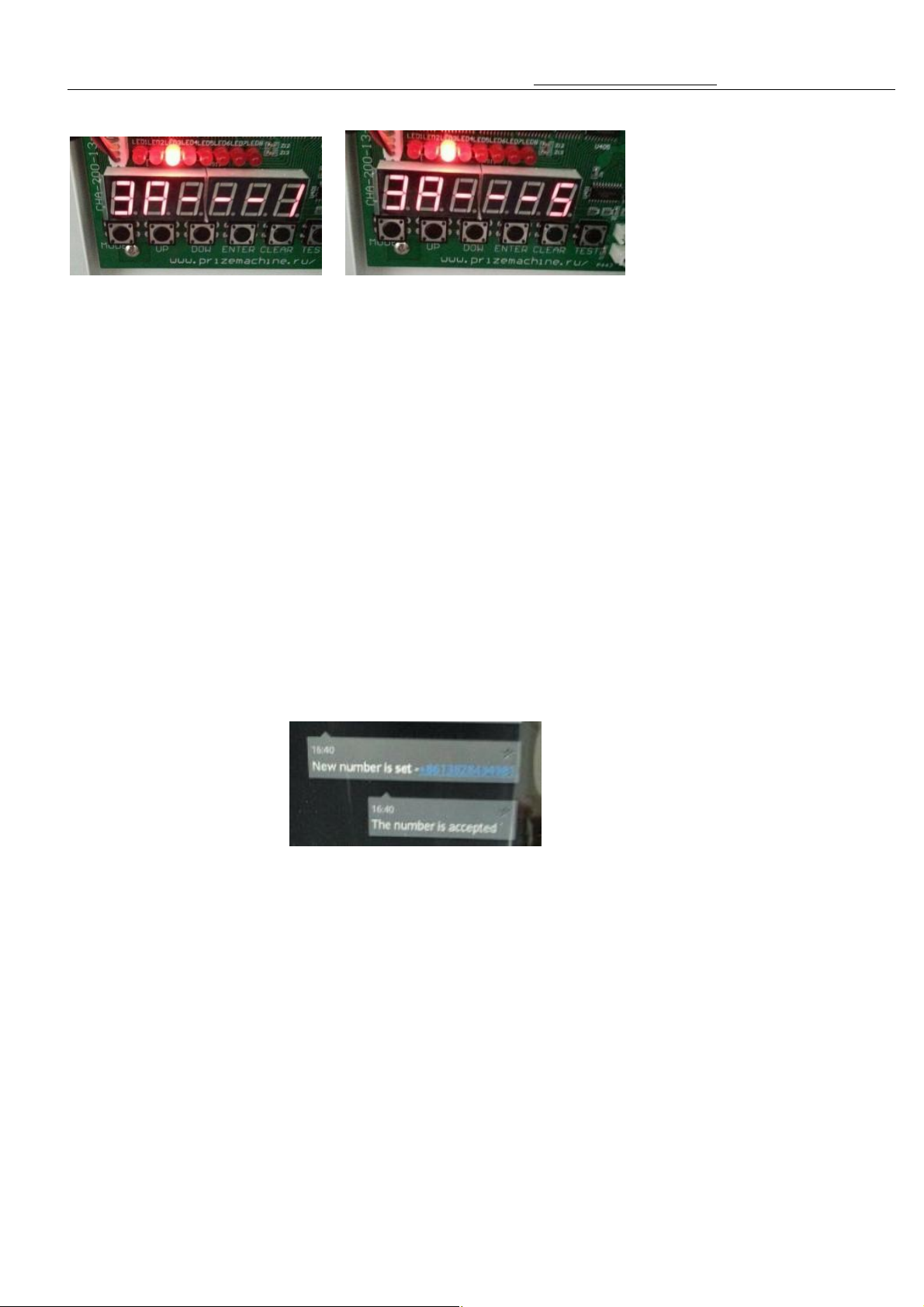

Will shows “3A- - - 1”To “3A- - -5”,asfollows:
6. “3A- - -1”= 1 Credit = 1 signal= 1 Game
7. “3A- - - 2”= 2 Credits = 2 signal = 1 Game
8. “3A- - - 3”= 3 Credits = 3 signal = 1 Game
9. “3A- - - 4”= 4 Credits = 4 signal = 1 Game
10. “3A- - - 5”= 5 Credits = 5 signal = 1 Game
(7) Mobile number recognization password
Under mode 8(8AXXXX) ,input theSMS management password ,press “ENTER”,and then press the “Test”
button ,to let thedigital tube shows4bxxxx
,begin toset the Mobile winningprobability setting password ,use“UP’
or “DOW”button to input the new password .“UP”button for the tens digits, “DOWN”button for the single digits.
Press press the “ENT
ER”button ,the tube twinkles meaning the machine records the password you set .When the
owner text the password (0 should type A ,1 should type B,2 should type 3 )and sent to the machine ,can get
back amessage “The number is accepted”and “New numberis set-
XXXXXXXXXXXXX)this“XXXXXXXXX”is a
previous set number .if the password is wrong , owner can get back “Unsuccessful”
11. Setthe alarm system

key masterA2.5 Version Manual www.hominggame.com
16
Enter Mode 9,press “MODE”button ,theLED1 and LED2 turn on ,digital tube shows 9A---x,use
“UP”or “DOW”
button to adjust,0for if machine get shock theowner CAN NOT get a message ,1for when the machine get shock
the owner can get message .
12.Function statement
1.Every gift payout the owner can get amessage as :Agift cell-xx”the “xx”is the hook code .
Such as the above pictures: A gift Cell- 2 –counter , means the second prize the gift Payout.
2.Everytime the machine turn on ,the owner can get a message as :
Credits-XXXXXX Counter Prizes-XXXX
Un.countercredits-XXXXXX
Un.counterprizes-XXXXXX

key masterA2.5 Version Manual www.hominggame.com
17
3.If machine meet error , the owner can get a message“The fault code Er 01”.
4.If the machine get shock ,theprize door will closeat once and the alarm ring,the owner can get amessage
“Shake or strike the machines”.Thegame will stop.
5.Test the hanging hook ,under mode 5 ,press and don’t release the “TEST”button until the pushrod move .
6.when need to takeoff hook(s) ,Take away the hook(s), reset the coordinate .
13.rectify the shooting coordinatespoint
Power off .Press and hold the“ENTER”and “TEST”
button andturn onthemachine at the same time ,don’tloose
the buttonuntil thetube shows A 0XX, use“UP”or “DOWN”button adjust theparameter ,press the“E
NTER”button
to save the parameter you set (The tube twinkles).And test the key position is good or not.If good press mode quit
the ajustmode to normal.If not good,continue toajust. Data setting form 5-20

key masterA2.5 Version Manual www.hominggame.com
18
14、Trouble shooting
1.When Er01 appears on the digital display, it showsthere is failure of the switch on lower front of the pushrod.
2.When Er02 appears on the digital display, it showsthere is failure of the switch in the Moving Box.
3.When Er03 appears on the digital display, it showsthere is failure of the switch on right side of the pushrod
mechanism.
4.When Er04 appears on the digital display, it showsthere is failure of the switch on low of the Moving Box.
5.When Er05 appears on the digital display, it showsthere is failure of the switch on left side of the pushrod
mechanism.
6.When Er06 appears on the digital display, it showsthere is failure of the switch on the top of the Moving Box.
7.When Er07 appears on the digital display it shows there is failure of the switch on lower back of the pushrod.
8.When Er08 appears on the digital display it shows there is failure of the first sensor of pushrod.
9..When Er09 appears on thedigital display it showsthere is failure of the second sensor of pushrod.
10 When Er10 appears on the digital display it shows not connect with accounter .
11, When Er11 appears on the digital display it shows not find theleft and right motors sensor
Key master
Fault analysis
1When Er01 appears onthe digital display,it sho
ws there isfailure of theswitch onlower
front of the pushrod. As picture 1
1
Trouble shooting methods：When pushrod doesn’tpressure onto themicro switch
,pls check
whether the push robi
sstuckor not andcheck the motor and corresponding lines
inside the push rod box. When push rod pressure onto the microswitch
,pls check the motor
and corresponding lines inside the push rod box.
2. When Er02 appears onthe digital display, it
shows there isfailure of the switchin the
Moving Box. As picture 2

key masterA2.5 Version Manual www.hominggame.com
19
2
Trouble shooting methods：
Check the activities organization go smoothly or not of the
micro position. Then detect the micro switch and corresponding lines.
3. When Er03 appears onthe digitaldisplay,
it shows there isfailure ofthe switch on right
side of the pushrod mechanism. As picture 5
5
Trouble shooting methods：When theorganization can’
treturn tothe left, themicro switch
fail to close and theorganization doesn’
tmove before the failure.Pls check thedrive
around the mobile motor and the corresponding lines.
When the organization can’
treturn to theleft, the micro switch fail to close andthe
organization move before the failure，Pls check where does the organization stock on.
When the organization return to the left
and micro switch closed state, pls check the micro
switch and corresponding lines.
4. When Er04 appears onthe digital display,
it shows there isfailure of the switchon low
of the Moving Box. As picture 4
