Homing TREASURE ISLAND User manual

TABLE OF CONTENTS
Version: V1.05 Time: 2009-1-4
1. Brief introduction........................................................................................................1
2. Caution........................................................................................................................1
2-1.Notice for installation........................................................................................1
2-2.Notice for operation..........................................................................................1
3. Accessories.................................................................................................................2
4. Game features and how to play.................................................................................2
4-1.Game explanation..............................................................................................2
4-2.Test instandard..................................................................................................3
5. Technical parameters.................................................................................................3
6. Appearance.................................................................................................................4
7. All parts distribution...................................................................................................5
7-1.#1 Field (main board) of the machine..............................................................5
7-2.Top of the machine............................................................................................5
7-3.#2 Field of the machine.....................................................................................6
8. All parts structure.......................................................................................................6
8-1.Counter board....................................................................................................6
8-2.Main board.........................................................................................................7
9. Operation.....................................................................................................................7
9-1. Switch on the power............................................................................................8
9-2. Play state..............................................................................................................8
9-3. Attraction state.....................................................................................................8
9-4. Test state..............................................................................................................8
9-5. Error state.............................................................................................................8
10. Common problems and solutions..........................................................................9
11. Appendix................................................................................................................10
11-1. DIPconnection on main board....................................................................10
11-2. Function DIPswitch on main board............................................................14
11-3. Bonus settings.............................................................................................14
11-4. Error code table............................................................................................15

Benthal Storehouse http://www.hominggame.com
1
1. Brief introduction
Mode TREASURE ISLANDis akind ofnewindoor machineof ourcompany.This
machine has simple and special sculpt, clear and pretty color and easy play mode. There is
no doubt that this new amusement machine will give you a new surprise!
2. Caution
2-1.Notice for installation
lThis machine is for indoor use only (not outdoor)
lThe game should be placed onflat floor to maintain its stability.
lDo not disassemble the machine without technical guidance.
lMake sure to turn off thepower andpull out the plug beforemoving the machine.
lShould not put any heavy equipment on the top of the cabinet or thewiring of the
game.
lWrings of the machine should not be exposed to open air for a long time.
2-2.Notice for operation
lChecks whether the powerplug and power wire are in good conditions.
lBefore switching on the power, check if the voltage is suitable for the machine.
lVoltageof powersupply should correspond tothe voltagestatedon theback cover
of the machine.
lSwitch off the power before you perform any inspections.
lOnly experienced electricians and technicians are allowed to checkthe electrical
parts for the game.
lAppropriate technical parts should be used forall replacement.
lHold the plug instead of the wire to unplug the power cord.
lDo not plug or unplug the plug with wet hand, do not pull or twist the power wire.

TreasureIsland
2
3. Accessories
Check whether the following accessories are equipped with the game before operation:
Items Qty Remark
Operation Manual 1
Power cord 1
Keys 25 pcs 1888*18(Coin Entranceand Exit Keys)
1866*7（Glass Door and Coin DrawerKeys）
4. Game features and how to play
4-1.Game explanation
lThegreen Indicator,red Indicator and Bonus Output Indicator turn off When in the
attraction state, play demo music every 10 seconds (SW1 #8bit is ON).Insert Coin,
System will enter into play state. (remark:LED only used when System testing,
installs inside the machine and does not obvious .)
lThe green Indicator OnWhen Insert the coin, Coin Door Open andgame start.
lWhen the quantity of insert coin reach the bonus output requirements, Bonus(Plastic
coin)output , then bonus output Indicator on.
lAfter insert coin over 5seconds, the green Indicator Off and Coin Door Close, game
over (If the player continuous insert coin, count time by the last insert coin)

Benthal Storehouse http://www.hominggame.com
3
lwhen E3 OR E5occurs,all Coin Door Close, allBonus OutputStop.What's more, All
greenIndicator and all Bonus Indicator Off,all red Indicator(Use as Alarm) On. others
alarm except for E3 AND E6 will effect a certainpart where it occurs E3、E5.
4-2.Test instandard
lWhen in the attraction state (not neet to insert coin), press Test”button to enter the
test mode: displays system version NO., displays LED character,LEDs all off, LEDs
all on, testing input, testing output, testing electromagnet, testing music, system
aging. Theaging test is out only when press Test”button or system reset.
5. Technical parameters
Mode TB.ZYD01
Environmental requirement Temperature from -10to +40 low
radiation, low humidity, low vibration.
Dimension H2050mm, L1900mm, W1650mm
Weight 450 kg
Power Supply Please refer to the backof the machine
Maximum power 830W
No. of Players: 6

TreasureIsland
4
6. Appearance
Lamps
Alarm Indicator
Coin Indicator
Neon Lamps
Downlights
Coin Entrance
Coin Funnel
Coin Pusher

Benthal Storehouse http://www.hominggame.com
5
7. All parts distribution
7-1.#1 Field (main board) of the machine.
7-2.Topof the machine
Fan
PowerPlug
LED PCB
Counter Board
Main Board
Lamps Fuse
Output Drive PCB
(16Bit)
leakage circuit
breaker
Control
Lamps
Switch
Motor Fuse
Coin Funnel
Coin Door
Electromagnet

TreasureIsland
6

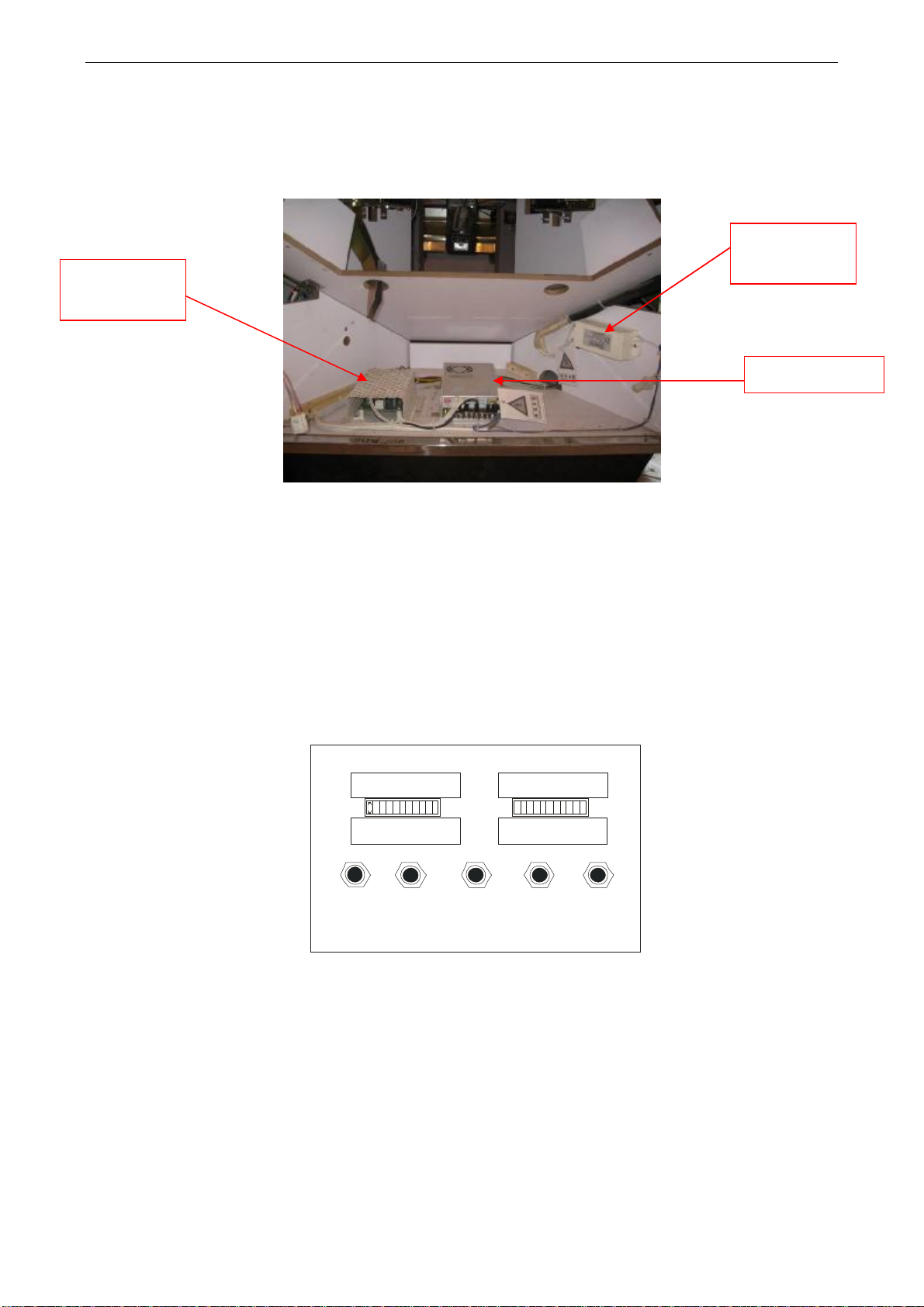

7-3.#2 Field of the machine
8. All parts structure
8-1. Counter board
OOOOO OOOOOO
CoinQty CoinoutQty
ClearJP Test
lCoin Qty: records thetotal actual coins Qty since the machine has been used.
lBonus Qty: records the total Bonus Qty since the machine has beenused.
lClear JP:press it over three seconds, all thedatain the memory chip willbe
cleared.
lTest button: press it to make the machine into test state in Attraction state.
lFuse tube:Includes AC fuse, which isφ6mm ×30mm.
Power Supply
JNB-2061D1
Transformer
DC Convertor
PCB

Benthal Storehouse http://www.hominggame.com
7
8-2.Main board
J1: main power supply input connector.
J4:#2 serial output connector.
J5: ticket out connector.
J6: base function connector.
J8:communication connector.
J11: volume control, adjusts volume.
J12:speakerconnector.
INCON1
Memory chip: records the total coins Qty and tickets Qty and so on.
INCON1:＃1～＃15 INPUT.
OUTCON1:＃1～＃11 OUTCON.
OUTCON2: ＃12～＃21 OUTCON.
(Note: otherconnectors havenot been used inthis machine.)
9. Operation
(J1)Power supply inputconnector (J4) LEDserialoutputconnector
Dataoutput1~11 Dataoutput 12~21 (J5) ticket out
connector
(J6) basefunction connector(J8)communication connector
(J12) speakerconnector
(J11) volume control
Expanding
chipIC1
Programchip
Sound chip
Sensor

TreasureIsland
8
When machine is in coinplay mode, itcan be in 4status: Attraction State, Test State, Play
StateorErrorState.Below Flow chart illustrates the above four status when machine is in
play mode:
9-1. Switch on the power
Check the plug and cord. Make sure that it has been set to corresponding to the voltage
for the machine, and thenswitch on the power.
9-2. Play state
Green Indicator On,Coin Door Open.
9-3.Attraction state
Thegreen Indicator,red Indicator and Bonus Output Indicator turn off,play demo music
every 10seconds (SW1#8bit is ON).Press Test button in the frontal box and the
system will enter into test state. If insert coins,machine will enter into play state.
9-4. Teststate
Check whether LEDS, lamps, ticket dispenserand strobe is working properly and whether
music is innormal conditions. When machine is inattraction state, if you pressTest button,
music stopsand the machine will enter into test state.displayssystem version No.
→testing LED character →LED alloff →LED all on→testing input →testing output→
testing electromagnet →testing music →aging test→test is completed.
9-5. Errorstate
System error
Gameends
Insertcoin
PressTestbutton
tostartthetest
PressResetbuttonon mainboard
afterclearingtheerror
System error
Play state
Power ison
Test completed
Attraction state
Teststate Errorstate

Benthal Storehouse http://www.hominggame.com
9
Every time machine is switched on, if thereis any problem, machine willenter into error
state. Alarm will be activated andErrorCode:YEX will be displayed.
X stands for part 1 to 6.
X stands for Error No.1, 3, 4and 5.
You can find out the problem according to the Error CodeTable. After the problems are
solved, you need to reset themachine. See theError CodeTable for moreinformation.
10. Common problemsand solutions
Problems Analysis Solutions
Whole machine
dose not work
1．Powerhasnot beenswitchedon.
2．Defective Power supply
3．Crystalvibratorhasstoppedvibrating.
4．Defective Mainprogram
1．Check block ofACvoltageof power supply.
2．Tests whetherthereis +5and+12 DC input.Ifthere
isn t, replace power supply.
3．Replacecrystalvibrator.
4．Replacemainprogramchip.
No sound
1．Defective Speakers.
2．Defective Sound AmplifierBoard.
3．Erroron Powersupply of sound
amplifier board
4．Erroron 6295IC.
1．ReplaceSpeakers.
2．Check soundamplifierboard(mainboardhasits
own self).
3．Check thepowersupply(whether+12Visinnormal
conditions).
4．Replace6295IC
Motordose not
work
1．Defective Motor.
2．Defective Capacitance.
1．Replacemotor.
2．Replacecapacitance.

TreasureIsland
10
11. Appendix
11-1.DIPconnection on main board
Plug code Pin
code Pin color FunctionI/O code Function of I/O
PIN 1 4*0.75-Red +5VInput -----
PIN 2 4*0.75-Black GND -----
PIN 3 4*0.75-Black GND -----
J1
（PowerInput
Connector）
PIN 4 4*0.75-Yellow +12VInput -----
Power Input
PIN 1 6*0.3－Green CLK -----
PIN 2 6*0.3－White DAT -----
PIN 3 6*0.3－Brown LTH -----
PIN 4 6*0.3－Yellow +12VOutput -----
PIN 5 6*0.3－Black GND -----
J4
（#2 SerialOutput
Connector）
PIN 6 6*0.3－Red +5VOutput -----
Digital LED BoardOutput
Connection order:
LED PCB (3-bit)
16-bit driving board (Electromagnet of bonus output
#1,Electromagnet of bonus output #2, Electromagnet
of bonus output #3, Electromagnet of bonus output
#4, Electromagnet of bonus output #5, Electromagnet
of bonusoutput #6,two bits reserved Coin Door
Electromagnet #1, Coin Door Electromagnet #2,
Coin Door Electromagnet #3, Coin Door
Electromagnet #4, Coin Door Electromagnet #5,
Coin Door Electromagnet #6)
PIN 1 4*0.3－White #1 Ticket Out Drive OUT#21
PIN 2 4*0.3－White #2 Ticket Out Drive OUT#20
PIN 3 4*0.3－Yellow +12VOutput -----
PIN 4 4*0.3－Yellow +12VOutput -----
PIN 5 4*0.3－Black GND -----
PIN 6 4*0.3－Black GND -----
PIN 7 4*0.3－Green/white #1 Ticket Feedback IN #29
J5
（Ticket Out
Connector）
PIN 8 4*0.3－Blue/white #2 Ticket Feedback IN #24
Ticket Out Connector(unusedinthis
machine)
PIN 1 10*0.3-Yellow +12VOut -----
PIN 2 Null +5VOut -----
PIN 3 10*0.3-Black GND -----
PIN 4 Null GND -----
PIN 5 Null No Connect -----
PIN 6 Null No Connect -----
PIN 7 Null No Connect -----
PIN 8 Null No Connect -----
PIN 9 10*0.3-Purple/white Test IN #27
J6
（Base Function
connector）
PIN 10 10*0.3-Orange/white Clear JP IN #28
Base Function connector

Benthal Storehouse http://www.hominggame.com
11
PIN 11 Null No Connect -----
PIN 12 Null No Connect IN #31
PIN 13 10*0.3-Gray Bonus Qty OUT#22
PIN 14 10*0.3-Brown Coin Qty OUT#23
PIN 1 4*0.3-Red +5VOutput -----
PIN 2 4*0.3-Yellow +12VOutput -----
PIN 3 4*0.3-Green T+/R+（RS485）-----
PIN 4 4*0.3-Brown GND -----
J8
(communication
connector)
PIN 5 4*0.3-Blue T-/R-（RS485）-----
PIN 1 4*0.15-Green Right Signal Input -----
PIN 2 4*0.15-White Left Signal Input -----
PIN 3 4*0.15-Red Right Signal Output -----
PIN 4 4*0.15-Yellow Left Signal Output -----
PIN 5 Screening wire() GND -----
J11
（Volume Ctrl）
PIN 6 Screening wire() GND -----
VolumeCtrl
PIN 1 2*0.75-Red Left Speaker + -----
PIN 2 2*0.75-Black Left Speaker - -----
PIN 3 2*0.75-Red Right Speaker - -----
J12
（Speaker）
PIN 4 2*0.75-Black Right Speaker+ -----
Speaker
PIN 1 0.3-Brown/white Input IN #0
PIN 2 0.3-Red/white Input IN #1
PIN 3 0.3-Orange/white Input IN #2
PIN 4 0.3-Yellow/white Input IN #3
PIN 5 0.3-Green/white Input IN #4
PIN 6 0.3-Blue/white Input IN #5
PIN 7 0.3-Purple/white Input IN #6
PIN 8 0.3-Gray/white Input IN #7
PIN 9 0.3-Black/white Input IN #8 #1 stricken signal input
PIN 10 0.3-Brown/white Input IN #9 #2 stricken signal input
PIN 11 0.3-Red/white Input IN #10 #3 stricken signal input
PIN 12 0.3-Orange/white Input IN #11 #4 stricken signal input
PIN 13 0.3-Yellow/white Input IN #12 #5 stricken signal input
InCON1
（#1～#15 Input）
PIN 14 0.3-Green/white Input IN #13 #6 stricken signal input

TreasureIsland
12
PIN 15 0.3-Blue/white Input IN #14 Alarmsignal input formachine shaken
PIN 16 0.3-Black GND -----
PIN 17 0.3-Red +5VOutput -----
PIN 18 0.3-Yellow +12VOutput -----
PIN 1 0.3-Brown/white Input IN #15 #1 coin signal
PIN 2 0.3-Red/white Input IN #16 #2 coin signal
PIN 3 0.3-Orange/white Input IN #17 #3 coin signal
PIN 4 0.3-Yellow/white Input IN #18 #4 coin signal
PIN 5 0.3-Green/white Input IN #19 #5 coin signal
PIN 6 0.3-Blue/white Input IN #20 #6 coin signal
PIN 7 0.3-Purple/white Input IN #21
PIN 8 0.3-Gray/white Input IN #22
PIN 9 0.3-Black/white Input IN #23
PIN 10 0.3-SkyBlue Input IN #24
PIN 11 0.3-Brown Input IN #25
PIN 12 0.3-Pink Input IN #26
PIN 13 NC
PIN 14 0.3-Black GND -----
PIN 15 0.3-Red +5VOutput -----
InCON2
（#16～#27 Input ）
PIN 16 0.3-Yellow +12VOutput -----
PIN 1 0.3-Brown Output OUT#0 #1 bonusindicator
PIN 2 0.75-Yellow +12VOutput -----
PIN 3 0.3-Orange Output OUT#1 #2 bonusindicator
PIN 4 0.75-Yellow +12VOutput -----
PIN 5 0.3- Green Output OUT#2 #3 bonusindicator
PIN 6 -----
PIN 7 0.3- Blue Output OUT#3 #4 bonusindicator
PIN 8 -----
PIN 9 0.3- Purple Output OUT#4 #5 bonusindicator
PIN 10 -----
PIN 11 0.3- Gray Output OUT#5 #6 bonusindicator
PIN 12 -----
OutCON1
（#1～#11 Output）
PIN 13 0.3-Green Output OUT#6 Control Electromagnet output

Benthal Storehouse http://www.hominggame.com
13
PIN 14 -----
PIN 15 0.3-Blue Output OUT#7
PIN 16 0.3-Yellow -----
PIN 17 0.3- Brown Output OUT#8 #1 greenindicator
PIN 18 0.5-Yellow -----
PIN 19 0.3- Orange Output OUT#9 #1 red indicator
PIN 20 -----
PIN 21 0.3- Green Output OUT#10 #2 greenindicator
PIN 22 -----
PIN 1 0.3- Blue Output OUT#11 #2 red indicator
PIN 2 0.5-Yellow -----
PIN 3 0.3- Purple Output OUT#12 #3 greenindicator
PIN 4 -----
PIN 5 0.3- Gray Output OUT#13 #3 red indicator
PIN 6 -----
PIN 7 0.3- Pink Output OUT#14 #4 greenindicator
PIN 8 -----
PIN 9 0.3- Sky Blue Output OUT#15 #4 red indicator
PIN 10 -----
PIN 11 0.3-Brown/white Output OUT#16 #5 greenindicator
PIN 12 -----
PIN 13 0.3-Red/white Output OUT#17 #5 red indicator
PIN 14 -----
PIN 15 0.3-Orange/white Output OUT#18 #6 greenindicator
PIN 16 -----
PIN 17 0.3-Green/white Output OUT#19 #6 red indicator
PIN 18 -----
PIN 19 0.3-SkyBlue Output OUT#20
OutCON2
（#12 ～#21
Output）
PIN 20 -----
12MHz crystal vibratoris used onmain board.

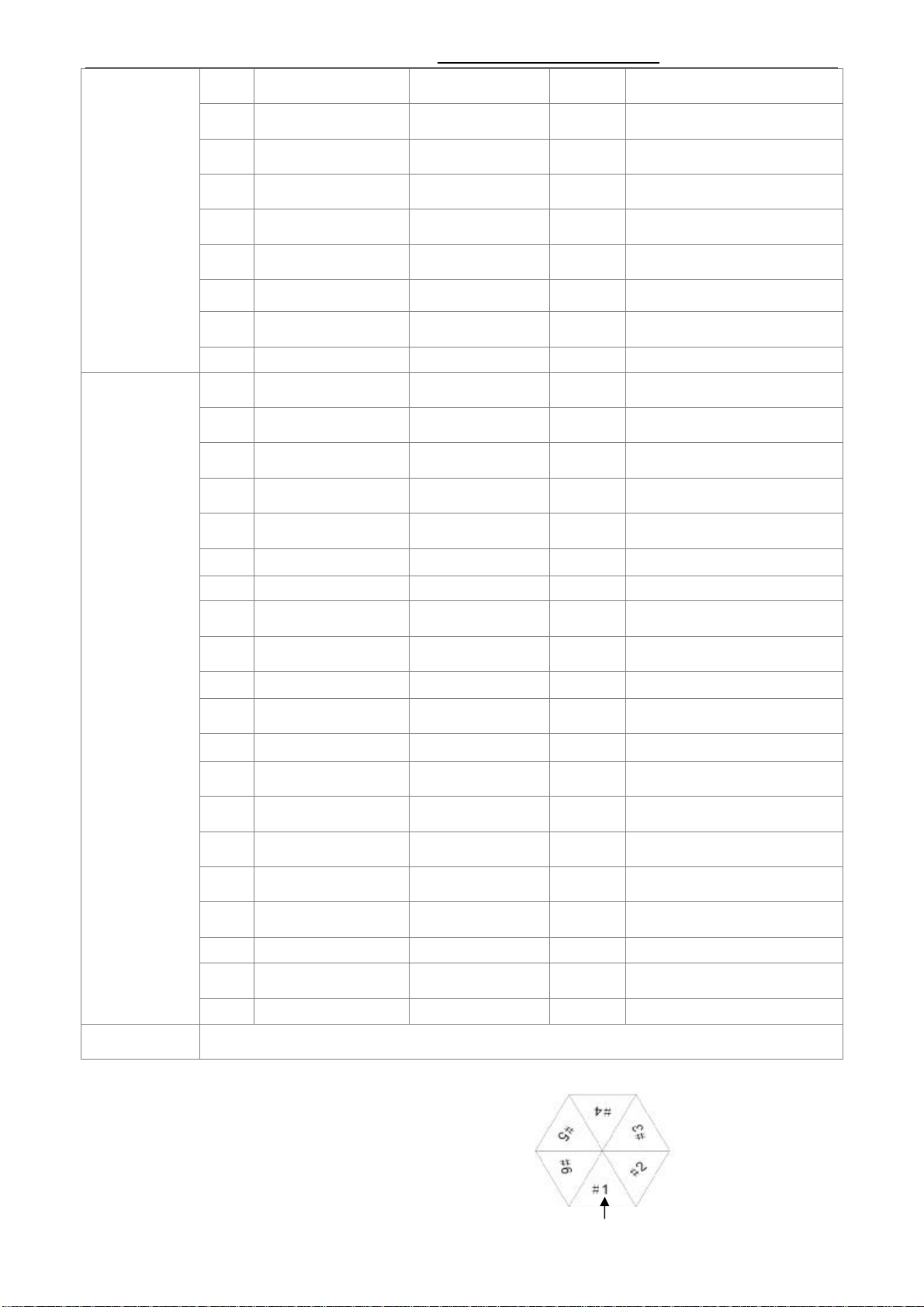

Remark: Numbering of playing fields, as follows table:
Main
board

TreasureIsland
14
11-2.Function DIPswitch on main board
Version: V1.05, Time: 2009-1-4
1 2 3 4 5 6 7 8 Function
ON XE1Alarm Enable
OFF XE1Alarm Disable
ON Save parameterswhen poweroff
OFF Clearparameters when poweroff
ON Musicon whenmachineisfree
SW1
OFF Musicoffwhenmachine isoff
ON Bonusavailable
OFF Bonusinvalid
ON ON Afterselect a coin in out coinbox open time =30Second
OFF ON Afterselect a coin in out coinbox open time =25 Second
ON OFF Afterselect a coin in out coinbox open time =20 Second
OFF OFF Afterselect a coin in out coinbox open time =15 Second
ON
ON Attractmode musiceach10minutes on
OFF
ON Attractmode musiceach5minutes on
ON
OFF Attractmode musiceach2minutes on
OFF
OFF Attractmode musiceach1minutes on
ON ON ON Bonussetting8
OFF ON ON Bonussetting7
ON OFF ON Bonussetting6
OFF OFF ON Bonussetting5
ON ON OFF Bonussetting4
OFF ON OFF Bonussetting3
ON OFF OFF Bonussetting2
SW2
OFF OFF OFF Bonussetting1
Note: Thosecells highlighted in gray color are factory for DIPswitch. Please adjust the
volume control to middle (volume well situated).
11-3.Bonus settings
`Bonus Mode
Bonus Setting Bonus mode
Bonus setting8 Approx. 1 bonus win in 150 coins (about 147~153 coins)
Bonus setting7 Approx. 1 bonus win in 100 coins (about 97~103 coins)
Bonus setting6 Approx. 1 bonus win in 75 coins (about 72~73 coins)
Bonus setting5 `Approx. 1 bonus win in 50 coins(about 47~53 coins)
Bonus setting4 Approx. 1 bonus win in 30 coins (about 27~33 coins)
Bonus setting3 Approx. 1 bonus win in 20 coins (about 17~23 coins)
Bonus setting2 Approx. 1 bonus win in 15 coins (about 12~18 coins)
Bonus setting1 Approx. 1 bonus win in 10 coins (about 7~13 coins)
DIP
Bit
Function

Benthal Storehouse http://www.hominggame.com
15
11-4. Error codetable
Note:No further notice/Amendmentstothemanual will be givenincase
ofany changes tothe machine.
Error Code Table
No. Code Significance
1 E1X Coin insert error on # X
2 E2 Reserved forfuture (unused in this machine)
3 E3 Chip U12 read/writh error
4 E4X # X stricken by someone
5 E5 Machine shaken by someone
