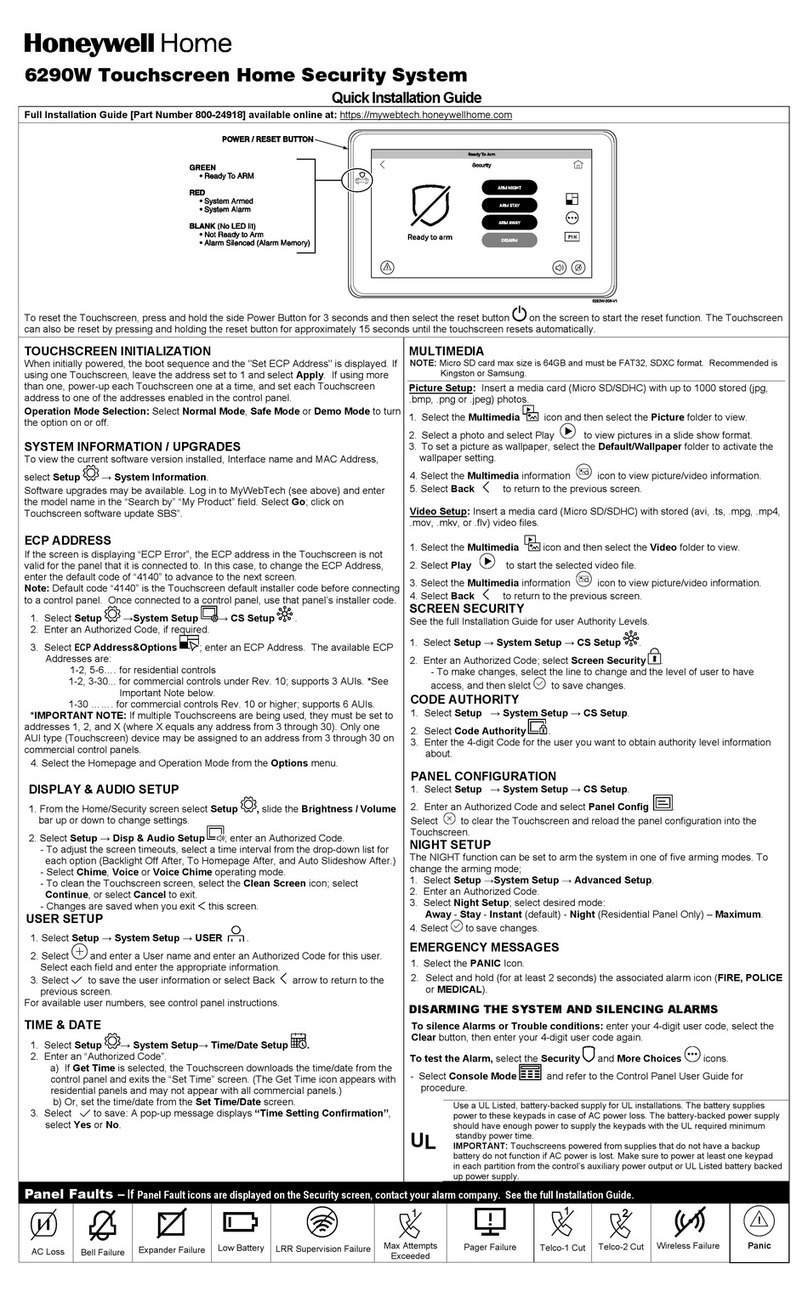

Honeywell Home Touchscreen 6290W User manual

62
90W Touchscreen Home Security System
Installation Guide
For Online Support visit: https://mywebtech.honeywellhome.com
General Information 6290W Touchscreen
This guide provides information on installing and setting up the 6290W Touchscreen. The 6290W
Series graphical touchscreens are Advanced User Interface (AUI) devices, which combine control of
your security system and multi-media.
Software Information: To check the latest software information, from the Home/Security screen,
select the Setup and System Info icons; the latest Software Version is displayed on the screen.
Compatibility: For a list of alarm systems that the Touchscreen can interface with, refer to the
Compatibility Table in this document.
Wiring
IMPORTANT: If you power the Touchscreen from your panel’s auxiliary power output, check your
panel’s Installation and Setup Guide and verify that this device and others do not exceed your panel’s
auxiliary power output capability; if it does, a supplementary power supply is needed.
Front Panel LEDs
To reset the Touchscreen, press and hold the side Power button for 3 seconds and then select the reset button on the screen to start the reset function. The Touchscreen can also be
reset by pressing and holding the reset button for approximately 15 seconds until the touchscreen resets automatically.
Mounting the Touchscreen
This Touchscreen is for indoor use only and should be mounted at a comfortable viewing level. Avoid mounting in areas of high condensation such as bathrooms or in locations where bright
light or sunlight shines directly on the screen. The Touchscreen is surface mounted directly to a wall.
Mounting:
1. Select a mounting location.
2. Locate the case back over the mounting surface such that
the opening is aligned with the wire/cable access opening on
the mounting surface while passing the wires/cable through
the opening in the case back.
**Go to “Wiring the Touchscreen” and complete wiring.
3. Secure the mounting plate to a mounting surface using 4
screws (supplied). Insert bottom edge of Touchscreen over
the mounting plate and then click in the top edge to snap into
place.
4. Install the cover securing screw at the bottom of the device to
secure. The bottom securing screw must be installed.
Removing the Touchscreen:
To remove the Touchscreen from its mounting location, insert the
end of a screwdriver between the plate and the touchscreen and
twist to loosen and pull out to remove.
Wiring the Touchscreen
Note: Unshielded 4-conductor cable is recommended for the power/data wire.
U
LUse a UL Listed, battery-backed supply for UL installations. The battery supplies power to these keypads in case of AC power loss. The battery-backed power supply should
have enough power to supply the keypads with the UL required minimum standby power time.
IMPORTANT: Touchscreens powered from supplies that do not have a backup battery do not function if AC power is lost. Make sure to power at least one keypad in each
partition from the control’s auxiliary power output or UL Listed battery backed up power supply.
IMPORTANT: When the Touchscreen is powered from an auxiliary power supply, always apply power to the control panel first and then the Touchscreen. Failure to observe this
sequence results in improper operation of the Touchscreen and may result in an ECP Error indication.
Note: Supplementary external power supply must be Listed to UL 603 for UL installations, CAN/ULC-S318 for cUL installations, and capable of providing the required backup power.
Connect the wires to the Touchscreen terminal block as shown.
•Connect the Touchscreen in parallel with touchscreens and other peripheral devices using the touchscreen data (ECP) bus.
•If the touchscreen is used as the primary system touchscreen, maximum wire run length is 150 feet.
•If more than one touchscreen is wired to one run, then the maximum lengths must be divided by the number of touchscreens on the run. (e.g., the maximum length is 75 feet if two
touchscreens are wired on a #22 gauge run).
•DO NOT use several hardwired motion detectors in high traffic locations.
Mechanical Specifications:
Width: 7.91 inches (200.9mm)
Height: 5.04 inches (128.016mm)
Depth: 0.827 inches (21.00mm)
Electrical Specifications:
Backlight ON, Sound ON
12V, 270mA
Operating Environment:
Humidity
93% RH, non-condensing
Temperature:
Operating:
14˚ F to 131˚ F / -10˚ C to 55˚ C
(UL tested 32˚-120˚F / 0 to 49˚C)
Shipping / Storage
-40˚ F to 158˚ F / -40˚C to 70˚C
Wire Gauge:
Length
#22 gauge
150 feet
#20 gauge
240 feet
#18 gauge
350 feet
#16 gauge
550 feet
Initial Setup
Programming the Control Panel
The Touchscreen is not fully operational unless its address in the control panel has
been enabled (set as an alpha console) AUI type device, and assigned to a partition
(where applicable).
We recommend that you use either a standard alpha keypad or the Touchscreen in
Console Emulation Mode when programming the control panel. When in the Console
Mode, the Touchscreen emulates an alpha keypad and the programming of the panel
is performed following the procedures provided in your panel’s Installation & Setup
Guide.
Notes:
1. DO NOT perform panel programming while in the Safe Mode.
2. When programming your control panel, if you change the zone types for your
emergency zones you may disable the emergency buttons in the Touchscreen. The
emergency buttons in the Touchscreen are active for zone types 06 (Silent Panic
Button) and 07 (Panic Button), 08 (Medical Button), and 09 (Fire Button). Additionally,
the Medical Button is also compatible with a zone type 15 (24-Hour Medical) for panels
that contain this zone type.
Note: Medical functionality has not been evaluated by UL and may not be used in UL
Listed applications.
The Touchscreen should not be assigned as a Master Console. If the Touchscreen is
assigned as a Master Console, partitions must be controlled from the Partition screen
or by using the Console Emulation Mode.
Touchscreen Initialization
When initially powered, the screen displays the boot sequence and the "Set ECP
Address" screen is displayed. If the system is incorporating only one Touchscreen,
leave the address set to 1 and select Apply. The boot-up process continues until
completion. If there are to be additional Touchscreen units in the system, after enabling
addresses in the control panel using an alpha-keypad, power-up each Touchscreen
one at a time, and set its address to one of the addresses you enabled in the control
panel.
Note: If the top of the screen is displaying ECP Error, the Touchscreen ECP Address
is not valid for the panel that it is connected to. To change the ECP Address, enter the
default code of “4140” to advance to the next screen.
Note: 4140 is the Touchscreen default installer code before connecting to a control
panel. Once connected to a control panel, use the panel’s installer code.
Change the ECP Address on the unit, using the Up/Down arrows and then select apply
to accept the address and reset the Touchscreen. Once communication has been
restored, then use the standard panel installer code for all installer functions. Refer to
“ECP Setup” section.
Time/Date Setup
If not already set from the panel, set the current time and date. Refer to “Time/Date
Setup” section.
NIGHT Setup
The Touchscreen is defaulted to arm the system in the STAY INSTANT mode when
arming the system using the NIGHT icon.
Select the arming mode to be activated when the NIGHT icon is selected on the
"Arming" screen, refer to “Night Setup” section.
HOME/SECURITY
SETUP
DISPLAY & AUDIO
SYSTEM SETUP
ADVANCED SETUP

Adjust the Brightness / Volume
Notes
Navigation Icons
1. From the Home/Security screen, select the
Setup icon.
2. Move the Brightness/Volume slide bar to
adjust the brightness/volume.
Changes are saved when you exit this
screen.
Panel Default Displays
The Security screen displays an Icon(s) if a panel fault occurs. The
following lists the Icons that are displayed to the left of the Panic
icon.
ICON
MEANING
AC Loss;
The system is not receiving AC power.
Bell Failure;
The system bell or siren has a problem. Note: This Icon
is displayed when interfacing with residential panels only.
Expander Failure;
The system has a failure in an expansion module.
Low Battery;
The system battery, that powers the system during an AC
power loss, is low.
LRR Supervision Failure;
The Communication Device used to communicate with
the central station has a supervision failure.
Max Attempts Exceeded;
The system has exceeded the maximum attempts to
communicate with the Central Station.
Pager Failure; The system cannot communicate with an
assigned pager.
Telco-1 Cut;
The system is not able to communicate with the central
monitoring station over the primary phone line.
Telco-2 Cut;
The system is not able to communicate with the central
monitoring station over the secondary phone line.
Wireless Failure;
The system is not able to communicate with its wireless
devices.
ICON ICON TITLE FUNCTION
Disarmed System is Disarmed
Reset Select to reset Touchscreen
WIFI
Accesses WIFI Setup screen. Used
to connect to WIFI networks. (if
installed and programmed by your
installer.)
WIFI ON Select to turn WIFI On and OFF.
Security Arm the system and access the three
arming modes.
Home Returns you to the Home/Security
screen.
Apply Select to accept changes.
Panic
Displays Emergency functions (as
programmed by the installer). See
Programming the Control Panel note.
Note: This icon is displayed and
active on all screens except while in
the Clean Screen mode.
System Setup This icon alerts the user to a Control
Panel Message.
Multimedia Accesses Image and Video files.
Setup Allows access to Setup menus.
More Choices Allows access to Event Logs,
Console Mode and Show Zones
Night Setup Allows user to Arm the system in
Night mode.
CS Setup
Provides access to ECP Address &
Options, Screen Security, Device
events, Code Authority, and Panel
Configuration.
ECP Address
& Options
Allows user to enter the ECP address
to communicate with alarm panel.
Panel Config. Provides access to the details of your
system and panel configuration
information.
Operating Modes / Language Selection
Notes
From the Setup screen;
1. Select the Disp&Audio Setup icon.
2. Enter your “Authorized Code" if required.
3. Select Chime Mode or Voice Mode to turn
the mode on or off.
4. To change the Touchscreen display
language, select the desired language from
the drop-down menu.
The touchpad will revert back to the
Home/Security screen with the selected language
applied.
If the Chime Mode and Voice Mode are both
selected, the Voice Chime is automatically
selected.
It may take a few seconds for the Chime
Mode to take effect.
When the Touchscreen exits the “Operating
Modes” screen, your selection is saved.
The Touchscreen allows you to select from
three languages, (English, French Canadian
and Latin American Spanish) with the default
being English.
Adjust the Screen Timeouts
Notes
From the Setup screen;
1. Select the Disp&Audio Setup icon.
2. Enter your “Authorized Code" if required.
3. Select the desired selection from the drop-
down list displaying the time period for each
option.
4. Select to save or to go back to the
previous menu..
If changes are made, when you exit, a
message displays:
“Information Settings Saved”
Settings include:
•Backlight Off After X time
•Return To Homepage After X time
•Auto Slideshow After X time.
Clean Screen
Notes
1. From the Home/Security screen, select the
Setup icon.
2. Select the Disp&Audio Setup icon.
3. Enter your “Authorized Code" if required.
4. Select the CLEAN SCREEN icon to disable
the Touchscreen for 26 seconds so you can
wipe the screen clean.
A pop-up window displays "Touch Screen will
be disabled so that you may wipe the screen
clean. Please use a damp, soft cloth. DO NOT
use any liquids, sprays, or ammonia-based
cleaners. Press CONTINUE to disable
touchscreen."
** Panics cannot be initiated during this process**
At the "Screen Disabled for =30 Seconds"
screen, the touchscreen should be wiped
clean of fingerprints using a mild soap solution
and a soft cloth. When the counter reaches
zero, the window aut
omatically closes and the
touchscreen is active.
IMPORTANT: Do not use an abrasive
cleaning agent or abrasive cloth when
cleaning the Touchscreen or damage to the
touchscreen may occur.
NOTE: The Emergency screen cannot be
accessed while running in the clean screen
mode.
Select Cancel to exit.
Multimedia: Video Setup
Notes
NOTE: Micro SD card max size is 64GB and must
be FAT32, SDXC format. Recommended is
Kingston or Samsung.
Insert a media card (Micro SD/ SDHC) with
stored (avi, .ts, .mpg, .mp4, .mov, .mkv, or .flv)
video files.
1. Select the Multimedia icon and then
select the Video folder to view.
2. Select Play to start the selected
video file.
3. Select the Multimedia information icon
to view picture/video information.
4. Select Back to return to the previous
screen.
NOTE: If the video file causes the keypad to lock,
press the reset button on the keypad to reset
the keypad.
UL
Multimedia functionality is
supplementary only and has not
been evaluated by UL.
Picture Setup
Notes
Insert a media card (Micro SD/SDHC) with
stored (jpg, .bmp, .png or .jpeg) photos.
1. Select the Multimedia icon and then
select the Picture folder to view.
2. Select a photo and select Play to view
pictures in a slide show format.
3. To set a picture as wallpaper, select the
Default/Wallpaper folder to activate the
wallpaper setting.
4. Select the Multimedia information icon
to view picture/video information.
5. Select Back to return to the previous
screen.
The Picture feature allows you to set up and
view up to 1000 stored photos or select a
photo to set it as a wallpaper display.
UL
Multi-Media functionality is
supplementary only and has not
been evaluated by UL.
-2-
CS Setup
Notes
Compatibility Table
Panel Type Panel Version
Max # of
touchscreens
1. Select the Setup →System Setup and CS
Setup icons.
When the Touchscreen cannot communicate
with the alarm panel, the message “ECP
Error” is displayed, check the following:

-3-
Time/Date Setup
Notes
1.Select the Time/Date Setup icon; enter your
“Authorized Code”, if applicable.
2. Scroll to select a value for the Year, Month,
If DST On (Daylight Savings Time) is
selected, the Touchscreen adjusts for
Daylight Savings time at the month, week
and time chosen.
You can set the time and date from the Set Time & Date screen.
•When the time is set it is stored in the Touchscreen and sent to the
control panel when you select the Apply icon and answer Yes to the
following prompt. Additionally, when using the Touchscreen with a
2. Enter your “Authorized Code", if required.
3. Select the ECP Address&Options icon.
•Verify that the AUI type device is enabled in
the control panel, and that the ECP address
in the Touchscreen matches the address
enabled in the control panel. Use a different
address for each device.
•If powering the Touchscreen from a power
supply, make sure you have a common
ground installed (wiring between Power
Supply "gnd" and panel "Aux. power neg").
On residential control panels (VISTA-20P
or equivalent), up to four Touchscreens
may be used. Addresses 1 and 2 (in field
*189) are enabled by default. If the defaults
have been changed, enable these
addresses (in field *189) using an alpha-
keypad and the Data Field Programming
procedures located in the panel Installation
and Setup Guide.
On commercial control panels (VISTA-
128BP, VISTA-128FBP or equivalent),
These addresses in the control panel are
normally not defaulted for AUI type devices.
To enable the addresses you are using for
Touchscreens, use an alpha-keypad and
follow the procedures for “Device
Programming” in your control panel
“Programming Guide.”
NOTE: When the ECP address is
changed, and Apply is selected, the
Touchscreen resets.
15p V3 and higher 2
20p V3 and higher 4
21ip V1 and higher 4
128BPT V10 and higher 6
250BPT V10 and higher 6
128FBPT V10 and higher 6
250FBPT V10 and higher 6
Note: Keypad may only be used in the following UL/cUL installations:
UL 365, UL 609, UL 985, UL 1023, UL 1610, CAN/ULC-S303,
CAN/ULC-S304, ULC-S545, ULC/ORD-C1023, and ANSO/SIA CP-
01-2010.
Note: For SIA installations used with VISTA-128BPTSIA Controls, see
the SIA CP-01 Quick Reference Chart located on MyWebTech,
Document #800-09699.
ECP Address
1. Select the ECP Address&Options icon.
2. Select the ECP address for this
Touchscreen using the Up/Dn arrows.
3. The available ECP addresses are:
1-2, 5-6 for residential controls
1-2, 3-30 for commercial controls under
Rev. 10 supports 3 AUIs. See
Important Note below.
1-30 for commercial controls Rev. 10
and higher supports 6 AUIs.
IMPORTANT: If multiple Touchscreens are being
used, they must be set to addresses 1, 2, and X
(where X equals any address from 3 through 30).
Only one AUI type (touchscreen) device may be
assigned to an address from 3 through 30 on
commercial control panels.
The Touchscreen should not be assigned as a
Master Console. If the Touchscreen is assigned as a
Master Console, partitions must be controlled from
the Partition screen or using the Console Emulation
Mode.
Select to save.
OPTIONS
Notes
Operating Modes
Automatic Entry- In the rare event that the Touchscreen cannot
successfully communicate in its graphic mode with the control panel,
the Touchscreen displays “Problems detected. Start Keypad in Safe
Mode?” and requests a “Yes” or “No” response. If you answer with
“Yes”, the Touchscreen enters into the Safe Mode. If you answer with
“No”, the Touchscreen tries to communicate with the panel again.
After 3 consecutive times of receiving no response, the Touchscreen
enters the Safe Mode automatically.
Manual Entry - Note: ONLY enter the Safe Mode from the Normal
Mode. Entering the Safe Mode from the Demo Mode may result in
incorrect display of the Emergency Function keys.
Operating in the Safe Mode
This is a limited mode of operation. While in this mode:
•You can use the Security icon to access the Console Emulation
Mode of operation to try to clear your faults, disarm the system, or
enter additional Alpha Keypad commands specified in your panel
User and Installation Guides. You can perform almost all functions
that you can perform from a standard non-graphic alpha keypad.
•You can select the “Panic” icon and generate Emergency Messages
as defined in the panel's home partition for this Touchscreen.
•The LED on the front of the keypad indicates the keypad’s home
partition status.
•The Chime mode functions in the Safe Mode: however, there is no
Voice, Voice Chime, or Message capability.
WARNING:
The Slide Show feature does not start automatically in Safe
Mode.
User Code Setup
Each user must be assigned a name with a corresponding 4-digit user
code in order to gain access to various features and functions. The
Touchscreen can hold the identity for 10 Users in its memory. The
maximum number of Users that can be added is limited to the number
of users that the panel supports.
Users for the system are programmed in a central user setup location
that provides the specific questions for authorization levels assigned
to different users. You may want these users to be the same, but
there are situations in which you may want a user to have limited
capabilities.
User Related Note
•Users added to the system using the Touchscreen graphic user
screen must be deleted from the Touchscreen using the graphic
screen as well. Deleting users from the panel by any other means
(alpha keypad, console emulation mode, or Compass downloader)
does not automatically delete them from the Touchscreen.
•If the panel has exit tones enabled and you arm the system in the
Away mode, the Touchscreen beeps continuously throughout the
exit period.
•Use the console emulation mode for the following functions:
- Programming more than 10 system users.
- Programming the Pager report option for users of residential
control panels (e.g., VISTA-15P and VISTA-20P).
- Special Function Key operations (macros or single-button paging).
- End-User Scheduling.
- To check for an “Alarm Cancelled” message if this feature has
been enabled in the system.
1. From the System Setup screen, select the CS
Setup icon.
2. Enter your “Authorized Code", if required.
3. Select the ECP Address & Options icon.
4. Select a Homepage: Legacy Homescreen or
Security System to turn the option on or off.
4. Select Normal Mode or Safe Mode to turn the
option on or off.
5. Select to save or to go back to the
previous menu..
Note: DO NOT select the Demo Mode
option. This option should only be
selected if instructed to do so by factory
service. When this option is selected, the
Touchscreen does not communicate with
the control panel and any user can select
Advanced Setup screens.
Safe Mode
Notes
1. Select Safe Mode and then select Apply.
2. Select the OK icon.
3. To exit, select the safe mode bar and select
Yes to return to Normal Mode.
The Touchscreen resets and restarts in the
Safe Mode.
The Safe Mode may be automatically
entered by the Touchscreen program on a
communication failure or may be entered
manually on command.
While in the Safe Mode, the Home/Security
screen displays the Security, Panic, and
Message Icon. A message SAFE MODE is
displayed at the bottom of the screen.
Screen Security
Notes
1. From the
System Setup
screen, select the
CS Setup icon.
2. Enter your “Authorized Code", if required.
Note: The Screen Security screen
contains a list of authority levels for
Advanced Setup, CS Setup, Display &
Audio Setup, Event Logs, Lighting,
Message, Security, and Time/Date Setup.
3. Select the Screen Security icon.
4. If authority levels are correct, select or
to exit menu.
5. If changes are necessary, select the line to
be changed and the level of user to have
access, then select to save
.
The Screen Security screen is re-
displayed listing any changes.
Note: The User Levels listed on this
screen match the User Levels in
commercial panels. See the chart below
for corresponding User Levels in
Residential Panels.
Code Authority
Notes
1. Select the Code Authority icon.
2. Enter the 4-digit User Code for the user that
you want to obtain Authority Level
information about.
3. Select to save; or to go back to the
previous screen.
The Code Authority icon displays User
Names and Partition Authority Level for
the User Code.
Event Logs/Console Mode/Show Zones
Notes
1.Select Security and the More Choices icon.
2. Select Event Logs to view a record of
events in a history log, use the up/down
arrow to scroll.
3. Select Console Mode to enter that mode.
4. Select Show Zones to view or change
current zone selections.
The control panel must be programmed to
record various system events in installer
programming mode.
Panel Configuration
Notes
1. Select the Panel Config icon.
If you select , the Touchscreen resets and
the panel configuration is downloaded from the
panel into the Touchscreen.
A "Panel Configuration" screen is
displayed providing details of your system.
Delete clears the configuration from the
Touchscreen and reloads the panel
configuration into the Touchscreen.
Add/Delete/Edit a User
Notes
1. From the Setup, System Setup screen,
select the User Setup icon.
2. Select the icon and enter your
“Authorized Code”.
- Select a Partition to view; P1H, P2, P3.
- Select the level of access for this user
(Master, Normal, Guest or No Access.
-Select User Number and User Name to enter
information for this user.
-Select the box next to RF Button Zone;
enter the 3-digit RF Button Zone for this user.
Select to save the user information.
Follow this procedure for deleting and editing
users.
NOTE: To edit a User ‘name’ or ‘number’, you
must delete the User and re-enter.
Note: The authorized code for adding,
deleting and editing users is dependent
upon the alarm panel you are connected
to. Check your alarm panel Installation
and Setup Guide to determine who can
add users.
Type in the user name (6 characters max.;
no spaces between characters)
Notes:
•Use the Shift key for capital letters.
•Use the BS (Backspace) key to make
corrections.
If assigning this user to a wireless key,
enter one of the zone numbers of the
keyfob (the wireless key must be
programmed before it can be assigned to
a user).

Day, Hour, Minute, AM or PM to be
displayed.
3. Use the up/down arrows to select a
format for
MMDDYY and 12 Hour or 24 Hour to be
display.
4. Select the DST icon to have daylight savings
time affect your system clock.
5. Set the “Start DST” and then the “End DST”
settings by selecting the Month, Weekend
and Hour that you want DST to start.
6. Select to save settings.
Make sure "DST On” is checked to enable
this feature.
A confirmation screen is displays:
“Time Setting Confirmation”
“Set time on the security system as
well?”
Select Yes or No.
residential panel, the panel downloads its time into the Touchscreen
once an hour after the clock is set.
•If Get Time is selected, the Touchscreen downloads the time and
date from the control panel and exits the Set Time & Date screen.
Advanced Setup
Notes
1. From the System Setup screen, select the
Advanced Setup icon.
2. Enter your “Authorized Code” to access:
Power Mode Setup / Night Setup /
Keypad Reset .
- Power Mode Setup: Select the desired
power save mode (Turn-off Network /
Override Display Settings).
-Night Setup: Select the desired night setup
arming mode (Away / Stay / Instant /
Maximum / Night), see below.
-Keypad Reset: Processor reset; Select OK
or Cancel.
When the Keypad Reset icon is selected,
the message is displayed:
“Processor Reset
Are you sure you want to reset?
Select OK or Cancel”
At any time when a test is not being performed, you can select the back
icon to return to the previous screen, or select the home icon to return to
your home page.
Residential System Notes
•If the Clean Me option is set, when the maintenance signal is received
a “Fire Maintenance” message and the Display Faults icon is shown.
However, if you display the faults, zone 1 is not shown as a faulted
zone.
•If RF Jam Reports are selected and RF Jam is detected, the User
Authorization screen displays “Trouble ZN100 RF Receiver”. If you
enter the console emulation mode, the display shows “Check 90 RF
Receiver Jam”.
•Do not use the Custom Word reminder feature.
Night Setup
Notes
1. Select the Advanced icon.
2. Enter your “Authorized Code”, if required.
3. Select the desired night setup arming mode.
After selecting the arming mode to be activated
when the NIGHT icon is selected on the "Arming"
screen select to save or select to cancel your
selection and return to the previous screen
The
NIGHT
icon can be set to arm the
system in one of five modes:
•Away - Arms all zones with entry delay.
•Stay - Arms perimeter zones with entry
delay.
•Instant - Arms perimeter zones without
entry delay.
•Maximum - Arms all zones without entry
delay. Not to be used for ANSI/SIA
CP-01 installations.
•Night (Residential Panels Only) – Arms
all perimeter zones plus all zones listed
in Zone List 5.
NIGHT Setup Icon Function
The Touchscreen is defaulted to arm the system in STAY INSTANT mode
when arming the system using the NIGHT icon. You can change the
Touchscreen so that it arms the system in a different mode when the
NIGHT icon is selected by selecting the arming mode to be activated
when the NIGHT icon is selected on the “Arming” screen.
Note that some displays on the Touchscreen may not have enough
space to display the whole name of a partition. When this occurs, the
display shows as many characters as possible starting at the beginning
of the partition name. We recommend that the partition name be kept to
a maximum of 7 characters to ensure the “H” which indicates the home
partition may be seen (this is set at the panel).
System WIFI
Notes
Residential Panels and Screen Security Authority Levels
Authority levels define the system functions a particular user can
perform. Depending on the authority assigned to you, there are certain
system functions you may be prohibited from performing. The table
below describes the authority levels available in the Touchscreen and
provides the equivalent authority level name found in your alarm system
manuals.
Authority Level in
Panel
Matching
Authority Level in
Touchscreen
Access Level Chosen in
Touchscreen Screen Security
Installer
Master
Manager
Operator A
Operator B
Operator C
System Master
Master
No
Yes
Yes
Yes
Yes
Yes
Partition Master
Master
No
Yes
Yes
Yes
Yes
Yes
Standard User
Normal
No
No
No
Yes
Yes
Yes
Arm Only
N/A
No
No
No
No
No
No
Guest
Guest
No
No
No
No
Yes
Yes
FEDERAL COMMUNICATIONS COMMISSION & ISED CANADA STATEMENTS
The user shall not make any changes or modifications to the equipment unless authorized by
the Installation Instructions or User's Manual. Unauthorized changes or modifications could
void the user's authority to operate the equipment.
CLASS B DIGITAL DEVICE STATEMENT
This equipment has been tested to FCC requirements and has been found acceptable for
use. The FCC requires the following statement for your information.
This equipment generates and uses radio frequency energy and if not installed and used
properly, that is, in strict accordance with the manufacturer's instructions, may cause
interference to radio and television reception. It has been type tested and found to comply
with the limits for a Class B computing device in accordance with the specifications in Part 15
of FCC Rules, which are designed to provide reasonable protection against such interference
in a residential installation. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• If using an indoor antenna, have a quality outdoor antenna installed.
• Reorient the receiving antenna until interference is reduced or eliminated.
• Move the radio or television receiver away from the receiver/control panel.
• Move the antenna leads away from any wire runs to the receiver/control panel.
• Plug the receiver/control panel into a different outlet so that it and the radio or television
receiver are on different branch circuits.
• Consult the dealer or an experienced radio/TV technician for help.
ISED CLASS B STATEMENT
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
FCC / ISED STATEMENT
This device complies with Part 15 of the FCC Rules, and ISED’s license-exempt RSSs.
Operation is subject to the following two conditions: (1) This device may not cause harmful
interference (2) This device must accept any interference received, including interference that
may cause undesired operation.
Cet appareil est conforme à la partie 15 des règles de la FCC et exempt de licence RSS
d’ISED. Son fonctionnement est soumis aux conditions suivantes: (1) Cet appareil ne doit
pas causer d' interférences nuisibles. (2) Cet appareil doit accepter toute interférence reçue y
compris les interférences causant une réception indésirable.
Responsible Party / Issuer of Supplier’s Declaration of Conformity: Honeywell
International, 2 Corporate Center Dr., Melville, NY 11747, Ph: 516-577-2000.
Partie responsable / Émetteur de la déclaration de conformité du fournisseur :
Honeywell International, 2 Corporate Center Drive., Melville, NY 11747,
Tél. [phone]
NOTE: Supports 2.4GHz and 5GHz
frequencies.
1.Select Setup and System WIFI icons to
view the list of current WIFI information.
2. Select to add a new network address.
Use the displayed keyboard to:
- enter a new Network name (enter the SSID).
– select the security type
- scroll down to select Advanced options.
Proxy: None, Manual, Proxy Auto-Config.
When done, select CONNECT to activate or
select CANCEL.
Use the Data Entry Keyboard to enter the
required information.
•Use the Shift key for capital letters
•Use the BS (Backspace) key to make
corrections.
•Select OK
•Select abc/@#$ to switch between
letters and symbols.
Commercial System Notes
•If the Aux Relay function is set for alarm silenced by User Code + # + 67, this command may only be entered in the console
emulation mode.
•Do not use the common lobby logic function.
•If fields 2*22 (Display Fire Alarms of other Partitions), 2*23 (Display Burg & Panic of other Partitions), or 2*24 (Display Troubles
of other Partitions) are enabled, the zones that created the conditions cannot be viewed. You must go to that zone's home
partition to view.
•If field 1*11 (Zone Bypass After Disarm) is enabled, you must use the Touchscreen’s Console Emulation Mode and the
commands “Code” + “64” (unbypass all) or “Code” + “6” + “Zone Number” (unbypass zone) to remove zone bypasses.
•The First to Alarm Display Lock feature (field 1*10) is not supported by the Touchscreen.
•RF Low Battery messages are not supported by the Touchscreen except in the Show Zones screen where a Battery Icon is
displayed for the zone with the low battery.
General Notes
•“Exit Error” and “Auto Arm Alert, Please Leave Now” messages are not displayed by the Touchscreen.
•When the system has 6150Vs or 6160Vs, and 6271Vs attached, the Additional Console setting in the 6150Vs (displayed as A on
the 6150V) must be set to 1 and the Additional Console setting in the 6160Vs must be set to Yes.
*For additional troubleshooting procedures, refer to the Control Panel Installation Guide.
UL Notes: For residential burglar alarm applications, the entry delay time shall not exceed 15 seconds, therefore
use is restricted to compatible listed control units capable of being programmed for this time parameter.
Connect only keypads to: Aux. + / Aux. - and Data input / Data output.
SUPPORT & WARRANTY
For the latest warranty information, please go to:
https://www.security.honeywellhome.com/hsc/resources/wa/index.html
For patent information, see https://www.resideo.com/patent
SUPPORT: For technical support, call 1-800-645-7492 M-F 8:30am to 5pm EST
REFER TO INSTALLATION INSTRUCTIONS FOR THE CONTROL PANEL WITH WHICH THIS DEVICE IS USED FOR
WARRANTY INFORMATION AND LIMITATIONS OF THE ENTIRE ALARM SYSTEM.
This product manufactured by Resideo and its affiliates.
The Honeywell Home Trademark is used under license from Honeywell International Inc.
2 Corporate Center Drive, Suite 100
P.O. Box 9040, Melville, NY 11747
© 2019 Resideo Technologies, Inc. Inc.
www.resideo.com/security
Ê800-24918A{Š
800-24918A4/19 Rev. A
