Honeywell TC30PE Series User manual

Portable Evaporative Air Cooler
User Manual
Read and save these instructions before use
EN
Refroidisseur d'air par évaporation portatif
Mode d'emploi
Lire ces instructions avant l'utilisation et les conserver
FR
Enfriador de Aire Evaporativo Portátil
Manual de Instrucciones
Lea y guarde estas instrucciones antes de usar la unidad
ES
Customer Support:
Assistance Au Client:
Servicio de atencion a clientes:
USA/ EE.UU: 1-800-474-2147
CANADA/ CANADÁ^ : 1-888-209-0999
www.jmatek.com
Email: [email protected]
^ Canada Customer Support service available for models sold in Canada only.
^ Le Service Client Canadien est disponible uniquement pour les modèles vendus sur le territoire Canadien.
^ Servicio de Atención A Clientes en Canadá disponible solo para modelos vendidos en Canadá.
Model / Modèle / Modelo:
TC30/50PE Series / Série / Serie

1

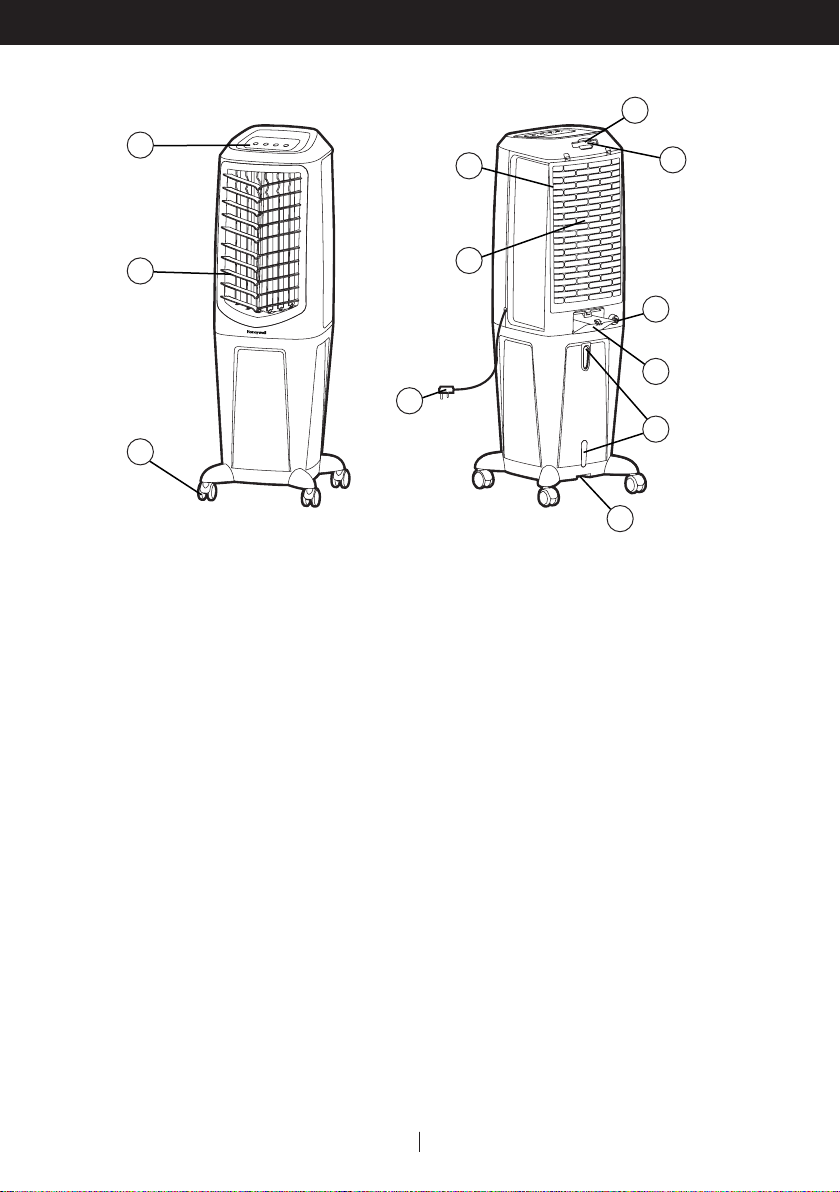

PARTS DESCRIPTION
EN
1
5
6
2
9
8
12
7
4
10
11
3
1) Control Panel 7) Rear Grill & Mesh Filter
2) Louvers 8) Honeycomb Cooling Media
3) Water Level Indicator 9) Water Fill Door
4) Casters 10) Power Cord & Plug
5) Handle & Remote Control
Storage
11) Drain Plug
6) Remote Control 12) Water Inlet Valve*
*Applicable for models with Water Inlet Valve only.
WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER
MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY
DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS
ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER
LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL
PREVAIL.

2
USE & OPERATION
EN

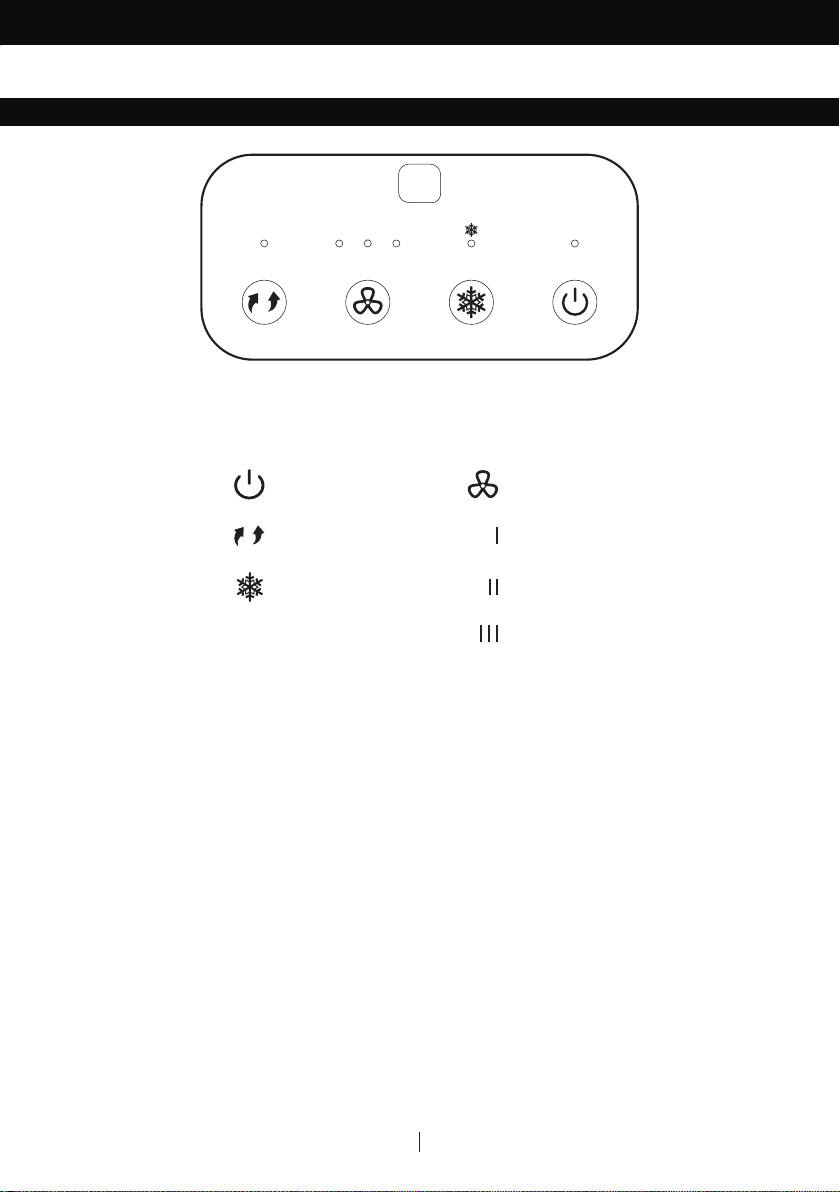

CONTROL PANEL
Icons on Display Screen
Swing
Power
Cool
Speed
= Low
= Medium
= High
I II III

3
USE & OPERATION (CONTINUED)
EN
FUNCTION BUTTONS
POWER
Press the button to turn the unit on. The cooler will start automatically at medium speed. After a
few seconds the speed will switch to low. To turn the unit off, press the button again.
SWING
Press the SWING button until is illuminated on the display. The louvers will
begin to move left to right automatically. You can manually adjust the louvers
to change vertical air flow.
SPEED
Press the SPEED button repeatedly to change the speed between | - || - |||.
The indicator light will show the selected speed.
COOL
You must add water before operating the unit in Cool mode. Press the button until
is illuminated on the display screen. The water pump will operate and you will feel the cooler air after
the Honeycomb Cooling Media is completely wet.
Louver
Movement

4
USE & OPERATION (CONTINUED)
EN

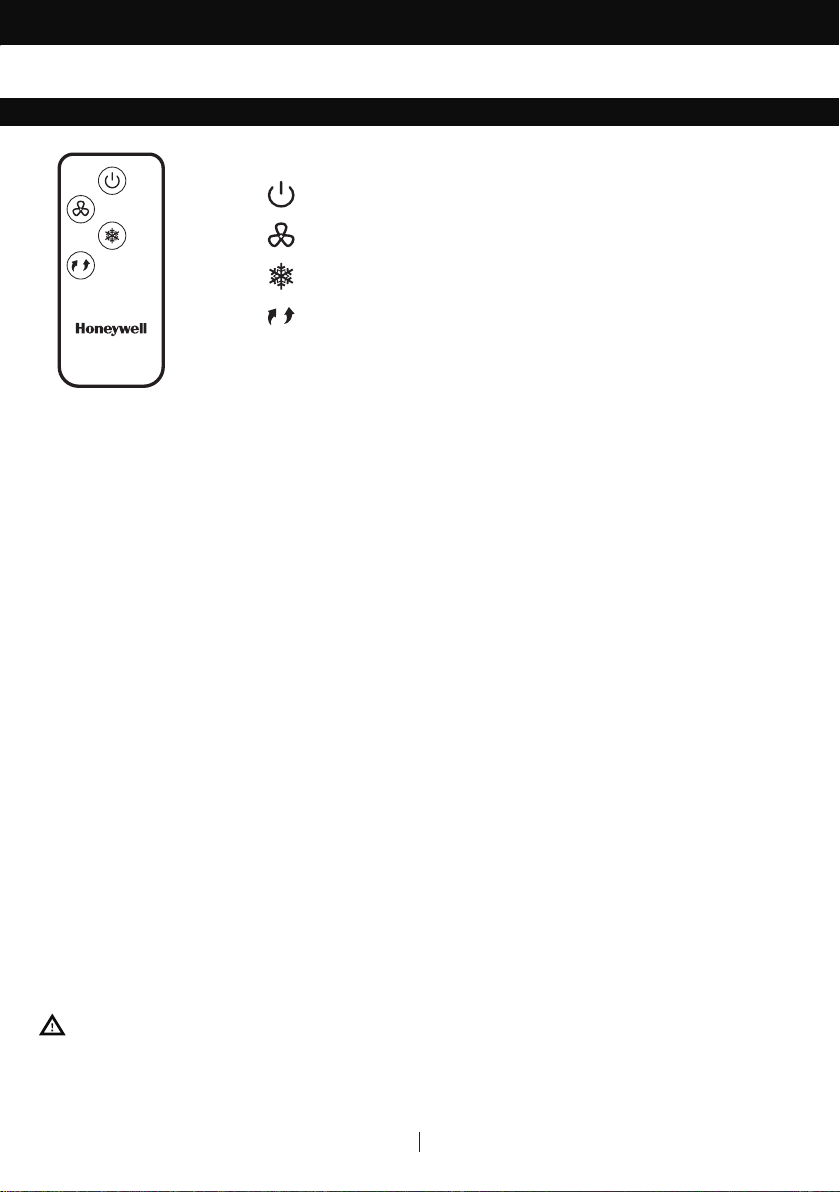

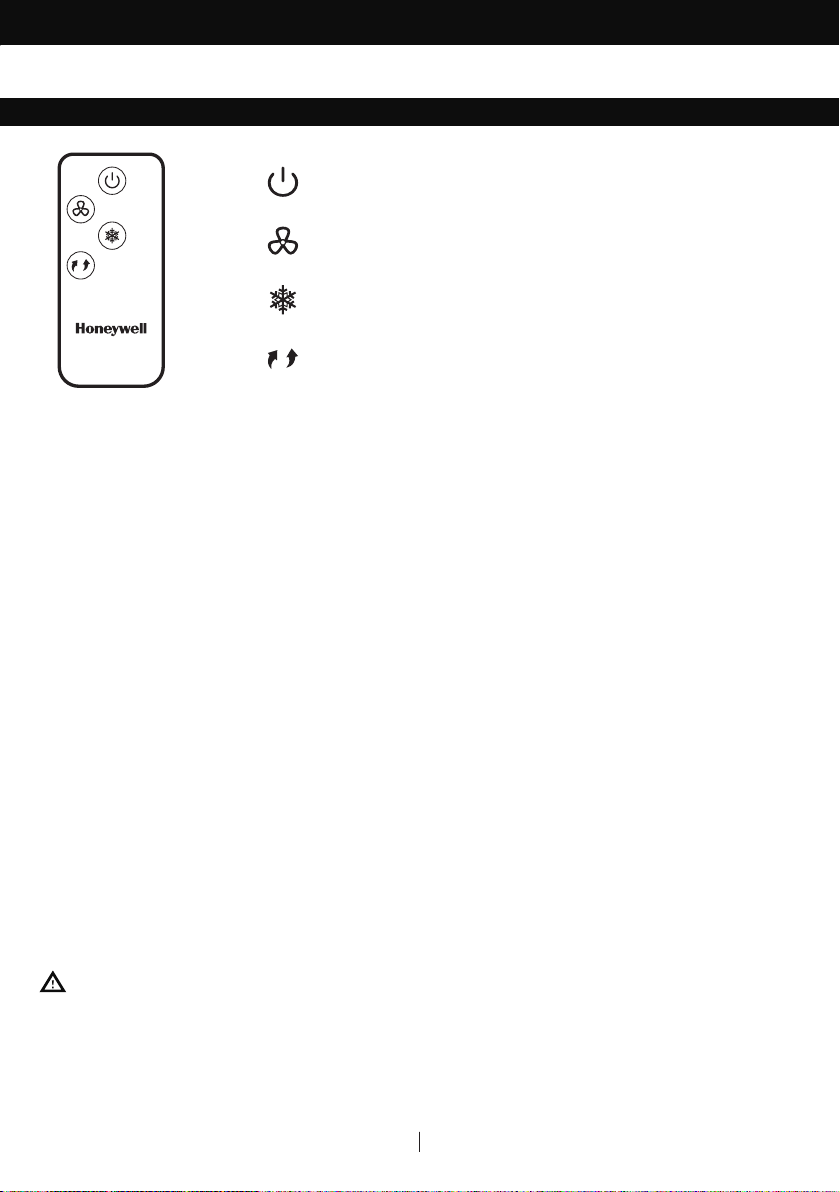

REMOTE CONTROL
POWER :
:
:
:
ON / OFF
Low / Medium / High
Evaporative Cooling ON / OFF
Controls the motion of the louvers
SPEED
COOL
SWING
NOTE:
•
•
•
•
•
•
•
•
•
•
•
•
The remote control requires a CR2025 (1 x 3V) coin type or equivalent battery for replacement.
Open the battery compartment at the back of the remote control and insert the battery inside.
Care must be taken to insert the batteries according to the correct polarity (+ / –) markings
shown inside the battery compartment.
Always point the remote control signal transmitter towards the unit when operating. Make sure
that the signal path is not obstructed.
Remove the batteries if the unit is not going to be used for an extended period of time.
Do not drop the remote control.
Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries.
Do not mix old and new batteries.
Do not recharge the battery.
Exhausted batteries are to be removed from the product and safely disposed of as per
local regulations.
Do not dispose of batteries in fire. Batteries may explode or leak.
This product contains a lithium button/coin cell battery. If a new or used lithium button/ coin
cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to
death in as little as 2 hours. Always completely secure the battery compartment. If the battery
compartment does not close securely, stop using the product, remove the batteries, and keep it
away from children. If you think batteries might have been swallowed or placed inside any part of
the body, seek immediate medical attention.
The batteries shall be disposed of properly, including keeping them away from children.
Even used batteries may cause injury.
WARNING: Chemical Burn Hazard. Keep batteries away from children.

5
It is ideal to use the Continuous Water Supply* Connection to run the unit for long periods of time
without refilling the tank. This also helps prevent pump failure in case the cooler is running with
inadequate water in the tank.
CAUTION: Unplug the unit from the electrical socket before emptying or refilling the water tank.

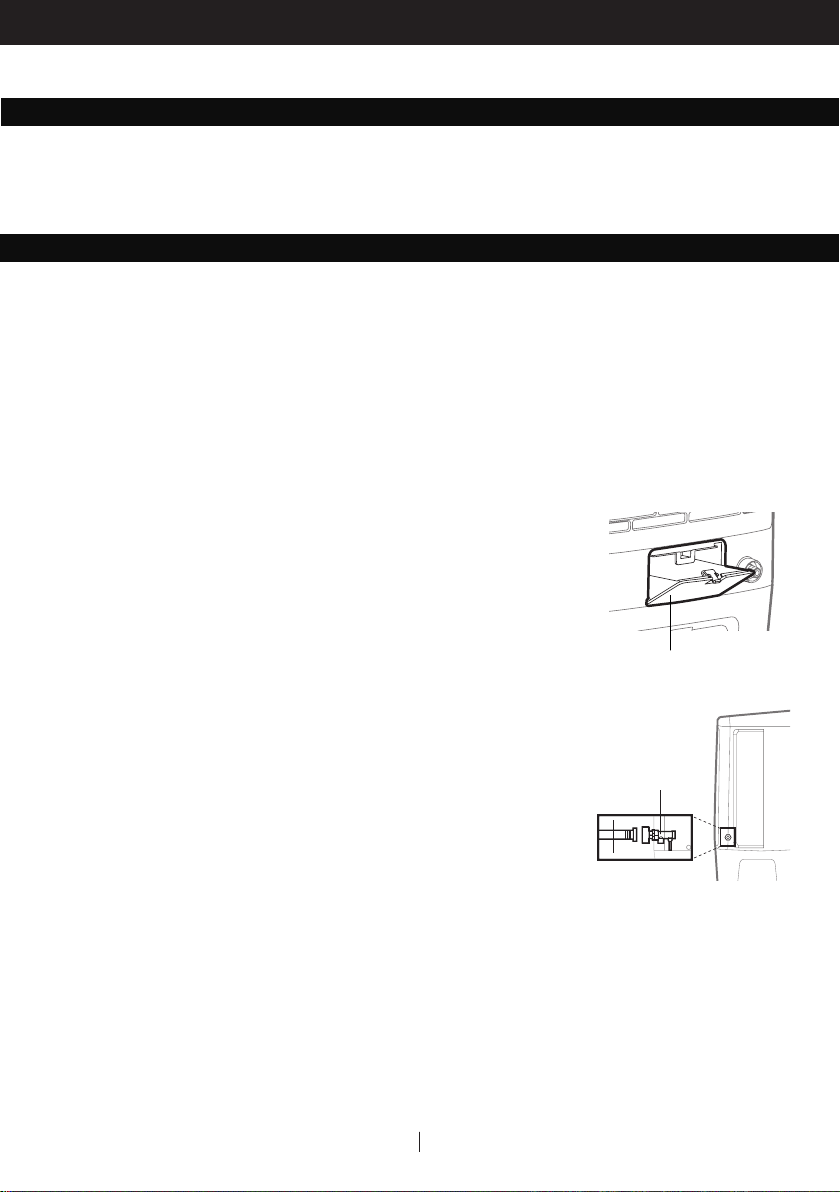

Open the Water Fill Door located on the back of the unit.
Continuous Water Supply Connection*:
For a continuous water supply, you will need a garden hose that is connected to a mains water supply.
USE & OPERATION (CONTINUED)
FILLING WITH WATER
Water Fill Door
EN
Locate the male connector at one end of the garden hose. Insert the
garden hose connector into the water inlet valve of the cooler. Screw
and tighten the water inlet valve onto the threaded part of the garden
hose connector, making sure the hose connector is secured to ensure
there will be no leaks. If there is a leakage, the hose and the water inlet
valve may not be connected properly. Try to disconnect, replace and
tighten the water inlet valve again.
When the connection is secured, turn ON the water supply and
the water will flow into the water tank of the cooler.
The cooler is now set so the water refills automatically.
When the water tank is full of water, the water inlet valve will
auto-matically stop the water supply from overflowing the water tank.
WARNING: The maximum water inlet pressure is 0.5 MPa.
•
•
•
•
Water Inlet Valve
Garden Hose
*Applicable for models with Water Inlet Valve only.
Make sure to position the air cooler correctly before you set up and start using the product. Please
refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.
COOLER LOCATION

6EN
USE & OPERATION (CONTINUED)
FILLING WITH WATER (CONTINUED)
The Water Level Indicator is located at the back of the unit. Refill the water tank when water level
is low. Do not fill water above the "Max." water level mark to avoid water droplets collecting on the
louvers. Check the water level in the tank before running the COOL function. Make sure there is water
in the tank by using the continuous water supply connection or by filling the tank up to the maximum
indicator level. Running the unit in COOL mode with inadequate water may cause pump failure.
Note: The water capacity refers to the total volume of water that can be contained within the air
cooler water tank and water distribution system. The water capacity in the tank at the “Max.” indicator
level may be lower than the actual water capacity of the air cooler.
WARNING: Do not fill water tank with dirty water or salt water. This can damage the unit and
Honeycomb media.

7EN
Below are instructions on how to clean and maintain your air cooler. If the cooler will not be used
for a long period of time, please refer to the STORAGE & MAINTENANCE GUIDELINES located in
the separate Safety & Maintenance Guide.
WARNING:
Before cleaning the unit, power OFF the unit and disconnect from the electrical socket.
CLEANING & DRAINING THE WATER TANK
• Move the unit to a location where the water can be drained. Remove the cap from the drain plug
located at the bottom of the unit. Allow the tank to empty.
• Refill the water tank with clean water, up to the maximum level and drain it completely.
• Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive
elements or chemicals to clean this product.
• When the product is not in use, store the unit in a dry place out of direct sunlight.
USE & OPERATION (CONTINUED)
LOW WATER ALARM*
The unit is equipped with a low water sensor. In Cooling Mode, when water in the tank is below the
minimum level, you will hear a beeping sound and the indicator light will flash continuously. The unit
will automatically pause evaporative cooling.
Refill the water tank to deactivate the alarm in cooling mode. First switch OFF the unit and unplug
from the power outlet. Fill the water tank with water above the minimum water level mark. Plug in and
switch ON again.
To deactivate the alarm and continue using the unit as a fan (without evaporative cooling), switch the
unit OFF and then ON again. The Low Water Alarm will not activate in Fan only mode. The Low Water
Alarm will sound again if the COOL function is activated while the water tank is still empty.
*Applicable for models this feature only.

8
USE & OPERATION (CONTINUED)
WARNING:
Before cleaning the unit, switch the unit OFF and disconnect the power adapter from the unit and
electrical socket.
CLEANING THE MESH FILTER AND HONEYCOMB COOLING MEDIA
The appliance is supplied with a Mesh Filter and Honeycomb Cooling Media.
The Mesh Filter and Honeycomb Cooling Media are located inside the Rear Grill. See Figure 1
for instructions on how to remove them from the unit for cleaning and maintenance.
Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank
and refill with fresh water, especially if the tank has not been cleaned in a long time.
The cleaning frequency for the Honeycomb media depends on local air and water conditions.
In areas where the mineral content of water is high, mineral deposits may build up on the
Honeycomb Cooling Media and restrict air flow. Draining the water tank and refilling with fresh
water at least once a week will help reduce mineral deposits. If mineral deposits remain on the
Honeycomb Cooling Media, the media should be removed and washed under fresh water. The
media should be cleaned every two months or sooner, depending on your needs.
For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool
function 15 minutes before turning the unit off.
•
•
•
•
•
Carefully pull out the rear grill / mesh filter from the
cooler.
Rinse the rear grill / mesh filter with clean water and let
it dry before re-installing to the unit.
Carefully pull out the Honeycomb Media.
Replace or clean media with water and a damp cloth
as needed.
WARNING: DO NOT operate the Air Cooler when the
Rear Grill is removed from the Air Cooler, or if there is a
loose-fitting Rear Grill. Doing so can cause serious
injury or dangerous electrical shock.
1.
2.
3.
4.

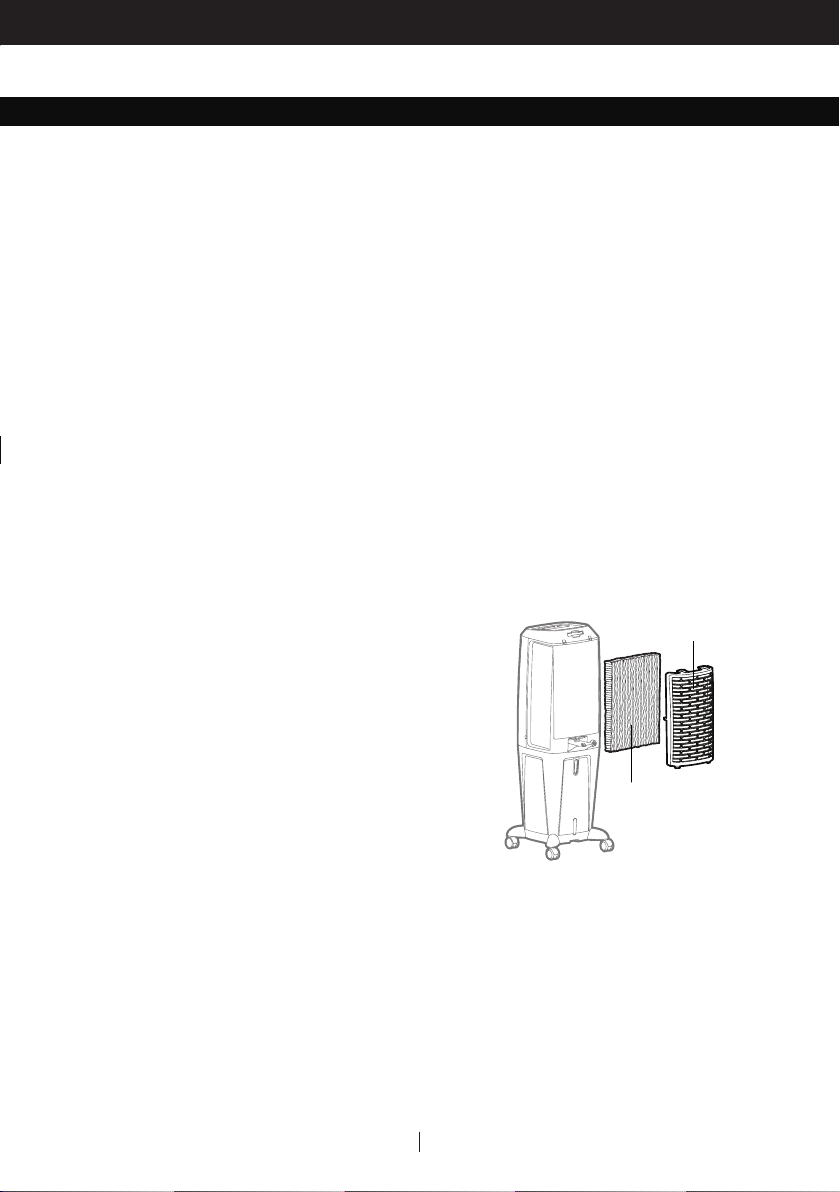

Removing the Mesh Filter and Honeycomb Cooling Media:
EN
Figure 1:
Honeycomb Cooling Media
Rear Grill/
Mesh Filter

1FR
1
5
6
2
9
8
12
7
4
10
11
3
AVERTISSEMENT -- LIRE ET SAUVEGARDER LE GUIDE DE SECURITE ET D'ENTRETIEN ET LE
MANUEL D'UTILISATION DU REFROIDISSEUR D'AIR AVANT D'UTILISER LE PRODUIT. NE PAS
SUIVRE CES INSTRUCTIONS POURRAIT ENDOMMAGER ET/OU PORTER ATTEINTE A SON
FONCTIONNEMENT ET ANNULER LA GARANTIE. EN CAS D'INCOHERENCE OU DE CONFLIT
ENTRE LA VERSION ANGLAISE ET TOUT AUTRE VERSION LINGUISTIQUE DU CONTENU DE CE
MATERIEL, LA VERSION ANGLAISE PRÉVAUDRA.
DESCRIPTION DES PIECES
1) Panneau de contrôle 7) Grille arrière & filter
2) Grilles d'aération 8) Système de refroidissement
en nid d’abeilles
3) Indicateur de niveau d'eau 9) Porte de remplissage d'eau
4) Roulettes 10) Cordon electrique
& prise
5) Poignée & Télécommande
stockage
11) Bouchon de vidange
6) Télécommande 12) Vanne de l’entrée d’eau*
*Applicable uniquement pour les modèles avec la Vanne de l’entrée d’eau.
