Honeywell Galaxy Control Panel
Integration Guide
5.2
Click here for the most recent version of this document.

gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 ii
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
Copyright notice
© 2013 Genetec Inc. All rights reserved.
Genetec Inc.distributes thisdocument with software that includes an end-user license agreement and is
furnished under license and may be usedonly in accordance with the terms of thelicense agreement. The
contents of this document are protected under copyright law.
The contents of this guide are furnished for informational use only and are subject to change without notice.
Genetec Inc. assumes no responsibility or liability for any errors or inaccuracies that may appear in the
informational content contained in this guide.
This publication may not be copied, modified, or reproduced in any formor for any purpose, nor can any
derivative works be created therefrom without Genetec Inc.’s prior written consent.
Genetec Inc.reserves the right to revise and improve itsproducts asit sees fit. This document describes the
state of a product at the time of document’s last revision, and may not reflect the product at all times in the
future.
In no event shall Genetec Inc. be liable to any person or entity with respect to any loss or damage that is
incidental to or consequential upon the instructions found inthis document or the computer software and
hardwareproducts described herein. Theuseof this documentissubjecttothedisclaimerofliabilityfoundin
the end-user license agreement.
"Genetec", "Omnicast", "Synergis","Synergis Master Controller", "AutoVu", "Federation", "Stratocast", the
Genetec stylized "G", andthe Omnicast, Synergis,AutoVu, and Stratocastlogos are trademarks of Genetec
Inc., either registered or pending registration inseveral jurisdictions.
"Security Center", "Security Center Mobile", "Plan Manager", and the Security Center logo are trademarks of
Genetec Inc.
Other trade names used in this document may be trademarks or registered trademarks of the manufacturers
or vendors of the respective products.
All specifications are subject to change without notice.
Document information
Document title: Honeywell Galaxy Control Panel Integration Guide 5.2
Document number: EN.550.007-V5.2.C4(3)
Document update date: March 11, 2014
You can send your comments, corrections, and suggestions about this guide to
[e-mail].

gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 iii
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
Contents
About this guide . . . . . . . . . . . . . . . . . v
Chapter 1: Introduction to Galaxy Dimension control panel integration
Understanding Galaxy Dimension control panel integration . . . . . . . . 2
How Galaxy Dimension control panel integration works . . . . . . . . . 3
How Honeywell Galaxy terminology is used in Security Center . . . . . . . 4
Chapter 2: Release Notes
What’s new in 5.2 SR4. . . . . . . . . . . . . . . . . . 6
What’s new in 5.2 SR3. . . . . . . . . . . . . . . . . . 6
What’s new in 5.2 GA . . . . . . . . . . . . . . . . . . 6
Resolved issues for 5.2 SR4 . . . . . . . . . . . . . . . . 6
Resolved issues for 5.2 SR3 . . . . . . . . . . . . . . . . 6
Resolved issues for 5.2 GA . . . . . . . . . . . . . . . . 6
Known issues . . . . . . . . . . . . . . . . . . . . 7
Limitations . . . . . . . . . . . . . . . . . . . . 7
Supported Honeywell Galaxy devices . . . . . . . . . . . . . . 8
Supported number of devices and entities . . . . . . . . . . . . 9
Supported features . . . . . . . . . . . . . . . . . . 9
Chapter 3: Configuring Galaxy Dimension control panels in Security Cen-
ter
Configuration overview . . . . . . . . . . . . . . . . . 14
Preconfiguration checklist . . . . . . . . . . . . . . . . 15
Read the release notes . . . . . . . . . . . . . . . . . 15
Make sure you have the proper license . . . . . . . . . . . . . 15
Secure your network . . . . . . . . . . . . . . . . . 15
Configure the control panel for RS-232 communication . . . . . . . . 15
Configure the control panel for IP communication . . . . . . . . . . 17
Create the Intrusion Manager role . . . . . . . . . . . . . . 19

gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 iv
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
Create the Intrusion detection unit . . . . . . . . . . . . . . 21
Configuring the intrusion detection unit . . . . . . . . . . . . . 23
Configure intrusion detection unit properties . . . . . . . . . . . 24
Map inputs to intrusion detection areas. . . . . . . . . . . . . 27
Set the time zone . . . . . . . . . . . . . . . . . . 29
Create custom event mappings . . . . . . . . . . . . . . . 30
Configuring the heartbeat connection . . . . . . . . . . . . . 30
Configure the heartbeat connection on the control panel . . . . . . . 30
Configure the heartbeat connection in Security Center . . . . . . . . 31
Map intrusion detection areas to cameras. . . . . . . . . . . . . 33
Map Galaxy panel events to Security Center actions . . . . . . . . . . 34
Appendix A: SIA event types
Index . . . . . . . . . . . . . . . . . . . . 43
Where to find product documentation . . . . . . . . . . 45
Technical support . . . . . . . . . . . . . . . . 46

gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 v
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
About this guide
This guide describes how to integrate Honeywell Galaxy Dimension series control panels in
Security Center, and how to monitor them in Security Desk. This guide supplements Security
Center and Honeywell documentation.
For more information, see "Where to find product documentation" on page 45, and the
Honeywell Galaxy Dimension Installer Manual found in the Documentation\Controllers folder
of your Security Center installation package.
It assumes you are familiar with the following:
•Security Center 5.2 systems.
•Configuration and use of Honeywell Galaxy intrusion devices.
This guide is organized into the following sections:
•Chapter 1, “Introduction to Galaxy Dimension control panel integration” on page 1
•Chapter 2, “Release Notes” on page 5
•Chapter 3, “Configuring Galaxy Dimension control panels in Security Center” on page 13

gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 1
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
1
Introduction to Galaxy Dimension
control panel integration
This section describes the main features of integrating Honeywell Galaxy Dimension series
control panels in Security Center and how the integration works.
This section includes the following topics:
•"Understanding Galaxy Dimension control panel integration" on page 2
•"How Galaxy Dimension control panel integration works" on page 3
•"How Honeywell Galaxy terminology is used in Security Center" on page 4

Understanding Galaxy Dimension control panel integration
gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 2
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
Understanding Galaxy Dimension control panel integration
The Security Center Intrusion Manager role integrates Galaxy Dimension control panels into
Security Center for centralized monitoring, control, and reporting.
The integration allows you to do the following:
•Map Galaxy Dimension control panels to Security Center intrusion detection units.
•Map groups of inputs and devices on the control panel to Security Center intrusion
detection areas.
•Attach cameras to intrusion detection areas to view recorded video associated with events
and alarms from the panel.
•Monitor the connection between the Security Center server and the Galaxy Dimension
control panel using the heartbeat monitoring feature.
•Create event-to-actions for events that are sent from the control panel.
•Create custom events that can be used in event-to-action configuration.
•Receive events and alarms from the control panel, and monitor them in Security Desk. For
more information about monitoring intrusion detection events in Security Desk, see
“Monitoring events” and “Monitoring alarms” in the Security Desk User Guide.
•Monitor intrusion detection area state changes in real-time in Security Desk. For more
information about monitoring intrusion detection areas, see “Monitoring events” in the
Security Desk User Guide.
•Receive live notifications on input state changes in Security Desk. For more information
about monitoring intrusion detection units, see “Monitoring events” in the Security Desk
User Guide.
•Manually arm and disarm the intrusion detection areas defined on your intrusion panel in
Security Desk using the Intrusion detection area widget. For information about the
commands available in the Intrusion detection area widget, see “Intrusion detection area
widget” in the Security Desk User Guide.
IMPORTANT When you arm an intrusion detection area from Security Center using the
intrusion detection area widget, delay arming is not supported.
•Trigger intrusion alarms on intrusion detection areas in Security Desk. For information
about triggering intrusion alarms, see “Trigger a hot action” in the Security Desk User
Guide.
•Monitor the status of intrusion detection units and intrusion detection areas in real-time,
using the System status task. For mor information, see “System status” in the Security Desk
User Guide.
•Generate reports on activities related to intrusion detection areas. For more information,
see “Intrusion detection area activities” in the Security Desk User Guide.
•Generate reports on events related to intrusion detection units. For more information, see
“Intrusion detection unit events” in the Security Desk User Guide.

How Galaxy Dimension control panel integration works
gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 3
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
How Galaxy Dimension control panel integration works
Honeywell Galaxy Dimension series control panels are integrated to Security Center using the
Intrusion Manager role. The Intrusion Manager role receives events from the control panel over
an IP network, reports them live in Security Desk, and logs them in a database for future
reporting. The role also relays user commands to the control panel (such as arming and
disarming the intrusion detection areas), and triggers the outputs connected to the panel
through event-to-actions (for example, an Intrusion detection area master armed event in
Security Center can trigger an output on the panel).

How Honeywell Galaxy terminology is used in Security Center
gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 4
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
How Honeywell Galaxy terminology is used in Security
Center
Honeywell Galaxy intrusion detection components are mapped as entity types in Security
Center. The following table lists some Honeywell Galaxy components and terms, and how they
are represented in Security Center.
Honeywell term Description Security Center term
Galaxy Dimension
control panel
The control panel that is monitored and
controlled by Security Center. Each control
panel can control multiple groups.
Intrusion detection unit
Group A group of zones configured on the control
panel that specify a physical area, such as a
floor of a building. These groups can be
monitored and armed in Security Desk.
Intrusion detection area
Zone Inputs for devices such as glass break detectors,
motion sensors, temperature sensors, etc., that
are connected to the control panel.
input
Zone function The zone’s function, such as monitoring
intruders, fire, AC fail, entry, exit, and so on.
The zone function is configured on the control
panel.
Input function
Output Output pin connected to the control panel. Output
Full set This action arms a whole group. Master arm
Part set This action arms the zones in a group that have
the Part attribute enabled (usually the
perimeter inputs of a group).
Perimeter arm
omit zone This option temporarily removes a zone from
the system so it will not generate alarms.
bypass input

gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 5
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
2
Release Notes
This section describes the new features and enhancements of Honeywell Galaxy Dimension
series control panels supported in Security Center 5.2 SR4, as well as resolved issues, known
issues, and limitations.
This section includes the following topics:
•"What’s new in 5.2 SR4" on page 6
•"What’s new in 5.2 SR3" on page 6
•"What’s new in 5.2 GA" on page 6
•"Resolved issues for 5.2 SR4" on page 6
•"Resolved issues for 5.2 SR3" on page 6
•"Resolved issues for 5.2 GA" on page 6
•"Known issues" on page 7
•"Limitations" on page 7
•"Supported Honeywell Galaxy devices" on page 8
•"Supported number of devices and entities" on page 9
•"Supported features" on page 9

What’s new in 5.2 SR4
gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 6
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
What’s new in 5.2 SR4
There are no new features for 5.2 SR4.
What’s new in 5.2 SR3
There are no new features for 5.2 SR3.
What’s new in 5.2 GA
The following new features and enhancements were introduced in the Honeywell Galaxy
Dimension control panel integration for 5.2 GA.
•SIA events mapped to Security Center. SIA events sent from the Galaxy Dimension
control panel are mapped as custom events in Security Center. For a list of SIA events, and
how they are mapped in Security Center, see Appendix A, “SIA event types” on page 36.
•IP communication. Security Center can now communicate with the Galaxy Dimension
control panel using an IP connection with the Honeywell Galaxy Ethernet Module E080-4.
Resolved issues for 5.2 SR4
There are no resolved issues for 5.2 SR4.
Resolved issues for 5.2 SR3
There are no resolved issues for 5.2 SR3.
Resolved issues for 5.2 GA
There are no resolved issues for 5.2 GA.

Known issues
gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 7
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
Known issues
Galaxy Dimension control panel integration includes the following known issues.
Limitations
Galaxy Dimension control panel integration includes the following known limitations.
Issue Description
82756 Some intrusion detection events are not supported in Security Center 5.2.
Limitation Description
55922 If an input is triggered from Security Center (from triggered intrusion alarm or the
heartbeat monitoring feature), the input settings are overwritten with the values
configured in Security Center.
Workaroun d: Make sure the input configuration is the same in Security Center as on
the control panel.
57661 The Galaxy Dimension control panel does not respond well to multiple input triggers
that occur within one second of each other. As a result, you may lose your connection to
Security Center.
Workaroun d: Don’t trigger more than one input at a time.
56703 When you create custom events for the intrusion detection panel, the event list in the
Intrusion detection unit events task in Security Desk is not automatically updated.
Workaroun d: Delete the Intrusion detection unit events task, and create a new task.
56828 Delay Arming (master/perimeter) is not supported.
57040 For some input functions such as "Final" and "Intruder", the Galaxy Dimension control
panel does not send notifications to Security Center when the input state changes from
"Normal" to "Active". Therefore, these inputs should not be used for virtual zones.
Please note that not all inputs functions have been tested, there may be others that
behave in the same manner.
57484 Offline logs are not supported.
57485 Security Center does not support the Galaxy configuration “Re-ordering of the on-
board RIO, SW3, dip-switch 8”.
57491 When an expansion module is connected or disconnected from the Galaxy Dimension
panel, you are not notified of the corresponding input and output states in Security
Center.
57492 The Intrusion Manager role cannot report the “Entry delay started” control panel event.

Supported Honeywell Galaxy devices
gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 8
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
Supported Honeywell Galaxy devices
Security Center 5.2 SR4 supports the following Honeywell Galaxy Dimension control panel
devices. For each device, the corresponding firmware and certification status is listed.
57517 Clicking the buttons on the intrusion detection area widget may have no effect,
depending on your control panel input configuration. For more information about
configuring input functions, see the Honeywell Galaxy Dimension Installer Manual.
57921 The “Intrusion detection area input trouble” event does not report which input
triggered the event.
82756 Some intrusion detection events are not supported in Security Center 5.2. A list of
supported events will be available soon, please check the latest version of the Honeywell
Galaxy Control Panel Integration Guide.
Limitation Description
Model Device Firmware Certification
A234 RS-232 Lead Kit Certified
C072 Rio Expander module Certified
CP037 Keypad Certified
E080-2 Galaxy Ethernet Module Version 2.11
IMPORTANT This module
ships with 2.08. A firmware
upgrade is needed. Contact
Honeywell to receive version
2.11 on an SPI-key.
Certified
E080-4 Galaxy Ethernet Module Version 3.02 Certified
GD-48 Control panel Version 6.7 and later Certified
GD-96 Control panel Version 6.7 and later Supported by design
GD-264 Control panel Version 6.7 and later Supported by design
GD-520 Control panel Version 6.7 and later Certified

Supported number of devices and entities
gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 9
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
Supported number of devices and entities
The following table lists the number of intrusion detection units, intrusion detection areas,
inputs, and outputs that are supported in Security Center.
Supported features
The following table lists the Security Center intrusion detection features that are supported with
the Honeywell Galaxy Dimension control panel integration.
No. of intrusion
detection units No. of intrusion detection areas No. of inputs No. of outputs
Per server 10 5200 5200 2600
Per Directory 200 10400 10400 52000
Feature Supported
Serial connection Ye s
RS-232 serial connection Ye s
TCP/IP connection Yes, with Galaxy Ethernet
Module E080-4
Data encryption over TCP/IP No
Authentication between control panel and server Ye s
Input bypass Yes (report only)
Arm/disarm from Security Center Instant arming/disarming Yes
Delayed arming No
Use control panel inputs in virtual zones See limitation 57040
Trigger outputs on control panels Ye s
Discover intrusion detection areas and devices
automatically
No. Only the panel is
automatically detected at
enrollment
Create intrusion detection areas automatically in
Security Center
No. Must activate and
configure manually
Create input entities automatically in Security Center No. Must activate and
configure manually

Supported features
gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 10
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
Create output entities automatically in Security Center No. Must activate and
configure manually
Link input entities to intrusion detection areas
automatically in Security Center
No. Must link manually
Download Offline logs automatically on connection See limitation 57484
Clear offline logs manually No
Trigger alarms on the control panel from Security
Center
Ye s
Create custom Security Center events tied to panel pin
events
Ye s
Monitor Security Center Server connection from the
control panel
Ye s
Intrusion detection unit events Unit connected Yes
Unit Lost Yes
AC fail Yes
Battery fail Yes
Input supervision trouble Yes
Input bypass activated Yes
Input bypass deactivated Yes
Tamper Yes
Feature Supported

Supported features
gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 11
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
Intrusion detection area events Master armed Yes
Perimeter armed Yes
Disarmed Yes
Auto-arming postponed No
Forced arming No
Input bypass activated Yes
Input bypass deactivated Yes
Duress Yes
Entry delay started No
Intrusion alarm activated Yes
Intrusion detection area states Master armed Yes
Perimeter armed Yes
Disarmed Yes
Ready-to-arm Yes
Intrusion alarm active Yes
Input supervision trouble Yes
Arming countdown No
Entry delay No
Arming commands Instant master arm Yes
Delayed master arm See limitation 56828
Instant perimeter arm Ye s a
Delayed perimeter arm See limitation 56828
Forced arm No
Live input entity state changes Normal Yes (with limitation 57040)
Active Yes (with limitation 57040)
Supervision trouble Yes
Bypassed Yes
Feature Supported

Supported features
gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 12
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
Report live online/offline control panel status changes
on expansion modules
See limitation 57491
Synchronize time zone automatically from the control
panel value
Must synchronize
manually
a. If an intrusion detection area is master armed and you want to perimeter arm it, you must first disarm the
area, and then perimeter arm it.
Feature Supported

gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 13
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
3
Configuring Galaxy Dimension control
panels in Security Center
This section explains how to configure Galaxy Dimension control panels for use in Security
Center.
This section includes the following topics:
•"Configuration overview" on page 14
•"Preconfiguration checklist" on page 15
•"Create the Intrusion Manager role" on page 19
•"Create the Intrusion detection unit" on page 21
•"Configuring the intrusion detection unit" on page 23
•"Map Galaxy panel events to Security Center actions" on page 34

Configuration overview
gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 14
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
Configuration overview
The following table summarizes the installation and configuration process for the Galaxy
Dimension integration.
Phase Description See
1Before you start configuring Security Center intrusion entities,
you should understand the relationship between Honeywell
Galaxy terms and Security Center entities, and read the
information about this release.
"How Honeywell Galaxy terminology is
used in Security Center" on page 4 and
"Release Notes" on page 5.
2Configure the inputs, outputs, and groups on your Galaxy
Dimension panel.
See the Honeywell Galaxy Dimension
Installer Manual.
3Enable communications between Security Center server and the
control panel, using IP or RS-232 communication.
•"Configure the control panel for RS-
232 communication" on page 15.
•"Configure the control panel for IP
communication" on page 17
4Create the Intrusion Manager role in Security Center to manage
the intrusion detection unit.
"Create the Intrusion Manager role" on
page 19.
5Create the Galaxy Dimension control panel as an intrusion
detection unit in Security Center.
"Create the Intrusion detection unit" on
page 21.
6Configure the intrusion detection unit basic properties (for
example, activating the inputs, outputs, and intrusion detection
areas to monitor).
"Configure intrusion detection unit
properties" on page 24.
7Map inputs to intrusion detection areas so events received from
the control panel are associated to specific areas.
"Map inputs to intrusion detection
areas" on page 27.
8(Optional) Set the time zone for the intrusion detection unit. "Set the time zone" on page 29.
9(Optional) Create custom events for the control panel that can be
received in Security Center.
"Create custom event mappings" on
page 30.
10 (Optional) Configure the heartbeat connection if you want to
monitor the communication between Security Center server and
the control panel.
"Configuring the heartbeat connection"
on page 30.
11 (Optional) Map intrusion detection areas to cameras to view
video associated to intrusion events in Security Desk.
"Map intrusion detection areas to
cameras" on page 33
12 (Optional) Create events-to-actions, for Galaxy Dimension
control panel events received in Security Center to trigger
actions.
"Map Galaxy panel events to Security
Center actions" on page 34.

Preconfiguration checklist
gtap.genetec.com | Honeywell Galaxy Control Panel Integration Guide 5.2 15
EN.550.007-V5.2.C4(3) | Last updated: March 11, 2014
Preconfiguration checklist

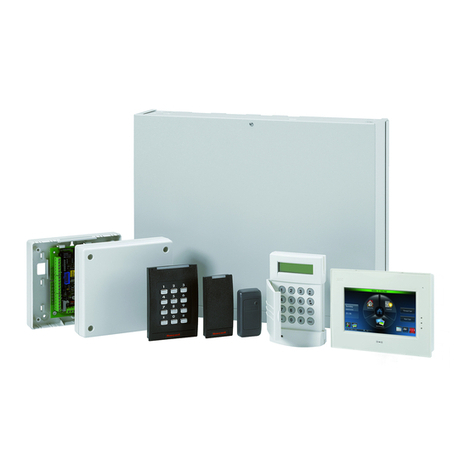

This section explains the things you must know and do before integrating the Galaxy Dimension
series control panel in Security Center, and before configuring Security Center intrusion
entities.
•"Read the release notes" on page 15
•"Make sure you have the proper license" on page 15
•"Secure your network" on page 15
•"Configure the control panel for RS-232 communication" on page 15
•"Configure the control panel for IP communication" on page 17
Read the release notes
Read the release notes for any known issues and other information about this release. See
"Release Notes" on page 5.
Make sure you have the proper license
To use Galaxy Dimension control panels in Security Center, your license must include the
correct “Number of Intrusion detection units” you want to control. For more information about
licensing, see "Technical support" on page 46.
Secure your network
Best practice: It is recommended that the Galaxy Dimension control panel and the Security
Center Intrusion role run on a secure network.
Configure the control panel for RS-232 communication
If your Security Center server is in a remote location, and you want to communicate with the
local Galaxy Dimension control panel using RS-232 serial communication, the onboard RS-232
communication port must be configured on the panel.
For more information about configuring the RS232 communication port settings on the control
panel, see “56.6 - Int RS232 Port” in the Honeywell Galaxy Dimension Installer Manual.
NOTE If you are using IP communication, you do not need to perform these steps. Skip to
"Configure the control panel for IP communication" on page 17.
Before you begin: Install a Serial to IP adapter.
1Using a keypad on your control panel, set the communication Mode as Direct.
The Direct communication mode allows the panel and the Security Center computer to
interface using an RS-232 cable.
