Honeywell GENT S4-34410 Instruction manual

These instructions cover the above interface
modules and accessories. The S4 interface
modules are designed for use with Vigilon and
34000 fire alarm control panel. Each module
includes a loop isolator for device isolation.
Each interface module use one of 207 available
device addresses on a loop and responds to
regular polls from the control panel reporting the
type of device and the status (open/normal/short) of
its supervised input circuit(s).
Features
¨Analogue addressable communications
¨Built-in type identification automatically identifies
these devices to the control panel
¨Reliable communication technique with high
noise immunity
¨Soft or SAFE addressing
¨Common mounting options including surface
mount, panel mount and DIN rail mount
¨Dual-colour LEDs
¨Plug-in terminal connections for ease of field
wiring
¨EN54-17:2005 and EN54-18:2005
Cables
The cables recommended for wiring the input /
output lines are the same as those used for loop
wiring, see instructions supplied with the fire control
panel.
Installation
The S4 interface modules can be mounted in other
equipment housings using the DIN rail mount
brackets (S4-34491). A module can also be fitted
into a plastic box (S4-34490) or metal box
(S4-34492). The boxes have cable termination
points on the enclosure for incoming cables.
4188-873_issue 4_Pt.1_02/09_S4 LV Interfaces 1
Data and Installation
Interface Modules for Vigilon
Low voltage (LV) Input/Output
by Honeywell
S4-34410
S4 1-Input Interface
Module
(low voltage)
S4-34420
S4 1-Output &
1-Input Interface
Module (low voltage)
S4-34450
# S4 4-Input / Output
Interface Module
(low voltage)
L1
L2
0V
0V
Channel 1
Channel 2 Channel 3
Channel 4
L1
L2
0V
0V
NC
Input
L1
L2
0V
0V
Input
COM
NO
Output
S4-34490
Plastic box
1- End-of-line
Capacitor unit
2- 10K Resistors
2- 10K Resistors 1- End-of-line
Capacitor unit
8- 10K Resistors S4-34491
DIN rail mount
bracket
# Now supplied full
y
assembled
1- Allen key 2 - M4 Screws
S4-34492
Metal box
2 - M4 Posi Pan Screws
7 - Hole plugs
Module
DIN rail mount bracket
Slide &
lock
Hook and push
to lock
DIN rail
Connect to loop
cable screen
Allen
key
Box
Module
M4 Screws
Door
64106
62.5 62.5
3 - box fixing points
(Includes 1-keyhole)
7 - top cable
entry points
Module
M4 Screws
Lid
80
140
Metal
backbox
7 usable cable entr
y
points

Maximum cable usage per circuit
&Cable usage per circuit of:
£Zone circuit - 100 metres maximum.
£Clean contact Input circuit - 300 metres maximum
£LED output - 30 metres maximum
£Relay output - unlimited.
End-of-line (EOL) devices
¨An input circuit require in series with the contacts
a 10K resistor plus a 10K EOL resistor (supplied).
¨A zone input circuit is monitored with an EOL
capacitor unit (supplied).
Zone input functionality
A zone input can have conventional detectors and
manual call points (MCPs) connected. All MCPs must
have a 470 Ohms or 3V9 zener diode in series with
normally open contacts. The zone input can take a
maximum load of up to 2mA at 24V nominal (with
minimum operating voltage of 18V). The zone circuit
must be terminated with an EOL capacitor unit.
Confirmation Input / Output functionality
An input and an output of a module can be paired to
operate in a confirmation mode. External equipment
can send an acknowledgement upon receiving a
signal from the module, this is called 'confirmation
input'. External equipment can also receive an
acknowledgement from the module upon sending it a
signal, this is called 'confirmation output'.
S4 1-Input Interface
The single input interface module monitors a circuit of
either normally open or closed contacts. The input
can be programmed as a fire, fault, supervisory or
confirmation input. Optionally it is also possible to
configure the input for a zone of conventional
detectors and MCPs. In all input modes the interface
will detect short and open circuit faults.
S4 4-Input /Output Interface
The quad input/output interface module can be
configured to provide any combination of up to four
inputs or outputs. An output of either normally open
or normally closed relay contacts can be used to
control a load of up to 1A @ 30Vdc/ac. Optionally an
output can be configured to provide 1.5mA at 24V dc
to drive an LED that can be normally On or normally
Off. An input can be programmed as a fire, fault,
supervisory or confirmation input. Additionally it is
possible for channel 1 to be used as a Zone input,
which allow connection of conventional detectors and
MCPs to this module. Zone input can be configured
to have alarm validation feature and configurable
reset time. The alarm validation feature can be used
to minimise false alarms by suppressing a fire input
for a period of time defined during commissioning.
The zone reset period can be extended to allow for
different types of fire detectors.
Configure the links to the required mode.
S4 1-Output & 1-Input Interface
This interface module can be used to control a
resistive load of up to 1A @ 30Vdc/ac via a set of
single pole change over contacts, see wiring
diagrams. In addition there is an input to allow the
monitoring of the external equipment. In this
application the input must be configured as a
confirmation input. A confirmation input generates a
fault if a change of state is not seen within the
predefined period of a specific output.
Configuration
"Use the Commissioning Tool
Version 1.21 or greater to commission these
interface modules.
Data and Installation Interfaces (Low voltage)
2 4188-873_issue 4_Pt.1_02/09_S4 LV Interfaces
Removable
terminal blocks
Light pipe
Other
modes
Confirmation
Input
Zone input
Switch input
LED Output
modes
Relay Output
mode
(factory settings)
Link Configurations
Channel 4
Channel 2
Channel 3
Channel 1

Wiring diagrams
&
The loop cable screen must be continued through each interface module. The loop, switch input,
zone input and LED output cable screens where used must connect to an earth terminal.
4188-873_issue 4_Pt.1_02/09_S4 LV Interfaces 3
Interfaces (Low voltage) Data and Installation
S4 1-Output & 1-input module
connection details
Note 2 - Only channel 1 (terminals 5 & 6) can be
configured as an zone input.
Note 3 - Contact rating 1A 30V ac/dc Resistive load.
Note 4 - Output is 1.5mA @ 24V dc.
Note 1 - When the input is configured as a Zone input
it is possible to attach conventional detectors
and MCPs (with 470 Ohms or 3V9 zener
diode in series with normally open contacts),
maximum load is 2mA @ 24V nominal
(18V minimum) with End-of-line capacitor.
# Can be configured as LED output
The cable screens must be connected to an
onthechassisorinthemetalbox.
If a module is mounted on a then the
DIN rail must electrically connected to
the
*
earth terminal
DIN rail
loop cable screen via the earth terminal.
EOL 10K
10K
12 11 10 9 8 7 6 5 4 3 2 1
Confirmation
Input
(Optional)
NC
COM
NO
Output - Relay
contact rating
1A 30V ac/dc
Resistive load
Loop L1+
Loop 0V
Loop L2+
Loop 0V
#
*
*
S4 4-Input/Output module
connection details
121110987654321
NC / NO
COM
Relay Outputs
see Note 3
EOL10K
10K
Switch
Input
Zone Input
see Note 2
LED Output
see Note 4
Channel 1
Channel 2
Channel 3 Channel 4
EOL
Loop L1+
Loop 0V
Loop L2+
Loop 0V
*
*
*
*
S
4 1-Input module
connection details
121110987654321
10K
10K
EOL
Zone Input
Mode
See Note 1
EOL
Capacitor unit
Switch
Input
Mode
Loop L1+
Loop 0V
Loop L2+
Loop 0V
#
*
*
*
Chassis
Z+ Z-
Z+
Z-
87654321

At the end of their useful life, the packaging,
product and batteries should be disposed of
via a suitable recycling centre and in
accordance with national or local legislation.
Technical data
S4-34410
S4 1- Input
S4-34450
S4 4-Input /Output
S4-34420
S4 1-Output & 1-Input
Approval EN54-17:2005 and EN54-18:2005
Weight-dimen. module
module in plastic box
module in metal box
92g j
1047g k
782g
100g j
1055g k
790g 
100g j
1055g k
790g 
Storage temperature -30ºC to 70ºC
Operating temperature -10ºC to 60ºC
Relative Humidity Up to 95% - Temperature 5ºC to 45°C (Non condensing)
Emission BS EN 61000-6-3:2001 Residential, Commercial & Light Industry Class B limits
Immunity BS EN50130-4: 1996: Part 4
LVD BS EN 60950-2002
Ingress Protection IP31 for plastic box S4-34490 & IP40 estimated for metal box S4-34492
Colour Module-white / Plastic box-dark grey (Lid-light grey) / Metal box-dark grey
Input mode Input channel-1 only can be configured as a
zone input to accept conventional devices, with
a load of 2mA quiescent and 9mA alarm
maximum at 24V nominal (18V minimum). With
configurable 2s to 5s reset period and 5s to 40s
alarm validation delay.
Switch input can work
with or without a delay.
Input channel can be configured as a switch input of Fire*, Fault*, Supervisory*
(non fire) or Confirmation# signal. * with input acceptance delay of up to 10
seconds for a Fire input and up to 300s for Fault or Supervisory input. # A fault is
generated if confirmation input is not seen within predefined period of the output
action (Confirmation function is not a feature of the single input module).
Output mode - A relay output of either NO or
NC set of contacts rated 1A -
30Vac/dc resistive load.
A relay output of change over
contacts NC, COM and NO rated
1A - 30Vac/dc resistive load.
LED output 1.5mA at 24Vdc (Normally On or Normally Off)
Load Factor 1-4 switch inputs = 1(maximum 200 per loop)
1-4 relay outputs = 2(maximum 200 per loop only 8 individually sectored)
Zone Input = 26 (maximum 30 per loop)
Every LED output = +5 (maximum 100 LED outputs per loop)
EN54-17 data Vmax Vnom Vmin VSO max VSO min IC max IS max IL max ZC max
42V 40V 24V 14V 10V 0.4A 1A 20µA 0.1OW
Panel compatibility Fully compatible with LPC = V3.93 / V4.35 & MCC/MCB = V3.94 / V4.37.
For further information on upgrade requirements contact Gent by Honeywell
Data and Installation Interfaces (Low voltage)
Gent by Honeywell reserves the right to revise this publication from time to time and make changes to the content hereof without
obligation to notify any person of such revisions of changes.
Hamilton Industrial Park, Waterside Road, Leicester LE5 1TN, UK Website: www.gent.co.uk
Telephone: [phone] Fax (UK): [phone]
4 4188-873_issue 4_Pt.1_02/09_S4 LV Interfaces
by Honeywell
Do not dispose of with your normal household waste.
Do not burn.
WEEE Directive:
At the end of their useful life, the packaging,
product and batteries should be
disposed of via a suitable recycling centre.
90mm
93mm
23mm
227mm
245mm
Depth 77mm
Healthy
FaultFault
System fault
green
amber
202mm
125mm
Depth 50mm
Metal Box
Plastic Box

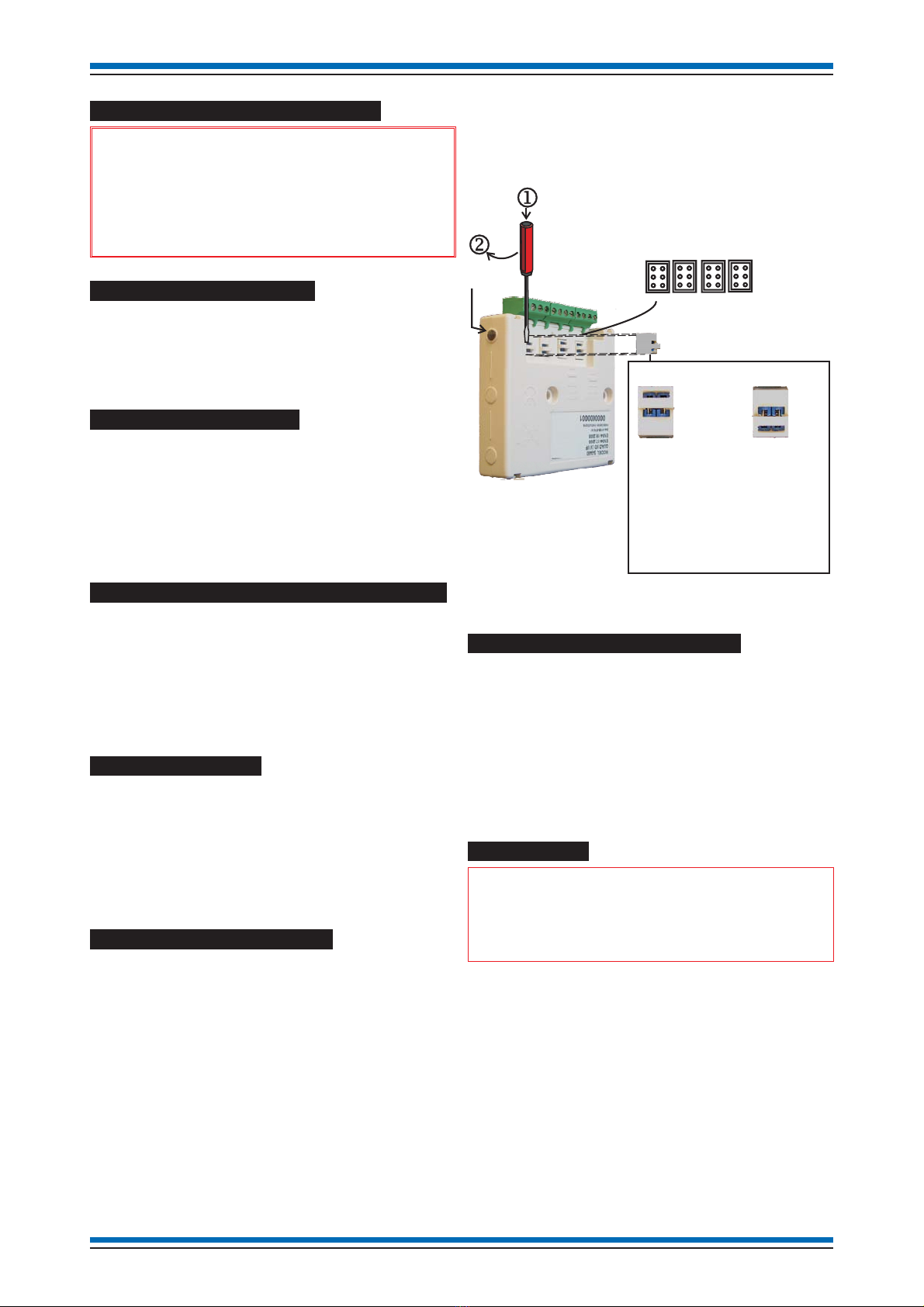

This leaflet covers commissioning information for:
¨S4-34410 1-Input Interface Module
¨S4-34420 1-Output & 1-Input Interface Module
¨S4-34450 4-Input/Output Interface Module
Full Compatibility
The S4 Interface modules are fully compatible for
use in Vigilon and 34000 systems where the panel
is fitted with MCC/MCB and LPC cards having the
following firmware:
¨MCC/MCB - version 3.94 / 4.37
¨LPC - version 3.93 / 4.35
For further information on upgrade requirements
contact Gent by Honeywell.
Links on S4-34450
Configuration
The S4 interface modules can only be configured
with Commissioning tool software version 1.21.
The commissioning tool version 1.21 has a new
icon and menu option to allow configuration of the
S4 I/O Interface Modules.
1) Click Configuration on the menu bar and
select LV Interface or alternatively click the LV
icon on the tool bar.
2) Select the required interface to be configured
from the list box.
3) Ensure the 'Number of keyswitches' option is
set to '0', because this feature is for future use.
"Ensure only the applicable channel is
configured when configuring the S4-34415 or S4-34420
type interfaces.
4) Select a mode from the drop down menu. All
applicable channels must be set, see next
page for details.
5) If required check the sectored box.
6) Configure other LV interface modules and
save the configuration.
4188-873.02_Pt.2_04/07_DRAFT6_S4 LV Interfaces 1
Commissioning information
Interface Modules for Vigilon
Low Voltage (LV) Input/Output
by Honeywell
1a
LV interfaces..
Configuration
1b
1
M
enu se
l
ect
i
on
I
con se
l
ect
i
on
3
2
Unused
Output
Confirmation O/P
Confirmation I/P
Supervisory I/P
Fault I/P
Zone I/P
4
Removable
terminal blocks
Light pipe
Other
modes
Confirmation
Input
Zone input
Switch input
LED Output
modes
Relay Output
mode
(factory settings)
Link Configurations
Channel 4
Channel 2
Channel 3
Channel 1

Channel modes
Unused
This option sets the channel as not used.
Output
This option sets the channel for either relay or LED output. As a relay output it provides a set of normally
open or normally closed contacts. As an LED output it can be set to normally On (lit) or normally Off (not lit)
drive for an LED load.
Supervisory I/P
This option sets the channel as a 'non fire' Supervisory input for general switching. The acceptance of the
input signal can be delayed until it has remained active for a set period of time.
"Settings for Supervisory, Fault and Fire inputs are similar.
Fault I/P
This option sets the channel as a fault input. The acceptance of the input signal can be delayed until it has
remained active for a set period of time.
Fire I/P
This option sets the channel as a fire input. The acceptance of the input signal can be delayed until it has
remained active for a set period of time.
Commissioning information Interfaces (Low voltage)
2 4188-873.02_Pt.2_04/07_DRAFT6_S4 LV Interfaces
A
delay duration after which the input is accepted,
for example to account for input switch
contact bounce.
The input can be either be a normally
open or normally closed input.

Zone I/P
"The Zone I/P is only applicable for Channel 1.
This option sets the channel to accept the connection of conventional fire detectors and manual call points.
Confirmation O/P
This option sets two channels, one as an input and another as a confirmation output. This facility allows
external equipment to monitor the fire alarm system.
The confirmation output will operate within 1s of the input being accepted (design must also allow for any
input delay settings).
4188-873.02_Pt.2_04/07_DRAFT6_S4 LV Interfaces 3
Interfaces (Low voltage) Commissioning information
The associated channel cannot be the same
channel as the channel.
Input
Confirmation O/P
8765
Ch. 2
Ch. 2 Confirmation Output
External
equipment
Ch. 1 Input Ch. 1
4-I/O Interface
module
External equipment monitors the
fire alarm s
y
stem
A duration after
which the input is accepted.
Extendable reset duration with a
default value of 2s plus this value.

Confirmation I/P
This option sets two channels, one as an output and another as a confirmation input. Here the fire alarm
system monitors the external equipment. The confirmation input can be configured such that it can be
received within a predefined time called 'confirmation time'.
The acceptance of an active input signal can be delayed until it has remained active for a set period of time.
Additionally a verbose / silent (non verbose) setting is available. The verbose setting allows supervisory
message indication on change of input state and a timeout fault, given if a change of state has not occurred
within the confirmation time duration. The silent setting will only give a timeout fault.
This facility allows the fire alarm system to monitor external equipment.
Keyswitch mode
This feature is a future option.
Commissioning information Interfaces (Low voltage)
Gent by Honeywell reserves the right to revise this publication from time to time and make changes to the content hereof without
obligation to notify any person of such revisions of changes.
Hamilton Industrial Park, Waterside Road, Leicester LE5 1TN, UK Website: www.gent.co.uk
Telephone [phone] Fax (UK): [phone]
4 4188-873.02_Pt.2_04/07_DRAFT6_S4 LV Interfaces
The associated channel
cannot be the same channel as
confirmation input channel.
output
The validation
delay takes account
o
f
co
nt
ac
t
bou
n
ce
.
The confirmation
delay is the time by
which a confirmation
must be given.
8765
Ch. 2
Ch. 2 Confirmation Output
External
equipment
Ch. 1 Input Ch. 1
4-I/O Interface
module
External equipment monitors the
fire alarm s
y
stem
b
y
Hone
y
well
