Honeywell APT2000 Series User manual

APT2000 Series
70-82-25-96
MU1I-6251
Revision 1 – 03/00
2-Wire Toroidal
Conductivity Transmitters
User Manual

Software release: 1.x
TA-194.350-HWE01 210700
Copyright, otices, and Trademarks
E Copyright 1999 by Honeywell Inc.
Revision 1 – 03/00
While this information is presented in good faith and believed to be accurate,
Honeywell disclaims the implied warranties of merchantability and fitness for a
particular purpose and makes no express warranties except as may be stated in
its written agreement with and for its customer.
In no event is Honeywell liable to anyone for any indirect, special or consequen-
tial damages. The information and specifications in this document are subject to
change without notice.
Honeywell
Industrial Automation and Control
Automation College
1100 Virginia Drive
Ft. Washington, PA. 19034
Honeywell S. A.
Espace Industriel Nord
rue André Durouchez
80084 Amiens Cedex 2
France
Contacts
The following list identifies important contacts within Honeywell.
Organization Telephone Address
Honeywell Technical
Assistance Center 1-800-423-9883 (USA and Canada) 1100 Virginia Avenue Fort Washington, PA 19034
Honeywell S.A. 33-3-22-54-56-56
(Europe) 80084 Amiens Cedex 2 France

Warning
Warning
Warning
Information
3
Safety Precautions
Be sure to read and observe the following requirements!
The APT2000TC-0(H)-00 Transmitter is approved for operation in safe areas and hazardous
locations DIV 2 (USA/Canada only).
Before connecting the Transmitter to a power supply unit, make sure that this is not capable
of outputting more than 40 Vdc (safe areas) / 30 Vdc (DIV 2).
The APT 2000PH-0(H)-IS Transmitter is approved for operation in hazardous locations
DIV 1 (USA/Canada) / Zone 1 (Europe).
Before connecting the Transmitter to a power supply unit, make sure that this is an associ-
ated apparatus.
The measuring inputs of the APT 2000PH-0(H)-IS Transmitter may be led into Zone 0
(Europe).
However, be sure to observe the national regulations concerning Zone 0 applications.
The Transmitter itself is not approved for operation in Zone 0!
Whenever it is likely that the protection has been impaired, the Transmitter shall be made inoperative and
secured against unintended operation.
The protection is likely to be impaired if, for example:
❏the Transmitter shows visible damage
❏the Transmitter fails to perform the intended measurements
❏after prolonged storage at temperatures above 70 °C
❏after severe transport stresses
Before recommissioning the Transmitter, a professional routine test must be performed. This test should be
carried out at our factory.
The Transmitter shall not be used in a manner not specified by this manual.

CAL
ote
Warning
CONF
CAL
Information
4
Information on this Instruction Manual
ITALICS are used for texts which appear in the APT2000TC Transmitter display.
Bold print is used to represent keys, e.g. CAL.
Keys for which the functions are explained are frequently shown in the
left-hand column.
Notes provide important information that should be strictly followed when using the Transmit-
ter.
Warning means that the instructions given must always be followed for your own safety.
Failure to follow these instructions may result in injuries.
Mode Codes
After pressing CONF or CAL you can enter one of the following codes to access the desig-
nated mode:
CONF, 0000: Error info
CONF, 1200: Configuration
CONF, 5555: Current source
CAL, 0000: Cal info
CAL, 1001: Zero point calibration
CAL, 1015: Temp probe adjustment
CAL, 1100: Cell factor calibration
CAL, 1125: Input/adjustment of sensor factor
CAL, 2222: Test mode

Contents
5
Contents
Safety Precautions 3. . . . . . . . . . . . . . . . . . . . . .
Information on this Instruction Manual 4. . .
Mode Codes 4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 Assembly 6. . . . . . . . . . . . . . . . . . . . . . . . . . .
Package Contents and Unpacking 6. . . .
Assembly 6. . . . . . . . . . . . . . . . . . . . . . . . . .
2 Installation, Connection
and Commissioning 10. . . . . . . . . . . . . . . . .
Proper Use 10. . . . . . . . . . . . . . . . . . . . . . . .
Overview of the
Conductivity Transmitter 11. . . . . . . . . . . . .
Terminal Assignment 12. . . . . . . . . . . . . . . .
Installation and Commissioning 13. . . . . . .

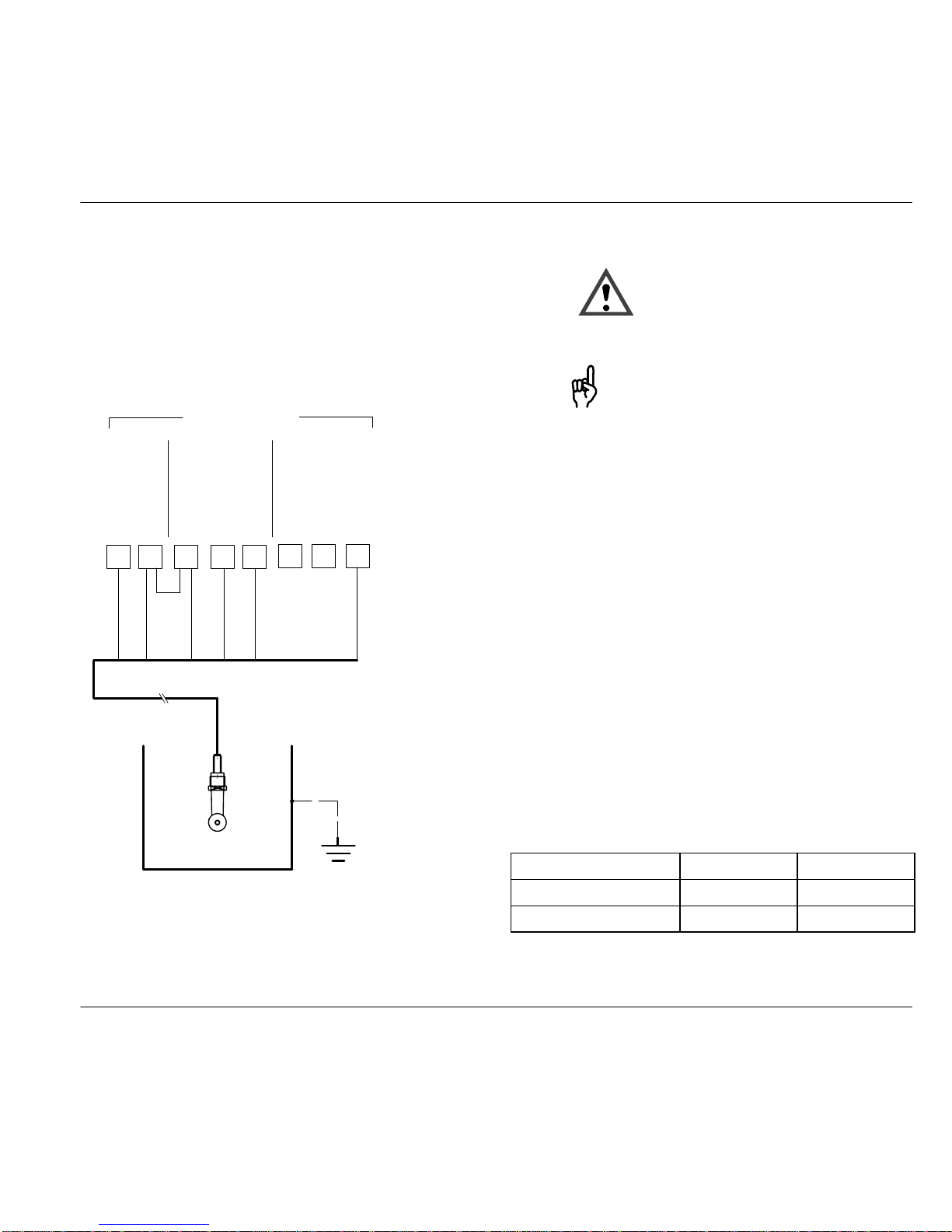

Typical Wiring 14. . . . . . . . . . . . . . . . . . . . . .
3 Operation 15. . . . . . . . . . . . . . . . . . . . . . . . . . .
User Interface 15. . . . . . . . . . . . . . . . . . . . . .
Display 16. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Keypad 16. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Functions 17. . . . . . . . . . . . . . . . . . . .
Outputs 18. . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuration 19. . . . . . . . . . . . . . . . . . . . . . .
Calibration 21. . . . . . . . . . . . . . . . . . . . . . . . .
Measurement 25. . . . . . . . . . . . . . . . . . . . . .
4 Diagnostics, Maintenance and Cleaning 26
Sensoface, Sensocheck26. . . . . . . . . .
Error Messages 26. . . . . . . . . . . . . . . . . . . .
Diagnostics Functions 28. . . . . . . . . . . . . . .
Maintenance and Cleaning 29. . . . . . . . . . .
5 Appendix 30. . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Line 30. . . . . . . . . . . . . . . . . . . . . . .
Specifications 31. . . . . . . . . . . . . . . . . . . . . .
Type Examination Certificate 35. . . . . . . . .
Calibration Solutions 38. . . . . . . . . . . . . . . .
Concentration Curves 39. . . . . . . . . . . . . . .
Index 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Assembly
6
1 Assembly
Package Contents and Unpacking
Unpack the unit carefully and check the shipment for
transport damage and completeness.
The package contains:
–Front unit of Transmitter
–Lower case
–Short instruction sheet
–This instruction manual
–HART description
(only for Model APT2000TC-H-..)
–Bag containing:
➀2 plastic plugs ➆1 hinge pin
➁5 hexagon nuts ➇3 cable ties
➂3 Pg cable glands ➈3 filler plugs
➃1 rubber reducer ➉3 sealing rings
➄1 Pg plug 11 1 metal plate
➅4 set screws for conduit
12 1 jumper
Assembly
Fig. 1 Assembling the case
➀
(For sealing in case
of wall mounting)
➁
➂
➃
➄
➅
➆
(Can be inserted
from either side)
➇
➈
➉
11
For conduit mounting:
Place washer
between enclosure
and nut.
11
12

Assembly
7
80 [3.15]
32 [1.26]
72 [2.83]
6.2 [0.24] approx. 14
84 [3.31]
42 [1.65] Pg 13.5 (3 pcs.)
144 [5.67]
144 [5.67]
21
43 [1.69]
105 [4.13] 27
Control panel 1 – 22 mm
max. 25 78 [3.07] 27
Control panel cutout
138 x 138 mm (DIN 43700)
Panel-mount kit
consisting of:
4 screws
4 span pieces
4 threaded sleeves
1 seal
➀
➁
➂
➃
➃
➀
➁
➂
Holes for
post mounting
Holes for
wall mounting
(4 x)
(2 x)
[0.55]
[1.06]
[0.83]
[0.98] [1.06]
[5.43 x 5.43]
[0.04 – 0.87]
Note: All dimensions
in mm [inches]
(not included in supply)
2 holes 21.5 mm dia. [8.47] for Pg 13.5
I
or 1/2 conduit
Fig. 2 Dimension drawing for Transmitter, mounting diagram and P/N 51205990-001 panel-mount kit

Assembly
8
horizontal post/
40–60 mm dia.
➀
➁
➂
51205989-001
(if required)
For vertical or
pipe mounting
Pipe-mount kit
consisting of:
4 self-tapping screws
1 pipe mounting plate
2 hose clamps with
➀
➁
➂worm gear drive
to DIN 3017
[1.57–2.36]
protective hood
Fig. 3 P/N 51205988-001 pipe-mount kit
165 [6.5]
173 [6.81]
132 [5.2]
Fig. 4 P/N 51205989-001 protective hood for wall and pipe mounting

Assembly
9
280 [11.03] 7 [0.28]
➀Recommended stripping lengths for
multi-core cables
➁Recommended stripping length for
coaxial cable
➂Pulling out the terminals using a
screwdriver (also see ➆)
➃Cable laying in the Transmitter
➄Connecting lines for loop current
➅Cover for sensor and temperature
probe terminals
➆Areas for placing the screwdriver to
pull out the terminals
➇Connection of handheld terminal
➀➁
➃
➄
Be sure not to
notch the cable
cores when stripping
the insulation!
Dimensions in mm [inches].
➄
➅
➆
➇
Coaxial cable
13 mm [0.5]
7 mm [0.28]
➂
Fig. 5 Installation information

Warning
Warning
Warning
Capabilities, Connection
10
2 Installation, Connection and Commissioning
Proper Use
The APT2000TC Transmitter is used for conductivity
and temperature measurement in chemical, pulp and
paper, biotechnology, food processing, pharmaceuti-
cal, electroplating, and water/wastewater industries.
It can either be mounted on site or in a control panel.
The APT2000TC-0(H)-00
Transmitter is approved for opera-
tion in safe areas and hazardous
locations DIV 2 (USA/Canada only).
Before connecting the Transmitter
to a power supply unit, make sure
that this is not capable of outputting
more than 40 Vdc (safe areas) /
30 Vdc (DIV 2).
The APT2000TC-0(H)-IS Transmit-
ter is approved for operation in haz-
ardous locations DIV 1 (USA/Can-
ada) / Zone 1 (Europe).
Before connecting the Transmitter
to a power supply unit, make sure
that this is an associated appara-
tus.
The measuring inputs of the APT
2000PH-0(H)-IS Transmitter may
be led into Zone 0 (Europe).
However, be sure to observe the
national regulations concerning
Zone 0 applications.
The Transmitter itself is not ap-
proved for operation in Zone 0!

Capabilities, Connection
11
Overview of the Conductivity Transmitter
mS/cm,
% by wt, SAL
Temperature
Pt 100/1000/
NTC 100 kW
mA
APT2000TC Transmitter
➀
➁➃
➂
Fig. 6 System functions of APT2000TC Transmitter
➀Inputs for toroidal conductivity sensors
➁Input for temperature probe
➂Current loop 4 – 20 mA,
transports power to and output signal from the
transmitter,
with APT2000TC-H-.. Transmitter also for HARTr
communication
➃Equipotential bonding (only with
APT2000TC-0(H)-IS Transmitter)

Capabilities, Connection
12
Terminal Assignment
8 7 6 5 4 2 1
3
T1
temp
n.c.
+11 10
4 to +
9
output
–
HART
20 mA
supply/
do not connect
toroidal
conductivity sensor
lo hilohi
send receive
WT BL YW GN shield
RD
–
Fig. 7 Terminal assignment of APT2000TC-0(H)-00 Transmitter
NI, Class 1, Div 2, Group A – D, T4
8 7 6 5 4 2 1
3
T1
temp
n.c.
+11 10
4 to +
9
output
–
HART
20 mA
supply/ toroidal
conductivity sensor
lo hilohi
send receive
WT BL YW GN
shield
RD
–
Fig. 8 Terminal assignment of APT2000TC-0(H)-IS Transmitter
IS, Class I, Div 1, Group A – D, T4
II 2(1) G EEx ib [ia] IIC T6

Warning
Warning
Warning
Warning
Warning
Capabilities, Connection
13
Installation and Commissioning
Installation and commissioning of
the Transmitter may only be carried
out in accordance with this instruc-
tion manual and per applicable local
and national codes. Be sure to ob-
serve the technical specifications
and input ratings.
Before connecting the
APT2000TC-0(H)-00 Transmitter to
a power supply unit, make sure that
this is not capable of outputting
more than 40 Vdc (safe areas) /
30 Vdc (DIV 2).
Before connecting the
APT2000TC-0(H)-IS Transmitter
to a power supply unit, make sure
that this is an associated apparatus
(for input ratings refer to the Control
Drawing or the annex of the EC
Type Examination Certificate).
Do not use alternating current or
mains power supply!
When commissioning, a complete
configuration must be carried out.
For easier installation, the terminal strips are of a
plug-in design. The terminals are suitable for single
wires and flexible leads up to 2.5 mm2(AWG 14)
(see Pg. 9).
A connection example is shown on Pg. 14.

Warning
ote
Capabilities, Connection
14
Typical Wiring
Conductivity measurement with Honeywell
5000TC toroidal conductivity sensor
The Honeywell 5000TC toroidal conductivity sensor
is used to measure low to highest conductivity val-
ues. It can be used for measurements in safe areas.
WHITE BLUE YELLOW
GREEN
RED
SHIELD
toroidal
cond. sensor
5421 3
temp
lohi lo hi
sendreceive
WT BL YW GN shield RD
87
6
T1 T2
n.c.
Fig. 9 Conductivity measurement with Honeywell
5000TC toroidal conductivity sensor
The Honeywell 5000TC toroidal
conductivity sensor may only be
used in combination with the
APT2000TC-0(H)-00 Transmitter.
For special mounting conditions of
the sensor, the cell factor can vary
between 4.0 and 4.5. Therefore the
user should perform a wet calibra-
tion of each new sensor to deter-
mine the exact cell factor.
Settings for Honeywell 5000TC toroidal conductivity
sensor
Menu Setting
Temp probe conf 1200 Pt 1000
Cell factor cal 1100 4.44

Operation
15
3 Operation
User Interface
MEAS
Alarm LED
Keypad
Model designation
Rating plate
Status fields:
- Measuring mode
- Calibration mode
- Alarm
- Configuration mode
CAL ALARM CONF
CONF ENTER
CAL "
"
Fig. 10 Front view of Transmitter

CAL
CONF
"
Y
ENTER
➔
CAL ENTER
➔
CONF ENTER
+
Y"
Operation
16
Display
Mode code entry
Interval/
Response time
Hold state
active
Continue with
ENTER
Measurement symbols
Tempera-
ture
Loop
current Alarm
setting
Senso-
checkCalibration
Sensor
data
Sensoface
Wait
Display/
Process variable
Bar for
instrument status
Fig. 11 Display of Transmitter
Keypad
Start, end calibration
Start, end configuration
Select digit position
(selected position flashes)
Change digit
Prompt in display:
continue in program sequence,
Configuration: Confirm entries, next
configuration step,
Measuring mode: Display loop cur-
rent
Cal info, display cell factor and zero
point (see Pg. 25)
Error info, display last output error
message (see Pg. 25)
Start GainCheckmanual instru-
ment self-test (see Pg. 17)

+
Y"
Operation
17
Safety Functions
Sensoface sensor monitoring
Sensofaceprovides information
on the sensor condition. A sad
“Smiley” indicates that there is a
Sensocheckmessage.
Sensocheck signals a short cir-
cuit of the primary coil and its lines
as well as an interruption at the
secondary coil and its lines. Senso-
check can be switched off. With
Sensocheck switched off, no
friendly Smiley appears.
For more detailed information, see chapter “Diagnos-
tic, Maintenance and Cleaning” (Pg. 26).
GainCheckmanual instrument self-test
Simultaneously pressing Yand "
starts the manual instrument self-
test.
A display test is carried out, the software version is
displayed and the memory and measured value
transmission are checked.
Automatic instrument self-test
The automatic unit self-test checks the memory and
the measured-value transmission. It runs automati-
cally in the background at fixed intervals.

Operation
18
Outputs
Current loop (4 to 20 mA)
The current loop transports power to and output sig-
nals from the Transmitter. The current is controlled
by the process variable selected in the configuration.
The current characteristic can be configured as lin-
ear or logarithmic curve for conductivity and resistiv-
ity.
The current beginning and end can be set to repre-
sent any desired value.
If LIN (linear characteristic) is chosen, the minimum
span is 5% of the selected process variable / mea-
surement range. If LOG (logarithmic characteristic) is
chosen, the minimum span is one decade within the
chosen range.
To check connected peripherals (e.g. limit switches,
controllers), the loop current can be manually speci-
fied (see Pg. 28).
HART communication
The APT2000TC-H-.. Transmitter can be remote
controlled via HARTcommunication. It can be con-
figured using a handheld terminal or from the control
room. Measured values, messages and instrument
identification can be downloaded at any time. This
allows easy integration also in fully automatic pro-
cess sequences.
For more detailed information, refer to the HART
Command Specification.
Alarm
During an error message the alarm LED flashes.
Alarm response time is permanently set to 10 sec.
Error messages can also be signaled with a 22 mA
signal via the loop current (see Configuration,
Pg. 20).

CONF
ote
Operation
19
Configuration
The instrument arrives from the factory configured
and ready to operate as a conductivity transmitter.
This section provides detailed procedures for chang-
ing operation values for specific applications.
Activate with CONF
change parameter with Yand ",
confirm/continue with ENTER,
end with CONF.
Mode code “1200”
During configuration the Transmitter
is in the Hold state, the loop current
is frozen.
When the configuration mode is exited, the Transmit-
ter remains in the Hold state for safety reasons. This
prevents undesirable reactions of the connected pe-
ripherals (e.g. limit switches, controllers) due to in-
correct settings. The measured value and Hold are
displayed alternately. Now you can check whether
the measured value is plausible and specifically end
the Hold state with ENTER. After a relax time of
20 sec (for measured value stabilization) the Trans-
mitter returns to measuring mode.
The configuration parameters are
checked during the input. In the
case of an incorrect input “ERR” is
displayed for 3 sec. The parame-
ters cannot be stored with ENTER
until the input has been repeated.
Configuration parameters
Before attempting any changes refer to the parameter setup list shown below. This table presents the possible options and the factory settings.
Picto-
graph Parameter Choices Factory setting
Process variable / meas. range
Selected process variable and
measuring range control loop cur-
rent, limit values and display.
Complete configuration required
after change.
oo.oo mS / ooo.o mS / oooo mS
ooo.o %
ooo.o SAL
ooo.o mS
Concentration
(only with %) -01- NaCl (0 – 28 % by wt) -02- HCl (0 – 17 % by wt)
-03- NaOH (0 – 22 % by wt)
-04- H2SO4(0 – 35 % by wt)
-05- HNO3(0 – 28 % by wt)
-06- H2SO4(95 – 99 % by wt)
-01-
Temperature display °C
°F°C

Operation
20
Temperature probe Pt 100 / Pt 1000 /
NTC 100 kWPt 1000
Temperature compensation
(not with % and SAL) OFF LIN
NLF (natural waters)
OFF
Temperature coefficient
(only with tc LIN) xx.xx %/K 02.00 %/K
Current characteristic
(not with % and SAL) LIN LOG LI
Current beginning (4 mA)
(only with LIN) mS / % / SAL 000.0 mS
Current end (20 mA)
(only with LIN) mS / % / SAL 100.0 mS
Current beginning (4 mA)
(only with LOG) mS *0.1 mS
Current end (20 mA)
(only with LOG) mS *100 mS
Hold state Last:Last current value
Fix: Current specified Last
Hold value
(only with Fix) xx.xx mA 21.00 mA
22 mA signal for error message ON / OFF OFF
SensocheckON / OFF OFF
* 0.1 / 1 / 10 / 100 / 1000 mS
Configuration is cyclical. To stop, press CONF.
