Honeywell KS20S KaltecSoft Evolution User manual

KS20S
Read carefully before starting up!
Keep instructions for later use! Leggere attentamente prima della messa in servizio! Conservare le istruzioni per uso futuro!
32303397 Rev. A
Installation instructions Istruzioni per l’uso
KaltecSoft Evolution
Water softener Addolcitore d’acqua

Honeywell GmbH 1 MU1H-1419GE23 R0415
Table of Content
1. Introduction ...........................................................................................................................4
2. Safety guidelines ...................................................................................................................4
3. Scope of delivery ...................................................................................................................5
4. Description of function ...........................................................................................................5
4.1. Meter regeneration .....................................................................................................5
4.2. Valve operation ..........................................................................................................5
4.3. Application ..................................................................................................................5
4.4. Sodium concentration limit .........................................................................................6
5. Technical data .......................................................................................................................6
6. Installation Instructions ..........................................................................................................9
6.1. General advices .........................................................................................................9
6.2. Mounting .....................................................................................................................9
6.3. Residential installation ..............................................................................................10
7. Start-up ...............................................................................................................................10
7.1. Start-up instructions .................................................................................................10
7.2. Valve positions .........................................................................................................11
8. Setting .................................................................................................................................12
8.1. General parameters .................................................................................................12
8.2. Time of the day .........................................................................................................12
8.3. Basic settings ...........................................................................................................13

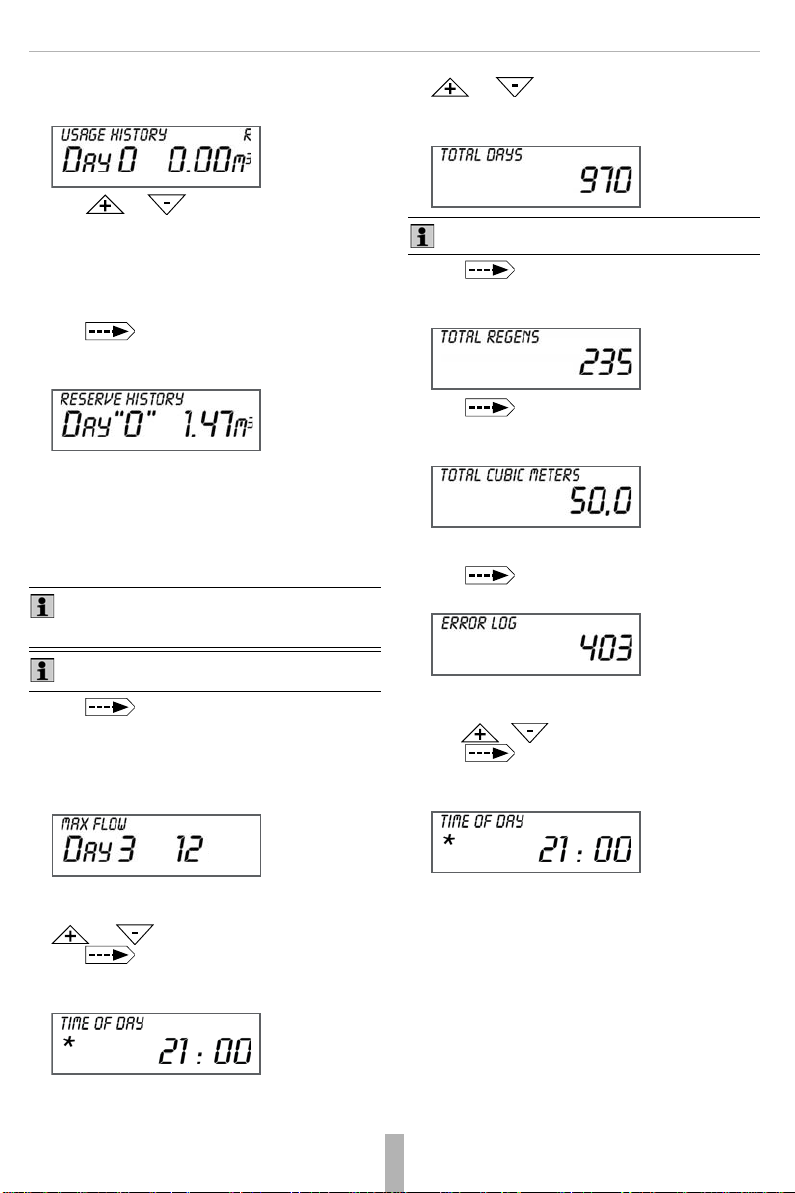

9. History .................................................................................................................................13
9.1. History data mode ....................................................................................................13
9.2. Flow rate ...................................................................................................................14
9.3. Regeneration data ....................................................................................................14
9.4. Error log ....................................................................................................................14
10. Maintenance ........................................................................................................................15
10.1. Preparation ...............................................................................................................15
10.2. Cleaning ...................................................................................................................15
10.3. Spare part sets .........................................................................................................15
10.4. Maintenance log .......................................................................................................16
11. Troubleshooting ..................................................................................................................17
12. Disassembly .......................................................................................................................18
13. Disposal .............................................................................................................................18

Honeywell GmbH 2 MU1H-1419GE23 R0415
Contenuto
1. Introduzione ........................................................................................................................19
2. Avvertenze di sicurezza ......................................................................................................19
3. Fornitura ..............................................................................................................................20
4. Descrizione del funzionamento ...........................................................................................20
4.1. Rigenerazione tramite contatore ..............................................................................20
4.2. Funzionamento della valvola ....................................................................................20
4.3. Modalità di impiego ..................................................................................................21
4.4. Concentrazione massima di sodio ...........................................................................21
5. Dati tecnici ...........................................................................................................................21
6. Istruzioni di installazione .....................................................................................................24
6.1. Avvertenze generali ..................................................................................................24
6.2. Montaggio .................................................................................................................24
6.3. Installazione domestica ............................................................................................25
7. Messa in servizio .................................................................................................................25
7.1. Istruzioni per la messa in servizio ............................................................................25
7.2. Posizioni della valvola ..............................................................................................26
8. Configurazione ....................................................................................................................27
8.1. Parametri generali ....................................................................................................27
8.2. Ora del giorno ...........................................................................................................28
8.3. Impostazioni di base .................................................................................................28
9. Storico .................................................................................................................................29
9.1. Modalità dati dello storico .........................................................................................29
9.2. Portata ......................................................................................................................29
9.3. Dati relativi alla rigenerazione ..................................................................................30
9.4. Registro degli errori ..................................................................................................30
10. Manutenzione ......................................................................................................................30
10.1. Preparazione ............................................................................................................30
10.2. Pulizia .......................................................................................................................30
10.3. Set di ricambi ............................................................................................................30
10.4. Libretto di manutenzione ..........................................................................................32
11. Guasti / Ricerca guasti ........................................................................................................33
12. Smontaggio ........................................................................................................................34
13. Smaltimento .......................................................................................................................34

Honeywell GmbH 2 MU1H-1419GE23R1504
Wewouldliketothankyoufor choosingtheKS20Ssoftener.
We are convinced that our product will serve you to your
complete satisfaction as it has been manufactured with
extreme care.
The KS20S softener is delivered in a box and includes a
bypassvalve.Pleasecarefullyinspectthedeviceinpresence
of deliveryman for transportation damages.
Your Honeywell team
1. Introduction
This manual is intended for professional installers. Please
read this manual to ensure a danger-free, safe and correct
commissioning of the KS20S softener.
Safetyinformationandnotesarecharacterisedbysymbolsin
this manual.
2. Safety guidelines
Warning! Indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
Caution! Indicates a potentially hazardous situation
which,ifnotavoided,couldresultinminorormoderate
injury or damage to property.
Note! Provides supplementary information or gives
tips for easier operation
Note! Environment protection guidelines
Caution! Before starting up the softener, read this
manual carefully. Handle the softener carefully.
Caution! Keep this instructions for later use.
Caution! Use the softener onlyaccording to desig-
nated application.
Caution! Do not perform a total reset of settings. The
devicecan beusedinitsfullperformanceonlywiththe
factory settings.
Caution! Keep the softener in proper working order.
Caution! Any malfunctions must be repaired at once
by a professional installer.
Caution! Install a pressure reducer ahead of the
softener, if the input pressure is more than 6 bar.
Caution! Ensure that installation is not subject to free-
zing or extreme heat. Avoid exposure to sun.
Caution!Installthesoftenerinachosenplaceonaflat
firm and clean surface.
Warning! Do not touch any electrical parts with wet
hands!Disconnectthesoftenerfor anyelectricalworks
Warning! Place the power cord carfully to avoid trip-
ping hazard!
Warning! Beware of tripping or slipping hazard due to
escaping media!
Note! Both thesoftenerandthe associatedpackaging
consist mostly of recyclable raw materials. Dipose of
packing and recyclable materials separately, properly
and in environmentally friendly way.

MU1H-1419GE23 R0415 3 Honeywell GmbH
English
3. Scope of delivery
All models of theKS20S softener aredelivered ina box cont-
aining:
• KS20S water softener
• Installation instruction
• Chlorinator (mounted ex works)
• Bypass valve with blending
• Inlet check valve (mounted ex works)
• Reinforced hose for inlet/outlet connection
- 2 hoses, length 650 mm, 1" felmale/female
-4washers
- Connection pieces
• Pipe for drain and regeneration water
- Length 3000 mm
- Diameter 1/2"
- Connection kit (2 screw lamps, hose coupling, washer)
• Test kit for water hardness
Main components
Img. 1 KS20S main components
The KS20S softener consists of the following main compo-
nents:
1. Controller
2. Brine lid
3. Main hood
4. Brine tank
4. Description of function
4.1. Meter regeneration
In normal use the LCD display alternates between following
indications:
• Time of day
• Remaining capacity (m3)
•Flowrate
• Number of days until next regeneration
• Installer name
• Softener name.
Atthetimeofregenerationthecontrollercomparestheremai-
ningcapacitywiththereserveanddecidesifitisnecessaryto
start the regeneration. KS20S softener is equipped with a
blending device to insure a residual hardness in softened
water.
Controller
During regeneration the LCD display alternates between
following indications:
• Cycle number
•Cyclename
• Remaining time for the current cycle.
Whenallthe cycles are finished,thevalvecomesbackto the
service position.
The controller of KS20S softener can manage:
• Normal brining
• Proportional brining
• Counter current regeneration (upflow ).
4.2. Valve operation
The bypass valve of KS20S softener can be set in different
positions (see 7.2. Valve positions):
• Normal operation
• Bypass
• Diagnostic bypass
• Shut off.
Setting Mode
Toentertheprogram modeputthevalvetothenormalopera-
tion position. During and after the setting,the valve will cont-
inue to operate normally monitoring all information. The
settings are stored in permanent memory.
Power failure
DuringapowerfailurethecontrollerofKS20Ssoftenerwillbe
inoperative and any calls for regeneration will be delayed.
Thecontrollerwillcontinuenormaloperationfromthepointof
interruption once the power supply is resumed.
All control displays and programming will be stored during a
power failure for a later use when the power supply is
resumed. The control will retain these values without loss, if
necessary, for years.
4.3. Application
Honeywell recommends thefollowing applications of KS20S
softener:
1
2
4
3
1
2
4
Type Size Honeywell recommendations
KS20S-15 5 liters 1 point-of-use application (e.g. one sink)
KS20S-45 14 liters 1-4 family dwelling
KS20S-55 18 liters 3-8 family dwelling
KS20S-85 25 liters 6-21 family dwelling
Note! Values recommended for households with a
water hardness of 30 f°H and an average daily
consuption of 0,1 m3 water per person.
Note! Honeywell recommends toinstall a 100µ-
cartridge filter.

Honeywell GmbH 4 MU1H-1419GE23R1504
4.4. Sodium concentration limit
When operating a KS20S softener, the limit value for the
sodium concentration (acc. drinking water ordinance) of
200 mg/l may not be exceeded.
To reduce the water hardness by 1 °fH, add about 4,5 mg/l
sodiumto thewater. Additionally,takeintoaccountthe basic
sodium content of the raw water. The maximum possible
softening results from these values.
5. Technical data
Remarks
(*) without nods and open at athmospheric pressure
(**) under normal circumstances
KS20S Models:
The further technical parameters differ from the size and the
model of the KS20S softener.
Connection IN&OUT 1"
Drain connection (*) 3/4"
Electrical rating 230V, 50Hz, 12 V
Max power rating 6W
IP protection class IP 51, double isolated
transformer
Nominal pressure PN10
Min inlet pressure 2 bar
Max inlet pressure 8 bar
Vacuum no allowance
Average pressure loss (**) 1 bar
Min water temperature 5 °C
Max water temperature 35 °C
KS20S-15
height 530mm
width 230mm
depth 430mm
height IN&OUT 513mm
max. weight 30kg
KS20S-45
height 730mm
width 320mm
depth 530mm
height IN&OUT 50mm
max. weight 70kg
KS20S-55
height 1070mm
width 320mm
depth 530mm
height IN&OUT 82mm
max. weight 129kg
KS20S-85
height 1180mm
width 320mm
depth 530mm
height IN&OUT 96mm
max. weight 178kg

MU1H-1419GE23 R0415 5 Honeywell GmbH
English
Technical data:
KS20S-15
Ion exchange
Capacity kg CaCO30,15
°F x m315
°dH x m38
salt consumption kg salt/regen. 0,5
kg CaCO3/kg salt 0,3
Flow rate
nomial m3/h 0,30
peak m3/h 0,4
minimum L/h 60
Rinse water consuption
brining & slow rinse liters 15
backwash liters 5
fast rinse liters 20
total liters 40
L/kg CaCO3267
KS20S-45
Ion exchange
Capacity kg CaCO30,83
°F x m383
°dH x m347
salt consumption kg salt/regen. 1,8
kg CaCO3/kg salt 0,4
Flow rate
nomial m3/h 1,2
peak m3/h 1,7
minimum L/h 60
Rinse water consuption
brining & slow rinse liters 25
backwash liters 40
fast rinse liters 20
total liters 85
L/kg CaCO3102

Honeywell GmbH 6 MU1H-1419GE23R1504
Technical data:
KS20S-55
Ion exchange
Capacity kg CaCO31,04
°F x m3104
°dH x m358
salt consumption kg salt/regen. 2,2
kg CaCO3/kg salt 0,4
Flow rate
nomial m3/h 1,4
peak m3/h 1,7
minimum L/h 60
Rinse water consuption
brining & slow rinse liters 35
backwash liters 30
fast rinse liters 20
total liters 85
L/kg CaCO382
KS20S-85
Ion exchange
Capacity kg CaCO31,61
°F x m3161
°dH x m390
salt consumption kg salt/regen. 3,4
kg CaCO3/kg salt 0,4
Flow rate
nomial m3/h 1,8
peak m3/h 2,3
minimum L/h 60
Rinse water consuption
brining & slow rinse liters 45
backwash liters 5
fast rinse liters 35
total liters 120
L/kg CaCO375

MU1H-1419GE23 R0415 7 Honeywell GmbH
English
6. Installation Instructions
6.1. General advices
Location
When you choose the softener location, please take into
account the following parameters:
• Install the KS20S softener in a chosen place on a flat firm
and clean surface.
• The KS20S softener must be close toa drain line to allow
an easy connection.
• Make sure there is an electrical earth grounded plug to
power the unit.
Pressure
A minimum pressure of 2 bar is needed to allow the valve to
regenerate properly. Please do not operate over 8 bars.
If this is the case, use a pressure reducer upstream of the
installation.
Power connection
Be sure that power cannot be switched off accidentally at
a wall switch. If the power cable is damaged, please ask a
professional electrician to change it.
Plumbing
Theplumbing must bein good state. Incaseof doubt, please
change it. We advise the use of prefilter upstream the instal-
lation.
All plumbing for the water inlet, distribution and drain lines
shouldbedonecorrectly in accordancewiththe legislation in
forceatthetimeoftheinstallation.Thepipesizefor thedrain
line should be a minimum of 20 mm (3/4’’).
To prepare for any maintenance:
1. Shut down water inlet
2. Unplug the KS20S softener
3. Drain the installation by opening the taps at the highest
and the lowest level of your house.
Water Temperature
6.2. Mounting
1. Thoroughly flush pipework.
2. Install the KS20S softener.
• Note flow direction (indicated by arrow).
• Install without tension or bending stresses.
3. Establish the connections to the KS20S softener.
4. Connect the sewerage tube to the discharge connection
(inner tube ø min. 13 mm, 1/2").
Caution! The installation must be performed by a
professional installer only.
Caution! It is seriously recommended to install apres-
sure reducer ahead of the softener, if the input pres-
sureismore than 6bar.Failingto adheretothissafety
note can cause irreversible damage.
Caution! During cold weather, bring the softener to
room temperature before operation.
Caution!Duringhotweather,donotinstallthesoftener
in direct sunlight or in a room with a temperature
above 45°C.
Warning! All electrical and plumbing installations
should be performed by professional electricians and
installers in accordance with all local codes.
Caution!Finishallthesolderingonthemainplumbing
and on the drain, before connecting the softener.
Failing to adhere to this safety note can cause irrever-
sible damage to the KS20S.
Caution! Inlet water temperature must not exceed
35° C. Complete installation mustnot be allowed to
freeze. Failing to adhere to this safety note can cause
irreversible damage to the KS20S.
Caution! Finish all welding and soldering works in the
near vicinity to the softener before mounting.
Failing to adhere to this saftey note can cause irrever-
sible damage.
Caution! Make sure the seal is fitted properly!

Honeywell GmbH 8 MU1H-1419GE23R1504
6.3. Residential installation
Img. 2 Residential installation (Example)
The black lines represent the direction of water flow.
7. Start-up
7.1. Start-up instructions
1. Manually add water in brine tank above the aircheck
(around 10 liters)
Do not fill with salt at the moment.
2. Place the valves into the bypass position (see 7.2. Valve
positions).
3. Turn on the main water supply.
4. Open a cold water tap downstream of the KS20S
softener.Letthewaterruna fewminutesuntiltheKS20S
softenerisfree from any foreign material (usuallysolder)
that may have resulted from the installation.
5. Once the softener is clean, close the water tap.
6. Switch on the power.
7. Push andholdit downfor3 seconds.Thesystem
will advance to the "first" position
8. Whenthe motor stops, push repeatedly until the
display shows "RINSE".
9. Slowlyturnthebypass valve to closetheoutlet andopen
the system inlet.
10. Run water to the drain until it runs clear.
11. PlacetheKS20Ssoftenerinthebypassposition(system
inlet-outlet closed – full bypass).
12. Push until the KS20S softener is back in to
softening mode.
13. Once again, push and hold it down for
3 seconds.
14. Whenthemotorstops,push repeatedlyuntilthe
display shows "BACKWASH".
15. Slowly open the inlet bypass valve 1/2 way to feed the
softener with water. Allow water to slowly fill the tank.
16. When a solid stream of water starts coming out of the
drainline,opentheinletbypassvalvealltheway.Letthe
water drain until its clean.
17. Slowlyplacethebypassvalveinto"Normalposition"(see
7.2.Valvepositions)by openingtheoutletsideofbypass
valve. Now the system inlet-outlet is open.
18. Push until the display shows "REGENERANT
DRAW DN" or "REGENERANT DRAW UP".
19. Carefully check the water level in the brine tank.
If it decreases, skip to the next step or see the section
“Troubleshooting” on page 15.
Caution! The start-up must be performed by a profes-
sional installer only.
Note! Once put under electrical power, the valve may
automaticallyrunacycleinordertogetintotheservice
position.Display will alternatebetweeninstaller name,
time of day, flow rate and remaining capacity.

MU1H-1419GE23 R0415 9 Honeywell GmbH
English
20. Push again until the display shows "RINSE".
Allow the rinse cycle to run its full course.
21. Whiletherinsecycleisfinishing,loadbrinetankwithsalt.
22. If the refill cycle is at the end of the regeneration cycle,
add around 10 liters of water to allow the first regenera-
tion.
7.2. Valve positions
The bypass valve provided by with the KS20S softener can
beset into four different positionsdependingon the selected
mode. The following four images depict the valve positions
and the water ways (in/out) within the valve.
Img. 3 Normal position operation
Img. 4 Bypass position
Img. 5 Diagnostic position
Img. 6 Shut-off position

Honeywell GmbH 10 MU1H-1419GE23R1504
8. Setting
Display and operating keys
Img. 7 Display and operating keys
1. Confirmation of water flow (detected from water meter)
2. Name of parameter
3. Value of parameter
4. "Confirm and Go ahead" button
5. Decreasing button
6. Increasing button
7. Regeneration button / back button
8. Clock button
8.1. General parameters
The initial display shows general parameters alternating
betweenTIMEOFDAY,CAPACITYREMAINING,DAYSTO
A REGEN, FLOW RATE and Installer name and phone
number, if set
1. Push to start scrolling through the parameters.
2. Eachpushon displaysanotherparameterinthe
following sequence:
• CAPACITY REMAINING
• DAYS TO REGEN
•FLOWRATE
• Installer name and phone number, if set.
8.1.1. CAPACITY REMAINING
You can change the remaining capacity of the KS20S
softener.
1. Push to go to the next parameter
The display shows CAPACITY REMAINING.
2. Push to decrease the capacity.
Each push decreases the capacity by 0.01 m³
8.1.2. DAYS TO REGEN
Youcanchangethenumberofdaystillthenextregeneration.
1. Push to go to the next parameter
The display shows DAYS TO REGEN
2. Push to decrease the number of days.
Each push decreases the days until the next regeneration
by 1.
8.1.3. FLOW RATE
Thecurrent flowrate of theKS20S softeneris shown in LPM
(liters per minute).
8.1.4. Installer data
Thedisplay willshow thenameand the phonenumber ofthe
installer, if set.
8.2. Time of the day
1. Push to set the time
ThedisplayshowsTIMEHOURandthecurrenthourflashes.
2. Push or to adjust the hours.
3. Push to go to the next parameter.
The display shows TIME MINUTES and the current minutes
flash.
4. Push or to adjust the minutes.
5. Push to exit the settings.
Note! An asterix (*) is displayed, if the water meter
detects a water flow.
Note!TIMEOFDAYalternateswith REGENTODAY,
if a regeneration is expected today.
1 2 3
4568 7

MU1H-1419GE23 R0415 11 Honeywell GmbH
English
The display shows TIME OF DAY or another general para-
meter (see 8.1. General parameters).
8.3. Basic settings
8.3.1. Water hardness
1. Push and hold for 3 seconds both buttons and
until the display shows RAW HARDNESS.
2. Push or to change raw water hardness.
3. Push to go to the next parameter.
8.3.2. Service (Residual) hardness
The display shows SERVICE HARDNESS
1. Push or tochangeraw waterhardnessinthe
unit selected during the start-up. 15°fH is set as default
parameter.
2. Push to go to the next parameter.
8.3.3. Regeneration time
The display shows DAYS BETWEEN REGEN.
1. Push or to set up number of days between
two regenerations.
• Default setting is "4".
• Maximum number of days is "28"
• Display indication "Off" means there is no forced rege-
neration.
2. Push to go to the next parameter.
The display shows REGEN TIME HOUR and the numbers
indicating the current time in hours start flashing.
1. Push or to set the regeneration time (hour).
2. Push to go to the next parameter.
ThedisplayshowsREGENTIMEMINUTESandthenumbers
indicating the current time in minutes start flashing..
3. Push or tosettheregenerationtime(minute).
4. Push to exit the settings.
The display shows TIME OF DAY or another general para-
meter (see 8.1. General parameters).
9. History
The KS20S softener saves the follwing parameters in cont-
roller history:
• Number of days since the last regeneration
• Salt consumtion since the last regenetation
• Salt consumption since start-up
• Total number of regenerations since start-up
• Reserve history
• Usage history
• Maximum flow rate in the last 7 days
9.1. History data mode
Pushandholdfor3 secondesbothbuttons and
untilthedisplayshows DAYS SINCEREGEN,the number of
days since the last regeneration.
9.1.1. Consumption - last regeneration
Push to go to the next parameter.
ThedisplayshowsSINCELASTREGEN,theconsumptionin
m³ since last regeneration.
Push to go to the next parameter.
Caution!Thesechangingsare recommendedfor expe-
rienced users and professional installers only.
Note!After5minuteswithoutaction,thecontrollerswit-
ches back to the operating mode.
Caution! Donotdecreasethe servicehardness toless
than 15°fH to avoid corrosion.
Caution!Donotdecreasethenumberofdaysbetween
regenerations for hygienic reasons .

°


°


Honeywell GmbH 12 MU1H-1419GE23R1504
9.1.2. Usage history
The display shows USAGE HISTORY.
1. Push or to show the usage history on a
certain day. You can choose between day 1 and 63.
2. Push to go to the next parameter.
9.1.3. Reserve history
The display shows RESERVE HISTORY.
Reserve history (at the time of regeneration):
3. Push to exit the settings.
The display shows TIME OF DAY or another general para-
meter (see 8.1. General parameters).
9.2. Flow rate
The display shows MAX FLOW.
The display shows the maximum flow rate of the last 7 days.
1. Push and hold for 5 seconds both buttons
and to reset the flow rate.
2. Push to exit the settings.
The display shows TIME OF DAY or another general para-
meter (see 8.1. General parameters).
9.3. Regeneration data
1. Push and hold twice for 3 seconds both buttons
and .
The display shows TOTAL DAYS - the total number of days
since start up.
2. Push to go to the next parameter.
The display shows TOTAL REGENS - the total number of
regenerations since start up.
3. Push to go to the next parameter
The display shows TOTAL CUBIC METERS - the total
amount of used water in m³ since the start up. -
9.4. Error log
1. Push to go to the next parameter.
The display shows ERROR LOG. .
The error log includes the last10 errors generated by the
controller.
2. Push or toscroll through the list of 10.
3. Push to exit the settings.
The display shows TIME OF DAY or another general para-
meter (see 8.1. General parameters).
Day 1
Day 2
:
Day 63
Yesterday
The day before yesterday
:
63 days before
Day 0
Day 1
Day 2
:
Day 6
Today
Yesterday
The day before yesterday
:
(max)
Note! Not visible in time mode, when the volume
settingis0.Thefunctiondayoverridetriggerstherege-
neration.
Note! "R" is displayed if regeneration has occured in
the last 24 hours.

Note! Only available when controller is switched on.

MU1H-1419GE23 R0415 13 Honeywell GmbH
English
10. Maintenance
Thecompletedmaintenanceworkneedstobedocumentedin
the “Maintenance log” on page 14.
10.1.Preparation
1. Shut down water inlet
2. Unplug the KS20S softener
3. Drain the installation by opening the taps at the highest
and the lowest level of your house.
10.2.Cleaning
Clean inside and the outside of the housing with damp cloth.
10.3.Spare part sets
Maintenance interval: 2 and 6 years
The sets of spare parts for the 2 years interval maintenance
differ from the size of the KS20S softener.
Thesetofthespare parts forthe6yearsintervalmaintenace
is the same for all KS20S softeners.
Caution!Allthemaintenanceworksmustbeperformed
by authorized personnel only.
Warning! Switch off the softener before the main-
tenanceandpreventswitchingonwithoutauthorisation
(mains disconnection)!
Caution! Do not use cleaning agents that contain
solvents when cleaning the plastic parts!
Note!Do not letdetergentsto entertheenvironmentor
the sewerage system!
Caution! Use only original spare parts.
Note! Two different types of maintenance are to be
conducted in a time interval of two and six years
Spare part sets for maintenance every 2 years
KS20S-15
Honeywell part no. WS1 Injector Asy A Black
EK20S-215A WS1 DLFC 013 (1,3 gpm) For 3/4''
WS1 Refill Flow Control 80.5 gpm)
KS20S-45
Honeywell part no. WS1 Injector Asy B Brown
EK20S-245A WS1 DLFC 027 (2,7 gpm) For 3/4''
WS1 Refill Flow Control (0.5 gpm)
KS20S-55
Honeywell part no. WS1 Injector Asy C Violet
EK20S-255A WS1 DLFC 017 (1,7 gpm) For 3/4''
WS1 Refill Flow Control 80.5 gpm)
KS20S-85
Honeywell part no. WS1 Injector Asy D Red
EK20S-285A WS1 DLFC 022 (2,2 gpm) For 3/4''
WS1 Refill Flow Control (0.5 gpm)
Spare part sets for maintenance every 6 years
KS20S-15/45/55/85
Honeywell part no. WS1 Spacer Stack Asy
EK20S-6UA WS1 Piston Upflow Asy
WS1 Regenerant Piston
Chlorinator

Honeywell GmbH 14 MU1H-1419GE23R1504
10.4.Maintenance log
Installation date: _________________________ Network pressure: _________________________
Notes:
Date:
Raw water hardness (°fH) measured
Mix water harndess (°fH)
Suction pump maintained
Disinfection unit replaced
Housing cleaned

MU1H-1419GE23 R0415 15 Honeywell GmbH
English
11. Troubleshooting
Problem Cause Remedy
Error Code 101
Unable to recognize start of regenera-
tion Not reading piston position Resynchronizesoftwarewithpistonposition.
Push and for 3 seconds
Error Code 104
Motor ran too long, timed out trying to
reach home position
IFOTHERERRORCODESDISPLAY
CONTACT THE AUTHORIZED
INSTALLER
Control valve piston not in home position Push and for 3 seconds
Control valve stalled in regeneration
Motor not operating
CONTACT THE AUTHORIZED
INSTALLER
No electric power at outlet
Defective transformer
Defective PC board
Broken drive gear or drive cap assembly
Broken piston retainer
Broken main or regenerant piston
Time of day flashes on and off
Batterybackupmaintainstimeofday up to
2 years in event of power outage and
battery is discharged. Time of day flashes
when battery is discharged
CONTACT THE AUTHORIZED
INSTALLER
Softener delivers salt water Low water pressure Check incoming water pressure.
Minimum is 2 bar
Control does not display correct time
of day
Power outage > 2 years Reset time of day
Power outage < 2 years - Time of day flas-
hing - Battery discharged CONTACT THE AUTHORIZED INSTALLER
Control valve regenerates at wrong
time of day
Power outage > 24 h Reset control valve to correct time of day
Time of day not set properly Reset to correct time of day
Time of regeneration incorrect Reset regeneration time
Customer services tel. .......................

Honeywell GmbH 16 MU1H-1419GE23R1504
12. Disassembly
1. Disconnect the sewerage tube to the discharge connec-
tion (inner tube ø min. 13 mm, 1/2")
2. Disconnect the connections to the KS20 softener
3. Remove the KS20S softener
4. Thoroughly flush pipework.
13. Disposal
Both the KS20S softener and the associated packaging
consist mostly of recyclable raw materials.
Caution! The disassembly must be performed by a
professional installer only.
Note! Do not dispose the waste of the electrical or
electronic equipment(EEE) as unsorted municipal
waste. Bring it to the container for separate collection
of used EEE.
Note! Dispose of packing and recyclable materials
separately, properly and in environmentally friendly
way.
Note! Observe the local requirements regarding
correct waste recycling and disposal.

MU5H-1419GE23 R0415 17 Honeywell GmbH
Italiano
Grazie per avere scelto un addolcitore d'acqua KS20S.
Siamo convinti che il nostro prodotto soddisferà pienamente
le esigenze dei nostri clienti, poiché è stato costruito con
estrema cura.
L'addolcitore d'acqua KS20S viene fornito all'interno della
sua confezione e include una valvola di bypass. Si consiglia
di ispezionare attentamente il dispositivo in presenza
dell'addetto alla consegna per verificare la presenza di even-
tuali danni causati dal trasporto. Il team Honeywell
1. Introduzione
Ilpresentemanualeèdestinatoainstallatoriprofessionisti.Si
pregadileggerloattentamentealfinedigarantireunamessa
in funzione sicura, corretta e priva di rischi dell'addolcitore
d'acqua KS20S.
Nel manuale le avvertenze di sicurezza e le note sono
evidenziate con pittogrammi.
2. Avvertenze di sicurezza
Attenzione! Indica una situazione potenzialmente
pericolosache,seignorata,potrebbecausarelamorte
o gravi lesioni.
Avviso! Indica una situazione potenzialmente perico-
losache,seignorata,potrebbecausarelesionidientità
minore o moderata o danni alle proprietà.
Nota! Fornisce suggerimenti o informazioni supple-
mentari per un utilizzo migliore dell'apparecchiatura.
Nota! Linee guida per il rispetto dell'ambiente.
Avviso! Prima di avviare l'addolcitore d'acqua, si
prega di leggere attentamente il presente manuale.
Maneggiare l'addolcitore d'acqua con attenzione.
Avviso! Conservare le presenti istruzioniper un uso
successivo.
Avviso! Usare l'addolcitore d'acqua solo in modo
conforme alla destinazione d'uso.
Avviso! Non eseguire un ripristino totale delle impost-
azioni.Ildispositivopuòessereutilizzatoapienoritmo
solo con le impostazioni di fabbrica.
Avviso! Accertarsi che l'addolcitore d'acqua funzioni
sempre correttamente.
Avviso! Fare riparare immediatamente qualsiasi
guasto da un installatore professionista.
Avviso! Installare un riduttore di pressione a monte
dell'addolcitore d'acqua, se la pressione in ingresso è
superiore a 6 bar.
Avviso! Accertarsicheil luogodi installazione nonsia
soggetto a gelo o calore eccessivo. Evitare l'esposi-
zione ai raggi solari.
Avviso! Installare l'addolcitore d'acqua su una super-
ficie piana stabile e pulita.
Attenzione! Nontoccarelepartielettricheconlemani
bagnate! Scollegare l'addolcitore d'acqua dall'alimen-
tazione elettrica prima di eseguire qualsiasi lavoro
all'impianto elettrico.
Attenzione! Posizionare il cavo di alimentazione in
modo da evitare qualunque rischio di inciampo!
Attenzione! Fare attenzione a non scivolare o inciam-
pare a causa della fuoriuscita di materiali!
Nota! Sia l'addolcitore d'acqua che la relativa confe-
zione sono costruiti per la maggior parte con materiali
grezzi riciclabili. Smaltire la confezione e i materiali
riciclabili osservando le regole previste per la raccolta
differenziata e la protezione dell'ambiente.

Honeywell GmbH 18 MU5H-1419GE23R1504
3. Fornitura
Tutti i modelli dell'addolcitore d'acqua KS20S sono forniti
all'interno di una confezione contenente:
• Addolcitore d'acqua KS20S
• Istruzioni di installazione
• Cloratore (montato in loco)
• Valvola di bypass con valvola di miscelazione
• Valvola di ritegno lato ingresso (montata in loco)
• Tubo flessibile rinforzato per l'attacco di ingresso/uscita
- 2 tubi flessibili lunghi 650 mm, 1", femmina/femmina
- 4 rondelle
- Elementi di collegamento
• Tubo per l'acqua di rigenerazione e di scarico
- Lunghezza 3000 mm
- Diametro 1/2"
- Kitdicollegamento(2lampadeavite,raccordopertubo
flessibile, rondella)
• Kit di analisi del grado di durezza dell'acqua
Componenti principali
Img. 1 Componenti principali di KS20S
L'addolcitore d'acqua KS20S consiste nei seguenti compo-
nenti principali:
1. Controller
2. Coperchio del serbatoio di salamoia
3. Copertura principale
4. Serbatoio di salamoia
4. Descrizione del funzionamento
4.1. Rigenerazione tramite contatore
Durante la modalità di funzionamento normale sul display
LCD vengono visualizzati i seguenti parametri in sequenza:
• Ora del giorno
• Capacità residua (m3)
• Portata
• Numero di giorni fino alla rigenerazione successiva
• Nome dell'installatore
• Nome dell'addolcitore d'acqua.
Al momento stabilito per la rigenerazione il controller
confronta la capacità residua con la riserva e decide se è
necessario avviare la rigenerazione. L'addolcitore d'acqua
KS20S è dotato di un dispositivo di miscelazione che garan-
tisce un determinato grado di durezza residua dell'acqua
addolcita..
Controller
Durante la rigenerazione sul display LCD vengono visualiz-
zati i seguenti parametri in sequenza:
• Numero del ciclo
• Nome del ciclo
• Tempo rimanente del ciclo in corso.
Quando tutti i cicli sono terminati, la valvola torna nella posi-
zione di servizio.
Il controller dell'addolcitore d'acqua KS20S è in grado di
gestire le seguenti funzioni:
• Addolcimento normale
• Addolcimento proporzionale
• Rigenerazione controcorrente (upflow).
4.2. Funzionamento della valvola
La valvola di bypass dell'addolcitore d'acqua KS20S può
essere impostata in diverse posizioni (vedere 7.2. Posizioni
della valvola):
• Funzionamento normale
• Bypass
• Bypass diagnostico
• Intercettazione.
Modalità di configurazione
Per accedere alla modalità di configurazione, mettere la
valvola in posizione di funzionamento normale. Durante e
dopo la configurazione (vedere 8. Configurazione) la valvola
continua a funzionare normalmente monitorando tutte le
informazioni. Le impostazioni vengono conservate nella
memoria permanente.
1
2
4
3
1
2
4
