English
Wewouldliketothankyoufor choosingtheKS20Ssoftener.
We are convinced that our product will serve you to your
complete satisfaction as it has been manufactured with
extreme care.
The KS20S softener is delivered in a box and includes a
bypassvalve.Pleasecarefullyinspectthedeviceinpresence
of deliveryman for transportation damages.
Your Honeywell team
1. Introduction
This manual is intended for professional installers. Please
read this manual to ensure a danger-free, safe and correct
commissioning of the KS20S softener.
Safetyinformationandnotesarecharacterisedbysymbolsin
this manual.
2. Safety guidelines
Warning! Indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
Caution! Indicates a potentially hazardous situation
which,ifnotavoided,couldresultinminorormoderate
injury or damage to property.
Note! Provides supplementary information or gives
tips for easier operation
Note! Environment protection guidelines
Caution! Before starting up the softener, read this
manual carefully. Handle the softener carefully.
Caution! Keep this instructions for later use.
Caution! Usethe softener only according todesig-
nated application.
Caution! Do not perform a total reset of settings. The
devicecanbeusedinitsfullperformanceonlywiththe
factory settings.
Caution! Keep the softener in proper working order.
Caution! Any malfunctions must be repaired at once
by a professional installer.
Caution! Install a pressure reducer ahead of the
softener, if the input pressure is more than 6 bar.
Caution! Ensure thatinstallation is not subject to free-
zing or extreme heat. Avoid exposure to sun.
Caution!Installthesoftenerinachosenplaceonaflat
firm and clean surface.
Warning! Do not touch any electrical parts with wet
hands!Disconnectthesoftenerforanyelectricalworks
Warning! Place the power cord carefully to avoid trip-
ping hazard!
Warning! Beware of trippingor slipping hazard due to
escaping media!
Note! Both thesoftenerandthe associatedpackaging
consist mostly of recyclable raw materials. Dipose of
packing and recyclable materials separately, properly
and in environmentally friendly way.

Honeywell GmbH 4 MU5H-1419GE23R0815
3. Scope of delivery
All models of the KS20S softener are delivered in a box
containing:
• KS20S water softener
• Installation instruction
• Chlorinator (mounted ex works)
• Bypass valve with blending
• Inlet check valve (mounted ex works)
• Reinforced hose for inlet/outlet connection
- 2 hoses, length 650 mm, 1" felmale/female
-4washers
- Connection pieces
• Pipe for drain and regeneration water
- Length 3000 mm
- Diameter 1/2"
- Connection kit (2 screw lamps, hose coupling, washer)
• Test kit for water hardness
Main components
Img. 1 KS20S main components
The KS20S softener consists of the following main compo-
nents:
1. Controller
2. Brine lid
3. Main hood
4. Brine tank
4. Description of function
4.1. Meter regeneration
In normal use the LCD display alternates between following
indications:
• Time of day
• Remaining capacity (m3)
•Flowrate
• Number of days until next regeneration
• Installer name
• Softener name.
Atthetimeofregenerationthecontrollercomparestheremai-
ningcapacitywiththereserveanddecidesifitisnecessaryto
start the regeneration. KS20S softener is equipped with a
blending device to insure a residual hardness in softened
water.
Controller
During regeneration the LCD display alternates between
following indications:
• Cycle number
•Cyclename
• Remaining time for the current cycle.
Whenallthecyclesarefinished,thevalvecomesbacktothe
service position.
The controller of KS20S softener can manage:
• Normal brining
• Proportional brining
• Counter current regeneration (upflow ).
4.2. Valve operation
The bypass valve of KS20S softener can be set in different
positions (see 7.2. Valve positions):
• Normal operation
• Bypass
• Diagnostic bypass
• Shut off.
Setting Mode
Toentertheprogrammodeputthevalvetothenormalopera-
tionposition.Duringandafterthesetting(see8. Setting),the
valvewillcontinueto operatenormallymonitoringallinforma-
tion. The settings are stored in permanent memory.
Power failure
DuringapowerfailurethecontrollerofKS20Ssoftenerwillbe
inoperative and any calls for regeneration will be delayed.
Thecontrollerwillcontinuenormaloperationfromthepointof
interruption once the power supply is resumed.
All control displays and programming will be stored during a
power failure for a later use when the power supply is
resumed. The control will retain these values without loss, if
necessary, for years.
4.3. Application
Honeywell recommends the following applications of KS20S
softener:
1
2
4
3
1
2
4
Type Size Honeywell recommendations
KS20S-15 5 liters 1 point-of-use application(e.g. one sink)
KS20S-45 14 liters 1-4 family dwelling
KS20S-55 18 liters 3-8 family dwelling
KS20S-85 25 liters 6-21 family dwelling
Note! Values recommended for householdswith a
water hardness of 30 f°H and an average daily
consuption of 0,1 m3 waterper person.
Note! Honeywell recommendsto install a 100µ-
cartridge filter.

MU5H-1419GE23 R0815 5 Honeywell GmbH
English
4.4. Sodium concentration limit
When operating a KS20S softener, the limit value for the
sodium concentration (acc. drinking water ordinance) of
200 mg/l may not be exceeded.
To reduce the water hardness by 1 °fH, add about 4,5 mg/l
sodiumtothewater.Additionally,takeintoaccountthebasic
sodium content of the raw water. The maximum possible
softening results from these values.
5. Technical data
Remarks
(*) without nods and open at athmospheric pressure
(**) under normal circumstances
KS20S Models:
The further technical parametersdiffer from the size and the
model of the KS20S softener.
Connection IN&OUT 1"
Drain connection (*) 3/4"
Electrical rating 230V, 50Hz, 12 V
Max power rating 6W
IP protection class IP 51, double isolated
transformer
Nominal pressure PN10
Min inlet pressure 2 bar
Max inlet pressure 8 bar
Vacuum no allowance
Average pressure loss (**) 1 bar
Min water temperature 5 °C
Max water temperature 35 °C
KS20S-15
height 530mm
width 230mm
depth 430mm
height IN&OUT 513mm
max. weight 30kg
KS20S-45
height 730mm
width 320mm
depth 530mm
height IN&OUT 50mm
max. weight 70kg
KS20S-55
height 1070mm
width 320mm
depth 530mm
height IN&OUT 82mm
max. weight 129kg
KS20S-85
height 1180mm
width 320mm
depth 530mm
height IN&OUT 96mm
max. weight 178kg

Honeywell GmbH 6 MU5H-1419GE23R0815
Technical data:
KS20S-15
Ion exchange
Capacity kg CaCO30,15
°F x m315
°dH x m38
salt consumption kg salt/regen. 0,5
kg CaCO3/kg salt 0,3
Flow rate
nomial m3/h 0,30
peak m3/h 0,4
minimum L/h 60
Rinse water consuption
brining & slow rinse liters 15
backwash liters 5
fast rinse liters 20
total liters 40
L/kg CaCO3267
KS20S-45
Ion exchange
Capacity kg CaCO30,83
°F x m383
°dH x m347
salt consumption kg salt/regen. 1,8
kg CaCO3/kg salt 0,4
Flow rate
nomial m3/h 1,2
peak m3/h 1,7
minimum L/h 60
Rinse water consuption
brining & slow rinse liters 25
backwash liters 40
fast rinse liters 20
total liters 85
L/kg CaCO3102

MU5H-1419GE23 R0815 7 Honeywell GmbH
English
Technical data:
KS20S-55
Ion exchange
Capacity kg CaCO31,04
°F x m3104
°dH x m358
salt consumption kg salt/regen. 2,2
kg CaCO3/kg salt 0,4
Flow rate
nomial m3/h 1,4
peak m3/h 1,7
minimum L/h 60
Rinse water consuption
brining & slow rinse liters 35
backwash liters 30
fast rinse liters 20
total liters 85
L/kg CaCO382
KS20S-85
Ion exchange
Capacity kg CaCO31,61
°F x m3161
°dH x m390
salt consumption kg salt/regen. 3,4
kg CaCO3/kg salt 0,4
Flow rate
nomial m3/h 1,8
peak m3/h 2,3
minimum L/h 60
Rinse water consuption
brining & slow rinse liters 45
backwash liters 5
fast rinse liters 35
total liters 120
L/kg CaCO375

Honeywell GmbH 8 MU5H-1419GE23R0815
6. Installation Instructions
6.1. General advices
Location
When you choose the softener location, please take into
account the following parameters:
• Install the KS20S softener ina chosen place on a flat firm
and clean surface.
• The KS20S softener must beclose to a drain line to allow
an easy connection.
• Make sure there is an electrical earth grounded plug to
power the unit.
Pressure
A minimum pressure of 2 bar is needed to allow the valve to
regenerate properly.Please do not operate over 8 bars.
If this is the case, use a pressure reducer upstream of the
installation.
Power connection
Be sure that power cannot be switched off accidentally at
a wall switch. If the power cable is damaged, please ask a
professional electrician to change it.
Plumbing
Theplumbingmustbeingoodstate. Incaseofdoubt, please
change it. We advise the use of prefilter upstream the instal-
lation.
All plumbing for the water inlet, distribution and drain lines
shouldbe donecorrectlyinaccordancewiththelegislationin
forceatthetime oftheinstallation.Thepipesizeforthedrain
line should be a minimum of 20 mm (3/4’’).
To prepare for any maintenance:
1. Shut down water inlet
2. Unplug the KS20S softener
3. Drain the installation by opening the taps at the highest
and the lowest level of your house.
Water Temperature
6.2. Mounting
1. Thoroughly flush pipework.
2. Install the KS20S softener.
• Note flow direction (indicated by arrow).
• Install without tension or bending stresses.
3. Establish the connections to the KS20S softener.
4. Connect the sewerage tube to the discharge connection
(inner tube ø min. 13 mm, 1/2").
Caution! The installation must be performed by a
professional installer only.
Caution! It isseriously recommended to install apres-
sure reducer ahead of the softener, if the input pres-
sureis morethan6bar.Failingtoadheretothissafety
note can cause irreversible damage.
Caution! During cold weather, bring the softener to
room temperature before operation.
Caution!Duringhotweather,donotinstallthesoftener
in direct sunlight or in a room with a temperature
above 45°C.
Warning! All electrical and plumbing installations
should be performed by professional electricians and
installers in accordance with all local codes.
Caution!Finishallthesolderingonthemainplumbing
and on the drain, before connecting the softener.
Failing to adhere to this safety note can cause irrever-
sible damage to the KS20S.
Caution! Inlet water temperature must not exceed
35° C. Complete installation must not be allowed to
freeze. Failing to adhere to this safety note can cause
irreversible damage to the KS20S.
Caution! Finish all welding and soldering works in the
near vicinity to the softener before mounting.
Failing to adhere to this saftey note can cause irrever-
sible damage.
Caution! Make sure the seal is fitted properly!

MU5H-1419GE23 R0815 9 Honeywell GmbH
English
6.3. Residential installation
Img. 2 Residential installation (Example)
The black lines represent the direction of water flow.
7. Start-up
7.1. Start-up instructions
1. Manually addwater in brine tankabove the aircheck
(around 10 liters)
Do not fill with salt at the moment.
2. Place the valves into the bypass position (see 7.2. Valve
positions).
3. Turn on the main water supply.
4. Open a cold water tap downstream of the KS20S
softener.LetthewaterrunafewminutesuntiltheKS20S
softenerisfreefromanyforeignmaterial(usuallysolder)
that may have resulted from the installation.
5. Once the softener is clean,close the water tap.
6. Switch on the power.
7. Push andholditdownfor3 seconds.Thesystem
will advance to the "first" position
8. When themotorstops,push repeatedly until the
display shows "RINSE".
9. Slowlyturn thebypassvalvetoclosetheoutletandopen
the system inlet.
10. Run water to the drain until it runs clear.
11. PlacetheKS20Ssoftenerinthebypassposition(system
inlet-outlet closed – full bypass).
12. Push until the KS20S softener is back in to
softening mode.
13. Once again, push and hold it down for
3 seconds.
14. Whenthemotorstops,push repeatedlyuntilthe
display shows "BACKWASH".
15. Slowly open the inlet bypass valve 1/2 way to feed the
softener with water. Allow water to slowly fill the tank.
16. When a solid stream of water starts coming out of the
drainline,opentheinletbypassvalvealltheway.Letthe
water drain until its clean.
17. Slowlyplacethebypassvalveinto"Normalposition"(see
7.2.Valvepositions)byopeningtheoutletsideofbypass
valve. Now the system inlet-outlet is open.
18. Push until the display shows "REGENERANT
DRAW DN" or "REGENERANT DRAW UP".
19. Carefully check the water level in the brine tank.
If it decreases, skip to the next step or see the section
“Troubleshooting” on page 19.
Caution! The start-up mustbe performed by a profes-
sional installer only.
Note! Once put under electrical power, the valve may
automaticallyrunacycleinordertogetintotheservice
position.Displaywill alternate betweeninstallername,
time of day, flow rate and remaining capacity.

Honeywell GmbH 10 MU5H-1419GE23R0815
20. Push again until the display shows "RINSE".
Allow the rinse cycle to run its full course.
21. Whiletherinsecycleisfinishing,loadbrinetankwithsalt.
22. If the refill cycle is at the end of the regeneration cycle,
add around 10 liters of water to allow the first regenera-
tion.
23. Go to section “Programming - Advanced Installers” on
page 13.
7.2. Valve positions
The bypass valve provided by with the KS20S softener can
besetintofour differentpositionsdependingontheselected
mode. The following four images depict the valve positions
and the water ways (in/out) within the valve.
Img. 3 Normal position operation
Img. 4 Bypass position
Img. 5 Diagnostic position
Img. 6 Shut-off position

MU5H-1419GE23 R0815 11 Honeywell GmbH
English
8. Setting
Display and operating keys
Img. 7 Display and operating keys
1. Confirmation of water flow (detected from water meter)
2. Name of parameter
3. Value of parameter
4. "Confirm and Go ahead" button
5. Decreasing button
6. Increasing button
7. Regeneration button / back button
8. Clock button
8.1. General parameters
The initial display shows general parameters alternating
betweenTIMEOFDAY,CAPACITYREMAINING,DAYSTO
A REGEN, FLOW RATE and Installer name and phone
number, if set
1. Push to start scrolling through the parameters.
2. Eachpushon displaysanotherparameterinthe
following sequence:
• CAPACITY REMAINING
• DAYS TO REGEN
•FLOWRATE
• Installer name and phone number, if set.
8.1.1. CAPACITY REMAINING
You can change the remaining capacity of the KS20S
softener.
1. Push to go to the next parameter
The display shows CAPACITY REMAINING.
2. Push to decrease the capacity.
Each push decreases the capacity by 0.01 m³
8.1.2. DAYS TO REGEN
Youcanchangethenumberofdaystillthenextregeneration.
1. Push to go to the next parameter
The display shows DAYS TO REGEN
2. Push to decrease the number of days.
Each push decreases the days until the next regeneration
by 1.
8.1.3. FLOW RATE
Thecurrentflowrateofthe KS20S softener is shown in LPM
(liters per minute).
8.1.4. Installer data
Thedisplaywillshowthenameandthephonenumber ofthe
installer, if set.
8.2. Time of the day
1. Push to set the time
ThedisplayshowsTIMEHOURandthecurrenthourflashes.
2. Push or to adjust the hours.
3. Push to go to the next parameter.
Note! An asterix (*) is displayed, if the water meter
detects a water flow.
Note!TIMEOFDAYalternateswithREGENTODAY,
if a regeneration is expected today.
1 2 3
4568 7

Honeywell GmbH 12 MU5H-1419GE23R0815
The display shows TIME MINUTES and the current minutes
flash.
4. Push or to adjust the minutes.
5. Push to exit the settings.
The display shows TIME OF DAY or another general para-
meter (see 8.1. General parameters).

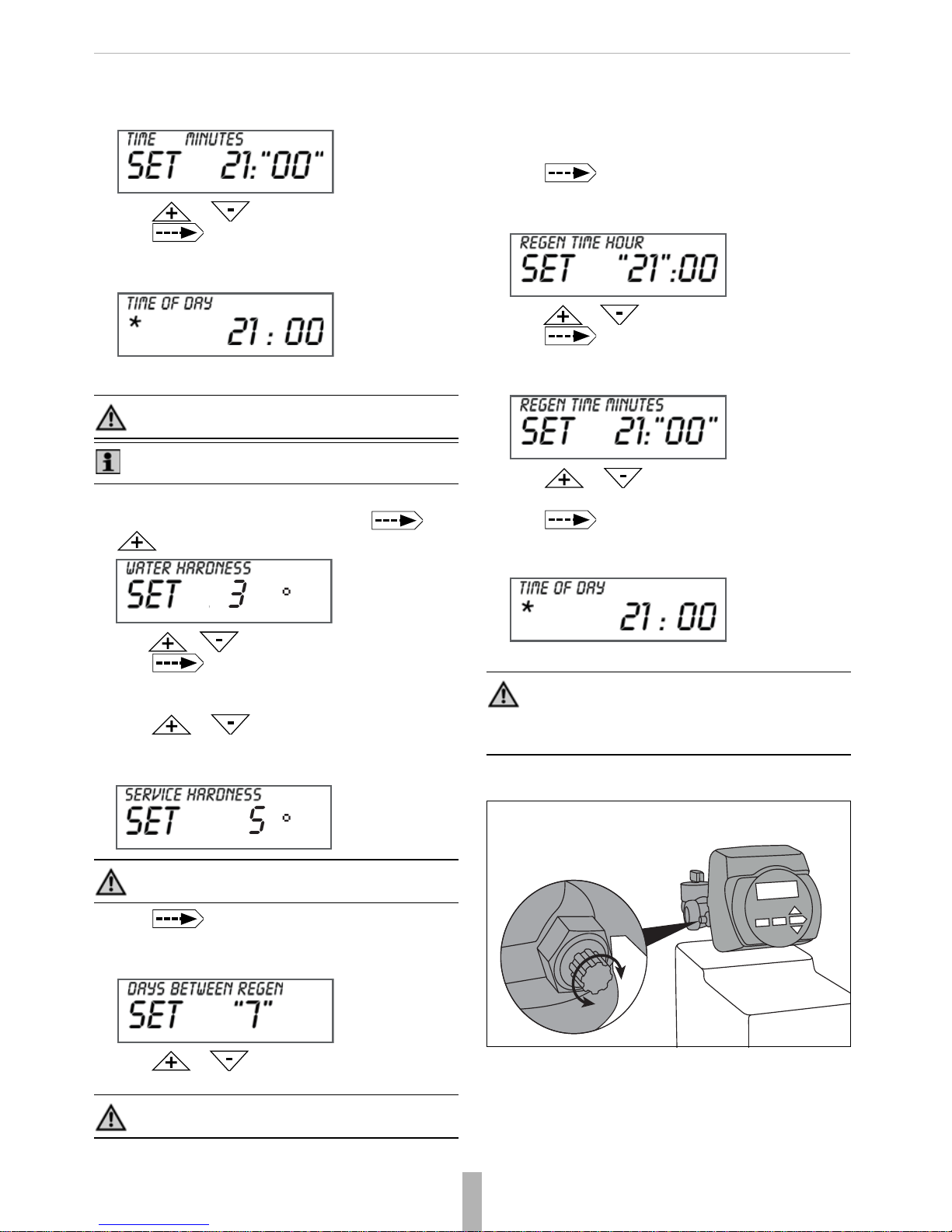

8.3. Basic settings
8.3.1. Water hardness
1. Push and hold for 3 seconds both buttons and
until the display shows RAW HARDNESS.
2. Push or to change raw water hardness.
3. Push to go to the next parameter.
8.3.2. Service (Residual) hardness
The display shows SERVICE HARDNESS
1. Push or to change raw water hardness in
the unit selected during the start-up. 15°fH is set as
default parameter.
2. Push to go to the next parameter.
8.3.3. Regeneration time
The display shows DAYS BETWEEN REGEN.
1. Push or toset up number of daysbetween
two regenerations.
• Default setting is "4".
• Maximum number of days is "28"
• Display indication "Off" means there is no forced rege-
neration.
2. Push to go to the next parameter.
The display shows REGEN TIME HOUR and the numbers
indicating the current time in hours start flashing.
1. Push or toset theregenerationtime(hour).
2. Push to go to the next parameter.
ThedisplayshowsREGENTIMEMINUTESandthenumbers
indicating the current time in minutes start flashing..
3. Push or to set the regeneration time
(minute).
4. Push to exit the settings.
The display shows TIME OF DAY or another general para-
meter (see 8.1. General parameters).
8.3.4. Setting the residual water hardness
1. Set the residual water hardness by turning the screw at
the outlet side of the control valve block
Img. 8 Water hardness screw
• Turnthescrewanti-clockwisetodecreasewaterhardness
on the output side
• Turn the screw clockwise to increase water hardness on
the output side
2. Check the mixed water hardness at a tapping point
Caution!These changingsarerecommendedforexpe-
rienced users and professional installers only.
Note!After5minuteswithoutaction,thecontrollerswit-
ches back to the operating mode.
Caution! Donotdecreasetheservicehardnessto less
than 15°fH to avoid corrosion.
Caution!Donotdecreasethenumberofdaysbetween
regenerations for hygienic reasons .

°


°

Caution! Donot decreasetheservicehardnessto less
than 15°fH to avoid corrosion.
The manufacturer recommends to check the output
water hardness regularly (2 times a year).

MU5H-1419GE23 R0815 13 Honeywell GmbH
English
• Open the tapping point completely to ensure a sufficient
flow
3. Readjust by turning the screw if necessary
4. Repeattheabovestepsuntilthemeasuredvalueisequal
to the value set under 8.3.2. (default 15°fH).
8.4. Programming - Advanced Installers
8.5. Basic settings
The basic settings such as changing water hardness and
regeneration time are described in detail in 8.3.
8.5.1. Unlocking the set mode
To unlock the set mode press following buttons one after
another .
8.5.2. Locking the set mode
To lock the set mode press following buttons one after
another .
8.5.3. Setting parameters
The KS20S softener can be programmed by defining the
following parameters:
• Operating mode
•Cycletimes
• Capacity
• Brine tank refill type
• Regeneration start time
• Reserve type
• Service alarm
8.5.4. Set mode
1. Push and hold for 3 seconds both buttons and
until the display shows "SOFTENING".
2. Push to go to the next parameter.
8.5.5. Cycle times
The display shows FILL TIME.
1. Push or to set up the amount of salt in kg
for cycle 1 (see 8.6.4. Operation cycles).
2. Push to go to the next parameter.
The display shows SOFTENING TIME
3. Push or tosetupthenumberofminutesfor
cycle 2 (see 8.6.4. Operation cycles).
4. Push to go to the next parameter.
The display shows DRAW TIME
5. Push or to set up the parameters for
cycles 3, 4 and 5 (see 8.6.4. Operation cycles).
8.5.6. Capacity
The display shows SOFTENING CAPACITY.
• If hardness unit is f°H then capacity unit is m3.
6. Push or to set up the softener capacity.
7. Push to go to the next parameter.
8.5.7. Brine tank refill
The display shows FILL.
Youcanselectbetween"NORMAL"and"PROPORTIONAL"
brine tank refill.
8. Push or tochangebetweenthebrinetank
refill types.
• NORMAL: the unit regenerates completely.
• PROPORTIONAL (default): corresponds with ratio of
used capacity on total capacity multiplied
by refill for a complete regeneration
of resin bed.
9. Push to go to the parameter "Reservetype".
10. Push to go to thenext parameter.
8.5.8. Reserve calculator
The display shows RESERVE CALCULATOR
Caution! Programming must be perfomed by
authorized personnel only.
Note! Tosettheparameters thesettingmodemustbe
unlocked!
Note!Remembertolocktheset modeafterthesetting
of the parameters.
Caution!DonotchangeanysettingsintheFILTERING
mode. Any changes in the FILTERING mode will
prevent the device from functioning correctly.
Note! In this manual, only the SOFTENING operating
mode is described.



Note! This pa rameter is o nly available if con figured
as a 25 mm Pre-Fill Up-Flow brining softener.








Honeywell GmbH 14 MU5H-1419GE23R0815
11. Push or to change between the reserve
types:
• AUTO (default): capacityandreserveareautomatically
calculated.
• OFF: reserve calculator is not active.
8.5.9. Regeneration start time
1. Push to go to the next parameter.
The display shows DELAYED.
2. Push or to select the regeneration start
time between:
• DELAYED: regeneration on a specific time
• IMMEDIATE:immediate regeneration when volume
is at 0
• DELAY+IMMEDIATE (default): delayed regeneration
with override on 0 volume
8.5.10.Service alarm
1. Push to go to the next parameter.
The display shows SERVICE ALARM.
Youcansettheservicealarmbasingontime,volumeorboth.
2. Push or to set the unit:
• TIME: based on time
• m³: based on volume
• BOTH: based on time and volume
• OFF: no service alarm defined
Example:
Service alarm every 3 months
If set upservice alarm is based ontime each push increases
or decreases the time by 3 months.
The display shows SERVICE ALARM if setting is based on
volume or both.
Example: Service alarm every 500 m³
Push to go to the next parameter.
8.5.11.Scheduled service
The display shows SCHEDULED SERVICE.
For more information on scheduled service go to paragraph
10. Maintenance.
3. Push to exit the settings.
The display shows TIME OF DAY or another general para-
meter (see 8.1. General parameters).
8.6. System parameters
Push and hold for 3 seconds both buttons and
and repeat this for further 3 seconds until the display
shows DISPLAY and the system language flashes.
8.6.1. Language settings
1. Push or to change the language.
2. Push to go to the next parameter.
8.6.2. Valve parameters
The display shows VALVE TYPE and the type number
flashes.
Example:
25 mm is set as default.
8.6.3. Valve body and hardness unit
1. Push or to set up the size.
2. Push to go to the next parameter.
The display shows HARDNESS UNITS.
3. Push or to set the hardness unit:
• ppm: parts per million
• °dH: German degree
• °fH: French degree, default
• NA: no hardness setting
4. Push to go to the next parameter.
  
 


°

MU5H-1419GE23 R0815 15 Honeywell GmbH
English
8.6.4. Operation cycles
First cycle
The display shows setCYCLE 1 and the cycle type flashes.
Push to scroll through the cylces.
WS1CI Only Upflow Regenerant Refill After Rinse
• 1st cycle: Fill
• 2nd cycle: Softening
• 3rd cycle: Draw up
• 4th cycle: Backwash
• 5th cycle: Rinse
• 6th cycle: End
Last cycle
Push to go to the last cylce.
The display shows END.
Setting the contact data of the installer
1. Push and for3secondstoenterthelevel
to set the contact data ofthe installer.
2. Push or to change the first digit of the
telephone number of the installer.
3. Push to go to the next digit.
4. Push to set the name of the installer.
5. Push or to change the first letter of the
name of the installer.
6. Push to go to the next letter.
7. Push to exit the settings.
The display shows TIME OF DAY or another general para-
meter (see 8.1. Generalparameters).
Tolockthesetmodepleasesee8.5.2.Lockingthesetmode.
9. History
The KS20S softener saves the follwing parameters in cont-
roller history:
• Number of days since the last regeneration
• Salt consumtion since the last regenetation
• Salt consumption since start-up
• Total number of regenerations since start-up
• Reserve history
• Usage history
• Maximum flow rate in the last 7 days
9.1. History data mode
Push and hold for 3 secondes both buttons and
until the display shows DAYS SINCE REGEN, the
number of days since the last regeneration.
9.1.1. Consumption - last regeneration
Push to go to the next parameter.
ThedisplayshowsSINCELASTREGEN,theconsumptionin
m³ since last regeneration.
Push to go to the next parameter.
9.1.2. Usage history
The display shows USAGE HISTORY.
1. Push or to show the usage history on a
certain day. You can choose between day 1 and 63.
2. Push to go to the next parameter.
Caution! Do not change the operation cycles or their
order.Anychangesoftheoperationcycleswillprevent
the device from functioning correctly.
Caution! Donotchangethecontrolvalvesfrom down-
flow to upflow brining or vice versa.
The valve bodies for downflow and upflow are unique
to the regeneration type and should not be interch-
anged. A mismatch of valve body and regeneration
piston will result in hard water bypass during service.
Note! Maximum number of digits to set is eleven.
Note! Maximum number of digits to set is eighteen.



 
Note! Remembertolock thesetmodeafter thesetting
of the parameters.
Day 1
Day 2
:
Day 63
Yesterday
The day before yesterday
:
63 days before

Honeywell GmbH 16 MU5H-1419GE23R0815
9.1.3. Reserve history
The display shows RESERVE HISTORY.
Reserve history (at the time of regeneration):
3. Push to exit the settings.
The display shows TIME OF DAY or another general para-
meter (see 8.1. Generalparameters).
9.2. Flow rate
The display shows MAX FLOW.
The display shows the maximum flow rate of the last 7 days.
1. Push and hold for 5 seconds both buttons and
to reset the flow rate.
2. Push to exit the settings.
The display shows TIME OF DAY or another general para-
meter (see 8.1. Generalparameters).
9.3. Regeneration data
1. Push and hold twice for 3 seconds both buttons
and .
The display shows TOTAL DAYS- the total number of days
since start up.
2. Push to go to the next parameter.
The display shows TOTAL REGENS - the total number of
regenerations since start up.
3. Push to go to the next parameter
The display shows TOTAL CUBIC METERS - the total
amount of used water in m³ since the start up. -
9.4. Error log
1. Push to go to the next parameter.
The display shows ERROR LOG. .
The error log includes the last10 errors generated by the
controller.
2. Push or to scroll through the list of 10.
3. Push to exit the settings.
The display shows TIME OF DAY or another general para-
meter (see 8.1. General parameters).
10. Maintenance
Thecompletedmaintenanceworkneedstobedocumentedin
the “Maintenance log” on page 18.
10.1.Preparation
1. Shut down water inlet
2. Unplug the KS20S softener
3. Drain the installation by opening the taps at the highest
and the lowest level of your house.
Day 0
Day 1
Day 2
:
Day 6
Today
Yesterday
The day before yesterday
:
(max)
Note! Not visible in time mode, when the volume
settingis0.Thefunctiondayoverridetriggerstherege-
neration.
Note! "R" is displayed if regeneration has occured in
the last 24 hours.
Note! Only available when controller is switched on.

Caution!Allthemaintenanceworksmustbeperformed
by authorized personnel only.
Warning! Switch off the softener before the main-
tenanceandpreventswitchingonwithoutauthorisation
(mains disconnection)!

MU5H-1419GE23 R0815 17 Honeywell GmbH
English
10.2.Cleaning
Clean inside and the outside of the housing with damp cloth.
10.3.Spare part sets
Maintenance interval: 2 and 6 years
The sets of spare parts for the 2 years interval maintenance
differ from the size of the KS20S softener.
Thesetofthesparepartsforthe6yearsintervalmaintenace
is the same for all KS20S softeners.
Caution! Do not use cleaning agents that contain
solvents when cleaning the plastic parts!
Note!Donotletdetergentstoentertheenvironmentor
the sewerage system!
Caution! Use only original spare parts.
Note! Two different types of maintenance are to be
conducted in a time interval of two and six years
Spare part sets for maintenance every 2 years
KS20S-15
Honeywell part no. WS1 Injector Asy A Black
EK20S-215A WS1 DLFC 013 (1,3 gpm) For 3/4''
WS1 Refill Flow Control 80.5 gpm)
KS20S-45
Honeywell part no. WS1 Injector Asy B Brown
EK20S-245A WS1 DLFC 027 (2,7 gpm) For 3/4''
WS1 Refill Flow Control (0.5 gpm)
KS20S-55
Honeywell part no. WS1 Injector Asy C Violet
EK20S-255A WS1 DLFC 017 (1,7 gpm) For 3/4''
WS1 Refill Flow Control 80.5 gpm)
KS20S-85
Honeywell part no. WS1 Injector Asy D Red
EK20S-285A WS1 DLFC 022 (2,2 gpm) For 3/4''
WS1 Refill Flow Control (0.5 gpm)
Spare part sets for maintenance every 6 years
KS20S-15/45/55/85
Honeywell part no. WS1 Spacer Stack Asy
EK20S-6UA WS1 Piston Upflow Asy
WS1 Regenerant Piston
Chlorinator

Honeywell GmbH 18 MU5H-1419GE23R0815
10.4.Maintenance log
Installation date: _________________________ Network pressure: _________________________
Notes:
Date:
Raw water hardness (°fH) measured
Mix water harndess (°fH)
Suction pump maintained
Disinfection unit replaced
Housing cleaned
