Honeywell HU-20 User manual

HU-20 Water Purifier
Product Installation & Operation Manual
Honeywell Environmental & Combustion Controls
(Tianjin) Co., Ltd.

1
Important Notes P2
Product Functions
Product Features
Installation Instructions
Operation Instructions
Care & Maintenance
Warranty Provisions
Packing List
P4
P5
P6-P7
P8
P9
P10
P11
Safety Precautions P3
Catalog

2
Users must install the water purifier with the help of professionals by st-
rictly following the installation specification set out in the "Product Insta-
llation & Operation Manual" (hereinafter referred to as manual), and use
the water purifier according to the instructions in the manual. Otherwise
the company does not assume any economic or legal responsibility for
the water purifier damage or leakage and consequential property dam-
age due to improper installation and usage of water purifier.
1. Check the water purifier and pipe fittings regularly to see whether th-
ere is any leakage, and avoid property damage caused by leakage.
2. The water purifier is only intended for household use, and may not
be suitable for other purposes.
3. For the water purifier maintenance and filter cartridge replacement,
use the replacement parts authorized by Honeywell Environmental &
Combustion Controls (Tianjin) Co., Ltd..Quality problems, degradation
of operational performance or property damage caused by using una-
uthorized parts or accessories are not covered in the guarantee.
4. Maintenance of the water purifier and filter cartridge replacement
are paid services.
Important Notes

Safety Precautions
3
At the inlet of the water purifier, the water quality must be the municipal
tap water quality which meets local standard.
Do not install the water purifier in the water supply pipe, whose press-
ure exceeds 0.6MPa. If the water inlet pressure exceeds 0.6 MPa, the
pressure reduce valve (purchased separately) must be installed.
The water inlet temperature range of the water purifier is 5 ~ 38°C;wat-
er temperature exceeding 38°C may damage seals and cause leaka-
ge; water temperature below 5°C may cause water to freeze and lead
to the pipe rupture and leakage.
Install the filter cartridge in a correct order, otherwise the water purifier
cannot perform its intended function.
Do not install the water purifier reversely, and connect the water inlet
pipe to the outlet.
Do not install the water purifier in direct sunlight or at a places where it
is exposed to hazardous chemicals or may be damaged by falling or
collision.
Do not install the water purifier near any source of heat.
Do not install the water purifier upside down.

4
* The rated maximum capacity is the effective treatment capacity after adding the standard
solution in the whole process according to the inspection rules required by Ministry of Health.
The actual water treatment capacity may vary depending on local water quality and operating
environment.
Product Functions
Exterior Features
Technical Parameters
Model HU-20
Water inlet pressure
Water inlet temperature
Purified water flow rate
Rated maximum capacity
Water inlet requirement
5–38°C
1.5 L / Min
*2500L
0 .2MPa～0.6MPa
Table 1
Figure 1
330mm
321mm
122mm
Figure 1
Municipal tap water, conforming to local standard

Product Features
Brief Introduction
Caution：
The water purifier is designed to work under the table near the sink in the kitchen.
The supply pipe connects to your existing water connection pipe with a tee joint.
This water purifier is designed to purify the drinking water.
5
Do not let the supply and drainage lines or purifier be frozen. If the water tem-
perature or the ambient temperature drops below 5°C, turn off the supplying
water pipe and discharge the water inside the purifier. The freeze of water su-
pply pipe or purifier may cause failure or damage of enclosure and water pipe
and possible injury.
Filter cartridges Effectively remove/kill
PP dense cotton filter
UF membrane
Color, odor, residual chlorine
Humus and other impurities
Disinfection by-products (chloroform, carbon tetrachloride)
Phenol and othervolatile organic compounds (VOC)
Total bacterial count, E. coli and other microorganisms
Turbidityand other impurities
Organic polymer
E. coli andother microorganisms
MS composite
molecular sieve
filter (sterilization)
Suspended solids, colloids, sediment, rust, particles
andother impurities
Main Components
The water purifier system consists of five main components:
Filter Performance
Table 2
1. Water purifier filter adapter
2. PP dense cotton filter cartridge
3. MS composite molecular sieve filter cartridge (sterilization)
4. UF membrane
5. Tee joint ball valve kit
6. 1 / 4 "PE pipe
The water purifier filter cartridges need to be changed regularly. Replacement cycle of
the PP dense filter cotton, the MS dense composite molecular sieve (sterilization) and UF
membrane will be indicated at the faucet (separate package) base. The green light
indicates it is within the safe range, the yellow light indicates it needs to be replaced
(close to safe range), and the red light indicates it exceeds the safety range, and must
be replaced.

Step 1：
Fix the filter adapter with screws, as
shown in Figure 3.
Step 2：
6
Install PP dense cotton filter cartridge to
the first stage of the filter adapter, and
MS composite molecular sieve filter
cartridge (sterilization) to the second
stage of the filter adapter, and UF
membrane cartridge to the third stage of
the filter adapter.
Align the two pipes of the cartridge to the
connection holes in the filter adapter, and
rotate counter-clockwise to the end.
Installation Instructions
Preparations before Installation
Installation Steps
Figure 3 Figure 4
110mm
1. Confirm the location before installing the water purifier. (It depends on the actual ins-
tallation)
2. Make sure all accessories required for installation are complete.(See packing list)
3. Turn off the water inlet valve before installation.
Input
Filter adapte
Outlet
MS composite molecular
sieve filter cartridge (sterilization)
UF membrane
PP dense cotton filter
cartridge
Figure 2

Installation Steps
Wash and Start Water Purifier
Figure 6
Step 3：
Cut the 1/4”PE pipe into 2 sections. One section is used to connect tee joint ball valve
and filter adapter, and the other section is used to connect faucet and filter adapter, as
shown in Figure 5.
Step 4：Hang the whole set of the water purifier on the filter adapter screws.：
7
Installation Instructions
1. Turn on the water inlet valve and small ball valve.
2. Open the faucet to let the water flow into the water purifier. Due to the role of carbon
particles and bubbles, the water may seem a little muddy at the start, which is normal.
3. Continuously flush new water purifier for about 10 minutes, until the water becomes
clear and no bubbles, and it can provide the drinking water.

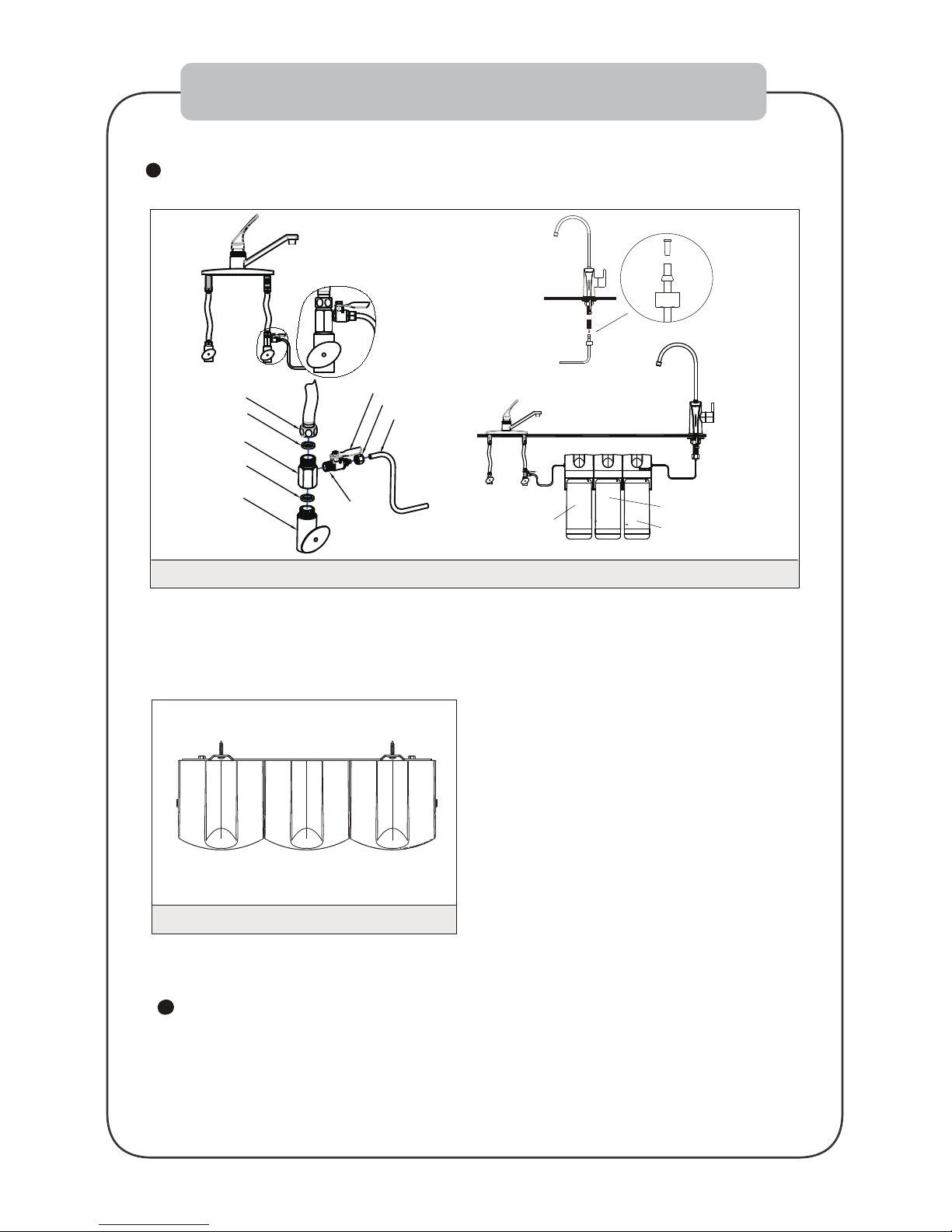

Cold water pipe
connection nut
Sealing gasket
Tee joint
Sealing gasket
Cold water valve
Ball Valve
Ball Valve nut
1/4" PE pipe
Wrapped
with PTFE
tape
Figure 5
MS composite
molecular sieve filter
cartridge (sterilization)
PP dense cotton
filter cartridge UF membrane
filter cartridge
Plug
Ring
Nut

1. Check water purifier and components regularly to avoid leakage,
which may cause damage to property.
2. When you go out or do not use the water purifier for a long time, pl-
ease shut off the water inlet of the purifier (turn off the water inlet b-
all valve).
If the purifier has not been used for 24 hours, please flush it for 5-10
seconds. If the purifier has not been used for more than 5 days (mo-
re than 3 days in summer) ,please flush it for 10 minutes before use.
Do not keep the filter unused for long after the water flows through,
especially in summer, generally no more than 14 days.
3. In case of any following situations, shut off the input water of the pu-
rifier (turn off the water inlet ball valve) immediately, and contact the
service provider as soon as possible.
If the pipe or related parts of the water purifier are leaking.
If the related components of the water purifier malfunction.
If any other anomalies or failures occur.
Operation Instructions
8

The set of capacity and replacement time recommended for
filter cartridges at various stages
Replacing the filter components
Table 3
1. Align the filter cartridge with the filter adapter, and rotate clockwise until it stops. The
filter cartridge automatically comes off.
2. Select the corresponding replacement filter cartridge, align the 2 connection pipes
with the connections holes in the filter adapter, and rotate counter-clockwise until it stops.
3. When replacing the water purifier water cartridge, there is no need to turn off the water
inlet valve, because the filter adapter will automatically turn off the water outlet.
4. When removing the filter cartridge, there may be a little water coming out of the filter
cartridge. Wipe the water off.
Care & Maintenance
9
The set of capacity and replacement time may be adjusted based on the water quality
and usage.
Every filter cartridge of the product uses flow and time dual control. Whichever reaches
the set value, the faucet will give indication. See the faucet manual for details.
1. The recommended replacement cycles for various filter cartridges of the water purifi-
er are estimated by referencing the average indicator of water supply at various regions.
When the water quality at the user's site and the purifier usage are quite different from
the average indicator, filter cartridge usage and estimated cycle may be significantly di-
fferent,such as early clogging or failure of filter cartridge. The actual usage will be used
as the basis for replacing the filter cartridge, and contact the service provider for the
setting.
2. The estimation of filter cartridge usage cycle is based on the average household wa-
ter consumption. The usage cycle is only suitable for household use, and may not be
suitable in public places with large water consumption.
Figure 7
UF membrane filter
cartridge
MS composite molecular
sieve filter cartridge
(sterilization)
PP dense cotton filter
cartridge
Figure 7
PP dense cotton filter
MS composite molecular
sieve (sterilization)
Filter cartridge name Recommended replacement time
UF membrane
1-2 tons
1.5-3 tons
Recommended
handling capacity
2.5-4 tons
3-9 months
6-12 months
12-18 months

1.Warranty period
We provide one year warranty for the whole product, but consumables are not cover-
ed (consumables include various filter cartridges).
Note: The water purifier is only intended for household use, and may not be suitable
for commercial sites.
2. Warranty conditions
Users should follow the following rules, or else the warranty rights will be voided.
● Users should purchase the product from legal sellers through legal ways.
● Users should keep the invoice and the manual in a safe place.
● The product should be installed by service teams authorized by Honeywell
or qualified installation teams authorized by the State authority.
● The supplied manual must be strictly followed when using the product.
3. Exceptional conditions
Product malfunctions or damages in the following situations are not covered in the
warranty：
1) Purchase the product through illegal means or illegal ways.
2) Products without invoice or proof materials.
3) Product malfunctions or damages caused by installation of the unqualified team
or without guidance of the manufacturer.
4) Use non-authorized parts or accessories.
5) Malfunctions or damages caused by improper use and breaking the rules of the
product manual.
6) Malfunctions or damages caused by forced use under abnormal conditions.
7) Damages caused by force majeure.
8) Products repaired by non-authorized staff.
4. Warranty service
Our company will provide comprehensive warranty service for the malfunctioned and
damaged products within the warranty period if they comply with the warranty condi-
tions and do not comply with any exceptional conditions. The warranty services incl-
ude:
● Repair the malfunctioned products for free;
● Replace the malfunctioned parts for free;
● Other services specified in the State regulations, including local laws.
5. Warranty service procedure
1) When the product malfunctions, turn off the water immediately. After verifying that
it meets all the requirements, contact the specified service provider immediately.
2) When the maintenance staff provides on-site services, the user should provide va-
lid invoice and describe the service conditions and malfunctions. After verifying the
product, the maintenance staff will carry out inspection and repair.
Warranty Provisions
10

Item Quantity
Filter adapter
1/4”PE white pipe
1/4” tee joint
1/2” ball valve
Screw
Manual
1 set
1 set
1 set
1 set
2.0 m
1 pcs
1 pcs
2 pcs
1 pcs
Table 4
No
1
2
3
5
4
6
7
8
9
Accessories
Packing List
11
PP dense cotton filter cartridge
UF membrane filter cartridge
MS composite molecular sieve filter
cartridge (sterilization)

No. 158, NanHai Road
Tianjin Economic-Technological Development Area
Tianjin, 300457, P.R.C.
Phone: [phone]
Subject to change without notice
50085497-001
Honeywell Environmental & Combustion Controls
(Tianjin) Co., Ltd.
