Horizon Fitness Achiever 507 User manual

ELLIPTICAL
Achiever 507
V1.0

1
TABLE OF CONTENTS
SAFETY INSTRUCTIONS
GETTING STARTED/POWER
MOVING/FOOT POSITION
KNOW YOUR ELLIPTICAL
QUICK START UP
PROGRAMMING
DISPLAY
PROGRAM PROFILES
USING YOUR HRC PROGRAM
USING YOUR FIT-TEST PROGRAM
USING YOUR STEP-TEST PROGRAM
USING YOUR WATTS CONTROL PROGRAM
USING YOUR CUSTOM PROGRAMS
MONITORING YOUR HEART RATE

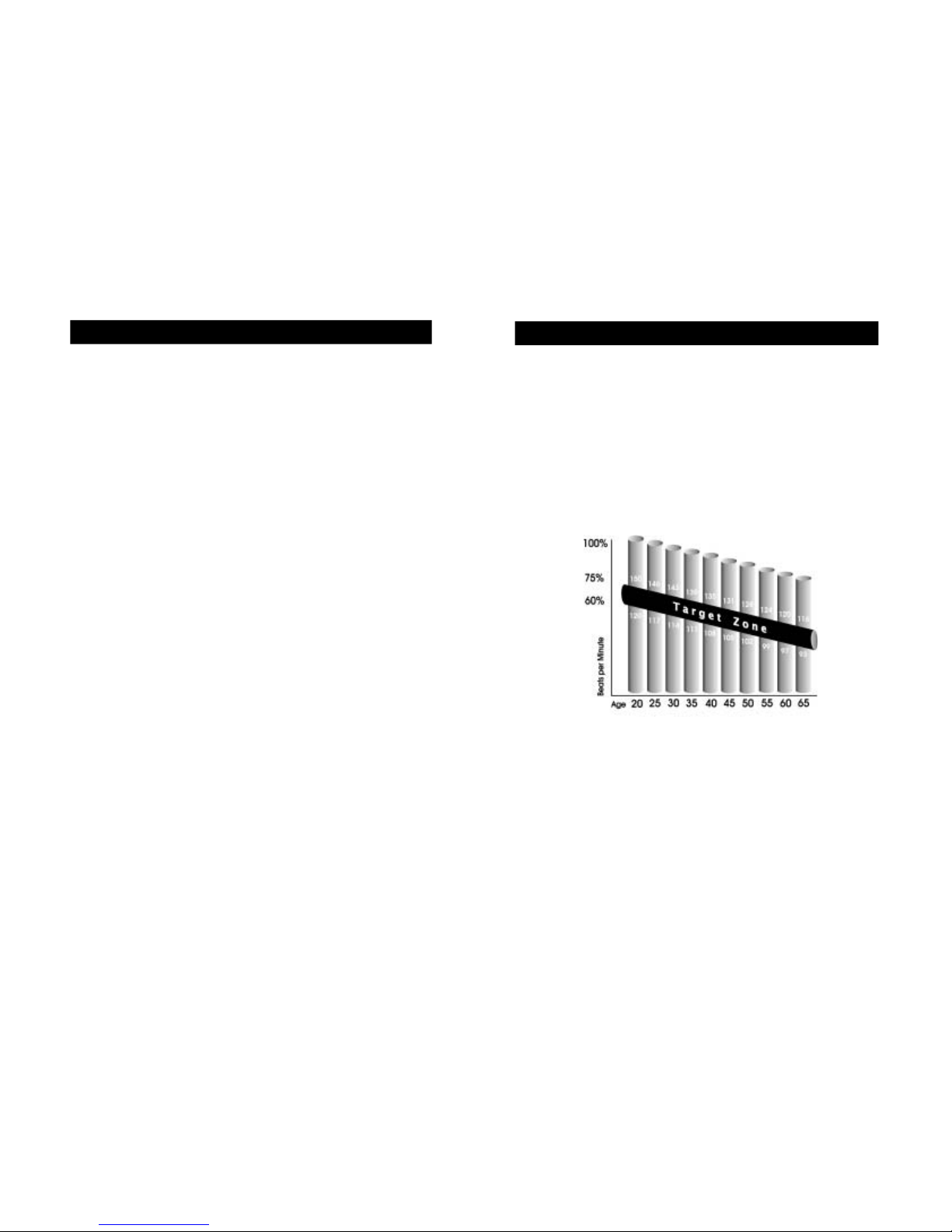

TARGET HEART RATE ZONE
TROUBLESHOOTING YOUR ELLIPTICAL TRAINER
HEART RATE TROUBLESHOOTING
COMMON PRODUCT QUESTIONS
EXERCISE GUIDELINES
ROUTINE MAINTENANCE
DEVELOPING A FITNESS PROGRAM
THE IMPORTANCE OF WARM UP AND COOL DOWN
ACHIEVING YOUR FITNESS GOALS
WEEKLY LOG SHEET
MONTHLY LOG SHEET
LIMITED HOME USE WARRANTY
!CAUTION
Read all precautions and instructions in this manual before using this equipment.
Save this manual for future reference.
2
5
6
7
8
9
10
11
13
14
15
16
17
18
19
20
22
23
24
26
27
28
29
30

23
SNOITCURTSNI ESEHT EVAS
When using an electrical product, basic precautions should always be followed.
Read all instructions before using this exercise product.
WARNING !
To reduce the risk of burns, fire, electrical shock or injury to persons:
• Use this exercise product for its intended use as described in this Owner's guide. Do
not use attachments not recommended by the manufacturer.
• Never drop or insert any object into any opening.
• Do not remove the elliptical trainer's side covers.
• N ever operate this elliptical trainer if it has a damaged cord or plug, if it is not working
properly, if it has been damaged, or immersed in water.
• K eep the cord away from heated surfaces.
• Do not use outdoors.
• Only use the power cord provided with your Horizon Fitness Elliptical Trainer.
• Never place the power cord under carpeting or place any object on top of the power
cord, which may pinch or damage it.
• Unplug your Horizon Fitness Elliptical Trainer before moving it.
Information to the check after German Institute for Standardization EN
957:
• Brake system dependent on speed
• W att announcement is calibrated and opposed after EN 957-5
• Device class H
• User's Weight Limit 130kgs
IMPORTANT SAFETY INSTRUCTIONS OTHER SAFETY TIPS FOR YOUR HORIZON FITNESS ELLIPTICAL TRAINER
CAUTION!
• If you experience chest pains, nausea, dizziness or shortness of breath, stop exercising
immediately and consult your physician before continuing.
• Do not turn pedal arms by hand.
• Do not wear clothing that might catch on any part of the elliptical trainer.
• Make sure handlebars are secure before each use.
• Read the owner's guide before operating this elliptical trainer.
• Maintain a comfortable pace. Do not 'sprint' above 80 rpms on this machine.
• To maintain balance it is recommended to keep a grip on the handlebars while exercising,
mounting or dismounting the machine.
OPERATION
It is essential that your elliptical trainer is used only indoors, in a climate controlled room.
If your elliptical trainer has been exposed to colder temperatures or high moisture
climates, it is strongly recommended that the elliptical trainer is warmed up to room
temperature before first time use. Failure to do so may cause premature electronic
failure.
CHILDREN
• K eep children off of your elliptical trainer at all times.
• When the elliptical is in use, young children and pets should be kept at least 10 feet
away.
CLEANING
• Clean with soap with a slightly damp cloth only. Never use solvents.

5
POWER
4
GETTING STARTED
LEVELLING
The elliptical trainer should be level for optimum use. Once you have placed the
elliptical trainer where you intend to use it, raise or lower the adjustable levellers
located on the outside of each pedal arm. Once you have levelled the elliptical trainer,
lock the levellers in place by tightening the wing nuts against the frame.
CONGRATULATIONS! on choosing a Horizon Fitness Elliptical Trainer.
You've taken an important step in developing and sustaining an exercise program!
Your Horizon Fitness elliptical trainer is a tremendously effective tool for achieving your
personal fitness goals. Regular use of your Horizon Fitness elliptical trainer can improve
the quality of your life in so many ways.
Here are just a few of the health benefits of aerobic exercise
• W eight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
• Reduced Stress
• Help in Countering Anxiety and Depression
• An Improved Self Image
The key to reaping these benefits is to develop the exercise habit. Your new Horizon
Fitness elliptical trainer will help you eliminate the obstacles that prevent you from
getting in your exercise time. Inclement weather and darkness won't interfere with your
workout when you use your Horizon Fitness elliptical trainer in the comfort of your
home. This manual provides you with basic information for using and enjoying your new
machine. A more complete knowledge of your new Horizon Fitness elliptical trainer will
assist you in realizing your goal of a healthy lifestyle.
CAUTION:
BEFORE BEGINNING ANY EXERCISE PROGRAM, ALWAYS CONSULT YOUR
PHYSICIAN. IF YOU EXPERIENCE CHEST PAINS, NAUSEA, DIZZINESS OR SHORTNESS OF
BREATH, STOP EXERCISING AND CONSULT YOUR PHYSICIAN BEFORE CONTINUING.
IMPORTANT: PLEASE READ BEFORE USE!
ASSEMBLY
CAUTION! There are several areas during the assembly process of a Horizon Fitness
elliptical trainer that special attention must be paid. It is very important to follow the
assembly instructions correctly and to make sure all parts are firmly tightened. If the
assembly instructions are not followed correctly, the elliptical trainer could have frame
parts that are not tightened and will seem loose and may cause irritating noises. To
prevent damage to the elliptical trainer, the assembly instructions must be reviewed and
corrective actions should be taken.
Your Achiever 507 Elliptical Trainer is powered by a power supply. The power supply must be
plugged into the power jack.which is located in the front of machine near the front foot tube.
Power jack

67
Your Horizon Fitness elliptical trainer has a pair of transport wheels built into the front
of the frame. To move, firmly grasp the rear foot tube carefully lift and roll.
CAUTION!
Our elliptical trainers are well built and heavy, weighting up to 120lbs.! Use care and
additional help if necessary when moving.
FOOT POSITION
When using your elliptical trainer, you may notice that your heel raises off of the foot
pad. This is a natural walking or running motion and you should not try to prevent this.
MOVING KNOW YOUR ELLIPTICAL TRAINER

9
8
QUICK START UP
Your Elliptical Trainer is powered by a adaptor.
1. Grasp the handlebars and step up onto the foot pedals.
2. Press the 'START' button to begin exercising.
To set the timer to count up as you exercise.
Push and hold Reset button to clear any existing data.
To count up from zero simply start pedalling. Note: if you stop pedalling your data will
be retained even if the console shuts down after a period of time unless you push the
Reset button.
To set the timer for a fixed period of time to exercise.
Push and hold the button to scroll the minutes up to your desired length of time.
Releasing the button will start the count down.
3. Begin moving your feet. Gradually increase your pace to your target heart rate or perceived
exertion level. Warning! Try not to exceed 140 rpms on this machine. The amount of
pedalling resistance can be adjusted by pressing the plus + , or minus - buttons
(easiest #25w through to hardest #400w, with 5w up or down/click)
PROGRAMMING
STARTING YOUR WORKOUT
Press the ' START ' button to begin exercising
FINISHING YOUR WORKOUT
Remember to gradually slow down your pace before stopping your workout. The
machine will not stop moving if you stop your feet abruptly. After you have finished your
workout, the console will `beep' several times to let you know that your workout has
finished.

11
10
Watts Control
Exercise at a set work level. As you increase your
pedal rate(RPM), your resistance will decrease; if
you decrease your pedal rate (RPM), your
resistance will increase
Interval
Improves your strength, speed, and endurance
by raising and lowering the resistance levels
throughout your workout to involve both your
heart and muscles.
Rolling
Maintains weight by gradually raising and
lowering the resistance level to gradually raise
and lower your heart rate.
Weight loss
Promotes weight loss by raising and lowering
the resistance level, while keeping you in your fat
burning zone.
Mountain
Improves performance and stamina by raising
the resistance level to high peaks to simulate the
most difficult outdoor terrains.
Foot Hill
Improve heart and lung capacity by continuing
exercise.
P R O G R A M P R O F I L E S
CALORIES
Shown as your total accumulated calories burned during your workout.
HR
Shown as Beats Per Minute. Used to monitor your heart rate during your workout
(displayed when contact is made with both grips. Pulse can only be viewed while on the
pulse screen).
DISPLAY
LEVEL
Show your exercise
RPM
Shown as your rotational speed per minute
TIME
Shown as Minutes: Seconds. View the time remaining or the time elapsed in your
workout.
DISTANCE
Shown as miles or kilometers. View the accumulated distance during your workout.
SPEED
Shown as your speed in miles or kilometers per hour.
WATT
A measurement of your expending energy. May be used to evaluate and quantify your
fitness progress over time.

13
After Burner
Promotes weight loss by raising and lowering
the resistance level, while keeping you in your
fat burning zone.
HRC 1.2
Benefits weight loss by maintaining an optimum
exercise level to burn fat, while adjusting the
resistance to keep you in your target heart rate
zone.
CUSTOM 1.2.3
Customized workout, time defaults to 15
minutes.
12
Fit-Test
Test your current lenel of physical fitness.At
completion of the program,it will provide
feedbacd regarding your fitness level for you to
monitor your progress
Step test
Short Description for Step-Test Improves your
endurance by raising the wattage.Wordout time
is 30 minutes.
U S I N G Y O U R H R C P R O G R A M
Once the HRC quick program key is selected,wait for 5 seconds and you will see
the target heart rate flashing in the Heart Rate window. Using the chart on page 19,
determine your target heart rate. Your target heart rate should be set at a number that
you will be able to exercise at throughout the majority of your workout. To adjust the
target heart rate, Press the plus + or minus - buttons.
Once you have chosen your target heart rate, wait for five seconds and you will see the
time flashing in the Time window. Press the plus + or minus - buttons to adjust your
time. Once you choose your time, Press the‘Start’button and begin your workout.
The ‘THR Zone’ program will have a 5 minute warm up time before it will get you in your
‘target heart rate zone’.
After the 5 miunte warm up period, the resistance level will increase gradually to get
the user to the entered ‘target heart rate zone’. Once the user is at the ‘target heart rate
zone’, plus or minus 5 beats, the resistance level will remain at the current resistance
level.
The last 5 minutes of the program will begin the cool down period. At this time, the
program will gradually decrease the resistance level to give the user a smooth cool down.
Note: The Chest Strap Transmitter is required to use the HRC Program.
CHEST STRAP TRANSMITTER PLACEMENT AND MOISTENING THE
ELECTRODES
LOGO

14 15
USING YOUR FIT-TEST PROGRAM USING YOUR STEP-TEST PROGRAM
Your Fit-Test Program is designed for you to test your current level of physical fitness.
Upon completion of the program, it will provide feedback regarding your fitness level for
you to monitor your progress. To use your Fit-Test Program, follow these instructions:
1) Choose the "Fit-Test" program using the - or + keys, then press "Select".
2) Use the - or + keys to choose the desired Watts set up. The default Watts set up
is 100W, and the Watts range is 25 ~ 400W. Next, please press the "Select" key to
confirm the Watts setting.
3) Use the - or + keys to choose your Sex, Men or Women. Next, please press the
"Select" key to confirm.
4) Use the - or + keys to choose your Age. The default Age is 30, and the age range
is 20 ~ 70 years old. Next, please press the "Select" key to confirm the your Age.
5) Use the - or + keys to choose the desired Time set up. The default Time set is 10
minutes, and the time range is 5 ~ 15 minutes. For an optimum Fit-Test, the
recommended program Time set up is 10 minutes. Next, please press the "Select" key
to confirm the Time setting.
6) Use the - or + keys to choose your Weight. The default Weight set up is
68kg/150lbs, and the weight range is 20 ~ 150kg / 50 ~ 400lbs. Next, please press
the "Select" key to confirm your Weight.
7) Press the "Start" key to begin your Fit-Test Program.
8) After the Fit-Test Program is over the screen will show feedback regarding your level
of physical fitness, which are Low, Fair, Average, Good, or Excellent.
9) Reminder: You are unable to adjust the Resistance Level when using the Fit-Test
Program.
USING YOUR STEP-TEST PROGRAM
1. Choose the Step - Test program using the – or + keys, then press select.
2. Use the – or + keys to choose the desired Starts-Watts set up. The default
Watts set up is 100W, and the Watts range is 25 ~ 400W. Next, please press
Select key to confirm the Watts setting.
3. Use the – or + keys to choose your Weight. The default Weight set up is
68kg/150lbs, and the Weight range is 20-150kg/50-400lbs.
4. Next, please press Start key to start the Step Test
The default time is 30 minutes. Stop your workout if you do not feel good. Try to
develop your endurance by the next workout. You shall receive feedback information
about your training performance.

17
16
USING YOUR WATTS CONTROL PROGRAM USING YOUR CUSTOM PROGRAMS
Your Watts Control Program is designed for you to exercise at a set work level. The
resistance level will increase or decrease according to the pedal rate (RPM) in order to
achieve your desired Watts set. To use your Watts Control Program, follow these
instructions:
1) Choose the "Watts Control" program using the - or + keys, then press "Select".
2) Use the - or + keys to choose the desired Watts set up. The default Watts set
up is 100W, and the Watts range is 25 ~ 400W. Next, please press the "Select" key to
con firm the Watts setting.
3) Use the - or + keys to choose the desired Time set up. The default Time set up
is 0 minutes, and the time range is 0 ~ 99 minutes. Next, please press the "Select"
key to confirm the Time setting.
4) Use the - or + keys to choose your Weight. The default Weight set up is
68kg/150lbs, and the weight range is 20 ~ 150kg / 50 ~ 400lbs. Next, please press
the "Select" key to confirm your Weight.
5) Press the "Start" key to begin your Watts Control Program.
Your Custom Program is designed to allow you to create your own programming, with
the ability to save your program settings for future workouts. to use your Custom
Program, follow these instructions:
1) once the Custom Program has been selected, press 'SELECT'
2) Choose your desired time using the + or - keys and press 'SELECT'
3) Choose your desired watt level using the + or - keys and press 'SELECT'. You will
need to select a watt level for all 15 segments, pressing 'SELECT' after each segment.
4) once all 15 watt level segments have been chosen, you will need to input your
weight, Choose your desired weight using - or + keys. The default weight set up is
68kg/150lbs, and the weight rage is 20~150kg/50~400lbs. Next, please press the
‘SELECT’ key to confirm your weight.
5）Then you will need to input your name. Choose your desired letter using + and -
keys and press 'SELECT'. once you have chosen your desired name which is no more
than 9 letters, press 'STOP' to begin your program. At this time, your program has
been successfully saved into memory, and can be used for future workouts.
6) to reset your program information and delete it from memory, Press and hold the
'SELECT' button for 5 seconds once you have selected the Custom Program in the
startmenu.
7) while using your saved program in the Custom Program, you are able to adjust the
watt level, But any changes will not be saved.

18 19
Your `Target Heart Rate Zone' is a percentage of your maximum heart rate. Target Zones
will vary for each individual, depending on age, current level of conditioning, and
personal fitness goals. The American Heart Association recommends working-out at a
`Target Heart Rate Zone' of between 60% and 75% of your maximum heart rate. See the
chart below for convenient reference. Example for a 42-year old user: find age along the
bottom of the chart (round to 40), follow age column up to the target zone bar. Results:
60% of maximum Heart Rate = 108 Beats Per Minute, 75% of maximum Heart Rate = 135
Beats Per Minute.
TARGET HEART RATE ZONE
Heart Rate Chart
Feedback
Your Horizon Fitness elliptical trainer offers two heart rate feedback options. You may
choose to use the heart rate handlebars, or the chest transmitter for a hands free
workout.
Heart Rate Handlebar
Place the palm of your hands directly on the heart rate handlebars. Both hands must grip
the bars for your heart rate to register. When griping the handlebars, do not grip
tightly. Holding the grips tightly may elevate your blood pressure. Try to maintain
moderate pressure while holding onto the heart rate handlebars. It is recommended that
you hold the handlebars only long enough the see your heart rate readout on the
console. You may experience an erratic readout if consistently holding the handlebars.
Telemetric Chest Transmitter
Prior to wearing the chest transmitter on your chest, moisten the two rubber electrodes
with water. Center the chest strap just below the breast or pectoral muscles, directly over
your stermum, with the Horizon Fitness logo facing out Note: The chest strap must be
tight and properly placed to receive an accurate and consistent readout. If the chest
strap is too loose, or positioned improperly, you may receive an erratic or inconsistent
heart rate readout.
If you have any problems with the heart rate function please refer to pages 20 & 21 in
the troubleshooting section.
Warning!
The heart rate function is not a medical device. Various factors may affect the accuracy
of your heart rate reading. The heart rate reading is intended only as an exercise aid.
MONITORING YOUR HEART RATE

20 21
PROBLEM:Erratic or Inconsistent Readout.
SOLUTION:This is often caused by dry electrodes or a loose chest strap. Moisture on the
rubber electrodes is required for proper operation. Try a more generous coating of water
on the electrodes and tightening the chest strap.
Check your exercise environment for sources of interference such as high power lines,
large motors, etc.
You may experience an erratic readout under the following conditions:
• Gripping the heart rate handlebars too tight. Try to maintain moderate pressure
while holding onto the heart rate handlebars.
• Constant movement and vibration due to constantly holding the heart rate grips
while exercising.
• When you are breathing heavily during a workout.
• When your hands are constricted by wearing a ring.
• When your hands are dry or cold. Try moistening your palms or rubbing them togeth
er to warm.
• Anyone with heavy arrhythmia.
• Anyone with arteriosclerosis or peripheral circulation disorder.
• Anyone whose skin on the measuring palms is especially thick.
Note: Outside interference sources such as computers, motors and fluorescent
lights may cause the heart rate reading to be erratic.
If the above troubleshooting section does not remedy the problem,
discontinue use and turn the power off.
Please contact your local dealer for further assistance.
TROUBLESHOOTING YOUR ELLIPTICAL TRAINER
Your Horizon Fitness Elliptical Trainer is designed to be reliable and maintenance free.
However, if you do experience problems with your Elliptical Trainer, please reference the
troubleshooting guide listed below.
PROBLEM:There is no display on the console.
SOLUTION: Remove the console and verify that the console cable is attached properly,
making sure that the cable is securely inserted into the console.
PROBLEM:The elliptical trainer makes a squeaking or chirping noise.
SOLUTION: Loosen all bolts attached during the assembly process, grease the threads
and tighten again.
PROBLEM:The resistance levels seem to be incorrect, seeming too hard or too easy.
SOLUTION: Reset the console and allow the resistance to reset to the default position.
Restart the console and retry the resistance levels.
HEART RATE TROUBLESHOOTING
PROBLEM:There is no heart rate reading
SOLUTION: If you are using the chest strap, there may be a poor connection between
the electrodes and the skin. Remoisten the electrodes with water.
SOLUTION: The chest strap may not be positioned properly. Reposition the chest strap.
It may be necessary to experiment with the fit and position of the chest strap.
SOLUTION: Verify that the distance between the chest strap and the console is not
beyond the recommended range of 36 inches.
SOLUTION: The battery in the chest strap may be dead. Take the chest strap to a
jewellery store or return to Horizon Fitness for a battery replacement.

22 23
EXERCISE GUIDELINES
Always consult your physician before beginning an exercise program.
HOW OFTEN?
The American Heart Association recommends that you exercise at least 3 to 4 days per
week to maintain cardiovascular fitness. If you have other goals such as weight or fat
loss, you will achieve your goal faster with more frequent exercise. Whether It's 3 days or
6 days, remember that your ultimate goal should be to make exercise a lifetime habit.
Many people are successful staying with a fitness program if they set aside a specific time
of day to exercise. It doesn't matter whether it's in the morning before your shower,
during your lunch hour or while watching the evening news. What's more important is
that it's a time that allows you to keep a schedule, and a time when you won't be
interrupted. If you are to be successful with your fitness program, you have to make it a
priority in your life. So decide on a time, pull out your day planner and pencil in your
exercise times for the next month!
HOW LONG?
For aerobic exercise benefits, it's recommended that you exercise from between 24 and
32 minutes per session. But start slowly and gradually increase your exercise times. If
you've been sedentary during the past year, it may be a good idea to keep your exercise
times to as little as five minutes initially. Your body will need time to adjust to the new
activity. If your goal is weight loss, a longer exercise session at lower intensities has been
found to be most effective. A workout time of 48 minutes or more is recommended for
best weight loss results.
COMMON PRODUCT QUESTIONS
ARE THE SOUNDS MY ELLIPTICAL MAKES NORMAL?
Our Elliptical Trainer are some of the quietest available because they use belt drives and
friction free magnetic resistance. We use the highest grade bearings and belts to
minimize noise. However, because the resistance system itself is so quiet, you will
occasionally hear other slight mechanical noises. Unlike older, louder technologies, there
are no fans, friction belts, or alternator noises to mask these sounds on our Elliptical
Trainer. These mechanical noises, which may or may not be intermittent, are normal and
are caused by the transfer of significant amounts of energy to a rapidly spinning
flywheel. All bearings, belts and other rotating parts will generate some noise which will
transmit through the casing and frame. It is also normal for these sounds to change
slightly during a workout and over time because of thermal expansion of the parts.
WHY IS THE ELLIPTICAL TRAINER I HAD DELIVERED LOUDER THAN THE ONE
AT THE STORE?
All fitness products seem quieter in a large store showroom because there is generally
more background noise than in your home. Also, there will be less reverberation on a
carpeted concrete floor than on a wood overlay floor. Sometimes a heavy rubber mat will
help reduce reverberation through the floor. If a fitness product is placed close to a wall,
there will be more reflected noise.
HOW LONG WILL THE DRIVE BELT LAST?
The computer modeling we have done indicated virtually thousands of maintenance
free hours. Belts are now commonly used in far more demanding applications such as
motorcycle drives.
CAN I MOVE THE ELLIPTICAL TRAINER EASIER ONCE IT IS ASSEMBLED?
Your Horizon Fitness ELLiptical has a pair of transport wheels built into the front foot. It
is easy to move your ELLiptical by rolling it on the front transport wheels.
It is important that you place your Horizon Fitness ELLiptical in a comfortable and
inviting room. Your ELLiptical is designed to use minimal floor space. Many people will
place their ELLiptical facing the TV or a picture window. If at all possible, avoid putting
your ELL! ptical in a unfinished basement. To make exercise a desirable daily activity for
you, the Elliptical Trainer should be in an attractive setting.

24 25
EVERY MONTH
• Inspect all assembly bolts and pedals on the machine for proper tightness.
HOW HARD?
How hard you workout is also determined by your goals. If you use your Horizon Fitness
Elliptical Trainer to prepare for a 5K run, you will probably work out at a higher
intensity than if your goal is general fitness. Regardless of your long term goals, always
begin an exercise program at low intensity. Aerobic exercise does not have to be painful
to be beneficial! There are two ways to measure your exercise intensity. The first is by
monitoring your heart rate (see page 18), and the second is by evaulating your perceived
exertion level (this is simpler than it sounds!).
Note: Always consult your physician before beginning an exercise program.
PERCEIVED EXERTION LEVEL
The second and simpler way to gauge your exercise intensity is to evaluate your perceived
exertion level. While exercising, if you are too winded to maintain a conversation
without gasping, you are working out too hard. A good rule of thumb is to work to the
point of exhilaration, not exhaustion. If you cannot catch your breath, it's time to slow
down. Always be aware of other warning signs of overexertion.
ROUTINE MAINTENANCE
WHAT KIND OF ROUTINE MAINTENANCE IS REQUIRED?
We use sealed bearings throughout our Elliptical Trainer so lubrication is not needed. The
most important maintenance step is to simply wipe your perspiration off the trainer after
each use.
HOW DO I CLEAN MY HORIZON FITNESS ELLIPTICAL TRAINER?
Clean with soap and water cleaners only. Never use solvents on plastic parts. Cleanliness
of your Horizon Fitness elliptical trainer and its operating environment will keep
maintenance problems and service calls to a minimum. For this reason, Horizon Fitness
recommends that the following preventative maintenance schedule be followed.
AFTER EACH USE (DAILY)
Turn off the elliptical trainer with the on/off switch, and unplug the power cord from the
wall outlet.
WARNING!
To remove power from the elliptical, the power cord must be disconnected from the wall
outlet.
• Wipe down the elliptical trainer with a damp cloth. Never use solvents, as they can
cause damage to the elliptical.
• Inspect the power cord. If the power cord is damaged contact Horizon Fitness.
• Make sure the power cord is not underneath the elliptical trainer or in any other area
where it can become pinched or cut.
EVERY WEEK
Clean underneath the elliptical, following these steps:
• Turn off the elliptical trainer with the on/off switch.
• Then unplug the power cord at the wall outlet.
• Move the elliptical trainer to a remote location.
• Wipe or vacuum any dust particles or other objects that may have accumulated
underneath the elliptical.
• Return the elliptical trainer to its previous position.

An important step in developing a long term fitness program is to determine your goals.
Is your primary goal for exercising on your Horizon Fitness Elliptical Trainer to lose
weight? Improve muscle? Burn Stress? Prepare for the spring racing schedule? Knowing
what your goals are will help you develop a more successful exercise program. Below are
some common exercise goals:
• W eight Loss • Weight Maintenance
• Improve Body Shape and Tone • Strengthen Leg Muscles
• Increased Energy Level • Improved Sleep Patterns
• Improved Sports Performance • Stress Reduction
• Improved Cardiovascular Endurance
If possible try to define your personal goals in precise, measurable terms, and then put
your goals in writing. The more specific you can be, the easier it will be to track your
progress. If your goals are long term, divide them up into monthly and weekly segments.
Longer term goals can lose some of the immediate motivation benefits. Short term goals
are easier to achieve. Your Horizon Fitness Elliptical Trainer console provides you with
several readouts that can be used to record your progress. You can track Distance,
Calories or Time. Time is the most important and useful of test functions.
KEEPING AN EXERCISE DIARY
Photocopy the weekly and monthly log sheets on the following pages to make your
personal exercise log book. As time goes by you'll be able to look back with pride at the
work you've done. As your fitness improves, you can look back and see how far you've
come.
ACHIEVING YOUR FITNESS GOALS
26 27
STRETCH FIRST
Before using your Horizon Fitness product, it is best to take a few minutes doing a few
gentle stretching exercises. Stretching prior to exercise will improve flexibility and reduce
chances of exercise related injury. Ease into each of these stretches with a slow gentle
motion. Do not stretch to the point of pain. Make sure not to bounce while doing these
stretches.
WALL PUSH
Stand near a wall with the toes of one foot about 18" from the wall, and the other foot
about 12" behind the other foot. Lean forward, pushing against the wall with your
palms. Keep your heels flat and hold this position for a count of 15 seconds. Make sure
that you do not bounce while stretching. Alternate positions of your feet and repeat for
a total of 8 repetitions.
STANDING QUADRICEPS STRETCH
Using a wall to provide balance, grasp your left ankle with your left hand and hold your
foot against the back of your thigh for a count of 15 seconds. Repeat with your right
ankle and hand, and continue alternating for a total of 8 repetitions.
SEATED TOE TOUCH
Sit on the floor with your legs together and straight out in front of you. Do not lock your
knees. Extend your fingers towards your toes and hold for a count of 15 seconds. Make
sure that you do not bounce while stretching. Sit upright again. Repeat for a total of 8
repetitions.
DEVELOPING A FITNESS PROGRAM
WARM UP
The first 2 to 5 minutes of a workout should be devoted to warming up. The warm-up
will limber your muscles and prepare them for more strenuous exercise. Make sure that
you warm-up on your Horizon Fitness product at a slow pace.
COOL DOWN
Never stop exercising suddenly! A cool-down period allows your heart to readjust to the
decreased demand. Make sure that your cool down period consists of a very slow pace
to allow your heart rate to lower. After the cool-down, repeat the stretching exercises
listed above to loosen and relax your muscles.
THE IMPORTANCE OF WARM UP AND COOL DOWN

MONTHLY LOG SHEET
MONTH MONTHLY GOAL:
WEEK# DISTANCE CALORIES TIME
MONTHLY TOTALS
MONTH MONTHLY GOAL:
WEEK# DISTANCE CALORIES TIME
MONTHLY TOTALS
28 29
WEEKLY LOG SHEET
WEEK# WEEKLY GOAL:
DAY
SUN
MON
TUES
WED
THUR
FRI
SAT
DISTANCE CALORIES TIME
WEEKLY TOTALS
DATE COMMENTS
WEEK# WEEKLY GOAL:
DAY
SUN
MON
TUES
WED
THUR
FRI
SAT
DISTANCE CALORIES TIME
WEEKLY TOTALS
DATE COMMENTS

30
LIMITED HOME USE WARRANTY
FRAME-LIFETIME
Horizon Fitness warrants the frame against defects in workmanship and materials for the
lifetime of the original owner.
ELECTRONICS & PARTS
Horizon Fitness warrants the electronic components and all original parts for a period
from the date of original purchase, so long as the device remains in the possession of the
original owner.
Labour
Horizon Fitness shall cover the labour cost for the repair of the device for a period from
the date of the original purchase, so long as the device remains in the possession of the
original owner.
EXCLUSIONS AND LIMITATIONS
This warranty applies only to the original owner and is not transferable. This warranty is
expressly limited to the repair or replacement of a defective frame, electronic component,
or defective part and is the sole remedy of the warranty. The warranty does not cover
normal wear and tear, improper assembly or maintenance, or installation of parts or
accessories not originally intended or compatible with the elliptical trainer as sold. The
warranty does not apply to damage or failure due to accident, abuse, corrosion,
discoloration of paint or plastic, or neglect. Horizon Fitness shall not be responsible for
incidental or consequential damages. All returns must be pre-authorized by Horizon
Fitness. Horizon Fitness' obligation under this warranty is limited to replacing or
repairing, at Horizon Fitness' option, the product at one of its authorized service centers.
An Horizon Fitness authorized service center must receive all products for which a
warranty claim is made. These products must be received with all freight and other
transportation charges prepaid, accompanied by sufficient proof of purchase. Parts and
electronic components reconditioned to As New Condition by Horizon Fitness or its
vendors may sometimes be supplied as warranty replacement parts and constitute
fulfillment of warranty terms.
Please consult your local dealer for more warranty details.
