Hotsy DB-2323 User manual

For technical assistance or the dealer nearest you consult our web page at
www.hotsy.com
DB
8.914-449.0
OPERATOR’S MANUAL
■DB-2323 ■DB-2324 ■DB-2527
■DB-3030 ■DB-3835 ■DB-3540

3
CONTENTS
Hotsy DB • 8.914-449.0 • Rev. 11/15
Model Number ______________________________
Serial Number ______________________________
Date of Purchase ____________________________
The model and serial numbers will be found on a decal attached
to the pressure washer. You should record both serial number and
date of purchase and keep in a safe place for future reference.
Important Safety Information ................................................................4-6
Component Identification......................................................................... 7
Assembly Instructions.............................................................................. 8
Operating Instructions.........................................................................9-10
Applying Detergent and General Operating Techniques........................ 11
Shut Down and Clean-Up...................................................................... 12
Storage .................................................................................................. 12
Troubleshooting ................................................................................13-14
Preventative Maintenance ..................................................................... 15
Hose & Spray Gun Assembly ................................................................ 16
Oil Change Record ................................................................................ 17
Warranty ................................................................................................ 18

Hotsy DB • 8.914-449.0 • Rev. 11/15
OPERATOR’S MANUAL PRESSURE WASHER
4
INTRODUCTION & IMPORTANT SAFETY INFORMATION
Thank you for purchasing this Pressure Washer.
We reserve the right to make changes at any time
without incurring any obligation.
Owner/User Responsibility:
The owner and/or user must have an understanding of
the manufacturer’s operating instructions and warnings
before using this pressure washer.Warning information
should be emphasized and understood. If the operator
is not fluent in English, the manufacturer’s instruc-
tions and warnings shall be read to and discussed
with the operator in the operator’s native language by
the purchaser/owner, making sure that the operator
comprehends its contents.
Owner and/or user must study and maintain for future
reference the manufacturers’ instructions.
The operator must know how to stop the machine
quickly and understand the operation of all controls.
Never permit anyone to operate the engine without
proper instructions.
SAVE THESE INSTRUCTIONS
This manual should be considered a permanent
part of the machine and should remain with it if
machine is resold.
When ordering parts, please specify model and
serial number. Use only identical replacement parts.
This machine is to be used only by trained operators.
IMPORTANT SAFETY
INFORMATION
READ OPERATOR’S
MANUAL THOROUGHLY
PRIOR TO USE.
WARNING: To reduce the risk of
injury, read operating instruc-
tions carefully before using.
1. Read the owner's man-
ual thoroughly. Failure to
follow instructions could
cause malfunction of the
machine and result in
death, serious bodily in-
jury and/or property damage.
2. Know how to stop the machine and bleed pressure
quickly. Be thoroughly familiar with the controls.
3. Stay alert — watch what you are doing.
4. All installations must comply with local codes.
Contact your electrician, plumber, utility company
or the selling distributor for specific details.
WARNING
RISK OF
ASPHYXIATION: USE
THIS PRODUCT ONLY IN
A WELL
VENTILATED AREA.
WARNING: Risk of asphyxiation.
Use this product only in a well
ventilated area.
5. Avoid installing machines in
small areas or near exhaust
fans. Exhaust contains poi-
sonous carbon monoxide
gas; exposure may cause loss
of consciousness and may
lead to death. It also contains
chemicals known, in certain quantities, to cause
cancer, birth defects or other reproductive harm.
WARNING
RISK OF FIRE.
DO NOT ADD FUEL
WHEN OPERATING
MACHINE.
WARNING: Risk of re. Do not
add fuel when the product is
operating.
WARNING: Risk of explosion
— do not spray flammable
liquids.
6. Do not place machine
near flammable ob-
jects as the engine is hot.
WARNING: This product contains chemicals known
to the state of California to cause cancer and birth
defects or other reproductive harm. Operation of
this equipment may create sparks that can start
res around dry vegetation. A spark arrestor may
be required. The operator should contact: Local
re agencies for laws or regulations relating to re
prevention requirements.
7. Allow engine to cool for 1-2 minutes before refu-
eling. If any fuel is spilled, make sure the area is
dry before testing the spark plug or starting the
engine. (Fire and/or explosion may occur if this is
not done.)
Gasoline engines on mobile or portable equipment
shall be refueled:
a. outdoors;
b. with the engine on the equipment stopped;
c. with no source of ignition within 10 feet of
the dispensing point; and
d. with an allowance made for expansion of the
fuel should the equipment be exposed to a
higher ambient temperature.
In an overfilling situation, additional precautions
are necessary to ensure that the situation is
handled in a safe manner.
WARNING: Risk of injury. Disconnect battery
ground terminal before servicing.
8. Transport/repair with fuel tank EMPTY or with fuel
shut-off valve OFF.

Hotsy DB • 8.914-449.0 • Rev. 11/15
5
PRESSURE WASHER
OPERATOR’S MANUAL
IMPORTANT SAFETY INFORMATION
WARNING
KEEP WATER
SPRAY AWAY FROM
ELECTRICAL WIRING.
WARNING: Keep wand, hose,
and water spray away from
electric wiring or fatal electric
shock may result.
9. Do not spray water on or near
electrical components.
RISK OF EXPLOSION:
DO NOT SPRAY
FLAMMABLE
LIQUIDS.
WARNING
WARNING: Flammable liquids
can create fumes which can
ignite, causing property dam-
age or severe injury.
WARNING: Risk of explosion
— Do not spray flammable
liquids.
10. Keep operating area clear of all persons.
WARNING
EAR PROTECTION
MUST BE WORN
WARNING: This machine ex-
ceeds 85 db appropriate ear
protection must be worn.
WARNING
USE PROTECTIVE
EYE WEAR
AND CLOTHING
WHEN OPERATING
THIS EQUIPMENT.
WARNING: High pressure spray
can cause paint chips or other
particles to become airborne
and y at high speeds. To avoid
personal injury, eye, hand and
foot safety devices must be
worn.
11. Eye, hand, and foot protec-
tion must be worn when
using this equipment.
TRIGGER GUN KICKS
BACK - HOLD WITH
BOTH HANDS
WARNING
WARNING: Grip cleaning wand
securely with both hands be-
fore starting. Failure to do this
could result in injury from a
whipping wand.
12. To reduce the risk of injury,
close supervision is necessary
when a machine is used near
children. Do not allow chil-
dren to operate the pressure washer. This ma-
chine must be attended during operation.
RISK OF INJECTION
OR SEVERE INJURY
TO PERSONS. KEEP
CLEAR OF NOZZLE.
WARNING
WARNING: High pressure de-
veloped by these machines will
cause personal injury or equip-
ment damage. Keep clear of
nozzle. Use caution when op-
erating. Do not direct discharge
stream at people, or severe
injury or death will result.
13. Never make adjustments on
machine while in operation.
14. Be certain all quick coupler fittings are secured
before using pressure washer.
WARNING
PROTECT FROM
FREEZING
WARNING: Protect machine
from freezing.
15. To keep machine in best
operating conditions, it is
important you protect machine
fromfreezing.Failureto protect
machine from freezing could
cause malfunction of the
machine and result in death,
serious bodily injury, and/or property damage. Fol-
low storage instructions specified in this manual.
16. The best insurance against an accident is precau-
tion and knowledge of the machine.
WARNING
RISK OF INJURY FROM
FALLS WHEN USING
LADDER.
WARNING: Be extremely careful
when using a ladder, scaffold-
ing or any other relatively un-
stable location. The cleaning
area should have adequate
slopes and drainage to reduce
the possibility of a fall due to
slippery surfaces.
17. Do not overreach or stand on unstable support.
Keep good footing and balance at all times.
18. Do not operate this machine when fatigued or
under the influence of alcohol, prescription medi-
cations, or drugs.
19. Inlet water must be clean fresh water and no hotter
then 90°F.
20. Manufacturer will not be liable for any changes
made to our standard machines or any compo-
nents not purchased from us.
21. Do not allow acids, caustic or abrasive fluids to
pass through the pump.
22. Never run pump dry or leave spray gun closed
longer than 1-2 minutes.

Hotsy DB • 8.914-449.0 • Rev. 11/15
OPERATOR’S MANUAL PRESSURE WASHER
6
23. Machines with shut-off spray gun should not be
operated with the spray gun in the off position for
extensive periods of time as this may cause dam-
age to the pump.
24. Protect discharge hose from vehicle traffic and
sharp objects. Inspect condition of high pressure
hose before using or bodily injury may result.
25. In hot water models before disconnecting dis-
charge hose from water outlet, turn burner off
and open spray gun to allow water to cool below
100° before stopping the machine.Then open the
spray gun to relieve pressure. Failure to properly
cool down or maintain the heating coil may result
in a steam explosion.
26. In oil burning models, use only kerosene, No. 1
home heating fuel, or diesel. If diesel is used, add
a soot remover to every tankful.
27. This pressure washer is equipped with pneumatic
tires which may not be fully inflated due to ship-
ping and storage. Please check the air pressure
of each tire before use:
a. Remove the valve cap from the tire.
b. Attach a bicycle pump and inflate the tire
to a maximum pressure of 25 PSI
Note: If a compressor must be used, follow the
compressor manufacturer's guidelines to limit the
output pressure so as not to exceed 25 PSI.
c. Replace the valve cap to the tire valve and
tighten firmly. Tire pressure should not exceed 25
PSI.
Follow the maintenance instructions
specied in the manual.
IMPORTANT SAFETY INFORMATION

Hotsy DB • 8.914-449.0 • Rev. 11/15
7
PRESSURE WASHER
OPERATOR’S MANUAL
Pump — Develops high pressure.
Starter Grip— Used for starting the engine manu-
ally.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Detergent Injector — Allows you to siphon and mix
detergents.
Wand — Must be connected to the spray gun.
High Pressure Hose — Connect one end to water
pump discharge nipple and the other end to spray
gun.
Pump Protector — Cycles fresh cool water through
pump when recirculating water reaches 140°F.
Note:If trigger on spray gun is released for more
than 1-2 minutes, water will leak from valve. Warm
water will discharge from pump protector onto
oor. This system prevents internal pump dam-
age.

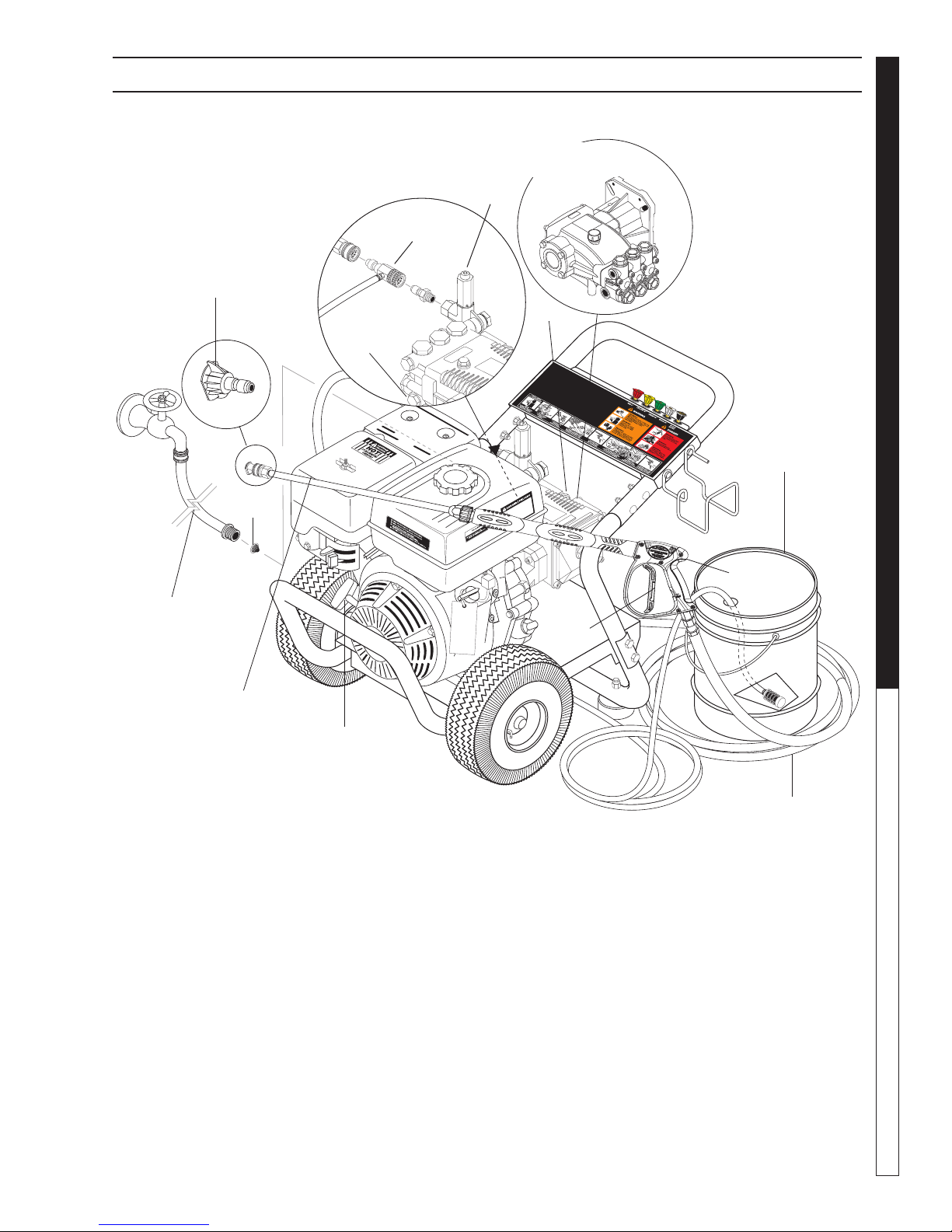

COMPONENT IDENTIFICATION
Starter Grip
Trigger
Spray Gun
High Pressure
Hose
Pump
Straight
Through Wand
Pressure
Nozzle
Garden Hose
(not included)
Inlet
Screen
Pump
Protector
Unloader
Detergent
Bucket
(not included)
Detergent
Injector
DB-3835, DB-3540
Models Only

Hotsy DB • 8.914-449.0 • Rev. 11/15
OPERATOR’S MANUAL PRESSURE WASHER
8
STEP 1: Attach the handle to the
frame of the pressure washer.
Note: It may be necessary to move
the handle supports from side to
side in order to align the handle so it
will slide over the frame supports.
STEP 2: Insert the carriage bolt
through the holes from the outside
of the unit and attach a nut from
the inside of the machine. Tighten
nuts.
STEP 3: Attach the spray gun/hose
storage handle and bracket to
handle. Tighten nuts.
STEP 4: Attach the high pressure
hose to the spray gun using teflon
tape on hose threads.
STEP 7: Release the coupler collar
and push the nozzle until the collar
clicks. Pull the nozzle to make sure
it is seated properly.
STEP 8: Connect the high pres-
sure hose to the pump discharge
nipple. Push coupler collar forward
until secure.
STEP 5: Attach nozzle extension
to spray gun/wand. Tighten both
by hand.
STEP 6: Pull the spring-loaded col-
lar of the wand coupler back to insert
your choice of pressure nozzle.
STEP 9: Connect (7.5m) garden
hose to the cold water source.
ASSEMBLY INSTRUCTIONS
STEP 10: Check inlets filters,
remove debris, then connect the
garden hose to pump water inlet.
CAUTION: Do not run the pump
without water or pump damage
will result.
Alignment
Holes
Handle
Frame
Assy.
Carriage
Bolt
Nut
Studs
Nut
Hose/Gun
Storage
Bracket
Safety
Latch
Spray
Gun
High
Pressure Hose
Nozzle Extension
Spray
Gun/Wand
Wand
Coupler
Pressure
Nozzle
Pressure
Nozzle
Wand
Coupler
Wand
Collar
Pump
Discharge
Nipple
High
Pressure
Hose
Cold
Water
Source
Garden
Hose
Pump
Water Inlet
Garden
Hose
Coupler Collar
Bolts

Hotsy DB • 8.914-449.0 • Rev. 11/15
9
PRESSURE WASHER
OPERATOR’S MANUAL
STEP 1: Check engine oil level. Oil level should be
level with the bottom of the oil filler neck. Be sure the
machine is level when checking the oil level. (Refer to
the engine's operating manual included with machine.)
We recommend that the oil be changed after the first 5
hours of use, then once every 50 hours. Note: Improper
oil levels will cause low oil sensor to shut off engine.
IMPORTANT! Do not run engine with high or low oil
levels as this will cause engine damage.
STEP 2: Remove shipping cap and install oil dipstick.
Check pump oil level by using dipstick or observe oil
level in oil window (if equipped). Use 30 wt. (non
detergent) oil.
STEP 5: Rotate the fuel shut-off valve to the "On"
position. Slide the fuel valve lever to the "ON" position.
When the engine is not in use, leave the fuel valve in
the "OFF" position.
STEP 4: Trigger the spray gun to eliminate trapped air
then wait for a steady flow of water to emerge from
the spray nozzle.
OPERATING INSTRUCTIONS
STEP 3: Fill gas tank with unleaded gasoline. Do not
use leaded gasoline.
STEP 6: Move the choke lever to the "Choke" posi-
tion (on a warm engine, leave the choke lever in the
run position). Move the choke lever to the "Closed"
position. To restart a warm engine, leave the choke
lever in the "Open" position.
Oil Dipstick Dipstick
Oil Window
Gas
Tank
Choke
Lever
Fuel
Valve
Choke
Fuel
Valve

Hotsy DB • 8.914-449.0 • Rev. 11/15
OPERATOR’S MANUAL PRESSURE WASHER
10

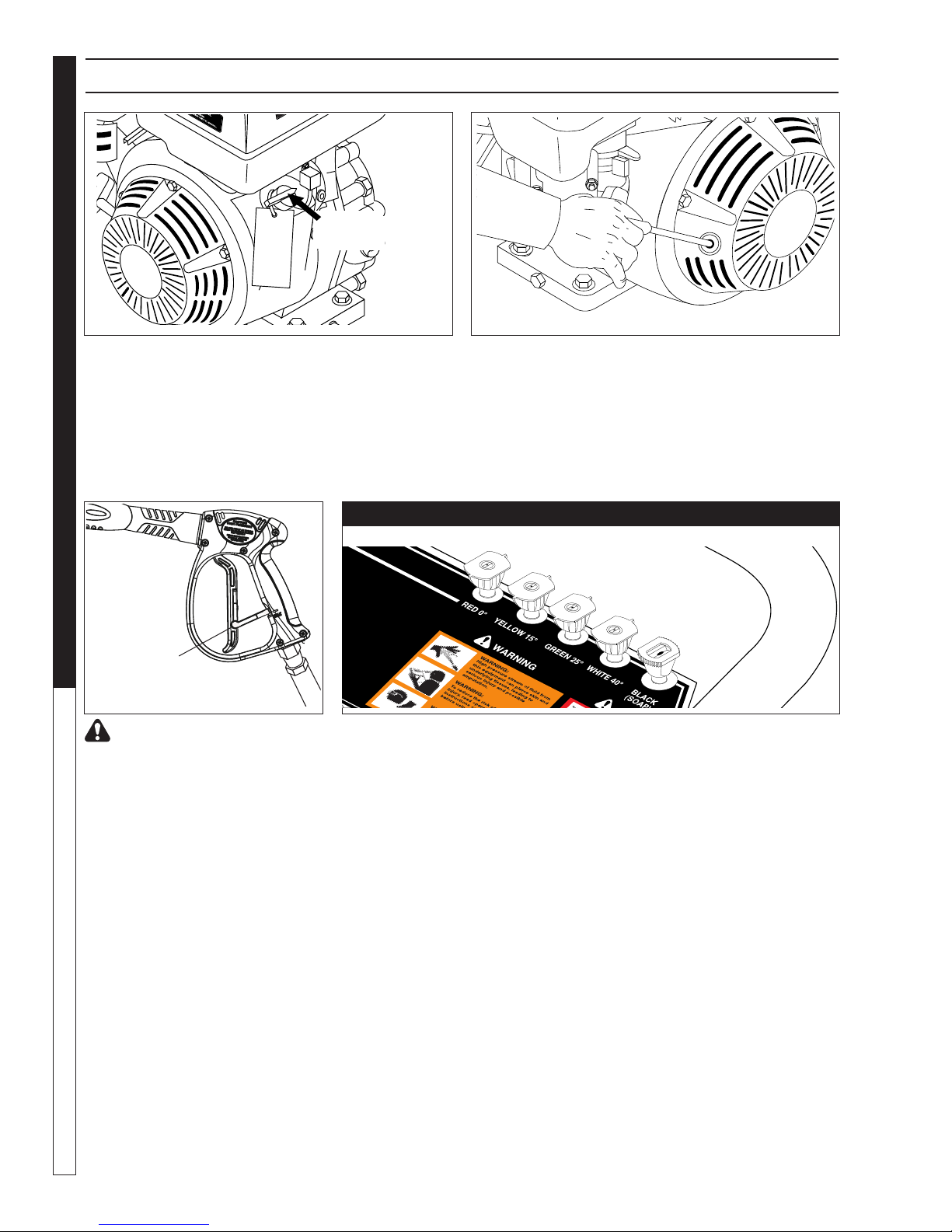

STEP 8: Turn the engine switch to "On" position.
On Briggs engines, move the throttle lever to "Fast"
position, shown on the engine as a rabbit.
STEP 9: Pull the starter grip. If the engine fails to start
after 2 pulls, squeeze the trigger gun to release pressure
and repeat step. Return starter gently. After the engine
warms up enough to run smoothly, move choke to run
position and throttle to fast position.
CAUTION: Small engines may kick back. Do not hold
pull starter grip tightly in hand.
OPERATING INSTRUCTIONS (CON'T)
WARNING! Never replace
nozzles without engaging the
safety latch on the spray gun
trigger.
The five color-coded quick connect nozzles provide a wide array of
spray widths from 0° to 40° and are easily accessible when placed in the
convenient rubber nozzle holder, which is provided on the front of the
machine.
NOTE: For a more gentle rinse, select the white 40° or green 25° nozzle.
To scour the surface, select the yellow 15° or red 0° nozzle. To apply de-
tergent select the black nozzle.
NOZZLES
Safety
Latch
On-Off
Switch

Hotsy DB • 8.914-449.0 • Rev. 11/15
11
PRESSURE WASHER
OPERATOR’S MANUAL
WARNING: Some detergents
may be harmful if inhaled or
ingested, causing severe nau-
sea, fainting or poisoning. The
harmful elements may cause
property damage or severe
injury.
STEP 1: Connect detergent injec-
tor to discharge nipple on machine.
Connect high pressure hose to injector with quick
coupler. (Check to make sure locking coupler sleeves
are in proper position before applying water pressure).
STEP 2: Use detergent designed
specifically for pressure washers.
Prepare detergent solution as
required by the manufacturer. Fill
a container with pressure washer
detergent. Place the filter end of
detergent suction tube into the
detergent container.
STEP 3: With safety latch on
spray gun engaged, secure black
detergent nozzle into quick cou-
pler. NOTE: Detergent cannot be
applied using red, yellow, green or
white nozzles.
STEP 4: With the engine running,
pull trigger to operate machine. Liquid detergent is
drawn into the machine and mixed with water. Apply
detergent to work area. Do not allow detergent to dry
on surface.
IMPORTANT: You must ush the detergent injec-
tion system after each use by placing the suction
tubeinto a bucket of clean water, then run the pres-
sure washer in low pressure for 1-2 minutes.
THERMAL PUMP PROTECTION
If you run the engine on your pressure washer for 1-2
minutes without pressing the trigger on the spray gun,
circulating water in the pump can reach high tempera-
tures. When the water reaches this temperature, the
pump protector engages and cools the pump by dis-
charging the warm water onto the ground.This thermal
device prevents internal damage to the pump.
CLEANING TIPS
Pre-rinse cleaning surface with fresh water. Place de-
tergent suction tube directly into cleaning solution and
apply to surface at low pressure (for best results, limit
your work area to sections approximately 6 feet square
and always apply detergent from bottom to top). Allow
detergent to remain on surface 1-3 minutes. Do not al-
low detergent to dry on surface. If surface appears to
be drying, simply wet down surface with fresh water.
If needed, use brush to remove stubborn dirt. Rinse
at high pressure from top to bottom in an even sweep-
ing motion keeping the spray nozzle approximately
1 foot from cleaning surface. Use overlapping strokes
as you clean and rinse any surface. For best surface
cleaning action spray at a slight angle.
Recommendations:
 • Before cleaning any surface, an inconspicuous
area should be cleaned to test spray pattern and
distance for maximum cleaning results.
 •If paintedsurfacesarepeelingorchipping, use
extreme caution as pressure washer may remove
the loose paint from the surface.
 •Keepthespraynozzleasafedistancefromthe
surface you plan to clean. High pressure wash a
small area, then check the surface for damage. If
no damage is found, continue to pressure wash-
ing.
CAUTION - Never use:
 •Bleach, chlorine products and other corrosive
chemicals
 •Liquids containing solvents (i.e., paint thinner,
gasoline, oils)
 •Tri-sodiumphosphateproducts
 •Ammoniaproducts
 •Acid-basedproducts
These chemicals will harm the machine and will dam-
age the surface being cleaned.
RINSING
It will take a few seconds for the detergent to clear.
Apply safety latch to spray gun. Remove black soap
nozzle from the quick coupler. Select and install the
desired high pressure nozzle. NOTE: You can also stop
detergent from flowing by simply removing detergent
siphon tube from bottle.
WARNING
Soap Nozzle
Detergent
Injector
Discharge
Nipple
Strainer
Quick
Coupler
High Pressure
Hose
DETERGENT AND GENERAL CLEANING TECHNIQUES

Hotsy DB • 8.914-449.0 • Rev. 11/15
OPERATOR’S MANUAL PRESSURE WASHER
12
SHUTTING DOWN AND CLEAN-UP
STEP 1: Remove detergent suc-
tion tube from container and insert
into one gallon of fresh water. Slide
nozzle forward for low pressure or
to connect black detergent nozzle.
Pull trigger on spray gun and siphon
water for one minute.
STEP 2: Turn off the engine. STEP 3: Turn off water
supply.
STEP 5: Disconnect the garden
hose from the water inlet on the
machine.
STEP 6: Disconnect the high
pressure hose from pump dis-
charge nipple.
STEP 7: Engage
the spray gun safe-
ty lock.
STEP 4: Press trig-
ger to release water
pressure.
CAUTION: Always store your pressure washer in a
location where the temperature will not fall below
32°F (0°C). The pump in this machine is susceptible
to permanent damage if frozen. FREEZE DAMAGE
IS NOT COVERED BY WARRANTY.
1. Stop the pressure washer, squeeze spray gun trig-
ger to release pressure.
2. Detach water supply hose and high pressure
hose.
3. Turn on the machine for a few seconds, until re-
maining water exits. Turn engine off immediately.
4. Drain the gas from the engine.
5. Do not allow high pressure hose to become
kinked.
6. Store the machine and accessories in a room which
does not reach freezing temperatures.
CAUTION: Failure to follow the above directions will
result in damage to your pressure washer.
When the pressure washer is not being operated or is
being stored for more than one month, follow these
instructions:
1. Replenish engine oil to upper level.
2. Drain gasoline from fuel tank, fuel line, fuel valve
and carburetor.
3. Pour about one teaspoon of engine oil through
the spark plug hole, pull the starter grip several
times and replace the plug. Then pull the starter
grip slowly until you feel increased pressure which
indicates the piston is on its compression stroke and
leave it in that position. This closes both the intake
and exhaust valves to prevent rusting of cylinder.
4. Cover the pressure washer and store in a clean, dry
place that is well ventilated away from open flame
or sparks. NOTE: The use of a fuel additive, such
as STA-BIL®, or an equivalent, will minimize the
formulation of fuel deposits during shortage. Such
additives may be added to the gasoline in the fuel
tank of the engine, or to the gasolinee in a storage
container.
After Extended Storage
CAUTION: Prior to restarting, thaw out any pos-
sible ice from pressure washer hoses, spray gun
or wand.
Engine Maintenance
During the winter months, rare atmosheric
conditions may develop which will cause an
icing condition in the carburetor. If this develops, the
engine may run rough, lose power and may stall. This
temporary condition can be overcome by deflecting some
of the hot air from the engine over the carburetor area.
NOTE: Refer to the engine manufacturer's manual for
service and maintenance of the engine.
STORAGE
On-Off
Switch
Pump
Water Inlet
Pump
Discharge
Nipple
Safety
Latch
Garden
Hose
On-Off
Switch

Hotsy DB • 8.914-449.0 • Rev. 11/15
13
PRESSURE WASHER Troubleshooting Guide
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
LOW OPERATING
PRESSURE
Insufficient water supply. Closed
faucet. Inlet hose kinked
Use larger garden hose; clean inlet water
screen. Open faucet.
Clogged inlet hose strainer Check plumbing system for leaks. Re-tape
leaks with Teflon tape.
Faulty or improperly adjusted
unloader valve
Adjust unloader for proper pressure. Install
repair kit when needed. Contact local deal-
er.
Worn packing in pump Contact local dealer.
Machine has been stored in
freezing temperatures
Thaw out machine completely, including
hose, spray gun and wand.
Slow engine RPM Contact local dealer.
FLUCTUATING
PRESSURE
Worn or dirty pump valves Contact local dealer.
Nozzle is obstructed Blow out or remove debris with fine needle.
Pump sucking air, inlet hose leak-
ing
Check all pump lines and connections.
PRESSURE LOW
AFTER PERIOD OF
NORMAL USE
Nozzle worn Replace nozzle.
Unloader valve worn Replace unloader valve.
ENGINE WILL NOT
START OR STOPS
WHILE OPERATING
Low oil shutdown Fill engine with oil.
Out of gas Fill fuel tank.
Water in gasoline Drain gas tank; fill with clean fuel.
ENGINE IS
OVERLOADED
Nozzle partially blocked Clean nozzle.
Excessive pressure from high
engine RPM
Adjust engine throttle to lower RPM.
WATER OR OIL
LEAKING FROM
BOTTOM OF PUMP
A small amount of leaking is nor-
mal
If excessive leaking occurs, Contact local
dealer.
PRESENCE OF
WATER
IN PUMP OIL
Water sprayed at machine Change oil. Direct spray away from ma-
chine.
High humidity in air Check and change oil twice as often.
Piston packing worn. Oil seal
worn.
Contact local dealer.

Hotsy DB • 8.914-449.0 • Rev. 11/15
PRESSURE WASHER Troubleshooting Guide
14
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
ENGINE
OPERATES FOR
15 MIN. THEN
STOPS
Not enough gas or engine oil Fill tank with gas. Check oil level.
Vapor lock developed by heat
of day
Keep gas tank full to avoid vapor locking.
Obstruction in fuel filter Clean or replace fuel filter.
ENGINE LACKS
POWER
Dirty air filter Replace air filter.
ENGINE FALTERS Choke is opened too soon Move choke to halfway position until engine
runs smoothly.
WATER DRIPPING
FROM
UNDER PUMP
Piston packing worn Contact local dealer.
O-Ring plunger retainer worn Contact local dealer.
Cracked piston Contact local dealer.
OIL DRIPPING Oil seal worn or damaged Contact local dealer.
WATER LEAK-
ING FROM PUMP
PROTECTOR
Spray gun closed with machine
running 5 minutes or longer
Open spray gun or turn off machine.
Excess water supply pressure Place a pressure regulator at end of 50' garden
hose.
NO DETERGENT Detergent suction tube not
properly connected to machine
Check connection.
Detergent is too thick Dilute detergent. For best results, use manufac-
turers detergent.
Detergent filter valve is at low-
est setting
Set detergent filter valve to a higher setting.
Filter on detergent suction tube
is clogged
Run warm water through filter to remove debris.
Damaged or clogged detergent
suction tube
Remove obstruction or replace detergent suc-
tion tube.
A high pressure nozzle is at-
tached.
Replace with black detergent nozzle.
Discharge nozzle is obstructed Blow out or remove debris with fine needle.
GARDEN HOSE
CONNECTION
LEAKS
Loose fittings Tighten fittings.
Missing/worn rubber washer Insert new washer.
SPRAY WAND
LEAKS
Spray wand not properly at-
tached
Slide the spray wand into the gun. Turn the
wand collar clockwise onto the spray gun
threads until tight.
Broken o-ring Call your distributor and order an o-ring.
PUMP IS NOISY Pump is sucking air Check that hoses and fittings are air tight. Turn
off machine and purge pump by squeezing
trigger gun until a steady flow of water emerges
through nozzle.

Hotsy DB • 8.914-449.0 • Rev. 11/15
15
PRESSURE WASHER
OPERATOR’S MANUAL
PREVENTATIVE MAINTENANCE
This pressure washer was produced with the best available materials and quality craftsmanship. However, you
as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventa-
tive maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer
for maintenance. Regular preventative maintenance will add many hours to the life of your pressure washer.
Perform maintenance more often under severe conditions.
MAINTENANCE SCHEDULE
Engine Oil
Inspect Daily
Change First month or 20 hours. Every 100 hours or every 6
months after first month.
Filter Every 50 hours.
Air Cleaner/Filter Inspect Every 50 hours
Clean Monthly
Engine Fuel Filter 500 hours or 6 months
Spark Plug Maintenance 300 hours or annually
Clean Fuel Tank(s) Annually
Replace Fuel LInes Annually
Pump Oil Inspect Oil level daily
Change After first 50 hours, then every 500 hours or annually
Replace High Pressure Nozzle Every 6 months
Replace Quick Connects/O-Rings Annually/As needed
Clean Water Screen/Filter Weekly
Replace HP Hose Annually (if there are any signs of wear)

Hotsy DB • 8.914-449.0 • Rev. 11/15
OPERATOR’S MANUAL PRESSURE WASHER
16
HOSE & SPRAY GUN ASSEMBLY
1
2
2
3
3
5
4
6
HOSE & SPRAY GUN ASSEMBLY PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 8.739-106.0 Hose, 3/8X25', 1W, TS, Hotsy, So x Sw (2300 PSI Models) 1
8.739-107.0 Hose, 3/8X50', 1W., TF, Hotsy, So X S (2400, 2700 and 3000 PSI Models) 1
8.739-183.0 Hose, 3/8X50', 2W, TF, Hotsy, SO X SW (3500 and 4000 PSI Models) 1
2 8.751-269.0 AL12 Eagle3 Trigger Gun 1
8.750-247.0 Gun, M407 (4000 PSI Models) 1
3 9.802-220.0 Wand, 18" M22 x 1/4" QC 1
8.783-040.0 Wand, 44” With Side Grip (4000 PSI Models) 1
4 9.104-030.0 Quick connect nozzle Kit(040) (3500 PSI) 1
9.802-295.0 sNozzle, 0003, Red 1
9.802-296.0 sNozzle, 0015, Yellow 1
9.802-297.0 sNozzle, 0025, Green 1
8.932-298.0 sNozzle, 0040, White 1
4 8.904-154.0 Quick Connect Nozzle Kit(035) (3000 and 4000 PSI Models) 1
8.712-337.0 sNozzle, 0003.5, Red 1
8.712-338.0 sNozzle, 1503.5, Yellow 1
8.712-339.0 sNozzle, 2503.5, Green 1
8.712-340.0 sNozzle, 4003.5, White 1
8.904-153.0 Quick Connect Nozzle Kit (030) (2400 and 2700 PSI Models) 1
8.712-331.0 sNozzle, 3.0 0° Red 1
8.712-333.0 sNozzle, 3.0 15° Yellow 1
8.712-334.0 sNozzle, 3.0 25° Green 1
8.712-335.0 sNozzle, 3.0 40° White 1
8.712-398.0 sNozzle, Black, Soaper (All Models) 1
5 9.802-166.0 Coupler, 3/8" Female, Brass 1
8.702-088.0 sO-Ring, Viton, 3/8” 1
6 9.802-164.0 Coupler, ¼” Female Brass 1
8.702-084.0 sO-Ring, Viton, ¼” 1
s Not shown

Hotsy DB • 8.914-449.0 • Rev. 11/15
17
PRESSURE WASHER
OPERATOR’S MANUAL
OIL CHANGE RECORD
Check pump oil and engine oil level before first use of your new pressure washer.
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change

Hotsy DB • 8.914-449.0 • Rev. 11/15
PRESSURE WASHER WARRANTY
18
HOTSY LIMITED NEW PRODUCT WARRANTY
PRESSURE WASHERS
WHAT THIS WARRANTY COVERS
All Hotsy pressure washers are warranted by Hotsy to the original purchaser to be free from defects in materials and work-
manship under normal use, for the periods specified below. This Limited Warranty is subject to the exclusions shown below,
is calculated from the date of the original purchase, and applies to the original components only. Any parts replaced under
this warranty will assume the remainder of the part’s warranty period.
SEVEN YEAR PARTS AND ONE YEAR LABOR WARRANTY:
Components manufactured by Hotsy, such as frames, handles, top and bottom wraps, float tanks, fuel tanks, belt guards, and
internal components on the oil-end of HOTSY manufactured pumps. General, AR, Liberty, Comet and swash and wobble
plate pumps have a one year warranty. Heating coils have a five year warranty from date of original machine purchase.
ONE YEAR PARTS AND ONE YEAR LABOR WARRANTY:
All other components, excluding normal wear items as described below, will be warranted for one year on parts and
labor. Parts and labor warranty on these parts will be for one year regardless of the duration of the original component
manufacturer’s part warranty.
WARRANTY PROVIDED BY OTHER MANUFACTURERS:
Motors, generators, and engines, which are warranted by their respective manufacturers, are serviced through these manu-
facturers’ local authorized service centers. Hotsy is not authorized and has no responsibility to provide warranty service
for such components.
WHAT THIS WARRANTY DOES NOT COVER
This warranty does not cover the following items:
1. Normal wear items, such as nozzles, spray guns, discharge hoses, wands, quick couplers, seals, filters, gaskets,
O-rings, packings, pistons, pump valve assemblies, strainers, belts, brushes, relief valves, fuses, pump protec -
tors.
2. Damage or malfunctions resulting from accidents, abuse, modifications, alterations, incorrect installation, improper
servicing, failure to follow manufacturer’s maintenance instructions, or use of the equipment beyond its stated us-
age specifications as contained in the operator’s manual.
3. Damage due to freezing, chemical deterioration, scale build up, rust, corrosion, or thermal expansion.
4. Damage to components from fluctuations in electrical or water supply.
5. Normal maintenance service, including adjustments, fuel system cleaning, and clearing of obstructions.
6. Transportation to service center, field labor charges, or freight damage.
WHAT YOU MUST DO TO OBTAIN WARRANTY SERVICE
In order to obtain warranty service on items warranted by Hotsy, you must return the product to your Authorized Hotsy
Distributor, freight prepaid, with proof of purchase, within the applicable warranty period. If the product is permanently
installed, you must notify your Authorized Hotsy Distributor of the defect. Your Authorized Hotsy Distributor will file a claim
with Hotsy, who must subsequently verify the defect. In most cases, the part must be returned to Hotsy freight prepaid
with the claim. For warranty service on components warranted by other manufacturer’s, your Authorized Hotsy Distributor
can help you obtain warranty service through these manufacturers’ local authorized service centers.
LIMITATION OF LIABILITY
Hotsy’s liability for special, incidental, or consequential damages is expressly disclaimed. In no event shall Hotsy’s liability
exceed the purchase price of the product in question. Hotsy makes every effort to ensure that all illustrations and specifica-
tions are correct, however, these do not imply a warranty that the product is merchantable or fit for a particular purpose, or
that the product will actually conform to the illustrations and specifications. Our obligation under this warranty is expressly
limited at our option to the replacement or repair at a service facility or factory designated by us, of such part or parts as
inspection shall disclose to have neen defective. THE WARRANTY CONTAINED HEREIN IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.
Hotsy does not authorize any other party, including authorized Hotsy Distributors, to make any representation or promise
on behalf of Hotsy, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that
the installation and use of Hotsy products conforms to local codes. While Hotsy attempts to assure that its products meet
national codes, it cannot be responsible for how the customer chooses to use or install the product. Some states do not al-
low limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state.
HOTSY
www.hotsy.com

Form #8.914-449.0 • Revised 11/15 • Printed in U.S.A. or Mexico by Hotsy
If you need service on your pressure washer, contact your local Hotsy
dealer or visit www.Hotsy.com. Smart phone users scan the code below to
link directly to the Service Request page.
