Errata
Title & Document Type:
Manual Part Number:
Revision Date:
HP References in this Manual
This manual may contain references to HP or Hewlett-Packard. Please note that Hewlett-
Packard's former test and measurement, semiconductor products and chemical analysis
businesses are now part of Agilent Technologies. We have made no changes to this
manual copy. The HP XXXX referred to in this document is now the Agilent XXXX.
For example, model number HP8648A is now model number Agilent 8648A.
About this Manual
We’ve added this manual to the Agilent website in an effort to help you support your
product. This manual provides the best information we could find. It may be incomplete
or contain dated information, and the scan quality may not be ideal. If we find a better
copy in the future, we will add it to the Agilent website.
Support for Your Product
Agilent no longer sells or supports this product. You will find any other available
product information on the Agilent Test & Measurement website:
www.tm.agilent.com
Search for the model number of this product, and the resulting product page will guide
you to any available information. Our service centers may be able to perform calibration
if no repair parts are needed, but no other support from Agilent is available.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

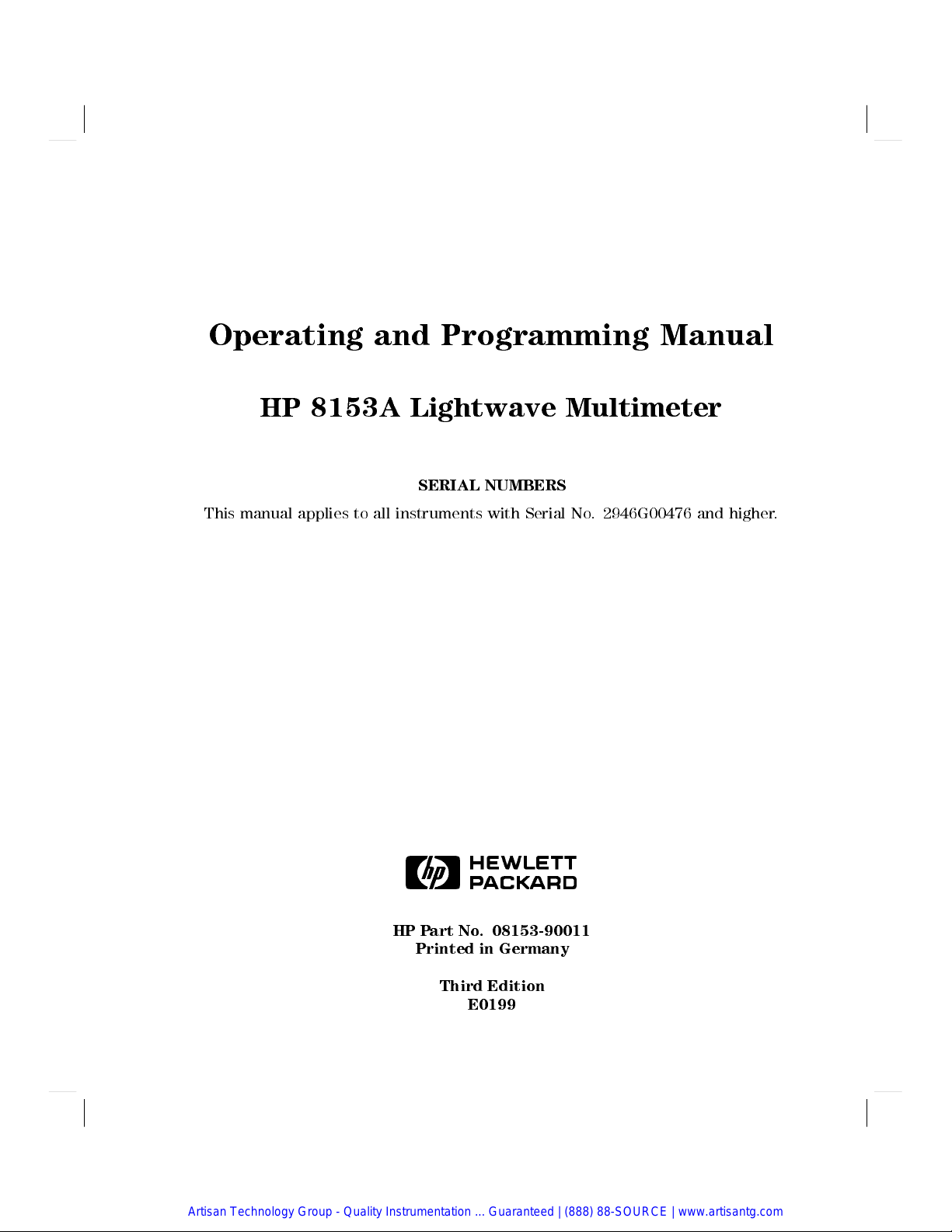

Operating and Programming Manual
HP 8153A Lightwave Multimeter
SERIAL NUMBERS
This manual applies to all instruments with Serial No. 2946G00476 and higher.
ABCDE
HP Part No. 08153-90011
Printed in Germany
Third Edition
E0199
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

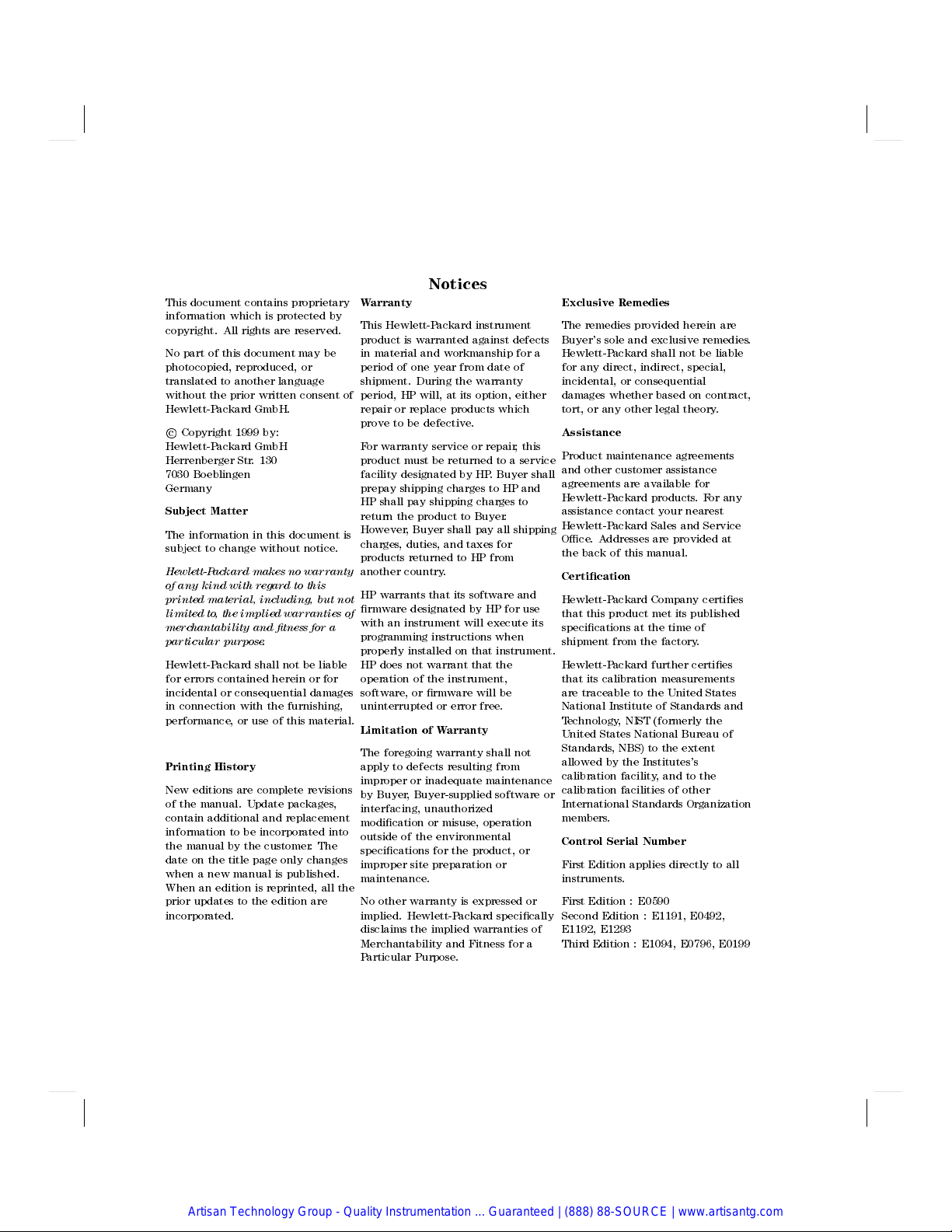

Notices
This document contains proprietary
information which is protected by
copyright. All rights are reserved.
No part of this document may be
photocopied, reproduced, or
translated to another language
without the prior written consent of
Hewlett-Packard GmbH.
c
 Copyright 1999 by:
Hewlett-Packard GmbH
Herrenberger Str. 130
7030 Boeblingen
Germany
Subject Matter
The information in this document is
subject to change without notice.
Hewlett-Packard makes no warranty
of any kind with regard to this
printed material, including, but not
limited to, the implied warranties of
merchantability and tness for a
particular purpose.
Hewlett-Packard shall not be liable
for errors contained herein or for
incidental or consequential damages
in connection with the furnishing,
performance, or use of this material.
Printing History
New editions are complete revisions
of the manual. Update packages,
contain additional and replacement
information to be incorporated into
the manual by the customer. The
date on the title page only changes
when a new manual is published.
When an edition is reprinted, all the
prior updates to the edition are
incorporated.
Warranty
This Hewlett-Packard instrument
product is warranted against defects
in material and workmanship for a
period of one year from date of
shipment. During the warranty
period, HP will, at its option, either
repair or replace products which
prove to be defective.
For warranty service or repair, this
product must be returned to a service
facility designated by HP. Buyer shall
prepay shipping charges to HP and
HP shall pay shipping charges to
return the product to Buyer.
However, Buyer shall pay all shipping
charges, duties, and taxes for
products returned to HP from
another country.
HP warrants that its software and
rmware designated by HP for use
with an instrument will execute its
programming instructions when
properly installed on that instrument.
HP does not warrant that the
operation of the instrument,
software, or rmware will be
uninterrupted or error free.
Limitation of Warranty
The foregoing warranty shall not
apply to defects resulting from
improper or inadequate maintenance
by Buyer, Buyer-supplied software or
interfacing, unauthorized
modication or misuse, operation
outside of the environmental
specications for the product, or
improper site preparation or
maintenance.
No other warranty is expressed or
implied. Hewlett-Packard specically
disclaims the implied warranties of
Merchantability and Fitness for a
Particular Purpose.
Exclusive Remedies
The remedies provided herein are
Buyer's sole and exclusive remedies.
Hewlett-Packard shall not be liable
for any direct, indirect, special,
incidental, or consequential
damages whether based on contract,
tort, or any other legal theory.
Assistance
Product maintenance agreements
and other customer assistance
agreements are available for
Hewlett-Packard products.For any
assistance contact your nearest
Hewlett-Packard Sales and Service
Oce.Addresses are provided at
the back of this manual.
Certication
Hewlett-Packard Company certies
that this product met its published
specications at the time of
shipment from the factory.
Hewlett-Packard further certies
that its calibration measurements
are traceable to the United States
National Institute of Standards and
Technology, NIST (formerly the
United States National Bureau of
Standards, NBS) to the extent
allowed by the Institutes's
calibration facility, and to the
calibration facilities of other
International Standards Organization
members.
Control Serial Number
First Edition applies directly to all
instruments.
First Edition : E0590
Second Edition : E1191, E0492,
E1192, E1293
Third Edition : E1094, E0796, E0199
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Safety Considerations
The Model HP 8153A is a Class 1 instrument (that is
, an instrument with an
exposed metal chassis directly connected to earth via the power supply cable).
The symbol used to show a protective earth terminal in the instrument is .
Before operation, you should review the instrument and manual, including the
red safety page, for safety markings and instructions.You must follow these to
ensure safe operation and to maintain the instrument in safe condition.
Some HP 8153A circuits are powered whenever the instrument is connected to
the AC power source.To disconnect from the line power, disconnect the power
cord either at the rear power-inlet or at the AC line-power source (receptacle).
One of these must always be accessible. If the instrument is in a cabinet, it must
be disconnected from the line power by the system's line-power switch.
Warning
To avoid hazardous electrical shock, do not perform
electrical tests when there are signs of shipping damage to
any portion of the outer enclosure (covers, panels, etc.).
Line Power Requirements
The HP 8153A can operate from any single-phase A
C power source that supplies
between 100V and 240V at a frequency in the range from 40 to 60Hz. The
maximum power consumption is 55VA with all options installed.
The fuse used by this instrument is T1A / 250V (slow) (HP Part No. 2110-0007).
Changing the fuse should be carried out only by a qualied electrician or by HP
service personnel as it is necessary to open the instrument.
Line Power Cable
In accordance with international safety standards, this instrument has
a three-wire power cable. When connected to an appropriate AC power
receptacle, this cable earths the instrument cabinet. The type of power cable
shipped with each instrument depends on the country of destination. Refer to
Figure 0-1 for the part numbers of the power cables available.
iii
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

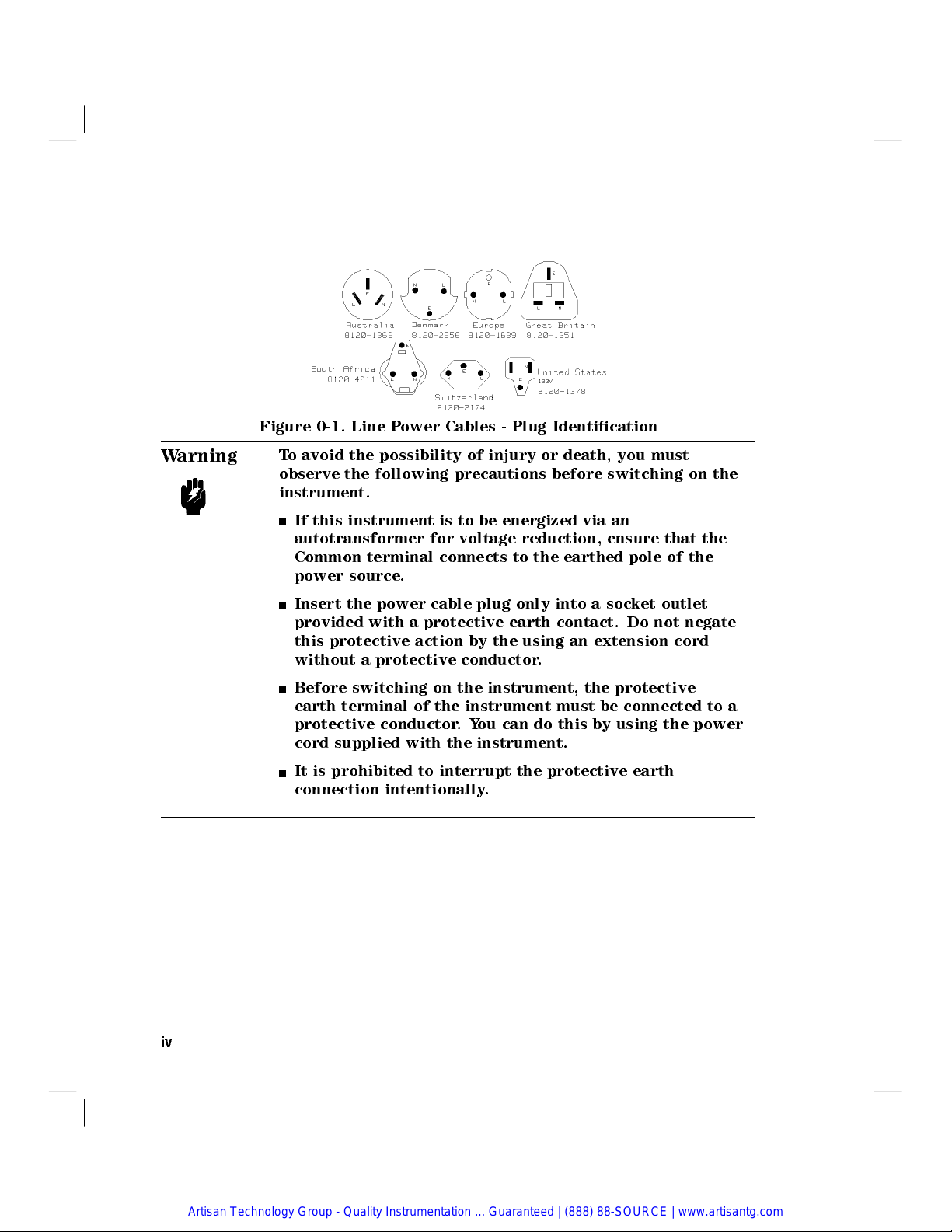

Figure 0-1. Line Power Cables - Plug Identication
Warning
To avoid the possibility of injury or death, you must
observe the following precautions before switching on the
instrument.
If this instrument is to be energized via an
autotransformer for voltage reduction, ensure that the
Common terminal connects to the earthed pole of the
power source.
Insert the power cable plug only into a socket outlet
provided with a protective earth contact. Do not negate
this protective action by the using an extension cord
without a protective conductor.
Before switching on the instrument, the protective
earth terminal of the instrument must be connected to a
protective conductor.You can do this by using the power
cord supplied with the instrument.
It is prohibited to interrupt the protective earth
connection intentionally.
iv
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

The following work should be carried out by a qualied electrician, and all local
electrical codes must be strictly observed. If the plug on the cable does not t
the power outlet, or if the cable is to be attached to a terminal block, cut the
cable at the plug end and rewire it.
The color coding used in the cable depends on the cable supplied. If you are
connecting a new plug, it should meet the local safety requirements and include
the following features:
Adequate load-carrying capacity (see table of specications).
Ground connection.
Cable clamp.
Operating Environment
Warning
The HP 8153A is not designed for outdoor use.To prevent
potential re or shock hazard, do not expose the HP 8153A
to rain or other excessive moisture.
Input/Output Signals
Caution
A maximum of 15V can be applied as an external voltage to any
of the BNC connectors.
v
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Initial Safety Information for Laser Source Modules
The Specications for these modules are as follows:
HP 81551MM HP 81552SM HP 81553SM HP 81554SM
Laser Type FP-Laser FP-Laser FP-Laser Dual FP-Laser
InGaAsP InGaAsP InGaAsP InGaAsP
Laser Class
According to IEC 825 3A 3A 3A 3A
(Europe)
According to 21 CFR 1040.10 1 1 1 1
(Canada, Japan, USA)
Output Power > -2dBm > 0dBm > 0dBm > -1dBm
Beam Diameter 50  m 9  m 9  m 9  m
Numerical Aperture 0.2 0.1 0.1 0.1
Wavelength 850 6 10nm 1310 6 20nm 1550 6 20nm 1310/1550 6 20nm
Note
Canada, Japan, USA
The laser safety warning labels are xed on the laser module.
Note
Europe
A sheet of laser safety warning labels are included with the
laser module.You MUST stick the labels in the local language
vi
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

onto the outside of the mainframe, in a position where they are
clearly visible to anyone using the instrument.
You MUST return instruments with malfunctioning laser boxes to a HP Service
Center for repair and calibration.
The laser module has built in safety circuitry that will disable the optical output
in the case of a fault condition.
Warning
Use of controls or adjustments or performance of
procedures other than those specied for the laser source
may result in hazardous radiation exposure.
Warning
Refer Servicing only to qualied and authorized personnel.
Warning
Do not enable the laser when there is no ber attached to
the optical output connector.
The optical output connector is at the bottom, on the laser
module front panel.
The laser is enabled by pressing the grey button above the
optical output connector on the front panel. The laser is
enabled when the green LED on the front panel of the laser
module is lit.
Warning
Under no circumstances look into the end of an optical
cable attached to the optical output when the device is
operational.
The laser radiation is not visible to the human eye, but it
can seriously damage your eyesight.
vii
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Sicherheitsinformation f  ur Laser Quellen
Die Spezikationen f ur die Lasereinsch ube sind wie folgt:
HP 81551MM HP 81552SM HP 81553SM HP 81554SM
Laser Typ FP-Laser FP-Laser FP-Laser Dual FP-Laser
InGaAsP InGaAsP InGaAsP InGaAsP
Laser Klasse
Entsprechend IEC 825 3A 3A 3A 3A
(Europa)
Ausgangsleistung > -2dBm > 0dBm > 0dBm > -1dBm
Strahldurchmesser 50  m 9  m 9  m 9  m
Numerische Apertur 0.2 0.1 0.1 0.1
Wellenl 
ange 850 6 10nm 1310 6 20nm 1550 6 20nm 1310/1550 6 20nm
Hinweis
Europa
Ein Blatt mit Laser Warnaufklebern ist jedem Lasereinschub
beigef ugt. Die Aufkleber m ussen in der Landessprache,fur den
Anwender gut sichtbar, an der Aussenseite des Grundger ates
angebracht werden.
Defekte Lasereinsch ube m ussen zur Reparatur oder zur Kalibration an ein HP
Service B uro geschickt werden.
Der Lasereinschub hat eine eingebaute Sicherheitsschaltung die den
Laserausgang im Falle einer St orung abschaltet.
viii
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Warnung
Bedienung, Abgleicharbeiten oder die Durchf  uhrung von
Tests, die nicht im Handbuch angegeben sind, k  onnen zum
Austritt gef  ahrlicher Strahlung f  uhren.
Warnung
Reparaturarbeiten d  urfen nur von qualiziertem und
bevollm  achtigtem Personal durchgef  uhrt werden.
Warnung
Laser nicht ohne angeschlossenen Glasfaserkabel
einschalten.
Der optische Ausgang bendet sich am unteren Teil der
Einschubfrontplatte. Mit dem dar  uberliegenden grauen
Druckschalter wird der Laser ein- bzw. ausgeschaltet. Bei
eingeschaltetem Laser leuchtet eine gr  une Anzeige an der
Frontplatte des Einschubes.
Warnung
Wenn der Laser eingeschaltet ist, darf unter keinen
Umst  anden in das Ende des optischen Kabels oder in den
Laserausgang am Ger  at geschaut werden.
Der Laserstrahl ist f  ur das menschliche Auge unsichtbar,
kann aber das Sehverm  ogen ernsthaft verletzen.
ix
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Informations et Consignes de S  ecurit  e Relatives  a l'Utilisation
des Lasers.
Les Sp ecications des Modules Laser sont les Suivantes:
HP 81551MM HP 81552SM HP 81553SM HP 81554SM
Type de Laser FP-Laser FP-Laser FP-Laser Dual FP-Laser
InGaAsP InGaAsP InGaAsP InGaAsP
Classe du Laser
Conforme au STD IEC 825 3A 3A 3A 3A
(Europe)
Conforme au STD CFR 1040.10 1 1 1 1
(Canada, Japan, USA)
Puissance de Sortie > -2dBm > 0dBm > 0dBm > -1dBm
Diam ^ etre du Faisceau 50  m 9  m 9  m 9  m
Ouverture Num  erique 0.2 0.1 0.1 0.1
Longueur d'Onde 850 6 10nm 1310 6 20nm 1550 6 20nm 1310/1550 6 20nm
Remarque
Canada, Japan, USA
Les etiquettes de s ecurit e sont ach ees sur le module laser.
Remarque
Europe
Les etiquettes de s ecurit e sont incluses dans le module laser.
Il est obligatoire de coller une etiquette en langage local a
x
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

l' exterieur de l'appareil de telle sorte qu'elle soit parfaitement
visible par l'utilisateur.
Il est obligatoire de retourner tout appareil pr 
esentant un d efaut
de fonctionnement du laser uniquement 
a un centre de r eparation
Hewlett-Packard.
Le module laser comporte un syst eme de s ecurit e mettant hors service la sortie
optique en cas de malfonctionnement du laser.
Attention
L'utilisation du laser en dehors de ses limites de
performances et des proc  edures d  enies par HP peut
conduire  a une exposition dangereuse de l'utilisateur aux
radiations.
Attention
Seul le personnel autoris  e par HP est quali  e pour
intervenir sur le laser.
Attention
Ne pas mettre le laser sous tension sans s' ^ etre assur  e
qu'une bre optique est bien x  ee sur le connecteur.
Le connecteur de sortie optique est situ  e au bas de la face
avant du module laser.
La mise en service du laser s'eectu  e par la pression du
bouton gris situ  e au dessus de la sortie optique en face
avant du module. L'illumination de la LED verte indique que
le laser est en activit  e.
Attention
En aucun cas ne tenter de regarder l'extr  emit  e de la bre
optique attach  ee au connecteur lorsque le laser est en
activit  e.
Bien que la lumi  ere  emise par le laser ne soit pas visible elle
peut cependant ^ etre dangereuse pour la vue.
xi
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

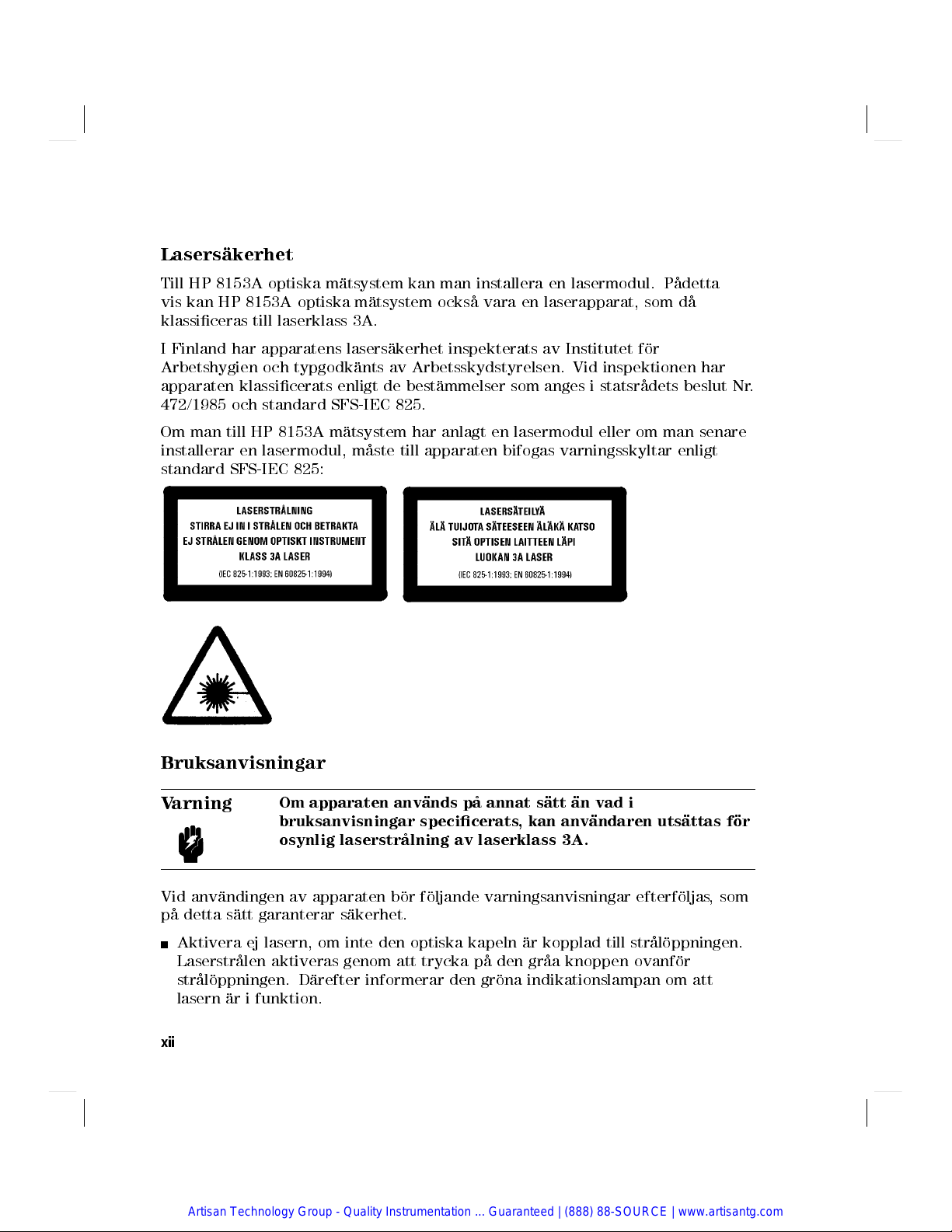

Lasers  akerhet
Till HP 8153A optiska m atsystem kan man installera en lasermodul. P adetta
vis kan HP 8153A optiska m atsystem ocks a vara en laserapparat, som d a
klassiceras till laserklass 3A.
I Finland har apparatens lasers akerhet inspekterats av Institutet f or
Arbetshygien och typgodk ants av Arbetsskydstyrelsen. Vid inspektionen har
apparaten klassicerats enligt de best ammelser som anges i statsr adets beslut Nr.
472/1985 och standard SFS-IEC 825.
Om man till HP 8153A m atsystem har anlagt en lasermodul eller om man senare
installerar en lasermodul, m aste till apparaten bifogas varningsskyltar enligt
standard SFS-IEC 825:
Bruksanvisningar
Varning
Om apparaten anv  ands p  a annat s  att  an vad i
bruksanvisningar specicerats, kan anv  andaren uts  attas f  or
osynlig laserstr  alning av laserklass 3A.
Vid anv andingen av apparaten b or f oljande varningsanvisningar efterf oljas, som
pa detta s att garanterar s akerhet.
Aktivera ej lasern, om inte den optiska kapeln ar kopplad till str al oppningen.
Laserstr alen aktiveras genom att trycka p a den gr aa knoppen ovanf or
str al oppningen. D arefter informerar den gr ona indikationslampan om att
lasern ar i funktion.
xii
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Titta aldrig in i den till str al oppningen kopplade optiska kabeln eller berns
losa del, n ar lasern ar i funktion.
Underh  all
I apparaten nns ej s adana delar, som anv andaren kan underh alla. N ar man
uppt acker att fel i apparaten har uppst att eller att apparaten ej fungerar
felfritt, b or apparaten s andas till HP:s verkstad f or reparering och service.
I lasermodulen nns en inbyggd s akerhetskrets, som s atter laserstr alningen ur
funktion n ar fel uppst ar i apparaten.
xiii
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Laserturvallisuus
HP 8153A optiseen yleismittariin voidaan asentaa pistoyksikk on a laserl ahde.
Tall oin HP 8153A optinen yleismittari toimii laserlaitteena joka kuuluu
turvalisuusluokkaan 3A.
Laitteen on tarkastanut Suomessa laserturvallisuuden osalta Ty oterveyslaitos ja
tyypihyv aksynyt Ty osuojeluhallitus.Tarkastuksessa laitteen turvallisuusluokka
on m aaritetty valtioneuvoston p aat oksen N:o 472/1985 ja standardin SFS-IEC
825 mukaisesti.
Mik ali HP 8153A mittauslaitteeseenne on asennettu laserl ahde tai siihen
my ohemmin asennetaan em. laserl ahde, laite on varustettava laserl ahteen
mukana toimitettavilla, standardin SFS-IEC 825 mukaisilla varoitusmerkinn oill a:
K aytt  o
Varoitus
Laitteen k  aytt  aminen muulla kuin k  aytt  oohjeesa mainitulla
tavalla saattaa altistaa k  aytt  aj  an luokan 3A n  akym  att  om  alle
lasers  ateilylle.
Kaytt aess asi laitetta noudata seuraavia varo-ohjeita, jotka takaavat laitteen
turvallisen k ayt on:
al a aktivoi lasers adett a, ellei optinen kaapeli ole kytkettyn asateen
ulostuloliittimeen. Lasers ade aktivoidaan painamalla ulostuloliittimen
yl apuolelle sijoitettua harmaata kytkint a. T all oin vihre a merkkivalo ilmaisee
lasers ateen toimivan.
xiv
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

al a koskaan katso ulostuloliittimeen kytketyn optisen kaapelin tai kuidun
sis aan sen vapaana olevasta p aast a, kun laite on toiminnassa.
Huolto
Laitteessa ei ole k aytt aj an huollettavissa olevia kohteita. Laite tulee l ahett aa
korjattavaksi ja huollettavaksi HP:n huoltokorjaamoon, mik ali laite vikaantuu
tai sen havaitaan toimivan virheellisesti.
Laserl ahteess aonmyos sis aanrakennettu turvapiiri, joka est aa lasers ateen
toiminnan laitteen vikaantuessa.
xv
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Introduction
This manual is arranged into four categories:
Getting Started
Descriptions of operating principles, to make you familiar with the
instrument. Chapter 1.
Quick Reference Guide
Local control and remote control programming information. Chapters 2, 3, 4,
5, 6, 7, 8, and 9.
Reference Data
Supporting information of a non-operational nature. Appendix A, B,C,D,E,
F, G, H, and I.
Customer Assistance
Sales and Service information. Appendix J.
xvi
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Contents
1. Getting Started
The HP 8153A System ..................... 1-1
A Quick Overview . . . . . . . . . . . . . . . . . . . . . . . 1-2
The Keyboard . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Measure Mode . . . . . . . . . . . . . . . . . . . . . . . 1-2
Menu Mode .... .. .. .. .. .. .. .. . .. .. . 1-3
The Display . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
A Sample Session .... .. .. .. .. .. .. .. .. .. . 1-8
Hardware Setup . . . . . . . . . . . . . . . . . . . . . . . 1-8
Switching On and Recalling the Standard Setting ....... 1-8
Making A Power Measurement ................ 1-9
Logging Data .... .. .. .. .. .. .. .. .. .. .. 1-11
Examining the Data .. .. .. .. .. .. .. .. .. .. . 1-12
Plotting Data ........................ 1-13
2. Measure Mode
The Chan Key . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
The Mode Key . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
The Param Key .. .. .. .. .. .. .. .. .. .. .. .. 2-2
Entry Status . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Default Values . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Parameter List . . . . . . . . . . . . . . . . . . . . . . . . 2-2
 .... .. .. .. .. .. .. .. .. . .. .. .. .. 2-2
CAL .... .. .. .. .. .. .. .. .. . .. .. .. 2-3
T ............................. 2-3
REF............................ 2-5
ATT.... .. .. .. .. .. .. . .. .. .. .. .. . 2-6
AUX ........................... 2-7
The Disp ! RefKey....................... 2-7
ThedBKey ...... .. .. .. .. .. .. .. . .. .. . 2-8
Using 4
dB
5 with a Two Sensor Instrument ........... 2-8
Using 4
dB
5 with a One Sensor Instrument .... .. .. .. . 2-9
Contents-1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

The dBm/W Key . . . . . . . . . . . . . . . . . . . . . . . . 2-9
The Zero Key ......................... 2-9
TheNDigKey......................... 2-11
The Range Keys . . . . . . . . . . . . . . . . . . . . . . . . 2-11
The AutoKey ........................ 2-13
TheUpKey......................... 2-13
The Down Key ....................... 2-13
The Analog Output ..................... 2-13
The Modify Keys . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Editing Discrete Valued Parameters . . . . . . . . . . . . . . 2-14
Editing Continuous Valued Parameters ............ 2-14
Editing Units .... .. .. .. .. .. .. . .. .. .. 2-14
3. Menu Mode
The Chan Key . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
The Mode Key . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
The System Key . . . . . . . . . . . . . . . . . . . . . . . . 3-2
The Modify Keys . . . . . . . . . . . . . . . . . . . . . . . . 3-2
The Loss Key ......................... 3-2
Preparation .... .. .. .. .. .. .. .. .. .. .. . 3-2
Running the Loss Application . . . . . . . . . . . . . . . . . 3-3
The Record Key . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Preparation .... .. .. .. .. .. .. .. .. .. .. . 3-6
The Stability Application . . . . . . . . . . . . . . . . . . . . 3-7
T TOTAL .. .. .. .. .. .. .. .. .. .. .. .. .. 3-8
AUTODUMP . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Running the Stability Application . . . . . . . . . . . . . . . 3-9
The Logging Application .... .. .. .. .. .. .. .. .. 3-10
SAMPLES . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
AUTODUMP . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
START .... .. .. .. .. .. . .. .. .. .. .. .. 3-12
THRESHLD ......................... 3-12
Running the Logging Application . . . . . . . . . . . . . . . 3-13
The Manual Logging Application ................ 3-13
Running the Manual Logging Application .... .. .. .. . 3-13
The Plot Application . . . . . . . . . . . . . . . . . . . . . . 3-14
AUTOSCAL ......................... 3-15
Y MIN ........................... 3-15
YMAX ........................... 3-15
COMMENT .... .. .. .. .. .. .. .. .. .. . .. 3-16
Running the Plot Application . . . . . . . . . . . . . . . . . 3-16
Contents-2
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
