HPE ProLiant DL325 Gen10 Plus User manual

HPE ProLiant DL325 Gen10 Plus v2 Server User GuideHPE ProLiant DL325 Gen10 Plus v2 Server User Guide
Part Number: 30-25EA2ED1-003
Published: March 2022
Edition: 3

HPE ProLiant DL325 Gen10 Plus v2 Server HPE ProLiant DL325 Gen10 Plus v2 Server User GuideUser Guide
AbstractAbstract
This document is for the person who installs, administers, and troubleshoots servers and storage systems. Hewlett Packard Enterprise
assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards in products with hazardous energy
levels, and are familiar with the weight and stability precautions for rack installations.
Part Number: 30-25EA2ED1-003
Published: March 2022
Edition: 3
© Copyright 2021–2022 Hewlett Packard Enterprise Development LP
NoticesNotices
The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and
services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained
herein.
Confidential computer software. Valid license from Hewlett Packard Enterprise required for possession, use, or copying. Consistent with FAR
12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are
licensed to the U.S. Government under vendor's standard commercial license.
Links to third-party websites take you outside the Hewlett Packard Enterprise website. Hewlett Packard Enterprise has no control over and is
not responsible for information outside the Hewlett Packard Enterprise website.
AcknowledgmentsAcknowledgments
AMD is a trademark of Advanced Micro Devices, Inc.
Linux is the registered trademark of Linus Torvalds in the U.S. and other countries.
Microsoft , Windows , and Windows Server are either registered trademarks or trademarks of Microsoft Corporation in the United States
and/or other countries.
VMware is a registered trademark or trademark of VMware, Inc. and its subsidiaries in the United States and other jurisdictions.
All third-party marks are property of their respective owners.
Revision historyRevision history
Part numberPart number Publication datePublication date EditionEdition Summary of changesSummary of changes
30-25EA2ED1-003 March 2022 3
®
® ® ®
®

Table of contentsTable of contents
1 Component identification
1.1 Front panel components
1.1.1 iLO Service Port
1.2 Front panel LEDs and buttons
1.2.1 Server UID LED
1.2.2 Using the UID button to view the Server Health Summary
1.2.3 Front panel LED power fault codes

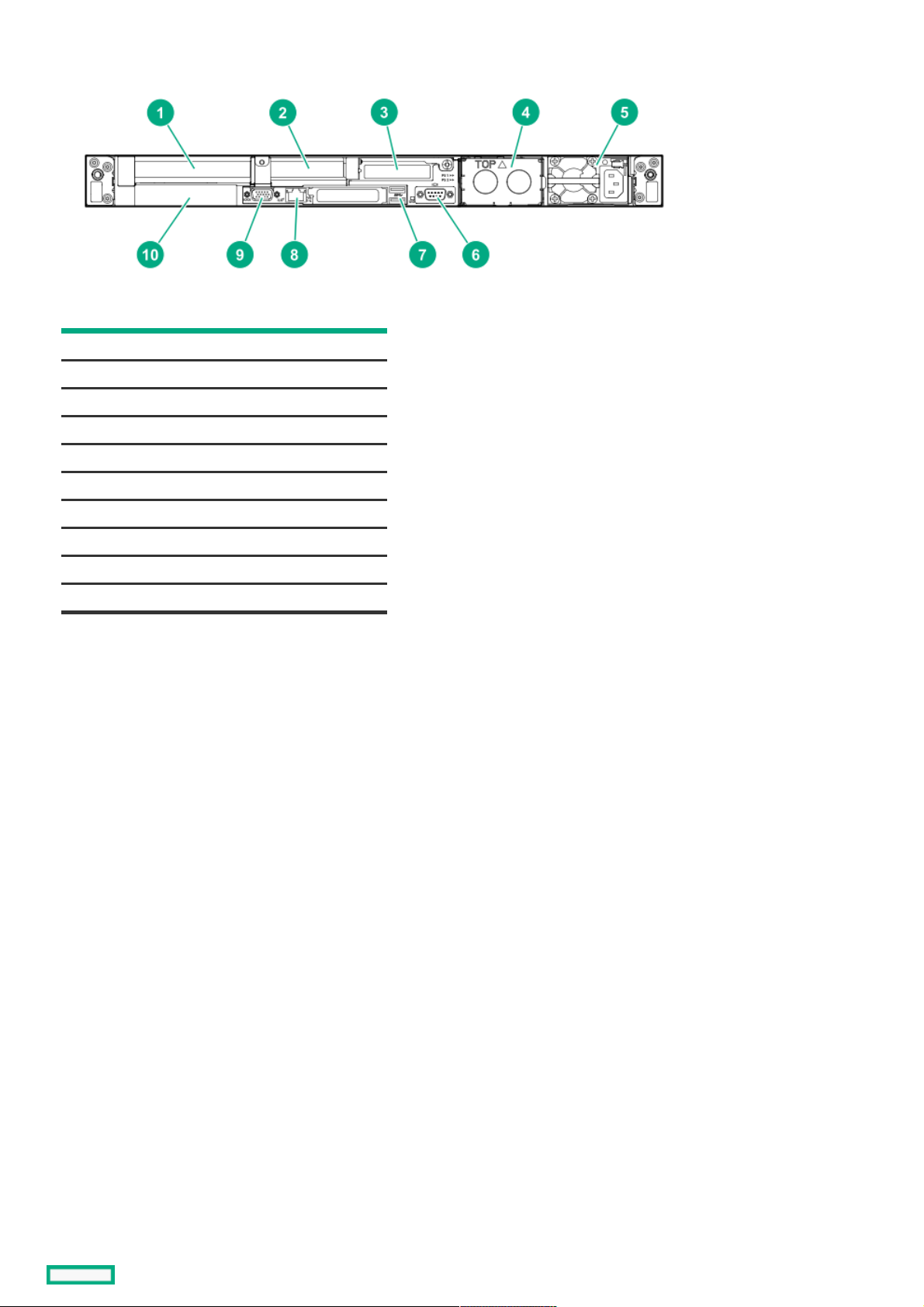

1.3 Rear panel components
1.4 Rear panel LEDs
1.5 System board components
1.5.1 System maintenance switch descriptions
1.5.2 DIMM slot locations
1.5.3 DIMM label identification
1.5.4 Processor and socket components
1.6 Drive bay numbering
1.6.1 4 LFF drive bay numbering
1.6.2 8 SFF + 2 SFF drive bay numbering
1.7 HPE Basic Drive LED definitions
1.8 PCIe4 slot description
1.9 Riser board components
1.10 DSC-25 2-port SFP28 card ports and LEDs
1.11 HPE NS204i-p NVMe OS Boot Device components
1.12 HPE NS204i-p NVMe OS Boot Device LED definitions
1.13 Fan numbering
2 Operations
2.1 Remove the front bezel
2.2 Power up the server
2.3 Power down the server
2.4 Release the cable management arm
2.5 Remove the server from the rack
2.6 Remove the rack sliding rails
2.7 Remove the access panel
2.8 Remove the front drive cage
2.9 Remove the air baffle
2.10 Remove the riser cage
2.11 Remove a riser slot blank
2.12 Install the riser cage
2.13 Install the air baffle
2.14 Install the front drive cage
2.15 Install the access panel
2.16 Install the rack sliding rails
2.17 Install the server into the rack

3 Setup
3.1 Initial system installation
3.1.1 HPE Installation Service
3.1.2 Setting up the server
3.2 Operational requirements
3.2.1 Space and airflow requirements
3.2.2 Temperature requirements
3.2.3 Power requirements
3.2.4 Electrical grounding requirements
3.3 Rack warnings and cautions
3.4 Server warnings and cautions
3.5 Electrostatic discharge
4 Hardware options installation
4.1 Hardware option installation guidelines
4.2 Rack rail option
4.3 Cable management arm option
4.4 Installing the front bezel option
4.5 Power supply options
4.5.1 Hot-plug power supply calculations
4.5.2 Power supply warnings and cautions
4.5.3 DC power supply warnings and cautions
4.5.4 Installing an AC power supply
4.5.5 Installing a DC power supply
4.6 Transceiver option
4.6.1 Transceiver warnings and cautions
4.6.2 Installing a transceiver
4.7 Drive options
4.7.1 Drive installation guidelines
4.7.2 Installing a hot-plug SAS, SATA or NVMe drive
4.8 Installing the 2 SFF drive cage option
4.9 Optical drive option
4.9.1 Installing an optical drive in the LFF drive chassis
4.9.2 Installing an optical drive in the SFF drive chassis
4.10 Fan option
4.10.1 Fan population
4.10.2 Fan mode behavior
4.10.3 Installing the high-performance fans
4.11 Memory options
4.11.1 DIMM population information
4.11.2 HPE SmartMemory speed information
4.11.3 Installing a DIMM
4.12 Secondary riser cage options
4.12.1 Installing the secondary riser option for half-height expansion cards
4.12.2 Installing the secondary riser option for full-height expansion cards

4.13 Storage controller options
4.13.1 Preparing the server for storage controller installation
4.13.2 Installing a type-a modular controller option
4.13.3 Installing a type-p PCIe plug-in controller option
4.14 Energy pack options
4.14.1 HPE Smart Storage Battery
4.14.2 Energy pack specifications
4.14.3 Installing an energy pack
4.15 Expansion card options
4.15.1 Installing an expansion card
4.16 M.2 SSD options
4.16.1 Installing the M.2 SATA SSD enablement option
4.16.2 HPE NS204i-p NVMe OS Boot Device option
4.16.2.1 Installing the HPE NS204i-p NVMe OS Boot Device option
4.17 OCP NIC 3.0 adapter option
4.17.1 Installing an OCP NIC 3.0 adapter
4.18 Chassis intrusion detection switch option
4.18.1 Installing the chassis intrusion detection switch
4.19 Serial port option
4.19.1 Installing the serial port option
4.20 Internal USB device option
4.20.1 Installing an internal USB device
4.21 HPE Trusted Platform Module 2.0 Gen10 Plus option
4.21.1 HPE Trusted Platform Module 2.0 guidelines
4.21.2 Installing the Trusted Platform Module board
4.21.2.1 Preparing the server for installation
4.21.2.2 Installing the TPM board and cover
4.21.2.3 Preparing the server for operation
4.21.3 Enabling the Trusted Platform Module
4.21.3.1 Enabling the Trusted Platform Module as TPM 2.0
4.21.3.2 Enabling the Trusted Platform Module as TPM 1.2
4.21.4 Retaining the BitLocker recovery key/password
5 Cabling
5.1 Cabling guidelines
5.2 Internal cabling management
5.3 Storage cabling
5.3.1 Drive power cabling
5.3.2 Storage controller cabling
5.3.2.1 4 LFF SAS/SATA drive controller cabling
5.3.2.2 8 SFF SAS/SATA drive controller cabling
5.3.2.3 8 SFF NVMe drive controller cabling
5.3.2.4 2 SFF NVMe drive controller cabling
5.3.2.5 8 + 2 SFF drive controller cabling
5.3.3 Energy pack cabling

5.3.4 Storage controller backup power cabling
5.4 Optical drive cabling
5.5 M.2 SATA SSD add-in card cabling
5.6 Fan cabling
5.7 OCP bandwidth upgrade cabling
5.8 Serial port cabling
5.9 Chassis intrusion detection switch cabling
5.10 Front I/O cabling
6 Configuration and diagnostic utilities
7 Troubleshooting
7.1 NMI functionality
7.2 Troubleshooting resources
8 System battery replacement
8.1 System battery information
8.2 Removing and replacing the system battery
9 Safety, warranty, and regulatory information
9.1 Regulatory information
9.1.1 Notices for Eurasian Economic Union
9.1.2 Turkey RoHS material content declaration
9.1.3 Ukraine RoHS material content declaration
9.2 Warranty information
10 Specifications
10.1 Environmental specifications
10.2 Mechanical specifications
10.3 Power supply specifications
10.3.1 HPE 500 W Flex Slot Platinum Hot-plug Low Halogen Power Supply (94% efficiency)
10.3.2 HPE 800 W Flex Slot Platinum Hot-plug Low Halogen Power Supply
10.3.3 HPE 800 W Flex Slot Titanium Hot-plug Low Halogen Power Supply
10.3.4 HPE 800 W Flex Slot Universal Hot-plug Low Halogen Power Supply
10.3.5 HPE 800 W Flex Slot -48 VDC Hot-plug Low Halogen Power Supply
10.3.6 HPE 1600 W Flex Slot Platinum Hot-plug Low Halogen Power Supply
11 Websites
12 Support and other resources
12.1 Accessing Hewlett Packard Enterprise Support
12.2 Accessing updates
12.3 Customer self repair
12.4 Remote support
12.5 Documentation feedback

Component identificationComponent identification
This chapter describes the external and internal server features and components.
Component identification 7

Front panel componentsFront panel components
LFF front panel componentsLFF front panel components
ItemItem DescriptionDescription
1 Optical drive (optional)
2 Serial number/iLO information pull tab
3 iLO service port
4 USB 3.0 port
5 LFF drive bays
The serial number/iLO information pull tab is double-sided. One side shows the server serial number and the customer asset tag
label. The other side shows the default iLO account information.
The server supports LFF SAS and SATA drives.
SFF front panel componentsSFF front panel components
ItemItem DescriptionDescription
1 Serial number/iLO information pull tab
2 Optical drive (optional)
3 2 SFF drive cage
4 Universal media bay
5 USB 3.0 port
6 iLO service port
7 SFF drive bays
The serial number/iLO information pull tab is double-sided. One side shows the server serial number and the customer asset tag
1
2
1
2
1
2
3
4
1
Front panel components 8

label. The other side shows the default iLO account information.
The server supports two 2 SFF drive cage options. The following drive types are supported: SATA, SAS, U.2 NVMe, and U.3 NVMe
drives.
The universal media bay supports the optical drive or the 2 SFF drive cage option.
The 8 SFF drive cage supports the following drive types: SATA, SAS, U.2 NVMe, and U.3 NVMe drives.
2
3
4
Front panel components 9

iLOiLO Service Port Service Port
The Service Port is a USB port with the label iLOiLO on supported servers and compute modules.
To find out if your server or compute module supports this feature, see the server specifications document at the following website:
https://www.hpe.com/info/qshttps://www.hpe.com/info/qs.
When you have physical access to a server, you can use the Service Port to do the following:
Download the Active Health System Log to a supported USB flash drive.
When you use this feature, the connected USB flash drive is not accessible by the host operating system.
Connect a client (such as a laptop) with a supported USB to Ethernet adapter to access the following:
iLO web interface
Remote console
iLO RESTful API
CLI
Hewlett Packard Enterprise recommends the HPE USB to Ethernet Adapter (part number Q7Y55A).
When you use the iLO Service Port:
Actions are logged in the iLO event log.
The server UID flashes to indicate the Service Port status.
You can also retrieve the Service Port status by using a REST client and the iLO RESTful API.
You cannot use the Service Port to boot any device within the server, or the server itself.
You cannot access the server by connecting to the Service Port.
You cannot access the connected device from the server.
For more information about the iLO Service Port, see the iLO user guide at the following website: https://www.hpe.com/support/ilo-https://www.hpe.com/support/ilo-
docsdocs.
iLO Service Port 10

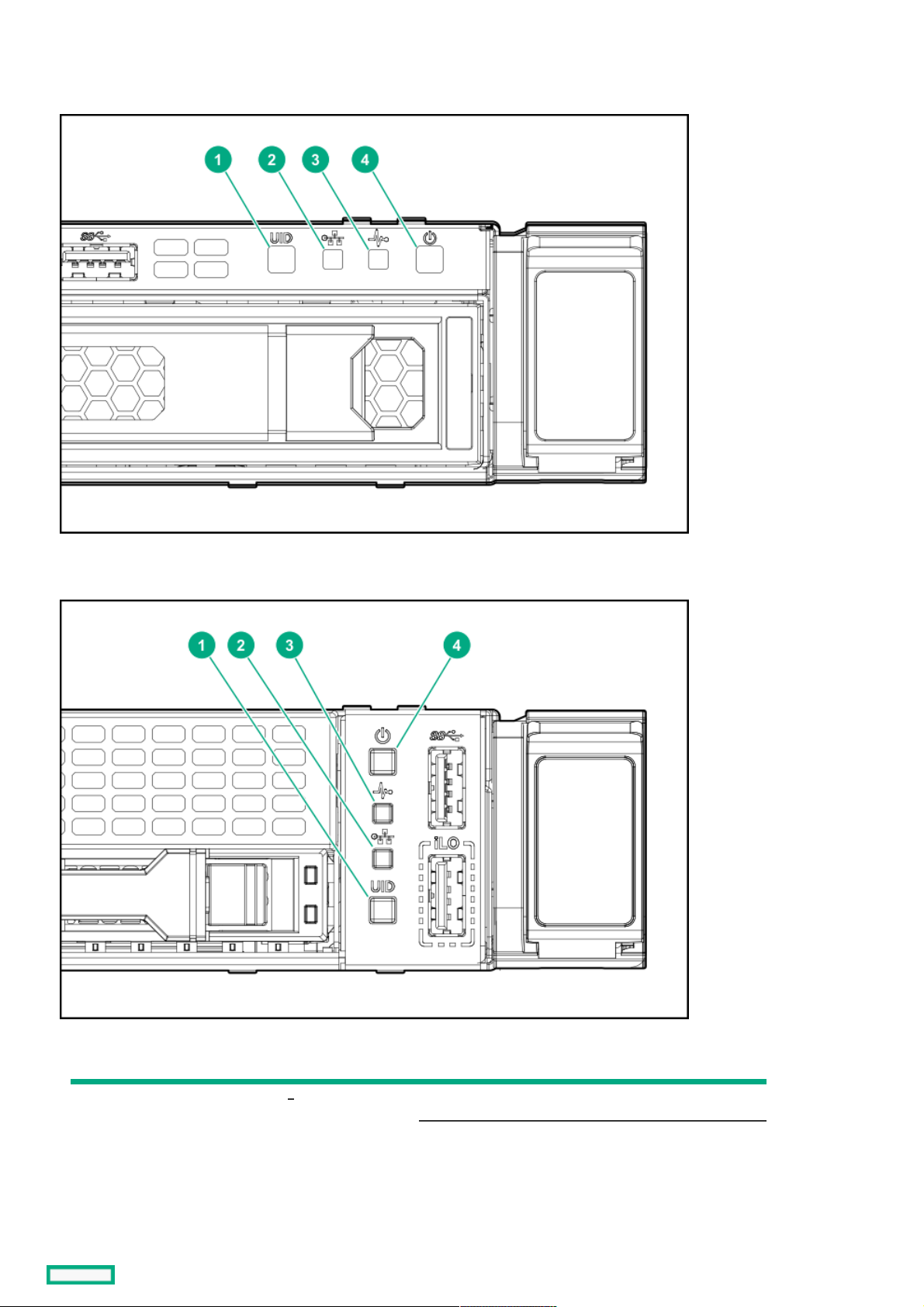

Front panel LEDs and buttonsFront panel LEDs and buttons
LFF front panel LEDs and buttonsLFF front panel LEDs and buttons
SFF front panel LEDs and buttonSFF front panel LEDs and button
ItemItem DescriptionDescription StatusStatus DefinitionDefinition
1 UID button/LED Solid blue Activated
1
Front panel LEDs and buttons 11

Flashing blue 1 flash per second = Remote
management or firmware upgrade
in progress
4 flashes per second = iLO manual
reboot sequence initiated
8 flashes per second = iLO manual
reboot sequence in progress
Off Deactivated
2 NIC status LED Solid green Linked to network
Flashing green Network active
Off No network activity
3 Health LED Solid green Normal
Flashing green iLO is rebooting
Flashing amber System degraded
Flashing red System critical
4 Power On/Standby button and system
power LED
Solid green System on
Flashing green Performing power-on sequence
Solid amber System in standby
Off No power present
ItemItem DescriptionDescription StatusStatus DefinitionDefinition
When all LEDs flash simultaneously, a power fault has occurred. For more information, see Front panel LED power fault codes.
If the health LED indicates a degraded or critical state, review the system Integrated Management Log (IML) or use HPE iLO to
review the system health status.
Facility power is not present, power cord is not attached, no power supplies are installed, power supply failure has occurred, or the
front I/O cable is disconnected.
1
1
2
2
1
3
1
2
3
Front panel LEDs and buttons 12

Server UID LEDServer UID LED
The UID LED is used to locate a particular server when it is deployed in a dense rack with other equipment. Activating the UID LED
helps an on-site technician to quickly identify a server for maintenance tasks.
Server UID LED 13

Using the UID button to view the Server Health SummaryUsing the UID button to view the Server Health Summary
You can use the UID button to display the iLO Server Health Summary screen on an external monitor. This function works both when
the server is powered on or off. Use this feature for troubleshooting if the server will not start up.
CAUTION: CAUTION: Press and release the UID button. Holding it down at any time for more than five seconds initiates a graceful
iLO reboot or a hardware iLO reboot. Data loss or NVRAM corruption might occur during a hardware iLO reboot.
PrerequisitesPrerequisites
An external monitor is connected.
In the iLO web interface, the Show Server Health on External Monitor feature is enabled on the Access Settings page.
ProcedureProcedure
1. Press and release the UID button.
The Server Health Summary screen is displayed on the external monitor. For more information, see the iLO troubleshooting guide
on the Hewlett Packard Enterprise website ( https://www.hpe.com/support/ilo-docshttps://www.hpe.com/support/ilo-docs).
2. Press the UID button again to close the Server Health Summary screen.
Using the UID button to view the Server Health Summary 14

Front panel LED power fault codesFront panel LED power fault codes
The following table provides a list of power fault codes, and the subsystems that are affected. Not all power faults are used by all
servers.
SubsystemSubsystem LED behaviorLED behavior
System board 1 flash
Processor 2 flashes
Memory 3 flashes
Riser board PCIe slots 4 flashes
FlexibleLOM 5 flashes
Storage controller 6 flashes
System board PCIe slots 7 flashes
Power backplane 8 flashes
Storage backplane 9 flashes
Power supply 10 flashes
PCIe expansion cards installed in riser board 11 flashes
Chassis 12 flashes
GPU card 13 flashes
Front panel LED power fault codes 15

Rear panel componentsRear panel components
ItemItem DescriptionDescription
1 Slot 1 PCIe4 x16 (16, 8, 4, 1)
2 Slot 2 PCIe4 x16 (16, 8, 4, 1)
3 Slot 3 PCIe4 x16 (16, 8, 4, 1) (optional)
4 Flex Slot power supply 2 (optional)
5 Flex Slot power supply 1
6 Serial port (optional)
7 USB 3.0 ports (2)
8 iLO management port
9 Video port
10 OCP NIC 3.0 slot
Rear panel components 16

Rear panel LEDsRear panel LEDs
ItemItem LEDLED StatusStatus DefinitionDefinition
1 iLO link Solid green Network link
Off No network link
2 iLO status Solid green Linked to network
Flashing green Network active
Off No network activity
3 UID Solid blue Activated
Flashing blue 1 flash per sec = Remote management or firmware
upgrade in progress
4 flashes per sec = iLO manual reboot sequence initiated
8 flashes per sec = iLO manual reboot sequence in
progress
Off Deactivated
4 Power supply Solid green The power supply is operating normally.
Off One or more of the following conditions exists:
Power is unavailable
Power supply failure
Power supply is in standby mode
Power supply error
Rear panel LEDs 17

System board componentsSystem board components
ItemItem DescriptionDescription
1 Serial port connector
2 Secondary PCIe4 riser connector
3 System maintenance switch
4 Storage controller backup power connector 2
5 Graphics card power connector 2
6 Primary PCIe4 riser connector
7 System battery
8 NVMe port 6A
9 OCP NIC 3.0 slot
10 OCP NIC 3.0 x16 upgrade connector
11 Internal USB 3.0 port
12 Storage controller backup power connector 1
13 Energy pack connector
14 NVMe/SATA port 9A
15 NVMe port 4A
16 NVMe/SATA port 8A
System board components 18

17 NVMe port 5A
18 Front I/O connector
19 Fan connector 8
20 Graphics card power connector 1
21 Fan connector 7
22 Fan connector 6
23 TPM connector
24 Fan connector 5
25 Fan connector 4
26 NVMe port 3A
27 NVMe port 1A
28 Fan connector 3
29 NVMe port 2A
30 Fan connector 2
31 Fan connector 1
32 Type-a modular storage controller slot
33 Not for use in this server
34 Not for use in this server
35 Chassis intrusion detection switch connector
36 Drive backplane power connector
ItemItem DescriptionDescription
System board components 19

System maintenance switch descriptionsSystem maintenance switch descriptions
PositionPosition DefaultDefault FunctionFunction
S1 Off Off = iLO 5 security is enabled.
On = iLO 5 security is disabled.
S2 Off Reserved
S3 Off Reserved
S4 Off Reserved
S5 Off Off = Power-on password is enabled.
On = Power-on password is disabled.
S6 Off Off = No function
On = Restore default manufacturing settings
S7 Off Reserved
S8 — Reserved
S9 — Reserved
S10 — Reserved
S11 — Reserved
S12 — Reserved
To access the redundant ROM, set S1, S5, and S6 to On.
When the system maintenance switch position 6 is set to the On position, the system is prepared to restore all configuration settings
to their manufacturing defaults.
When the system maintenance switch position 6 is set to the On position and Secure Boot is enabled, some configurations cannot be
restored. For more information, see Configuring security.
1
1
1,2,3
1
2
3
System maintenance switch descriptions 20
