Huawei Ascend G610 User manual

Quick Start Guide
G610

Dual-Card Dual-Standby
Your mobile phone supports dual-card dual-standby
mode, which can significantly reduce power consumption
and increase your phone's standby time. Note that two
restrictions exist:
• When you make calls using one SIM card, the other
SIM card is disabled.
For example, when you make calls using SIM card 1,
SIM card 2 cannot be used to answer calls or access
the Internet. If someone calls SIM card 2, the caller will
hear a voice message like "The subscriber you dialed is
out of the service zone" or "The subscriber you dialed
is not able to answer your call, please try again later."
This is because your mobile phone cannot access the
network with both SIM cards at the same time and has
nothing to do with your service provider's network
condition. It is recommended that you subscribe to
services such as voicemail or missed-call reminders
from your service provider to avoid the inconvenience
caused by missed calls.
• When you are using one SIM card's data services, you
can receive calls and messages using the other SIM
card, but data services will be interrupted.
For example, when SIM card 1's data services are in
use, you can use SIM card 2 for calling and messaging,
but SIM card 1's data services will be interrupted as a
result. When the call using SIM card 2 is terminated, or
the message is received or sent, you can resume using
SIM card 1's data services.

Getting to know your phone
Thank you for choosing the HUAWEI smartphone.
First, let's take a look at a few basics.
Press and hold the power button to power on your
phone. After your phone is powered on, you can use the
power button to turn the screen off and on.
Front
camera
Earpiece
Status
indicator
Back Menu Home
Power
button
Volume
key

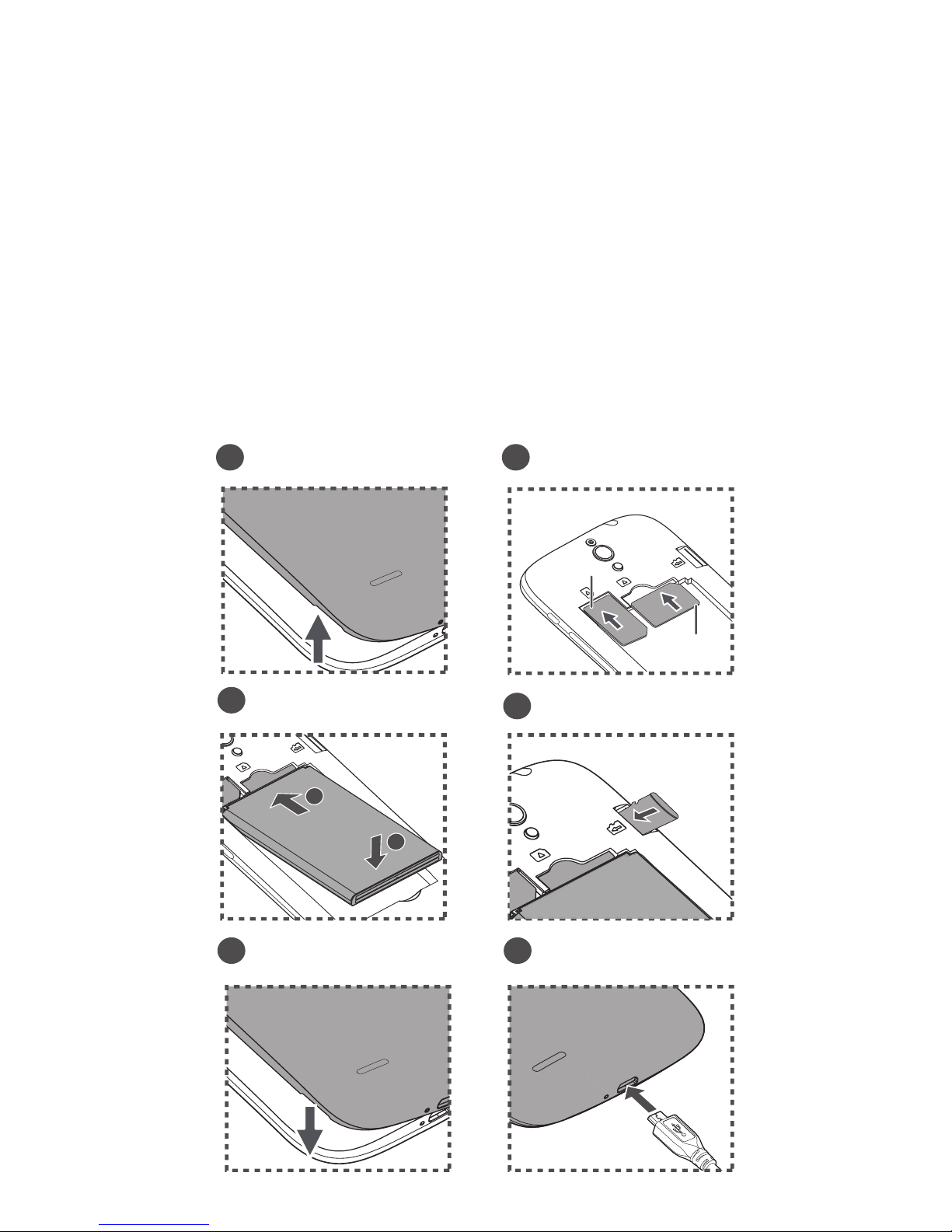

Preparing your phone
To insert a SIM card, the battery and a microSD card,
please perform the few steps shown in the following
figures.
Your phone is shipped with the battery partially charged.
It is recommended that you fully charge the battery
before using it for the first time.
1 2
3
5
4
6
GSM
WCDMA
/GSM
Remove the battery
cover Insert the SIM card
Insert the microSD card
(optional)
Installing the battery
Close the battery cover Charging the battery
a
b

Dual-Card Management
Your mobile phone supports access to both WCDMA and
GSM networks. Follow the onscreen instructions or the
quick start guide to install SIM cards.
1. Touch .
2. Touch SIM card management to activate the SIM
cards.
10:30

Locking and unlocking the screen
When you are not using your phone, press the power
button to turn off the screen.
After being idle for a specified period of time, your phone
automatically locks its screen.
Follow the onscreen instructions and drag to unlock
the screen or open an application.
10:30

Personalizing your Home screen
The unique Me Widget can group widgets that you often
use. You can touch an icon to open a widget.
Touch and hold Me Widget until your phone vibrates,
then release your finger and touch
Touch to customize
to customize your Me Widget.
10:30
Me Widget
Status bar
Display area

Managing contacts
Touch to open People .
Touch the tab page to group your contacts for easier
management.
Create
contact
10:30

Making a call
Touch to open the dialer.
You can dial a phone number directly or touch to
choose a contact.
You can also touch a phone number in places like
messages, email and webpages to make a call.
To answer an incoming call, drag to .
10:30

Sending messages
Touch to open Messaging .
Adding a photo or audio clip to a text message turns it
into a multimedia message.
You can also save attachments from multimedia
messages.
Attach file
Happy birthday!
10:30

Taking a photo or video
Touch to open Camera .
In photo mode, touch an object on the view finder to
manually focus it. Touch
to take a photo. In video
mode, frame the scene and touch to record a video.
Zoom in or
out
View photos
and videos
taken
Open option
menu
Switch
between
photo and
video modes
A

Listening to music
Touch to open Music .
You can play songs by name, artist, album and more.
You can also mark your favorite songs to add them to the
My favorites playlist.
Progress
bar
Mark as
favorite
10:30

Surfing the web
Touch to open Browser .
You can start surfing the web right away using your
phone's browser and stay on ball with up-to-date news
and information.
Your browser supports multi-page browsing. Touch
to switch between pages.
consumer.huawei.com/en
10:30

For more help
Want to obtain the user guide?
Search for and download the User Guide from
http://consumer.huawei.com/en/.
Want to learn more about Huawei Emotion UI?
Visit http://en.ui.vmall.com for the latest information.

Safety information
This section contains important information about the
operation of your device. It also contains information
about how to use the device safely. Read this information
carefully before using your device.
Electronic device
Do not use your device if using the device is prohibited.
Do not use the device if doing so causes danger or
interference with other electronic devices.
Interference with medical equipment
• Follow rules and regulations set forth by hospitals and
health care facilities. Do not use your device where
prohibited.
• Some wireless devices may affect the performance of
hearing aids or pacemakers. Consult your service
provider for more information.
• Pacemaker manufacturers recommend that a
minimum distance of 15 cm be maintained between a
device and a pacemaker to prevent potential
interference with the pacemaker. If using a
pacemaker, hold the device on the side opposite the
pacemaker and do not carry the device in your front
pocket.
Protecting your hearing when using a headset
• To prevent possible hearing damage, do not
listen at high volume levels for long periods.
• Using a headset at high volumes may damage your
hearing. To reduce this risk, lower the headset volume
to a safe and comfortable level.

• Exposure to high volumes while driving may cause
distraction and increase your risk of an accident.
Areas with flammables and explosives
• Do not use the device where flammables or explosives
are stored (in a gas station, oil depot, or chemical
plant, for example). Using your device in these
environments increases the risk of explosion or fire. In
addition, follow the instructions indicated in text or
symbols.
• Do not store or transport the device in containers with
flammable liquids, gases, or explosives.
Traffic security
• Observe local laws and regulations while using the
device. To reduce the risk of accidents, do not use your
wireless device while driving.
• Concentrate on driving. Your first responsibility is to
drive safely.
• Do not hold the device while driving. Use hands-free
accessories.
• When you must make or answer a call, pull off the
road safely and park the vehicle first.
• RF signals may affect the electronic systems of motor
vehicles. For more information, consult the vehicle
manufacturer.
• Do not place the device over the air bag or in the air
bag deployment area in a motor vehicle. Doing so may
hurt you because of the strong force when the air bag
inflates.
• Do not use your device while flying in an aircraft or
immediately before boarding. Using wireless devices in

an aircraft may disrupt wireless networks, present a
hazard to aircraft operation, or be illegal.
Operating environment
• Avoid dusty, damp, or dirty environments. Avoid
magnetic fields. Using the device in these
environments may result in circuit malfunctions.
• Do not use your device during thunderstorms to
protect your device against any danger caused by
lightning.
• Ideal operating temperatures are 0 °C to 35 °C. Ideal
storage temperatures are 0 °C to 45 °C. Extreme heat
or cold may damage your device or accessories.
• Do not expose your device to direct sunlight (such as
on a car dashboard) for prolonged periods.
• To protect your device or accessories from fire or
electrical shock hazards, avoid rain and moisture.
• Keep the device away from sources of heat and fire,
such as a heater, microwave oven, stove, water
heater, radiator, or candle.
• Do not place sharp metal objects, such as pins, near
the earpiece or speaker. The earpiece may attract
these objects and result in injury.
• Stop using your device or applications for a while if the
device is overheated. If skin is exposed to an
overheated device for an extended period, low
temperature burn symptoms, such as red spots and
darker pigmentation, may occur.
• Do not use your device's camera flash directly in the
eyes of people or pets. Otherwise temporary loss of
vision or damage to the eyes may occur.
• Do not touch the device's antenna. Otherwise,
communication quality may be reduced.

• Do not allow children or pets to bite or suck the device
or accessories. Doing so may result in damage or
explosion.
• Observe local laws and regulations, and respect the
privacy and legal rights of others.
Child's safety
• Comply with all precautions with regard to child's
safety. Letting children play with the device or its
accessories may be dangerous. The device includes
detachable parts that may present a choking hazard.
Keep away from children.
• The device and its accessories are not intended for use
by children. Children should only use the device with
adult supervision.
Accessories
• Using an unapproved or incompatible power adapter,
charger or battery may cause fire, explosion or other
hazards.
• Choose only accessories approved for use with this
model by the device manufacturer. The use of any
other types of accessories may void the warranty, may
violate local regulations and laws, and may be
dangerous. Please contact your retailer for information
about the availability of approved accessories in your
area.
Charger safety
• For pluggable devices, the socket-outlet shall be
installed near the devices and shall be easily accessible.
• Unplug the charger from electrical outlets and the
device when not in use.
• Do not drop or cause an impact to the charger.

• If the power cable is damaged (for example, the cord is
exposed or broken), or the plug loosens, stop using it
at once. Continued use may lead to electric shocks,
short circuits, or fire.
• Do not touch the power cord with wet hands or pull
the power cord to disconnect the charger.
• Do not touch the device or the charger with wet
hands. Doing so may lead to short circuits,
malfunctions, or electric shocks.
• If your charger has been exposed to water, other
liquids, or excessive moisture, take it to an authorized
service center for inspection.
• Ensure that the charger meets the requirements of
Clause 2.5 in IEC60950-1/EN60950-1 and has been
tested and approved according to national or local
standards.
• Connect the device only to products with the USB-IF
logo or with USB-IF compliance program completion.
Battery safety
• Do not connect battery poles with conductors, such as
keys, jewelry, or other metal materials. Doing so may
short-circuit the battery and cause injuries or burns.
• Keep the battery away from excessive heat and direct
sunlight. Do not place it on or in heating devices, such
as microwave ovens, stoves, or radiators. Batteries
may explode if overheated.
• Do not attempt to modify or remanufacture the
battery, insert foreign objects into it, or immerse or
expose it to water or other liquids. Doing so may lead
to fire, explosion, or other hazards.
• If the battery leaks, ensure that the electrolyte does
not make direct contact with your skins or eyes. If the

electrolyte touches your skins or splashes into your
eyes, immediately flush with clean water and consult a
doctor.
• In case of battery deformation, color change, or
overheating while charging or storing, immediately
stop using the device and remove the battery.
Continued use may lead to battery leakage, fire, or
explosion.
• Do not put batteries in fire as they may explode.
Damaged batteries may also explode.
• Dispose of used batteries in accordance with local
regulations. Improper battery use may lead to fire,
explosion, or other hazards.
• Do not allow children or pets to bite or suck the
battery. Doing so may result in damage or explosion.
• Do not smash or pierce the battery, or expose it to
high external pressure. Doing so may lead to a short
circuit or overheating.
• Do not drop the device or battery. If the device or
battery is dropped, especially on a hard surface, and
may be damaged.
• If the device standby time shortens significantly,
replace the battery.
Cleaning and maintenance
• Keep the device and accessories dry. Do not attempt
to dry it with an external heat source, such as a
microwave oven or hair dryer.
• Do not expose your device or accessories to extreme
heat or cold. These environments may interfere with
proper function and may lead to fire or explosion.
• Avoid collision, which may lead to device
malfunctions, overheating, fire, or explosion.
