Huawei FusionDC1000A40 User manual

FusionDC1000A40 Prefabricated All-in-One Data
Center
Quick Guide (2021, Zambia, ZESCO)
Issue 01
Date 2021-06-18
HUAWEI TECHNOLOGIES CO., LTD.

Copyright © Huawei Technologies Co., Ltd. 2021. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specied in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees
or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every eort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: https://e.huawei.com
Issue 01 (2021-06-18) Copyright © Huawei Technologies Co., Ltd. i

About This Document
Purpose
This document describes the initial conguration parameters of the data center as
well as the precautions, processes, parameters, and drawings for installing the
data center. It helps customers quickly get familiar with product congurations,
and provides installation guidance and technical support for onsite installation
personnel and technical support engineers.
Intended Audience
This document is intended for:
● Maintenance engineers
● Technical support engineers
● System engineers
● Commissioning engineers
● Data conguration engineers
Symbol Conventions
The symbols that may be found in this document are dened as follows.
Symbol Item
Indicates a hazard with a high level of risk which, if not
avoided, will result in death or serious injury.
Indicates a hazard with a medium level of risk which, if
not avoided, could result in death or serious injury.
Indicates a hazard with a low level of risk which, if not
avoided, could result in minor or moderate injury.
FusionDC1000A40 Prefabricated All-in-One Data
Center
Quick Guide (2021, Zambia, ZESCO) About This Document
Issue 01 (2021-06-18) Copyright © Huawei Technologies Co., Ltd. ii

Symbol Item
Indicates a potentially hazardous situation which, if not
avoided, could result in equipment damage, data loss,
performance deterioration, or unanticipated results.
NOTICE is used to address practices not related to
personal injury.
Supplements the important information in the main
text.
NOTE is used to address information not related to
personal injury, equipment damage, and environment
deterioration.
Change History
Changes between document issues are cumulative. The latest document issue
contains all updates made in previous issues.
Issue 01 (2021-06-18)
This issue is the rst ocial release.
FusionDC1000A40 Prefabricated All-in-One Data
Center
Quick Guide (2021, Zambia, ZESCO) About This Document
Issue 01 (2021-06-18) Copyright © Huawei Technologies Co., Ltd. iii

Contents
About This Document................................................................................................................ ii
1 Quick Guide Usage.................................................................................................................. 1
2 Installation Drawings............................................................................................................. 3
3 Removing Transport Protection Materials........................................................................ 4
4 Initial Conguration Parameters.........................................................................................5
A Common Torque Selection Table.........................................................................................6
FusionDC1000A40 Prefabricated All-in-One Data
Center
Quick Guide (2021, Zambia, ZESCO) Contents
Issue 01 (2021-06-18) Copyright © Huawei Technologies Co., Ltd. iv

1 Quick Guide Usage
This chapter describes the notes for using the quick guide.
● Before the installation, check whether the materials are intact according to
the packing list. If there is any problem, contact Huawei technical support.
● This document provides only the initial conguration parameters required for
data center commissioning and O&M as well as the drawings and parameters
required for onsite installation.
● Before using this document, read through and keep in mind the safety
precautions and the cautions and notes for operations.
● Precautions provided in this document are only supplementary to the local
laws and regulations governing the data center.
● The system conguration parameters are essential to reliable running of the
system. Improper modications of parameters may easily cause abnormal
running status, or even damage to the system. You are not allowed to modify
conguration parameters without permission when using the data center. If a
modication is necessary, contact Huawei technical support. Huawei shall not
be responsible for any loss caused by unauthorized conguration
modication.
● You can modify initial congurations under the guidance of Huawei
engineers. Huawei assumes no liability for any loss caused by unauthorized
changes to the initial congurations.
● Some parameters mentioned in this document should be provided and
congured by onsite technical support engineers based on the actual
application of the data center.
● If parameters need to be modied during the running of systems, the
operator should be a professional in this eld and familiar with each system
and its working principles.
● Before performing an operation, ensure that the prerequisites are met.
Otherwise, the expected result may not be achieved. More seriously,
equipment damage and personal injury may occur.
● Put on necessary protective equipment such as the safety helmet and gloves
before entering the site.
● A data center can be powered on for commissioning only after it has been
installed and passed the installation check.
FusionDC1000A40 Prefabricated All-in-One Data
Center
Quick Guide (2021, Zambia, ZESCO) 1 Quick Guide Usage
Issue 01 (2021-06-18) Copyright © Huawei Technologies Co., Ltd. 1

● The gures provided in this document illustrate only installation and
connection methods. The actual product appearance prevails.
● Unless otherwise specied, the unit for the dimensions in the gures provided
in this document is mm by default.
● Before using this document, understand the actual product congurations,
solution conguration for the data center in use, type of power grid used by
the customer, and internal conguration of each pre-fab. module.
● When performing operations (such as installing an awning or outdoor unit)
over the top of a pre-fab. module, take measures to protect the top of the
pre-fab. module against damage. Do not perform operations such as arc
welding, drilling, and cutting on the top of a pre-fab. module.
FusionDC1000A40 Prefabricated All-in-One Data
Center
Quick Guide (2021, Zambia, ZESCO) 1 Quick Guide Usage
Issue 01 (2021-06-18) Copyright © Huawei Technologies Co., Ltd. 2

2 Installation Drawings
FusionDC1000A40 Prefabricated All-in-One Data
Center
Quick Guide (2021, Zambia, ZESCO) 2 Installation Drawings
Issue 01 (2021-06-18) Copyright © Huawei Technologies Co., Ltd. 3

Installation Sequence Subcategory Item Diagram ID Diagram Name
Installing Pre-fab. Module Bases
Installing Twistlocks
Removing the Transport Protection Cover Removing the Transport Protection Cover N/A N/A
Grounding Pre-fab. Modules Grounding Pre-fab. Modules NO.S002 Pre-fab. Module Grounding Position Diagram
Installing External Accessories Installing Eaves Installing Eaves NO.S003 Eave Installation Position Diagram
Connecting Cables Installing Electric Cables and ELV Signal Cables Outlet Positions of Electric Cables and ELV Signal
Cables NO.S004 Electric Cable and ELV Signal Cable Outlet Position Diagram
Installing Civil Air Conditioners Installing Air Conditioners and LCD Embedded
Pieces Installing Air Conditioners and LCD Embedded Pieces NO.S005 Air Conditioner and LCD Embedded Piece Installation Position Diagram
Installing Suspended Ceilings Installing Suspended Ceiling-Aluminum Clip-in
Panels Installing Suspended Ceiling-Aluminum Clip-in Panels NO.S006 Suspended Ceiling-Aluminum Clip-in Panel Installation Position Diagram
Installing Glass Windows Installing Glass Windows Installing Glass Windows NO.S007 Glass Window Installation Position Diagram
Connecting Monitoring Cables NO.M003 Monitoring Onsite Wiring Diagram
Installing External Input Power Cables NO.P003 Mains Input Power Cable Wiring Diagram
Checklist of Devices Installed Onsite
Pre-fab. Module Base Installation Position DiagramNO.S001Installing Bases
Installing and Combining Pre-fab.
Modules
Connecting Cables Connecting Cables

\
370
340
260
290 430
400
Steel base
8-
∅
24
Note:
1. The concrete platform needs to support a pre-fab. module with the maximum weight of 25,000 kg. The
recommended anti-seismic acceleration is 3g. Calculate the strength of the concrete platform based on
the contact area (refer to the 1720 cm² area of a single-capacity base installed on the ground). Take an
engineering margin into consideration.
2. Each base has eight mounting holes. Only four holes need to be used, preferably the outer four holes. If
an outer hole is on the top of groundwork reinforcing steel bars, select the inner hole instead.
3. During installation, ensure that the direction of the single-capacity base is the same as the drawing.
4. Reserve two cable outlets for power cables at the shown positions on the ground. It is recommended
that the cable outlets be made of steel pipes or PVC pipes with an inner diameter of not less than Ø100
mm and a reserved height of 500 mm aboveground.
Concrete platform
Concrete platform
Ground
Single-capacity base
\
\
Item Drawing No. Quantity Unit
Single-capacity
base DKBA40703508 4PCS
T-shaped bolt DKBA80473086 4PCS
Expansion bolt DKBA04802828_M16×
150_S 16 PCS
\
\
>=\
>=
\
12,192
12,414
3,902.2
1,856.92,708
No.S001 Pre-fab. Module Base Installation Position Diagram

93
540
Note:

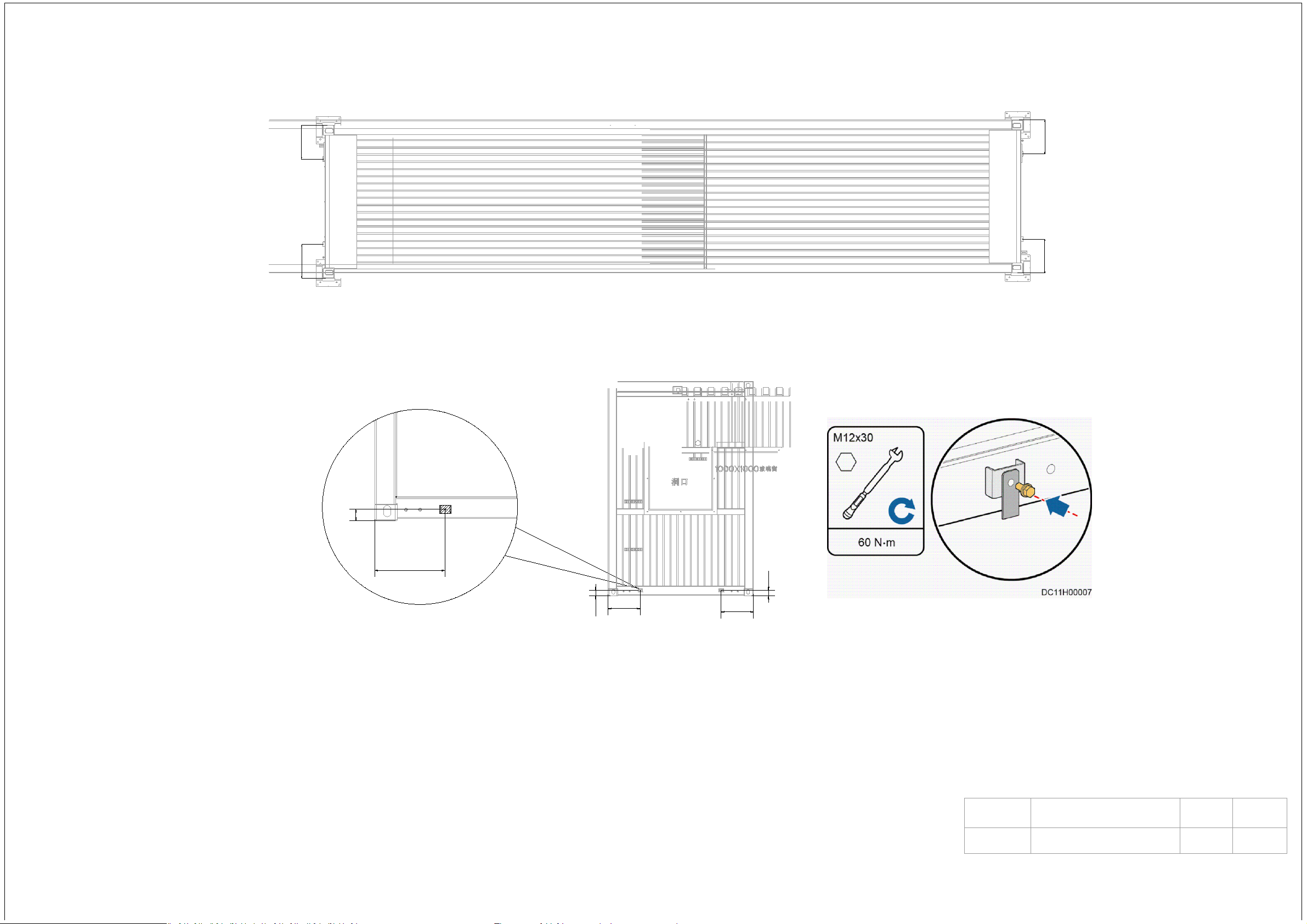

1. Four ground points are set for each pre-fab. module, among which two are located
at the front wall and two at the rear wall. For details about the ground points, see the
figure above. The ground points are connected with the ground grid. Before
grounding, remove the aluminum foil from the ground points. The ground bolts are
M12×30 stainless steel hexagon bolts with a torque of 60 N·m.
Item Drawing No. Quantity Unit
Ground
screw GB5783-2000_M12X30_S_ZNALL 4PCS
540
540 540
540
176.7
1,026 1,026
176.7
No.S002 Pre-fab. Module Grounding Position Diagram

Item Drawing No. Quantity Unit
Eave 1 DKBA68688294 2 PCS
Eave 2 YT63217430 1 PCS
Screw GB5783-2000_M16X40_S_
ZNAL 9PCS
Note:
1. The eaves are secured on the pre-fab. module using 3 PCS of
GB5783-2000_M16X40_S_ZNAL screws with a torque of 40 N·m, as shown
in the figure.
Eave 1 Eave 2
Eave
component
Rubber strip
GB5783-2000_M16X40_S_ZNAL
No.S003 Eave Installation Position Diagram

Electric cable outlet
(M50-38)
ELV signal cable outlet
(M50-38)
4,657.5
840
1,042.5
1,470
No.S004 Electric Cable and ELV Signal Cable Outlet Position
Diagram

1,898
548
2,298
2,518
280
1,200
Floor inside the pre-fab. module
2,410 280
1,200
619 619
Floor inside the pre-fab. module
Glass
window
Embedded piece
Embedded pieces
Front wall Rear wall
Air conditioner
drainage port
Air conditioner
drainage port
88.9
No.S005 Air Conditioner and LCD Embedded Piece Installation
Position Diagram

Item Drawing No. Quantity Unit
Suspended
ceiling-aluminum
clip-in panel 1 YT81594423(600X600） 45 PCS
Suspended
ceiling-aluminum
clip-in panel 2 YT81594424(600X600） 3PCS
Lighting-1
Lighting-2
Lighting-3
Lighting-4
Lighting-5
Lighting-6
Lighting-7
Lighting-8
Lighting-11
Lighting-12
Lighting-9
Lighting-10
600
100
600
Front wall Rear wall
Aluminum top plate diagramⅠ
156
1,800
11400
Hanging rod
Hanger
U50 main keel
Aluminum top plate
Triangular
keel
Hook
Connection nut
Aluminum plate and
keel connection III
Aluminum ceiling edge
strip near the wall
Hanging rod
Bracket
L-shaped slot
color steel sheet
Aluminum plate
Fastening
Keel hanger
U-shaped main keel
Embedded keel
Aluminum clip-in panel
No.S006 Suspended Ceiling-Aluminum Clip-in Panel Installation
Position Diagram
Φ8 hanging rod

Item Drawing No. Quantity Unit
Glass
window YT63217433(1mX1m) 2PCS
Wall
Thermal insulation layer
(different project)
Neutral sealant
Foam glue
Frame
Neutral black sealant
530
Edge steel sheet
22
5+9A+5 hollow glass
M8*80 nylon expansion
bolt
40*20*1.5
galvanized steel square tube
Corner connector
Glazing bead
27 5 958
After all windows are installed, install the glass bead and apply the glass cement.
The glass window packaging components include all the materials.
Indoor Outdoor
No.S007 Glass Window Installation Position Diagram

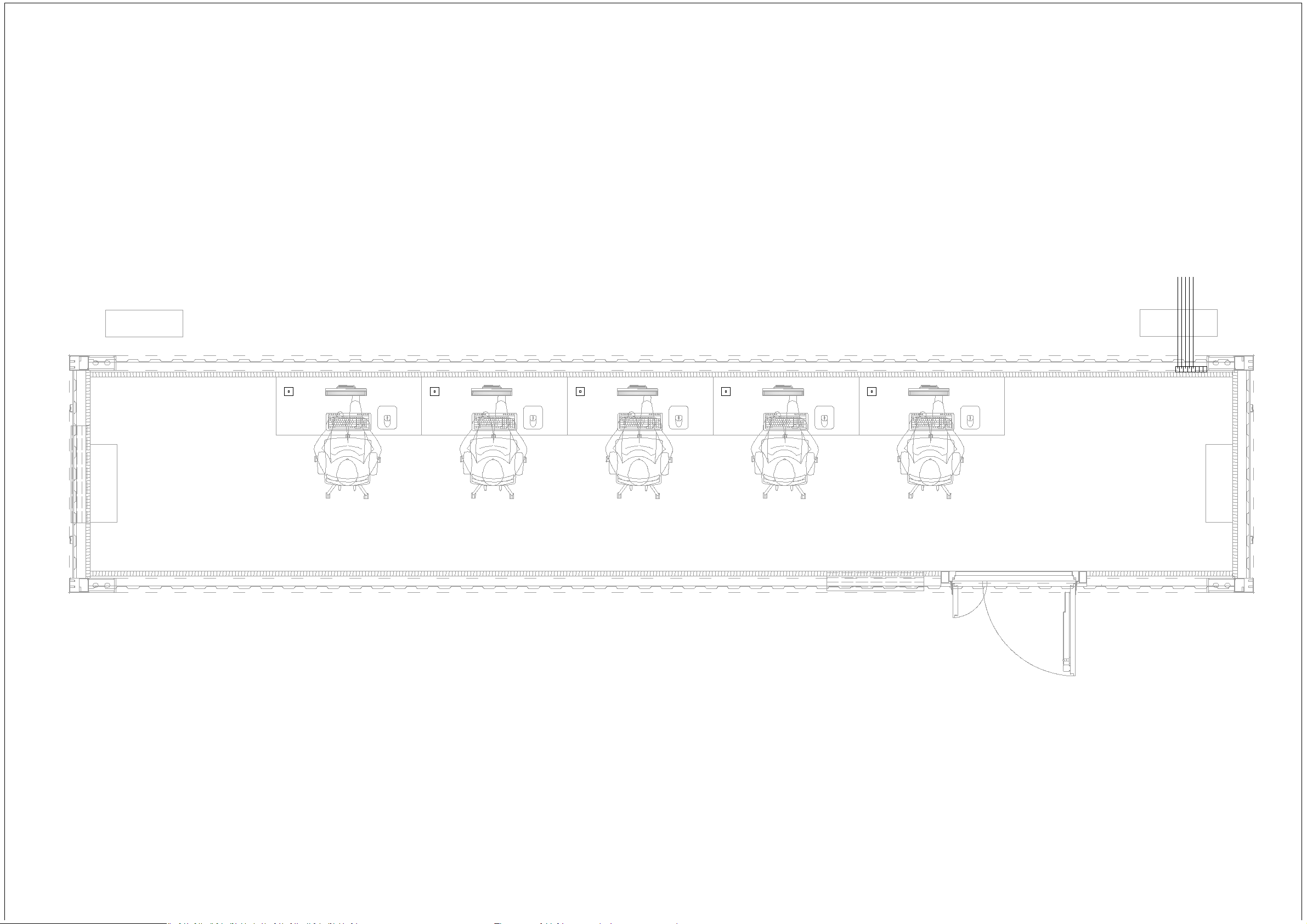

A/C
A/C
A/C
A/C
Power & Signal Feeder
Window
IE Socket-1 IE Socket-2 IE Socket-3 IE Socket-4 IE Socket-5
DDF-1 DDF-2 DDF-3 DDF-4 DDF-5 DDF-6 DDF-7 DDF-8
Note: The customer provides
network cables to connect to
the network port connector on
the signal cable feeder
window.
No.M003 Monitoring Onsite Wiring Diagram

1000mm*1000mm
1000mm*1000mm
Socket-2
WY-10A
Socket-3
WY-10A
Socket-4
WY-10A
Socket-5
WY-10A
Socket-6
WY-10A
Socket-7
WY-10A
Socket-8
WY-10A
Socket-9
WY-10A
Socket-10
WY-10A
Socket-11
WY-10A
Socket-1(Air Conditioner)
WY-10A
Socket-12
WY-10A
Socket-13
WY-10A
1Lighting Switch-1
Lighting-1
Lighting-2
Lighting PDB-1 Lighting PDB-2
Lighting-3
Lighting-4
Lighting-5
Lighting-6
Lighting-7
Lighting-8
Lighting-11
Lighting-12
Socket-14(Air Conditioner)
WY-10A
Lighting-9
Lighting-10
Fan-2
Fan-1
Fan-3
Air inlet window
A/C
A/C
A/C
A/C
1Fan Switch-1
Power & Signal Feeder
Window
Cable Relation Table Terminal Relation Table
Cable No.
INPUT OUTPUT
Breaker Power System Huawei Part Description Terminal Spec From Part 1 Terminal Spec From Part 2
Container From Device Container To Device
C1
C2 /customer Input /Lighting PDB-1 QF /
L
Provide by customer
Electronic/Electric Cable -600V/1000V-ZA-YJV22-3x6mm^2- Black (3-cell: brown, blue, yellow/green) -46A,Outdoor Cable,CE
Provide by customer
Tube 6mm^2
Provide by customer
Tube 6mm^2
N
Provide by customer
OT6-M6
Provide by customer
Tube 6mm^2
PE
Provide by customer
OT6-M6
Provide by customer
OT6-M6
C1 C2
No.P003 Mains Input Power Cable Wiring Diagram

3 Removing Transport Protection
Materials
Table 3-1 Transport protection materials to be removed (Add or delete items
based on the actual conguration of the project.)
No. Device Protection Materials to Be
Removed
1 Smart cooling product Transport fastener
2 Light Securing tape
3 Emergency light Securing tape
4 Camera Securing tape
5 Emergency door release
button
Plastic cover
FusionDC1000A40 Prefabricated All-in-One Data
Center
Quick Guide (2021, Zambia, ZESCO) 3 Removing Transport Protection Materials
Issue 01 (2021-06-18) Copyright © Huawei Technologies Co., Ltd. 4

4 Initial Conguration Parameters
FusionDC1000A40 Prefabricated All-in-One Data
Center
Quick Guide (2021, Zambia, ZESCO) 4 Initial Conguration Parameters
Issue 01 (2021-06-18) Copyright © Huawei Technologies Co., Ltd. 5
