Huawei PowerCube 5000 User manual

1
Issue: 02
Part Number: 31500CQG
Date: 2020-03-03
PowerCube 5000 Quick Guide
(SmartLi 100Ah)
Copyright © Huawei Technologies Co., Ltd. 2020. All rights reserved.
1Overview
Item Model Function
ICC cabinet SUN2000-150KTL-S0 Converts DC voltage into AC voltage
output.
Isolation
transformer ITC80D, ITC120D, ITC200D, ITC400D Provides safety isolation and surge protection.
Lithium battery
cabinet
Master cabinet: SmartLi-672V-100AH-F
(with a display, with an EPO button)
Slave cabinet: SmartLi-672V-100AH-S
(without a display, without an EPO button)
Supplies power to the ICC cabinet at
night or when PV power is
insufficient.
Combiner box - Can be used when multiple lithium
battery cabinets are connected in
parallel to the ICC cabinet.

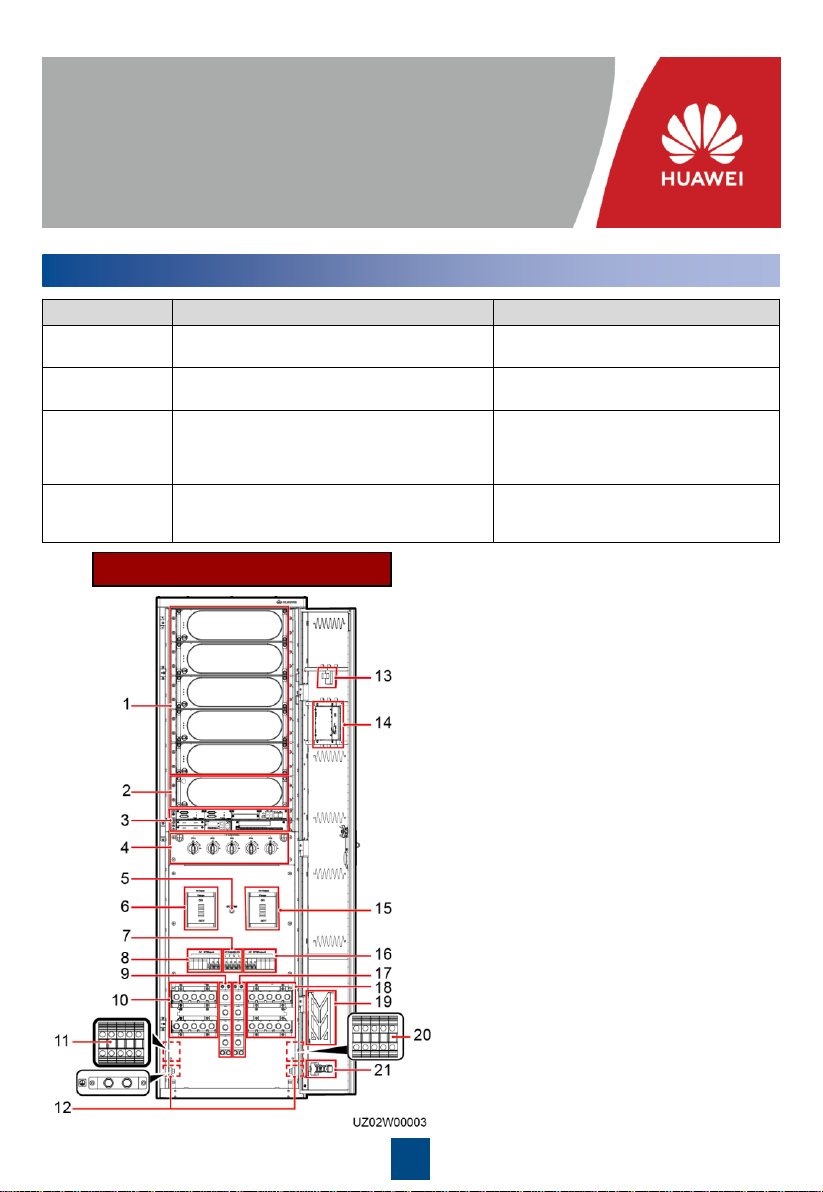

ICC cabinet SUN2000-150KTL-S0
(1) Power module
HSU (2) Bypass module BPS
(3) Monitoring unit (4) Solar input switches
(5) Battery cold
start button (6) AC input switch
(7) Auxiliary AC
output switch (8) AC input SPD and SPD circuit breaker
(9) AC input port (10) Positive terminal
block for batteries
(11) Positive PV
input port (12) Ground bar
(13) EPO button (14) Monitor screen
(15) AC output
switch (16) AC output SPD and SPD circuit breaker
(17) AC output
port (18) Negative terminal block for batteries
(19) Document
holder (20) Negative PV input port
(21) Auxiliary
switch lever

2

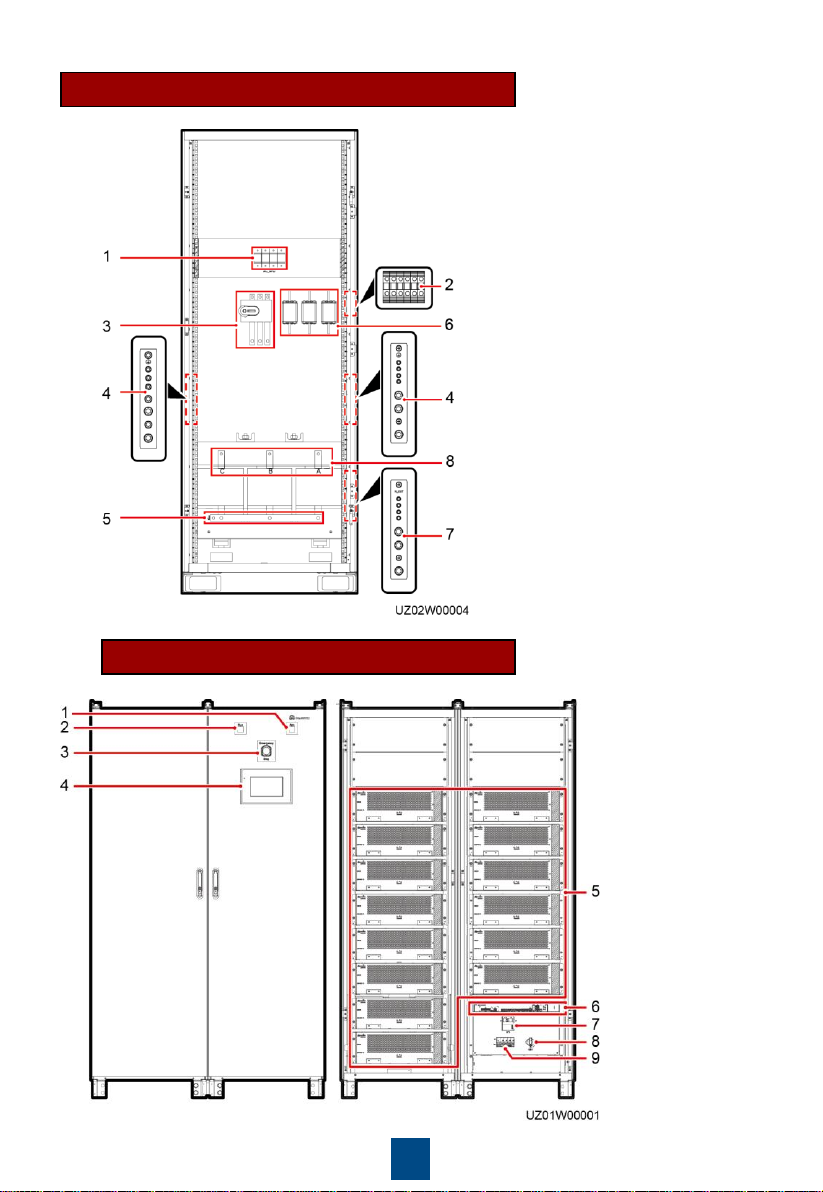

Lithium battery cabinet SmartLi-672V-100AH-F
Isolation transformer (using ITC80D as an example)
(1) AC SPD
(2) Alarm cable port
(3) Output disconnector
(4) Ground bar
(5) N input bar
(6) SPD fuses
(7) N output bar
(8) AC input L bar
(1) Alarm indicator
(2) Running indicator
(3) EPO button
(4) SBCU
(5) ESM
(6) BCU
(7) Battery breaker
(QF1)
(8) BCU power switch
(QS1)
(9) Battery cold
-start
breaker (QF2)

3
1. Before installation, read the user manual carefully to get familiar with product information and
safety precautions.
2. Use insulated tools during installation and operation.
3. Only Huawei engineers or engineers certified by Huawei are allowed to install, commission,
and maintain the UPS. Otherwise, personal injury or equipment damage may occur, and the
resulting UPS faults are beyond the warranty scope of Huawei.
2Installing Equipment
Microgrid system

4
Hole dimensions for the ICC
Cabinet (unit: mm)
Hole dimensions for the lithium
battery cabinet (unit: mm)
Installing the Cabinets
2.1
1. Determine the mounting hole positions.
2. Drill holes and install expansion sleeves.
3. Secure the isolation transformer, ICC cabinet, and lithium battery cabinet to the installation
positions using expansion bolts.
4. Remove the support of the waterproof plate, install the support on the top of the cabinet, and
then install the waterproof plate.

5

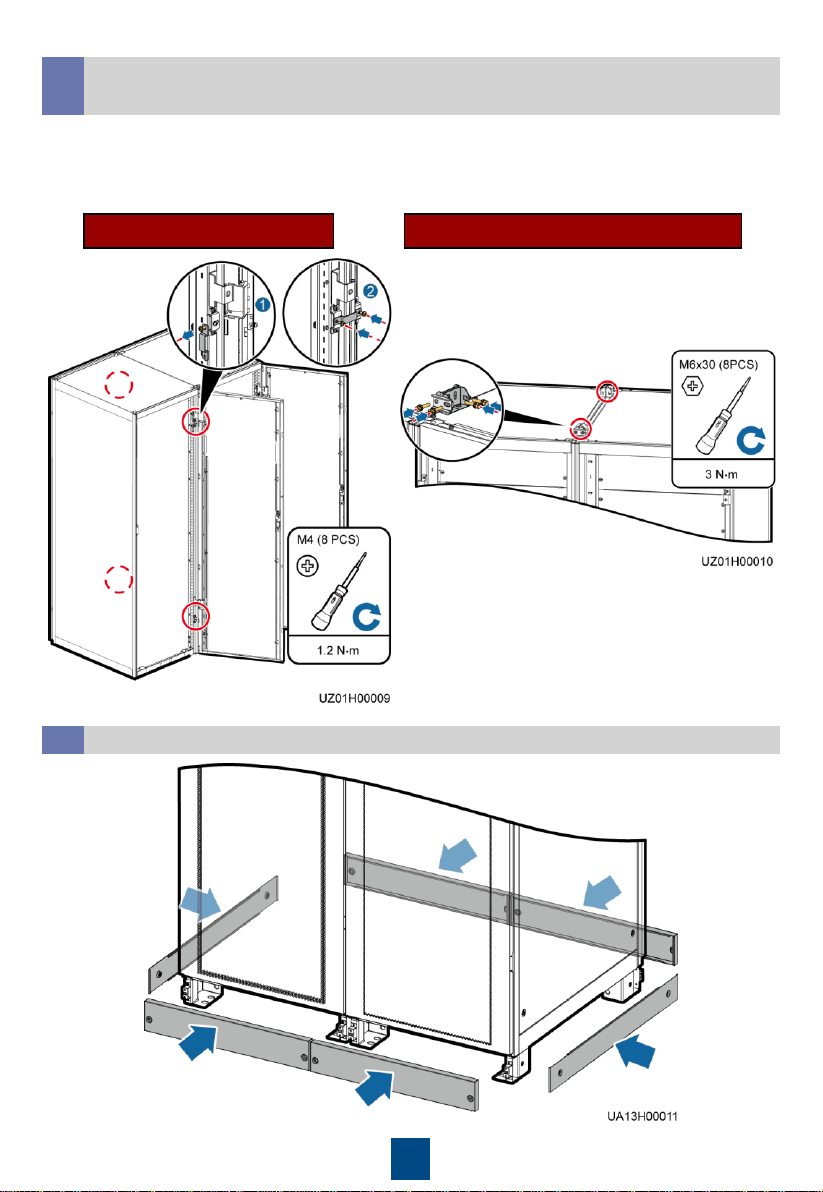

•ICC cabinet: Remove the screws from the front and rear connecting kits, route the connecting
kits through the reserved holes, connect the two cabinets, and tighten the screws.
•Lithium battery cabinet: Install connecting plates on the top of adjacent cabinets.
(When Multiple ICC Cabinets and Lithium Battery Cabinets Are
Configured) Combining Cabinets
2.2
Combining ICC Cabinets Combining Lithium Battery Cabinets
Installing Anchor Baffle Plates for the Lithium Battery Cabinet
2.3

6
Installing the IP21 Component for the Lithium Battery Cabinet
2.4
1. Install leveling feet for the IP21 component, with two long feet at the front and two short feet at
the rear.
2. Secure the IP21 component to the top of each cabinet.
3Installing PE Cables
Installing a PE Cable Between the ICC Cabinet and the Isolation
Transformer
3.1
Single ICC cabinet

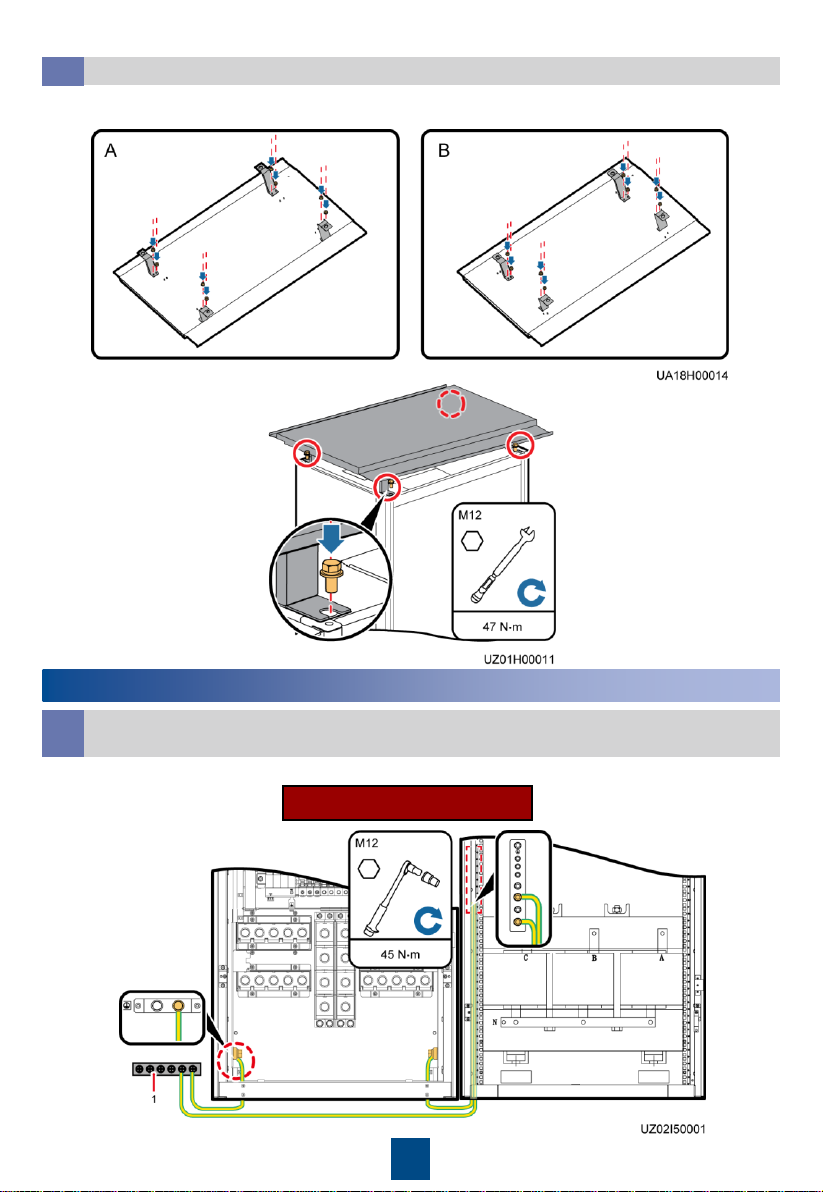

Prepare a cable of suitable length and install OT terminals on both ends of the cable. Connect the
PE cable to the ground bar.
(1) Site ground bar

7
Two ICC cabinets
(1) Site ground bar
Installing a PE Cable for the Lithium Battery Cabinet
3.2
1. Check that the BCU power switch is OFF, and remove the cover from the PDU.
2. Connect a PE cable.
(1) Site ground bar

8
4Installing ESMs
1. Before installing batteries, carefully read the battery safety precautions.
2. Wear insulation gloves and use insulated tools during installation.
3. Place the batteries in a correct way to prevent vibrations and shocks.
1. Remove filler panels from the cabinet based on the actual number of ESMs.
2. To facilitate battery installation, install the auxiliary support on the cabinet first.
3. Install ESMs.
The address of the ESM above the BCU in the right cabinet must be always 1 (the first ESM
displayed on the SBCU), and the address of the ESM at the bottom layer in the left cabinet must
always be the last value (the last ESM displayed on the SBCU). If a cabinet is not fully configured,
the vacant slots are always on the top of the cabinet and covered by filler panels.
Place ESMs from bottom to top and from left to right. To prevent falling over due to overweight,
ensure that the cumulative height of ESMs in the right cabinet is one ESM greater than or
equal to the cumulative height of ESMs in the left cabinet.
(1) ESM layout (even number)
(2) ESM layout (odd number)

9
5. Remove the terminal cover from the ESMs.
6. Install power cables for the ESM.
7. Reinstall the terminal cover on the ESMs.
4. Install communications cables for the batteries.

10

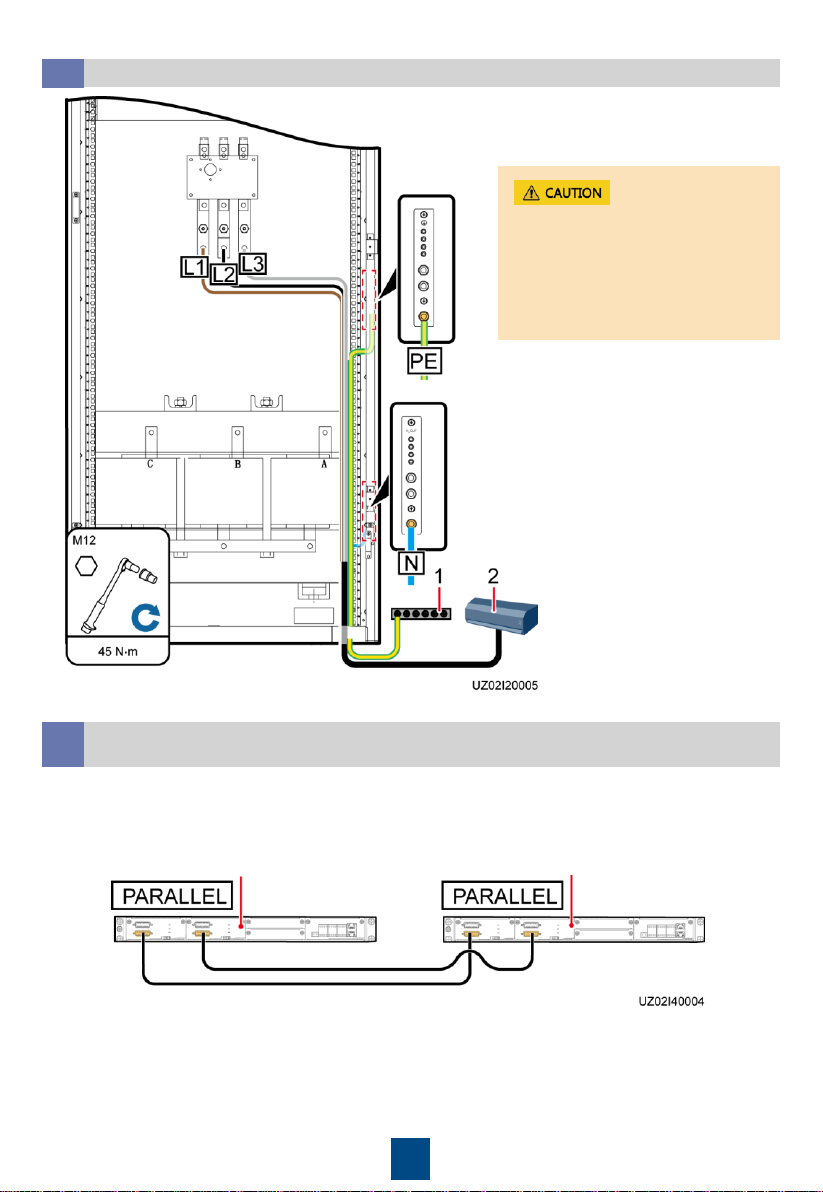

1. Install an AC input power cable.
2. Cover a PVC corrugated pipe over the cable part outside the cabinet and secure the PVC
corrugated pipe to the cable hole.
Installing an AC Input Power Cable
5.2
In a parallel system, the
length and model of the
cable between the cabinet
and the DGs must be the
same.
Single ICC cabinet
5Installing Cables
1. Connect the DC input power cable between the solar junction box (SJB) and the cabinet
(using one PV input as an example).
2. Cover a PVC corrugated pipe over the cable part outside the cabinet and secure the PVC
corrugated pipe to the cable hole.
Installing a PV Input Power Cable
5.1
•Ensure that the upstream AC input circuit breaker is OFF, and that the warning label "Do
not operate" is attached.
•Switch off all circuit breakers before installing the power cable.
(1) DG

11
1. Connect the BCU IN and BCU OUT ports of the BCU in each lithium battery cabinet to form a loop.
2. Connect the cable on EPO2 in lithium battery cabinet 1 to the cable on EPO1 in battery cabinet 2.
3. Connect the cable on EPO2 in lithium battery cabinet 2 to the cable on EPO1 in battery cabinet 3.
4. Remove the existing cable from EPO2 in lithium battery cabinet 3, and connect EPO2 in lithium
battery cabinet 3 to the EPO button contact in lithium battery cabinet 1 using a cable available in
the fitting bag.
Two ICC cabinets
Installing Signal Cables Between Lithium Battery Cabinets
5.3
•Multiple lithium battery cabinets have been configured. This section uses three lithium battery
cabinets connected in parallel as an example.
•The number of each lithium battery cabinet is determined by the parallel cable connection
mode. The master cabinet with a display is cabinet 1, the lithium battery cabinet connected to
the BCU_OUT port of cabinet 1 is cabinet 2, and the like.
(1) BCU in lithium battery
cabinet 1 (master cabinet)
(2) BCU in lithium
battery cabinet 2
(3) BCU in lithium
battery cabinet 3
(4) EPO button contact in the
master lithium battery cabinet
(1) DG

12
Signal cable routing for a lithium battery cabinet
You are advised to arrange the master and slave cabinets from left to right to ensure that the
cabinet numbers are consistent with those on the page of the monitoring system.

13
3. Connect battery cables between the ICC cabinet and the lithium battery cabinet.
•Connecting a single lithium battery cabinet to the ICC cabinet
(1) ICC cabinet
(2) Lithium battery cabinet
Installing Cables Between the Lithium Battery Cabinet and the
ICC Cabinet
5.4
1. Switch all external battery circuit breakers to OFF.

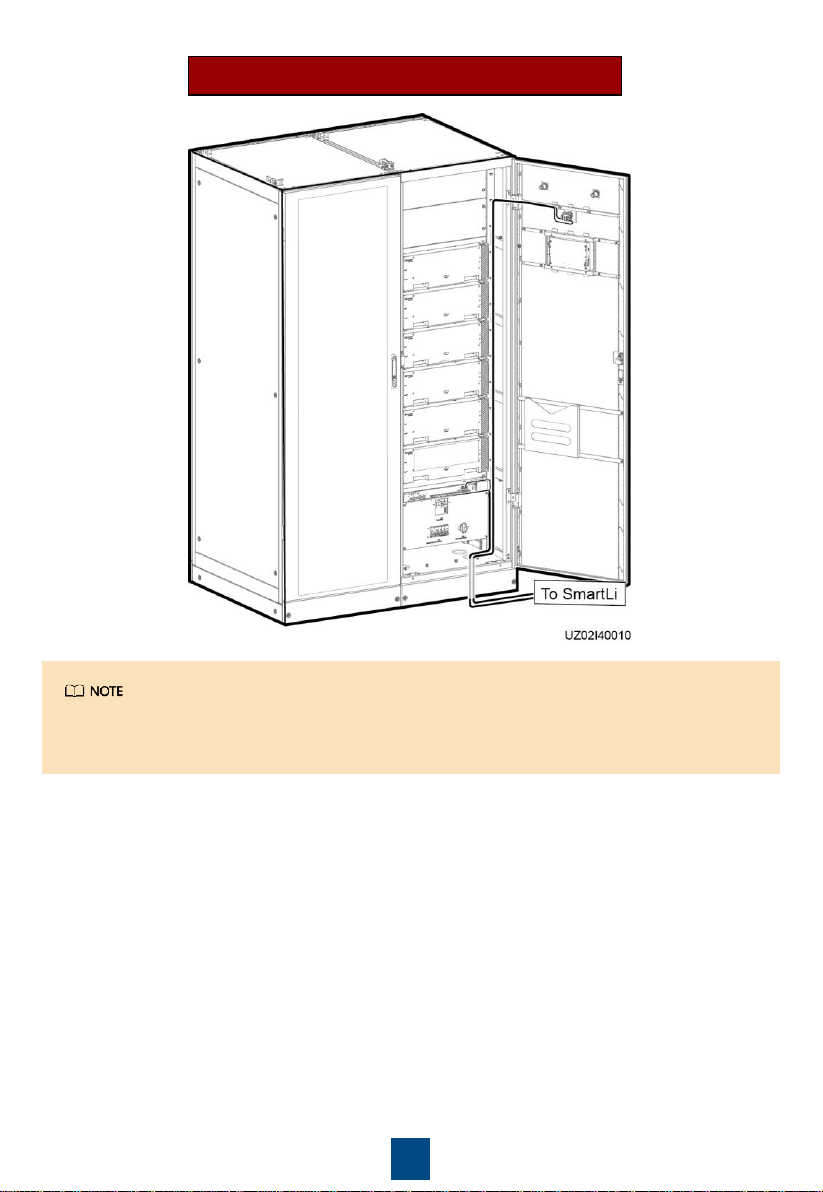

2. Connect a signal cable between the lithium battery cabinet and the ICC cabinet.

14
Installing Cables Between the ICC Cabinet and the Isolation Transformer
5.5
1. Install surge protection, high-temperature, and overtemperature alarm signal cables between
the ICC cabinet and the isolation transformer.
•Connecting multiple lithium battery cabinets to the ICC in parallel, with an optional
combiner box
(1) ICC cabinet
(2) Lithium battery cabinet
(3) Combiner box
UIM02C of the ICC cabinet
Alarm cable ports of the
isolation transformer
4. Lay out the cables based on the instructions, and bind them using cable ties.
5. Cover a PVC corrugated pipe over the cable part outside the cabinet and secure the PVC
corrugated pipe to the cable outlet.

15
Single ICC cabinet

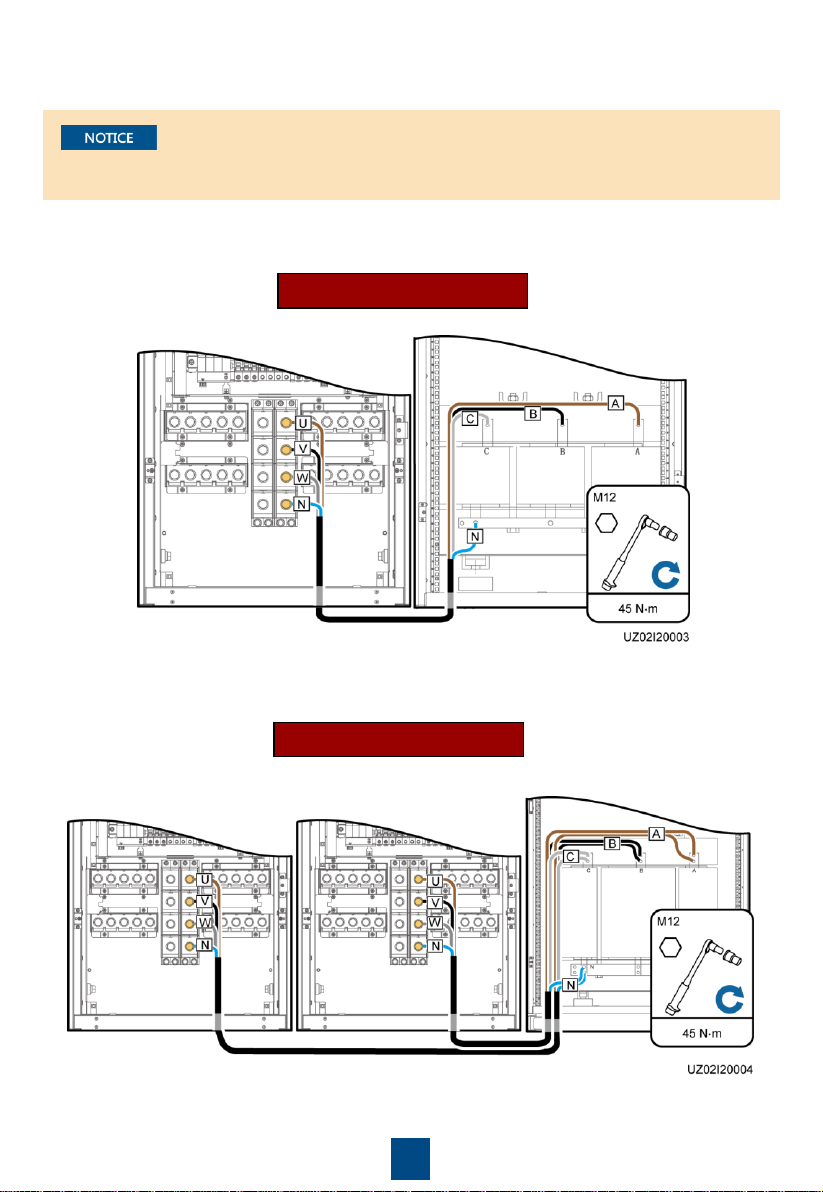

2. Install an AC power cable between the ICC cabinet and the isolation transformer.
Two ICC cabinets
Do not ground the AC input neutral wire of the isolation transformer.

16
Installing an AC Output Cable for the Isolation Transformer
5.6
A residual leakage protection
device needs to be added to
the AC device connected to the
AC output of the isolation
transformer.
(When Two ICC Cabinets Are Configured) Installing Control Cables
Between Two ICC Cabinets
5.7

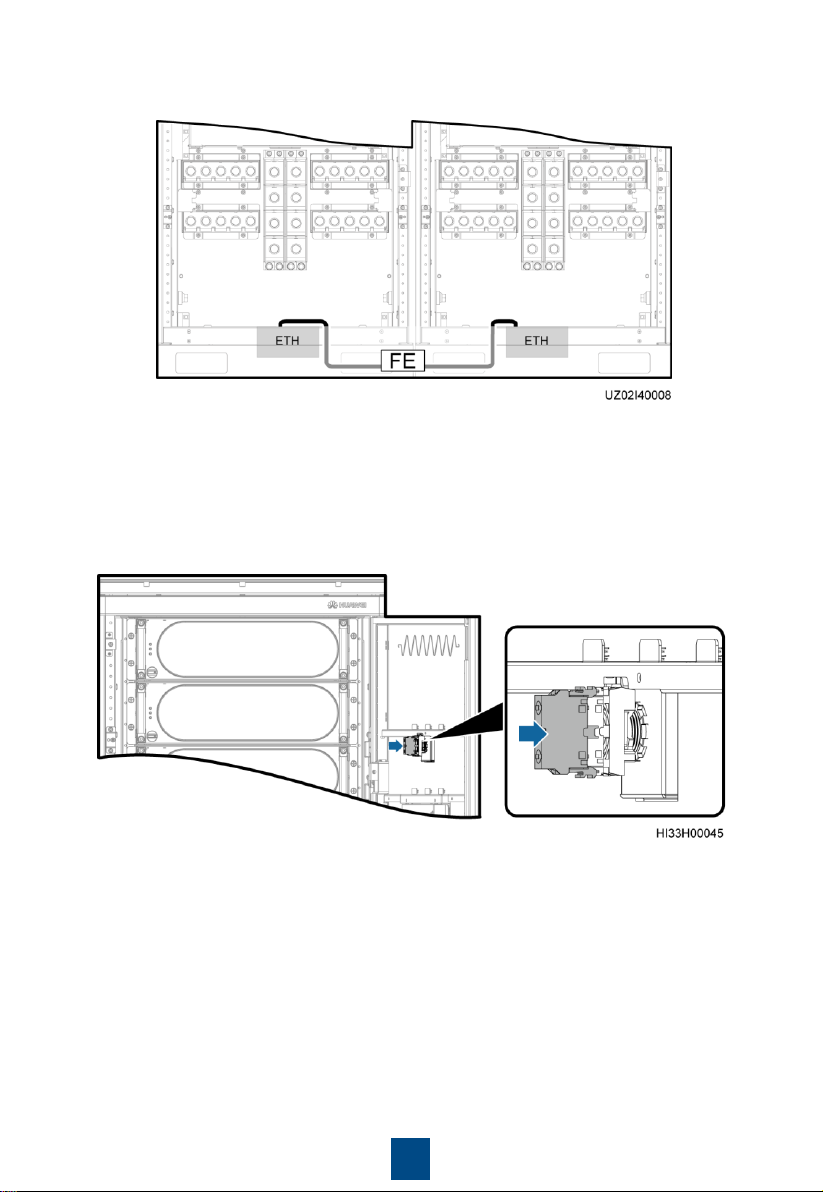

1. Install communications cables between ECMs.
(1) Site ground bar
(2) AC output
ECM in ICC cabinet 1 ECM in ICC cabinet 2

17
3. Install the EPO control cable.
2. 安装两台电控柜智能ETH插座间的通信线。
a) Install auxiliary contacts at the bases on the rear of the EPO buttons in cabinets 1 and 2.

18
d) Connect the EPO auxiliary contacts and dry contacts of ICC cabinets
1 and 2 using the cables in the fitting bag.
After startup, press the EPO buttons in cabinets 1 and 2. The two
cabinets should stop.
ICC
cabinet 1 ICC
cabinet 2
Left open Left open
Left open
Left open
b) Remove the cable from EPO-NC on the MUS01C in ICC cabinet 1, remove the EPO/-1 and EPO/-2
cables from the EPO button contact, keep the cable between EPO-NC and EPO/-1 disconnected,
and connect the EPO/-2 cable to the upper part of the new auxiliary contact.
c) Remove the cable from EPO-12V on the MUS01C in ICC cabinet 2, remove the EPO/-2 cable from
the EPO button contact, and keep the cable between EPO-12V and EPO/-2 disconnected.

19
No. Check Item Acceptance criteria
1Installation and
securing The cabinets are placed in accordance with the design drawing. The bases are secured.
2Arrangement of
combined cabinets The adjacent cabinets are neatly arranged and secured with connecting plates.
3Cable connections •All bolts are fully tightened. Flat washers and spring washers are
all installed in correct sequence.
•Connectors for power cables and PE cables are soldered or
crimped securely.
•Fat washers and spring washers are securely installed for all OT
terminals that are intact and properly connected.
•All cable joints are secured properly, especially signal cables and
the cables to the bottom of the cabinets.
4Cable labels Both ends of a cable are labeled. Labels are concise and easy to
understand.
5Cable ties •Power cables, ground cables, and signal cables are bound
separately in the cable routing.
•Cables are bound neatly, and cable ties are secured evenly and
properly in the same direction.
•There are no sundries such as unnecessary adhesive tape or
cable ties on cables.
•The cable tie tails on indoor cables are cut smoothly from the root,
and the cable tie tails on outdoor cables are cut with a margin of 3
mm to 5 mm.
6Correct cable
connections •All PE cables prepared onsite contain copper core wires and have correct diameters. No switches or fuses are installed on the cables
and no short circuit exists.
•All PE cables, AC input cables, and intra-cabinet cables are
connected correctly according to the wiring diagram, and all
screws are fastened. The input and output cables are not short-
circuited.
•
Bare cables and terminal barrels are completely wrapped with heat
shrink tubings.
7Cable layout •Cables are routed in a way convenient for maintenance and future
capacity expansion.
•Power cables and ground cables are not coiled and excess parts
are cut off.
•Unused ports are protected.
8 Foreign matter
cleaning inside the
cabinets
The cabinets are clean, free of dust, dirt, and foreign matter inside
and outside.
1. There is no foreign matter (such as copper wires and screws) on
the top of the cabinets.
2. There is no foreign matter on the copper bar terminals.
3. There is no foreign matter around the switch terminals.
4. There is no foreign matter on the bottom plate of the cabinets.
6Installation Verification

20
Power-On Mode of the ICC Cabinet
7.2
Check that the PV input, battery, and AC input and output cables are correctly connected.
Turn the solar input switch in the ICC cabinet to ON.
Powering On the ICC Cabinet Using PV
•You can perform PV power-on commissioning only when the sunlight is normal.
•Check that the PV input voltage is between 200 V DC to 980 V DC.
•If the power indicator (green) on the front panel of the HSU is on, the cables are
connected correctly. If the indicator (green) is off, the positive and negative power cables
may be reversely connected and need to be corrected.
Powering On the ICC Cabinet Using a Lithium Battery
•The battery supply is connected preferentially at night or when PV energy is insufficient.
•Required tools such as a multimeter and insulation gloves are available.
•The PV switch and AC output switch in the ICC cabinet are OFF.
•If the power indicator (green) on the front panel of the HSU is on, the cables are connected
correctly. If the indicator (green) is off, the positive and negative power cables may be
reversely connected and need to be corrected.
7Power-on Commissioning
Preparing for Power-On
7.1
Turn on the battery breaker QF1 in the lithium battery cabinet.
Turn on the BCU power switch QS1 in the lithium battery cabinet.
(Optional) If there are multiple lithium battery cabinets, repeat the preceding steps.
If the ICC cabinet software needs to be upgraded during the initial site setup, use either of
the following power supply modes to perform the upgrade:
•Switch off the battery circuit breaker QF1 in the lithium battery cabinet. Perform the
upgrade when PV power is supplied to each power module in the ICC cabinet.
•Turn off the solar input switches of all power modules in the ICC cabinet. Perform the
upgrade when the ICC cabinet is powered by the lithium battery cabinet.
