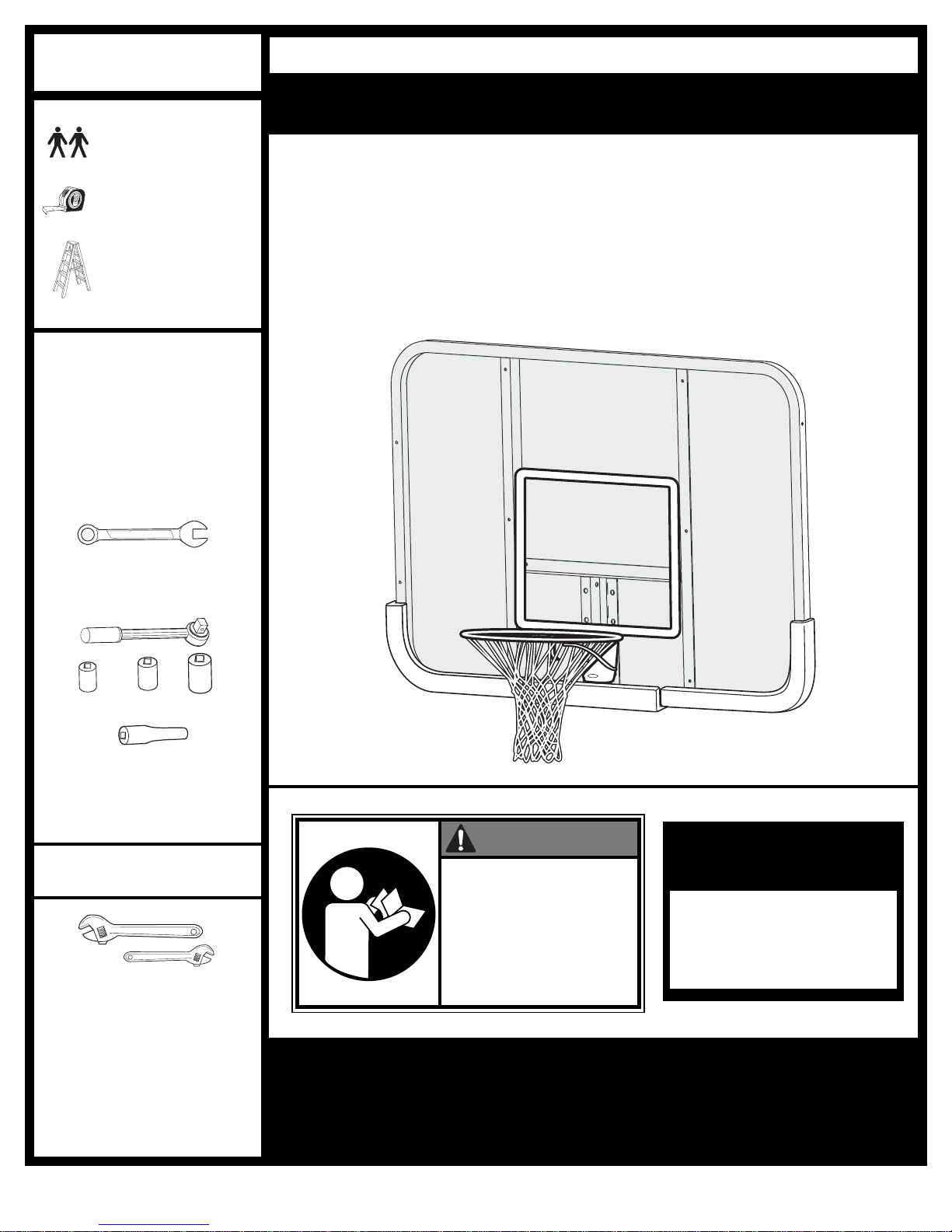

Huffy M790054 User manual

103/06 ID# M790054
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Canada: 1-800-284-8339,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
For Australia: 1-800-632 7921
Internet Address: http://www.huffysports.com
Backboard and Rim
Owners Manual
Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO
PROPERTY.
WARNING!
•2 Capable Adults
•Tape Measure
•Step Ladder - 8ft.
(2.4 m)
Write Model Number
From Box Here:
REQUIRED TOOLS
AND MATERIALS:
AND/OR
OPTIONAL TOOLS
AND MATERIALS:
•(2 each) Wrenches
and/or Socket Wrenches
and Sockets (Deep-Well
Sockets are
Recommended).
•Extension is
Recommended.
• Large and Small
Adjustable Wrenches
1/2" 9/16" 3/4"
1/2" 9/16" 3/4"
This manual, accompanied by sales receipt, should be saved and kept on hand as a
convenient reference, as it contains important information about your model.
Adult Assembly Required.
© COPYRIGHT 2006 by SPALDING

2
ID# M790054 03/06
Owner must ensure that all players know and follow these rules
for safe operation of the system.
WARNING
• DO NOT HANG on the rim or any part of the system including
backboard, support braces or net.
• During play, especially when performing dunk type activities,
keep player's face away from the backboard, rim and net.
Serious injury could occur if teeth/face come in contact with
backboard, rim or net.
• During play, do not wear jewelry (rings, watches, necklaces,
etc.). Objects may entangle in net.
• Check system before each use for loose hardware, excessive
wear and signs corrosion and repair before use.
• Never play on damaged equipment.
• See instruction manual for proper installation and
maintenance.
Read and understand warnings listed
below before using this product.
Failure to follow these warnings may
result in serious injury and/or property
damage.
ID#: 579800 05/05
In the U.S.: 1-888-713-5488 In the U.S.: 1-800-558-5234
In Canada: 1-800-284-8339
In the U.S.: 1-800-334-9111
In the U.S.: 1-800-558-5234
In Canada: 1-800-284-8339
SAFETY INSTRUCTIONS
Most injuries are caused by misuse and/or not following instructions.
Use caution when using this system.
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY, PROPERTY DAMAGE AND WILL VOID
WARRANTY.
Owner must ensure that all players know and follow these rules for safe operation of the system.
To ensure safety, do not attempt to assemble this system without following the instructions carefully. Proper and complete assembly,
use and supervision is essential for proper operation and to reduce the risk of accident or injury. A high probability of serious injury
exists if this system is not installed, maintained, and operated properly. Check entire box and inside all packing material for parts and/or
additional instructional material. Before beginning assembly, read the instructions and identify parts using the hardware identifier and
parts list in this document.
For more information on assembly, placement, proper use and maintenance, visit The American Basketball Council
website at http://www.smarthoops.com.
IMPORTANT!
Remove all contents from boxes.
Be sure to check inside pole sections;
hardware and additional parts are packed inside.
NOTICE TO ASSEMBLERS
Adult Assembly Required. Dispose of ALL packaging materials promptly.
ALL basketball systems, including those used for DISPLAYS, MUST be assembled and ballasted with sand
or water according to instructions. Failure to follow instructions could result in SERIOUS INJURY. It is
NOT acceptable to devise a makeshift weight system.
9
PRODUCT REGISTRATION:
Please remember to complete your product registration form on-
line at:
www.huffysports.com/customer_support/product_registration.
• If using a ladder during assembly, use extreme caution.
• Two (2) capable adults are recommended for this operation.
• Climate, corrosion, or misuse could result in system failure.
• Minimum operational height is 6' 6" (1.98 m) to the bottom of backboard.
• This equipment is intended for home recreational use only and NOT excessive competitive play.
• The life of your basketball pole depends on many conditions. The climate, placement of the pole,
location of the pole, exposure to corrosives such as pesticides, herbicides, or salts are all important.
• If technical assistance is required, contact Customer Service.

303/06 ID# M790054

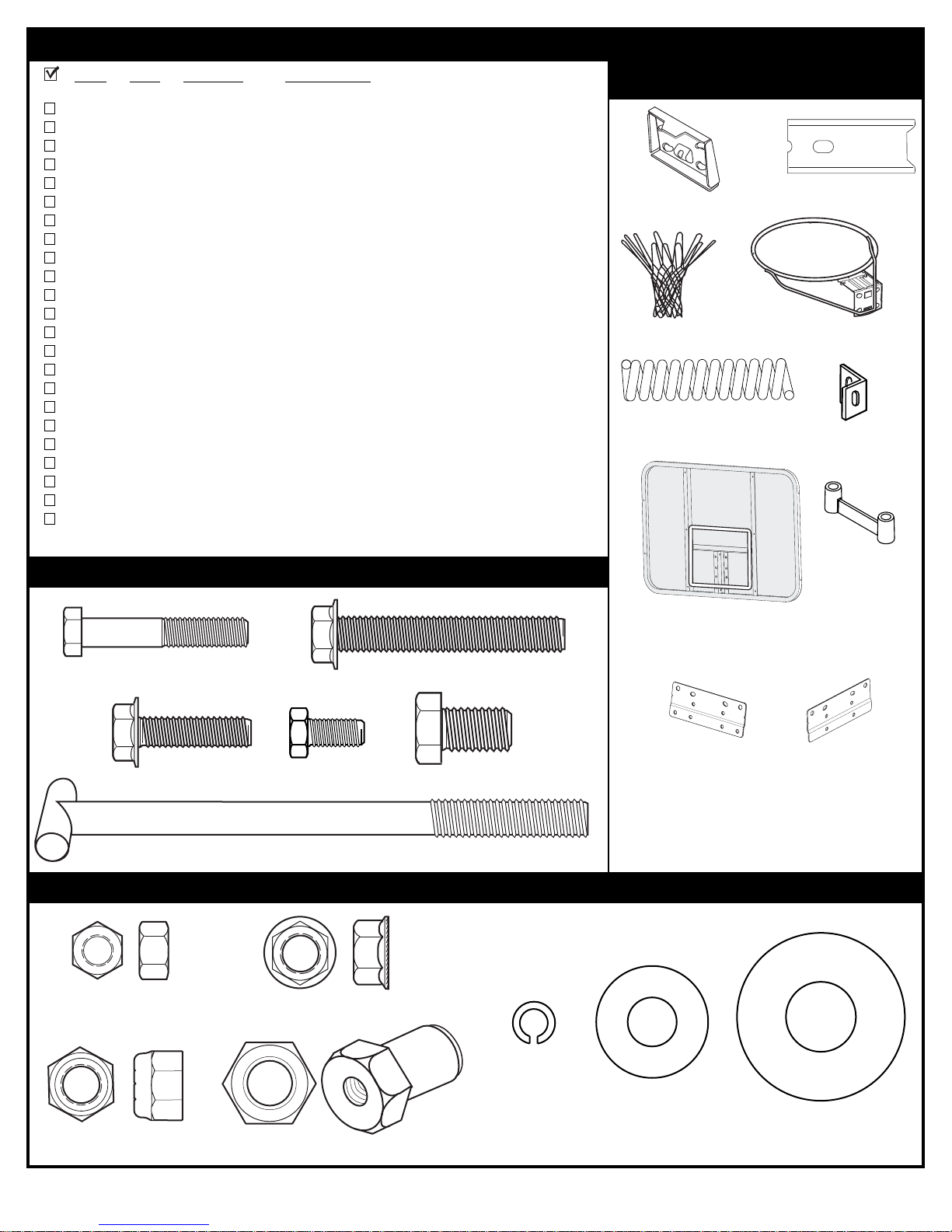

PARTS LIST - See Hardware Identifier HARDWARE IDENTIFIER
(Not Actual Size)
#13 (1)
#14 (1)
Item Qty. Part No. Description
1 4 202341 “L” Bracket
2 2 200837 Spacer, Plastic
3 2 203071 Bolt, Hex Head, 1/4-20 x 1-1/2 Long
4 6 203326 Washer, Lock, 1/4
5 6 203228 Nut, 1/4-20
6 6* 203100 Hex Flange Nut 5/16-18
7 4 203104 Bolt, Hex Flange, 5/16-18 x 2 Long
8 2 90096401 Bracket, Backboard Support
9 1 579800 Label, Warning
10 1 203470 Washer, Flat, 1.5” O.D.
11 4* 203063 Nut, 3/8-16
12 1 Rim
13 1 Backboard
14 1 Net
15 4 205528 Bolt, Hex Flange, 5/16-18 x 1 Long
16 4* 203309 Washer, Flat
17 1 900033 Bracket, Slam Jam
18 1 203796 Bolt, Tee, 3/8-16, 5” Long
19 1 200318 Bracket, Reinforcement, Slam Jam
20 1 203472 Spring, Rim
21 1 203795 Nut, Special, 3/8-16
22 6 201107 Bolt, Hex Head, 1/4-20 x 1/2 Long
23 4 204961 Bolt, Hex Head, 3/8-16 x 5/8 Long
#15 (4)
#16 (4)*
HARDWARE IDENTIFIER (BOLTS)
#19 (1)
#10 (1)
#20 (1)
#22 (6)
#7 (4)
#17 (1)
#5 (6)
#12 (1)
#21 (1)
#4 (6)
#11 (4)*
#1 (4)
#2 (4)
#3 (2)
HARDWARE IDENTIFIER (NUTS, WASHERS & SPACERS)
#18 (1)
#8 (2) #8 (2)
OR
#23 (4)
#6 (6)*

4
ID# M790054 03/06

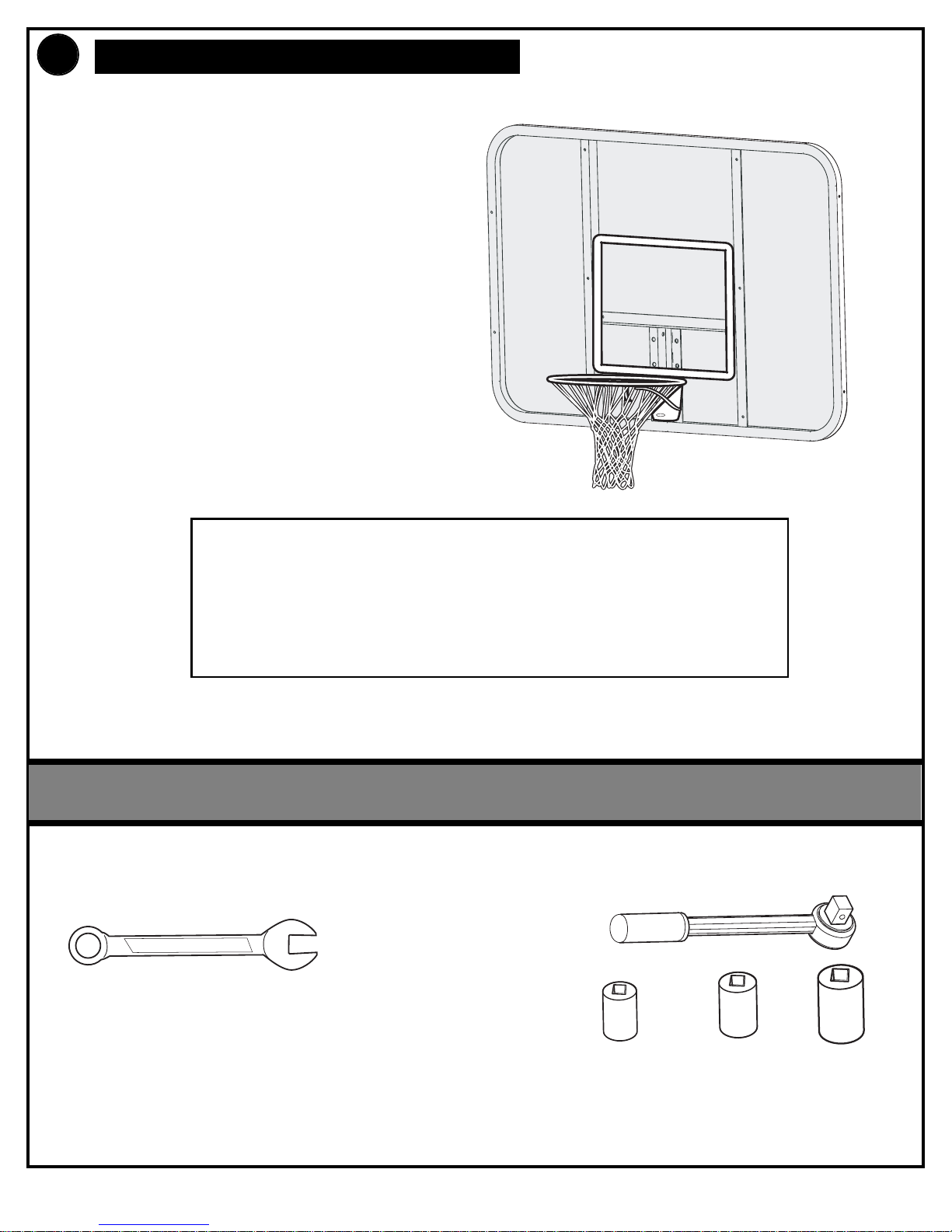

1.
TOOLS REQUIRED
1/2" 9/16" 3/4"
1/2" 9/16" 3/4" AND/OR
This is what your system will look like
when you’ve finished this section:
ASSEMBLE THE BACKBOARD AND RIM
WARNING: IF YOUR SYSTEM IS EQUIPPED WITH AN ACRYLIC BACKBOARD,
EXAMINE BACKBOARD FOR ANY DAMAGE THAT MAY HAVE OCCURRED
DURING SHIPMENT. CRACKS IN THE BACKBOARD COULD RESULT IN
SUDDEN BREAKAGE. IF BACKBOARD IS DAMAGED IN ANY WAY PRIOR TO
OR AFTER ASSEMBLY, CALL TOLL-FREE NUMBER FOR REPLACEMENT:
U.S. 1-800-558-5234; CANADA: 1-800-284-8339; http://www.huffysports.com

503/06 ID# M790054

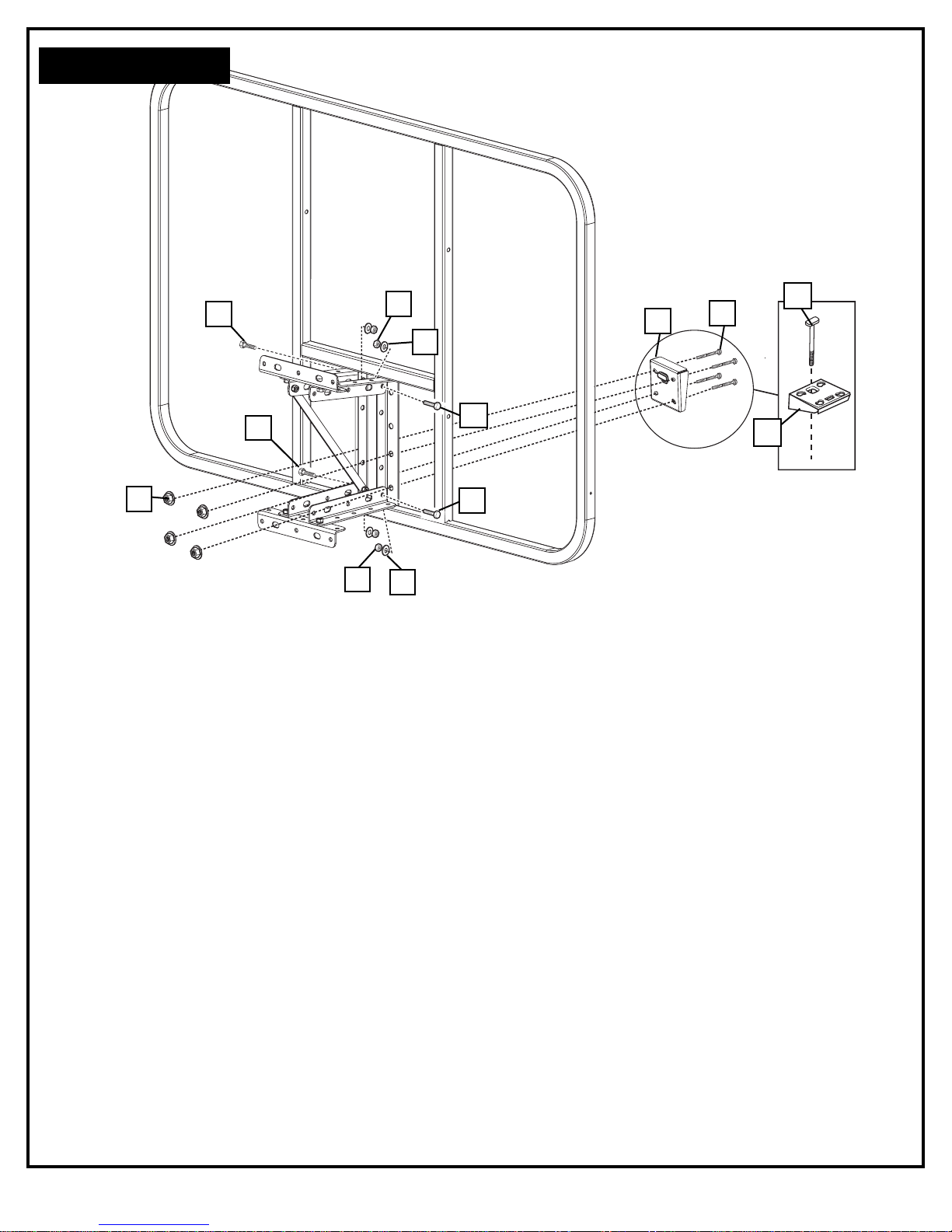

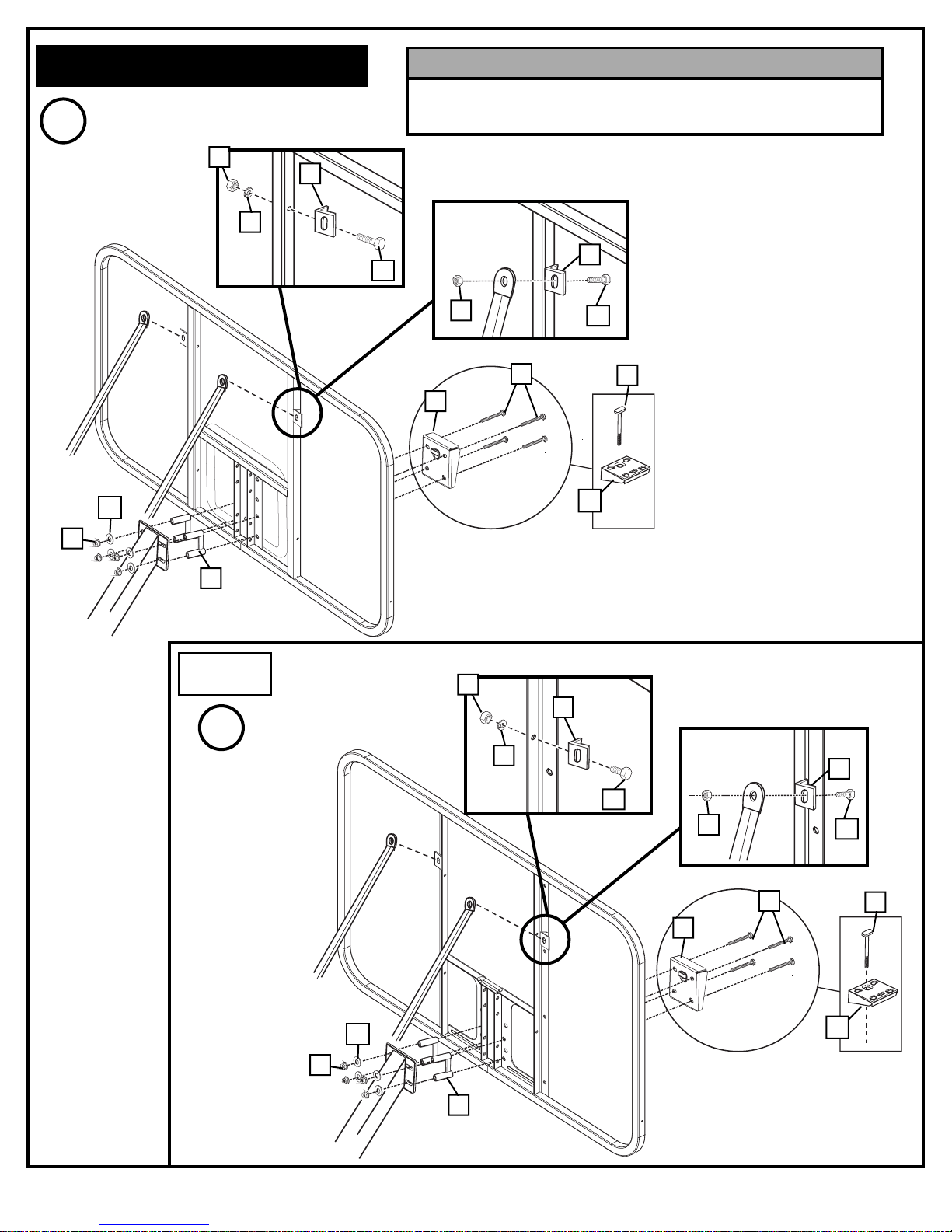

EXTENSION ARM MOUNT
1
6
15
2
6
16
5
4
1
3
We recommend mounting backboard to a solid
material (steel) behind rim area.
NOTE:
17
18
17
7
1
6
15
2
6
16
5
4
1
22
17
18
17
7
A
B
OR

6
ID# M790054 03/06
Model 8406 Universal Mounting Bracket is available for purchase
by calling this number: 1-800-558-5234

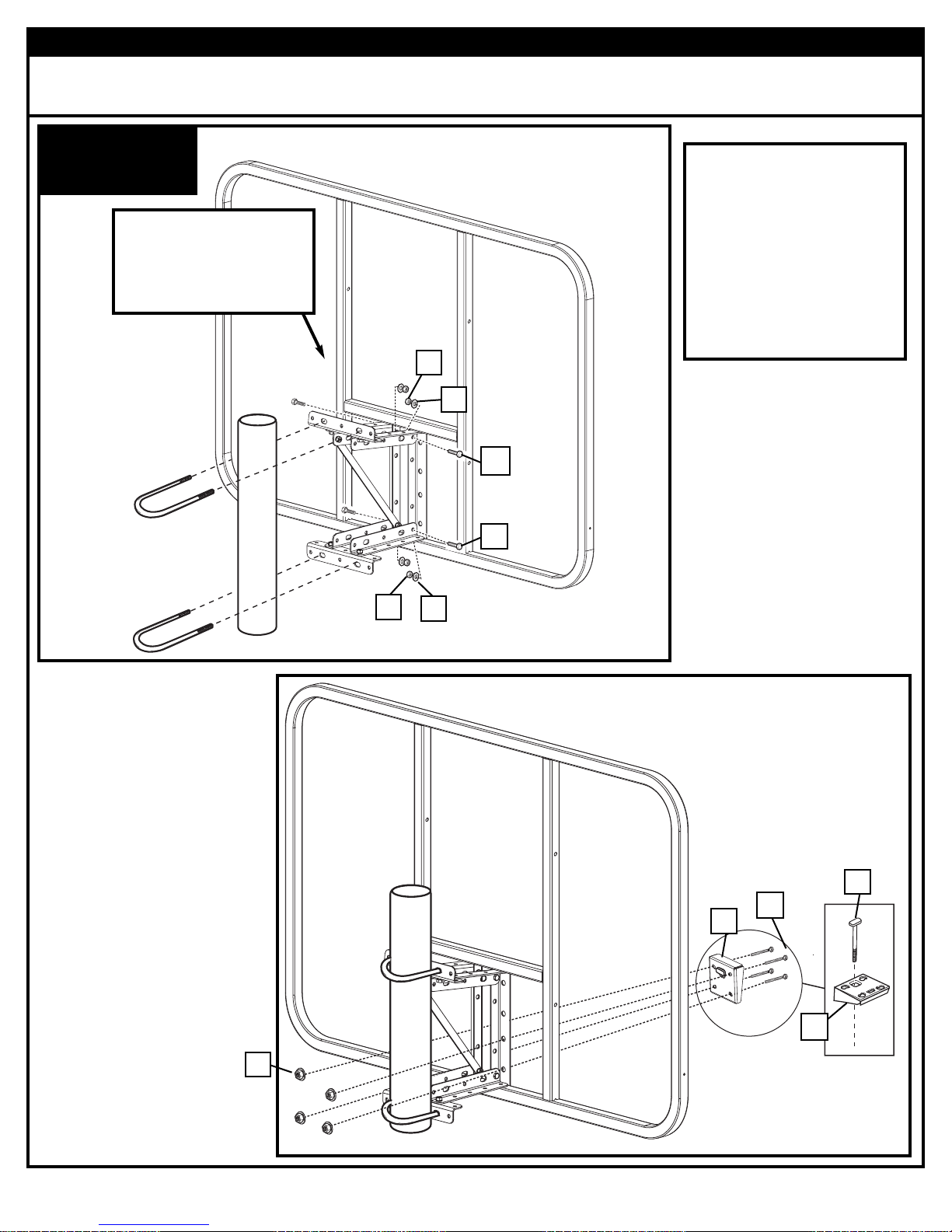

POLE, ROOF, OR WALL MOUNT
Model 8406
Universal Mounting
Bracket is available
for purchase by
calling this number:
1-800-558-5234
22
22
4
5
5
4
POLE MOUNT
Model 8406 Universal
Mounting Bracket
(Not Supplied)
17
6
15 18
17

703/06 ID# M790054
17 18
15
17
6
WALL MOUNT
22
22
4
5
5
4
22
22

8
ID# M790054 03/06

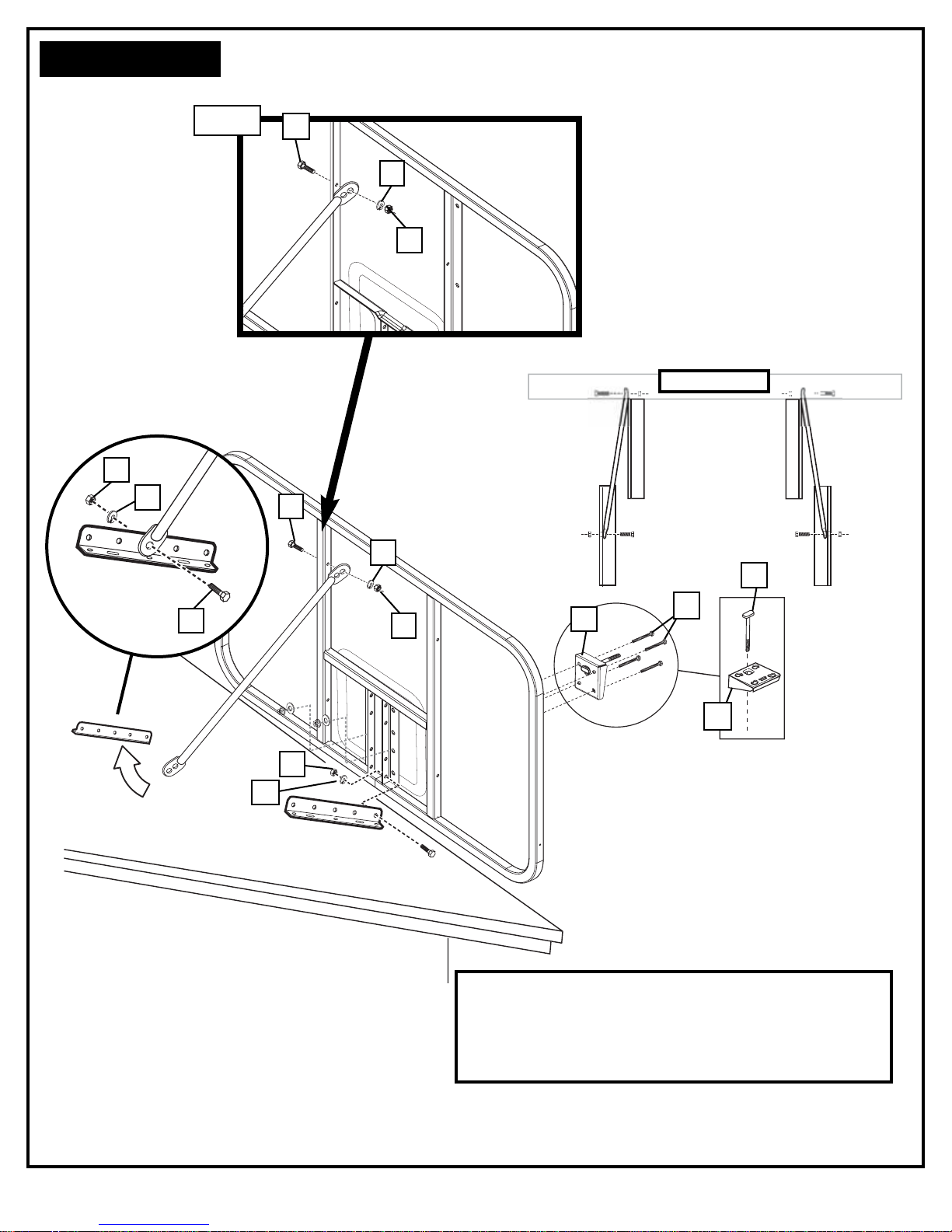

ROOF MOUNT
Top View
OR
4
22
5
3
16
54
4
3
515
17
18
17
6
Model 8406 Universal Mounting Bracket
(not supplied) is available for purchase
by calling this number: 1-800-558-5234

903/06 ID# M790054

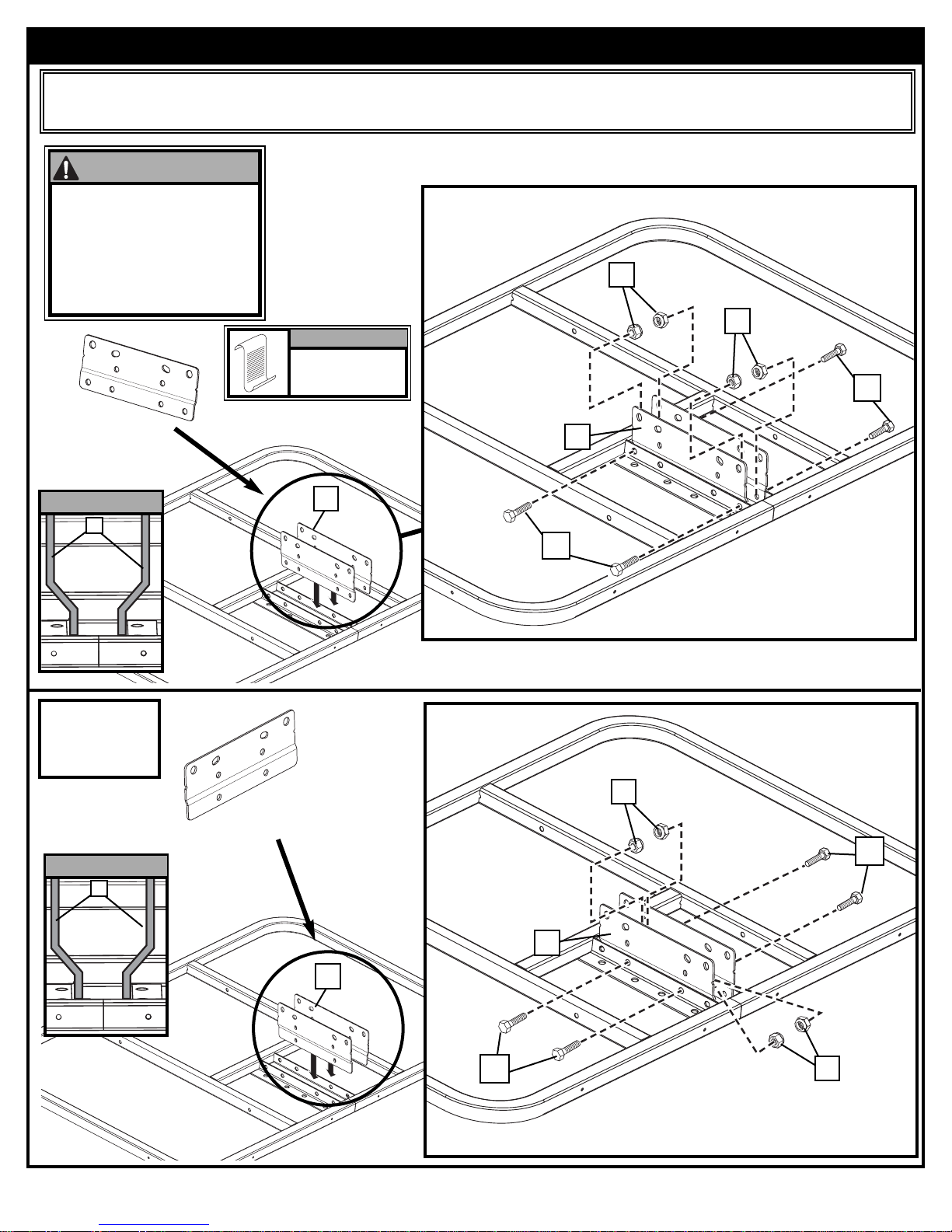

IMPORTANT!
All Elevator mounts will require this initial step of attaching brackets (8) to the backboard.
ELEVATOR MOUNTS
8
11
8
23
11
23
BRACKET STYLE
MAY VARY
NOTE:
#8 (2)
8
11
8
23 11
23
8
NOTE ORIENTATION
#8 (2)
8
NOTE ORIENTATION
OR
It is necessary for all
parts to be installed
properly for this
mechanism to work
safely and properly.
IMPORTANT!

10
ID# M790054 03/06
6
8
17
15 17
18
6

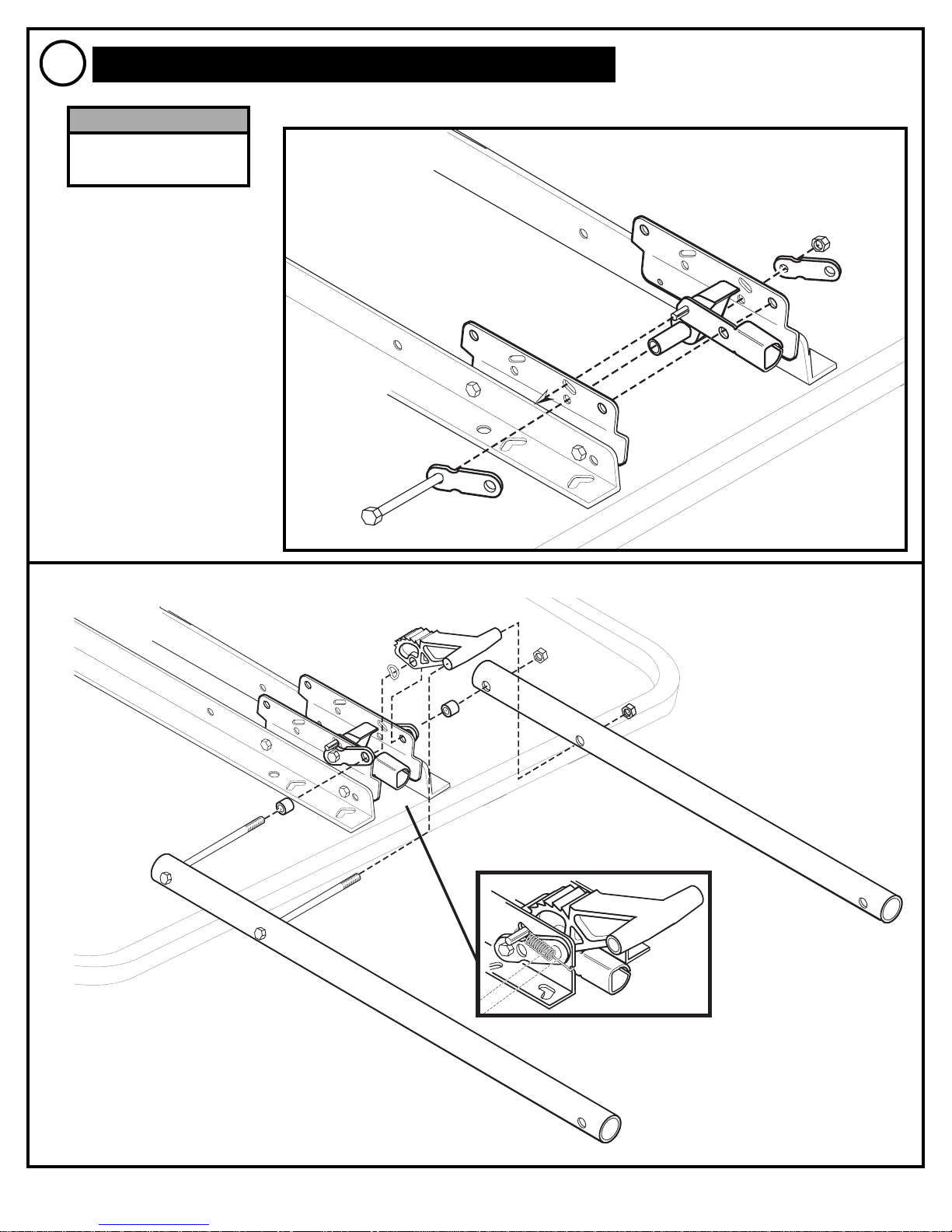

ASPRING STYLE ELEVATOR MOUNT
8
Use existing elevator
components.
NOTE:

11 03/06 ID# M790054

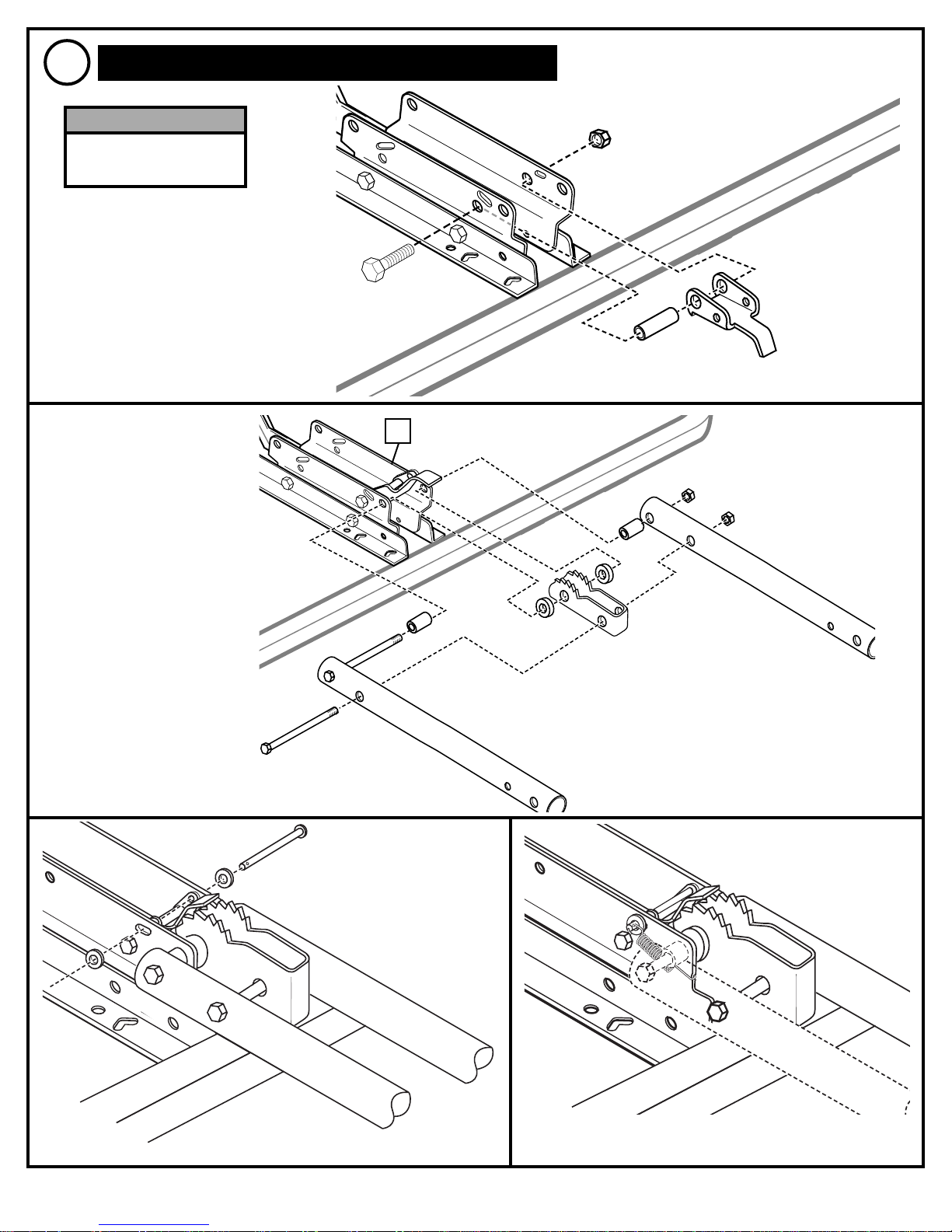

BBRONZE RATCHET ELEVATOR MOUNT
Use existing elevator
components.
NOTE:

12
ID# M790054 03/06
BRONZE RATCHET ELEVATOR MOUNT (continued)
6
8
17
15
17
18
6

13 03/06 ID# M790054
STAMPED RATCHET ELEVATOR MOUNT
C
8
Use existing elevator
components.
NOTE:

14
ID# M790054 03/06
STAMPED RATCHET ELEVATOR MOUNT (continued)
Use existing elevator
components.
NOTE:
18
17
17
15
6

15 03/06 ID# M790054

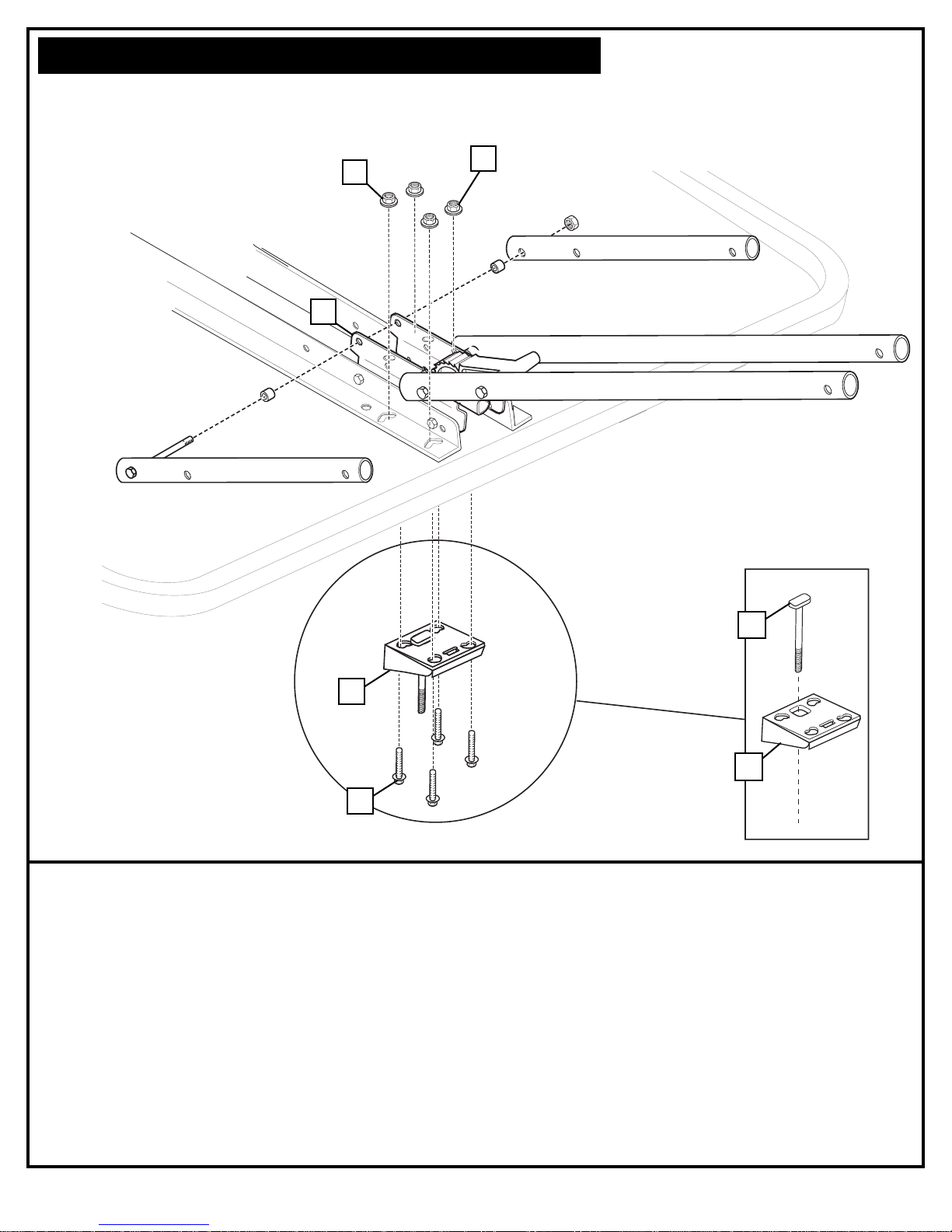

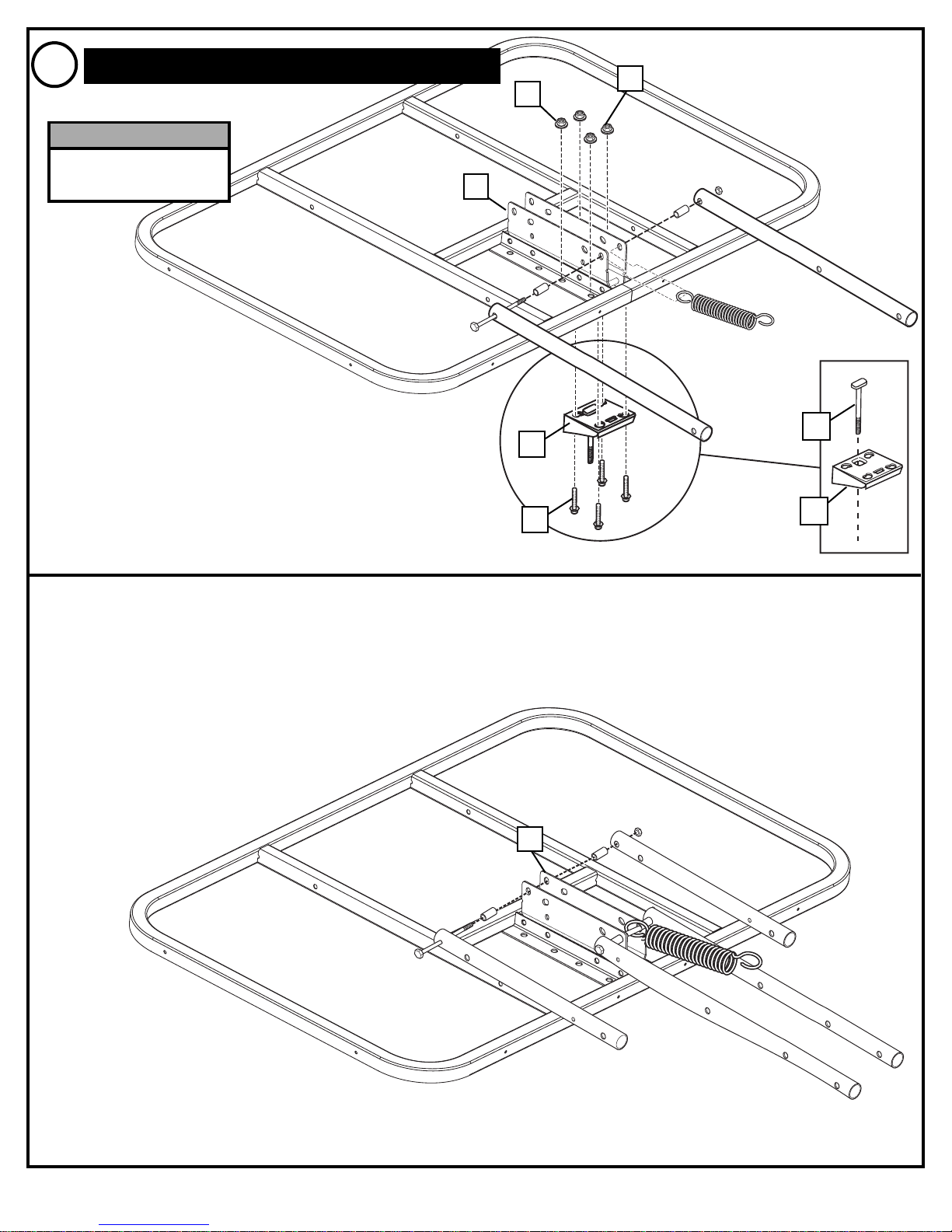

APOLLO ELEVATOR MOUNT
D
½
STRAIGHT ON VIEW
8
Upper Tube
Lower Tube
Upper Tube
Lower Tube
Use existing elevator
components.
NOTE:
18
17
17
15
6
IMPORTANT!
Remove Y-frame from elevator portion.

16
ID# M790054 03/06
2.
19
21 10
17
18

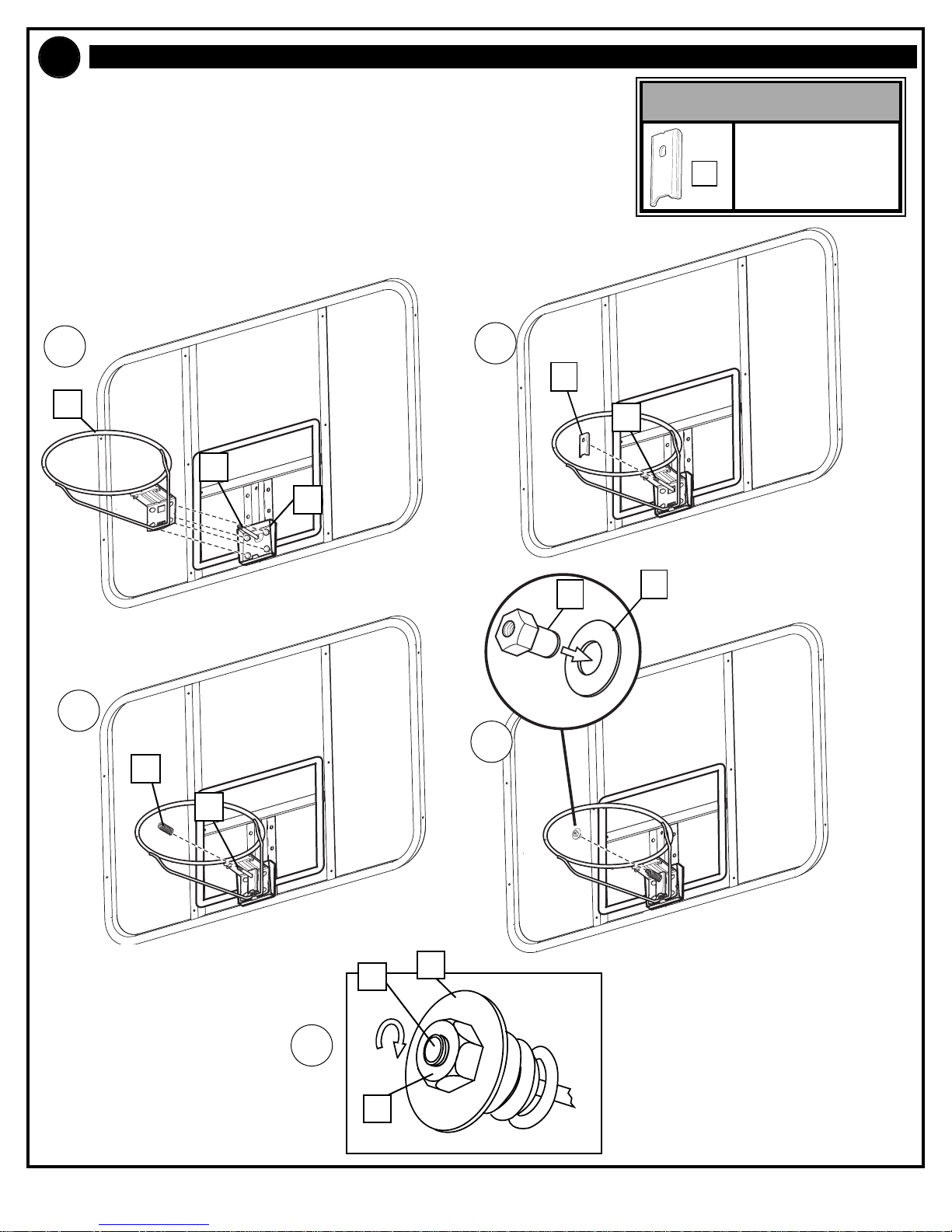

Install Slam Jam Rim to Backboard
12
20
18
10
21
AB
CD
E
AFit rim (12) securely into bracket (17) as shown. Allow T-bolt (18)
to slip through center hole in rim (12).
BInstall reinforcement bracket (19) onto T-bolt (18) as shown.
CInstall spring (20) onto T-bolt (18) as shown.
DInstall special nut (21) and washer (10) onto T-bolt (18).
ETighten nut (21) until flush with end of T-bolt (18).
18
18
NOTE:
Orientation of
Bracket
19

17 03/06 ID# M790054

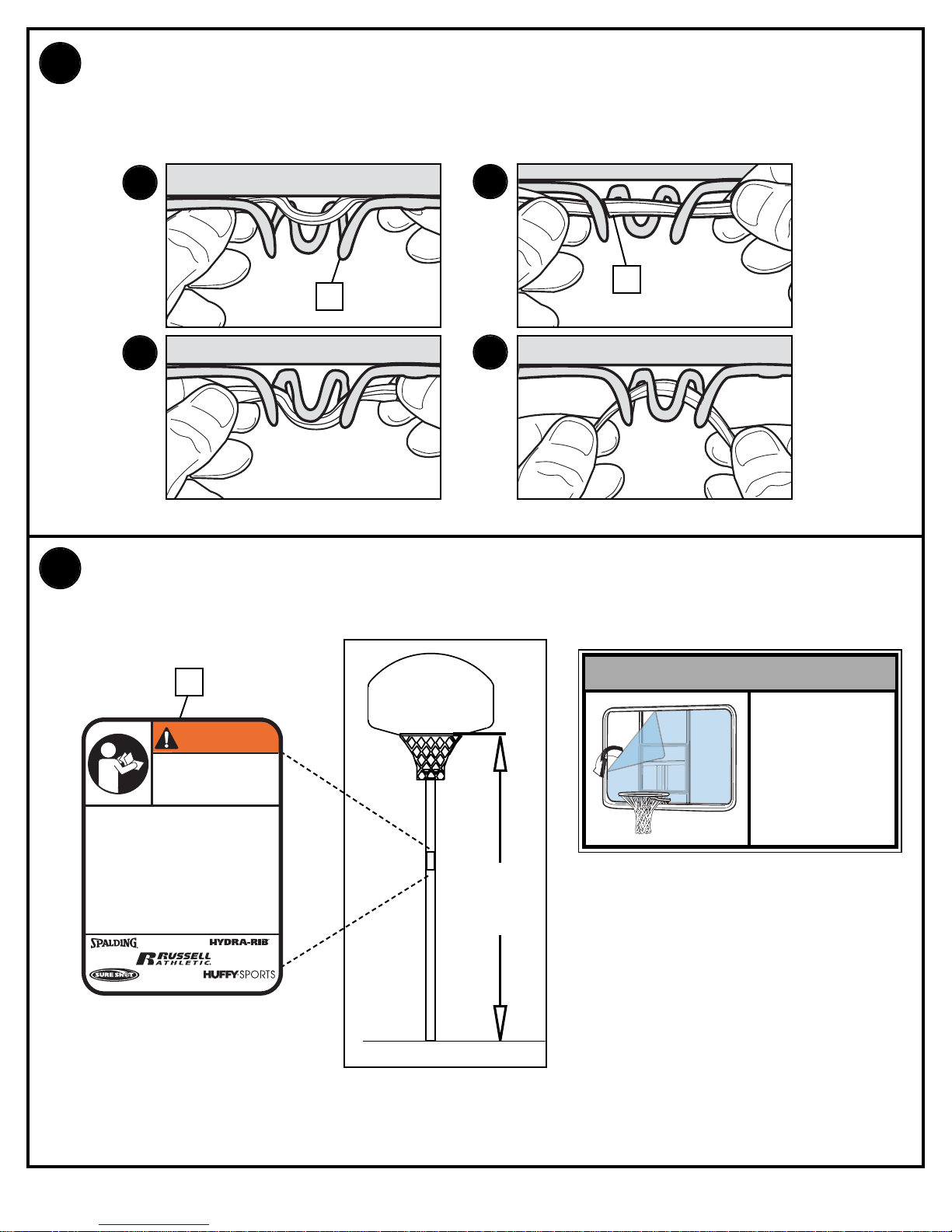

Install net (14).
2.
4.
3.
1.
10 ft.
(3.05M)
REGULATION RIM HEIGHT
IS 10 FEET (3.05M).
3.
4. Place warning label (9) in location clearly visible within playing area.
Owner must ensure that all players know and follow these rules
for safe operation of the system.
WARNING
• DO NOT HANG on the rim or any part of the system including
backboard, support braces or net.
• During play, especially when performing dunk type activities,
keep player's face away from the backboard, rim and net.
Serious injury could occur if teeth/face come in contact with
backboard, rim or net.
• During play, do not wear jewelry (rings, watches, necklaces,
etc.). Objects may entangle in net.
• Check system before each use for loose hardware, excessive
wear and signs corrosion and repair before use.
• Never play on damaged equipment.
• See instruction manual for proper installation and
maintenance.
Read and understand warnings listed
below before using this product.
Failure to follow these warnings may
result in serious injury and/or property
damage.
ID#: 579800 05/05
In the U.S.: 1-888-713-5488 In the U.S.: 1-800-558-5234
In Canada: 1-800-284-8339
In the U.S.: 1-800-334-9111
In the U.S.: 1-800-558-5234
In Canada: 1-800-284-8339
14
12
9
NOTE:
Peel protective
film from
surface of
acrylic
backboard
prior
to use.

18
ID# M790054 03/06
Item Qty. Part No. Description
1 2 266102 Lock Nut, Nylon Insert
2 6 206151 Washer 1/4 ID 1 O.D.
3 6 202871 Screw, Hex, 1/4 x 3/4 Slotted
4 1 205225 Board Pad, Right (44-50” Board”)
204318 Board Pad, Right (42” Board”)
5 1 206292 Board Pad, Middle - 46” Board
205241 Board Pad, Middle - 48” Board
205566 Board Pad, Middle - 50” Board
Item Qty. Part No. Description
6 1 205226 Board Pad, Left (44-50” Board”)
204319 Board Pad, Left (42” Board”)
7 4 205233 Washer, #10 Flat
8 2 205232 Screw, Hex, 10-24 x 7/8 Long

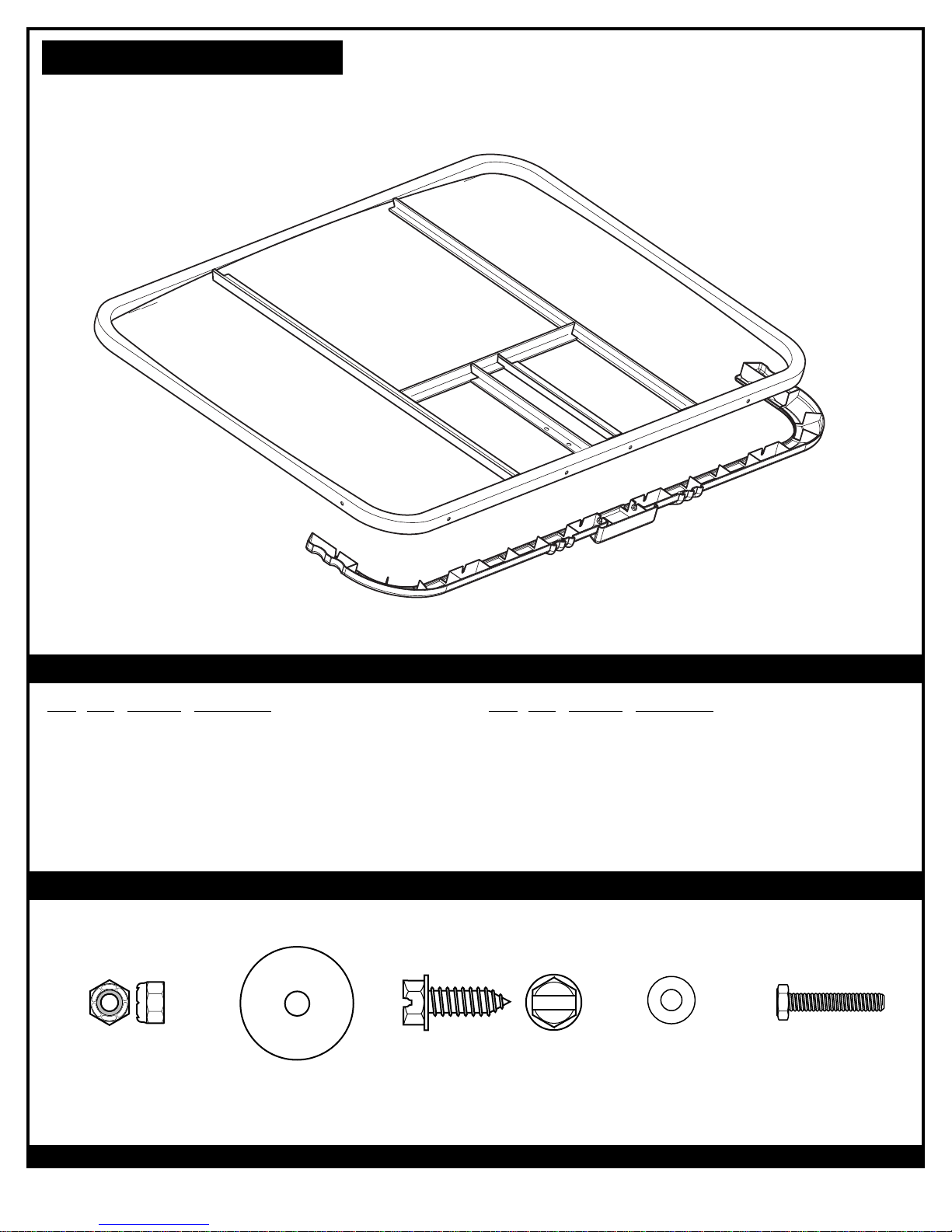

PARTS LIST - See Hardware Identifier
BOARD PAD
#3 (6)
#2 (6)
#7 (4) #8 (2)
#1 (2)
HARDWARE IDENTIFIER

19 03/06 ID# M790054
4
5
6
NOTE:
206292 (#5)
Use center board pad # 206292 (5) if you
have a 46” backboard.
205241 (#5)
Use center board pad # 205241 (5) if you
have a 48” backboard.
205566 (#5)
Use center board pad # 205566 (5) if you
have a 50” backboard.

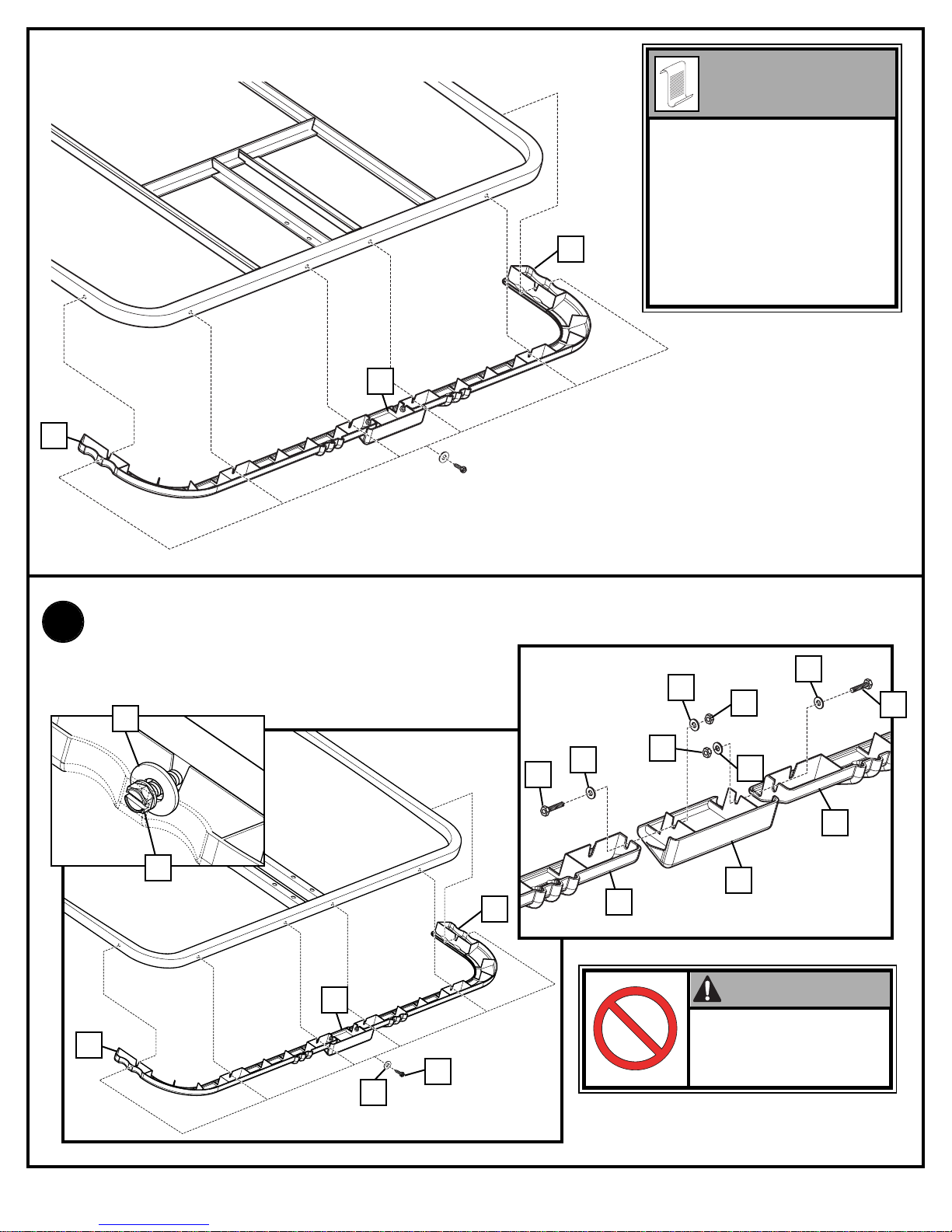

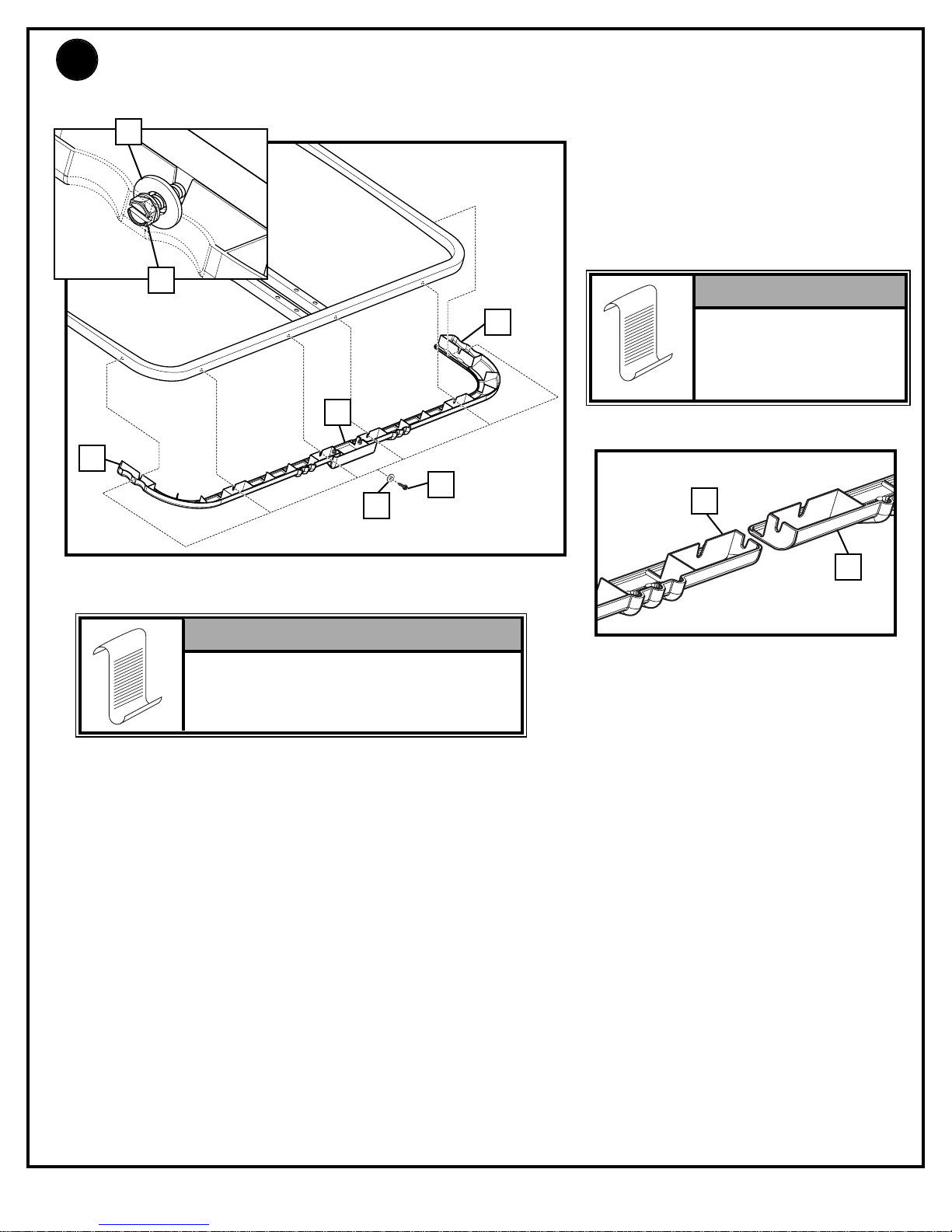

Assemble board pad sections (4, 5, and 6) together
with hardware (1, 7, and 8) as shown in Figure A and
tighten completely.
4
5
6
23
2
3
1.
IMPORTANT!
DO NOT OVER
TIGHTEN!
1
7
7
8
7
8
17
45
6

20
ID# M790054 03/06
Loosely install hardware (2, 3) into holes as shown in Figure B. Attach board pads (4, 5, and 6) with
hardware and tighten completely.
4
5
6
23
2
3
FIG. B
ABB. B
2.
FIG. C
ABB. C
6
4
The center board pad is not required if you
have a 44” backboard. Only the left and right
board pads will be used. See figure C.
NOTE:
Part # 205241, # 206292
or #205566 (5) is not used
on 44” acrylic backboards
as shown in Figure C.
NOTE:
