Hughes 9202
Quick Start User Guide
3500658-0001 Rev C
Revision C
1-August-2012

Copyright © 2012 Hughes Network Systems, LLC
All rights reserved. This publication and its contents are proprietary to Hughes Network
Systems, LLC. No part of this publication may be reproduced in any form or by any
means without the written permission of Hughes Network Systems, LLC, 11717
Exploration Lane, Germantown, Maryland 20876.
Hughes Network Systems, LLC has made every effort to ensure the correctness and
completeness of the material in this document. Hughes Network Systems, LLC shall not
be liable for errors contained herein. The information in this document is subject to
change without notice. Hughes Network Systems, LLC makes no warranty of any kind
with regard to this material, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose.
Trademarks
Hughes and Hughes Network Systems are trademarks of Hughes Network Systems,
LLC. All other trademarks are the property of their respective owners.

 Contents
3500658-0001 Rev C
iii
Contents
Introduction.................................................................................................................................5
Overview....................................................................................................................................................5
Coverage Map............................................................................................................................................6
About this Quick Start User Guide............................................................................................................6
Package Contents.......................................................................................................................................6
Minimum System Requirements for Laptop/PC........................................................................................7
Using the Hughes 9202................................................................................................................8
Before Getting Started ...............................................................................................................................8
Quick start..................................................................................................................................................8
GPS Icon................................................................................................................................................8
Satellite Icons.........................................................................................................................................9
Web UI quick start...............................................................................................................................10
Connecting the terminal to the computer.................................................................................................11
Connecting by Ethernet........................................................................................................................12
Connecting by WLAN (Wi-Fi)............................................................................................................12
Connecting by ISDN............................................................................................................................12
Connecting by RJ-11............................................................................................................................13
Using the LCD and Keypad.....................................................................................................14
LCD Display and Keypad........................................................................................................................14
Terminal Buttons .....................................................................................................................................14
Menu Navigation .....................................................................................................................................15
Connecting with the BGAN Network......................................................................................................15
Create a standard PDP Context............................................................................................................15
Menu Navigation .....................................................................................................................................16
Display Icons ...........................................................................................................................................17
Battery Icon..........................................................................................................................................17
Power Icon ...........................................................................................................................................17
GPS Icon..............................................................................................................................................17
Satellite Icons.......................................................................................................................................17
Wireless LAN Icon ..............................................................................................................................18
Wireless LAN Lock Icon.....................................................................................................................18
Globe ICON.........................................................................................................................................18
Using the Web UI......................................................................................................................19
Accessing the Web UI .............................................................................................................................19
Support Page............................................................................................................................................20
Troubleshooting ........................................................................................................................21
Technical Specifications ...........................................................................................................24

iv
 Quick Start User Guide
3500658-0001 Rev C
Application Note –Phone/Fax .................................................................................................25

 Quick Start User Guide
3500658-0001 Rev C
5
Introduction
Overview
The Hughes 9202 Land Portable Terminal is the latest Hughes
BGAN product to provide reliable satellite connectivity over the
Inmarsat BGAN satellite network. The Hughes 9202 comes in a
very small and portable package, and it allows the user to send
and receive IP packets via Ethernet and WLAN interfaces. In
parallel with the packet data services, the Hughes 9202 supports
circuit switched voice and fax calls via standard POTS and
ISDN interfaces.

6
 Quick Start User Guide
3500658-0001 Rev C
Coverage Map
The Inmarsat BGAN service is operated with 3 satellites as
shown below. The Hughes 9202 terminal will perform best in
areas where the elevation (or “look”) angle is 20 degrees above
horizontal or higher, but the terminal can operate down to 5
degrees of look angle.
About this Quick Start
User Guide
This guide is the simplest and quickest way to connect to the
BGAN network. If you are a first time user, you will be guided
through the procedure for powering up your terminal, obtaining
a GPS fix, connecting your computer to the terminal and
registering with the BGAN network. You are then ready to start
using voice and broadband services. For a complete user guide
go to www.bgan.hughes.com and look for the Hughes 9202 tab.
Package Contents
When you unpack the Hughes 9202 Land Portable Terminal Kit
package, you will find the following:
Hughes 9202 terminal
AC/DC power adapter
Ethernet cable
Lithium Ion battery
Quick Start User Guide

 Quick Start User Guide
3500658-0001 Rev C
7
Your Service Provider will supply you with a Subscriber
Identification Module (SIM) and its PIN, and Satellite Terminal
configuration instructions –you will need these to access the
satellite network. Note: The SIM card may also have four (4)
MSISDN numbers associated with it for various ISDN services:
4K Voice
3.1KHz Audio/Fax
64K UDI data
56K RDI data
Minimum System
Requirements for
Laptop/PC
These are the minimum computer system requirements for
successful interface with the Satellite Terminal:
Internet Browser: Microsoft Internet Explorer (IE7 or IE8),
Mozilla or Safari.
PC Support for Ethernet or WLAN (802.11b or b/g).
100 MB of free hard disk space if using LaunchPad. Only
LaunchPad version 5.0.1 or newer supports the 9202.

8
 Quick Start User Guide
3500658-0001 Rev C
Using the Hughes 9202
Before Getting Started
Install the battery in the terminal unit and then fully charge the
battery using the supplied AC/DC converter before powering
up the unit
Quick start
Install the USIM card supplied by your service provider in the
battery compartment.
Power on the unit by pressing the power button for at least 2
seconds.
Since the Hughes 9202 terminal is a portable device, you must
first obtain a GPS fix by laying the terminal flat with an open
view of the sky.
GPS Icon
The GPS icon indicates the state of the GPS information in the
terminal.

 Quick Start User Guide
3500658-0001 Rev C
9
The icon flashes after power up until a fresh GPS fix is obtained.
The icon is on steady when the terminal has a new fix.
Satellite Icons
The satellite icons, located next to the GPS icon, indicate the
status of the GPS receiver in the terminal and the number of
visible satellites.
The icons are off when the GPS receiver is off.
The icons are active when the GPS receiver is on, either
flashing or steady state. The number of icons in steady state
indicates the number of GPS satellites in view. You will need all
three on solid to acquire a new GPS fix.Note that once an
adequate GPS fix is obtained, both the GPS receiver and all of
the satellite icons are turned off and the word “GPS” should go
on steady.

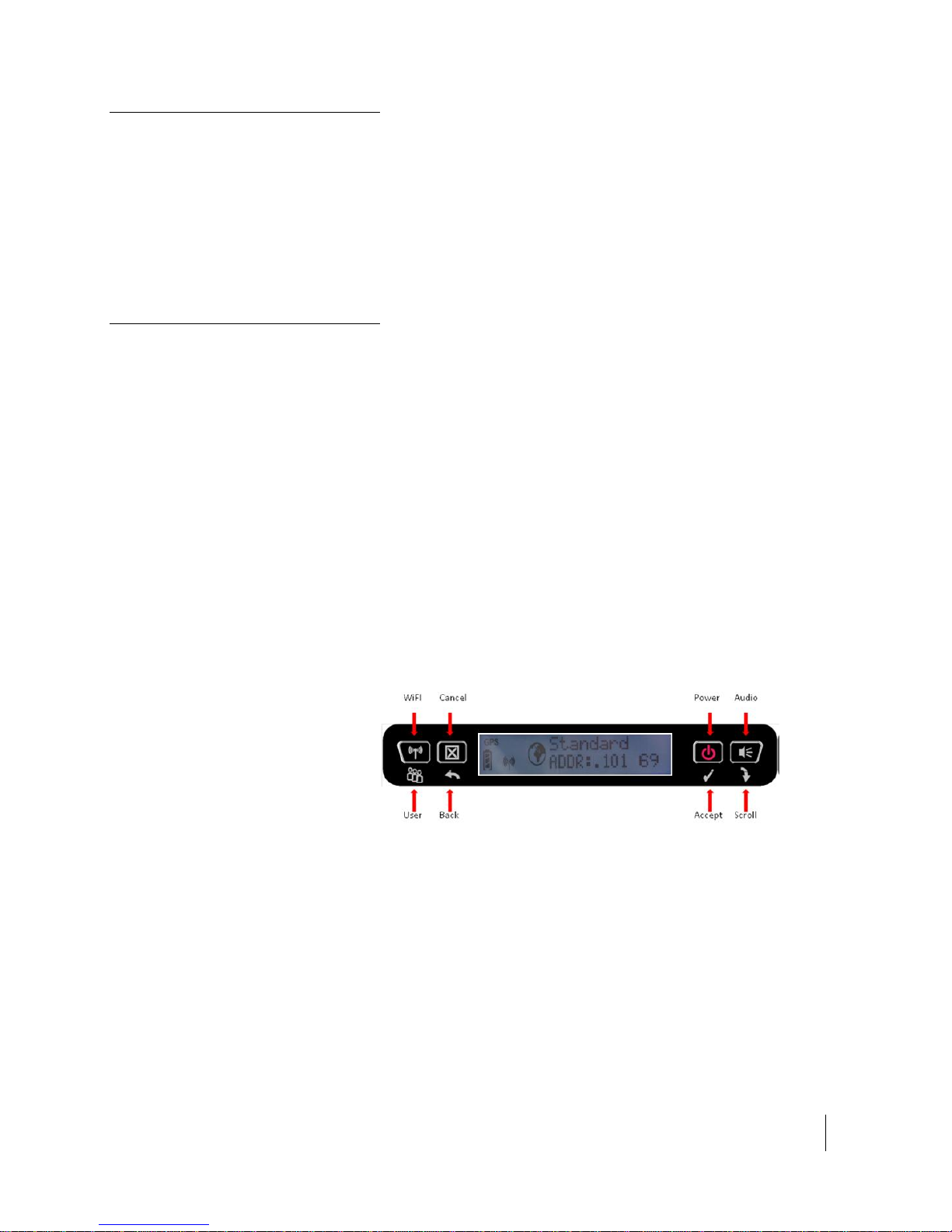

Figure 1: 9202 Front Panel showing buttons and functions
The top line gives the compass bearing and elevation angle of
the closest satellite.

10
 Quick Start User Guide
3500658-0001 Rev C
Use the signal quality bar and numeric display on the lower
line to help point the UT to the satellite. While in pointing
mode, you may also activate the audio pointing aid by a long
press of the Audio/Scroll button on the right.
Once you have accurately pointed the unit to the satellite, exit
pointing by a long press of the Cancel/Back button. The unit
will now attempt to register with the satellite network.
Once the unit has registered and is Circuit Switched (CS) and
Packet Switched (PS) Attached, you can create a data
connection from the LCD menu.
Web UI quick start
Alternatively, you can connect a computer and use the Hughes
9202’s internal web server. From your terminal equipment
(e.g. PC), enter 192.168.128.100 as the URL to access the
Hughes 9202’s home page. (See Using the Web UI starting on
page 19 for more details.)

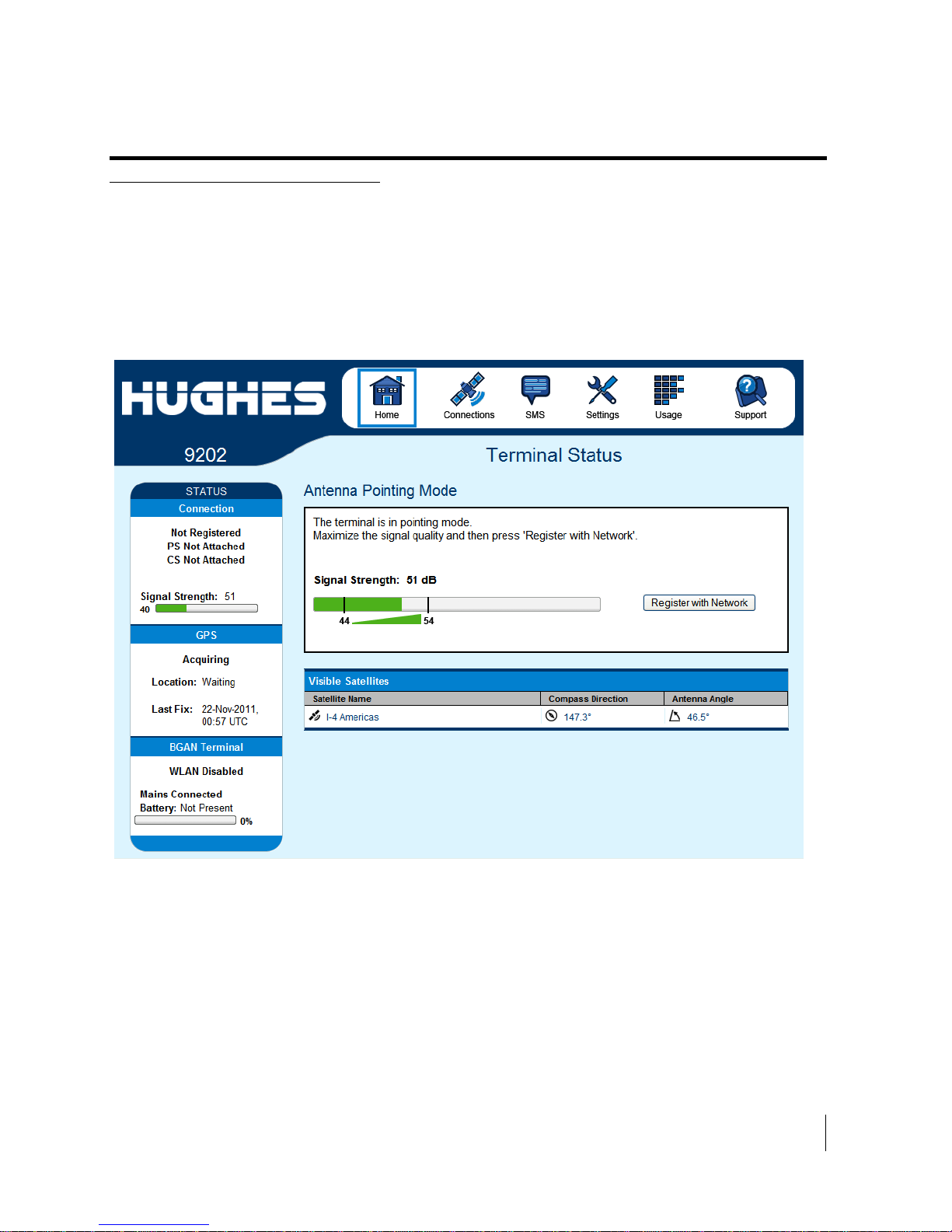

The Terminal Status page gives you all the information you
need to point and register with the network. Once you have
a GPS fix and are pointed to the satellite as best you can,
click on the Register with Network button to start the
registration process.
Once you are registered and CS and PS Attached, you can
then select the Quality of Service (QoS) for your data
connection by choosing either the Standard or Streaming
connection.
