Humzor M400 Series User manual

Model:M400
 
AUTO MASTER. MASTER AUTO

Trademarks
HUMZOR®, NEXZSYS®, NEXZLINK®, NEXZSCAN®, and NEXZSYS®
are trademarks of Shenzhen Hanzhi Technology Co., Ltd., registered in
China, the United States and other countries. All other marks are
trademarks or registered trademarks of their respective holders.
Copyright Information
No part of this manual may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise without the prior written permission
of HUMZOR.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications and illustrations in this manual are based on
the latest information available at the time of printing.
HUMZOR reserves the right to make changes at any time without notice.
While information of this manual has been carefully checked for accuracy,
no guarantee is given for the completeness and correctness of the
contents, including but not limited to the product specifications, functions,
and illustrations.
HUMZOR will not be liable for any direct, special, incidental, indirect
damages or any economic consequential damages (including lost profits).
IMPORTANT
Before operating or maintaining this unit, please read this manual
carefully, paying extra attention to the safety warnings and precautions.
For Services and Support
www.humzor.com/www.humzor.cn
[e-mail]

For details, please refer to the Service Procedures in this manual.
Safety Information
For your own safety and the safety of others, and to prevent damage to
the device and vehicles upon which it is used, it is important that the
safety instructions presented throughout this manual be read and
understood by all persons operating or coming into contact with the
device.
There are various procedures, techniques, tools, and parts for servicing
vehicles, as well as in the skill of the person doing the work. Because of
the vast number of test applications and variations in the products that
can be tested with this equipment, we cannot possibly anticipate or
provide advice or safety messages to cover every circumstance. It is the
automotive technician's responsibility to be knowledgeable of the system
being tested. It is crucial to use proper service methods and test
procedures. It is essential to perform tests in an appropriate and
acceptable manner that does not endanger your safety, the safety of
others in the work area, the device being used, or the vehicle being
tested.
Before using the device, always refer to and follow the safety messages
and applicable test procedures provided by the manufacturer of the
vehicle or equipment being tested. Use the device only as described in
this manual. Read, understand, and follow all safety messages and
instructions in this manual.
Safety Messages
Safety messages are provided to help prevent personal injury and
equipment damage. All safety messages are introduced by a signal word

indicating the hazard level.
DANGER/WARNING
Indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury to the operator or to bystanders.
DANGER/WARNING
Indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury to the operator or to bystanders.
Safety Warning
Always perform automotive testing in a safe environment.
Wear safety eye protection that meets ANSI standards.
Keep clothing, hair, hands, tools, test equipment, etc. away from all
moving or hot engine parts.
Operate the vehicle in a well-ventilated work area, for exhaust gases
are poisonous.
Put the transmission in PARK (for automatic transmission) or NEUTRAL
(for manual transmission) and make sure the parking brake is engaged.
Put blocks in front of the drive wheels and never leave the vehicle
unattended while testing.
Be extra cautious when working around the ignition coil, distributor cap,
ignition wires and spark plugs. These components create hazardous
voltages when the engine is running.
Keep a fire extinguisher suitable for gasoline, chemical, and electrical
fires nearby.
Do not drive the vehicle and operate the test equipment at the same
time. Any distraction may cause an accident.

Refer to the service manual for the vehicle being serviced and adhere to
all diagnostic procedures and precautions. Failure to do so may result in
personal injury or damage to the test equipment.
To avoid damaging the test equipment or generating false data, make
sure the vehicle battery is fully charged and the connection to the vehicle
DLC is clean and secure.
Do not place the test equipment on the distributor of the vehicle. Strong
electromagnetic interference can damage the equipment.

Contents
1.Quick Start Guide
2.Using This Manual
2.1 Conventions
2.1.1 Bold Text
2.1.2 Notes and Important Messages
2.1.3 Illustrations
2.1.4 Procedures
3.General Introduction
3.1 Tablet
3.1.1 Functional Description
3.1.2 Technical Specifications
3.1.3 Technical Specifications
3.2 VCCI – Vehicle Communication and Check Interface
3.2.1 Functional Description
3.3 Software Overview
3.3.1 Overview
3.3.2 Features
3.3.3 VCI Connection
4.Diagnostic
4.1 Protocol Supported
4.2 Getting Started
4.3 Vehicle Menu Layout
4.4 Vehicle Identification
4.5 Vehicle Manual Select
4.6 MIL Status

4.7 Vehicle Information
4.8 Mode 6
4.9 Mode 8
4.10 Smog Check
4.11 Fuel Analysis
5. HD OBD Diagnosis
5.1 Read DTCs
5.2 Control Unit
5.3 ECU Information
5.4 Trouble Code
5.4.1 Read Code
5.4.3 Read Data Stream
5.4.4 Active Test
6.Special Function
7 Me
6.1 Unit
6.2 Upgrade
6.3 Settings
8.Search Engine
7.1 Run Mode
7.2 Language
7.3 Navigation Bar
7.4 Reset connection VCI
7.5 Screenshot

SN:MW02090588
1.Quick Start Guide
2. Using This Manual
Get your serial number & activation code by scanning the QR
Scan QR code
This manual contains device usage instructions.
Some illustrations shown in this manual may contain modules and
optional equipment that are not included in your system.
2.1 Conventions
The following conventions are used.
2.1.1 Bold Text
Bold text is used to highlight selectable items such as buttons and
menu options.
Example:
Tap NEXT.
2.1.2 Notes and Important Messages
A NOTE provides helpful information such as additional explanations,
tips, and comments.
The IMPORTANT indicates a situation that if not avoided may result in
damage to the tablet or vehicle.
2.1.3 Illustrations
1

Illustrations used in this manual are samples, and the actual testing
screen may vary for each vehicle being tested. Observe the menu
titles and on-screen instructions to make correct option selection.
1.1.4 Procedures
An arrow icon indicates a procedure.
Example:
To use the Feedback:
1. Tap the Special button. The customers can use the functions they
need to diagnose the vehicles.
2. Select the vehicle brand and type.
3. Tap the NEXT to select automatic scan or manual scan.
3.General Introduction
The M400 is a multi-platform diagnostic solution comprised of a
powerful 4.0 inch TFT-LCD touchscreen Android-based tablet, a
NEXZBOX communication and diagnostic measurement unit and an
on-tool and cloud-based repair instructions and expert advice. As an
intelligent diagnostic and information system, M400 not only displays
the relevant repairs gathered from experienced industry experts, but
provides step-by-step guidance to ensure the repair is done correctly
and efficiently.
There are two main components to the M400 system:
M400 Tablet – the central processor and monitor for the system.
M400 VCI - Vehicle Communication and Check Interface.
This manual describes the construction and operation of these devices
and how they work together to deliver diagnostic solutions.
3.1 Tablet
2

3.1.1 Functional Description
3.1.2 Technical Specifications
1. 4.0 inch LCD Capacitive Touchscreen
2.Type-C charging port
3.Volume button for up and down
4.Power button
Battery Pack inside
Do not charge the battery when the temperature is lower than 0°C
(32°F) or higher than 45°C (113°F).
Internal Battery Pack
The tablet can be powered with the internal rechargeable battery,
which if fully charged can provide sufficient power for about 6 hours of
continuous operation.
3.1.3 Technical Specifications
IMPORTANT
Figure 2-1 M400 Table Front View
3

SN:MW02090588
3.2 VCCI – Vehicle Communication and Check Interface
3.2.1 Functional Description
3.3.1 Overview
3.3 Software Overview
Name Specifications
LCD LCD：4.0 inch WVGA(480*800)
Tcard Support single T card，Support up to 32GB
Flash size EMCP 8GB+1GB LP DDR3 or EMCP 4GB+512M LP DDR3
Wi-Fi MPEG4-SP, H.264/AVC,H.263,3GP,3G2,MP4,MKV,AVI,1080P
GPS Supported
G-Sensor G-Sensor：supported
USB 1 TYP-C connector，Support data transfer, charging, downloading
and other functions
Charge Support 5V 2A fast charger
Battery About 2000mAh，Support high voltage battery 4.2V
Finish The whole body is covered with PU which feeled much smoothly
M400 is a tool-based APP which focus on car diagnosis, reset, key
programming and other maintenance functions. It is connected to the
vehicle through a specific Bluetooth (V5.0) device. The car owner or
maintenance worker can learn the basic information and the existed
Figure 2-4 HUMZOR VCCI Top View
4

3.3.3 VCI Connection
4.Diagnostic
3.3.2 Features
①Wide coverage of vehicle brands of America, Europe, Asia, etc.
②Support full-system electronic control diagnosis, quickly scan the
conditions of all electronic control systems of the car, and then
generate professional diagnosis reports.
③Special customization, special functions are supported, such as Oil
reset, TPMS, EPB, etc.
④Support reset connection VCI, one-click screenshot.
You can connect the VCI device with M400 through the following steps:
1.Insert the VCI tightly into the OBD port.
2.Then the M400 will automatically scan and recognize the VCI device.
At this time, the VCI icon on the top right turns blue, which means the
VCI is successfully connected. If the VCI icon still shows red, it means
the connection is not successful.
3.If the M400 cannot automatically connect to your VCI device, or the
device fails to connect, please manually click the VCI icon on the top
right to reconnect, or check whether the VCI is well connected to the
car's OBD port.
faults of the vehicle in real time through the APP, etc., making vehicle
maintenance become more convenient.
5

1. Support 91 car brands: American cars (15), European cars (34), Asian
cars (16) , Australian cars (2).
2. Support more than 100 special functions, external 9 kinds of common
special functions.
3.1 Protocol Supported
High Speed CAN - offers baud rates from 40 Kbit/s to 1 Mbit/sec, depend�
ing on cable length. This is the most popular standard for the physical
layer, since it allows for simple cable connection between devices. High
speed CAN networks are terminated with 120 ohm resistors on each end
of the networ
Low Speed CAN - offers baud rates from 40 Kbit/s to 125 Kbits/sec. This
standard allows CAN bus communi�cation to continue in case of a wiring
failure on the CAN bus lines. In low speed CAN networks, each device
has its own termination.
Single CAN - offers baud rates up to 33.3 Kbit/s (up to 88.3 Kbit/s for
high-speed mode)
J1939 CAN - is used in the commercial vehicle area for communication
through�out the vehicle with the physical layer defined in ISO 11898.
Under J1939/11 and J1939/15, the data rate is specified as 250 Kbit/s,
with J1939/14 specifying 500 Kbit/s.
J1850 (PWM) - SAE J1850 pulse-width modulation offers baud rates up
to 41.6 Kbit/s, standard of the Ford Motor Company
J1850 (VPW) - SAE J1850 variable pulse width offers baud rates up to
10.4 Kbit/s, standard of the General Motors
J1708 (SAE) - the standard defines a double-wire 18-gauge cable that
can run upto 130 feet (40 m) and operates at 9600 bit/s
6

4.2 Getting Started
4.3 Vehicle Menu Layout

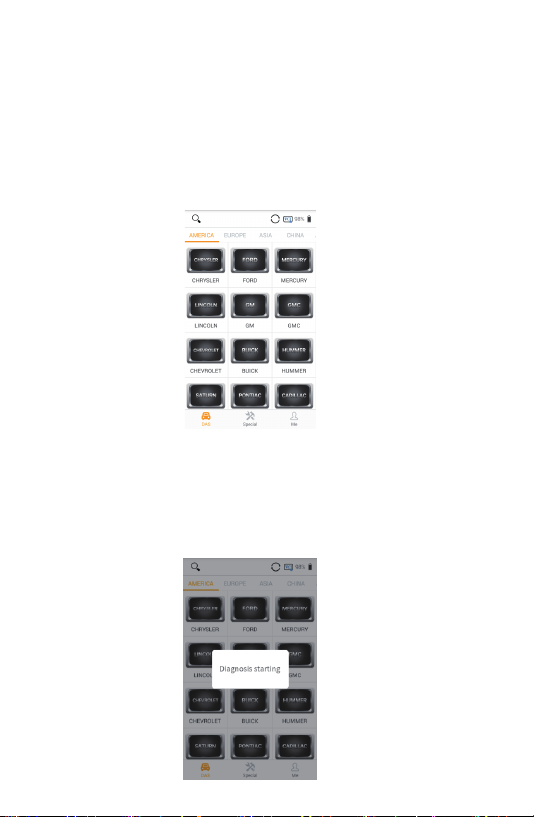

Manufacturer Buttons
Prior to first use of the diagnostics application, ensure the VCI device
is properly connected to and is communicating with the tablet.
The Manufacturer buttons display the various vehicle brand names.
Select the manufacturer button after the VCI device is properly
connected to the test vehicle to start diagnostic session.
Select EUROPE->BMW brand to check.
For example:
Click on DAS->EUROPE
7

4.4 Vehicle Identification
4.5 Vehicle Manual Select
5.Vehicle Select by VIN
The M400 diagnostic system supports two methods of Vehicle
Identification.
1.Vehicle Manual Select
2.Vehicle Select by VIN
For vehicles that do not support the Auto VIN diagnose function, the
M400 diagnostic system allows you to enter the vehicle brand
manually.
8

The M400 diagnostic system features the latest VIN-based Auto VIN
Scan function to identify CAN vehicles with just one tap, enabling the
technician to quickly identify the exact vehicle and scan its available
systems for fault codes.
Click on BMW and the system will acquire VIN information automati-
cally or allow users to input the VIN manually.
To Perform Manual Input
l.Tap the Diagnostics application button from the Menu. The Vehicle
Menu displays.
2. Select Manual input.
3. Tap the input box and enter the correct VIN code or license
numbers.
4. Tap ENTER. The vehicle will be identified and matched to the
vehicle database and the Vehicle Diagnostics screen will display.
5. Tap the cross icon on the top right cornerto exit Manual Input.
After the vehicle information is selected. Tap the NEXT button at the
bottom right corner of the screen to open the Main menu page. This
9

5.1 Quick Test
5.2 Control Unit
section consists of various functions commonly used, including quick
test, systen selection, and more. The available functions displayed
vary by vehicle.
The Quick Test function performs a comprehensive scanning of all the
systems in the vehicles ECVU to locate faults and retrieve DTCs. Tap
Fault to start. Sytems with no faults detected will display√; systems
containing faults will display the numbers of the faults, such as DTC(2).
This option allows you to manually locate a required control system for
testing through a series of choices. Simply follow the menu driven
proce¬dure, and make proper selection each time; the program will
guide you to the diagnostic function menu after a few choices you've
made.
10

5.3 ECU Information

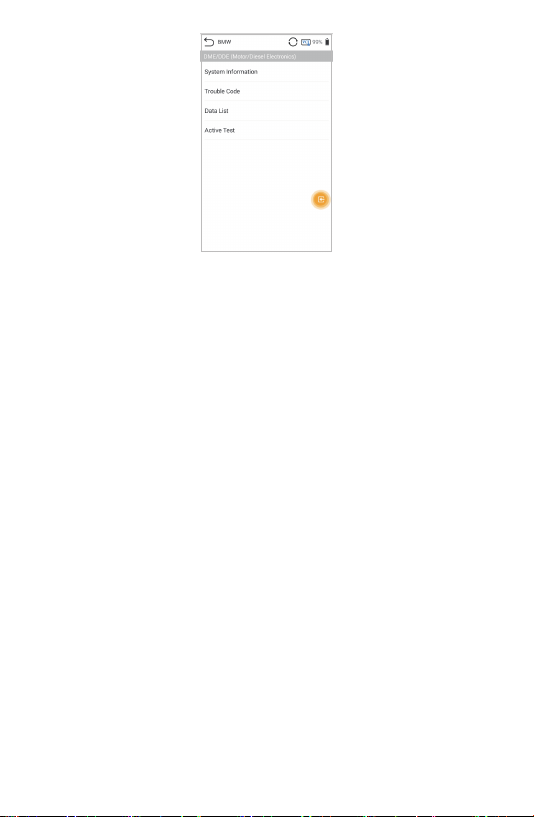

Available functions may vary by vehicle. The function menu may
include:
System information - displays detailed ECU information. Select to
display information screen.
Trouble codes - contains Read Codes and Erase Codes. The former
displays detailed DTC information retrieved from the vehicle control
module, the latter facilitates you to erase DTCs and other data from
the ECU.
•Live data - retrieves and displays live data and parameters from the
vehicle's ECU.
•Active test - provides specific subsystem and component tests. This
selec¬tion may display as Actuators, Actuator Test, or Function Tests.
Available tests vary by vehicle.
•Special functions - provides component adaptation or variant coding
functions for custom configurations, and allows entry of adaptive
values for certain component after repairs. Depending on the test
vehicle, this selection may sometimes appear.
11

5.4 Fault Code
5.4.1 Read Code
This function retrieves and displays the specific information for the
tested control unit, including unit type and version numbers.
This function retrieves and displays the DTCs from the vehicle control
system. The Read Codes screen varies for each vehicle being tested.
For some vehicles, freeze frame data can also be retrieved for viewing.
A sample Read Codes screen displays as below:
12

5.4.2 Erase Codes
Freeze Frame - icon displays when freeze frame data is available for
viewing; Tap icon to display data screen. The Freeze Frame interface
is similarto that of the Read DTCs interface and share similar
operations.
Search - tap to serach the selected DTC for additional information on
the internet.
Clear DTCs - tap to erase codes from the ECU. It is recommended that
DTCs are read and needed repairs are performed before erasing
codes.
Read DTCs - retrieves and displays the DTCs from the vehicle control
system. The Read Codes screen varies for each vehicle being tested.
After reading the retrieved codes from the vehicle and certain repairs
have been made, you can erase the codes from the vehicle using this
function. Before performing this function, make sure the vehicle's
ignition key is in the ON (RUN) position with the engine off.
13
