Hunt Electronic HHR315-16 User manual

Digital Video Recorder
Quick Start Guide

Digital Video Recorder Quick Start Guide
1
TABLE OF CONTENTS
Chapter1 Panels Description.......................................................................................6
1.1 Front Panel ..............................................................................................................6
1.2 Rear Panel .............................................................................................................19
Chapter 2 Installation and Connections..................................................................... 23
2.1 DVR Installation.....................................................................................................23
2.2 Hard Disk Installation ............................................................................................23
2.3 RS-485 and Controller Connection........................................................................28
2.4 HDD Storage Calculation Chart .............................................................................29
Chapter 3 Menu Operation....................................................................................... 30
3.1 Menu Structure.....................................................................................................30
3.2 Startup and Shutdown ..........................................................................................30
3.3 Activating Your Device...........................................................................................31
3.4 Using the Unlock Pattern for Login........................................................................33
3.5 Login and Logout...................................................................................................34
3.5.1 User Login ....................................................................................................34
3.5.2 User Logout..................................................................................................36
3.6 Configuring the Signal Input..................................................................................37
3.7 Using the Setup Wizard.........................................................................................38
3.8 Network Settings...................................................................................................38
3.9 Adding IP Cameras ................................................................................................39
3.10 Live View .............................................................................................................41
3.11 Recording Settings...............................................................................................41
3.12 Playback ..............................................................................................................42
Chapter 4 Accessing by Web Browser........................................................................ 43

Digital Video Recorder Quick Start Guide
2
Quick Start Guide
About this Manual
This Manual is applicable to TVI HD Digital Video Recorder (DVR).
The Manual includes instructions for using and managing the product. Pictures, charts, images and
all other information hereinafter are for description and explanation only. The information
contained in the Manual is subject to change, without notice, due to firmware updates or other
reasons. Please find the latest version in the company website.
Please use this user manual under the guidance of professionals.
Legal Disclaimer
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY
AT YOUR OWN RISKS. OUR COMPANY SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL
OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER
ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, OUR COMPANY
WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR
JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS
THE APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS
USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER
PREVAILS.

Digital Video Recorder Quick Start Guide
3
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at
his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and
comply therefore with the applicable harmonized European standards listed under the
EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of
as unsorted municipal waste in the European Union. For proper recycling, return this
product to your local supplier upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For more information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be disposed
of as unsorted municipal waste in the European Union. See the product documentation
for specific battery information. The battery is marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return
the battery to your supplier or to a designated collection point. For more information see:
www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Digital Video Recorder Quick Start Guide
4
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol
Description
Provides additional information to emphasize or supplement
important points of the main text.
Indicates a potentially hazardous situation, which if not avoided,
could result in equipment damage, data loss, performance
degradation, or unexpected results.
Indicates a hazard with a high level of risk, which if not avoided, will
result in death or serious injury.

Digital Video Recorder Quick Start Guide
5
Safety Instructions
Proper configuration of all passwords and other security settings is the responsibility of the
installer and/or end-user.
In the use of the product, you must be in strict compliance with the electrical safety
regulations of the nation and region. Please refer to technical specifications for detailed
information.
Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power
Source with 100~240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to
technical specifications for detailed information.
Do not connect several devices to one power adapter as adapter overload may cause
over-heating or a fire hazard.
Please make sure that the plug is firmly connected to the power socket.
If smoke, odor or noise rise from the device, turn off the power at once and unplug the power
cable, and then please contact the service center.
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
Ensure unit is installed in a well-ventilated, dust-free environment.
Unit is designed for indoor use only.
Keep all liquids away from the device.
Ensure environmental conditions meet factory specifications.
Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of
dropping it may cause damage to the sensitive electronics within the unit.
Use the device in conjunction with an UPS if possible.
Power down the unit before connecting and disconnecting accessories and peripherals.
A factory recommended HDD should be used for this device.
Improper use or replacement of the battery may result in hazard of explosion. Replace with
the same or equivalent type only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.

Digital Video Recorder Quick Start Guide
6
Chapter1 Panels Description
1.1 Front Panel
The front panel vaires according to different models. Please refer to the actual product. The
following figures only take examples of several models.
Front Panel 1
Figure 1-1 Front Panel 1
Table 1-1 Description of Front Panel 1
No.
Name
Function Description
1
POWER
Power indicator turns yellow when the power
switch on the real panel is turned on.
STATUS
Status indicator blinks red when data is being read
from or written to HDD.
Tx/Rx
Tx/Rx indictor blinks yellow when network
connection is functioning properly.
2
DIRECTIONS
The DIRECTION buttons are used to navigate
between different fields and items in menus.
In the Playback mode, the Up and Down button is
used to speed up and slow down recorded video.
The Left and Right button will select the next and
previous record files.
In Live View mode, these buttons can be used to
cycle through channels.
In PTZ control mode, it can control the movement
of the PTZ camera.
ENTER
The ENTER button is used to confirm selection in
any of the menu modes.
It can also be used to tick checkbox fields.
In Playback mode, it can be used to play or pause
the video.
In single-frame Playback mode, pressing the
button will advance the video by a single frame.

Digital Video Recorder Quick Start Guide
7
No.
Name
Function Description
3
Menu
Access the main menu interface
4
ESC
Exit and back to the previous menu.
5
IR Receiver
Receiver for IR remote controller.
6
USB Interfaces
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk
Drive (HDD).

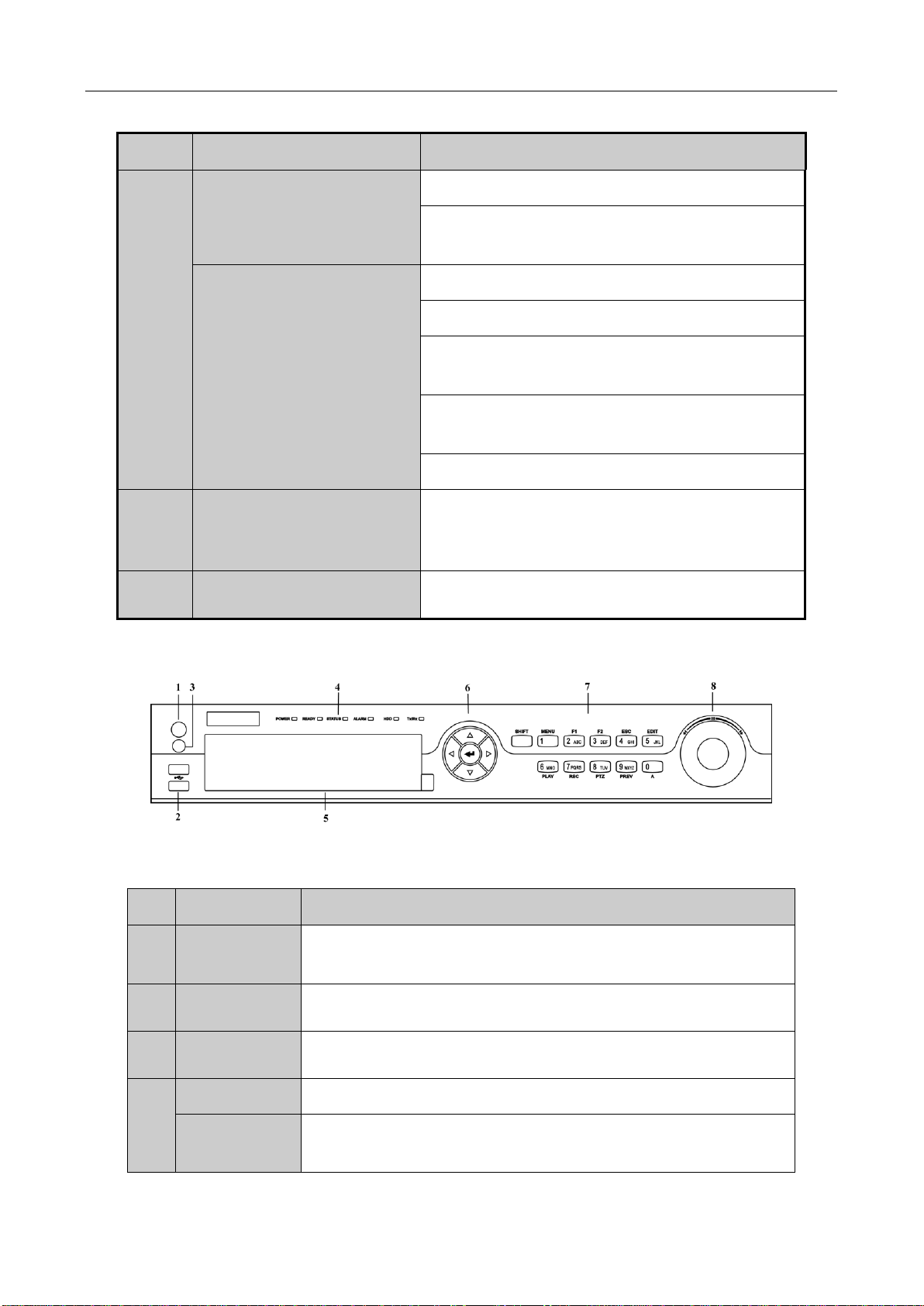

Front Panel 2
Figure 1-2 Front Panel 2
Table 1-2 Description of Front Panel 2
No.
Name
Function Description
1
POWER
Turns yellow when the device s running.
STATUS
Flickers red when data is being read from or
written to HDD, and turns yellow when the
SHIFT function is realized.
Tx/Rx
Flickers yellow when network connection is
functioning properly.
2
Composite
Keys
SHIFT
Switches between the numeric or letter input
and functions of the composite keys.
1/MENU
Enters numeral “1”;
Accesses the main menu interface.
2/ABC/F1
Enters numeral “2”;
Enters letters “ABC”;
Uses the F1 button to select all items in a list
field;
Turns on/off PTZ light in PTZ Control mode, and
use it to zoom out the image;
Switches between main and spot video output
in live view or playback mode.
3/DEF/F2
Enters numeral “3”;
Enters letters “DEF”;
Uses the F2 button to change the tab pages;
Zooms in the image in PTZ control mode.

Digital Video Recorder Quick Start Guide
8
No.
Name
Function Description
4/GHI/ESC
Enters numeral “4”;
Enters letters “GHI”;
Exits and back to the previous menu.
5/JKL/EDIT
Enters numeral “5”;
Enters letters “JKL”;
Deletes characters before cursor;
Checks the checkbox and select the ON/OFF
switch;
Starts/stops record clipping in playback.
6/MNO/PLAY
Enters numeral “6”;
Enters letters “MNO”;
Accesses to playback interface in Playback
mode.
7/PQRS/REC
Enters numeral “7”;
Enters letters “PQRS”;
Accesses to manual record interface;
Manually enables/disables record.
8/TUV/PTZ
Enters numeral “8”;
Enters letters “TUV”;
Accesses PTZ control interface.
9/WXYZ/PREV
Enters numeral “9”;
Enters letters “WXYZ”;
Multi-channel display in live view.
0/A
Enters numeral “0”;
Shifts the input methods in the editing text field.
(Upper and lowercase, alphabet, symbols or
numeric input).
3
DIRECTION
Navigates between different fields and items in
menus.
Uses the Up and Down buttons to speed up and
slow down the playing of video files in Playback
mode.
The Left and Right button will select the next
and previous record files.

Digital Video Recorder Quick Start Guide
9
No.
Name
Function Description
Cycles through channels in Live View mode.
Controls the movement of the PTZ camera in
PTZ control mode.
ENTER
Confirms selection in any of the menu modes.
Checks the checkbox.
Plays or pauses the playing of video files in
Playback mode.
Advances the video by a single frame in
single-frame Playback mode.
Stops/starts auto switch in Auto-switch mode.
4
USB Interface
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk
Drive (HDD).
5
IR Receiver
Receiver for IR remote control.
Front Panel 3
Figure 1-3 Front Panel 3
Table 1-3 Description of Front Panel 3
No.
Name
Function Description
1
POWER
ON/OFF
Power on/off switch.
2
USB Interface
Connect to USB mouse or USB flash memory.
3
IR Receiver
Receiver for IR remote control. devices.
4
POWER
Power indicator lights in green when DVR is powered up.
READY
Ready indicator is normally green, indicating that the DVR is
functioning properly.

Digital Video Recorder Quick Start Guide
10
STATUS
Indicator turns green when DVR is controlled by an IR remote
control with the address from 1~254;
Indicator turns red when the SHIFT button is used;
Indicator does not light when the DVR is controlled by a
keyboard or by the IR remote control with the address of 255;
Indicator turns green when the DVR is controlled by IR remote
control (with the address from 1~254) and keyboard at the
same time , and the SHIFT button is not used;
Indicator turns orange : (a) when the DVR is controlled by IR
remote control (with the address from 1~254) and keyboard at
the same time and the SHIFT button is used as well; (b) when
the DVR is controlled by IR remote control (with the address
from 1~254) and the SHIFT button is used.
ALARM
Alarm indicator turns red when a sensor alarm is detected.
HDD
HDD indicator blinks in red when data is being read from or
written to HDD.
Tx/Rx
TX/RX indictor blinks in green when network connection is
functioning properly.
5
DVD-ROM
Slot for DVD-ROM.
6
DIRECTION
The DIRECTION buttons are used to navigate between
different fields and items in menus.
In Playback mode, the Up and Down button is used to speed
up and slow down recorded video.
In All-day Playback mode, the Left/Right button can be used to
select the recorded video of next/previous day; in Playback by
Normal Video Search, the Left/Right button can be used to
select the next/previous recorded file.
In Live View mode, the directional buttons can be used to cycle
through channels.
In PTZ control mode, it can control the movement of the PTZ
camera.
ENTER
Confirm selection in any of the menu modes. It can also be
used to tick checkbox fields.
In Playback mode, it can be used to play or pause the video.
In Single-frame Playback mode, pressing the ENTER button will
advance the video by a single frame.
In Auto-switch mode, it can be used to stop /start auto switch.

Digital Video Recorder Quick Start Guide
11
7
SHIFT
Switch of compound keys between the numeric/letter input
and functional control.
1/MENU
Enter numeral “1”;
Access the main menu interface.
2ABC/F1
Enter numeral “2”;
Enter letters “ABC”;
The F1 button can be used to select all items on the list;
In PTZ Control mode, the F1 button can be used to zoom out
(zoom-) the PTZ camera;
In live view or playback mode, the F1 button can be used to
switch between main and spot video output.
3DEF/F2
Enter numeral “3”;
Enter letters “DEF”;
In PTZ Control mode, the F1 button can be used to zoom in
(zoom+) the PTZ camera;
The F2 button can be used to cycle through tab pages.
4GHI/ESC
Enter numeral “4”;
Enter letters “GHI”;
Exit and back to the previous menu.
5JKL/EDIT
Enter numeral “5”;
Enter letters “JKL”;
Delete characters before cursor;
Select the checkbox and ON/OFF switch;
Start/stop record clipping in playback.
6MNO/PLAY
Enter numeral “6”;
Enter letters “MNO”;
In Playback mode, it is used for direct access to playback
interface.
7PQRS/REC
Enter numeral “7”;
Enter letters “PQRS”;
Manual record, for direct access to manual record interface;
manually enable/disable record.
8TUV/PTZ
Enter numeral “8”;
Enter letters “TUV”;
Access PTZ control interface.

Digital Video Recorder Quick Start Guide
12
9WXYZ/PREV
Enter numeral “9”;
Enter letters “WXYZ”;
Multi-camera display in live view;
In Playback mode or MenuPlaybackTag playback
interface, this button can be used to delete the selected tag.
0/A
Enter numeral “0”;
Switch between input methods (upper and lowercase
alphabet, symbols and numeric input).
In Playback mode, this button can be used to add the default
tag.
8
JOG SHUTTLE
Control
Move the active selection in a menu. The inner ring will move
the selection up and down; the outer ring will move it left and
right.
In Playback mode, the inner ring is used to jump 30s
forward/backward in video files. The outer ring can be used to
speed up/slow down the video.
In Live View mode, it can be used to cycle through different
channels.
In PTZ control mode, in can control the movement of the PTZ
camera.
Front Panel 4
Figure 1-4 Front Panel 4
Table 1-4 Description of Front Panel 3
No.
Name
Function Description
1
Status
Indicators
ALARM
Alarm indicator turns red when a sensor alarm
is detected.
READY
Turs blue when the device is functioning
properly.

Digital Video Recorder Quick Start Guide
13
No.
Name
Function Description
STATUS
Indicator turns blue when the device is
controlled by an IR remote.
Indicator turns red when controlled by a
keyboard and orange when IR remote and
keyboard is used at the same time.
Indicator does not light when the device is
controlled by the IR remote control with the
address of 255.
HDD
HDD indicator blinks in red when data is being
read from or written to HDD.
TX/RX
TX/RX indictor blinks in blue when network
connection is functioning properly.
GUARD
Indicator turns blue when the device is armed;
Indicator does not light when the device is
disarmed;
The arm/disarm state can be initiated by
pressing and holding on the ESC button for
more than 3 seconds in live view mode.
2
Alphanumeric Buttons
Switch to the corresponding channel in Live
view or PTZ Control mode.
Input numbers and characters in Edit mode.
Switch between different channels in Playback
mode.
The light of the button is blue when the
corresponding channel is recording; it is red
when the channel is in network transmission
status; it is pink when the channel is recording
and transmitting.
3
Control
Buttons
DIRECTION
The DIRECTION buttons are used to navigate
between different fields and items in menus.
In the Playback mode, the Up and Down button
is used to speed up and slow down recorded
video. The Left and Right button will select the
next and previous record files.
In Live View mode, these buttons can be used to
cycle through channels.
In PTZ control mode, it can control the
movement of the PTZ camera.
ENTER
The ENTER button is used to confirm selection
in any of the menu modes.
It can also be used to tick checkbox fields.
In Playback mode, it can be used to play or
pause the video.
In single-frame Playback mode, pressing the
button will advance the video by a single frame.

Digital Video Recorder Quick Start Guide
14
No.
Name
Function Description
In Auto-switch mode, it can be used to stop
/start auto switch.
4
JOG SHUTTLE Control
Move the active selection in a menu. It will
move the selection up and down.
In Live View mode, it can be used to cycle
through different channels.
In the Playback mode: the outer ring is used to
speed up or slow down the record files and the
inner ring is used to jump 30s
forward/backward in records files.
In PTZ control mode, it can control the
movement of the PTZ camera.
5
POWER
Power on/off switch.
6
USB Interfaces
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk
Drive (HDD).
7
Composi
te Keys
ESC
Exit and back to the previous menu.
Arm/disarm the device in live view mode.
REC/SHOT
Enter the Manual Record setting menu.
In PTZ control settings, press the button and
then you can call a PTZ preset by pressing
Numeric button.
It is also used to turn audio on/off in the
Playback mode.
PLAY/AUTO
Enter the Playback menu;
Auto scan in the PTZ Control mode.
ZOOM+
Zoom in the PTZ camera in the PTZ Control
setting.
A/FOCUS+
Adjust focus in the PTZ Control menu.
It is also used to switch between input methods
(upper and lowercase alphabet, symbols and
numeric input).
EDIT/IRIS+
Edit text fields. When editing text fields, it will
also function as a Backspace button to delete
the character in front of the cursor.
On checkbox fields, pressing the button will tick
the checkbox.
In PTZ Control mode, the button adjusts the iris
of the camera.
In Playback mode, it can be used to generate
video clips for backup.
Enter/exit the folder of USB device and eSATA
HDD.

Digital Video Recorder Quick Start Guide
15
No.
Name
Function Description
MAIN/SPOT/
ZOOM-
Switch between main and spot output.
In PTZ Control mode, it can be used to zoom out
the image.
F1/ LIGHT
Select all items on the list when used in a list
field.
In PTZ Control mode, it will turn on/off PTZ light
(if applicable).
In Playback mode, it is used to switch between
play and reverse play.
F2/ AUX
Cycle through tab pages.
In synchronous playback mode, it is used to
switch between channels.
MENU/WIPE
R
Press the button will help you return to the
Main menu (after successful login).
Press and hold the button for 5 seconds will
turn off audible key beep.
In PTZ Control mode, the MENU/WIPER button
will start wiper (if applicable).
In Playback mode, it is used to show/hide the
control interface.
PREV/FOCUS
-
Switch between single screen and multi-screen
mode.
In PTZ Control mode, it is used to adjust the
focus in conjunction with the A/FOCUS+ button.
PTZ/IRIS-
Enter the PTZ Control mode.
In the PTZ Control mode, it is used to adjust the
iris of the PTZ camera.
8
IR Receiver
Receiver for IR remote control.
9
DVD-R/W
Slot for DVD-R/W.
Front Panel 5

Digital Video Recorder Quick Start Guide
16
Figure 1-5 Front Panel 5
Table 1-5 Description of Front Panel 4 and 5
No.
Name
Function Description
1
POWER ON/OFF
Power on/off switch.
2
IR Receiver
Receiver for IR remote
3
Status
Indicators
ALARM
Turns red when a sensor alarm is detected.
READY
Ready LED is normally blue, indicating that the
device is functioning properly.
STATUS
Turns blue when device is controlled by an IR
remote.
Turns red when controlled by a keyboard and
purple when IR remote and keyboard is used at
the same time.
HDD
Flashes red when data is being read from or
written to HDD.
MODEM
Reserved for future usage.
TX/RX
Flashes blue when network connection is
functioning properly.
GUARD
Guard LED turns blue when the device is in
armed status; at this time, an alarm is enabled
when an event is detected.
The LED turns off when the device is unarmed.
The arm/disarm status can be changed by
pressing and holding on the ESC button for
more than 3 seconds in live view mode.
4
DVD-R/W
Slot for DVD-R/W.
5
Control
Buttons
DIRECTION
The DIRECTION buttons are used to navigate
between different fields and items in menus.
In the Playback mode, the Up and Down button
is used to speed up and slow down recorded
video. The Left and Right button will select the
next and previous record files.

Digital Video Recorder Quick Start Guide
17
No.
Name
Function Description
In Live View mode, these buttons can be used
to cycle through channels.
In PTZ control mode, it can control the
movement of the PTZ camera.
ENTER
The ENTER button is used to confirm selection
in any of the menu modes.
It can also be used to tick checkbox fields.
In Playback mode, it can be used to play or
pause the video.
In single-frame Playback mode, pressing the
button will advance the video by a single frame.
In Auto-switch mode, it can be used to stop
/start auto switch.
6
USB Interfaces
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk
Drive (HDD).
7
Front Panel Lock
You can lock or unlock the panel by the key.
8
Composite
Keys
ESC
Back to the previous menu.
Press for Arming/disarming the device in Live
View mode.
REC/SHOT
Enter the Manual Record setting menu.
In PTZ control settings, press the button and
then you can call a PTZ preset by pressing
Numeric button.
It is also used to turn audio on/off in the
Playback mode.
PLAY/AUTO
The button is used to enter the Playback mode.
It is also used to auto scan in the PTZ Control
menu.
ZOOM+
Zoom in the PTZ camera in the PTZ Control
setting.
A/FOCUS+
Adjust focus in the PTZ Control menu.
It is also used to switch between input methods
(upper and lowercase alphabet, symbols and
numeric input).
EDIT/IRIS+
Edit text fields. When editing text fields, it will
also function as a Backspace button to delete
the character in front of the cursor.
On checkbox fields, pressing the button will tick
the checkbox.
In PTZ Control mode, the button adjusts the iris
of the camera.
In Playback mode, it can be used to generate
video clips for backup.

Digital Video Recorder Quick Start Guide
18
No.
Name
Function Description
Enter/exit the folder of USB device and eSATA
HDD.
MAIN/SPOT/Z
OOM-
Switch between main and spot output.
In PTZ Control mode, it can be used to zoom
out the image.
F1/ LIGHT
Select all items on the list when used in a list
field.
In PTZ Control mode, it will turn on/off PTZ light
(if applicable).
In Playback mode, it is used to switch between
play and reverse play.
F2/ AUX
Cycle through tab pages.
In synchronous playback mode, it is used to
switch between channels.
MENU/WIPER
Press the button will help you return to the
Main menu (after successful login).
Press and hold the button for 5 seconds will
turn off audible key beep.
In PTZ Control mode, the MENU/WIPER button
will start wiper (if applicable).
In Playback mode, it is used to show/hide the
control interface.
PREV/FOCUS-
Switch between single screen and multi-screen
mode.
In PTZ Control mode, it is used to adjust the
focus in conjunction with the A/FOCUS+ button.
PTZ/IRIS-
Enter the PTZ Control mode.
In the PTZ Control mode, it is used to adjust the
iris of the PTZ camera.
9
Alphanumeric Buttons
Switch to the corresponding channel in Live
view or PTZ Control mode.
Input numbers and characters in Edit mode.
Switch between different channels in Playback
mode.
The light of the button is blue when the
corresponding channel is recording; it is red
when the channel is in network transmission
status; it is pink when the channel is recording
and transmitting.
10
JOG SHUTTLE Control
Move the active selection in a menu. It will
move the selection up and down.
In Live View mode, it can be used to cycle
through different channels.

Digital Video Recorder Quick Start Guide
19
No.
Name
Function Description
In the Playback mode: the ring is used to jump
30s forward/backward in video files.
In PTZ control mode, it can control the
movement of the PTZ camera.
11
SLOW DOWN/SPEED UP
Slow down/speed up in playback mode.
1.2 Rear Panel
The rear panel vaires according to different models. Please refer to the actual product. The
following figures only take examples of several models.
Rear Panel 1
Figure 1-6 Rear Panel 1
Table 1-6 Description of Rear Panel 1
No.
Item
Function Description
1
VIDEO IN
BNC interface for TVI and analog video input.
2
VIDEO OUT
BNC connector for video output.
CVBS output is not provided by certain series DVR.
3
AUDIO IN
RCA connector
4
USB Port
Universal Serial Bus (USB) port for additional
devices.
5
HDMI
HDMI video output connector.
This manual suits for next models
1
Table of contents
Other Hunt Electronic DVR manuals

Hunt Electronic
Hunt Electronic HNR-04AF User manual

Hunt Electronic
Hunt Electronic HVR-04 User manual

Hunt Electronic
Hunt Electronic HVR-04E User manual

Hunt Electronic
Hunt Electronic HVRM-S400E User manual

Hunt Electronic
Hunt Electronic HVRM T1600E User manual

Hunt Electronic
Hunt Electronic HVRM-T1600L User manual

Hunt Electronic
Hunt Electronic HVR-16Q User manual

Hunt Electronic
Hunt Electronic HVRM-T1600Q User manual

Hunt Electronic
Hunt Electronic HVRM-T1600L Operation manual

Hunt Electronic
Hunt Electronic HVRM-T1600M User manual
