Hunt Electronic HVR-16Q User manual

HVR-16Q
Installation Guide
(v 3.1)

FCC Compliance Statement
Caution : Any changes or modifications in construction of this device which are not expressly
approved the party responsible for compliance could void the user's authority to operate the equipment.
NOTE : This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications,
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Warning
This is a class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures
CAUTION
1. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
Disposal of used batteries according to the general recommendations against the environmental
pollution.
2. Do not throw the batteries into a fire, and do not heat, short-circuit or attempt to disassemble the
batteries.
3. Do not attempt to recharge the batteries.

Important Notice
1. Do not place heavy objects on the top of the HVR.
2. HVR is for indoor use. It is not weatherproof. Use HVR with referring to its environmental
specifications (Temperature & Humidity). To clean the HVR, gently wipe the outside with a clean dry
cloth.
3. HVR uses AC power of 110V ~ 240V. Be cautious not to cause electric damages to HVR.
4. Be careful not to drop the HVR. Physical shocks may harm the product including internal HDD. In
addition, be sure the HVR is secured after installation.
5. HVR is made of metal. Therefore you can hurt human beings if yu throw it to them or hit on them.
When installing HVR, be cautious to locate on safe places where children are unreachable.
6. If HVR does not operate properly, please contact the closest HUNT ELECTRONIC distributor for
after sales service. Tampering or disassembling the product will void the warranty.
7. Security surveillance laws may differ for each country. Therefore, please contact the local region first
to avoid any surveillance law violations.

Contents
OVERVIEW...................................................................................................................................7
1. What is HVR-16Q?.............................................................................................................7
2. Supplied accessories..........................................................................................................8
3. Description & Function .......................................................................................................9
INSTALLATION AND CONNECTION......................................................................................... 11
4. Connecting & Running...................................................................................................... 11
4.1. Connecting camera................................................................................................... 11
4.2. Connecting monitor...................................................................................................12
4.3. Connecting audio ......................................................................................................12
4.4. Supplying power........................................................................................................13
5. Running OSD menu .........................................................................................................14
5.1. Using menu...............................................................................................................14
5.2. Dialogue box to edit a word.......................................................................................15
6. Setting remote controller ..................................................................................................16
6.1. Setting ID of HVR-16Q..............................................................................................16
6.2. Selecting HVR-16Q...................................................................................................17
6.3. Operable range of remote controller.........................................................................17
6.4. Loading the batteries into remote controller..............................................................17
7. HVR-16Q configuration ....................................................................................................18
7.1. Basic configuration....................................................................................................18
7.2. Advanced configuration.............................................................................................18
7.3. External storage & Backup configuration..................................................................19
7.4. Internet/Intranet configuration...................................................................................19
8. HVR-16Q basic setting.....................................................................................................20
8.1. Viewing image...........................................................................................................20
8.2. Setting Date & Time ..................................................................................................21
8.2.1. Time zone...........................................................................................................21
8.2.2. Daylight saving...................................................................................................21
8.2.3. Sync with NTP....................................................................................................21
8.2.4. Time format........................................................................................................22
8.2.5. Date....................................................................................................................22
8.2.6. Time ...................................................................................................................22
4

8.2.7. Apply Date/Time.................................................................................................22
8.3. Setting recording condition........................................................................................23
8.3.1. Configuration status...........................................................................................23
8.3.2. Channel status...................................................................................................24
8.3.3. Recording speed/quality ....................................................................................24
8.3.4. Speed(ips)..........................................................................................................24
8.3.5. Quality................................................................................................................24
8.3.6. Audio recording..................................................................................................24
8.3.7. Alarm recording..................................................................................................24
8.3.8. Apply..................................................................................................................24
9. Connecting and configuring DIO ports.............................................................................25
9.1. Connecting and configuring sensor...........................................................................26
9.1.1. Specification.......................................................................................................26
9.1.2. Connecting sensor input....................................................................................26
9.1.3. Configuring sensor at OSD menu......................................................................27
9.2. Connecting & configuring relay out...........................................................................28
9.2.1. Specifications.....................................................................................................28
9.2.2. Connecting relay out..........................................................................................28
9.2.3. Configuring relay out at OSD menu...................................................................29
9.3. Connecting serial port...............................................................................................30
9.3.1. Configuring serial ports for Pan/Tilt/Zoom .........................................................30
9.3.2. Diagrams of serial ports.....................................................................................30
9.3.3. View of COM3/COM4 serial ports......................................................................32
9.3.4. Configuring COM port at OSD menu.................................................................32
9.4. Connecting external device with serial port...............................................................34
9.4.1. Connecting text input device (ATM / POS /Access control)..............................34
9.4.2. Configuring serial setup (COM1) at OSD menu ................................................34
9.4.3. Configuring text..................................................................................................35
9.5. Connecting USB device............................................................................................36
9.6. Connecting video in/output........................................................................................37
10. Connecting external storage.........................................................................................38
10.1. IEEE1394 port .......................................................................................................38
10.2. Connecting IEEE1394 device................................................................................38
10.3. Available HDD .......................................................................................................39
10.4. Registering & Formatting HDD..............................................................................40
11. Network monitoring & managing...................................................................................41
5

11.1. Connecting Ethernet..............................................................................................41
11.2. Configuring HVR-16Q’s Network information........................................................42
12. Using DVR Manager.....................................................................................................43
12.1. PC system requirements for running DVR Manager.............................................43
12.2. Installing DVR Manager.........................................................................................43
12.3. Uninstalling DVR Manager ....................................................................................45
12.4. Configstation..........................................................................................................46
12.5. Monitor...................................................................................................................46
12.6. Playback................................................................................................................47
APPENDIX .................................................................................................................................48
#1. HDD ..............................................................................................................................49
#1.1. Fundamental notions & terms................................................................................49
#1.2. Installing HDD........................................................................................................52
#1.3. Replacing HDD......................................................................................................63
#1.4. Keeping Data.........................................................................................................64
#1.5. Caution in using HDD............................................................................................65
#2. How to change video type ............................................................................................66
#3. Using CD-ROM.............................................................................................................67
#4. Specification..................................................................................................................68
6

OVERVIEW
1. What is HVR-16Q?
The HVR-16Q is a 16-analog channels network digital video recorder. Video, Audio, and Text Event-
Logs are digitized and stored on two internal hard-drives.
16 analog video channels
1 channel two-way audio recording & playback
Max. 240 ips1recording speed
Realtime (60 fps2for each channel) monitoring
Built-in software multiplexer for all 16 live monitoring channels (1 / 4 / 9 / 13 / 16 Ch Mode on
CCTV Monitor as well as PC)
Maximum 4TB storage capacity (IEEE 1394 for external HDD)
ATM/POS transaction information text recording and search with corresponding video
16 sensor inputs and 4 relay outputs
Built-in hardware motion detection with search function (64-division comparison)
Various efficient back-up methods (IEEE 1394, Ethernet)
PTZ Control (Preset support) via RS 232 and RS 485/RS422
User-friendly 32bit True-colored Graphic OSD Menu
Static IP (DHCP, Dynamic IP) support for xDSL, Cable-Modem user
IR remote controller (User controls PTZ with remote controller)
Management Software over Network (DVR Manager)
Dual CCTV Monitoring (1 Normal , 1 Spot)
Improvement in Video quality (Cleaner Image, Night Noise Filtering)
Digital Water Mark
1ips = image per second
2fps = field per second
7

2. Supplied accessories
Unpack and check all the items as below.
1. HVR-16Q (1EA) 2. AC Power Cord (1EA)
3. CD-ROM (Including DVR Manager) (1EA)
4. Remote Controller (1EA)
5. Guide (2EA)
6. HDD Fixing KIT (1SET)
7. 19” RACK FIXING KIT (1SET)
8. HDD EARTH CABLE (1EA)
8

9. HDD DATACABLE (1EA)
3. Description & Function
HVR-16Q front
(1) Power switch
(2) Function buttons
(3) LED
(4) I/O Port cover
(5) USB connector
(6) IEEE1394 connector
(7) Remote controller receiver
9

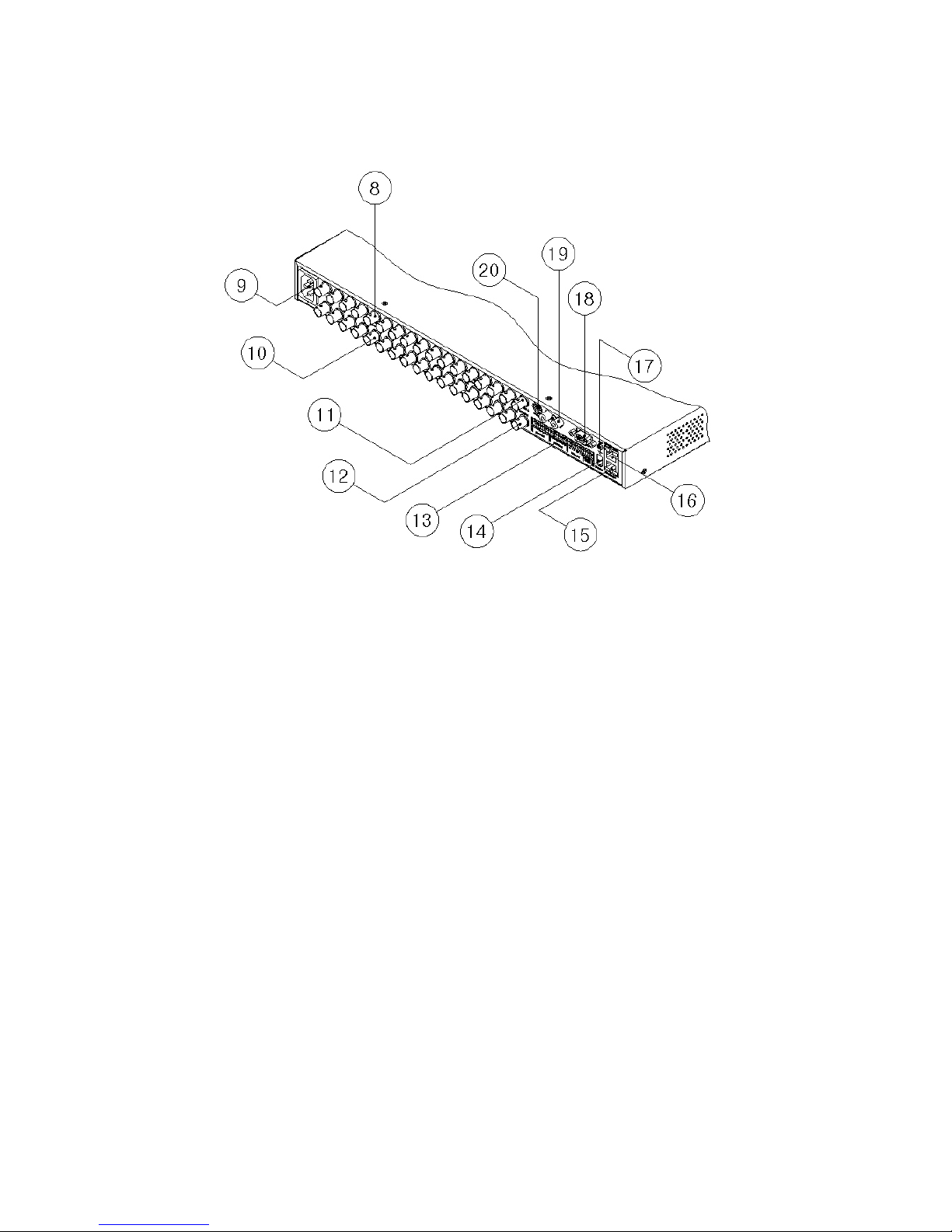

HVR-16Q rear
(8) BNC connector for video input
(9) AC power connector
(10) BNC connector for video output
(11) BNC connector for monitor A output
(12) BNC connector for monitor B output
(13) Terminal block for sensor, relay, and serial input/output
(14) IEEE1394 connecter
(15) Terminal block for RS232 & 422/485
(16) Ethernet connector
(17) GND
(18) RS232 connecter (9Pin D-Sub)
(19) RCA connector for audio input / output
(20) S-VHS connector
10

INSTALLATION AND CONNECTION
4. Connecting & Running
4.1. Connecting camera
(1) Connect CCTV camera to HVR-16Q with BNC cable as shown below.
<Note>
1. The video type for all channels should be either NTSC or PAL, not be combined both.
2. HVR-16Q sets video signal’s impedance ( 75Ω) automatically.
Impedance is set as 75Ωbasically. If connecting a device to video output, impedance will be “Hi-
z” status. Please refer to “9.6. Connecting Video In/Output” on page 37.
3. Video type (NTSC/PAL) should be changed after operating HVR-16Q. The order of camera
recognition follows Ch1 camera through Ch16 camera and 1st recognized camera type leads other
camera types.
11

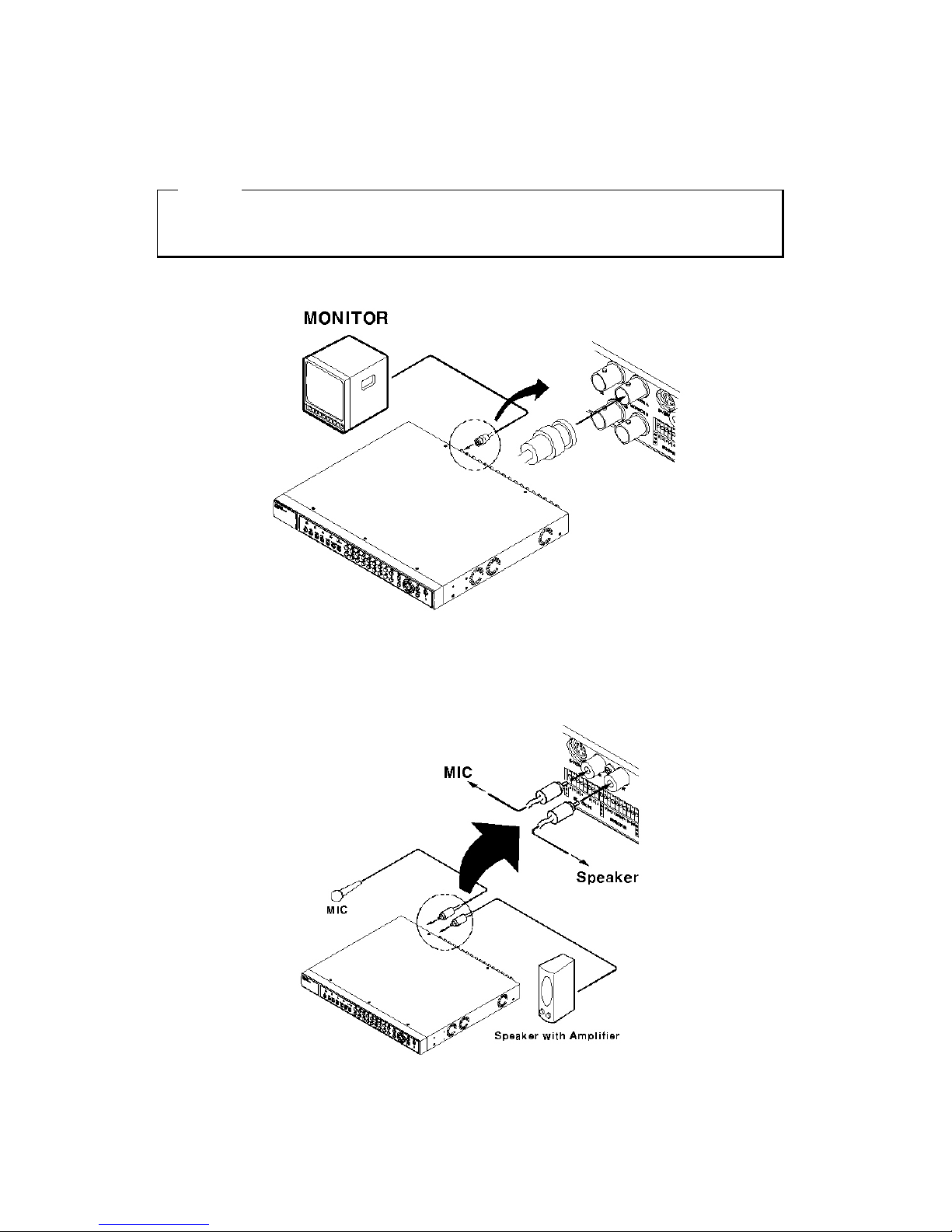

4.2. Connecting monitor
(1) Connect CCTV monitor to HVR-16Q with BNC cable as shown below.
<Note>
The Monitor output of HVR-16Q provides A(Normal) & B(Spot), which is used for Monitor A in case
of connecting only one monitor.
4.3. Connecting audio
(1) Connect audio signal to HVR-16Q with using RCA cable.
12

4.4. Supplying power
(1) Connect Power Cable
<Note>
1. When supplying power, HVR-16Q starts booting
automatically.
2. In order to cut off power, press the (1) power switch
on HVR-16Q front during 4 seconds and type admin
password.
3. For supplying power again, push the (1) power
switch.
13

5. Running OSD menu
5.1. Using menu
Press the [MENU] button to open the OSD Configuration Menu.
(
1
)
Main Menu
(
2
)
Sub-menu
(
3
)
Settin
g
Pa
g
e
(1) Main Menu: The selected tab is shown in blue and the related sub-menus will be shown below the tab.
To move to the previous/next Main Menu Tab, use the [◄/ ►] arrow buttons. To move to a sub-menu,
press the [ENTER] or [▼] buttons.
(2) Sub-menu: The selected sub-menu is shown in blue and the related setting page will be shown to the
right of the sub-menu. Use the [▲/▼] arrow buttons to move within the sub-menu list. To move to the
setting page press the [ENTER] button. To exit the setting page, press the [EXIT] button.
(3) Setting Page: The selected item is shown in gray. To move within each page, use the [◄/ ►] or [▲/
▼] arrow buttons. Press the [ENTER] button to change the value of a setting. When the setting value is a
word, a dialogue box to edit the word will open. When setting value is a number, it should be set with
using the [◄/ ►] or [▲/▼] arrow buttons. After the value is set, press the [EXIT] button. To exit the
Setting Page, press the [EXIT] button.
14

5.2. Dialogue box to edit a word
There are two methods to input a word.
(1) Using number button
Enter the related numbers in order of horizontal/vertical. (For example, in order to select “C”, press [3]
and [2] buttons.)
(2) Using arrow button
Select a value using the [◄/ ►] or [▲/▼] buttons. The intersection of the horizontal and vertical bar is
selected value. (For example, select “C” and press the [▷] button to confirm the selected value.)
(3) Function word
The following symbols are for executing specific functions:
9: Enter
: Back Space & delete
: Space
◄: Move to left
►: Move to right
: Previous Code Page
: Next Code Page
15

6. Setting remote controller
6.1. Setting ID of HVR-16Q
When controlling several HVRs (HVR, HVR-08, DS1600 Series) with one remote controller, set Remote
Control ID as follows.
(1) Press the [MENU] button.
(2) Select “System” with using [►] button and press the [ENETR] or [▼] button.
(3) Select “Miscellaneous” from the sub-menu list using the [▼] button and press the [ENETR] button.
(4) Select “Remote Control ID,” and press the [ENETR] button.
(5) Select a value using the [◄/ ►] buttons and press the [EXIT] button.
(6) Press the [EXIT] button to exit the Settings Page and return to Monitor mode.
<Note> Remote Control ID
Up to 16 HVRs can be controlled with a single remote controller.
When not using remote controller, set the Remote Control ID as “Off”.
16

6.2. Selecting HVR-16Q
If several HVRs are set with unique ID numbers, they can be controlled with one remote controller. To
select a specific HVR(HVR-16Q), keep pressing the ID button of remote controller until a buzzer sounds
during 2 seconds.
<Note>
Because remote controller ID is sixteen, HVR will correspond until pressing ID button sixteen times.
6.3. Operable range of remote controller
6.4. Loading the batteries into remote controller
Remote controller requires two AAA-type batteries.
1. Remove the battery cover. 2. Taking care that the poles(+/-)
are correctly positioned. 3. Replace the battery cover.
<Note>
Batteries are not included as a packing accessory.
17

7. HVR-16Q configuration
7.1. Basic configuration
7.2. Advanced configuration
18

7.3. External storage & Backup configuration
7.4. Internet/Intranet configuration
19

8. HVR-16Q basic setting
8.1. Viewing image
After initial start-up, images are displayed in multi-split screen according to the connected channels. The
following example is when 4 channels are connected.
<Note>
If user password is set, a prompt for entering the password will appear. Factory default is reserved as
not responding key pad on HVR front.
20
