Hunter Products TR1529 User manual

CHILDREN'S
ELECTRONIC
TOY
MOTORCYCLE
MODEL NO.: TR1529
ITEM NO.: 9680
•Suitable for 3+
years
•Maximum user
weight:
30kg
•Adult
assembly
required
OWNER'S MANUAL
Read and understand this entire manual before using!
Please
keep
this manual for future reference as it contains
important
information.
efore first time use,
charge
the
battery
for at least 8-12 hours,no more than
20 hours.

Table of Contents
1.
About
Your
New
Motorcycle
2.
Parts
List
3.
Parts
Diagram
4.
Assembly
Steps
5.
How
o
Operation
Your
Motorcycle
6.
Charging
he
Motorcycle
7.
roubleshooting
Guide
8.
Maintaining
Your
Motorcycle
9.
Disposal
Of
Battery
About You New Moto cycle
Thank you for your purchasing our products, we wants your child to enjoy this product for years to
come. Keep these points in mind as you read this guide:
Suitable age: 3
+
years Battery: DC 6V 7AH *1
Load Capacity: Under 30Kg Size of car: 920*560*670mm
Speed: 2.5-3Km/h Carton size: 930*540*450mm
Material: PP Optimum
Temperature:
Below 40°C
Avoid to use under burning sun
Charger:
Input: Shown on the charger
O tp t: DC 6V1000mA
Charging time:8-12 hours,at most 20 hours
Fuse: F 10A, Self-resetting
Operating life: 12 months to 18 months
WARNING!
FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL WARNINGS AND
ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE.
•ADULT ASSEMBLY REQUIRED. The product contains small parts, which are for
adult assem ly only. Keep small children away when assem ling.
•Always remove protective material and poly ags and dispose efore assem ly.
-1-

Pa ts List
PART
NO
PART
NAME PICTURE Q,ty (pcs)
REMARKS
PART
NO
PART
NAME PICTURE Q,ty (pcs)
REMARKS
1Vehicle
body 12Handle 1
3Wheel 34Driving
wheel 1
5Rear
axle 16Seat 1
7M4X16
screw 1
Placed
in
vehicle
body
8M5X54
Bolt 1
Placed
on the
Steering
shaft
9M5 ut 1
Placed
on the
Steering
shaft
10 M10 ut 4
Placed
in the
rear and
front axle
11 M10
washer 8
Placed
in the
rear and
front axle
12 Axle
sleeve 7
Placed
in the
rear and
front axle
-2-

Pa ts List
Assembly package
PART
NO
PART
NAME PICTURE Q,ty (pcs)
REMARKS
PART
NO
PART
NAME PICTURE Q,ty (pcs)
REMARKS
13 Wheel
hub 414 Charger 1
15 Instruction
manual 116 Spanner 2
-3-

Pa ts Diag am
NOTE: Some Parts Shown are assembled
on both sides of vehicle
Tools Required
Screwdriver(not included)
Pliers(not included)
Hammer(not included)
Spanner
1Vehicle body *12Handle*1 3Wheel*34Driving wheel*1 5Rear axle*16Seat*1 7M4X16screw*18M5X54 bolt*1 9M5 Nut*110 M10 Nut*4
11 M10 Was er*812 Axle sleeve*7 13 W eel ub*4
-4-

Assembly Steps
Your new motorcycle requires adult assembly. Please set aside at least 40 minutes for
assembly. Children can be harmed by small parts, sharp edges and sharp points in the
vehicle's unassembled state. Care should be taken in unpacking and assembly of the
vehicle. Children should not handle parts, or help in assembly of the vehicle.
Please identify all parts before assembly and save all packaging material until assembly
is complete to ensure that no parts are discarded.
ssembly tool for need: screwdriver(not included), pliers(not included), hammer(not
included), spanner.

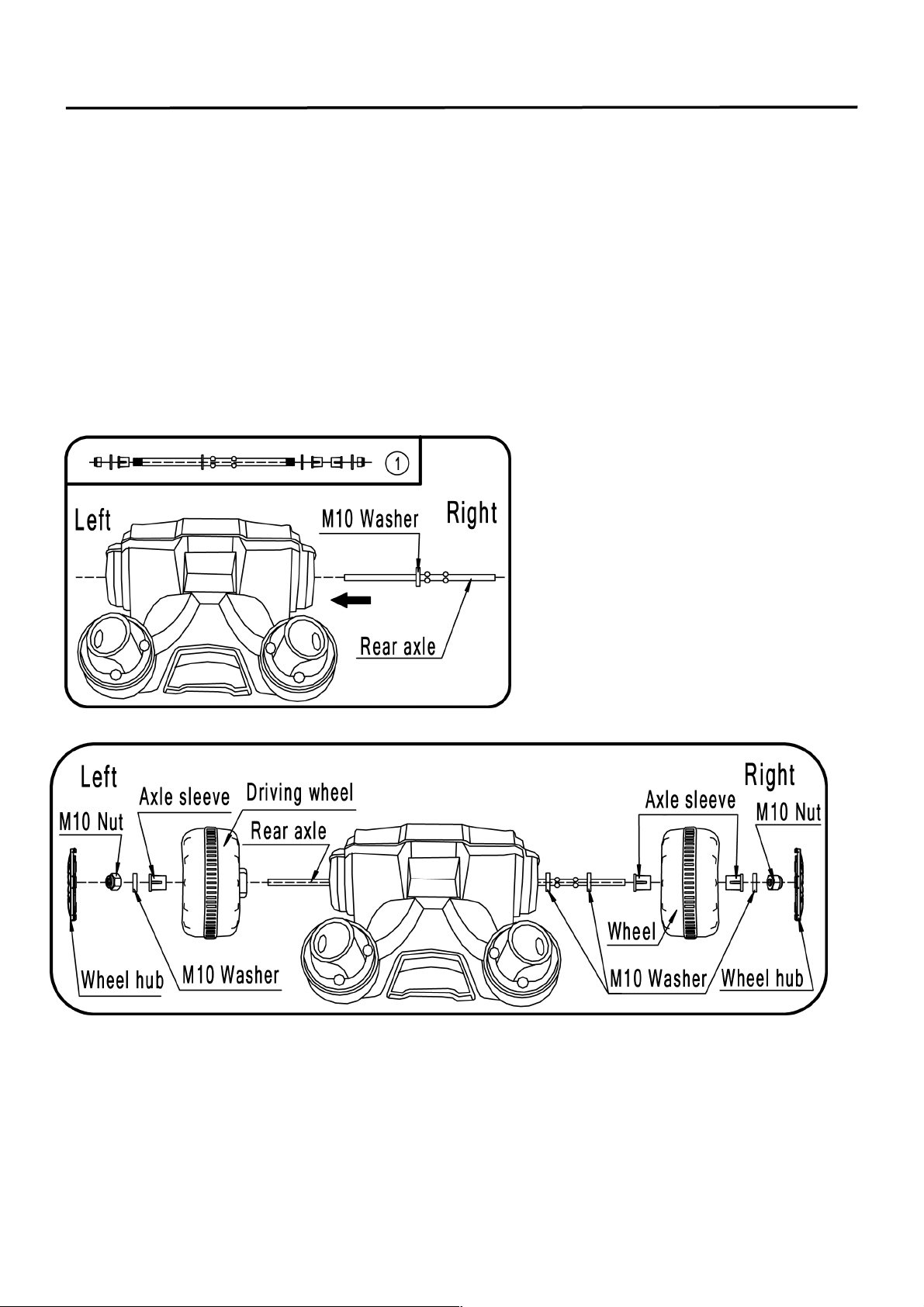

1. Install the back wheels
As shown in Figure 1,disconnect the
rear axle parts,remain one washer.
Turn over the car body, Install the
washer to the rear axle .
Put the rear axle through the car
body .
Make driving wheel,axle sleeve and washer through the rear axle rom the le t side,and then
ixed with nut.
Make washer,axle sleeve,wheel, axle sleeve,washer through the rear axle in turn rom the right
side, and then ixed with nut.
Install the wheel hubs to both sides.
-5-

Assembly Steps
2. Install the front wheel.
Disconnect the front axle parts
As showed in the picture, fix the
washer,axle sleeve, wheel,axle
sleeve, washer and nut onto the
axle in proper order.
Fix the wheel hub.
The other side is same as above.

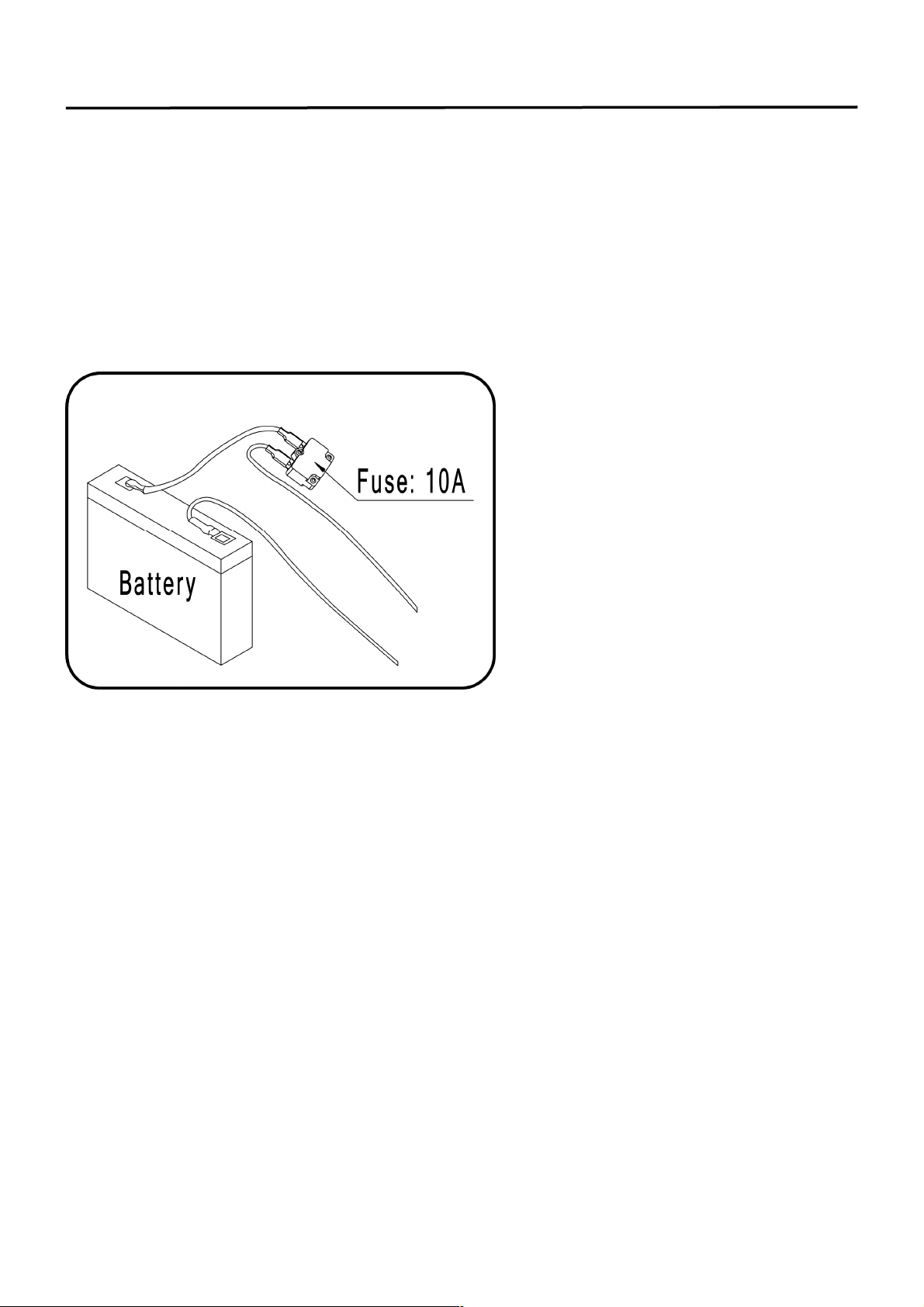

3. Connect the power supply.
Plug the power connector into the
terminal on battery as shown.
4. Install the seat.
As shown in Figure 1 , unscrew the
screw.
Install the seat to the corresponding
place, and fasten with the screw.
-6-

Assembly Steps
5. Install the Handle.

As
show
n
in
the
,
remove
the
nut and bolt from the handle.

As
show
n
in
the
,
install
the
handle to the corresponding
place,and fasten with nut and bolt.
IMPORTANT SUPPLEMENT TO INSTRUCTION MANUAL
After assembling any wheel to the axles, please check the gap
between the screw thread and the collapsible (refer to below
picture), if the gap is too big, please add two or three washers inside
the wheel, But after tightening the nut outside the wheel, please turn
the wheel by your finger to check if the wheel can run smoothly, this
is very important, because if the wheel can run smoothly, it is ok, but
if the nut press the wheel and the wheel can’t run smoothly, the
motor will be broken easily! Then you need to decrease one or two
washers to make sure the wheel can run smoothly!
-7-

How To Ope ate You Moto cycle
Must
confirm
before
using
that
following
work
which
is
already
finished:
•
Important!
Before
using
the
vehicle
for
the
first
time,
the
battery
needs
to
be
charged
for
8
to
12
hours,
no
more
than
20
hours.
Only
an
adult
can
charge
or
recharge
the
battery.
•
Finishing
the
complete
motorcycle
to
assemble
according
to
the
steps
that
the
manual
described.
The
plug-in
pac age
of
storage
battery
has
already
been
inserted
well,
the
power
has
already
been
put
through.
•
All
places
to
need
the
screw
guarantee
the
screw
has
already
been
loc ed.
Rules
for
Safe
Riding
READ THESE RULES ALOUD TO YOUR CHILD AND THEIR PLAYMATES AND MAKE
SURE THEY UNDERSTAND THEM!
•
This
toy
is
no
brea .Always
wear
a
helmet
and
protective
clothing
when
riding.
•
Direct
Adult
Supervision
Required.
•
Keep
Children
within
Safe
Riding
Areas:
•
Never
use
in
roadway,
near
motor
vehicles,
on
lawn
space,
on
or
near
steep
inclines
or
steps,
swimming
pools
or
other
bodies
of
water
.
•
Use
the
toy
only
on
flat
surfaces.
such
as
inside
your
house,
garden
or
playground.
•
Never
use
in
the
dar .
A
child
could
encounter
unexpected
obstacles
and
have
an
accident.
Operate
the
vehicle
only
in
the
daytime
or
a
well-lit
area.
•
It
is
not
recommended
to
drive
the
vehicle
on
wet
surfaces
or
on
lopes
of
greater
than
15
degrees.
•
Do
not
use
this
vehicle
outdoors
when
it
is
raining
or
snowing.
•
Ma e
sure
you
come
to
a
complete
stop
before
changing
directions
from
forward
to
bac .
•
Please
follow
the
correct
weight
and
age
limits
allowed
to
drive
this
vehicle.
•
It
is
prohibited
to
change
the
circuit
or
add
other
electric
parts
•
Inspect
wires
and
connections
of
the
vehicle
periodically.
•
In
order
to
avoid
accidents,
please
ensure
the
vehicle
is
safe
before
riding.
•
Do
not
let
any
child
touch
the
wheels
or
be
near
them
when
the
car
is
moving
.
•
This
vehicle
has
adjustable
play
seat
belts.
please
instruct
children
how
to
tie
the
safety
belt
before
using,
guarantee
the
security.
WARNING!
PREVENT INJURIES AND DEATHS:
•NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS
REQUIRED. Always keep child in view when child is in vehicle.
•Never use in roadways, near cars, on or near steep inclines or steps,
swimming pools or other bodies of water.
•Always wear shoes.
•Always sit on the seat.
•Suitable for age 3+years; Maximum user weight is 3 kgs.
•Not to be used in traffic .
-8-

How To Ope ate You Moto cycle
Use
Operation
IMPORTANT!
Always stop vehicle
when changing the
speed or direction to
avoid damage the
gear box and motor.

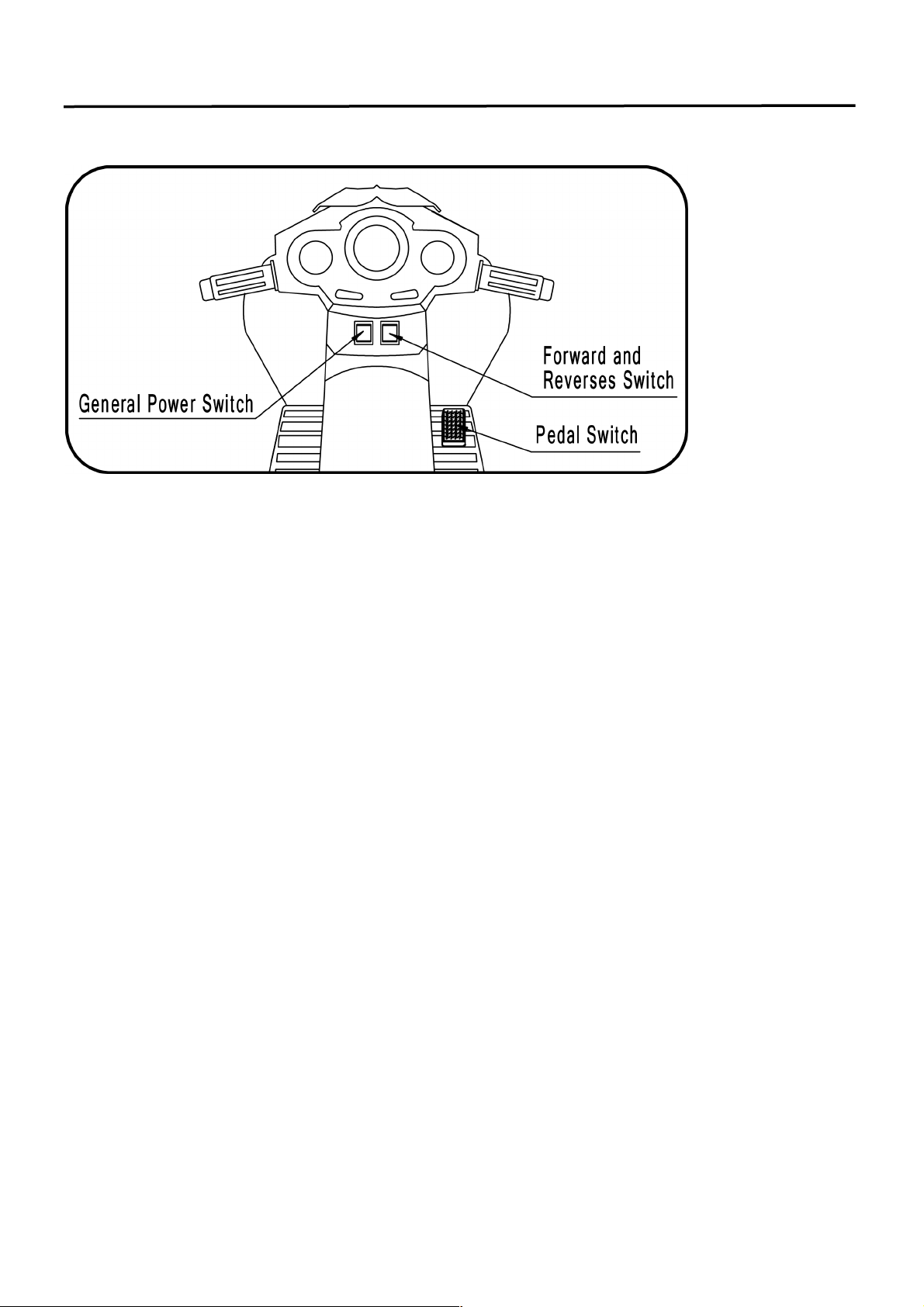

(1) Turn on the general power switch first.
(2) Forward
Press the "Forward and Reverse switch" to the "Forward" position.
Press the pedal.
The vehicle drives forward.
(3) Stop
Remove foot from the accelerator pedal to stop the car.
( ) Reverse
Press the "Forward and Reverse switch" to the "Reverse" position.
Press the pedal.
The vehicle drives backward.
-9-

How To Ope ate You Moto cycle
Circuit diagram
Cha ging You Moto cycle
ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!
WARNING!
•PREVENT FIRE AND ELECTRIC SHOCK:
-Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery
or the charger with another brand. Using another battery or charger my cause a fire or explosion.
- Do not use the battery or charger for any other product. Overheating fire or explosion could occur.
- NEVER modify the electric circuit system. Tampering with the electric system may cause a shock fire or
explosion or my permanently damage the system.
- Do not allow direct contact between battery terminals. Fire or explosion can occur.
- Do not allow any type of liquid on the battery or its components.
- Explosive gasses are created during charging. Do not charge near heat or flammable materials. Charge
the battery in a well-ventilated area ONLY.
- NEVER pick up the battery by the wires or charger. Damage can occur to the battery and may cause a
fire. Pick up the battery by the case ONLY.
- Charge the battery in a dry area ONLY.
• Battery posts terminals and related accessories contain lead and lead compounds chemicals
known to the State of California to cause cancer and reproductive harm. Wash hands after handling.
• Do not open the battery. Battery contains lead acid and other materials that are toxic and corrosive.
-10-

Cha ging You Moto cycle
•
The
charging
input
socket
is
B
E
LOW
THE
SEAT
.
•
The
POWER
SWITCH
must
be
turned
in
OFF
position
when
charging.
•
Before
the
first
use,
you
should
charge
the
battery
for
8
-
12
hours.
Do
not
recharge
the
battery
for
more
than
20
hours
to
a oid
o erheating
the
charger.
•
When
the
ehicle
begins
to
run
slowly,
recharge
the
battery.
•
After
each
use
or
once
a
month
minimum
recharge
time
as
8
to
12
hours,
no
more
than
20
hours
.
1. Find The charging input socket below the seat;
2.
Plug
the
charger
port
into
the
input
socket;
3. Plug the charger plug into a wall outlet. The battery will begin charging.
WARNING!
•PREVENT FIRE AND ELECTRIC SHOCK:
• Do not open the charger. Exposed wiring and circuitry inside case may cause electric shock.
Only adults may handle or charge the battery. NEVER allow child to handle or charge the battery.
Battery is heavy and contains lead acid electrolyte).
• Do not drop the battery. Permanent damage to the battery could occur or cause serious injury.
• Before charging the battery, check for wear or damage to the battery, charger, its supply cord
and the connectors. DO NOT charge the battery if any damage to parts has occurred.
• Do not allow the battery to drain completely. Recharge the battery after each use or once a month
if not used regularly.
• Do not charge battery upside down.
• Always secure the battery with the bracket. Battery can fall out and injure a child if vehicle tips over.
• A recommendation for adult supervision of young children.
• The toy should be used with caution since skill is required to avoid falls or collisions causing injury to the
user or third parties.
WARNING!
This product with CHARGING
PROTECTION:
When charging, all the functions
will e cut off!
-11-

T oubleshooting Guide
■
PROBLEM:
The
vehicle
does
not
un
PROBLEM CAUSE: The battery may low on power.
After each use, or once a month minimum, charge the battery for 8-12 hours. Do not leave the
battery on the charger for more than 20 hours.
POSSIBLE CAUSE: Thermal fuse has tr pped.
The vehicle is equipped ith a self-resetting fuse. When the vehicle is overloaded or operated
incorrectly; the self-resetting fuse ill be cut off for 5-20seconds before becoming operational
again. The self-resetting fuse is under the seat (Refer to the picture.)
To
avoid
the
fuse
cut
off
the
power,
follow
these
guidelines:
DO NOT overload the vehicle, Maximum weight
allowed :30kg
DO NOT tow anything behind the vehicle.
DO NOT drive up teep lope .
DO
NOT
drive
into
fixed
object ,
which
may
cau e
the wheel to pin, cau ing the motor to overheat.
DO NOT drive in very hot weather, component
may
overheat.
DO NOT tamper with the electric y tem, Doing
o
may
create
a
hort
circuit,
cau ing
the
fu e
to
trip.
POSSIBLE
CAUSE:
Wheel
nuts
are
loose.
If
the
nuts
are
not
tight,
the
wheels
will
not
engage
the
forward
gears.
Tighten
the
nut
with
the
nut
wrench.
POSSIBLE
CAUSE:
Battery
connector
or
w res
are
loose.
Make
Sure
the
battery
connectors
are
firmly
plugged
in
to
each
other.
POSSIBLE
CAUSE:
Battery
s
dead.
Have
you
properly
maintained
the
battery
according
to
the
directions?
Is
the
battery
old?
Your
battery
may
need
to
be
replaced.
POSSIBLE
CAUSE:
Electr c
system
s
damaged.
ater
may
have
corroded
the
system,
or
loose
dirt,
gravel
or
sand
might
have
jammed
the
switch.
POSSIBLE
CAUSE:
Motor
is
damaged.
The
motor
needs
professional
repair.
■
PROBLEM:
The
batte y
will
not
echa ge.
POSSIBLE
CAUSE:
Battery
connector
or
adapter
connector
is
loose.
Make
sure
the
battery
connector
and
adapter
connector
are
firmly
plugged
together.
POSSIBLE
CAUSE:
Charger
is
not
plugged
in.
Make
sure
the
charger
is
plugged
into
the
wall
outlet
and
the
power
flow
to
the
outlet
is
on.
POSSIBLE
CAUSE:
Charger
is
not
wor ing.
Is
the
charger
warm
while
charging?
If
not,
the
charger
may
be
broken
and
may
need
to
be
replaced.
-12-

T oubleshooting Guide
■
PROBLEM:
The
vehicle
does
not
un
ve y
long.
POSSIBLE CAUSE: Battery may be undercharged.
You
may
not
be
charging
the
battery
long
enough.
After
each
use,
or
once
a
month
minimum,
charge
the
battery
for
8
to
12
hours.
Do
not
leave
the
battery
on
the
charger
for
more
than
20
hours.
POSSIBLE
CAUSE:
Battery
is
old.
The
battery
will
eventually
lose
the
ability
to
hold
a
charge.
Depending
on
the
amount
of
use,
and
varying
conditions,
the
battery
should
operate
for
one
to
three
years.
eplace
the
battery
with
a
new
One.
■
PROBLEM:
Batte y
buzzes
o
gu gles
when
cha ging.
This
is
normal
and
not
a
cause
for
concern.
It
may
also
be
silent
when
charging,
which
is
also
normal.
■
PROBLEM:
Cha ge
feels
wa m
when
echa ging
batte y.
This
is
normal
and
not
a
cause
for
concern.
Maintaining You Moto cycle
•
It
is
parents'
responsibility
to
check
main
parts
of
the
toy
before
using,
Must
regularly
examine
for
potential
hazard,
such
as
the
battery,
charge,
cable
or
cord,
plug,
screws
are
fastening
enclosure
of
other
parts
and
that
in
the
event
of
such
damage,
the
toy
must
not
be
until
that
damage
had
been
properly
removed.
•
Make
sure
the
plastic
parts
of
the
vehicle
are
not
cracked
or
broken.
•
Occasionally
use
a
lightweight
oil
to
lubricate
moving
parts
such
as
wheels.
•
Park
the
vehicle
indoors
or
cover
it
with
a
tarp
to
protect
it
from
wet
weather.
•
Keep
the
vehicle
away
from
sources
of
heat,
such
as
stoves
and
heaters.
Plastic
parts
may
melt.
•
echarge
the
battery
after
each
use.
Only
an
adult
can
handle
the
battery.
echarge
the
battery
at
least
once
a
month
when
the
vehicle
aider
is
not
being
used.
•
Do
not
wash
the
vehicle
with
a
hose.
Do
not
wash
the
vehicle
with
soap
and
water.
Do
not
drive
the
vehicle
in
rainy
or
snowy
weather.
Water
will
damage
the
motor,
electric
system
and
battery.
•
Clean
the
vehicle
with
a
soft,
dry
cloth.
To
restore
shine
to
plastic
parts,
use
a
non-wax
furniture
polish.
Do
not
use
car
wax.
Do
not
use
abrasive
cleaners.
•
Do
not
drive
the
vehicle
in
loose
dirt,
sand
or
fine
gravel
which
could
damage
moving
parts,
motors
or
the
electric
system.
•
When
not
using,
all
the
electrical
source
should
be
turn
off.
Turn
off
the
power
switch
and
disconnect
the
battery
connection.
-13-

Disposal Of Batte y
Disposal Of Battery
● Your sealed lead-acid battery must be recycled or disposed of in an environmentally
sound manner.
● Do not dispose of your lead-acid battery in a fire. The battery may explode or leak.
● Do not dispose of a lead-acid battery in your regular, household trash. The incineration,
land filling or mixing of sealed lead-acid batteries with household trash is prohibited by
law.
● Return an exhausted battery to your local approved lead-acid battery recycle, such as a
local seller of automotive batteries.
● ontact your local waste management officials for other information regarding the
environmentally sound recycling and disposal of lead-acid batteries.
● The battery must be charged only by adult .Please charge the product before using!
● The toy should not be connected to excessive powers (more than the quantity specified
herein), and it should not be operated during charging process.
● Any rechargeable battery must only be charged under adult's supervision.
● Battery charger shall regularly check the wires, plugs. casing and other parts for damage
and found damage should stop using and restored.
● Open the battery cover on the remote control, and put two pieces of batteries,paying
attention to batteries polarity. Replace the battery cover and lock with screws
(please replace the battery according to the above steps and should be done by adult) .
● All batteries should be inserted with the correct polarity.
● Non-rechargeable battery should not be charged, please remove any running-off battery
from the toy.
● Do not use old and new batteries together, or mix different types of batteries.
● The battery charger used with the toy are to be regularly examined for damage to the cord,
plug, enclosure and other parts, and in the event of such damage, they must not be used
until that damage had been repaired.
Our products are suitable for
ASTM F963; GB6675,GB19865; N71 and N62115 standard.
