Hunter Products TR1507 User manual

CHILDREN'S
ELECTRONIC
TOY
CAR
•
Suitable
for
3
+
years
•
Maximum
user
weight:
3
0kg
•
Adult
assembly
required
OWNER'S
MANUAL
Read
and
understand
this
entire
manual
before
using!
Please
keep
this
manual
for
future
reference
as
it
contains
important
information.
efore
first
time
use,
charge
the
battery
for
at
least
8
-
12
hours
,no
more
than
16
hours.

Table of Contents
1.
About
Your
New Vehicle
2. Parts
List
3. Parts
Diagram
4.
Assembly
Steps
5.
ow
To
Operat
ion
Your
Vehicle
6.
Charging
The Vehicle
7.
Troubleshooting
Guide
8.
Maintaining
Your
Vehicle
9.

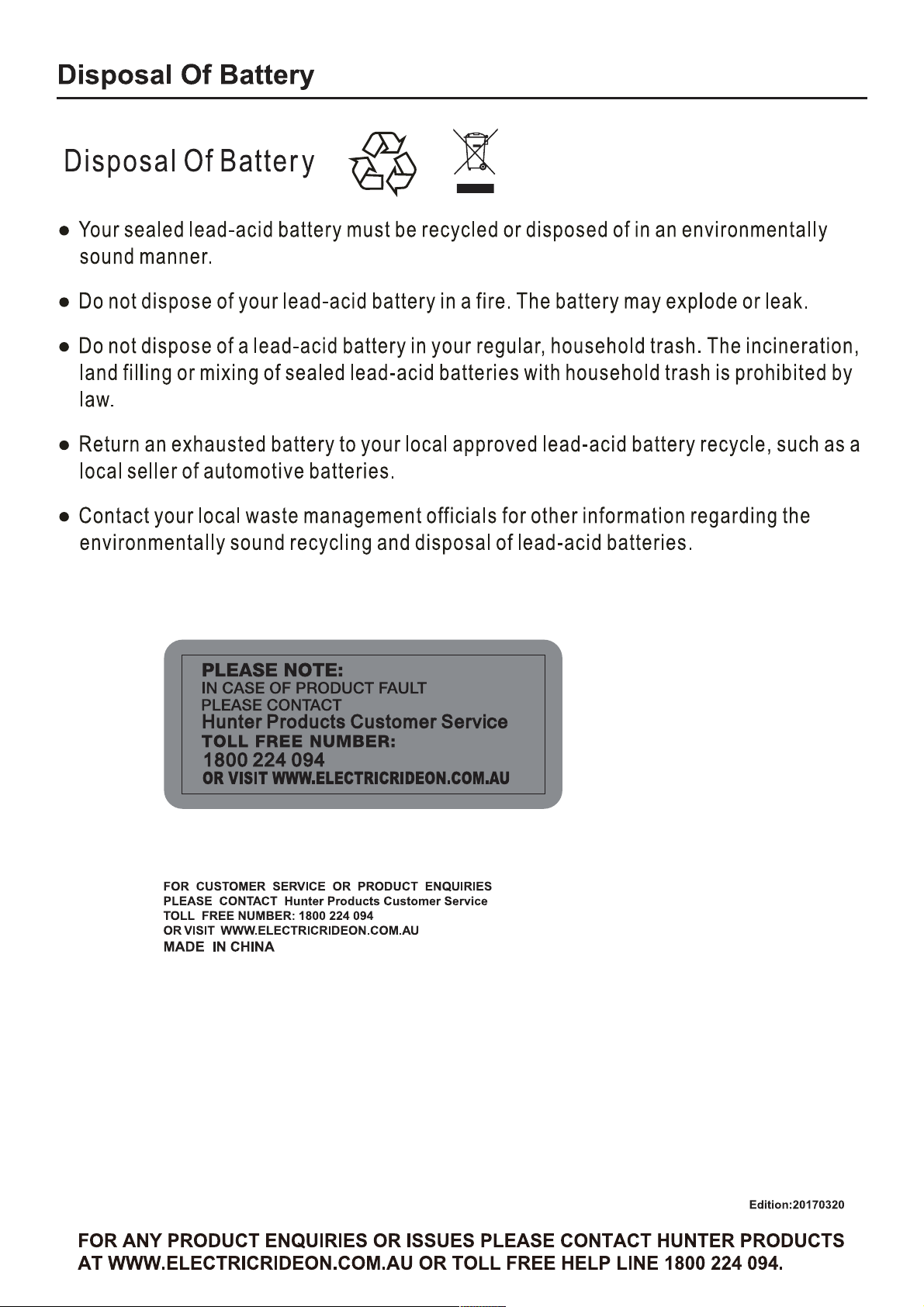

Disposal
Of
Battery
About Your New Vehicle
Thank you for your purchasing our products, we wants your child to enjoy this product for years to
come. Keep these points in mind as you read this guide:
Suitable age: 3+years Battery: DC 6V 4.5AH *2
Load Capacity: Under 30Kg Size of car: 1120*640*500mm
Speed: 3Km/h
Material: PP Optimum
Temperature:
Below 40°C
Avoid to use under burning sun
Charger: Input: 220-240 50/60HZ Charging time:8-12 hours,at most 16 hours
Output DC15V 0.8A Fuse: F10A, Self-resetting
WARNING!
FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL WARNINGS AND
ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE.
•ADULT ASSEMBLY REQUIRED. The product contains small parts, which are for
adult assembly only. Keep small children away when assembling.
•Always remove protective material and poly bags and dispose before assembly.
020
34578954854574878554
7554847454358

Parts List
PART
NO
PART
NAME PICTURE Q,ty (pcs)
REMARKS
PART
NO
PART
NAME PICTURE Q,ty (pcs)
REMARKS
1
Vehicle
body 12Windshield 1
3Seat 14Steering
wheel 1
5Gear
box 26Rearview mirrors
1
pair
7Front
wheel 28Rear wheel 2
9Tail wing 110 Wheel
hub 4
11 Rear
axle 112 Direction axis 1
13 Tool
bag 114 Charger 1
15 Instruction 1
020
34578954854574878554
7554847454358

Parts Diagram
NOTE: Some Parts Shown are assembled
on both sides of vehicle
1Vehicle body *12Windshield*13Seat*1 4Steering wheel*15Gear box*26Rearview mirrors*2 7Front wheel*28Rear wheel*29Tail wing*1
10 Wheel h b*411 Rear axle*112 Direction axis*1 13 M10 Washer*214 M14 Washer*115 M5X35 Bolt*1 16 M5 N t *117 M4X12 Bolt*218 M4X12 screw*2
Hammer(not included)
Spanner(not included)
Pliers(not inclued)
Screwdriver(not included)
Tools Required
020
34578954854574878554
7554847454358

Assembly Steps
Your new vehicle requires adult assembly. Please set aside at least 40 minutes for
assembly. Children can be harmed by small parts, sharp edges and sharp points in the
vehicle's unassembled state. Care should be taken in unpacking and assembly of the
vehicle. Children should not handle parts, or help in assembly of the vehicle.
Please identify all parts before assembly and save all packaging material until assembly
is complete to ensure that no parts are discarded.

ssembly
tool
for
need: screwdriver(not included), pliers(not included), hammer(not
included), spanner(not included).
1. Install front wheel.
As shown in the picture,both front
wheel and rear wheel have buttons.
As shown in the picture,put the washer through the front axle .
s shown in the picture,press and hold the button,then install the wheel to the corresponding
place .after that,make an effort to pull , to ensure that the installation in position.
Install the Wheel hub to the corresponding place,
The other side is same as above.
020
34578954854574878554
7554847454358

Assembly Steps

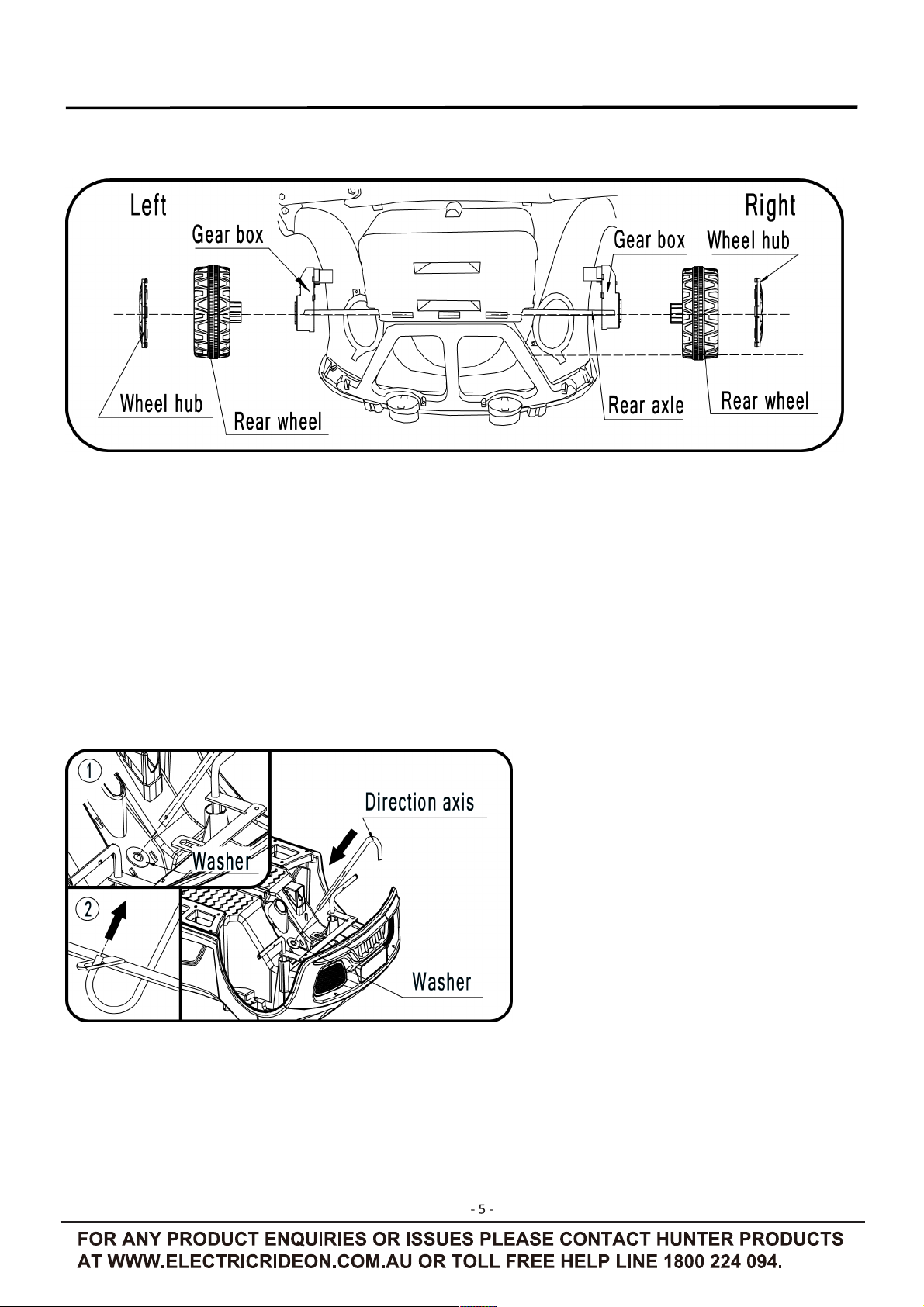

2. Install the rear wheel.
Turn over the car body, install the gear box to the left side
As shown in the picture,press and hold the button ,then install the two rear wheels to the
corresponding places.
After that,make an effort to pull , to ensure that the installation in position.
Install the wheel hubs to both sides.
3.Install the direction axis.
Remove the screw, nut ,washer and
from the direction axis.
Insert the straight end of direction
axis through the washer and hole on
the vehicle body and out through the
hole in the dashboard. (PI 1 )
Insert the bent end into the hole in
the front axle. (PI 2)
020
34578954854574878554
7554847454358

Assembly Steps

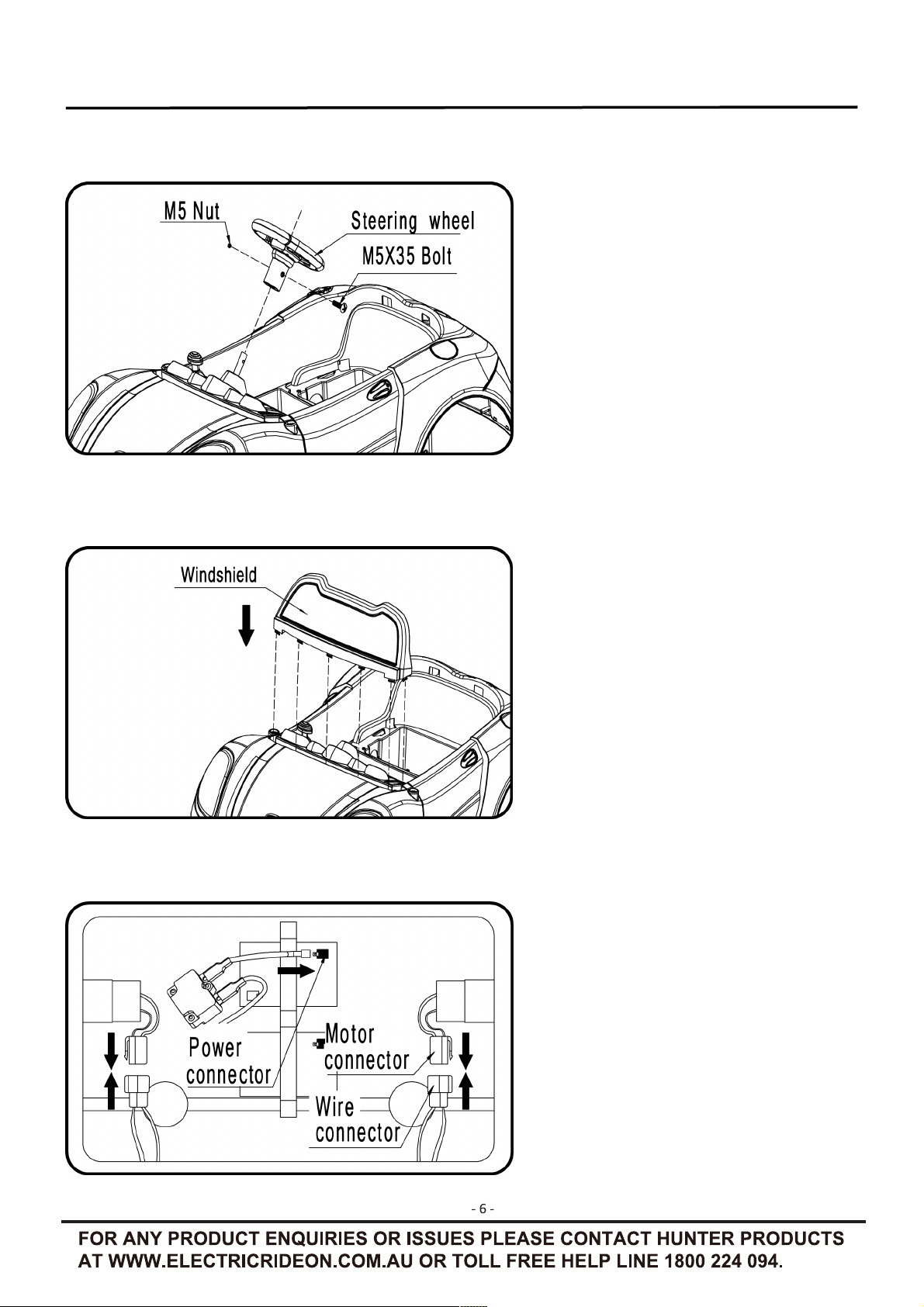

4.Install the steering wheel .
As showed in the picture, install the
steering wheel, and fasten with nut
and bolt.
5. Install the windshield .
Insert the windshield to the front of
the
car
, press downward.
Fasten the two side the the
windshield with screws.
6. Connect the power.
As showed in the picture, plug the
wire connector into the motor
connector.
Plug the power connector into the
terminal on battery as shown.
020
34578954854574878554
7554847454358

Assembly Steps

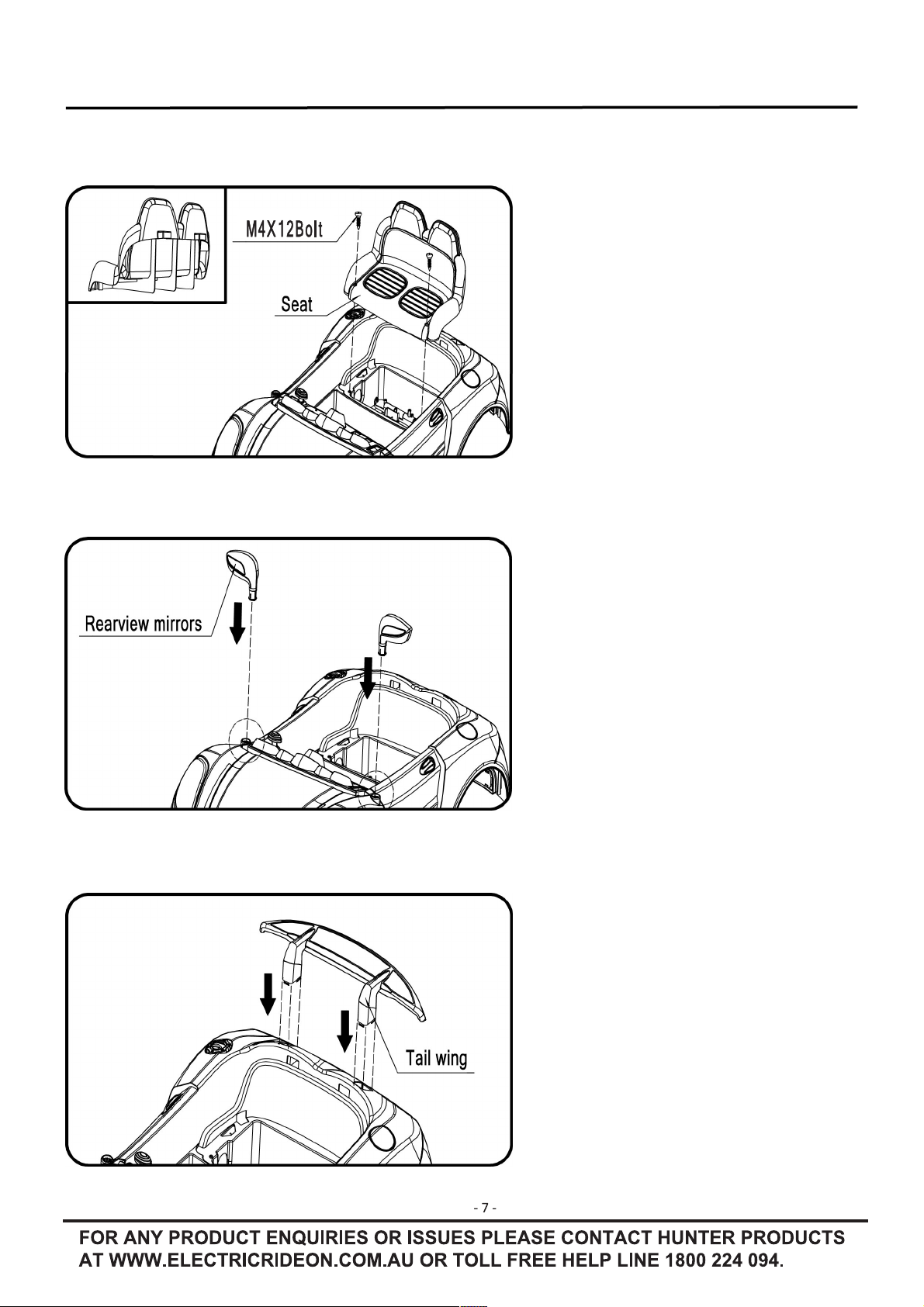

7. Install the seat .
Insert the seat onto the
car
body with
proper position, and fasten with the
bolts.
8.Install the rearview mirror .
As showed in the picture, press the
rearview mirror downward to fix it.
9.Install the tail wing .
As showed in the picture, insert the
tail wing into the
car
body and press
downward hardly until fixed.
020
567976767969776
97766967657

How To Operate Your Vehicle
Must confirm before using
that
following
work
which
is already
finished:
•
Important!
Before
using
the vehicle for the first time, the
battery
needs to be
charged
for 8 to 12 hours,
no more than 16 hours.
Only
an adult can
charge
or
recharge
the
battery.
•
Finishing
the
complete
car
to assemble
according
to the
steps
that the manual described. The
plug-in
pac age
of
storage
battery
has
already
been inserted well, the power has
already
been put
through.
•
All
places to need the screw
guarantee
the
screw
has
already
been loc ed.
Rules
for
Safe Riding
READ THESE RULES ALOUD TO YOUR CHILD AND THEIR PLAYMATES AND MAKE
SURE THEY UNDERSTAND THEM!
•
Always
wear a helmet when
riding.
•Direct
Adult
Supervision
Required.
•
Keep
Children within Safe
Riding
Areas
.
•Never use in
roadway,
near motor vehicles, on lawn
space,
on or near
steep
inclines or
steps,
swimming
pools
or other bodies of water.
•Use the
toy
only
on flat surfaces. such as inside
your
house,
garden
or
playground.
•Never use in the dar .
A
child could encounter
unexpected
obstacles and have an accident.
Operate
the
vehicle
only
in the
daytime
or a
well-lit
area.
•It is not recommended to drive the vehicle on wet surfaces or on
lopes
of
greater
than 15
degrees.
•Do not use this vehicle outdoors when it is
raining
or
snowing.
•Ma e sure
you
come to a
complete
stop
before
changing
directions from forward to bac .
•Please follow the correct
weight
and
age
limits allowed to drive this vehicle.
•It is
prohibited
to
change
the circuit or add other electric
parts
•
Inspect
wires and connections of the vehicle
periodically.
•In order to avoid accidents,
please
ensure the vehicle is safe before
riding.
•Do not let
any
child touch the wheels or be near them when the
car
is
moving
.
•This vehicle has
adjustable
play
seat belts.
please
instruct children how to tie the
safety
belt before
using,
guarantee
the
security.
WARNING!
PREVENT INJURIES AND DEATHS:
•NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS
REQUIRED. Always keep child in view when child is in vehicle.
•Never use in roadways, near cars, on or near steep inclines or steps,
swimming pools or other bodies of water.
•Always wear shoes.
•Always sit on the seat.
•Suitable for age 3+years; Maximum user weight is 3 kgs.
•Not to be used in traffic .
020
34578954854574878554
7554847454358

How To Operate Your Vehicle
Use
Operation
(
Ensure the power switch has been turned on
)
IMPORTANT!
Always
stop vehicle
when changing the
speed or direction to
avoid damage the
gea
r
box and motor.
(1) Turn on the power switch first.
(2) FO WA D
1.Press the “Forward and Reverse switch” on the “Forward” position.
2.Press the “Pedal switch”, the vehicle drives forward.
(3) STOP
The vehicle will brake
automatically,
when
your
child’s foot remove from the “Pedal switch”.
(4) EVE SE
1.Press the “Forward and Reverse switch” on the “Reverse” position.
2.Press the “Pedal switch”, the vehicle drives backward.
00
2
34578954854574878554
7554847454358

How To Operate Your otorcycle

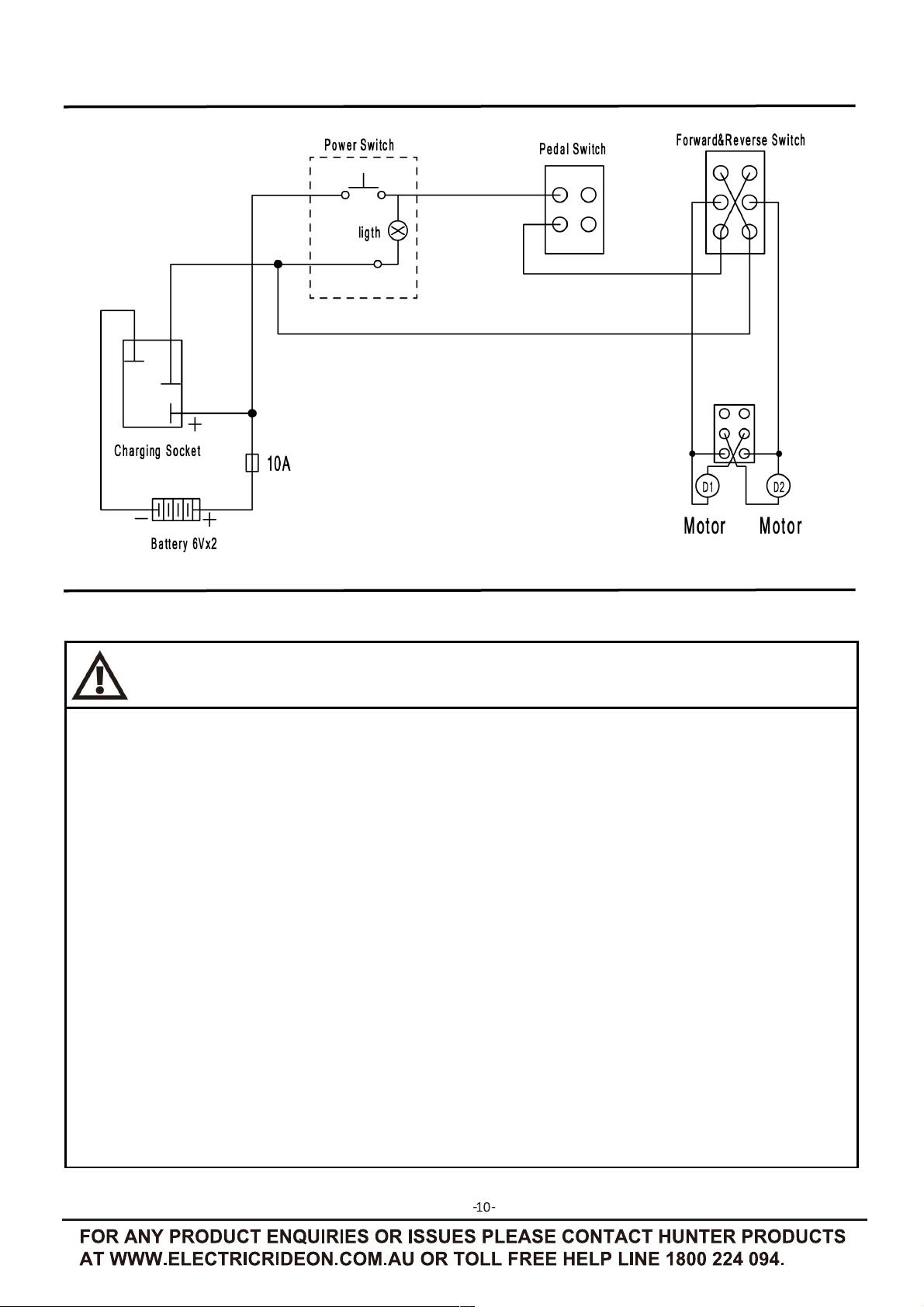

Circuit diagram
Charging Your otorcycle
ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!
WARNING!
•PREVENT FIRE AND ELECTRIC SHOCK:
-Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery
or the charger with another brand. Using another battery or charger my cause a fire or explosion.
- Do not use the battery or charger for any other product. Overheating fire or explosion could occur.
- NEVER modify the electric circuit system. Tampering with the electric system may cause a shock fire or
explosion or my permanently damage the system.
- Do not allow direct contact between battery terminals. Fire or explosion can occur.
- Do not allow any type of liquid on the battery or its components.
- Explosive gasses are created during charging. Do not charge near heat or flammable materials. Charge
the battery in a well-ventilated area ONLY.
- NEVER pick up the battery by the wires or charger. Damage can occur to the battery and may cause a
fire. Pick up the battery by the case ONLY.
- Charge the battery in a dry area ONLY.
• Battery posts terminals and related accessories contain lead and lead compounds chemicals
known to the State of California to cause cancer and reproductive harm. Wash hands after handling.
• Do not open the battery. Battery contains lead acid and other materials that are toxic and corrosive.
00
23
4568965965685989665
8665958565469

Charging Your otorcycle
• The charging input socket is BELOW THE SEAT .
• The POWER SWITCH
must
be turned in OFF position when charging.
• Before the first use, you should charge the battery
for
8-12 hours. Do not recharge the battery
for
more than 1 hours to avoid overheating the charger.
• When the vehicle begins to run slowly, recharge the battery.
•
After
each use
or
once a month minimum recharge time as 8 to 12 hours, no more than 1 hours.
1. Find The charging input socket below the seat;
2. Plug the charger port into the input socket;
3. Plug the charger plug into a wall outlet. The battery will begin charging.
WARNING!
•PREVENT FIRE AND ELECTRIC SHOCK:
• Do not open the charger. Exposed wiring and circuitry inside case may cause electric shock.
Only adults may handle or charge the battery. NEVER allow child to handle or charge the battery.
Battery is heavy and contains lead acid electrolyte).
• Do not drop the battery. Permanent damage to the battery could occur or cause serious injury.
• Before charging the battery, check for wear or damage to the battery, charger, its supply cord
and the connectors. DO NOT charge the battery if any damage to parts has occurred.
• Do not allow the battery to drain completely. Recharge the battery after each use or once a month
if not used regularly.
• Do not charge battery upside down.
• Always secure the battery with the bracket. Battery can fall out and injure a child if vehicle tips over.
• A recommendation for adult supervision of young children.
• The toy should be used with caution since skill is required to avoid falls or collisions causing injury to the
user or third parties.
00
22
34578954854574878554
7554847454358

Troubleshooting Guide
■
PROBLE :
The
vehicle
does
not
run
PROBLEM CAUSE: The battery may low on power.
After each use, or once a month minimum, charge the battery for a full 10 hours. Do not leave the
battery on the charger for more than 16 hours.
POSSIBLE CAUSE: Thermal fuse has tr pped.
The vehicle is equipped with a self-resetting fuse. hen the vehicle is overloaded or operated
incorrectly; the self-resetting fuse will be cut off for 5-20seconds before becoming operational
again. The self-resetting fuse is under the seat (Refer to the picture.)
To avoid the fuse cut off the power,
follow these guidelines:
DO NOT overload the vehicle, Maximum weight
allowed :30kg
DO NOT tow anything behind the vehicle.
DO NOT drive up teep lope .
DO NOT drive into fixed object , which may cau e
the wheel to pin, cau ing the motor to overheat.
DO NOT drive in very hot weather, component
may overheat.
DO NOT tamper with the electric y tem, Doing
o may create a hort circuit, cau ing the fu e to
trip.
POSSIBLE CAUSE: Wheel nuts are loose.
If the nuts are not
tight,
the wheels will not
engage
the forward
gears.
Tighten
the nut with the nut wrench.
POSSIBLE CAUSE:
Battery
connector or w res are loose.
Make Sure the
battery
connectors are
firmly
plugged
in to each other.
POSSIBLE CAUSE:
Battery
s dead.
Have
you
properly
maintained the
battery
according
to the directions? Is the
battery
old? Your
battery
may
need to be replaced.
POSSIBLE CAUSE: Electr c
system
s
damaged.
ater
may
have corroded the
system,
or loose dirt,
gravel
or sand
might
have
jammed
the switch.
POSSIBLE CAUSE: Motor is
damaged.
The motor needs professional repair.
■
PROBLE :
The
battery
will
not
recharge.
POSSIBLE CAUSE:
Battery
connector or
adapter
connector is loose.
Make sure the
battery
connector and
adapter
connector are
firmly
plugged
together.
POSSIBLE CAUSE:
Charger
is not
plugged
in.
Make sure the
charger
is
plugged
into the wall outlet and the
power
flow to the outlet is on.
POSSIBLE CAUSE:
Charger
is not
wor ing.
Is the
charger
warm while
charging?
If not, the
charger
may
be broken and
may
need to be
replaced.
0
23
0
4568965965685989665
8665958565469

Troubleshooting Guide
■
PROBLE :
The
vehicle
does
not
run
very
long.
POSSIBLE CAUSE: Battery may be undercharged.
You
may
not be
charging
the
battery
long
enough.
After
each use, or once a month minimum,
charge
the
battery
for 8 to 12 hours. Do not leave the
battery
on the
charger
for more than 16 hours.
POSSIBLE CAUSE: Battery is old.
The
battery
will
eventually
lose the
ability
to hold a
charge.
Depending
on the amount of use, and
varying
conditions, the
battery
should operate for one to three
years.
eplace the
battery
with a new
One.
■
PROBLE :
Battery
buzzes or
gurgles
when
charging.
This is normal and not a cause for concern. It
may
also be silent when
charging,
which is also normal.
■
PROBLE : Charger
feels
warm
when
recharging battery.
This is normal and not a cause for concern.
aintaining Your Vehicle
• It is parents'
responsibility
to check main parts of the
toy
before
using,
Must
regularly
examine for potential
hazard, such as the
battery,
charge,
cable or cord,
plug,
screws are
fastening
enclosure of other parts and
that in the event of such
damage,
the
toy
must not be until that
damage
had been
properly
removed.
• Make sure the plastic parts of the vehicle are not cracked or broken.
•
Occasionally
use a
lightweight
oil to lubricate
moving
parts such as wheels.
• Park the vehicle indoors or
cover
it with a tarp to protect it from wet weather.
• Keep the vehicle
away
from sources of heat, such as stoves and heaters. Plastic parts
may
melt.
•
echarge
the
battery
after each use.
Only
an adult can handle the
battery.
echarge
the
battery
at least
once a month when the vehicle aider is not
being
used.
• Do not wash the vehicle with a hose. Do not wash the vehicle with soap and water. Do not drive the
vehicle in
rainy
or
snowy
weather. Water will
damage
the motor, electric
system
and
battery.
• Clean the vehicle with a soft,
dry
cloth. To restore shine to plastic parts, use a
non-wax
furniture polish. Do
not use car wax. Do not use abrasive cleaners.
• Do not drive the vehicle in loose dirt, sand or fine
gravel
which could
damage
moving
parts, motors or the
electric
system.
• When not
using,
all the electrical source should be turn off. Turn off the power switch and disconnect the
battery
connection.
0
23
0
4568965965685989665
8665958565469

Our
goods
come with
guarantees
that
cannot be excluded under the Australian Consumer Law.
You
are entitled to a replacement or refund for a
major
failure and for compensation for
any
other
reasonably
foreseeable loss or
damage.
You
are also entitled to have the
goods
repaired or
replaced if the
goods
fail to be of acceptable
quality
and the failure does not amount to a
major
failure.
Where a failure does not amount to a
major
failure we are entitled to choose between
providing
you
with a repair replacement or refund. To obtain compensation
you
would need to provide
documentary
evidence of the loss or
damage
suffered and
documentary
evidence that such loss
or
damage
was a
reasonably
foreseeable consequence of a failure
by
us to
comply
with a
consumer
guarantee
under the Australian Consumer Law. Such evidence
may
include
photographs
statutory
declarations receipts or reports
(e.g.
from
your
doctor)
depending
on the
loss or
damage.
In addition to all
rights
and remedies to which
you
may
be entitled under the Competition and
Consumer Act 2010 (Commonwealth) and
any
other
relevant
legislation
the manufacturer
warrants this product to be free from defects in materials or workmanship for a period as stated
on the
packaging
from the date of purchase.
In order to claim under this
warranty
you
will need to
bring
the product to the store of purchase
along
with proof of purchase
(typically
this will be a receipt).
Any
cost incurred
by
you
in
bringing
the product to the service desk will be borne
by
you.
We will then at our option either repair or
replace the product or refund
your
money
and take back the product.
Our
liability
under this manufacturer’s
warranty
is
subject
to us
being
satisfied
that
a defect was
caused
by
defective workmanship or materials and was not caused
by
or
substantially
contributed to
by
other factors or circumstances
beyond
our control
including
(but not limited to)
defective installation maintenance or repair alteration or modification of the product in
any
manner not recommended
by
the manufacturer or
any
neglect
misuse or excessive use.
The benefits conferred
by
this manufacturer’s
warranty
are in addition to all
rights
and remedies
conveyed
by
the Competition and Consumer Act 2010 (Commonwealth) and
any
other
statutory
rights
to which
you
may
already
be entitled and this
warranty
does not exclude restrict or
modify
any
such
rights
or remedies that are implied
by
law.
HUNTER PRODUCTS
Level 2, 424 Warrigal Road Moorabbin 318
Ph: 1800 224 0 4
Email: [e-mail]
0
23
0
4568965965685989665
8665958565469

012342567895
42566551526412342481514566
245
0441234248465515158155364465
0441234248565515146542465211514
65816614114825665515121424652123411
65
552544645653346551562525
6456266485441512
!454645652554881156284418451451
14566246151234256486551512
"#$%%&'()#*+$%%(+$,-&+%%#$%%.$#/'&)%%+01'-$-+(
.2+3(+%%&#0)3&)%%456789%.9:;5<7=%&5=7:>89%(89?@<8
)#22%%"$++%0'*A+$B%CDEE%FFG%EHG
#$,-(-)IIIJ+2+&)$-&$-/+#0J&#*J3'
*3/+%%-0%&4-03
/@=K:=LM%#N%AL7789O
"#$%30Q%.$#/'&)%+01'-$-+(%#$%-(('+(%.2+3(+%&#0)3&)%4'0)+$%.$#/'&)(
3)%IIIJ+2+&)$-&$-/+#0J&#*J3'%#$%)#22%"$++%4+2.%2-0+%CDEE%FFG%EHGJ%
+;@7@:6BFECPEQFE
