Owner’s Manual
with Assembly Instructions
Styles and colours may vary.
Made in China.
The owner’s manual contains important safety information as well as assembly, use and
maintenance instructions.
The Ride-on Car must be assembled by an adult who has read and understands the
instructions in this manual.
Keep the package away from children and dispose of properly before use.
Keep this manual for future reference.
Children’s
Model No: JS3155
Item No: HUN9960
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.

Battery
Charger
6V7AH
8V800mA
Suitable age:
Load Capacity:
Size of car:
Charge time:
3+ years
Under 30kg
106 x 64 x 51 CM
8-12 hours
About Your New Ride-On │ 1
SPECIFICATIONS:
This ride-on will provide your child with many miles of riding of enjoyment.
To help assure you and your rider a safe ride we ask you to please read this
manual carefully, and keep it for future reference.
Follow the recommendations in this manual, they are designed to improve
the safety and operation of your ride-on car and it’s rider.
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
1
2
2
1
7
4
4
2
1
1
1
1
4
1
2
1
2
1
2
PART
NO.
REMARKS
PART NAME Q’ty (pcs)
Vehicle body
Rear gear box
Rear wheel
Front wheel
Windshield
Ø10 washer
Lock nut
Hubcap
View mirror
Steering wheel
M5x35 machine screw
Ø5 nut
Motor hood
Ø4x12 screw
Seat
M5x16 machine screw
Front towing hook
Spanner
Charger
Traffic cone
Already installed on the steering wheel
Already installed on the steering wheel
Already installed on the seat
In the hardware pack. Note: there may be extra 1 or 2
pcs screws for spare.
Left and right
Already installed on the front and rear axle.
Parts List │ 2
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.

2
3
4
9
5
8
6
6
7
7
8
10
13
14
14 23
12
22
15
20
18
11
12
19
17
16
61
HINT: Some parts shown are assembled on both sides of vehicle
Parts Diagram │ 3
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.

Before Assembly │ 4
• Make sure that the power switch is turned “OFF” before assembling the ride-
on.
• Before first time use, charge the battery for at least 8 to 12 hours.
• NOTE: Vehicle will not operate while connected to the charger. Completely
disconnect the charger cord from the car before trying to operate.
• Assembly tools required:
WARNING!
Screwdriver
(not included)
Spanner
● Non-rechargeable batteries are not to be recharged.
● Rechargeable batteries are to be removed from the toy before being charged.
● Rechargeable batteries are only to be charged under adult supervision.
● Different types of batteries or new and used batteries are not to be mixed.
● Batteries are to be inserted with the correct polarity.
● Exhausted batteries are to be removed from the toy.
● The supply terminals are not to be short-circuited.
BATTERY INFORMATION
• CHOKING HAZARD - Small parts. Not suitable for children under 3 years.
The product contains small parts, keep children away when assembling.
• ADULT ASSEMBLY REQUIRED.
• Always remove protective material and poly bags and dispose before assembly.
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.

2
3
4
9
1
6
9
78
5

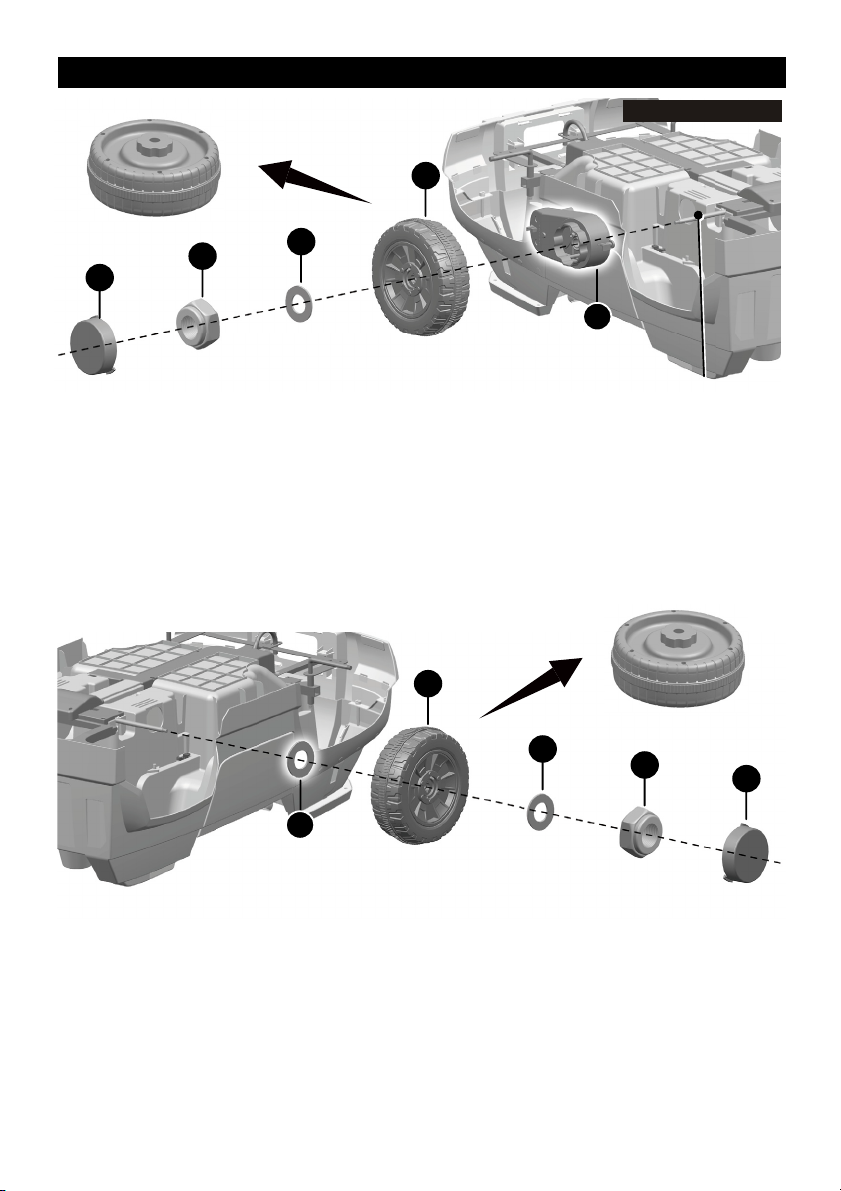

Attach the Rear Wheels │ 5
Rear axle
Rear Bottom View
Rear wheel
Rear wheel
Remove all the parts from the rear axle.
1. Slide the rear gear box onto the rear axle from Left Side (“R” labeled gear box should
be fit to the “R” side, “L” labeled gear box should be fit to the “L” side), keep the
connector and the motor on the gear box pass through the larger hole and out where
the battery sits.
2. Slide the rear wheel onto the rear axle. Keep it match up with the gear box.
3. Slide a Ø10 washer onto the rear axle.
4. Tighten a lock nut to the end of the rear axle with a spanner.
5. Slide the Ø10 washer onto the rear axle (Right Side).
6. Slide the rear wheel onto the rear axle.
7. Slide the Ø10 washer onto the rear axle.
8. Tighten a lock nut to the end of the rear axle with a spanner. HINT: An extra
spanner has been provided to hold the Lock Nut on the other side of the rear
axle while tightening the Lock Nut on the other side.
9 Fit the hubcaps to the wheels.
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.

1
2
4
53
Attach the Front Wheels │ 6
Front wheel
Front axle Front Bottom View
GAP
After assembling any wheel to the axles, please check the gap between
the screw thread and the collapsible (refer to below picture), if the gap is
too big, please add two or three washers inside the wheel, but after
tightening the nut outside the wheel, please turn the wheel by your finger
to check if the wheel can run smoothly, this is very important, because if
the wheel can run smoothly, it is ok, but if the nut press the wheel and the
wheel can’t run smoothly, the motor will be broken easily! Then you need
to decrease one or two washers to make sure the wheel can run smoothly!
Remove all the parts from the front axle.
1. Type: Slide a Ø10 washer onto the front axle.
2. Slide a normal wheel onto the front alxe.
3. Slide a Ø10 washer onto the front axle.
4. Tighten a Lock nut to the end of the front axle with a spanner.
5. “Snap” the hubcap to the wheel.
Repeat the above procedure to assemble the other normal wheel.
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.

24
1
6
7
3
5
Attach the Steering Wheel │ 7
End of steering column
Remove the M5x35 machine screw and Ø5 nut from the steering wheel.
Turn the vehicle body upright.
5. Place the steering wheel over the the steering column, protruding from the
middle of the steering wheel base.
1. With a screwdriver remove the
screw on the battery cover
located in the center of the
steering wheel.
2. Remove the battery cover from
the top of the battery
compartment.
3. Insert 2x1.5 AA batteries in their
correct polarities.
4. Place the battery cover over the
battery compartment and fasten
with the screw you removed in
step one.
Attach the Steering Wheel
6. Align the holes on each side of steering wheel
with the holes at the end of the steering column.
7. Fasten a nut on the opposite end of the
screw to secure the steering wheel
to the steering column.
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.

1
2
Connect the Power Supply │ 8
Rear Top View
Fuse box
Battery
1. Plug the red fuse connector cable into the terminal on battery.
2. Plug the vehicle connector into the motor connector on body as
shown above.
Vehicle
connector
Motor connector
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.

x4
3
1
2
3
4
Attach the Motor Hood(s) & Seat │ 9
1. Fit the motor hood over the motor.
2. Insert two Ø4x12 screws and tighten.
3. Fit the tabs on back of the seat into the grooves on the rear of the vehicle.
4. Insert two M5x16 machine screws through the seat and into the vehicle body, and
tighten them with a screwdriver.
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
