Hunter Products ROLLPLAY PJ MASKS W413PJ User manual

The owner’s manual contains important safety information as well as assembly, use and
maintenance instructions.
Keep this manual for future reference.
Styles and colors may vary. Made in
China.
Model # W413PJ
6V PJ Masks Quad
Manual

Hours: 9.00 AM - 5.00 PM (AEST), Monday - Friday
Web: www.electricrideon.com.au
Service Phone: [phone]
Introduction
Thank you for purchasing this vehicle from Hunter Products. We hope the rider
enjoys it for miles to come. Please read this instruction guide carefully
before assembling and operating the vehicle. Please have your model
number and serial number ready before calling. Please have proof of
purchase.
Please contact Hunter Products Customer Service with any questions.
BATTERY
MOTOR
AGE
MAX WEIGHT
PRODUCT SIZE
SPEED
RECHARGE TIME
TYPICAL RUN TIME
CHARGER OUTPUT
9$+
9:
WR<HDUV
NJ
[[FP
NPK
+RXUV
+RXUV
'&9
2

Table of Contents
Safety .........................................................4-8
Parts ..........................................................9
Charging Instructions ................................10
Assemble the Wheels ................................11
Attach the Handlebar ................................12
Assemble the Front Hood .........................13
Attach the Seat ..........................................14
Operating Instructions ...............................15
Maintenance ..............................................16
General Care .............................................17
Troubleshooting Guide ..............................18-19
Service and Repairs ..................................20
Warranty ....................................................21
Introduction ................................................2
Contents .....................................................3
3

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
Email or call Customer Service if you need assistance or replacement
parts.
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.
emall:[email protected]
4

Safety
•
•
•
•
•
•
•
•
•
•
•
•
•
•
WARNING!
The following safety hazards may result in serious injury or death to the user of the
vehicle:
This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material and
poly bags before assembly. Be sure to remove all packaging materials and parts
from underneath the car body.
complies with Australian Standard AS/NZS 2063:2008.
Battery posts, terminals and related accessories contain lead and lead compounds
(acid) chemicals that are toxic and corrosive. Never open the battery.
Body parts such as hands, legs, hair and clothing can get caught in moving parts.
Never place a body part near a moving part or wear loose clothing while using the
vehicle. Always wear shoes when using the vehicle.
Using the vehicle near streets, motor vehicles, drop-offs such as: steps, water
(swimming pools) or other bodies of water, sloped surfaces, hills, wet areas,
accident.
Always use the vehicle in a safe, secure environment with continuous adult
supervision. Never leave the child unattended.
Using the vehicle in unsafe conditions such as snow, rain, loose dirt, mud, sand or
Using the vehicle in an unsafe manner. Examples include but are not limited to:
Pulling the vehicle with another vehicle or similar device
Allowing more than one rider
Pushing the user from the back
Traveling at an unsafe speed
Always use common sense and safe practices when using the vehicle. Different type
of batteries or new and old batteries are not to be mixed.
Battery charger, electric wire plug enclosure and other parts should be periodically.
•There are additional hazards of using the toy in areas other than prirate grounds.
check for damage, if have damage, need to repair before use.
u
5

User Requirements
WARNING!
Age Range WR<HDUV
Weight Range NJ
Before using the vehicle the child should understand the vehicle controls and safety
issues. They must also demonstrate the capability to handle the vehicle and
operate its controls. It is the responsibility of the adult to educate the child and
supervise the vehicles use.
Read the following safety warnings to any child using the vehicle:
•
•
•
•
•
•
•
•
Only use the vehicle when an adult is present to watch (supervise).
Adult assembly required.
•Always sit in the seat when using the vehicle.
•Keep your hands, hair and clothes away from moving parts.
•Always wear shoes when using the vehicle.
•Only one rider is allowed at a time on the vehicle.
•Children under three years old cannot use the vehicle.
•Only drive on level ground.
•Do not go near water, drop-offs or up and down steep slopes.
• gravel.
•Do not drive the vehicle on streets or near cars.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when
child is in vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps,
swimming pools or other bodies of water.
ALWAYS wear shoes.
ALWAYS sit on the seat.
RISK OF FIRE. Do not bypass.
NEVER allow more than one (1) rider in the vehicle.
6

Charging the Battery: Warnings
• Contact or exposure to battery leakage (lead acid) may cause serious injury.
If contact or exposure occurs immediately call your physician. If the chemical is
on the skin or in the eyes, flush with cool water for 15 minutes. If the chemical
was swallowed, immediately give the person water or milk. Do not give water or
milk if the patient is vomiting or has a decreased level of alertness. Do not induce
vomiting.
The following safety hazards may result in serious injury or death to the user of the
vehicle:
WARNING!
•
•
• Explosive gases are created during charging. Charge the battery in a well
ventilated area. Do not charge the battery near heat or flammable materials.
• Contact between the positive and negative terminals may result in fire or explosion.
vehicle direct contact between the terminals. Picking up the battery by the wires or
charger can cause damage to the battery and may result in a fire. Always pick up
the battery by it’s case or handles.
• Liquids on the battery may cause fire or electric shock. Always keep all liquids
away from the battery and keep the battery dry.
Use of a battery or charger other than the supplied 6v rechargeable battery and
charger may cause a fire or explosion. Only use the supplied 6v rechargeable
battery and charger with the vehicle.
Using the 6v rechargeable battery and charger for any other product may result in
over heating, fire or explosion. Never use the 6v rechargeable battery and charger
with another product.
7

Charging the Battery: Warnings
WARNING!
WARNING!
•
Important! Before using the vehicle for the time the battery needs to be charged for
a full twenty-four hours (no more than thirty hours). Only an adult who has read and
understands the following safety warnings should handle, charge or recharge the
battery (see Maintenance).
Note: It is not necessary to remove the battery from the vehicle for charging. However,
if the adapter cord will not safely reach a 240V wall outlet, the battery can be removed
for charging (see Battery Removal page for instructions concerning battery replacement).
• Tampering or modifying the electric circuit system may cause
or explosion and permanently damage the system. Exposed wiring, circuitry
in the charger may cause electric shock. Always keep the charger housing
closed.
Battery posts, terminals and related accessories contain lead and lead
compounds (acid), chemicals and are toxic and corrosive. Never open the
battery.
• Non-rechargeable batteries are not to be recharged;
• Batteries are to be inserted with the correct polarity;
• Exhausted batteries are to be removed from the toy;
• The supply terminals are not to be short-circuited.
• Rechargeable batteries are only to be charged under adult supervision;
• Rechargeable batteries are to be removed from the toy before being charged;
8

Parts
1. Manual
2. Battery
3. Charger
4. Vehicle Body
5. Wheels
6. Large Washers ( x4)
7. Small Washers ( x4)
8. Split Washers ( x4)
9. Hex Nuts ( x4)
10. Side Mirrors
11. Front Hood
12. Handlebar
13. Seat
14. Hex Wrench
132
4
5
7
5
6
6
89
11
10 12 13
14
789
Helpful Tip:
The Washers and
Hex Nutsare already
fitted to the axles.
9

Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:
To Unplug the Battery:
1. 8QSOXJWKHEDWWHU\FKDUJHU'
IURPWKHRXWOHW
2. 8QSOXJWKHUHGEDWWHU\FRQQHFWRU
$
3. 5HFRQQHFWWKHUHGEDWWHU\
FRQQHFWRU$WRWKHUHGHQJLQH
FRQQHFWRU%
4. 5HSODFHWKHVHDWDQGWLJKWHQORFN
Note: It is not necessary to remove the battery for
charging. However, if the battery does not reach
the outlet, it can be removed for charging. Use
a screwdriver to release the battery clamp and
disconnect the red battery connector from the red
engine connector to remove the battery.
Battery
YOU MUST CHARGE THE BATTERY FOR 24
HOURS BEFORE THE FIRST USE!
A
A
D
B
C
1. (QVXUHWKHTXDGLVVWRSSHGDQG
WXUQHGRII
2. /RFDWHWKHVHDWORFNDWWKHIURQWRIWKH
VHDW8VLQJDFRLQRUVFUHZGULYHU WXUQ
WKHVHDWORFNWRWKHXQORFNHGSRVLWLRQ
WRUHPRYHWKHVHDW
3. 8QSOXJWKHUHGEDWWHU\FRQQHFWRU$
IURPWKHUHGHQJLQHFRQQHFWRU%
4. &RQQHFWWKHUHGEDWWHU\FRQQHFWRU
$WRWKHUHGEDWWHU\FKDUJHU
FRQQHFWRU&DQGSOXJ'LQWRD
9RXWOHW
10

Wheel Assembly
Wheel Flat Washer
Split Washer
Hex Nut
1. Remove the hex nut, split washer and small at washer from each
axle. The large, at washer stays on the axle.
2. Slide the wheel (5) onto the axle.
3. Slide small, at washer onto the axle.
4. Slide the split washer onto the axle.
5. Slide the hex nut onto the assembled wheel and tighten with the
hex wrench.
6. Repeat steps 1-5 for the remaining wheels.
11

Attach the Handlebar
1. Remove the screw and nut from the handlebar before attaching.
2. Plug the handlebar connector into the dashboard connector.
3. Slide the handle bar onto the steering rod, and align the screw holes
on the handlebar with the holes on the steering rod.
4. Insert the screw into the hole and fasten the nut to secure.
12

Attach the Front Hood
1. Locate the side mirrors and screws in the poly bag. Insert the mirrors
into the front hood. Then, use the screws and screwdriver to secure them.
2. Plug the vehicle connector into the hood connector.
3. Snap the front hood into the vehicle body.
13

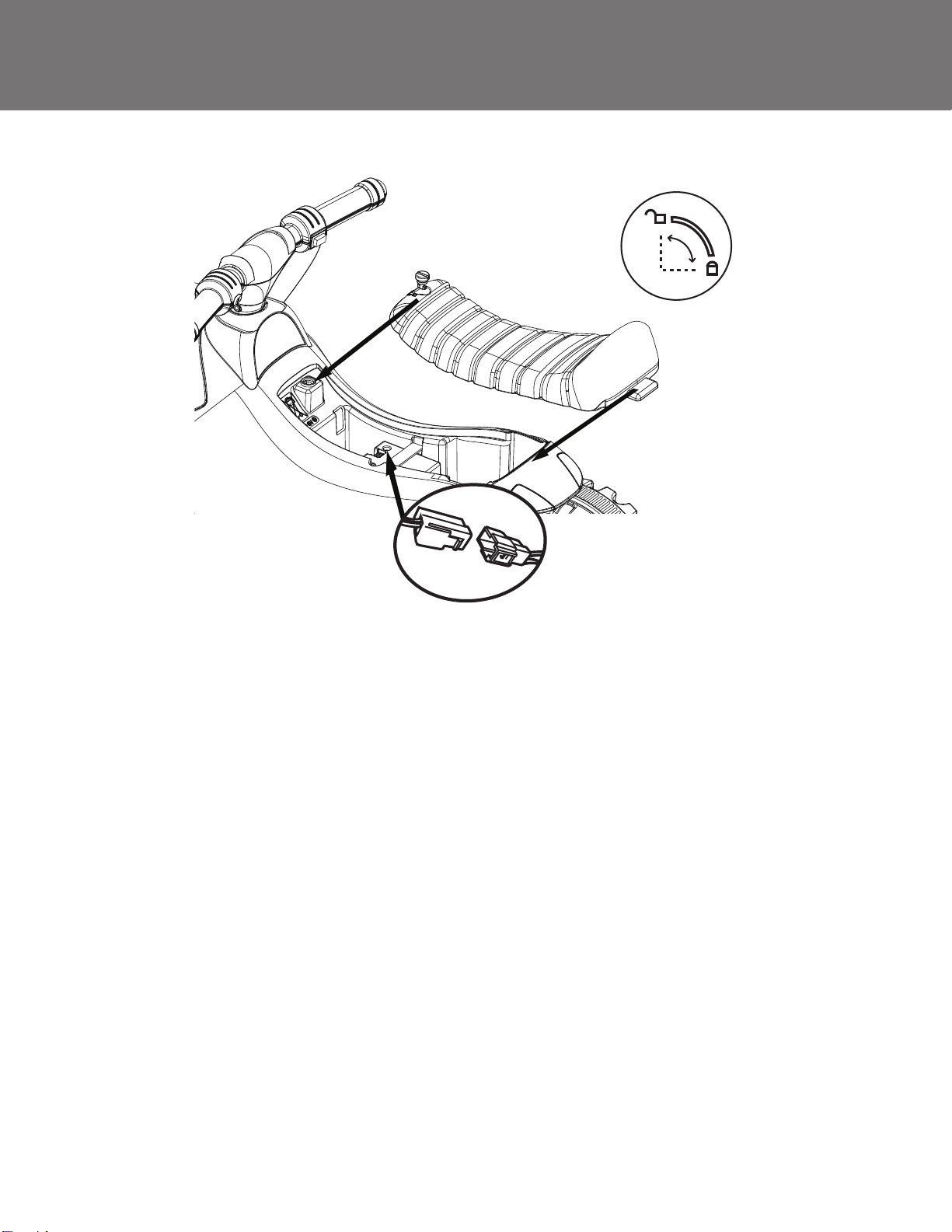

Attach the Seat
1. Ensure the red battery connector(A)is connected to the red engine
connector(B)before attaching the seat.
2. Position the seat over the battery compartment.
3. Turn the lock on the seat to the open position and align the lock with
the lock hole near the front of the battery compartment.
4. Slide the notch on the front of the seat into the lock hole.
5. Turn the lock to the closed position.
AB
14

Operating Instructions
(QVXUHWKHULGHULVDOZD\VVHDWHGLQWKHFRUUHFWSRVLWLRQRQWKHTXDG
Power Button
7KHTXDGGULYHVNPKLQDIRUZDUGGLUHFWLRQ3UHVVWKH3RZHU%XWWRQRQ
WKHKDQGOHEDUWRPRYHIRUZDUG5HOHDVHWKH3RZHU%XWWRQWRVWRS8VHWKH
KDQGOHEDUWRWXUQWKHTXDGOHIWRUULJKW
Sound Button
3UHVVWKH6RXQG%XWWRQRQWKHKDQGOHEDUWRKHDUHQJLQHDQGKRUQ
VRXQGV
Lights
7KH/LJKWVWXUQRQZKHQWKHYHKLFOHLVLQPRWLRQ
Power Button
Sound Button
(Horn & Engine
Sounds)
15

Maintenance
Important Battery and Charger Information
Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
Charge the battery for 24 hours before using the vehicle for the rst
time.
Charge the battery immediately after each use. Charge for at least 8-12
hours, but no more than 20 hours.
Charge the battery at least once a month, even if the vehicle is not used
or stored.
Never leave the battery in a discharged condition.
Connect the terminal of the battery and charger, then plug the charger
into a 240V AC outlet.
It is normal for the charger to heat slightly. If the charger rises above
71°C, disconnect the charger and call Customer Service for assistance.
Keep the charger away from water or excessive moisture to prevent
short-circuiting.
Only use the charger speci ed with the original item. Do not charge the
battery with any other charger.
Do not attempt to recharge non-rechargeable batteries with the original
charger.
Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Service and
Repairs Page for replacement information.
Remove damaged batteries from the car immediately. Recycle or
dispose of the used batteries responsibly.
Do not short circuit the supply terminals.
Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.
16

General Care
Regularly inspect all vehicle parts to ensure they are in good working
condition.
Regularly inspect the charger, cord, plug, and other related parts for
damage.
Remove any damaged parts and immediately contact Customer Service
for replacement parts.
DO NOT operate the vehicle if there are any damaged parts.
Carefully clean the vehicle with a damp cloth and mild soap. Do not
get water in or near any electrical parts. Do not wash the vehicle with a
hose.
Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.
17

Troubleshooting Guide
Problem Potential Cause Solution
Vehicle does not run Battery is low Recharge the battery
Thermal fuse tripped Reset fuse
Snap pins are loose Tighten snap pins
Loose wires or loose
connectors
Ensure the battery connectors
are securely attached. If wires
are loose, contact Consumer
Service for repairs
Battery is dead Call Customer Service for
replacement battery
Electrical system is
damaged
Call Customer Service for
repairs
Motor is damaged Call Customer Service for
repairs
Vehicle only runs for a
short time
Undercharged battery Ensure a secure connection
when the battery is
recharging. Recharge for at
least 8-12 hours
Overcharged battery Never charge the battery for
more than 24 hours
Battery is old Replace battery
Vehicle runs slowly Battery is not fully
charged
Ensure a secure connection
when the battery is recharging
Battery is old Call Customer Service to
order replacement battery
Too much weight on
vehicle
Reduce weight on vehicle
Harsh conditions Operate the vehicle on level
ground and safe surfaces
Completely read through the manual and troubleshooting guide before
contacting Customer Service.
18

Problem Potential Cause Solution
Vehicle needs a push to
start
Loose wires or loose
connectors
Ensure the battery connectors
are securely attached. If wires
are loose, contact Consumer
Service for repairs
“Dead spot” on motor A “dead spot” means
electricity is not being
delivered to the terminal.
Contact Consumer Service for
repairs
Dif culty shifting Attempting to shift while
vehicle is moving
Stop the vehicle before
shifting
Motor or gear box
making grinding noises
Motor or gear damage Contact Consumer Service for
repairs
Battery will not recharge Charger is not plugged in Plug in the charger to a
functional wall outlet
Charger is not working Call Consumer Service for a
replacement
Loose connector or loose
adapter
Check that the connectors are
securely plugged in to each
other
Battery makes bubbling
noise while recharging
This is normal No action required
Charger is warm This is normal No action required
Troubleshooting Guide
19

Service and Repairs
If your product requires service, repairs or replacement parts, please visit
us online at www.electricrideon.com.au
Or contact us at:
Toll Free Service Phone: [phone]
emall: [email protected]
Hours: 9.00 AM - 5.00 PM (AEST), Monday - Friday
20
