Husky HPL4136-VT User manual

THANK YOU
We appreciate the trust and condence you have placed in Husky through the purchase of this SUV Jack.
We strive to continually create quality products designed to enhance your home. Visit us online to see our
full line of products available for your home improvement needs. Thank you for choosing Husky!
Item 296020
Model # HPL4136-VT
USE AND CARE GUIDE
KCAJYELLORTNOT2
Questions, problems, missing parts?
Before returning to the store, call
Husky Customer Service
8 a.m.-6 p.m., EST, Monday-Friday
1-888-HD-HUSKY
WWW.HUSKYTOOLS.COM

2
Table of Contents
Safety Information ......................... 2
Warranty ......................................... 3
Specications.................................. 3
Package Contents ........................... 4
Operation ........................................ 5
How it works ........................................5
To attach the handle.............................5
To raise and lower the vehicle..............5
Care and Cleaning ...........................6
Inspection............................................. 6
Maintenance....................................6
To add hydraulic jack oil ...................... 6
To replace hydraulic jack oil................. 7
Lubrication ........................................... 7
Storing.................................................. 8
Rust prevention.................................... 8
Troubleshooting..............................8
Safet
y
Information
SAVE THESE INSTRUCTIONS
READ ALL INSTRUCTIONS
1. Study, understand and follow all
instructions before operating this
device prior to use.
2. Do not overload this jack beyond the
rated capacity.
3. This jack is designed for use only on
hard level surfaces capable of
sustaining the load. Use on other than
hard level surfaces can result in jack
instability and possible loss of load.
4. This is a lifting device only. Immediately
after lifting, support the vehicle with
jack stands.
5. Inspect jack prior to each use. Do not
attempt use if the unit is broken, bent,
cracked, or has missing and/or
damaged parts. Replace broken, bent,
cracked, missing and/or damaged parts,
and/or missing labels, warnings and/or
decals with factory authorized parts
prior to use.
DANGER: Because of the potential
hazards associated with the misuse of
equipment of this type, no alterations
shall be made to the product without
written authorization of the
manufacturer or supplier.
WARNING: Do not get under or allow
anyone under the vehicle until it has
been supported by jack stands.
WARNING: This jack is a lifting device
only. It is not a support device. NEVER
place yourself under or near a raised
vehicle supported by a jack. Immediately
after lifting, support vehicle with jack
stands or other appropriate means.
WARNING: For your safety and to
prevent injury use service jack for lifting
purposes only.
CAUTION: Do not move or dolly the
vehicle while on the jack.
CAUTION: Any jack that appears to be
damaged or has worn parts should be
removed from service immediately.
IMPORTANT: Lift only on areas of the
vehicle as specied by the vehicle
manufacturer. Use vehicle manufacturers
instructions on proper lifting.
IMPORTANT: Do not use bottle jack in
direct contact with food or food
ingredients.
NOTE: Center load on saddle prior to
lifting.
]
NOTE: Use of bottle jack on sea vessels
is prohibited.
NOTE: Failure to heed these warnings
may result in personal injury and/or
property damage.
NOTE: Some vehicles require an adapter
to properly engage the frame for lifting.

3WWW.HUSKYTOOLS.COM
Warrant
y
The manufacturer warrants the products to be free from defects in materials and workmanship for a
period of one (1) year from the date of purchase. This warranty applies only to the original consumer
purchaser and only to products used in normal use and service. If this product is found to be defective,
the manufacturers only obligation, and your exclusive remedy, is the repair or replacement of the product
at the manufacturers discretion, provided that the product has not been damaged through misuse, abuse,
tion, neglect or mishandling. This warranty shall not apply to any product
as a result of an accident, misuse, abuse, negligence, alteration, faulty installation, or any other failure not
relating to faulty material or workmanship. This warranty shall not apply
the products such as surface and/or weathering, as this is considered normal wear and tear.
The manufacturer does not warrant and specially disclaims any warranty, whether express or implied, of
urpose, other than the warranty contained herein. The
disclaims any liability and shall not be liable for any consequential or incidental loss or damage, including
but not limited to any labor/expense costs involved in the replacement or repair of said product.
Contact the Customer Service at 1-888-HD-HUSKY or visit www.huskytools.com.
S
p
Model Jack
Dimensions
Max Load
Capacity Lifting Range Saddle Dimensions Jack Weight
2 Ton
Trolley Jack
17.5 in. x 7.75
in. x 5.3 in.
4,000 lbs 5 to 13 inches 1.875 in.
diameter
18.7 lbs
Please contact 1-888-HD-HUSKY for further assistance.

4

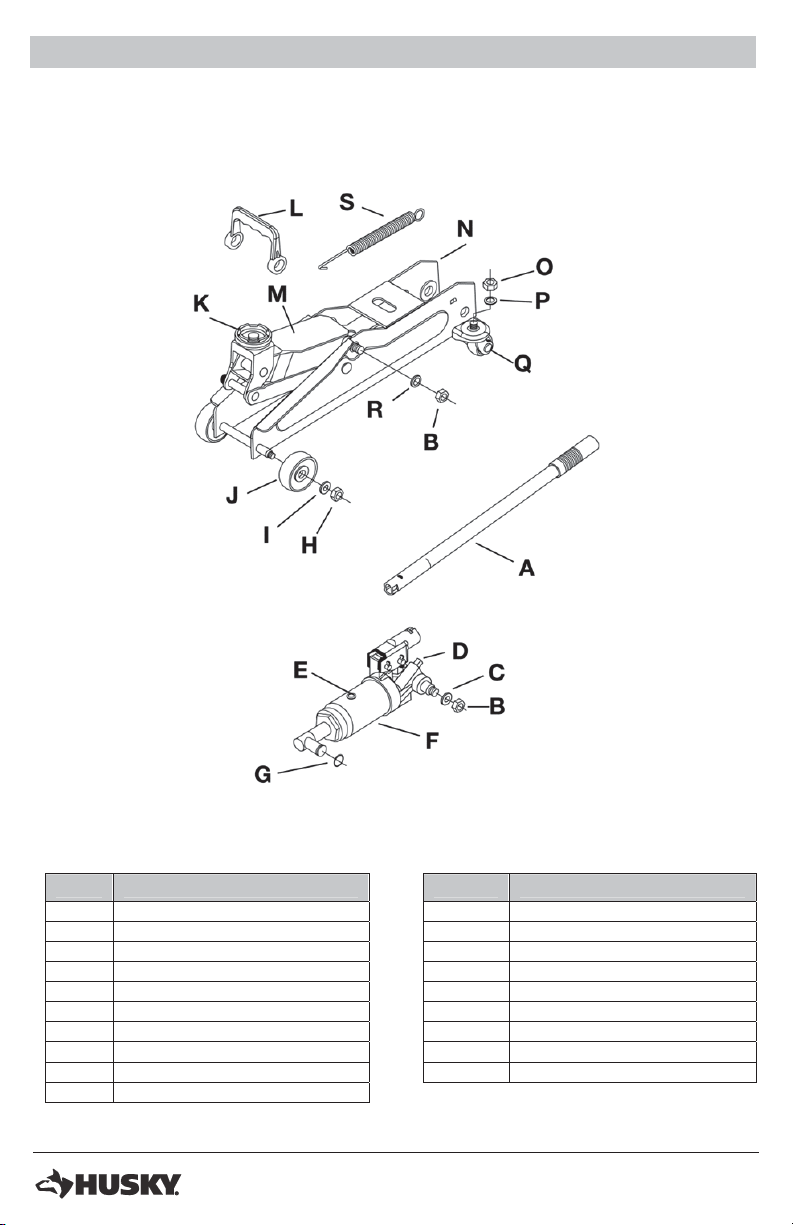

Packa
g
e Contents
Part Description
A Handle
B Nut M12
C Washer
D Release Valve
E Oil Fill Plug
F Hydraulic Ram
G C Ring
H Nut M10
I Washer
J Wheel
Part Description
K Saddle
L Carrying Handle
M Lifting Arm
N Frame
O Nut M8
P Spring Washer
Q Caster
R Washer
S Spring

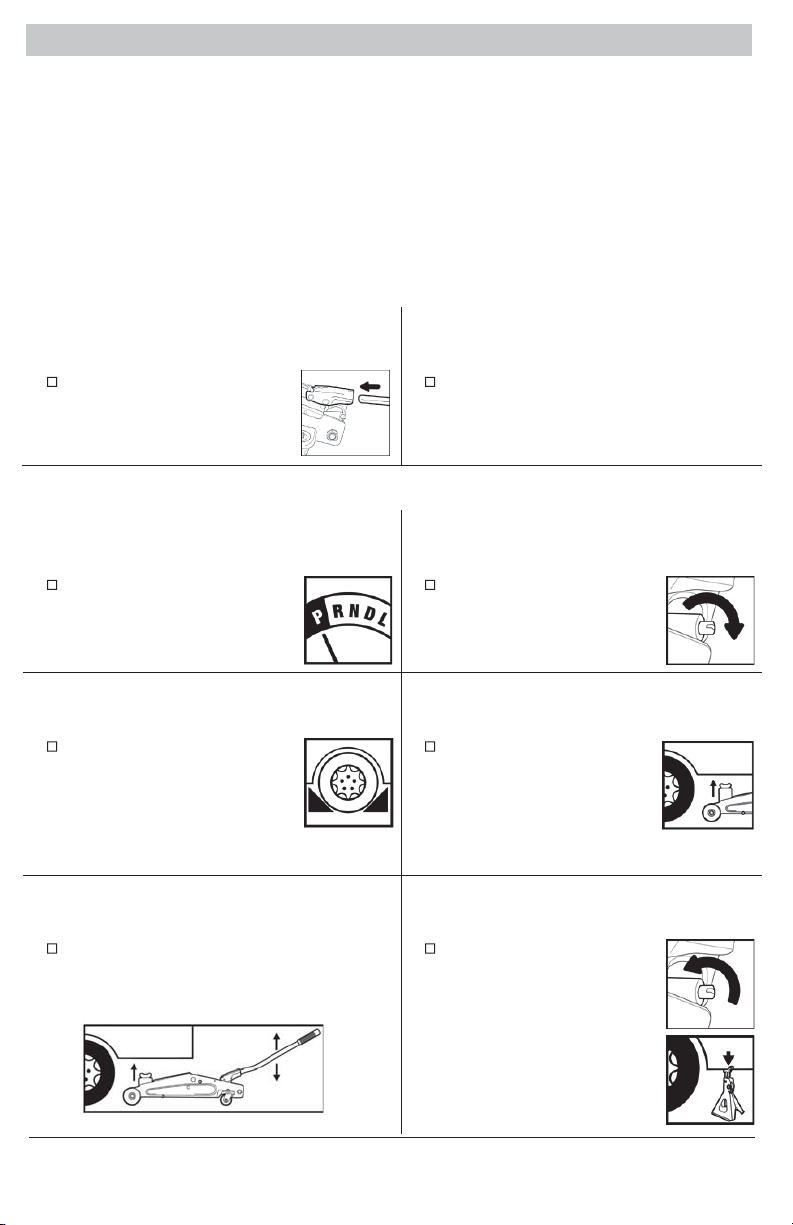

5
O
p
eration
HOW IT WORKS
The jack power unit consists of plunger, plunger cavity, hydraulic oil reservoir, cylinder and ram.
An upward stroke of the jack handle draws oil from the reservoir into the plunger cavity. Hydraulic
pressure closes a valve that keeps oil in the cavity.
A downward stroke of the jack handle forces oil into the cylinder, pushing out the ram and raising the
saddle. NOTE: As a protective feature, when the ram reaches maximum extension, sufcient oil passes
back into the reservoir to prevent an overextended ram stroke and possible jack damage.
When the release valve is open, oil ows back into the reservoir, causing the ram to retract, lowering the
saddle.
TO ATTACH THE HANDLE
1
Inserting the Handle
2
Fitting Pin
Insert lower handle into
handle socket
Pin on lower end of handle ts into handle
socket slot.
TO RAISE AND LOWER THE VEHICLE
1
Placing the Vehicle in Park
2
Closing the Jack
Place vehicle in PARK (in gear
on standard transmissions)
and apply emergency brake.
Close the jack release
valve by turning the
handle clockwise.
3
Blocking the Wheels
4
Centering the Jack
Block the vehicle wheels not
being raised.
Center jack under load so
that saddle contacts load
rmly and will not slip.
(Refer to vehicle
manufacturer's owner’s
manual to locate the
approved lifting points on the vehicle).
5
Pumping the Jack Handle
6
Lifting the Vehicle
Pump the jack handle until saddle nears
contact with vehicle. Check to see that the
saddle is centered and will contact the lifting
point rmly.
Continue to pump the jack
handle to lift the vehicle
to a height slightly above
the jack stands or other
supports. Then turn the
handle very slowly
counterclockwise to open
the release valve to lower
the vehicle onto the
supports.
WWW.HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.

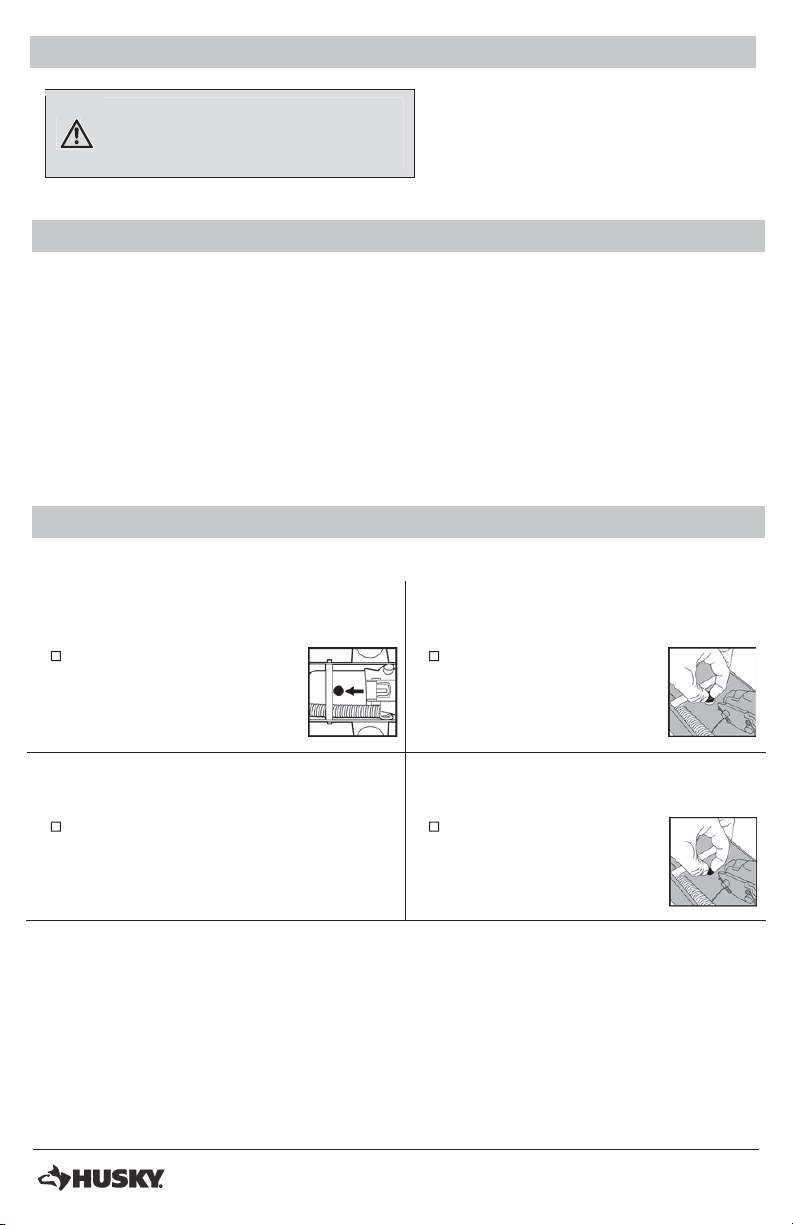

6
O
p
eration (Continued)
WARNING: To avoid pinching or crushing hands or feet,
ALWAYS keep them clear of the jack hinge and ground
contact area when lowering the vehicle. The jack is a
lifting device only. DO NOT move or dolly the vehicle
while it is on the jack
Care and Cleanin
g
INSPECTION
The product shall be maintained according to these instructions.
You may not alter this product in any way.
1. Before using, a thorough inspection shall be made on the jack. Look for cracks in the welds, bent,
damaged, loose, worn or missing parts.
2. Inspect according to this manual ONLY.
3. If the jack has been subjected to abnormal load or shock (abuse), perform an immediate
inspection. Take the product to a local customer service representative for an authorized
inspection before use.
Maintenance
TO ADD HYDRAULIC JACK OIL
1
Positioning on Level Ground
2
Removing Plug
With saddle fully lowered
and the jack on level ground,
unscrew and remove oil ll
plug.
Unscrew and remove oil
ll plug.
3
Filling the Oil Reservoir
4
Replacing the Plug
Using a good grade of SAE 5W hydraulic jack
oil, ll the oil reservoir to the bottom of the
threads in the oil ller hole.
Replace and tighten the
oil ll plug. Do not allow
dirt or debris to enter the
system.

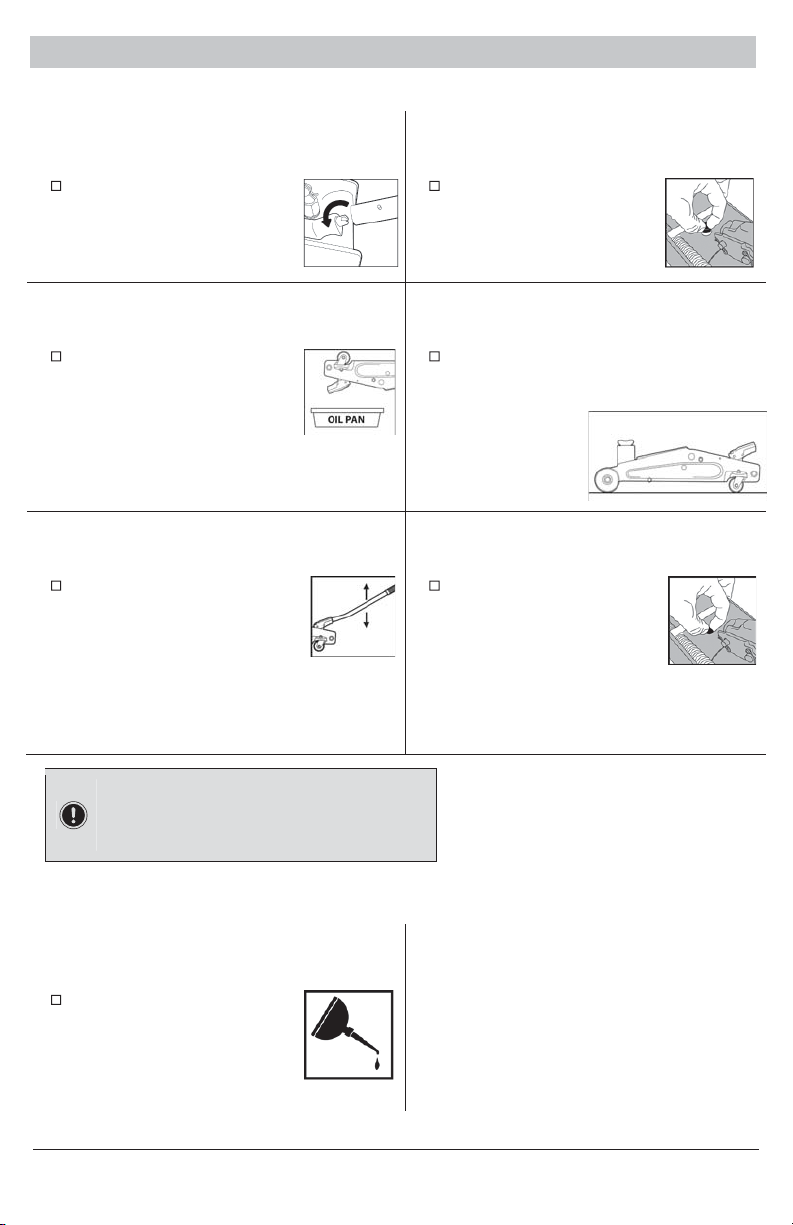

7
Maintenance (Continued)
TO REPLACE HYDRAULIC JACK OIL
1
Opening the Release Valve
2
Removing the Plug
Open the release valve by
turning handle
counterclockwise.
Remove oil ll plug.
3
Draining the Old Oil
4
Leveling the Jack
Turn entire jack over so that
all of the old oil will drain
out of the oil ll hole.
Note: when draining oil, use a
proper container and always follow
all local and state waste disposal guidelines.
After all of the old oil has drained out of
the jack, turn the jack back over to a level
position ll with new oil.
5
Releasing Pressurized Air
6
Filling with New Oil
Rapidly pump jack handle 6
to 8 strokes to release any
pressurized air.
Using a good grade of SAE
5W hydraulic jack oil, ll
the reservoir to the
bottom of the threads in
the oil ll hole. Replace
and tighten oil ll plug.
Do not allow dirt and
debris to enter the system.
IMPORTANT: When adding or replacing oil, ALWAYS use a
good grade of (SAE 5W) hydraulic jack oil. NEVER use brake
uid, alcohol, glycerin, detergent motor oil or dirty oil of any
kind. Improper oil usage will cause serious internal damage to
jack.
LUBRICATION
1
Oil When Needed
Use a good grade of
lubricating oil on all moving
parts when needed (arm
linkages, front wheels and
rear casters).
WWW.HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.

8
Maintenance (Continued)
STORING
1
Place Saddle in the Lowest
Position
2
Store in a Level Position
When jack is not in use, or
when storing the jack,
ALWAYS have the saddle in
its lowest (down) position.
It is
recommended
the jack be
stored in a dry
location with all
wheels touching the
ground on a relatively
level position.
RUST PREVENTION
Check ram and pump piston every two months (or sooner, based on usage) for any signs of rust or
corrosion. Clean as needed and wipe down with an oil cloth.
Troubleshootin
g
Problem Solution
Jack will not lift to full
height
Make sure nothing is obstructing
the stem.
Clear out debris.
Jack will not hold load Check the locking pin and release
handle to make sure they are
functioning properly.
Call customer service.
Lift arm will not lower Check the locking pin and release
handle to make sure they are
functioning properly.
Call customer service.

Questions, problems, missing parts?
Before returning to the store,
call Husky Customer Service
8 a.m.-6 p.m., EST, Monday-Friday
1-888-HD-HUSKY
WWW.HUSKYTOOLS.COM
Retain this manual for future use.
X0000000000-A
