4

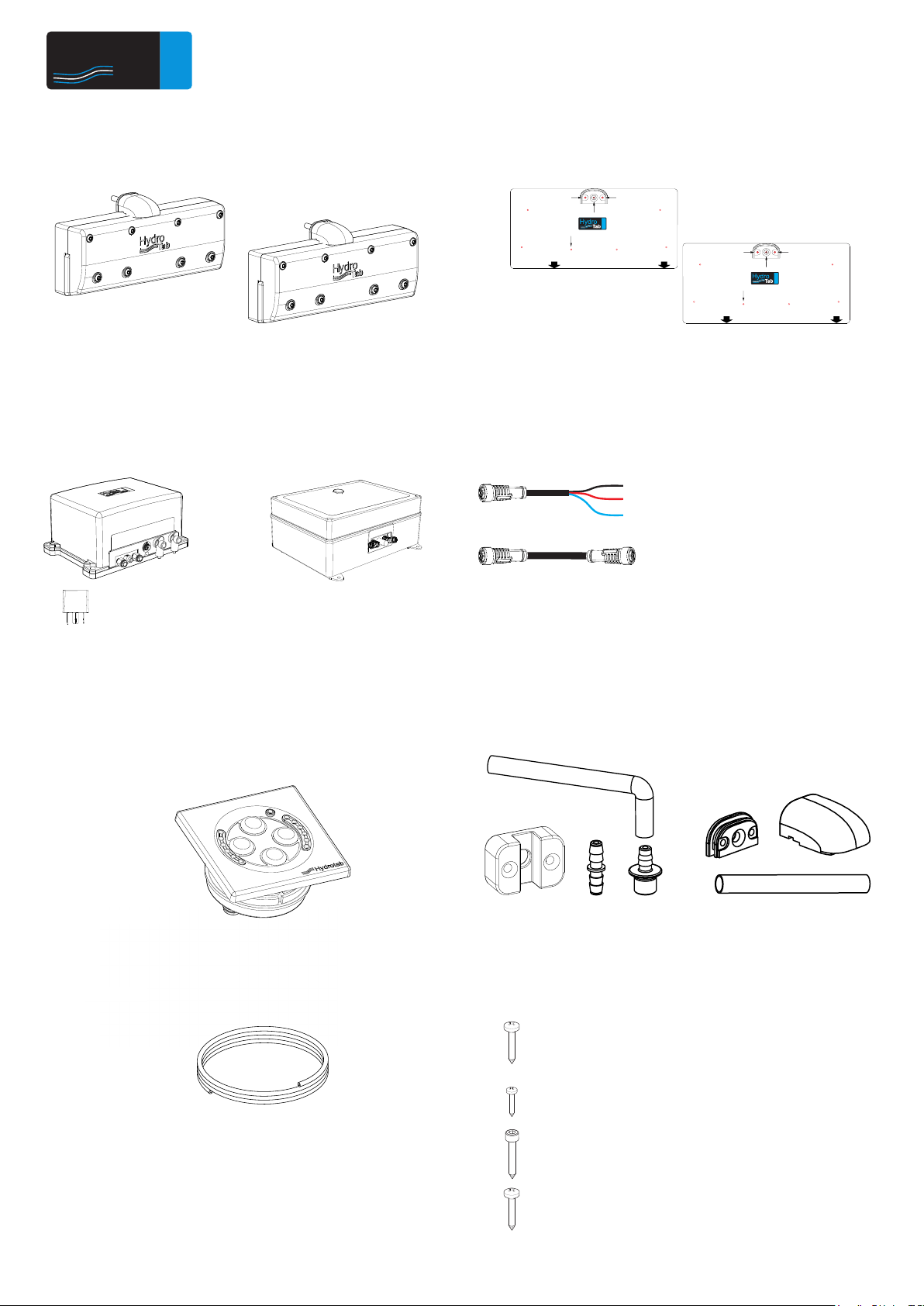

Installation Kit
1. Two interceptors 2. Two interceptor drilling patterns
Lower edge of the trim unit
Κάτω μέρος του φλαπ
Lower edge of the hull
Άκρη γάστρας
Use drill &5,5mm x 6holes
Χρησιμοποιήστε τρυπάνι &5,5mm x 6 τρύπες
SR300
Use drill Ø8.5mm
Χρησιμοποιήστε τρυπάνι Ø8.5mm
Use drill Ø4mm
Χρησιμοποιήστε τρυπάνι Ø4mm
Use drill Ø4mm
Χρησιμοποιήστε τρυπάνι Ø4mm
Lower edge of the trim unit
Κάτω μέρος του φλαπ
Lower edge of the hull
Άκρη γάστρας
Use drill &5,5mm x 6holes
Χρησιμοποιήστε τρυπάνι &5,5mm x 6 τρύπες
SR300
Use drill Ø8.5mm
Χρησιμοποιήστε τρυπάνι Ø8.5mm
Use drill Ø4mm
Χρησιμοποιήστε τρυπάνι Ø4mm
Use drill Ø4mm
Χρησιμοποιήστε τρυπάνι Ø4mm
RELAY
24V
Extra 24V Relay
on single head
air unit only
4. Cables
3m-supply cable - Female
10m Female-Female
8. Screws
Air Unit wall mounting screws (4,8x25)
Fitting mounting screws (4,8x25)
3DHC controller mounting screws (3,5x13)
Interceptor mounting screws (6,3x32)
6. Fittings
+
-
E (Ignition)
7. Pipe 8mm
5. 3DHC Controller
9 to 30 VDC panel with position indicators
3. One Hydrotab AIR unit 12 OR 24VDC

Hydro
Tab
Marine Engineering
5

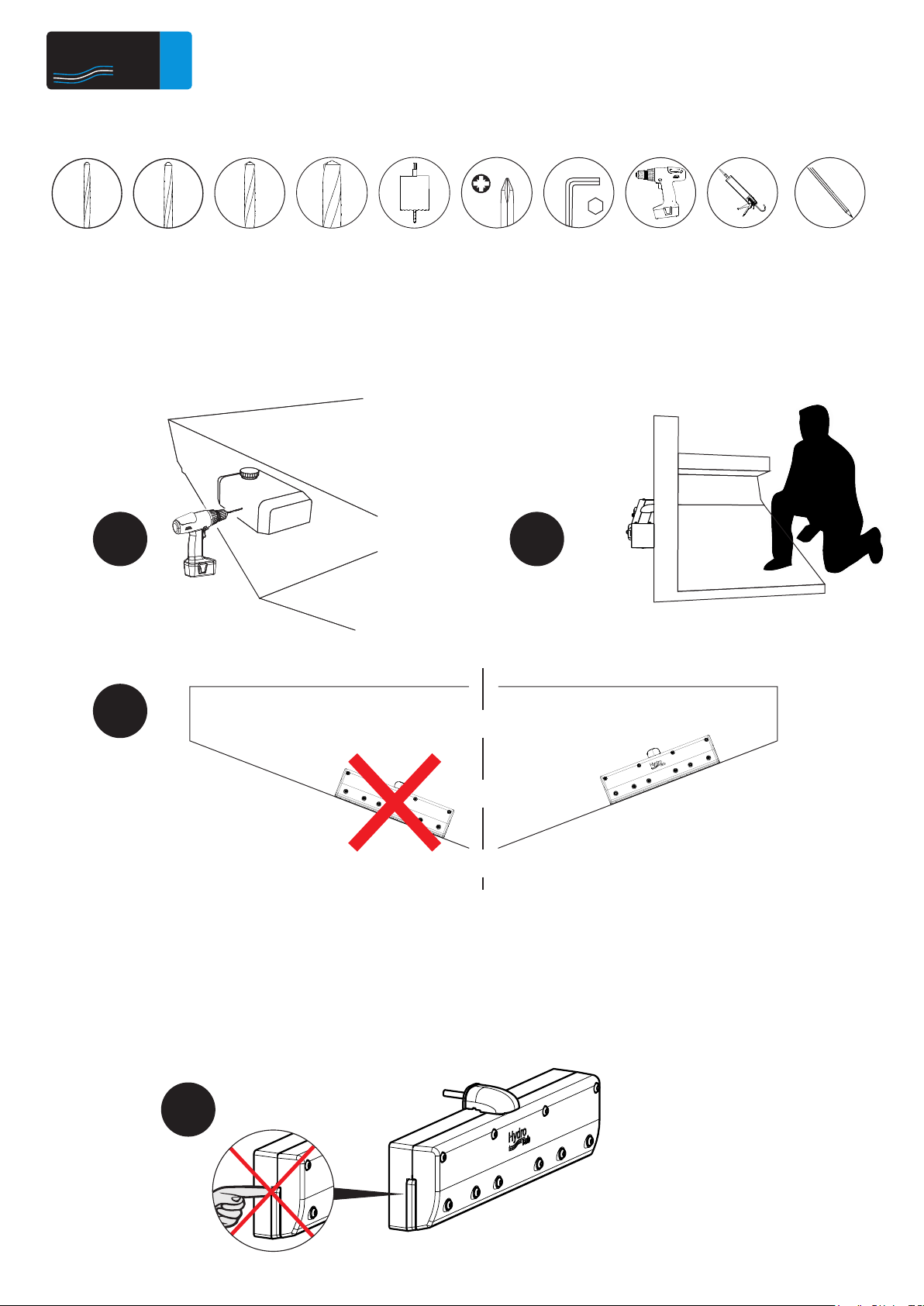

1. For high speed boats, overtrim may cause unexpectable turn. Improper use of trim tabs, may result to
accident or injury.
2. DO NOT PLACE YOUR FINGERS ON THE SIDES OF THE INTERCEPTORS (Figure 4). Severe injury danger!!!
2
1
3Right
Wrong
Drill Ø4 Drill Ø8,5
Drill Ø5,5
Drill Ø3
5mm
Allen Key No 5Screwdriver Drilling tool
Safety precautions
WARNING!
4
Required Tools for Installation
Sikaflex gun Marking tool
(pencil or marker)
Make sure there are no obstructions behind the
drilling area (tanks, fuel lines, cabling) which can
be damaged or prevent the installation (Figure 1).
Before Installation
Attention! Please make sure that the pipe
insertion hole is accessible from the engine room
(Figure 2).
A good hint is that the closer the units are to the water line, the best the bank control of the boat will be
(Figure 3).
Hole Saw Ø67
If there is a double installation on the boat please
allow a 18 to 20 mm space between them (Figure

Hydro
Tab
Marine Engineering
6
Right
Transom
Interceptor
Proper interceptor installation in transom
For maximum performance and less drag, install interceptors on the transom so blades deploy vertically.
If transom is not vertical to water plane, correct the angle by using wedges or other means.
If the boat's transom has a significant curvature, it is necessary to create a flat plane for the installation
(acceptable flatness tolerance: 2mm).
Optimal Less performance Correct angle
More drag
wedge
Interceptor
Transom Wrong
For aluminum hulls, it is suggested Isolation Plates between hull and interceptors to be installed. You can
find installation instructions in the Isolation Plates Kit.

Hydro
Tab
Marine Engineering
7
Interceptor Installation
6
You will need
No 4 No 8,5
No 5,5
Lower edge of the trim unit
Κάτω μέρος του φλαπ
Lower edge of the hull
Άκρη γάστρας
Use drill Ø5,5mm x 10holes
Χρησιμοποιήστε τρυπάνι Ø5,5mm x 10 τρύπες
SR450
Use drill Ø8.5mm
Χρησιμοποιήστε τρυπάνι Ø8.5mm
Use drill Ø4mm
Χρησιμοποιήστε τρυπάνι Ø4mm
Use drill Ø4mm
Χρησιμοποιήστε τρυπάνι Ø4mm

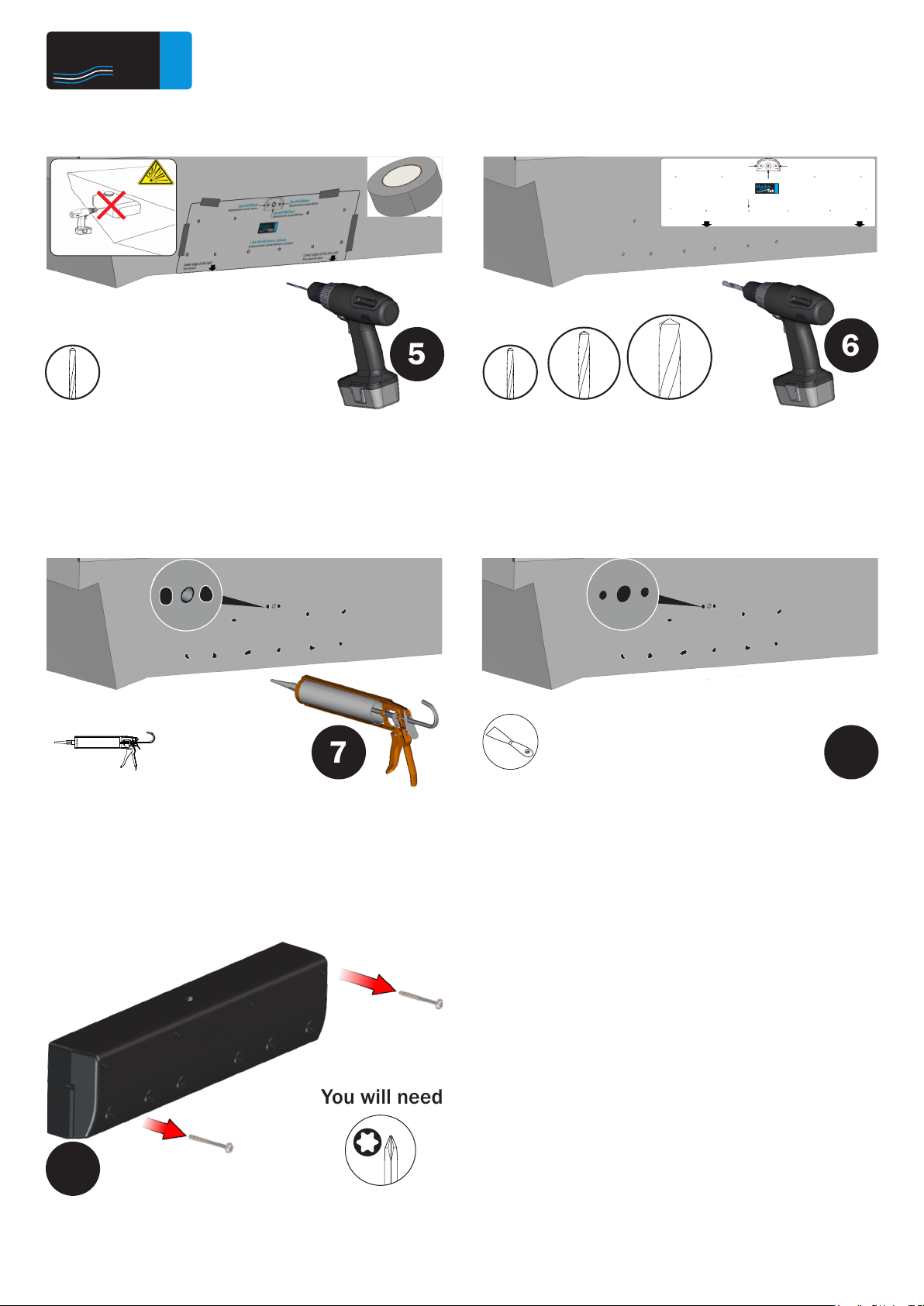

Remove the pattern and drill according to the
pattern indications.
5
Tape
Drill all the pattern holes with a 3mm bore without
removing the pattern.
You will need
No 3
7
Apply sealant Sikaflex 291 to the holes.
You will need
Sikaflex Gun
8
Use a spatula to clean the excessive glue from the
holes.
You will need
Spatula
9
Remove the screws and open the interceptor.
You will need
Torx T30

Hydro
Tab
Marine Engineering
8
Mount the pipe into the drilled hole.
M4,8x25
13
Mount the cap base to the transom.
M6,3x32
5mm
Allen Key No 5
Mount the interceptor to the transom.
14
Apply Sikaflex to the interceptor.
You will need
Sikaflex Gun
11
10 For Direct Air Supply: Advise the instructions.
For Indirect Air Supply: Use the components included in the kit.
Direct air supply Optional:
Indirect Air Supply Kit
Mount the front cap and tighten the screws.
16
Mount the cap.
15
12

Hydro
Tab
Marine Engineering
99
Interceptor Installation (indirect air supply)
In case of indirect air supply, you can use the components included in the kit as shown
in the image.
WARNING: DO NOT MOUNT
the Air Unit upside-down

Hydro
Tab
Marine Engineering
10
Connect the push-in fitting
After you install the hose through the
transom, mount the air fitting into the hose.
!
5
Air Unit Installation
4
Pneumatic Connection
Cut the 8mm
pipe at the
proper length
and connect it
to the Air Unit
3

Hydro
Tab
Marine Engineering
11

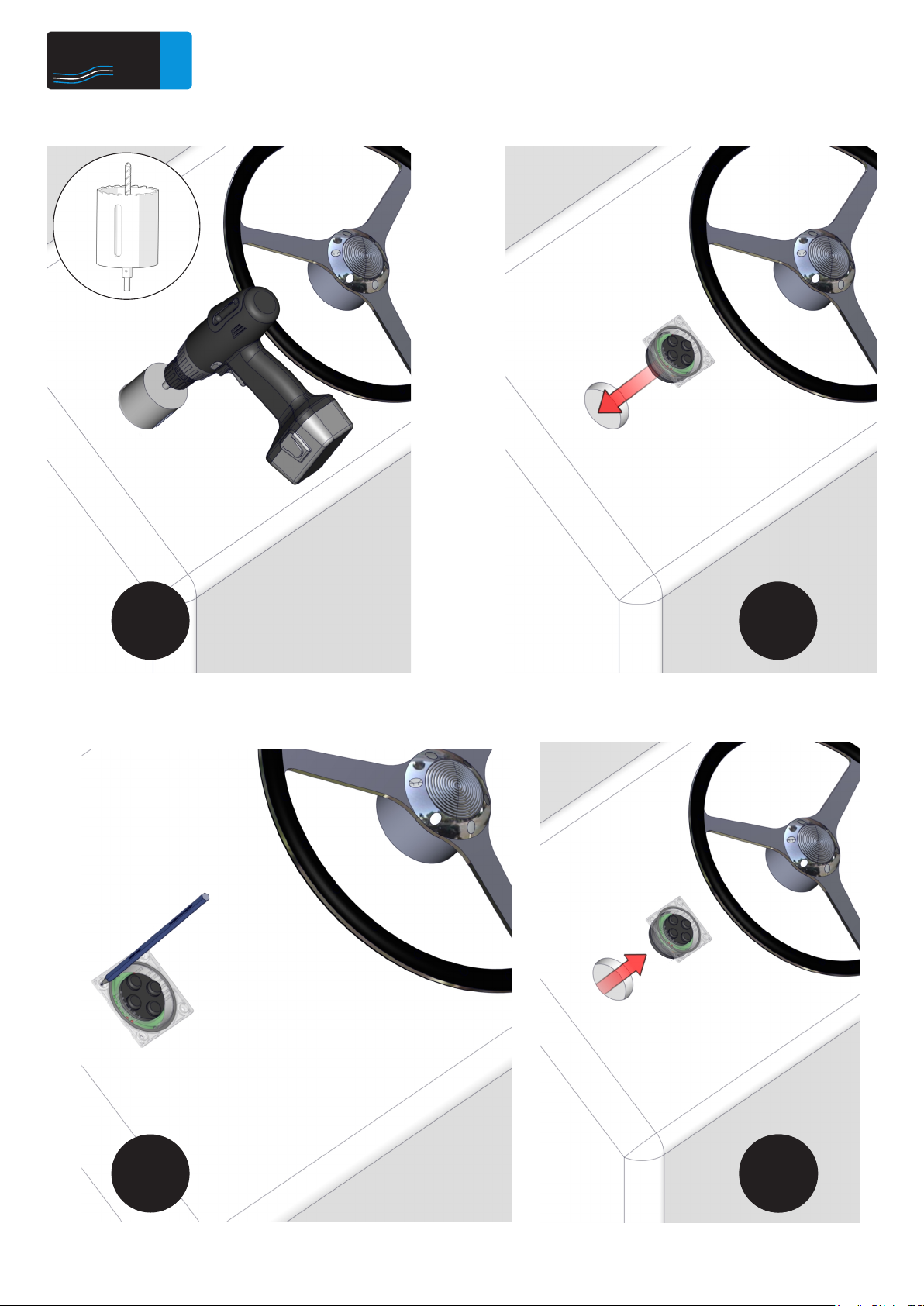

3DHC Controller Installation
3
Use a 67mm
hole saw drill
1 2
2
4

Hydro
Tab
Marine Engineering
12
3DHC Controller Installation
3
5 6
78
M3,5x13
Ignition switch signal
When there is no voltage
from the ignition, the
controller does not work.

Hydro
Tab
Marine Engineering
13
*Advice the fusing table and
ensure that you apply the right fuse
according to your boat’s voltage.
Attention!
In order to start the controller, **
the E wire must be connected to
the “ON” Ignition Switch contact.

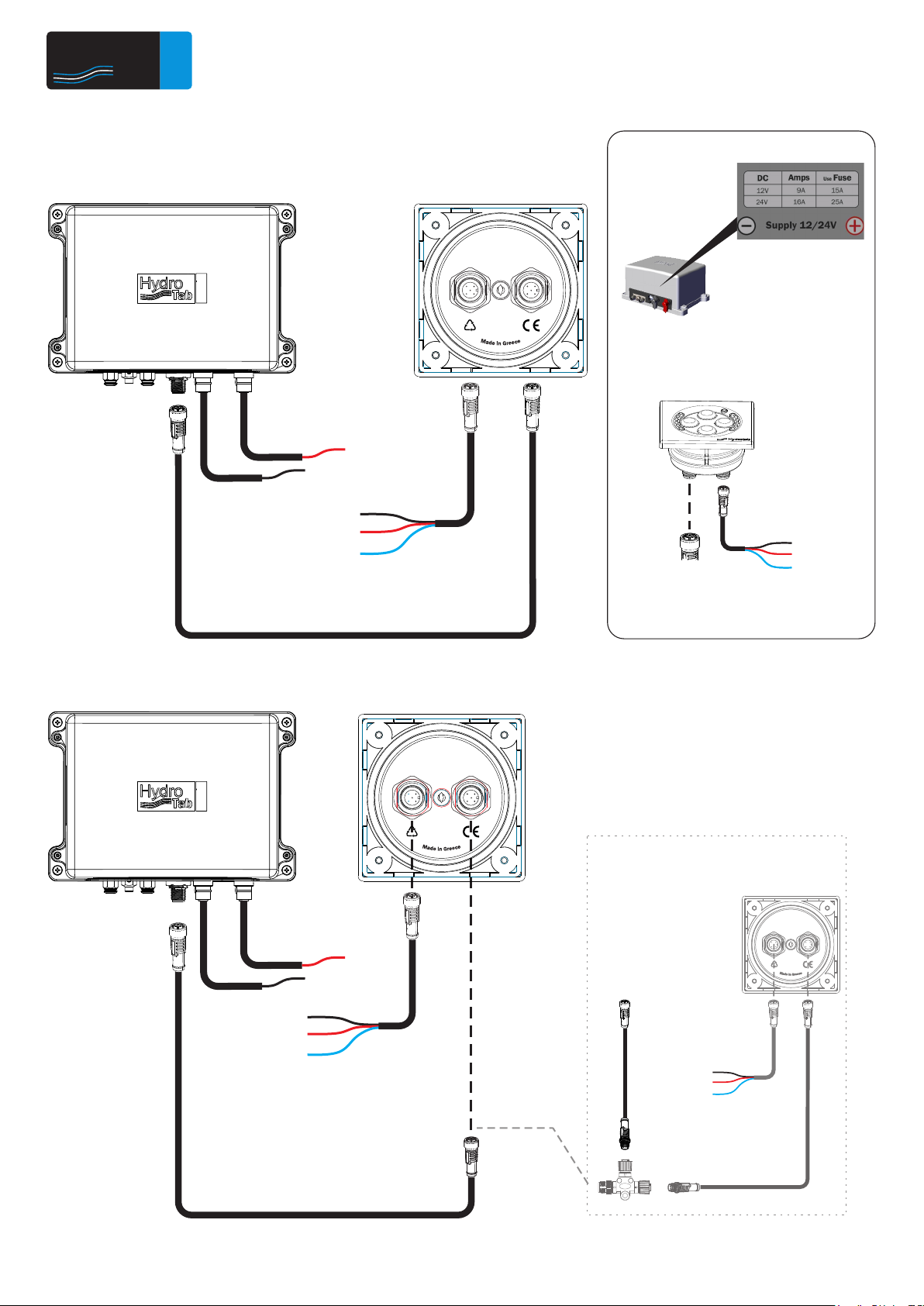

Installation Schematic overview - Single Compressor Air
Unit with One 3DHC Controller
Installation Schematic overview - Single Compressor Air Unit With Two 3DHC Controllers
+
-
+
-
(Ignition)
E
(Fuse 3A)
FLYBRIDGE OPTIONAL
Controller Kit
(ASM-01088)
9-32V DC
7
I/0 AIR
UNIT
CABLE
3m - F
+
-
E
(Ignition)
(Fuse 3A)
HELM CONTROLLER
+
-
CABLE
3m - F
9-32V DC
7
I/0 AIR
UNIT
E
(Ignition)
(Fuse 3A)
CABLE
10m - FF
CABLE
3m - MF
CABLE
10m - MF
CABLE
10m - FF
9-32V DC
7
I/0 AIR
UNIT
+
-
CABLE
3m - F
E
(Ignition)
(Fuse 3A)
+
-
+
-

Hydro
Tab
Marine Engineering
14
Attention!
In order to start the controller, **
the E wire must be connected to
the “ON” Ignition Switch contact.
Installation Schematic overview - Double Speed Air Unit with One 3DHC Controller
Installation Schematic overview - Double Speed Air Unit with Two 3DHC Controllers
CABLE
10m - FF
9-32V DC
7
I/0 AIR
UNIT
CABLE
3m - F
+
-
E
(Ignition)
(Fuse 3A)
+
-
+
-
(Ignition)
E
(Fuse 3A)
POWER
CABLE
+
-
(Fuse 40A)
HELM CONTROLLER
+
-
E
FLYBRIDGE OPTIONAL
Controller Kit
(ASM-01088)
CABLE
3m - MF
9-32V DC
7
I/0 AIR
UNIT
CABLE
3m - F
+
-
E
(Ignition)
(Fuse 3A)
CABLE
3m - F
(Ignition)
(Fuse 3A)
9-32V DC
7
I/0 AIR
UNIT
POWER
CABLE
+
-
(Fuse 40A)
CABLE
10m - FF
CABLE
10m - MF

Hydro
Tab
Marine Engineering
15
Hydro
Tab
Marine Engineering
The 3DHC Controller
The 3DHC controller operation
Interceptors operate when voltage comes from the ignition.
When there is no voltage from the ignition, system does not
work.
System Reset - Retracting
The system resets and interceptors retract automatically:
ŸOn Engine start
ŸOn Engine stop
ŸOn simultaneously pressing the UP + DOWN buttons for
1 second.
Note: During reset process controller LEDs are flashing.
Night and day mode
T h e i n d i c a t i on b r i g h t n e s s c h an ge s by p r e s s i n g
simultaneously the buttons LEFT + RIGHT for 1 second.
Memory
Setting the desired trim angle
You may save the desired trim angle for the cruising speed.
Just manually adjust the position and then press
simultaneously any diagonal press buttons for about 3
seconds. This position of trim tabs is stored in 3DHC
memory and the power-on led is flashing to confirm the
setting.
Whenever the user presses instantaneously two diagonal
press buttons, the trim tabs get the preset position.
The saved position is stored even after switching off the
main switch of the boat.
Maintenance
Check connectors for corrosion or liquid pollution.
Check in regular intervals the condition of the sacrifice
anodes. Below 50% in volume, anodes must be replaced.
When the boat is out of the water (end of season):
a. extend the blades
b. spread the decalcifying liquid with a brush
c. let it for 15-20 min
d. wash out with clean water
e. retract the blades
Every two years remove the cover and clean the inside of
the units, using water pressure.
Every three years check the springs condition.
Bow
Down
Up
Bow Down
Bow Up
Right
Left
Malfunction indication
BLINKI NG LED MALFUNCTION
1st green on the left Left Interceptor does not return
1st green on the right Right Interceptor does not return
2nd green on the left Left Interceptor does not extend
2nd green on the right Right Interceptor does not extend

Hydro
Tab
Marine Engineering
16
EMERGENCY RETRACTING
Press the A + C buttons simultaneously for 1 second.
C
A
BD
NIGHT AND DAY MODE
The indication brightness changes by pressing
simultaneously the B + D buttons for 1 second.
C
A
D B
INTERCEPTOR POSITION MEMORY
Press B + C buttons simultaneously until the red led E
blinks, to save the interceptor position in the memory.
Next time you press B + C simultaneously for 1 second,
the interceptors will be extended automatically in the
previous memorized position.
If you save a new position in memory, automatically
the previous position is cancelled.
C
A
BD
E
The 3DHC Controller Functions

Hydro
Tab
Marine Engineering
17
The controllers included in packaging, are pre-adjusted.
The instructions of this page must be executed only by authorised technicians and only in case of:
Ÿ Controller replacement with a new one after failure
ŸInstallation of a secondary controller that does not included in the initial set (Flybridge)
320BT
3DHC Controller Adaptation
640BT - 800BT - 960BT480BT
To open the 3DHC Controller
Remove the screw Find the switch and adjust as shown below
1 2

Hydro
Tab
Marine Engineering
18
Electrical Diagram
C1 C2 C3 C4
Battery
R43
AIR Unit (ASM-01051)
Compressor
(PNE-01107)
M
WARNING!
Advice the fusing table and
ensure that you apply the
right fuse according to your
boat’s voltage.
5-pole Male
Connector
DISTAN CE FROM BATTERY C ABLE SIZE
up to 2.5m 2 x 2.5mm
up to 4m 2 x 4mm
up to 6m 2 x 6mm
up to 10m 2 x 10mm
AIR UN IT POW ER C ABLE SIZE
ATTENTION!
To avoid voltage drop use the right cable size.
SY MBOL PART N o DESCRIPTION
C1 PNE-00017 VALVE COIL
C2 PNE-00017 VALVE COIL
C3 PNE-00017 VALVE COIL
C4 PNE-00017 VALVE COIL
R43 RELAY 12 OR 24V

Hydro
Tab
Marine Engineering
19
VALVE GROUP
Pneumatic Diagram
Compressor
(PNE-01208)
Exhaust
(REV-00305)
C1 C2 C3 C4
SYMBOL
PART No
DESCRIPTION
NOTES
C1
PNE-00017
COIL
STARBOARD RETRACT
C2
PNE-00017
COIL
STARBOARD EXTEND
C3
PNE-00017
COIL
PORT RETRACT
C4
PNE-00017
COIL
PORT EXTEND

Hydro
Tab
Marine Engineering
#
Spare parts list MOD: 300SR (ASM-01269)
1
9
13
3
14
8
12
20
2
BOM ID PartNo Description QTY.
1GEN-00506 SR300 BACK BODY 1
2GEN-00508 SR300 FRONT COVER 1
3GEN-00507 SR300 BLADE 1
8FAS-02549 SCREW 6,1x48(23) 8
9SPR-00037 SPRING 4
BOM ID PartNo Description QTY.
12 GEN-00305 FITTING COVER 1
13 GEN-00306 FITTING COVER FLANGE 1
14 PNE-01215 DIRECT AIR SUPPLY PIPE 1
20 ASM-01268 SR300 TUBULAR ASSEMBLY 1
