SR Series & Rocker Switches Installation - Operation Manual
Hydro
Tab
Marine Engineering

2
Hydro
Tab
Marine Engineering
Disclaimer
The interceptor units are also steering
equipment and it is the sole responsibility of
the navigator-operator to ensure that, at any
point, any problem that will alter the boat's
course, rising from malfunction of
interceptors, should be dealt immediately by
the operator. At no circumstances, fault of our
interceptor equipment leading to any kind of
accident, creates liability for the
manufacturer.
Trademark Notice
Hydrotab is a registered trademark of Olympic
Engineering Ltd, Greece. All other trademarks,
trade names or company names referenced
herein are used for identification only and are
property of their respective owners.
Patent Notice
The Hydrotab products are protected by
patents and industrial design patents, patents
pending or design patents pending.
Declaration of conformity
This product conforms to the following
Electromagnetic Compatibility (EMC)
regulations and standards for use in marine
environments.
CE EN 60945
Technical information and
Documentation
The technical information provided in this
document was accurate and correct at the
corresponding production time of the
Hydrotab interceptors. Our operating principal
for improving the manufactured product, may
lead to changes regarding its specifications
without prior notice. Liability will not be
accepted for any inaccuracy considering the
product and the user manual.
Fair use statement
This manual can be printed or copied for your
own use only. Copies should not be provided
to third parties and manual should not be
commercialized.
Product Disposal
Waste removal of this product must be
according to the Waste Electrical and
Electronic Equipment (WEEE) Directive.
Product Registration
Please register your product online in order
the warranty to be valid.

3
Hydro
Tab
Marine Engineering
TABLE OF CONTENTS
Disclaimer
2
Installation Kit
4
Required Tools for Installation
5
Before Installation
5
Safety precautions
5
Proper Interceptor Installation in Transom
6
Interceptor Installation
7
Interceptor Installation (Indirect Air Supply)
9
Air Unit Installation
9
Installation Schematic overview (One Set of Rocker Switches)
11
Installation Schematic overview (Two Sets of Rocker Switches)
11
Air Unit Electrical Diagram
12
Air Unit Pneumatic Diagram
13
Spare Parts List - Model: 300SR (ASM-01269)
14
Spare Parts List - Model: 450SR (ASM-01285)
15
Spare Parts List - Air Unit (ASM-01051)
16
Troubleshooting
17
Warranty Conditions
18

4
Hydro
Tab
Marine Engineering

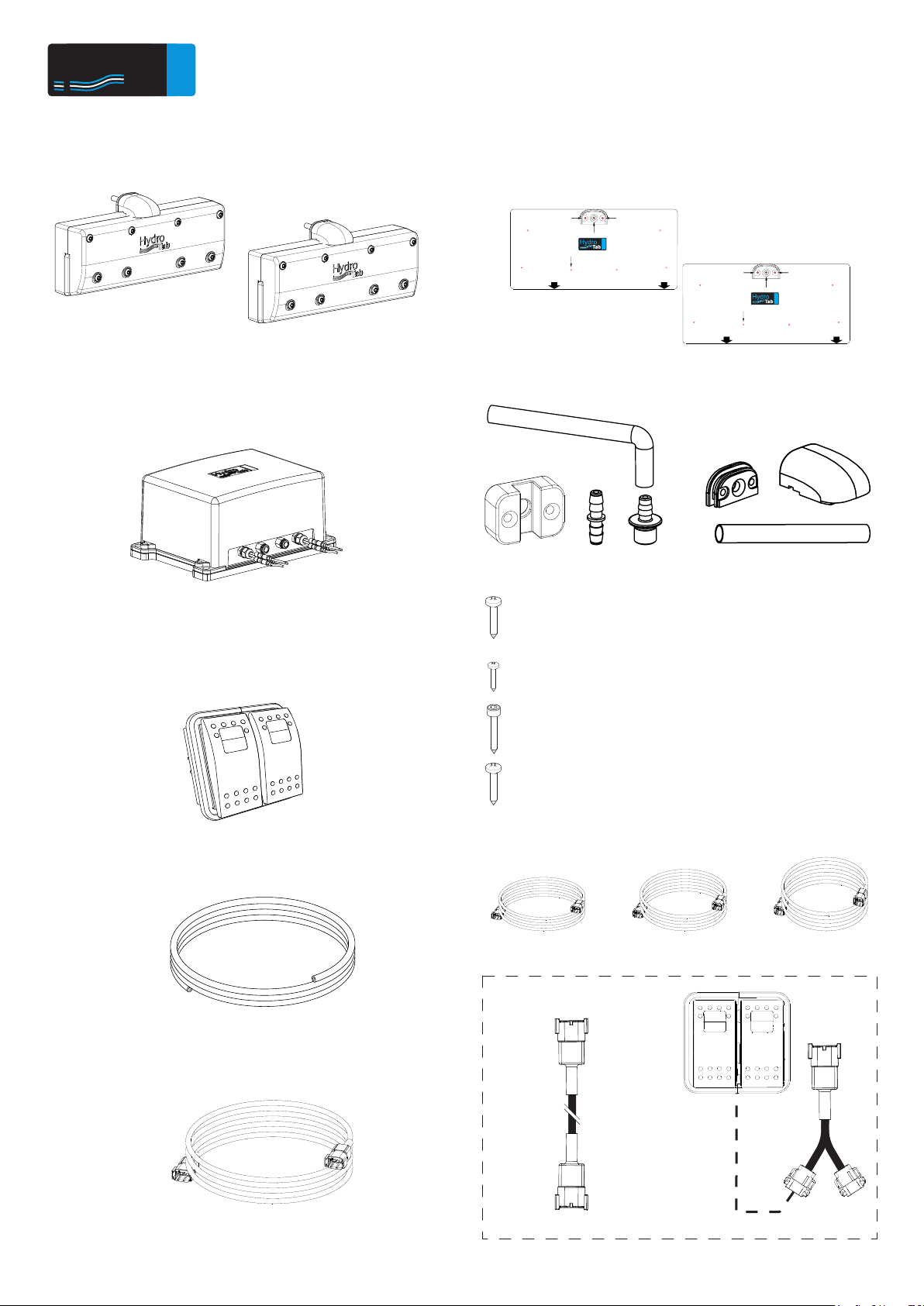

Installation Kit
1. Two interceptors
2. 12V Air Unit
4. Pipe 8mm
8. Screws
7. Fittings
Optional controller
Y Connector
1X 10m
Air Unit wall mounting screws (4,8x25)
Fitting mounting screws (4,8x25)
3DHC controller mounting screws (3,5x13)
Interceptor mounting screws (6,3x32)
Optional cables
20m 30m 40m
5. Connection cable
10m
Lower edge of the trim unit
Κάτω μέρος του φλαπ
Lower edge of the hull
Άκρη γάστρας
Use drill &5,5mm x 6holes
Χρησιμοποιήστε τρυπάνι &5,5mm x 6 τρύπες
SR300
Use drill Ø8.5mm
Χρησιμοποιήστε τρυπάνι Ø8.5mm
Use drill Ø4mm
Χρησιμοποιήστε τρυπάνι Ø4mm
Use drill Ø4mm
Χρησιμοποιήστε τρυπάνι Ø4mm
Lower edge of the trim unit
Κάτω μέρος του φλαπ
Lower edge of the hull
Άκρη γάστρας
Use drill &5,5mm x 6holes
Χρησιμοποιήστε τρυπάνι &5,5mm x 6 τρύπες
SR300
Use drill Ø8.5mm
Χρησιμοποιήστε τρυπάνι Ø8.5mm
Use drill Ø4mm
Χρησιμοποιήστε τρυπάνι Ø4mm
Use drill Ø4mm
Χρησιμοποιήστε τρυπάνι Ø4mm
Hydro
Tab
Marine Engineering
6. Two drilling patterns
3. Rocker Switches

5
Hydro
Tab
Marine Engineering
Electric saw
Drill Ø4 Drill Ø8,5
Drill Ø5,5
Drill Ø3
5mm
Allen Key No 5Screwdriver Drilling tool
Required Tools for Installation
Sikaflex gun Marking tool
(pencil or marker)
Before Installation
1. For high speed boats, overtrim may cause unexpectable turn. Improper use of trim tabs, may result to
accident or injury.
2. DO NOT PLACE YOUR FINGERS ON THE SIDES OF THE INTERCEPTORS (Figure 4). Severe injury danger!!!
Safety precautions
WARNING!
2
1
3Right
Wrong
1. For high speed boats, overtrim may cause unexpectable turn. Improper use of trim tabs, may result to
accident or injury.
2. DO NOT PLACE YOUR FINGERS ON THE SIDES OF THE INTERCEPTORS (Figure 4). Severe injury danger!!!
Safety precautions
WARNING!
4
A good hint is that the closer the units are to the water line, the best the bank control of the boat will be
(Figure 3).
Attention! Please make sure that the pipe
insertion hole is accessible from the engine room
(Figure 2).
Make sure there are no obstructions behind the
drilling area (tanks, fuel lines, cabling) which can
be damaged or prevent the installation (Figure 1).
If there is a double installation on the boat please
allow a 18 to 20 mm space between them (Figure
4).

6
Hydro
Tab
Marine Engineering
Right
Transom
Interceptor
Proper interceptor installation in transom
For maximum performance and less drag, install interceptors on the transom so blades deploy vertically.
If transom is not vertical to water plane, correct the angle by using wedges or other means.
If the boat's transom has a significant curvature, it is necessary to create a flat plane for the installation
(acceptable flatness tolerance: 2mm).
Optimal Less performance Correct angle
More drag
wedge
Interceptor
Transom Wrong
For aluminum hulls, it is suggested Isolation Plates between hull and interceptors to be installed. You can
find installation instructions in the Isolation Plates Kit.

7
Hydro
Tab
Marine Engineering
Interceptor Installation
6
You will need
No 4 No 8,5
No 5,5
Lower edge of the trim unit
Κάτω μέρος του φλαπ
Lower edge of the hull
Άκρη γάστρας
Use drill Ø5,5mm x 10holes
Χρησιμοποιήστε τρυπάνι Ø5,5mm x 10 τρύπες
SR450
Use drill Ø8.5mm
Χρησιμοποιήστε τρυπάνι Ø8.5mm
Use drill Ø4mm
Χρησιμοποιήστε τρυπάνι Ø4mm
Use drill Ø4mm
Χρησιμοποιήστε τρυπάνι Ø4mm
Remove the pattern and drill according to the
pattern indications.
5
Tape
Drill all the pattern holes with a 3mm bore without
removing the pattern.
You will need
No 3
7
Apply sealant Sikaflex 291 to the holes.
You will need
Sikaflex Gun
8
Use a spatula to clean the excessive glue from the
holes.
You will need
Spatula
9For Direct Air Supply: Advise the instructions.
For Indirect Air Supply: Use the components included in the kit.
Direct air supply Optional:
Indirect Air Supply Kit

8
Hydro
Tab
Marine Engineering
Interceptor Installation
11
Mount the pipe into the drilled hole.
10
Apply Sikaflex to the interceptor.
You will need
Sikaflex Gun
M4,8x25
12
Mount the cap base to the transom. Mount the interceptor to the transom.
13M6,3x32
5mm
Allen Key No 5
Mount the front cap and tighten the screws.
14
Mount the protection cap.
15

9
Hydro
Tab
Marine Engineering
Interceptor Installation (indirect air supply)
In case of indirect air supply, you can use the components included in the kit as shown
in the image.

10
Hydro
Tab
Marine Engineering
Connect the push-in fitting
After you install the hose through the
transom, mount the air fitting into the hose.
!
5

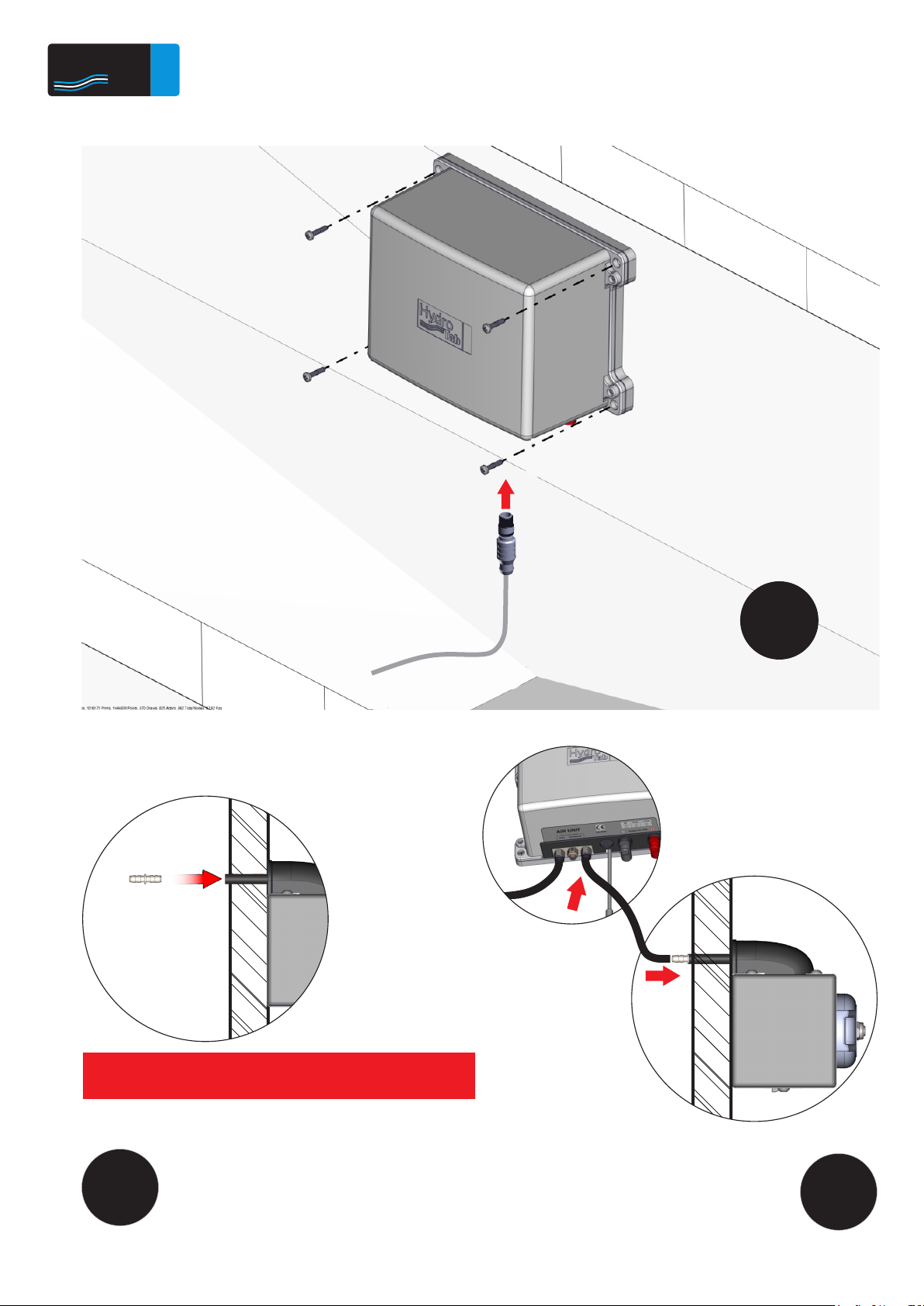

Air Unit Installation
4
Pneumatic Connection
Cut the 8mm
pipe at the
proper length
and connect it
to the Air Unit
3

11
Hydro
Tab
Marine Engineering

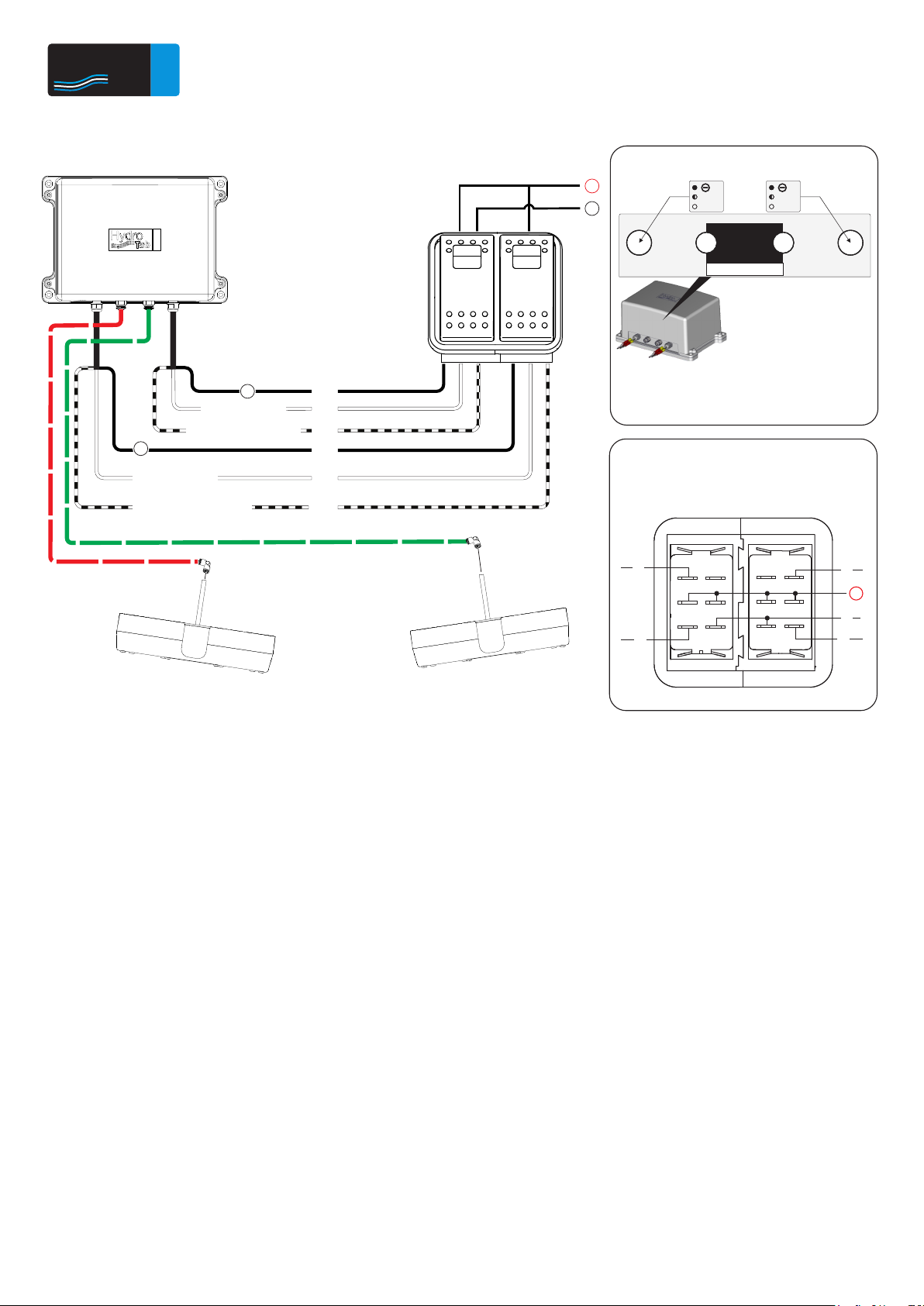

Installation Schematic overview (One Set of Rocker Switches)
BACK VIEW
5
4
2
RIGHT LEFT
+
3
Rocker Switches Panel
Wiring Diagram
1
-
Fuse 10A
Retract (white wire)
Retract (white wire)
-Extend (black & white wire)
Extend (black & white wire)
+
-
*Advice the fusing table and
ensure that you apply the right fuse
according to your boat’s voltage.
Attention!
Made in Greece
12VDC FUSE 10A
PORT STBD
AIR UNIT
ECO
Extend
Retract
Extend
Retract

12
Hydro
Tab
Marine Engineering
Electrical Diagram
AIR Unit
Battery
F1
C1 C2
M
Compressor
M
Compressor
Extend
(black and white wire)
Retract
(white wire)
Retract
(white wire)
Extend
(black and white wire)
*Advice the fusing table and
ensure that you apply the right fuse
according to your boat’s voltage.
Attention!
Made in Greece
12VDC FUSE 10A
PORT STBD
AIR UNIT
ECO
Extend
Retract
Extend
Retract
SYMBOL PART No DESCRIPTION
C1 PNE-01231C VALVE COIL
C2 PNE-01231C VALVE COIL
C1
C2
Port Valve
Starboard Valve

13
Hydro
Tab
Marine Engineering

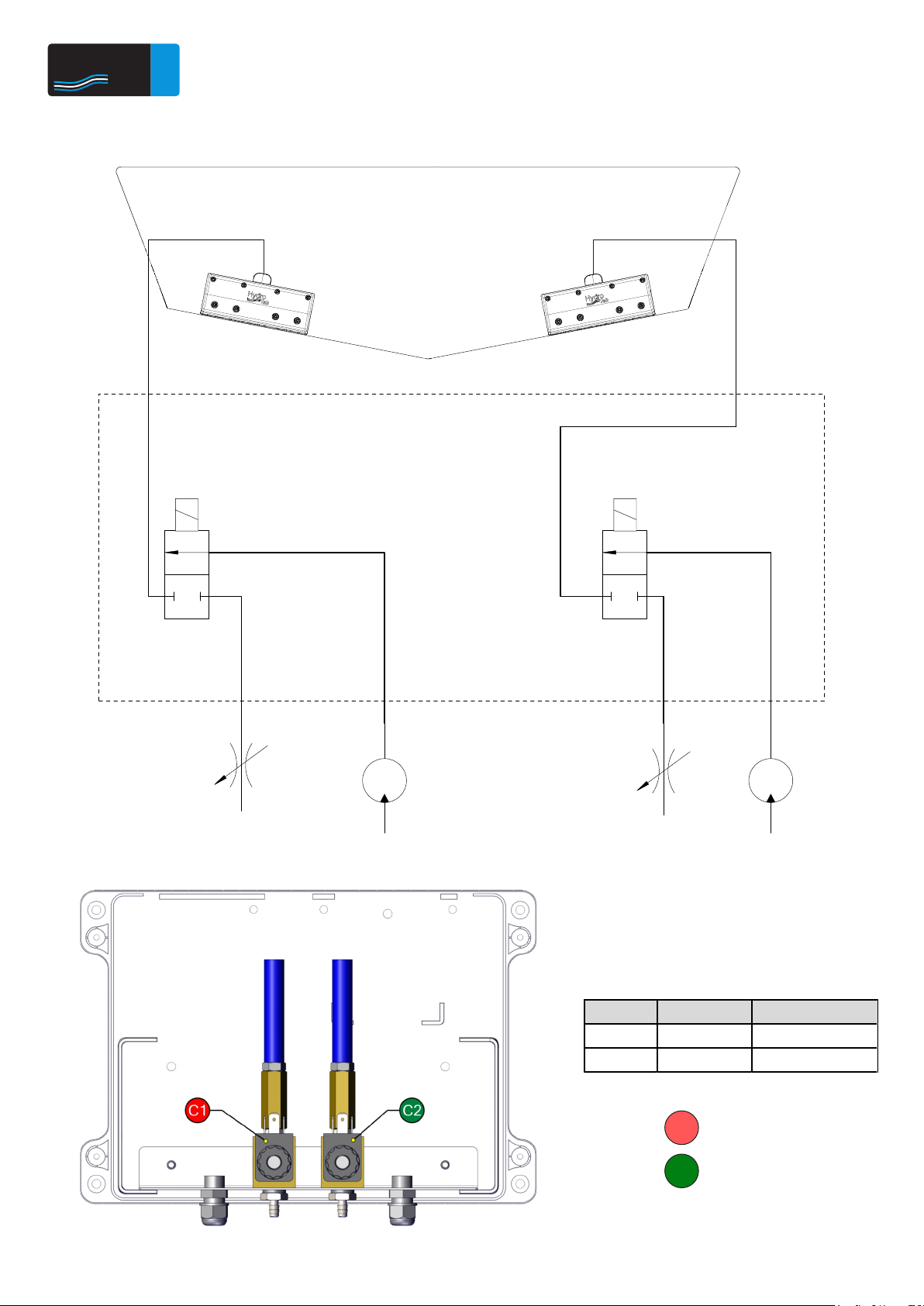

Pneumatic Diagram
Compressor
(PNE-01234)
VALVE GROUP
Exhaust Exhaust
Compressor
(PNE-01234)
C1 C2
SYMBOL PART No DESCRIPTION
C1 PNE-01231C VALVE COIL
C2 PNE-01231C VALVE COIL
C1
C2
Port Valve
Starboard Valve

#
Hydro
Tab
Marine Engineering

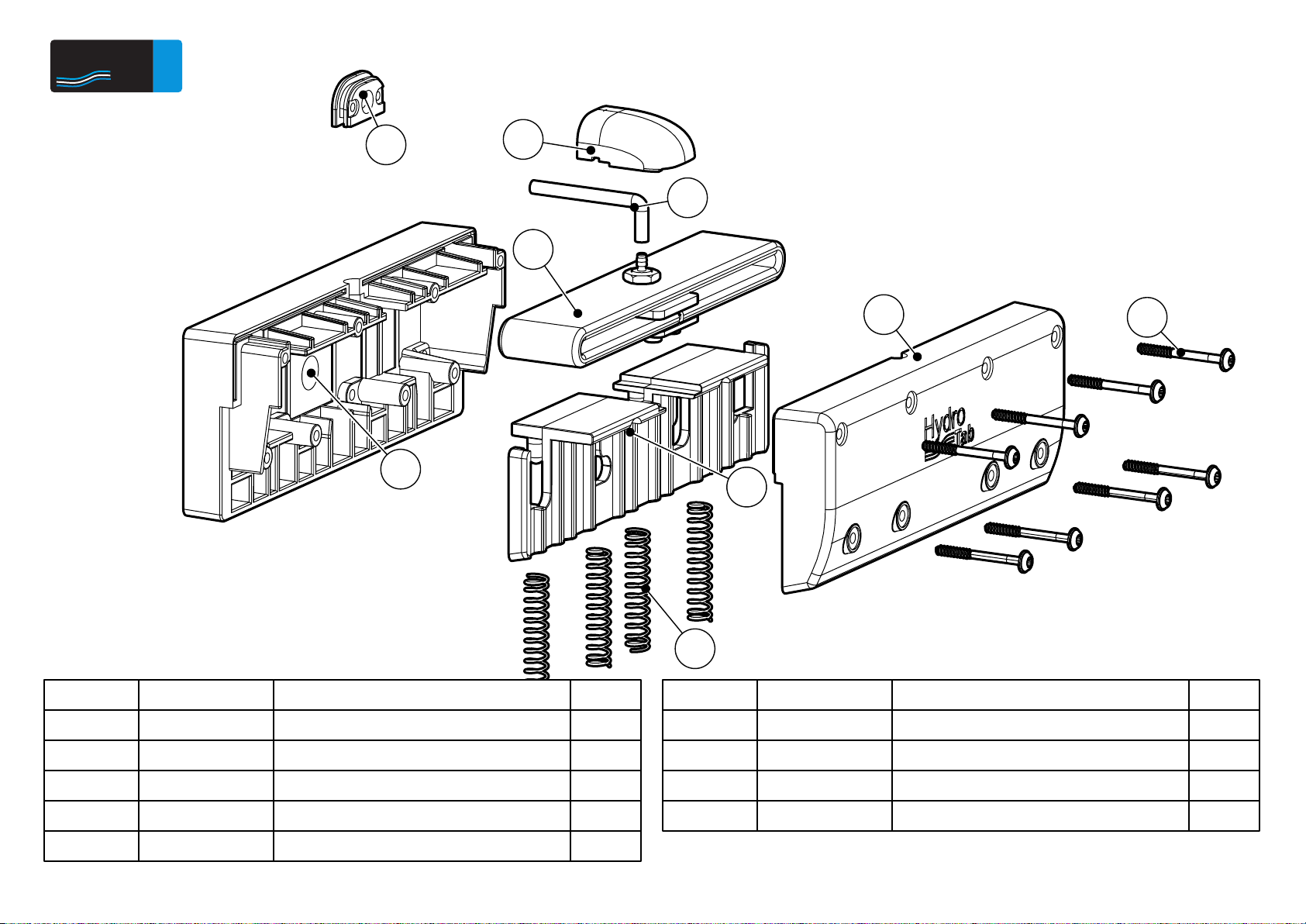

Spare parts list MOD: 300SR (ASM-01269)
1
9
13
3
14
8
12
20
2
BOM ID PartNo Description QTY.
1GEN-00506 SR300 BACK BODY 1
2GEN-00508 SR300 FRONT COVER 1
3GEN-00507 SR300 BLADE 1
8FAS-02549 SCREW 6,1x48(23) 8
9SPR-00037 SPRING 4
BOM ID PartNo Description QTY.
12 GEN-00305 FITTING COVER 1
13 GEN-00306 FITTING COVER FLANGE 1
14 PNE-01215 DIRECT AIR SUPPLY PIPE 1
20 ASM-01268 SR300 TUBULAR ASSEMBLY 1
Hydro
Tab
Marine Engineering

#
Hydro
Tab
Marine Engineering

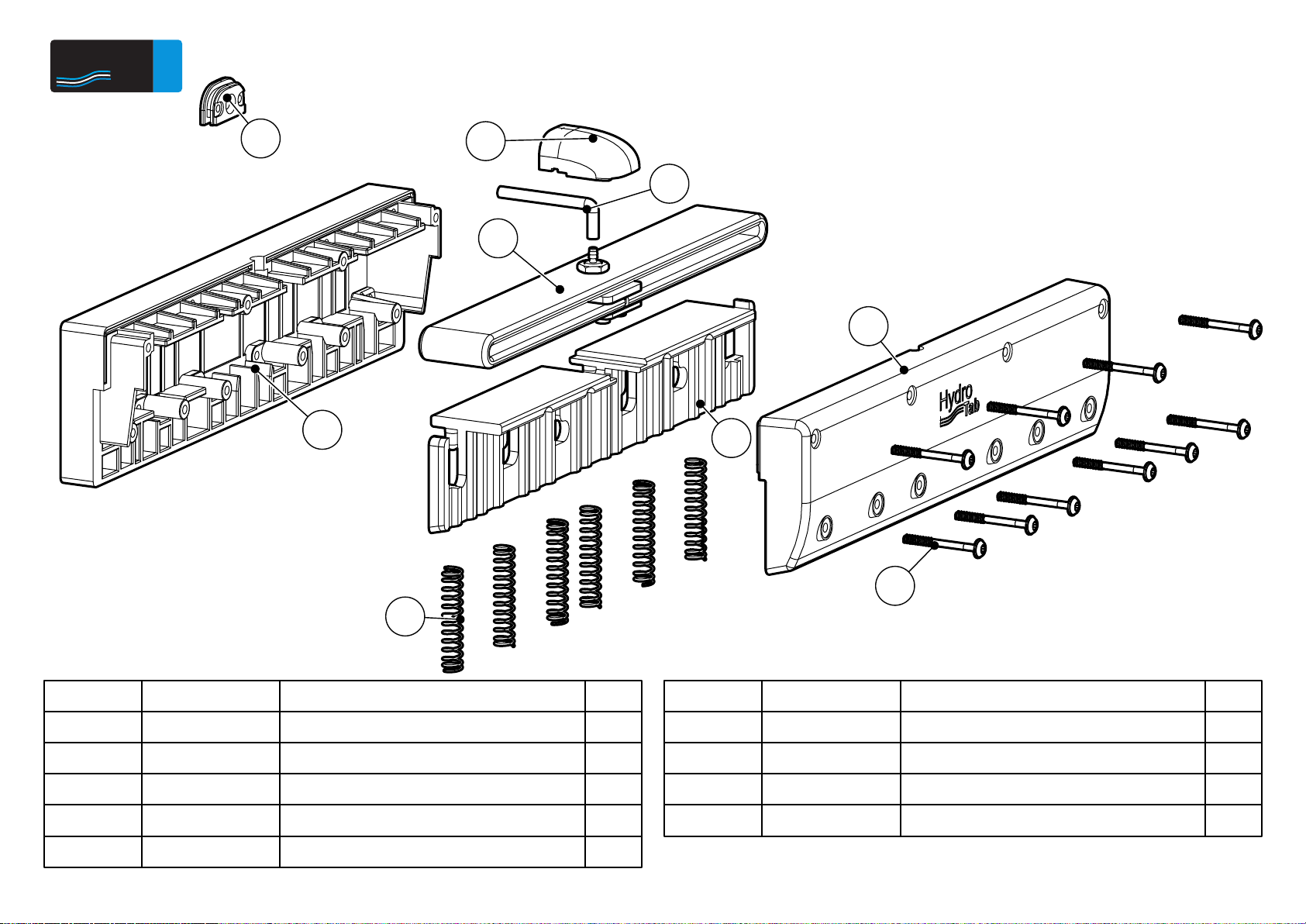

Spare parts list MOD: 450SR (ASM-01285)
13
13
20
14
12
9
2
8
BOM ID PartNo Description Qty
1GEN-00520 SR450 BACK BODY 1
2GEN-00522 SR450 FRONT COVER 1
3GEN-00521 SR450 BLADE 1
8FAS-02549 SCREW 6,1x48(23) 10
9SPR-00037 SPRING 6
BOM ID PartNo Description Qty
12 GEN-00305 FITTING COVER 1
13 GEN-00306 FITTING COVER FLANGE 1
14 PNE-01215 DIRECT AIR SUPPLY PIPE 1
20 ASM-01284 SR450 TUBULAR ASSEMBLY 1
Hydro
Tab
Marine Engineering

16
Hydro
Tab
Marine Engineering
Air Unit (ASM-01332-RB)
A
270 mm
B
196 mm
C
130 mm
A
CB
12
10
13
3
6
11
5
9
4
14
2
8
7
1
15
BOM ID PART NUMBER DESCRIPTION QTY.
1ELE-00703 CABLE GLAND P7 2
2GEN-00156 TOP COVER 1
3GEN-00157 BASE 1
4LAS-01257 HOLDING FLANGE 1
5PNE-00073 NIPPLE, TAPER, 1/8 (M) - 1/8 (M) 2
6PNE-00597 NON RETURN VALVE 1/8 (F) - 1/8 (F) 2
7PNE-00925 THREAD OPERATOR 2/2NC 2
8PNE-01113 COIL NUT 2
9PNE-01231 ELECTROPILOT 1/4" (PASS. Φ2) 2
10 PNE-01234 AIR COMPRESSOR AC 12V 2
11 PNE-01244 MALE HOSE ADAPTER 8-1/8 2
12 RUB-00164 MOTOR RUBBER SUPPORT 2
13 PNE-01250 PU TUBE 2
14 PNE-00721 WASHER, 1/8 2
15 REV-00588 FITTING 2

17
Hydro
Tab
Marine Engineering

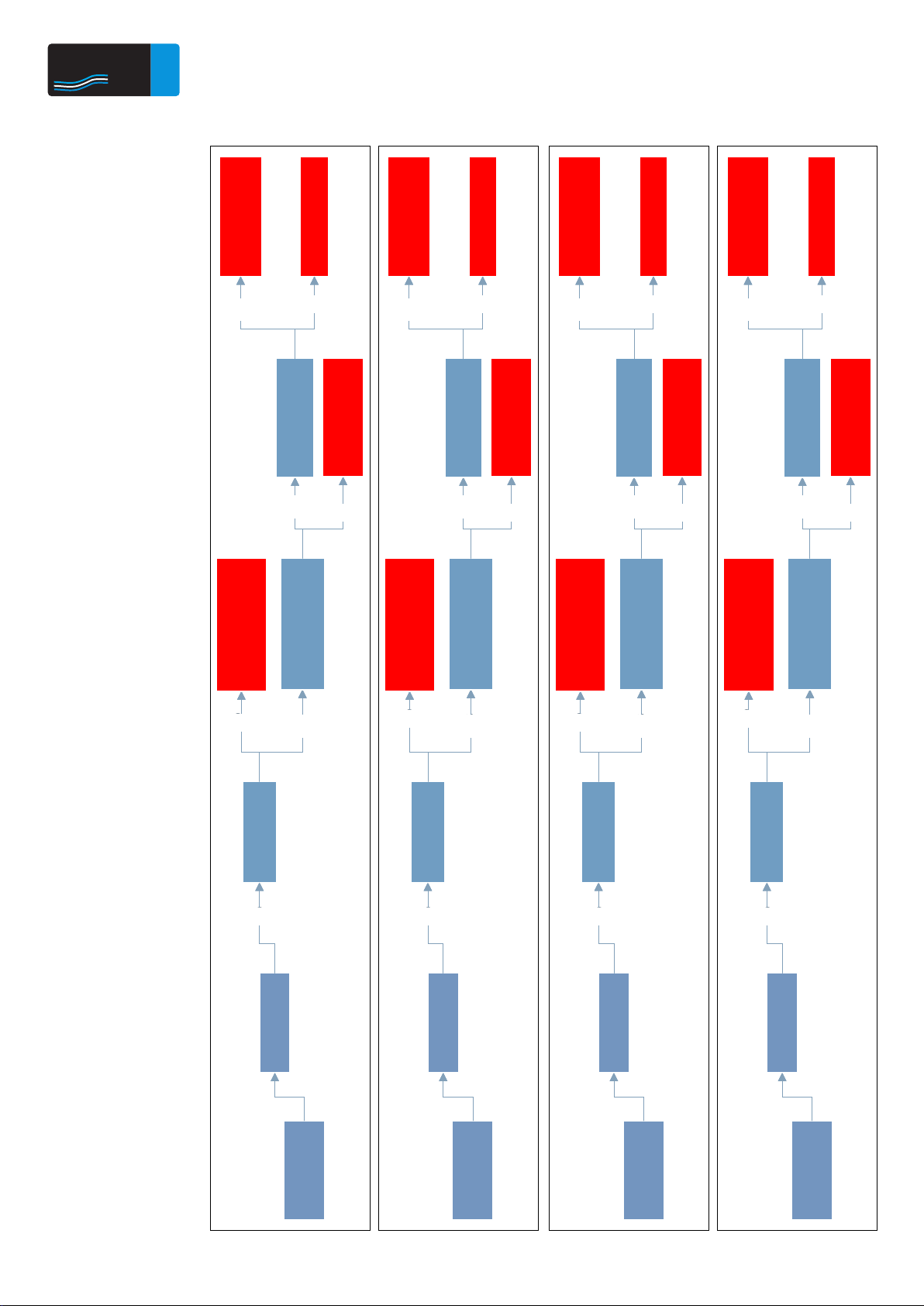

Troubleshooting
Before attempting any fault finding, check all fuses and that there is electric power to all connections
Press BOW
DOWN button
Flaps Extend ?
Compressor
operates ?
NO
YES
NO Check Fuse, Relay
and Power Supply
YES Solenoid
Energized C4 + C2 ?
YES Valve outputs air ?
Broken tubular
or pipe
NO Faulty Valve
NO Burned coil or
pilot
Press BOW
DOWN button
Flaps Extend ?
Compressor
operates ?
NO
YES
NO Check Fuse, Relay
and Power Supply
YES Solenoid
Energized C4 + C2 ?
YES Valve outputs air ?
Broken tubular
or pipe
NO Faulty Valve
NO Burned coil or
pilot
Press BOW
DOWN button
Flaps Extend ?
Compressor
operates ?
NO
YES
NO Check Fuse, Relay
and Power Supply
YES Solenoid
Energized C4 + C2 ?
YES Valve outputs air ?
Broken tubular
or pipe
NO Faulty Valve
NO Burned coil or
pilot
Press BOW UP
button
Flaps Extend ?
Compressor
operates ?
NO
YES
NO Check Fuse, Relay
and Power Supply
YES Solenoid
Energized C3 + C1 ?
YES Valve outputs air ?
Broken tubular
or pipe
NO Faulty Valve
NO Burned coil or
pilot
Press BOW UP
button
Flaps Extend ?
Compressor
operates ?
NO
YES
NO Check Fuse, Relay
and Power Supply
YES Solenoid
Energized C3 + C1 ?
YES Valve outputs air ?
Broken tubular
or pipe
NO Faulty Valve
NO Burned coil or
pilot
Press BOW UP
button
Flaps Extend ?
Compressor
operates ?
NO
YES
NO Check Fuse, Relay
and Power Supply
YES Solenoid
Energized C3 + C1 ?
YES Valve outputs air ?
Broken tubular
or pipe
NO Faulty Valve
NO Burned coil or
pilot
Press RIGHT
button
Flaps Extend ?
Compressor
operates ?
NO
YES
NO Check Fuse, Relay
and Power Supply
YES Solenoid
Energized C4 + C1 ?
YES Valve outputs air ?
Broken tubular
or pipe
NO Faulty Valve
NO Burned coil or
pilot
Press RIGHT
button
Flaps Extend ?
Compressor
operates ?
NO
YES
NO Check Fuse, Relay
and Power Supply
YES Solenoid
Energized C4 + C1 ?
YES Valve outputs air ?
Broken tubular
or pipe
NO Faulty Valve
NO Burned coil or
pilot
Press RIGHT
button
Flaps Extend ?
Compressor
operates ?
NO
YES
NO Check Fuse, Relay
and Power Supply
YES Solenoid
Energized C4 + C1 ?
YES Valve outputs air ?
Broken tubular
or pipe
NO Faulty Valve
NO Burned coil or
pilot
Press LEFT
button
Flaps Extend ?
Compressor
operates ?
NO
YES
NO Check Fuse, Relay
and Power Supply
YES Solenoid
Energized C2 + C3 ?
YES Valve outputs air ?
Broken tubular
or pipe
NO Faulty Valve
NO Burned coil or
pilot
Press LEFT
button
Flaps Extend ?
Compressor
operates ?
NO
YES
NO Check Fuse, Relay
and Power Supply
YES Solenoid
Energized C2 + C3 ?
YES Valve outputs air ?
Broken tubular
or pipe
NO Faulty Valve
NO Burned coil or
pilot
Press LEFT
button
Flaps Extend ?
Compressor
operates ?
NO
YES
NO Check Fuse, Relay
and Power Supply
YES Solenoid
Energized C2 + C3 ?
YES Valve outputs air ?
Broken tubular
or pipe
NO Faulty Valve
NO Burned coil or
pilot

Warranty conditions
FW, TS and BT Series Interceptor units (and not complete systems) are covered by a 5-year Warranty.
SR Series Interceptor units (and not complete systems) are covered by a 2-year Warranty.
Recoil springs, electrical/electronic parts and devices come with a 2-year warranty.
Anodes (consumables) are not included in the warranty (for BT, FW, TS Series).
Hydrotab's warranty only covers the repair or replacement of spare parts.
System selections
It is the sole responsibility of the buyer to choose the correct system and even with Hydrotab’s suggestion for a system, the overall
responsibility is with the buyer.
Limited warranty
Provided that the system has being installed in accordance with the installation manual we provide, and no damage has been caused
due to improper handling or practices, Hydrotab will replace any defective parts or parts that failed due to improper manufacturing
withing the applicable warranty period.
Hydrotab only covers the parts’ replacement. Fitting or shipping costs are not covered by warranty.
Hydrotab will select if we will repair or replace any given part.
Repaired or replaced products will assume the remainder of the warranty time and under no conditions will the full time of warranty be
renewed.
Limited warranty periods
Limited warranty period is two years (2 years) from the product shipment from our premises.
Extended limited warranty period
It is provided in case:
a) Hydrotab trim system is included as equipment of a newly purchased boat directly by from the boat-builder or his reseller.
b) Hydrotab trim system has been purchased through a Hydrotab dealer.
The extended limited warranty period is valid for three (3) years from the shipping date, provided that the customer has downloaded,
completed and submitted the online registration form within one month (30) days from the purchase in the following url.
https://www.hydrotab.gr/product-registration
In case the dealer sells separate units of Interceptors, Air Units and Controllers that constitute a full system that is not initially sold (as
a complete system) by Hydrotab, the dealer has the responsibility to provide the separate Serial Numbers for the Interceptors, Air Units
and Controllers and guide the end user for the proper registration of his serial numbers for the extended warranty to be valid.
The authorized dealer is responsible for the product's service.
For any services or spare parts requirements and replacements during warranty period, the original invoice is necessary to be
presented.
For the replacement of any part of the system (interceptors, Air Unit, any controller etc.) under warranty, the replaced parts must be
returned to Hydrotab Marine Engineering for inspection, otherwise warranty is not valid.
Cost of dismantling - assembly and spare parts transportation is borne by the user.
The warranty does not foresee, under any circumstances, replacement of the whole Hydrotab system.
What is not covered by the warranty:
Damage caused by the lack or non-replacement of worn anodes (for BT, FW, TS Series).
Damage caused by improper installation and use not consistent with the manual.
Damage with external visible deformation of the product caused by misuse of the user or other external causes.
Damage to any component caused during transportation, installation or repair from non-authorized personnel.
Conversions or modifications made after the initial sale.
N. Triantafyllis Ltd (Hydrotab Marine Engineering) is not liable for any incidental, indirect or consequential damages or losses, including,
without limitation: travel expenses, transport, lifting and hauling, costs, loss of income, loss of time, loss of property, loss of profits,
personal injury or damage of any products, different from those that the company distributes. Any further (except the above
mentioned) commitment of the intermediate dealer regarding the sale terms or servicing of Hydrotab products does not create any
liability of our company.
Hydro
Tab
Marine Engineering
18

19
Hydro
Tab
Marine Engineering
Notes

20
Hydro
Tab
Marine Engineering
4, Papazoglou str.
GR-17778 Athens
Greece
email: [e-mail]
website: www.hydrotab.gr REV.B
Hydro
Tab
Marine Engineering
