CWF21 AU101
Multiple
English
Part No.

Genuine Accessories
Revision Date
12/19/2022
Page 1 of 6

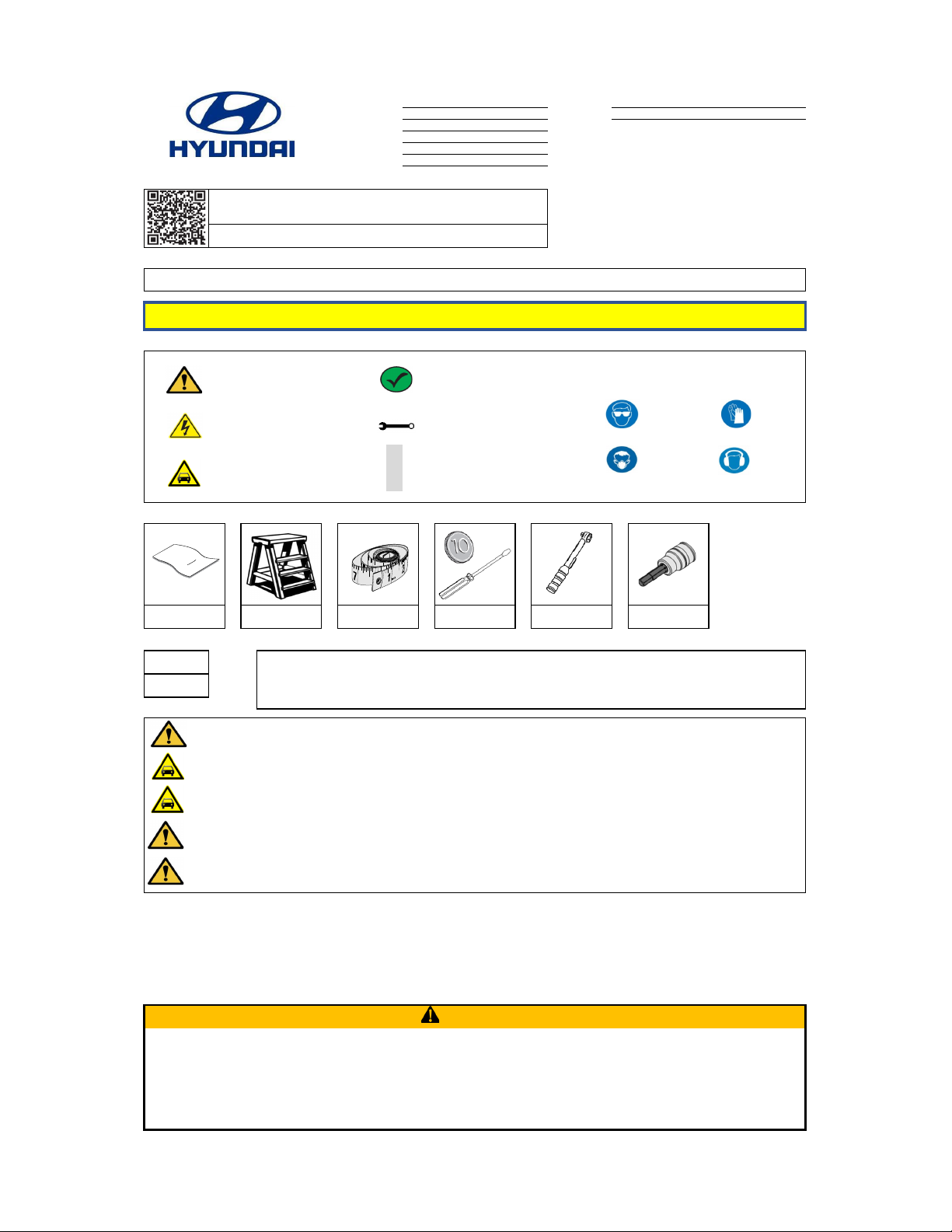

Electronic Installation Instructions
Improperly installed Crossbars may increase windnoise in the vehicle cabin.
To avoid, ensure that the Crossbars are installed in the correct position, per this instruction.
Glasses Gloves
Mask Hearing Protection
Part Weight (Gross) FMVSS 110 Compliance Information
1)
2)
3)
4)
5)
6)
• Evenly distribute the load
• Ensure the crossbars are secure.
• Precaution must be taken when operating vehicle's sunroof with crossbars and attachments installed.
NOTICE:
WARNING
• Never exceed 165 lbs (75 kg) on top of crossbars.
Failure to adhere to load limits and distribution requirements may result in loss of vehicle control, severe personal injury, or death.
• Always check the height of the vehicle when crossbars and attachments are installed before driving under tunnels or parking
structures with low bridges.
• Do not open the vehicle's panoramic roof with crossbars and attachments installed.
NEVER place tools on painted surfaces, seating surfaces, dash pad, console or floor carpet/mats.
Always wear appropriate personal protective equipment, including gloves, safety glasses, etc., when required.
Clean Cloth Step Ladder Tape Measure
10.60
lbs
All dealers must determine if the Net weight they have added in the form of all options or accessories, when added to the weight of all Port/Dealer Installed
options or accessories, exceeds the lesser of 1.5% of GVWR or 100 lbs. If the additional weight does exceed the lesser of the indicated thresholds, a “Load
Carrying Capacity Reduced” label must be installed. A black, fine-point, indelible marker must be used to write by hand onto the label, the reduced carrying
capacity in kilograms or pounds, which is the total weight of all added options and accessories.
Load Label Part Number: NP070 - 09003
4.80
kg
Notes to the installer:
Read the entire Installation Instructions prior to beginning the installation of this accessory.
If applicable, scan the barcode label located on the accessory part or packaging prior to installing, to register the part. If this accessory is installed as a replacement, register the removal
of the old part before registering the new part. Old and new parts will have different barcode data, and the old registration cannot be reused.
REGULARLY CHECK THE TIGHTNESS BY PERFORMING A TUG ON CROSSBARS.THEY SHOULD NOT MOVE.
If crossbars move, see step 3~5 for proper tightening. Incorrect clamp tightness can cause crossbar separation from vehicle resulting in product
failure and vehicle damage. Serious physical injury may occur.
Torque Wrench
Coin or Flat-Head
Screwdriver
Loads must be evenly distributed and secured. Failure to achieve the distribution requirements may result in loss of vehicle control, severe personal injury, or death.
Any weight carried on the vehicle will adversely affect its handling, particularly in cornering or in a cross wind and the vehicle should therefore be driven with increased caution.
Only use NON-STRETCH tie down straps. Use of stretch elastic tie downs may cause loss of load, potential serious injury, and vehicle damage.
Never exceed 165 LBS (75 KG) on top of crossbars. Failure to adhere to load limits may result in loss of vehicle control, severe personal injury, or death.
5mm Allen Socket
Make sure the vehicle is completely clean and dry in the area(s) the part is to be installed.
Ensure the vehicle is properly protected in the area(s) that the accessory is to be installed.
(B) Dealer Technician
(C) Master Technician or Specialist
If this is aprinted copy of the installation instructions, ensure you have the latest revision by
scanning the QR code or by entering the website address listed below before beginning
installation. Use the latest revision date as noted by “Rev. Date” above.
www.hyundaiaccessories.com/admin_media_uploads/installationSheets/cwf21_au101.pdf
Instructional Symbols / Definitions
Denotes warnings that may lead to
serious physical injury or vehicle damage
Denotes quality processes to be checked
prior to moving to the next step
Denotes personal protective equipment (PPEs) that
may be required for a step. Examples of safety
equipment icons noted below:
Application Notes
Only applies to models equipped with a Sunroof or a Panoramic Roof
Denotes cautions to be taken to avoid
physical injury or electronic component
damage
Denotes specific tools that are necessary
to complete a step
N
O
T
E
Denotes important information to be
reviewed during the step
Denotes cautions to be taken to avoid
vehicle and component damage
Basic Required Tools
Copy OEM Logo Here (→)
Vehicle Model: Tucson Accessory: Crossbars
Difficulty stated above reflects the minimum level of
expertise required to install the accessory:
Language
English
Model Year
2022~
Difficulty:
( A )
Part No.
CWF21 AU101
Note:
Rev. Date
12/19/2022
(A) Customer

Genuine Accessories
Revision Date
12/19/2022
Page 2 of 6
No. Qty
1 1
2 1
3 1
4 1
Service Part Overview
No. No.
1 4
2 5
3
Description
CWF21 AU050
Qty
1
1
1
Kit Overview
Service Part Number
CWF21 AU020
Description
Description
Top Cover Strip
End Cap Kit (Left & Right)
Lower Cover Strip Set
Service Part Number
CWF21 AU070
CWF21 AU060
Attachment Hardware Set
CWF21 AU030
Foot Cover
Rear Crossbar
Front Crossbar
1
Qty
Quick Reference Guide
1
Wrench
1
2
3
4
43 1/8" (109.54 cm) -Fully Extended
45 5/8" (115.89 cm) -Fully Extended

Genuine Accessories
Revision Date
12/19/2022
Page 3 of 6
2Wrench, Coin or Flat-Head Screwdriver
A. Clean the side roof rails in the areas shown.
Do NOT scratch or damage the vehicle.
N
O
T
E
Step Ladder and Clean Cloth
1
A. Unlock all four (4) plastic cylinders by turning them counterclockwise as shown.
B. Carefully remove all four (4) foot covers as shown.
C. Set the four (4) foot covers aside in a safe location.
D. Loosen all four (4) bolts three (3) full turns using the provided wrench.
E. If vehicle is equipped with a Sunroof, skip to step 4.
N
O
T
E
BOLT

Genuine Accessories
Revision Date
12/19/2022
Page 4 of 6
Do NOT scratch or damage the vehicle.
A. Locate the front crossbar.
B. Verify the rounded profile of the crossbar faces forward for proper orientation as shown.
C. Carefully place the front crossbar onto the roof side rails. Ensure the crossbar brackets wrap around the roof rails as shown.
D. Position the front crossbars' foot front rubber edge 25.2" (640mm) from the forwardmost edge of the roof side rail on both sides of the vehicle as shown.
For Reference: The front crossbar is positioned inline with the vehicle's B-pillar (door edge).
E. Locate the rear crossbar.
F. Verify the rounded profile of the crossbar faces forward for proper orientation as shown.
G. Carefully place the rear crossbar onto the roof side rails. Ensure the crossbar brackets wrap around the roof rails as shown.
H. Position the rear crossbars' foot front rubber edge between 31.5" (800mm) minimum and 33.5" (850mm) maximum from the edge of the front crossbars' foot forward rubber
edge on both sides of the vehicle as shown.
PIO Technicians Only: Position the rear crossbars' foot front rubber edge 31.5" (800mm) from the edge of the front crossbars' foot forward rubber edge on both sides of the
vehicle.
I. Skip to step 5.
4Step Ladder and Tape Measure
N
O
T
E
A. Locate the front crossbar.
B. Verify the rounded profile of the crossbar faces forward for proper orientation as shown.
C. Carefully place the front crossbar onto the roof side rails. Ensure the crossbar brackets wrap around the roof rails as shown.
D. Position the front crossbars' foot front rubber edge 29" (740mm) from the forwardmost edge of the roof side rail on both sides of the vehicle as shown.
For Reference: The front crossbar is positioned 4" (100mm) rearward of the vehicle's B-pillar (door edge).
E. Locate the rear crossbar.
F. Verify the rounded profile of the crossbar faces forward for proper orientation as shown.
G. Carefully place the rear crossbar onto the roof side rails. Ensure the crossbar brackets wrap around the roof rails as shown.
H. Position the rear crossbars' foot front rubber edge between 27.6" (700mm) minimum and 33.5" (850mm) maximum from the edge of the front crossbars' foot forward rubber
edge on both sides of the vehicle as shown.
CAUTION: Placing the rear crossbar beyond 29.5" (750mm) from the front crossbar may affect vehicle antenna reception.
PIO Technicians Only: Position the rear crossbars' foot front rubber edge 29.5" (750mm) from the edge of the front crossbars' foot forward rubber edge on both sides of the
vehicle.
3Step Ladder and Tape Measure
Do NOT scratch or damage the vehicle.
N
O
T
E
