Hyundai 3X056 ADU00 User manual

Page 1 of 29
Revision Date
5/2/2012
Vehicle Model Elantra (Key Start) Accessory Remote Engine Start
Model Year 2011~ Difficulty ( B )
HMA Part No. 3X056 ADU00
Notes to the Installer:
Read the entire installation manual prior to
beginning the installation of the accessory.
Factory wire harness colors are subject to
change, please use the specified pin # in the
harness connector to identify the correct wire
for T-Tap installation.
Ensure that the vehicle is properly protected in
the area that the accessory is to be installed.
To prevent vehicle damage, never place tools on
top of painted surfaces, seats, dash pad,
console or floor carpet / mat.
Always wear appropriate safety gear to include
gloves and eye protection when required.
Prior to disconnecting the negative lead to the
battery, note the AM/FM and satellite set
frequencies on the inspection page, if
applicable.
To prevent stress on the remote start wire
harness, ensure the tilt/telescopic steering
column is fully extended, if equipped.
Ensure the transportation fuse is properly
installed before performing the function check
on page 18.
Denotes warnings that may lead to
serious physical injury or vehicle
damage.
Denotes quality processes to be
checked prior to moving to the
next step.
Denotes cautions to be taken to avoid
physical injury or electronic component
damage.
Denotes specific tools that are necessary
to complete the step.
Denotes cautions to be taken to avoid
vehicle and component damage. Denotes instructional steps
necessary to complete the
process.
Denotes safety equipment required to be
used such as a mask, goggles, rubber
gloves, and hearing protection.
Mask Goggles
Rubber Gloves Hearing Protection
Instruction Symbols/ Definitions
HYUNDAIGenuineAccessories
Note: Difficulty stated above reflects the minimum level of expertise required to install the accessory
( A ) Customer ( B ) Dealer Technician ( C ) Master Technician
Basic Required Hand Tools
1/4” Drive Ratchet 10 mm Socket
Phillips
Screwdriver Pliers
Wire Cutter
Alcohol Cleaner
Trim Tool
Technical Support
For Authorized Dealers - [phone]
Hours: 9:00 a.m. - 7:00 p.m. EST Monday - Friday
9:00 a.m. - 5:00 p.m. EST Saturday
1/4” Drive Torque
Wrench
1/4” Drive 6”
Extension
Alldealersmustdetermineiftheweighttheyhaveaddedinthe form of all options oraccessories,when
addedtotheweight of allPortInstalledoptionsoraccessories,exceedsthe lesser of 1.5%ofGVWRor
100lbs. Iftheadditionalweightdoesexceedthelesserofthe indicated thresholds, a “Load Carrying
CapacityReduced”labelmustbeinstalled. Ablack,fine-point, indelible markermustbeusedtowrite
byhandontothelabel,thereducedcarryingcapacityinkilogramsorpounds,whichis the total weight
ofalladdedoptionsandaccessories. LoadLabelPartNumberNP070-09003
ACCESSORY WEIGHT
1.22 kg
2.68 lbs
FMVSS 110
COMPLIANCE
INFORMATION
13 mm Socket
Ensurevehicle is equippedwithautomatictransmission, powerdoorlocksand power
windows. If the vehicle is not equipped with these options, do not proceed. Ensure
vehicle does NOT have SMART KEY.
P/N: 4280343, Rev. A
!
N
O
T
E

Revision Date
5/2/2012
Page 2 of 29
12345
Installation
Instructions Owner’s Guide
Hardware
Kit
7
Control Module P/N: 00056 ADU20
DNAP/N:00056ADU80
P/N: 00056 ADU50 P/N: 00056 ADU10
15 8” Wire Tie (Small)
P/N:UDIM-3X056ADU00-DP
Warning Label 15” Wire Tie (Large)
12 Female T-Tap
32
Hardware Kit Total
Hardware Kit Overview
AB
8
P/N:3X056 ADU10
9
Quick Reference
Guide
10 15” Wire Tie (Large)
610
Warning Label
1
2
3
4
5
6
7
8
9
Control Module/DNA
Dipole Antenna
Transmitters
Wire Harness
Hardware Kit
Installation Instructions
Owner’s Guide
Quick Reference Guide
1
1
2
1
1
1
1
1
1
6
No. Qty. No. Qty.
Description Description
HYUNDAIGenuineAccessories
1 M8 Bolt
C
Extra component intentionally placed in kit as spare. Please follow directions for proper placement of each component.
*
*
11 1 OE Transmitter Envelope
“Contained in this envelope are the original transmitters for your vehicle’s remote
keyless entry system. Your vehicle has been equipped with a Hyundai Remote
Start System. The transmitters provided with your Hyundai Remote Start System
are to be used in place of the original transmitters. The original transmitters must
not be used to operate the locks on a vehicle equipped with the Hyundai Remote
Start System. The original transmitters can cause the vehicle’s alarm system to
falsely activate.”
11
1 Tether Clip
E
12
12 1 Foam Tape
3 Black Foam Tape
D

Page 3 of 29
Revision Date
5/2/2012
HYUNDAIGenuineAccessories(GeneralProcedures)
INCORRECT INCORRECT
Spade Terminal
Pointed UP Spade Terminal
Pointed DOWN
1. Place T-Tap on vehicle wire.
2. Using pliers, close and crimp
T-Tap around vehicle wire.
3. Insert harness wire with
malespadeterminalend
into the T-Tap.
**Extremecaremust be takentoensurethatthemalespade
terminal is inserted into the T-Tap properly.
T-Tap Installation Procedure
Spade Terminal CENTERED
Inside Connector
CORRECT
N OGOO D
NO GOOD
Disconnecting Connectors
When disconnecting connectors, grasp the connectors, not
the wires.
Locking Connectors
When locking connectors, listen for a click indicating
they are securely locked.
Wire Colors
When a two-color wire is listed, the first color indicates
the base color of the wire, the second color indicates the
color of the stripe. For example: Black/White
Black
(Base Color)
White
(Stripe Color)
Striped Wire Solid Wire
Black Connector Diagrams
Connector diagrams may be shown on the harness side or the
terminal side, extreme care must be taken to verify proper termi-
nal location before a T-Tap connection is made.
Terminal End View
Harness End View
Factory wire harness colors are
subject to change, please use the
specified pin # in the harness
connector to identify the correct wire
for T-Tap installation.

Revision Date
5/2/2012
Page 4 of 29
HYUNDAIGenuineAccessories(VehicleDisassembly) 0

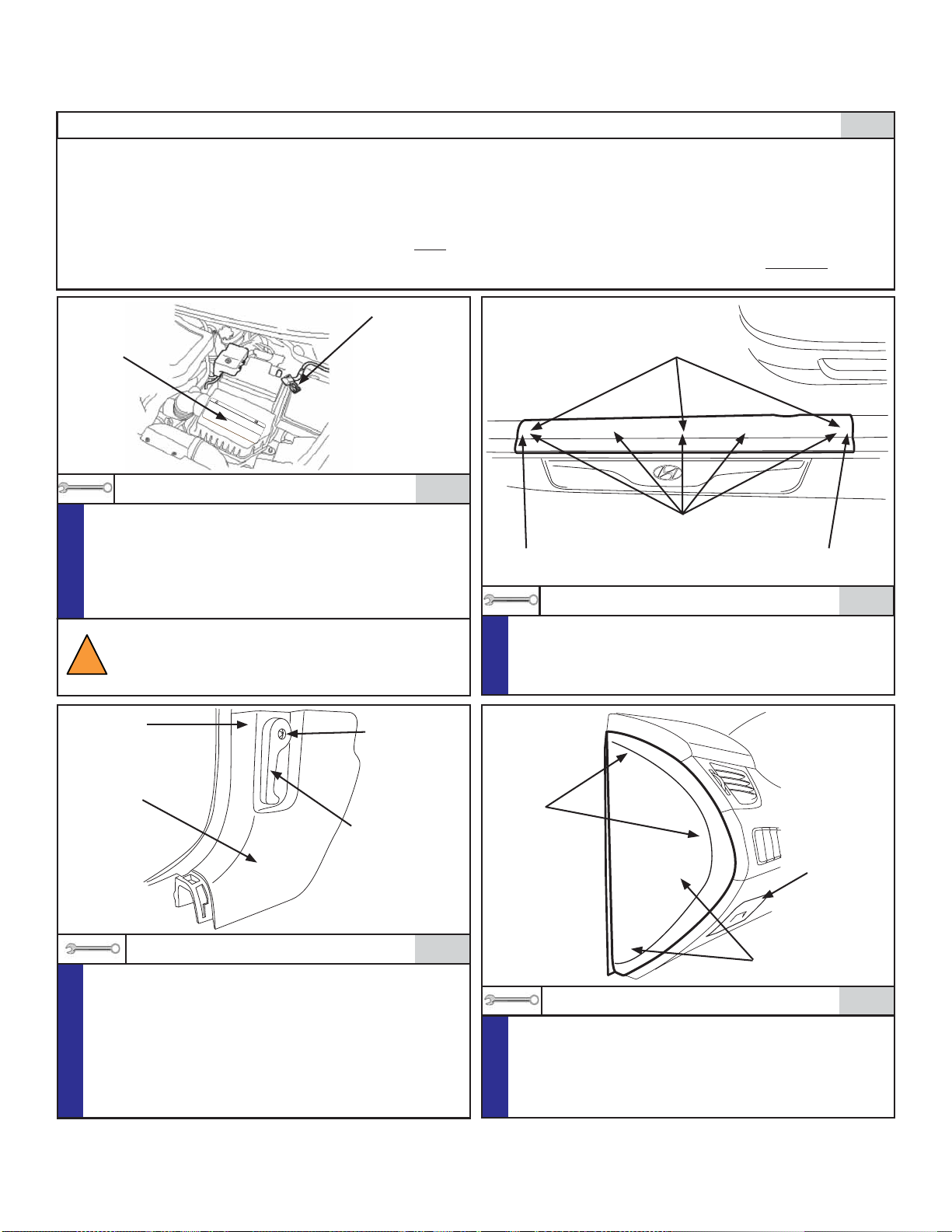

Vehicle Preparation
1
1/4”DriveRatchet, 10 mm Socket
Negative Battery Cable
*Remove and isolate the negative battery cable from the
battery.
*Using alcohol, clean the top surface of the air filter box
assembly.
*Remove the backing on the underhood label and mount in
place, as shown above.
N
O
T
E
Trim Tool, Phillips Screwdriver(ifapplicable) 3
Hood
Release
Lever
Pressure
Clip
*Carefully pull the weatherstrip away from the side of the
driver’s side kick panel.
*Remove the hood release lever by removing the (1) phillips
screw (if equipped) and pulling toward the center of the
vehicle.
*Remove the driver’s side kick panel from the vehicle by
pulling backward to release the upper push clip and out-
ward to release the (1) pressure clip.
WARNING: / AVERTISSEMENT
This vehicle is equipped with a remote controlled engine starter.
To reduce the risk of serious Injury or death, switch engine starter
system into service mode and disconnect the vehicle battery
before performing any service on the vehicle.
Ce véhicule est doté d'un démarreur à distance. Pour réduire les
risques de blessures graves ou mortelles, mettre le démarreur à
distance en mode service et débrancher la batterie du véhicule
avant d'effectuer des travaux d'entretien sur celui-ci.
Warning
Label
Trim Tool
*Remove the driver’s side front door step sill trim by insert-
ing the trim removal tool under the trim panel and prying
upward to release the (3) pressure clips (Sedan Models) or
(5) pressure clips and (2) retaining tabs (Coupe Models).
N
O
T
E
2
Pressure Clips x 3 (Sedan Models)
4
N
O
T
E
*Disassembly Tip - Remove the fuse panel access cover
to assist in the removal of the driver’s side dash end cap.
*Remove the driver’s side dash end cap panel by prying
outward to disengage the (4) pressure clips.
Trim Tool
Pressure
Clips
*Clean hands.
*Set the parking brake and open driver’s door window.
*Record radio station presets, if applicable.
*Vehicle should be at room temperature.
*Ensure vehicle is equipped with automatic transmission, powerdoor locks and powerwindows. If the vehicle is not equipped
withtheseoptions,donotproceed. EnsurevehicledoesNOThaveSMARTKEY.
*ENSURE THE TILT/TELESCOPIC STEERING WHEEL COLUMN IS FULLY EXTENDED AND LOCKED BEFORE
INSTALLING THIS ACCESSORY.
FusePanel
Access
Cover
PushClip
Pressure
Clips
Phillips Screw
(If Equipped)
Pressure Clips x 5 (Coupe Models)
RetainingTab
(Coupe Models) RetainingTab
(Coupe Models)
!
WARNING! ShockHazard. Donottouchvehicle’s
negativebatteryterminaltovehicle’spositivebattery
terminal. Seriousphysicalinjuryorvehicledamage
mayoccur.
N
O
T
E

Page 5 of 29
Revision Date
5/2/2012
PhillipsScrewdriver,TrimTool
N
O
T
E
5
HYUNDAIGenuineAccessories(VehicleDisassembly)

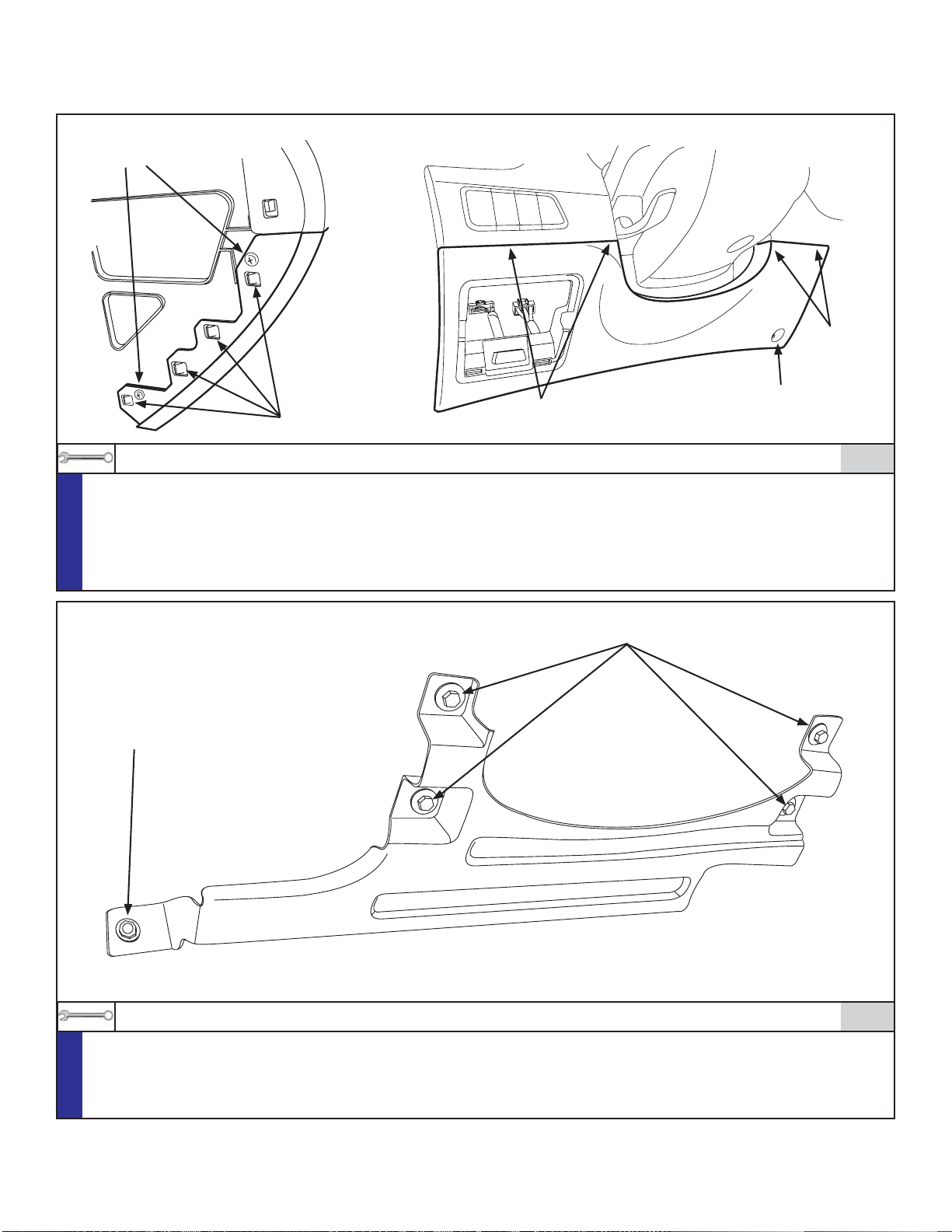

*Remove the (2) phillips screws from the side and (1) from underneath of the lower dash finish panel, as shown above.
*Disengage the (4) retaining tabs located on the side of the lower dash finish panel.
*Using a trim removal tool, carefully pry outward to release the (4) pressure clips on the top.
*Remove the OBDII connector from the panel.
*Disconnect the remaining connectors, if equipped.
*Removethe (4) 10 mm bolts and (1)10mmnut(Sedan,VINstarts with “5”) or (5) 10mmbolts(CoupeandSedan,VINstarts with
“K”) securing the metal knee bolster panel.
*Remove the metal knee bolster panel from the vehicle.
N
O
T
E
6
1/4”DriveRatchet, 10 mm Socket
Phillips
Screws
10 mm Bolts
Retaining
Tabs
10 mm Nut (Sedan, VIN starts with “5”)
OR
10 mm Bolt (Coupe and Sedan, VIN starts with “K”)
Phillips
Screws
Pressure Clips
Pressure Clips
Sedan Knee Bolster Pictured

Revision Date
5/2/2012
Page 6 of 29
HYUNDAIGenuineAccessories(VehicleDisassembly)
N
O
T
E
8
Phillips
Screws
PhillipsScrewdriver,TrimTool

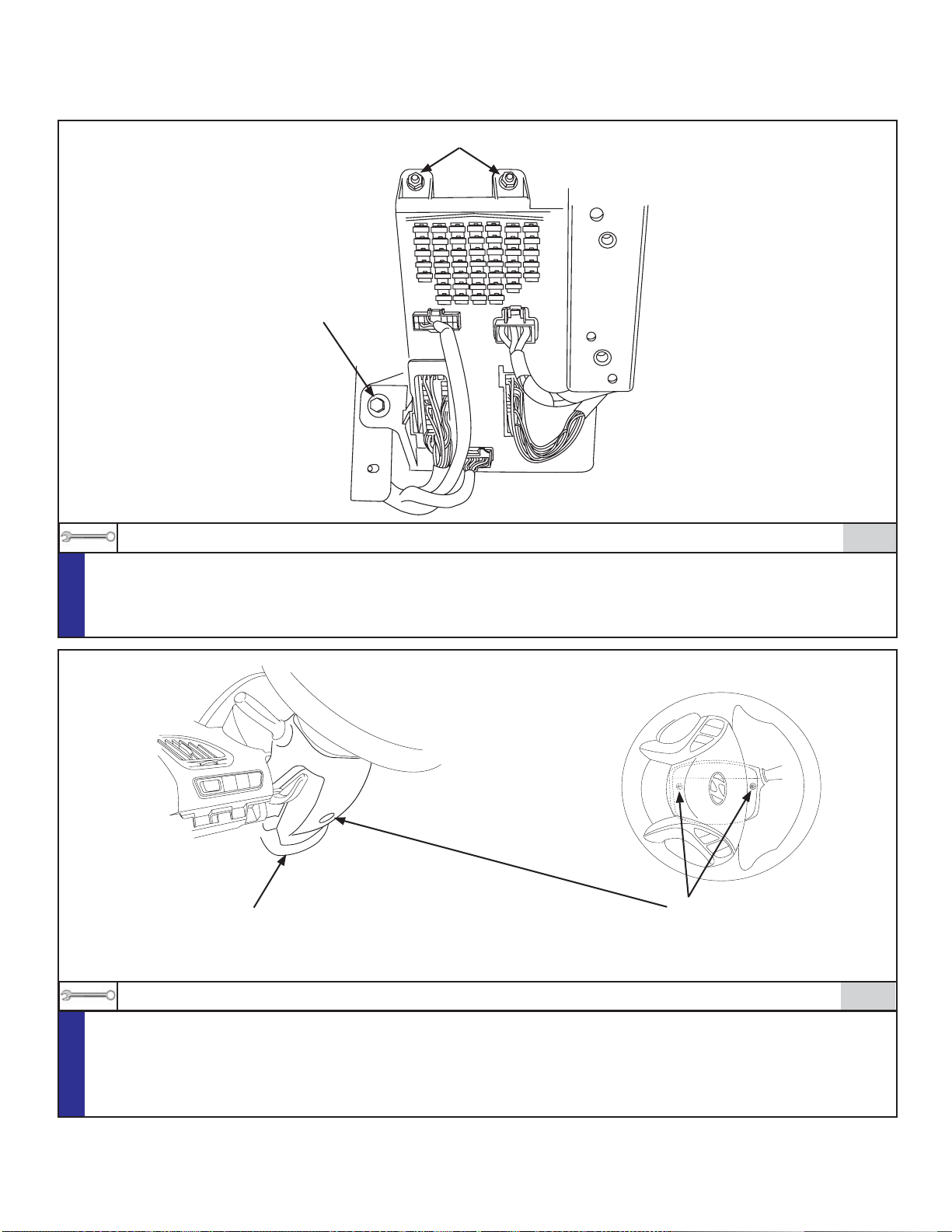

*Remove the (3) phillips screws securing the steering column shroud (1 underneath and 2 behind the steering wheel). Turn the
steering wheel for access.
*Release tilt steering wheel adjuster lever.
*Pull down to separate (Use trim tool, if necessary) and remove the lower steering column shroud from the vehicle.
**NOTE: To access screws, insert key and turn to the ACC position, in order to prevent the steering wheel from locking.
PullHereto
Separate
N
O
T
E
7
10mmNuts
*Remove the (2) 10 mm nuts and (1) 10 mm bolt securing the fuse panel to the metal dash brace.
1/4”DriveRatchet, 10 mm Socket
10mmBolt

Page 7 of 29
Revision Date
5/2/2012
Weatherstrip
PressureClip
PressureClip
PressureClip
CAUTION! Donotcutanythingotherthanthe“A”pillar tether clip.
Donotlosethe(2)plasticpressureclipsordamageanyairbagcomponents.
N
O
T
E
9
*Carefully pull the weatherstrip away from the driver’s side “A” pillar.
*Starting at the top, partially remove the driver’s side “A” pillar trim panel by carefully pulling inward to release
the (1) Tether Clip and the (2) Pressure Clips.
*With the “A” pillartrimpanelpartiallypulled away from the bodystructure,reachbehindthe trim panel and cut
the tether clip, as shown above.
*Remove the “A” pillar trim panel from the vehicle.
Wire Cutter
N
O
T
E
10
*Using pliers, pull the remaining portion of the tether clip from the “A” pillar body structure.
*Remove the portion of the tether clip that is in the “A” pillar trim panel by twisting counterclockwise 90° and
pulling outward. Discard both portions of the tether clip, as shown above.
TetherClip
TwistCounterclockwise
Pliers
CAUTION! Donotscratchordamage“A”pillartrimpanel.
HYUNDAIGenuineAccessories(VehicleDisassembly)
CutHere

Revision Date
5/2/2012
Page 8 of 29
8"
9"
9"

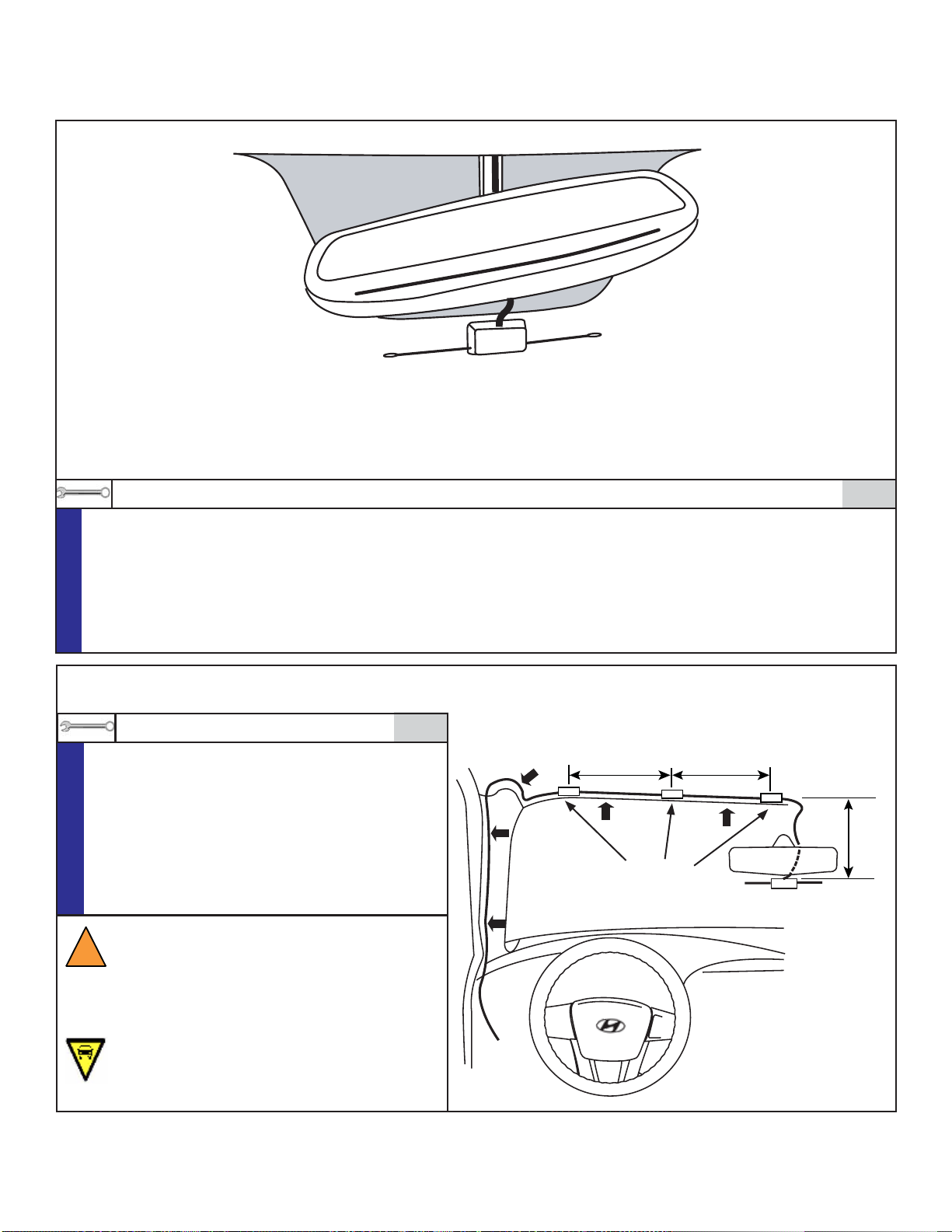

*Clean the area of the windshield where the antenna will be mounted with an alcohol-based glass cleaning solution.
Ensure the glass surface is completely dry.
*Mount the dipole antenna to the windshield approximately 0.5” below the mirror’s lowest attachment point and/or any wind-
shield electronic gridwork, as shown above. Remove protective backing. Press firmly to ensure a good glass to adhesive bond.
1
N
O
T
E
HYUNDAIGenuineAccessories(Installation)
Alcohol / Cleaner
N
O
T
E
2
*Wrap the antenna cable with (3) pieces of supplied black
foam tape at the distances shown to the right to ensure
that the antenna will stay in place after routing.
*Route the antenna cable vertically on the right hand side
of the mirror mount up to the headliner. Tuck the cable
behind the headliner and down the “A” pillar. Use (3)
small wire ties to secure the antenna cable to the factory
harness located within the “A” pillar. Trim off excess
wireties.
Trim Tool,Wire Cutter
WARNING! AirBagsysteminterferencehazard.
DONOTsecureantennacabletotheAirBagcom-
ponents. Damage to the vehicle’sAir Bag system
may occur which could result in serious physical
injury.
CAUTION! Ifthevehicleisequippedwithasunroof,
becarefulnottoplacethewiretiesaroundthedrain
tubeorthesunroofmaynotdrainproperly.
!
FoamTape

Page 9 of 29
Revision Date
5/2/2012
M8Bolt
Steering Column
MiddleHoleNotUsed
WireTie
Antenna Cable
WireTie
N
O
T
E
3

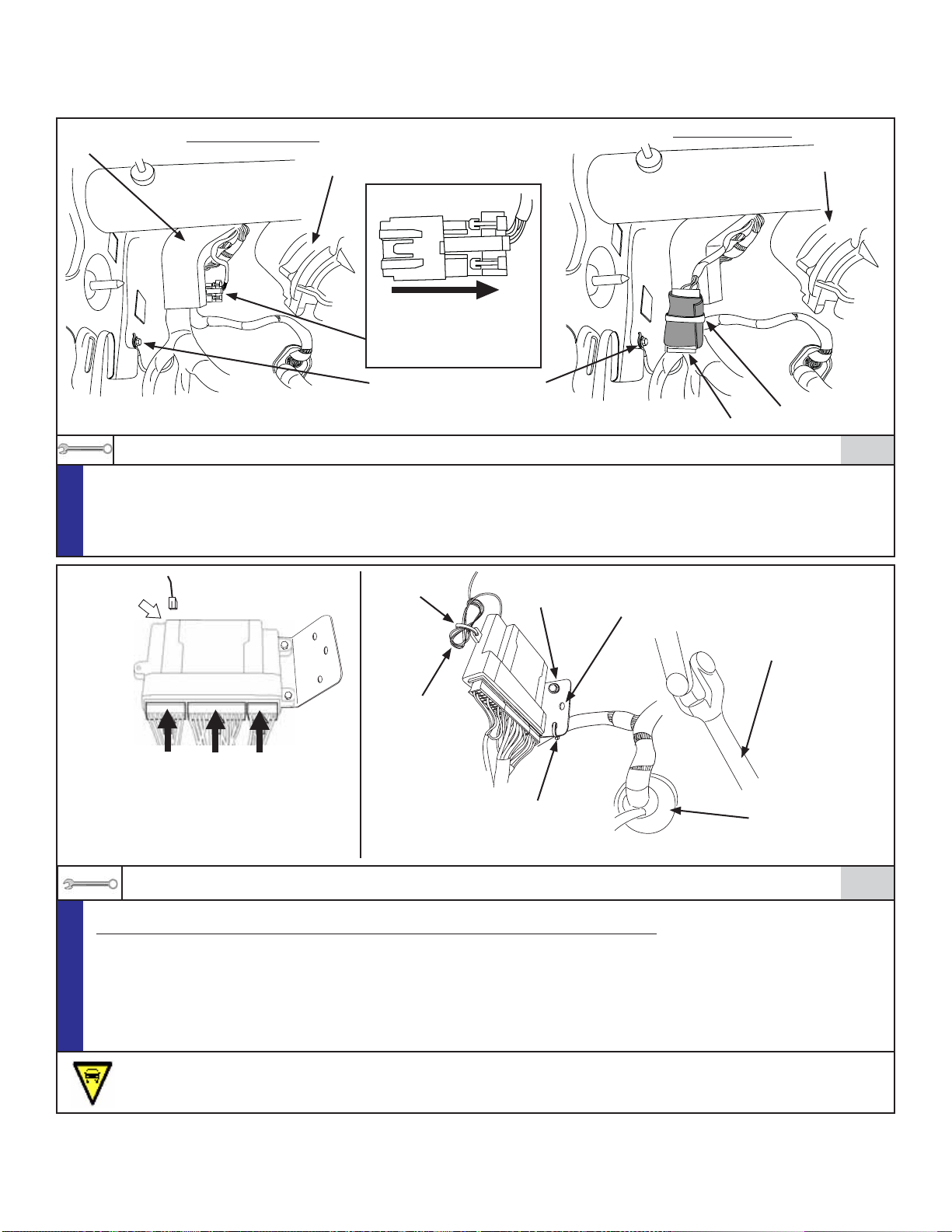

*Locate and remove the relay assembly, attached to the back side of the gray plastic wire harness protector, by sliding toward the
center of the vehicle. The relay is located to the left of the MDPS Control Module, as shown above.
*Wrap the relay with (1) supplied gray foam tape, as shown above. Position and secure the foam wrapped relay assembly to the
factory wire harness with (1) supplied large wire tie, as shown above. Trim off excess wire tie.
CAUTION! Becarefulnottobend/damageanyoftheterminalsinsidetheremotestartmodule.
N
O
T
E
4
*Route the antenna cable past the left side of the dashboard and down to the vehicle dash wall.
*Plug the wire harness and the antenna cable into the remote start module before mounting.
*Ensure all connectors are properly locked into position.
*Secure the remote start module to the factory clutch pedal location, on the vehicle dash wall, to the left of the steering column
with (1) supplied M8 bolt and (1) supplied large wire tie, as shown above. Trim off excess wire tie.
*Using torque wrench, torque to 15 lb-ft (21 Nm).
*Secure the excess antenna cable to the available module mounting hole with (1) small wire tie, as shown above.
Trimoffexcesswiretie.
Dash Wall
Grommet
1/4”Drive Ratchet, 13 mm1/4”DriveSocket,1/4”TorqueWrench,Wire Cutter,1/4” Drive 6” Extension
Slide relay assembly toward
the center of the vehicle to
remove from the plastic
wire harness protector.
MDPSControlModule
Antenna
16-Pin 24-Pin 10-Pin
MDPSControlModule
GE07 Factory Ground Location
HYUNDAIGenuineAccessories(Installation)
Large Wire Tie
Plastic Harness
Protector
Wire Cutter
Relay Location
Before Relocation After Relocation
Note: Relay may not be mounted in this location on some vehicles. If relay is not mounted
as shown above, skip this step.

Revision Date
5/2/2012
Page 10 of 29
HYUNDAIGenuineAccessories(Installation)
N
O
T
E
5

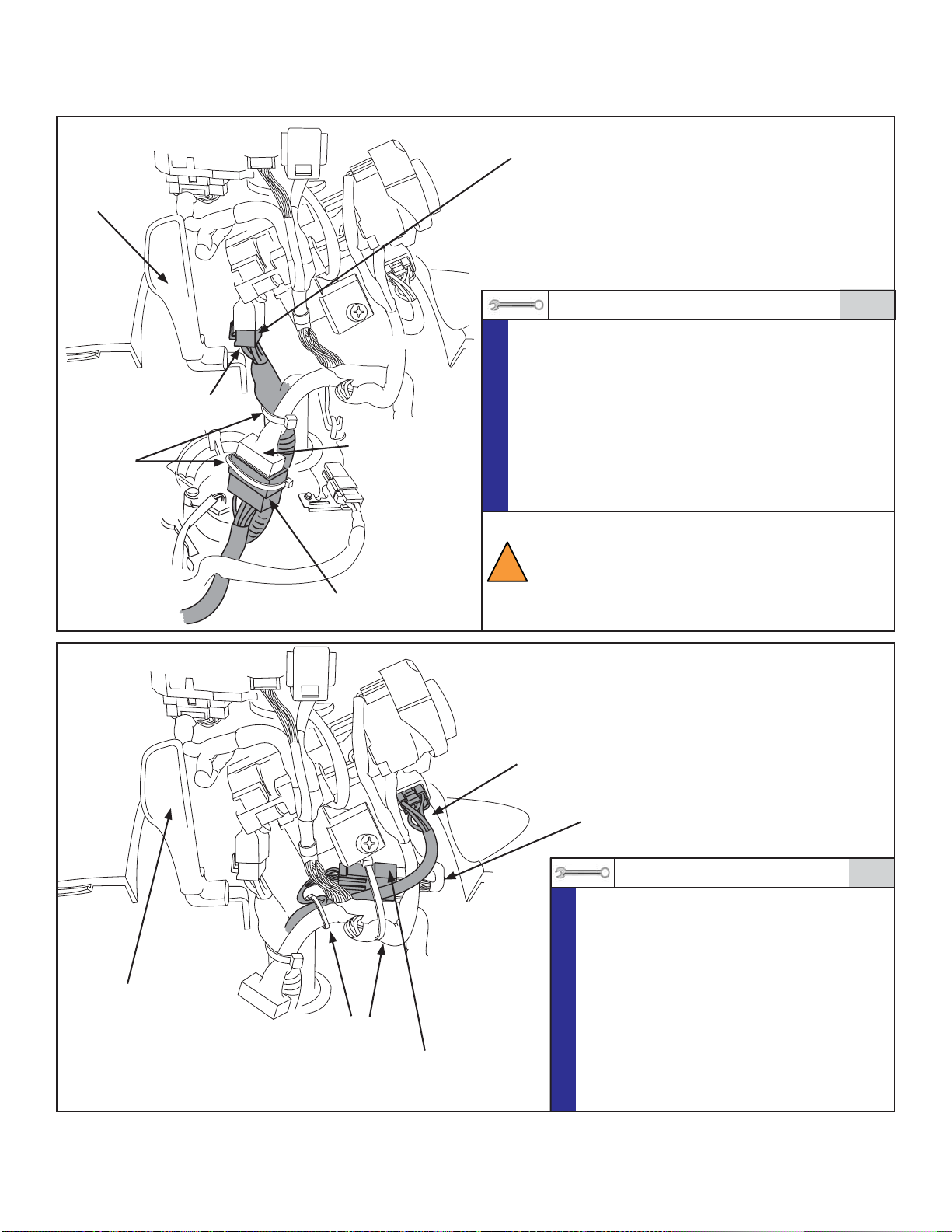

*Route the remote start harness 6-pin male and female
connectors under the steering column to the factory M03
ignition switch connector.
*Disconnect the factory male 6-pin M03 ignition switch
connector and plug in the corresponding remote start
harness connectors.
*Secure the factory male 6-pin M03 ignition switch
connector and the remote start harness female 6-pin
connector to the remote start harness with (2) large wire
ties, as shown. Trim off excess wire ties.
6-Pin Harness
Female Connector
6-Pin Harness Male
Connector
Factory Male M03
Connector
Tilt Steering Wheel
Release Lever
Tilt Steering Wheel
Release Lever
Factory Male
M45 Connector
6-Pin Harness Female
Connector
6-Pin Harness Male
Connector
Wire Ties
N
O
T
E
6
*Route the remote start harness 6-pin male and
female connectors under the steering column to
the factory M45 key-in-sense connector.
*Disconnect the factory male 6-pin M45 key-in-
sense connector and plug in the corresponding
remote start harness connectors.
*Secure the factory male 6-pin M45 connector
and the remote start harness female 6-pin
connector to the vehicle wire harness with (2)
small wire ties, as shown. Trim off excess wire
ties.
Wire Ties
Wire Cutter
Wire Cutter
*Ensureconnectoris fully engagedandlockedintothe
ignition switch.
!
WARNING! Engine StallHazard. Topreventstresson
theremote start wireharness,ensurethetilt/telescopic
steeringcolumnisfullyextended,ifequipped. Ensure
allconnectorsarefullyengagedandlockedinplace. An
enginestall could causeseriousphysicalinjury or
vehicledamage.

Page 11 of 29
Revision Date
5/2/2012
N
O
T
E
8
Remote Start Harness
Male 24-Pin Connector
FactoryMaleI/P-C
Connector
Remote Start Harness
Female 24-Pin Connector

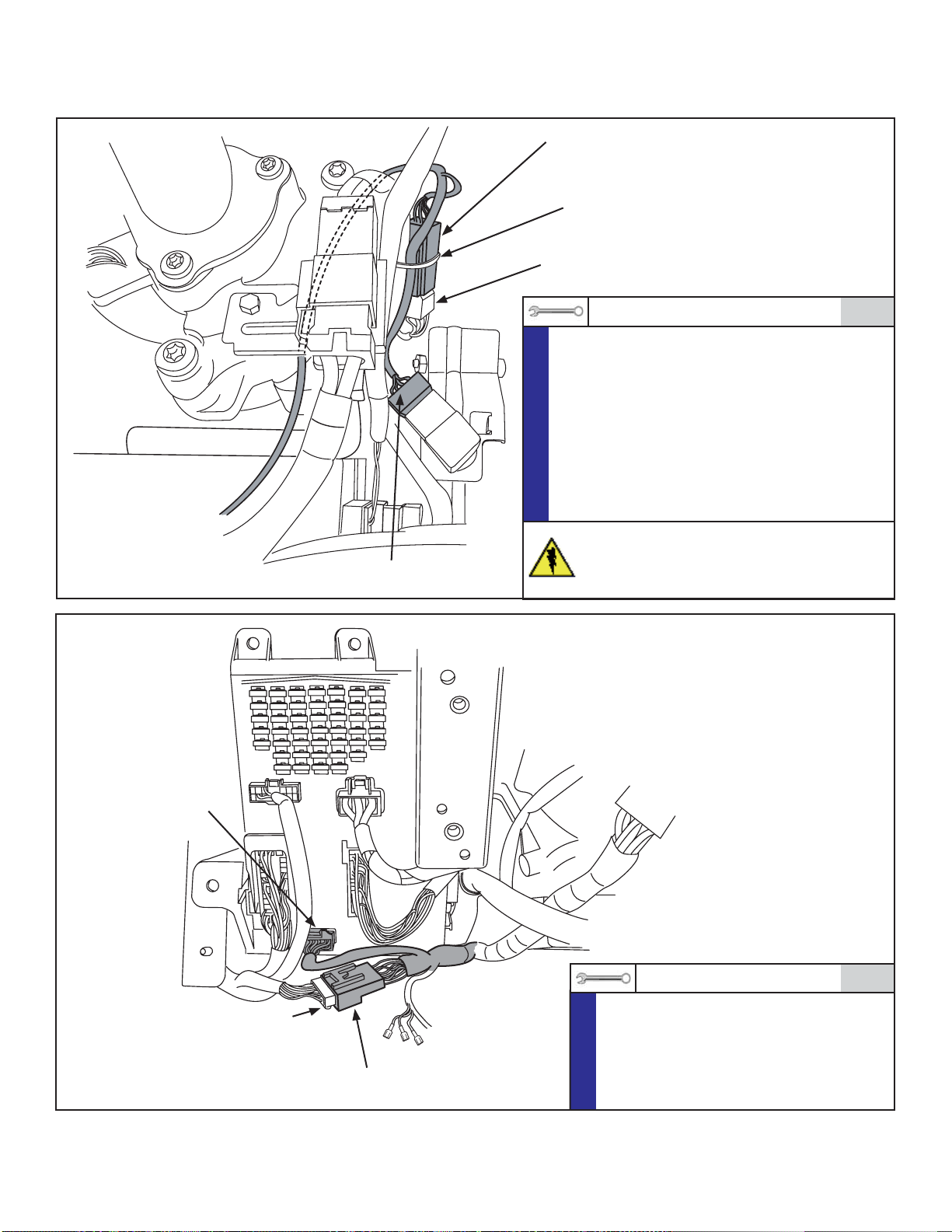

*Route the remote start harness 24-pin male
and female connectors to the front of the
fuse panel.
*Disconnect the factory male I/P-C connector
and plug in the corresponding remote start
harness connectors.
HYUNDAIGenuineAccessories(Installation)
N
O
T
E
7
Remote Start Harness
Female Brake Switch
Connector
Wire Tie
Factory Male
E18 Connector
Remote Start Harness Male
Brake Switch Connector
Wire Cutter
CAUTION! Ensurethere is adequate clearance
betweentheremotestartharnessandthetilt
steeringwheel vertical brackettoavoid a short
circuit/blownfuse.
*Route the remote start harness 4-pin male and
female connectors to the factory E18 brake switch
connector.
*Disconnect the factory male 4-pin E18 brake switch
connector and plug in the corresponding remote
start harness connectors.
*Secure the factory male 4-pin E18 connector and the
remote start harness female connector to the vehicle
wire harness with (1) small wire tie, as shown above.
Trimoffexcesswiretie.

Revision Date
5/2/2012
Page 12 of 29
34
33
32
31
30
29
28
27
26
25
24
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
23
HYUNDAIGenuineAccessories(Installation)
N
O
T
E
9
TERMINAL END VIEW
Pliers
CAUTION! Ensurethecorrectpinlocationisidentified. Theremaybeseveralwiresofthesame/similarcolor.
I/P-EConnector
Rear Defrost Wire
Black Wire
Pin5
I/P-EConnector
Hood Ajar Wire
Green Wire
Pin34
I/P-EConnector
Parking Light (Right) Wire
Orange Wire
Pin30 I/P-EConnector
Headlight (Left) Wire
Blue Wire
Pin26
I/P-EConnector
Headlight (Right) Wire
Pink Wire (W/O HID) or Orange Wire (With HID)
Pin15
I/P-EConnector
Parking Light (Left) Wire
Orange Wire (“5” VIN-Code)
OR
Red/Orange Wire (“K” VIN-Code)
Pin29
*Unplug connector, if necessary, to identify proper pin location.
*Referto Page 3 forT-TapInstallationProcedure.
*Using pliers, crimp a T-Tap on the Black wire located in pin #5 of the 34-pin I/P-E male connector, located at the front of the fuse
panel.
*Connect the Black (Rear Defrost Output) wire from the remote start harness to the Black wire (Pin #5 of the I/P-E connector) by
engaging the T-Tap.
*Using pliers, crimp a T-Tap on the Black wire located in pin #6 of the 34-pin I/P-E male connector, located at the front of the fuse
panel.
*Connect the Black/White (Horn Output) wire from the remote start harness to the Black wire (Pin #6 of the I/P-E connector) by
engaging the T-Tap.
*Using pliers, crimp a T-Tap on the Green wire located in pin#34 of the 34-pin I/P-E male connector.
*Connect the Green (Hood Ajar Input) wire from the remote start harness to the Green wire (Pin #34 of the I/P-E connector) by
engaging the T-Tap.
*Observe the 1st character of the Vehicle Identification Number (5 or K), located in the driver’s door opening “B” pillar area.
*Using pliers, crimp aT-Tap on the Orange (“5”VIN-Code)or the Red/Orange (“K”VIN-Code)wire located in pin#29of the 34-
pin I/P-E male connector.
*Using pliers, crimp aT-Tap on the Orange wire located in pin #30 of the 34-pin I/P-E male connector.
*Connect the Orange/Red (Parking Light Output - Left) wire from the remote start harness to the Orange or Red/Orange wire (Pin
#29 of the I/P-E connector) by engaging the T-Tap.
*Connect the Orange (Parking Light Output - Right) wire from the remote start harness to the Orange wire (Pin #30 of the I/P-E
connector) by engaging the T-Tap.
*Using pliers, crimp a T-Tap on the Blue wire located in pin #26of the 34-pin I/P-E male connector.
*Using pliers, crimp a T-Tap on the Pink wire (W/O HID) or Orange wire (With HID) located in pin #15 of the 34-pin I/P-E male
connector.
*Connectthe Blue/Red (Headlight Output -Left)wirefromthe remote start harness totheBluewire(Pin #26 of the I/P-Econnector)
by engaging the T-Tap.
*Connect the Pink (Headlight Output - Right) wire from the remote start harness to the Pink wire (W/O HID) orOrange wire (With
HID) (Pin #15 of the I/P-E connector) by engaging the T-Tap.
I/P-EConnector
Horn Wire
Black Wire
Pin6
Sedan Models

Page 13 of 29
Revision Date
5/2/2012
34
33
32
31
30
29
28
27
26
25
24
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
23
HYUNDAIGenuineAccessories(Installation)
N
O
T
E
9
TERMINAL END VIEW
Pliers
CAUTION! Ensurethecorrectpinlocationisidentified. Theremaybeseveralwiresofthesame/similarcolor.
I/P-EConnector
Rear Defrost Wire
Black Wire
Pin5
I/P-EConnector
Hood Ajar Wire
Green Wire
Pin34
I/P-EConnector
Parking Light (Right) Wire
Orange Wire
Pin30 I/P-EConnector
Headlight (Left) Wire
Blue Wire
Pin26
I/P-EConnector
Headlight (Right) Wire
Pink Wire (W/O HID) or Orange Wire (With HID)
Pin15
I/P-EConnector
Parking Light (Left) Wire
Red/Orange Wire
Pin29
*Unplug connector, if necessary, to identify proper pin location.
*Referto Page 3forT-Tap Installation Procedure.
*Using pliers, crimp a T-Tap on the Black wire located in pin #5 of the 34-pin I/P-E male connector, located at the front of the fuse
panel.
*Connect the Black (Rear Defrost Output) wire from the remote start harness to the Black wire (Pin #5 of the I/P-E connector) by
engaging the T-Tap.
*Using pliers, crimp a T-Tap on the Black wire located in pin #6 of the 34-pin I/P-E male connector, located at the front of the fuse
panel.
*Connect the Black/White (Horn Output) wire from the remote start harness to the Black wire (Pin #6 of the I/P-E connector) by
engaging the T-Tap.
*Using pliers, crimp a T-Tap on the Green wire located in pin #34 of the 34-pin I/P-E male connector.
*Connect the Green (Hood Ajar Input) wire from the remote start harness to the Green wire (Pin #34 of the I/P-E connector) by
engaging the T-Tap.
*Using pliers, crimp a T-Tap on the Red/Orange wire located in pin#29 of the 34-pin I/P-E male connector.
*Using pliers, crimp a T-Tap on the Orange wire located in pin #30of the 34-pin I/P-E male connector.
*Connect the Orange/Red (Parking Light Output - Left) wire from the remote start harness to the Red/Orange wire (Pin #29 of the
I/P-E connector) by engaging the T-Tap.
*Connect the Orange (Parking Light Output - Right) wire from the remote start harness to the Orange wire (Pin #30 of the I/P-E
connector) by engaging the T-Tap.
*Using pliers, crimp a T-Tap on the Blue wire located in pin#26 of the 34-pin I/P-E male connector.
*Using pliers, crimp a T-Tap on the Pink wire (W/O HID) or Orange wire (With HID) located in pin #15 of the 34-pin I/P-E male
connector.
*Connectthe Blue/Red (Headlight Output -Left)wirefromthe remote start harness totheBluewire(Pin #26 of the I/P-Econnector)
by engaging the T-Tap.
*Connect the Pink (Headlight Output - Right) wire from the remote start harness to the Pink wire (W/O HID) or Orange wire (With
HID) (Pin #15 of the I/P-E connector) by engaging the T-Tap.
I/P-EConnector
Horn Wire
Black Wire
Pin6
Coupe Models

Revision Date
5/2/2012
Page 14 of 29
HYUNDAIGenuineAccessories(Installation)
*Referto Page 3forT-Tap Installation Procedure.
*Using pliers, crimp a T-Tap on the Red wire located in pin #38 of the 39-pin I/P-B male connector, located at the front of the fuse
panel.
*Connect the Red (Trunk Release Output) wire from the remote start harness to the Red wire (Pin #38 of the I/P-B connector) by
engaging the T-Tap.
N
O
T
E
10
TERMINAL END VIEW
Pliers
CAUTION! Ensurethecorrectpinlocationisidentified. Theremaybeseveralwiresofthesame/similarcolor.
11427
13 26 39
2
3
4
5
6
7
8
9
10
11
12
15
16
17
18
19
20
21
22
23
24
25
28
29
30
31
32
33
34
35
36
37
38
**Unplug connector, if necessary, to identify proper pin location.
I/P-BConnector
Red Wire
Pin38
N
O
T
E
11
TERMINAL END VIEW
Pliers
CAUTION! Ensurethecorrectpinlocationisidentified. Theremaybeseveralwiresofthesame/similarcolor.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
22
23
24
20
12
11 22
23
21
20
19
17
16
15
14
131
117 2
19 420
21 6
23 824 9
11
1228
27
13
27
28
31
32
29
36
38
15
18
19
20
34 22
24
25
2
4
7
8
10
11
12
14 1
39 26 13
15
16
31
32
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
**
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
I/P-F (MAIN)
I/P-H (MAIN)
I/P-G (MAIN)
I/P-GConnector
Yellow/Orange Wire
Pin23
*Referto Page 3forT-Tap Installation Procedure.
*Route the remote start harnessYellow/Orange (Driver Door Unlock Output) wire to the rear of the fuse panel.
*Using pliers, crimp a T-Tap on the Yellow/Orange wire located in pin#23 of the 24-pin I/P-G male connector located at the rear of
the fuse panel.
*Connect theYellow/Orange (Driver Door Unlock Output) wire from the remote start harness to theYellow/Orange wire (Pin #23 of
the I/P-G connector) by engaging the T-Tap. `
*InstallationTip: Tiltfusepanelforwardforbetteraccesstoconnector.
**Unplug connector, if necessary, to identify proper pin location.

Page 15 of 29
Revision Date
5/2/2012
5
6
8
19
*
*
***
* * * **** **
** *
* *
**
**
*
*
21
27
28
29 35 44
45 52
54
10
9
11
25
24
26
38 48
49
51
11631
2
18
17 42
*Referto Page 3 forT-TapInstallationProcedure.
*Route the remote start harness Blue (Tachometer Input), Yellow (Dome Light Output) and the Black with ring terminal (Ground)
wires to the driver’s kick panel area.
*Usingpliers,crimp aT-Tap on the Blue wire located in pin #25ofthe55-pinEM11 maleconnector,located in the driver’s kick panel
area.
*Connect the Blue (Tachometer Input) wire from the remote start harness to the Blue wire (Pin #25 of the EM11 connector) by
engaging the T-Tap.
*Secure the Blue (Tachometer Input), Yellow (Dome Light Output) and the Black with ring terminal (Ground) wires to the vehicle
wire harness with (1) small wire tie, as shown above. Trim off excess wire tie.
HYUNDAIGenuineAccessories(Installation)
N
O
T
E
12
**Unplug connector, if necessary, to
identify proper pin location
Pliers,Wire Cutter
CAUTION! Ensurethecorrectpinlocationisidentified. Theremaybeseveralwiresofthesame/similarcolor.
TERMINAL END VIEW
EM11Connector
Tachometer Wire
Blue Wire
Pin25
WireTie

Revision Date
5/2/2012
Page 16 of 29
HYUNDAIGenuineAccessories(Installation)
*Locate the factory GE07, 10 mm ground bolt in the driver’s kick panel area, near the vehicle dash wall.
*Route the Black (Ground) wire with ring terminal behind the factory wire harness to the GE07 factory ground location.
*Removethe10mm bolt. Position the Black (Ground) wire with ring terminal over theboltandreinstallwiththefactorygroundwire.
*Torque to15lb-ft(21Nm).
*Route theYellow (Dome Light Output) along the factory harness, up to the driver’s “A” pillar area.
*Secure theYellow (Dome Light Output) wire to the vehicle wire harness with (1) small wire tie, as shown above. Trim off excess
wiretie.
N
O
T
E
13
GE07 Factory Ground
1/4” Drive Ratchet, 10 mm Socket, 1/4” Drive Torque Wrench, Wire Cutter
WireTie
Yellow Wire
(Dome Light Output)

Page 17 of 29
Revision Date
5/2/2012
3
26 15
1
14
13 12 11 10 9 8 7 654
25
24 23 22 21 20 19 18 17 16
2
23 21 20 19 17 16 15 14
12 11 10 9 8 7 6 5 4 3
1
13
2
24
**
14

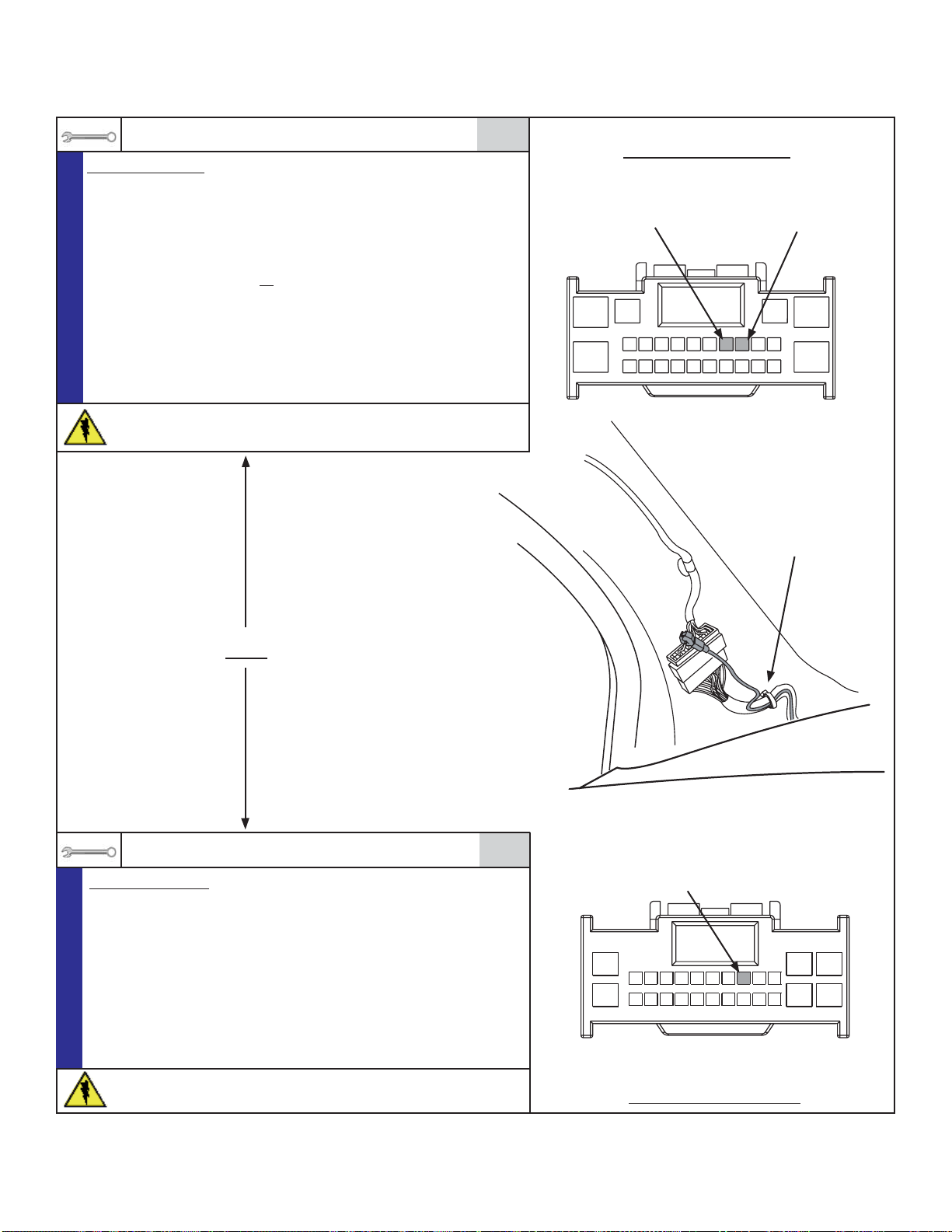

Coupe Models:
*RefertoPage3forT-TapInstallationProcedure.
*Using pliers, crimp aT-Tap on the Yellow wire located in pin #6 of the
26-pin MR11 male connector, located in the driver’s “A” pillar.
*Connect the Yellow (Dome Light Output) wire from the remote start
harness to theYellow wire (Pin #6 of the MR11 connector) by engag-
ing the T-Tap.
*Secure theYellow (Dome Light Output) wire to the vehicle wire
harness with (1) small wire tie, as shown. Trim off excess wire tie.
N
O
T
E
14
Pliers,Wire Cutter
CAUTION! Ensurethecorrectpinlocationisidentified. There
maybeseveralwiresofthesame/similarcolor.
Sedan Models:
*Referto Page 3 forT-TapInstallationProcedure.
*Observe the 1st character of the Vehicle Identification Number
(5 or K), located in the driver’s door opening “B” pillar area.
*Using pliers, crimp a T-Tap on the Yellow wire located in
pin #5 ( “K” VIN-Code ) or pin #6 ( “5” VIN-Code ) of the 24-pin
MR11 male connector, located in the driver’s “A” pillar.
*Connect theYellow (Dome Light Output) wire from the remote start
harness to theYellow wire (Pin #5 or Pin #6 of the MR11 connector)
by engaging the T-Tap.
*Secure theYellow (Dome Light Output) wire to the vehicle wire
harness with (1) small wire tie, as shown. Trim off excess wire tie.
TERMINAL END VIEW
MR11 Connector
Yellow Wire
Pin 5
“K” VIN-Code Vehicles
MR11Connector
Yellow Wire
Pin 6
“5” VIN-Code Vehicles
N
O
T
E
Pliers,Wire Cutter
CAUTION! Ensurethecorrectpinlocationisidentified. There
maybeseveralwiresofthesame/similarcolor.
TERMINAL END VIEW
WireTie
Sedan Models
MR11 Connector
Yellow Wire
Pin6
Coupe Models
**Unplug connector, if necessary, to
identify proper pin location.
**Unplug connector, if necessary, to
identify proper pin location.
OR
HYUNDAIGenuineAccessories(Installation)

Revision Date
5/2/2012
Page 18 of 29
N
O
T
E
16
1/4”DriveRatchet, 10 mm Socket
*Verify all connections are secure as per the installation
instructions.
*Turn the ignition key to the ON position.
*Reconnect the negative battery cable. If the horn be-
gins sounding, press the disarm / programming button
with the ignition “ON” to disarm the system.
*Start the vehicle and verify that no air bag or engine
codes have been triggered. Any fault codes should be
addressed before proceeding to the next step.
*Turn the ignition key to the OFF/LOCK position.
HYUNDAIGenuineAccessories(Installation)
N
O
T
E
15
Wire Cutter
*Connect the disarm / programming button to the corresponding remote start module connector (if disconnected).
*Route the disarm / programming button along the remote start harness, toward the remote start module.
*Secure the disarm / programming button and the remote start harness with (1) large wire tie, as shown above.
*Secure the remote start harness and the disarm / programming button to the factory wire harness with (1) large wire tie, as shown
above.
*Secure the remote start harness to the factory wire harness connected to the fuse panel with (2) large wire ties, as shown above.
*Trimoff excess wire ties.
*Ensure disarm / programming button is secured to the remote start harness in a manner that allows for future serviceability.
Negative Battery Cable
WARNING: / AVERTISSEMENT
This vehicle is equipped with a remote controlled engine starter.
To reduce the risk of serious Injury or death, switch engine starter
system into service mode and disconnect the vehicle battery
before performing any service on the vehicle.
Ce véhicule est doté d'un démarreur à distance. Pour réduire les
risques de blessures graves ou mortelles, mettre le démarreur à
distance en mode service et débrancher la batterie du véhicule
avant d'effectuer des travaux d'entretien sur celui-ci.
Wire Ties
FusePanel
Wire Ties
Dash Wall
Grommet
!
WARNING! EngineStallHazard. Topreventstressonthe remotestartwireharness,ensurethetilt/telescopicsteering
columnisfullyextended,ifequipped. Ensureallconnectorsarefullyengagedandlockedinplace. Anenginestallcould
causeseriousphysicalinjury or vehicle damage.
WARNING! ShockHazard. Donottouchvehicle’snegativebatteryterminaltovehicle’s positivebatteryterminal.
Seriousphysicalinjuryorvehicledamagemayoccur.
!

Page 19 of 29
Revision Date
5/2/2012
HYUNDAIGenuineAccessories (FunctionCheck)
The parking lights will flash one time, the horn will beep once,
then the vehicle will crank and start. Once started, the horn will
beep once again and the parking lights will turn on and stay on
signifying the engine is running.
Brake Pedal Safety - Press unlock and enter the
vehicle. Press the brake pedal.
Items To Be Checked Results Of The Check
Door Lock - Close the engine hood and all doors and
press the lock button on the transmitter.
The parking lights will flash one time to indicate that the vehicle
is armed and locked.
The parking lights will flash one time and the horn will beep one
time giving audible confirmation that the vehicle is locked and
armed.
Door Unlock / Headlight Welcome Feature - Press the
unlock button on the transmitter. The parking lights will flash two times to indicate that the
vehicle is disarmed, the headlights will turn on for 15 seconds
and unlock the driver’s door only.
NOTE: If all doors unlock with the first press of the unlock
button on the transmitter, check the unlock operation of the
factory transmitter. To enable priority unlock, press the lock and
unlock buttons on the factory transmitter simultaneously for 5
seconds or more. The hazard lights will flash 4 times to confirm
the unlock mode has been changed.
The parking lights will flash two times to indicate that the vehicle
is disarmed, the headlights will turn on for 15 seconds and unlock
all remaining doors.
Door Unlock / Headlight Welcome Feature - Press the
unlock button on the transmitter a second time within 5
seconds of unlocking the driver’s door.
The engine/remote start will turn off immediately.
The hood should not have to be lifted to activate the hood safety
switch.
Door Lock - Press the lock button on the transmitter a
second time within 5 seconds.
The engine/remote start will turn off.
Remote Engine Start - Make sure the key is removed
from the ignition switch and the engine hood and trunk
are closed. Activate the remote engine start by pressing
lock followed by start within 3 seconds.
Key-In-Sense - Insert the ignition key into the ignition
switch but keep it in the OFF position. Activate the
remote engine start using the transmitter.
Hood Safety Switch - Remove the key from the
ignition and activate the remote engine start. After the
vehicle has started, press the unlock button on the
transmitter to disarm the security system and pull the
hood release lever to release the hood. Open the door
and exit the vehicle.
The parking lights will flash once and the ignition will turn on as
if it is going to start. But, the horn will beep twice and the
remote engine start will not attempt to start the vehicle since it
detects the key in the ignition. In addition, the driver’s door will
unlock and the vehicle’s interior light will illuminate and quickly
fades off.
Trunk Release - Press and hold the trunk release button
on the transmitter for 3 seconds to activate. The trunk will open.
Ensure the transportation fuse is properly installed before performing the function check.
If the transmitters fail to operate, refer to Page 26 (Transmitter Programming and Battery Test Procedure).
NOTE: Interior lamp switch must be set to the door position to
illuminate.

Revision Date
5/2/2012
Page 20 of 29
HYUNDAIGenuineAccessories(FunctionCheck)
Items To Be Checked Results Of The Check
Panic Feature - Press and hold the red panic button on
the transmitter for 3 seconds to activate. Press the red
panic button a second time to deactivate.
The parking lights will flash and the horn will beep for up to 30
seconds.
Quick Stop Feature - Start the vehicle with the ignition
key. With the vehicle in park and foot off the brake
pedal, press the remote start button on the transmitter.
Remove the key from the ignition.
Verify that the horn beeps once, the parking lights and headlights
turn on and that the vehicle remains running. The driver’s door
willunlock (if previously locked). Theparkinglightswillremain
on, but the headlights will turn off after 15 seconds.
Car Find Feature - Press the car find button on the
transmitter. Repeat this process twice. The parking lights will flash and the horn will beep 5 times.
Subsequent presses within 5 seconds of the first press will beep
the horn slightly louder.
Interior Lamp - Press the unlock button on the trans-
mitter to disarm the alarm system.
The vehicle’s interior light will illuminate up to 30 seconds or until
the vehicle ignition has been turned on or the vehicle has been
armed/locked by the transmitter or auto arm/lock feature (Refer to
the Remote Start Owner’s Guide for details on the auto arm/lock
feature).
NOTE: Interior lamp switch must be set to the door position to
illuminate.
Alarm Trigger - Press the lock button on the transmitter.
Press the trim switch on the door panel to the unlock
position and open any door. Press the unlock button
on the transmitter to disarm the security system. Repeat
this procedure twice, by opening the hood and then the
trunk using the release inside the vehicle.
The engine/remote start will turn off, the parking lights will start
flashing and the horn will start beeping for up to 30 seconds.
Rear Defrost - Close the trunk and activate the remote
engine start. Press the remote start button on the
transmitter a second time after the vehicle has started.
The parking lights will flash one time. Locate the rear defroster
switch and verify that the indicator portion of the switch is
illuminated.
