ICA ce 1200 User manual

ICA

I. INTRODUCTION / PENDAHULUAN
UPS (Uninterruptible Power Supplies) can
provide full protection against all of power problem
for your sensitive equipment ranging from
computer, computerized instrument, PABX,
facsimile, cash register to all electronic equipment.
This UPS consists of inverter, batteries,
battery charger, control circuit, stabilizer, transfer
switch and indicator. When line power is normal,
the UPS filters line power input and by pass to
output UPS and at the same time the batteries is
being charged by battery charger. And when line
power fails (off, voltage too low/high), inverter will
supply regulated AC power to the load within < 4
ms transfer time so that the power supplied to the
load is uninterrupted. And when line power is
normal automatically load gets from line power
again.
This UPS is also completed by interface for
communication with computer, with operating
system Windows 95, 98, ME, Unix / Linux and
Windows NT4/2000. Information from UPS to
Computer is power fail and battery low.
UPS (Uninterruptible Power Supplies) dapat
melindungi peralatan Anda yang rentan terhadap
gangguan kelistrikan seperti: komputer, instrument
terkomputerisasi, PABX, faksimili, cash register
dan peralatan elektronik lainnya.
UPS ini terdiri atas inverter, baterai, pengisi
baterai, rangkaian pengendali, stabilisator, saklar-
pengalih dan indikator. Saat listrik jala-jala normal,
UPS menyaring listrik masukan dan
menyalurkannya pada keluaran UPS, pada saat yang
sama baterai diiisi oleh pengisi baterai. Manakala
terjadi gangguan listrik (padam, tegangan terlalu
rendah/tinggi), inverter seketika bekerja dengan
waktu alih <4 ms sehingga pasokan listrik pada
beban tidak terganggu/terputus. Dan bila listrik jala-
jala pulih maka otomatis beban mendapat daya
listrik jala-jala kembali.
UPS ini dilengkapi interface untuk
berkomunikasi dengan komputer, dengan sistem
operasi Windows 95, 98, ME, Unix/Linux maupun
Windows NT4/2000. Informasi yang diberikan
kepada komputer adalah listrik padam dan baterai
hampir habis.
AC INPUT
TO COMPUTER
UPS OUTPUT
TRANSFER
SWITCH
INVERTERCHARGER
BATTERY
STABILIZER
&
INDICATOR
CONTROL CIRCUIT

II. TECHNICAL SPECIFICATION / SPESIFIKASI TEKNIK
ITEM SPECIFICATION
MODEL UNIT CE600 CE1200 CE2000
REMARKS
CAPACITY VA/W 600/300 1200/600 2000/1000
Maximum
Voltage V 165 - 250
Current A 1.6 2.9 4.8
Max. Load &
charger
Frequency Hz 50 ± 3
AC INPUT
Protection A 3 5 10 Fuse
DC
INPUT
Internal Battery 1x12V, 7AH 2x12V, 7AH 3x12V, 7AH Sealed lead acid
battery
Wave Form Synthesized Sinewave (Step wave) PWM
Voltage V 220 ± 5%
Frequency Hz 50
INVERTER
OUTPUT
Efficiency % > 80
Type V Constant Voltage
Voltage A 13.6 27.2 40.8
C H G
Current 1.5
Transfer Time ms ≤4 Maximum
Back Up Time min 10 Nominal Load
Indicator Led & Buzzer Refer to Table of
Status Indicator
Operation Temperature ◦C 0 – 40
Dimension mm 345x95x158 390x145x195 430x175x230 D x W x H
Weight Kg 7 15 19

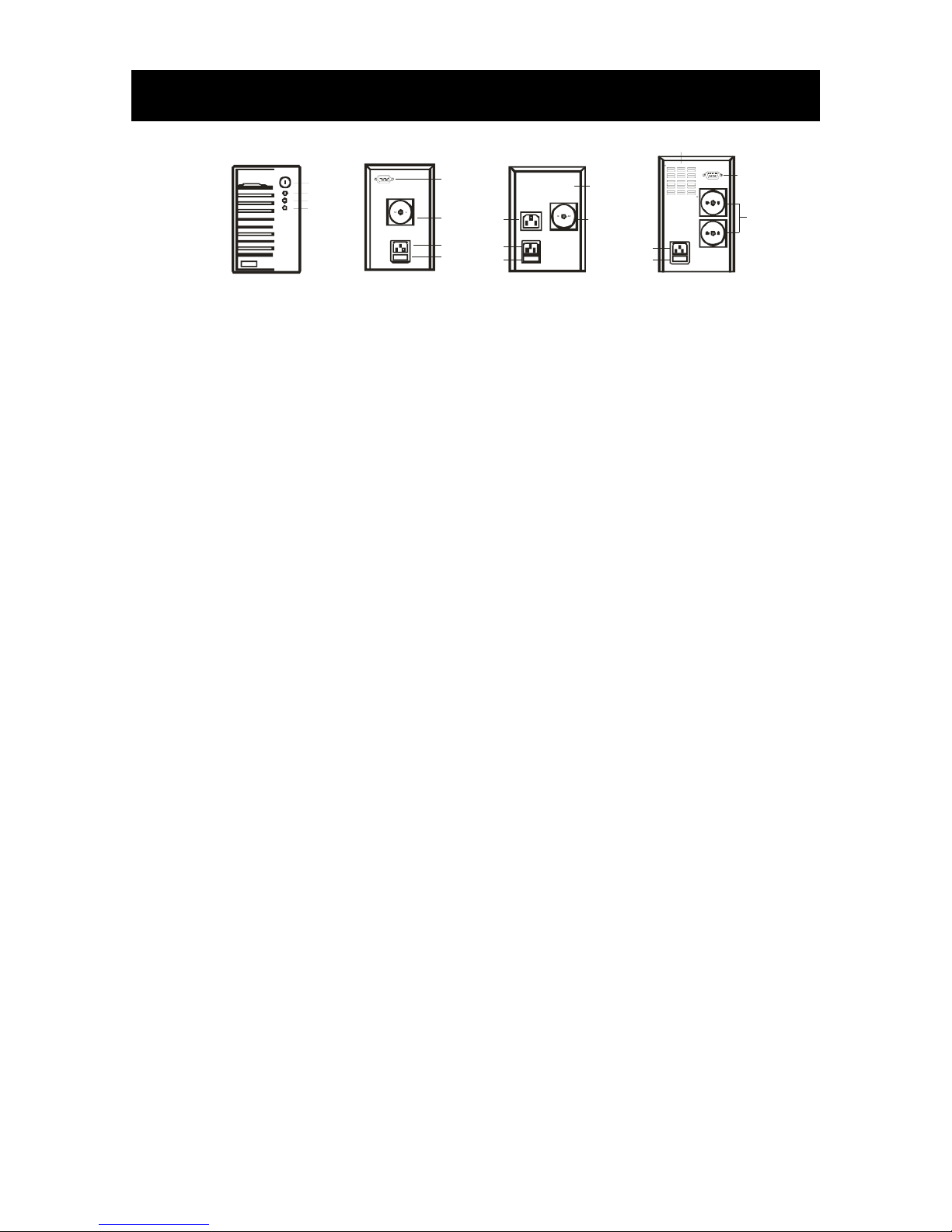

III. FRONT PANEL & REAR PANEL VIEW / TAMPAK PANEL
DEPAN & PANEL BELAKANG ELAKANG
66
5
5
REARPANELVIEW
UPS CE600
FRONT PANEL VIE W
UPSCE600, UPSCE1200
UPSCE2000
RS232
OUTPUT
OUT PUT
INPUT INPUT
1
2
3
4
6
77
88
5
RS232
OUTPUT
INPUT
OUTPUT
REARPANELVIEW
UPS CE1200
9
REARPANELVIEW
UPS CE2000
6
7
8
1. Main Switch / Tombol Daya : To turn on and turn off the UPS / Untuk menghidupkan dan mematikan
UPS
2. Green Led / Led Hijau : Indicate output UPS from line power / Menunjukkan keluaran UPS
dari listrik jala-jala.
3. Yellow Led / Led Kuning : Indicate output UPS from inverter / Menunjukkan keluaran UPS dari
inverter.
4. Red Led / Led Merah : Indicate battery low /
Menunjukkan keadaan battery hampir habis.
5. RS232 Connector / Konektor RS232 : For communication between UPS and computer / Untuk komunikasi
antara UPS dengan komputer.
6. Outlet / Stopkontak keluaran
7. Inlet / Stopkontak masukan
8. Fuse Input / Input Fuse
9. Ventilation / Lubang Angin

IV. UPS INSTALLATION / PEMASANGAN UPS
1. Location selection.
This UPS should be located in protected place.
2. Installation.
This UPS must be connected to a power
receptacle with earth ground.
a. Make sure main switch on the off position.
b. Connect the UPS to the available outlet.
3. Communication software installation (optional).
a. Install interface cable.
b. Insert RUPS 2000 CD in to CD ROM driver.
RUPS 2000 will then display the installation
menu. RUPS 2000 will be copied into the
folder specified ( Default : C : \ Program
Files \ Megatech \ RUPS 2000\ ).
c. After installation finished run RUPS 2000
from start menu -> RUPS 2000 -> RUPS
Manager. For other settings please refer to
RUPS 2000 user manual located in RUPS
2000 CD.
1. Pemilihan lokasi
Letakkan UPS ini pada tempat yang terlindung.
2. Pemasangan
UPS ini harus dihubungkan pada stopkontak
yang mempunyai hubungan ke bumi (arde).
a. Pastikan Main Switch pada posisi off.
b. Hubungkan UPS dengan stopkon-
tak yang tersedia.
3. Pemasangan software komunikasi (tambahan).
a. Pasang kabel interface.
b. Masukkan CD RUPS ke dalam driver CD-
ROM. Menu set up RUPS 2000 otomatis
akan jalan. File-file RUPS 2000 akan disalin
ke dalam folder yang ditentukan ( Default :
C: \ Program File \ Megatech \ RUPS 2000\
).
c. Sesudah instalasi selesai, jalankan RUPS
2000 mulai dari menu -> RUPS 2000 ->
RUPS Manager. Untuk setting yang lain
lihat pada petunjuk pemakaian dalam CD
RUPS 2000.
V. OPERATION PROCEDURE / CARA MENGOPERASIKAN
1. Turn on procedure.
a. Press on main switch at the front panel.
b. Turn on the load connected to the outlet.
2. When the line power is interrupted.
In case of line power is interrupted (off or
voltage is too low/high), inverter converts the
battery power to AC power automatically with
transfer time ≤4 ms. Buzzer will sound at
interval 4 seconds if the line power off or <
175V or > 250V. When the battery is near the
end of its capacity, buzzer will sound
continuously. At this time data should be stored
and all load shutdown.
3. Turn off procedure.
a. Turn off all the load connected to the outlet.
b. Press on power button at the front panel.
1. Cara Menghidupkan.
a. Tekan tombol daya pada panel depan.
b. Hidupkan beban yang terpasang pada
stopkontak keluaran.
2. Saat listrik jala-jala terganggu (padam atau
tegangannya terlalu rendah / tinggi), inverter
langsung bekerja dengan waktu alih ≤4 ms
mengubah daya baterai menjadi arus listrik AC.
Buzzer akan berbunyi putus – putus
selang 4 detik, jika listrik jala-jala mati atau <
175V atau > 250V. Saat baterai hampir habis
buzzer akan berbunyi sinambung. Pada saat ini
data harus sudah tersimpan dan semua semua
beban harus sudah dimatikan.
3. Cara mematikan.
a. Matikan semua beban yang terpasang pada
UPS.
b. Tekan tombol daya pada panel depan.

VI. START UP UPS / MENGHIDUPKAN UPS
1. Make sure Main Switch on the “off” position
and no load is connected to the outlet.
2. Connect inlet with power cord to a power
receptacle with earth ground
3. Turn on the UPS by pressing power button.
The red led of BATTERY LOW lights for about 2
seconds and will go out when the battery is in
good condition. At the same time the green led of
LINE ON light (if line voltage > 175V and <
250V) which indicates UPS output is from line
power.
4. Disconnect inlet from line power, the green led
of LINE ON will go out while the yellow led of
INVERTER will light on and audible alarm will
sound every 4 seconds.
5. Connect inlet to line power again and then after
about 2 seconds the yellow led of INVERTER
will go out while the green led of line on will
light on.
6. Now your UPS is ready for operation. Connect
the equipment that is going to be supplied by the
UPS into the UPS.
1. Pastikan tombol pada posisi “off” dan tidak ada
beban yang terpasang pada stopkontak keluaran.
2. Hubungkan steker kabel daya ke stopkontak
jala-jala yang mempunyai arde.
3. Hidupkan UPS dengan menekan tombol daya. Led
merah TEGANGAN BATERAI RENDAH akan
menyala sekitar 2 detik dan padam kembali bila
kondisi baterai baik. Bersamaan dengan itu led
hijau LISTRIK JALA-JALA menyala (bila
tegangannya > 175V dan < 250V) yang
menunjukkan keluaran UPS berasal dari listrik
jala-jala.
4. Cabut steker kabel daya dari stopkontak jala-jala
maka led hijau LISTRIK JALA-JALA padam
sedangkan led kuning INVERTER akan menyala
dan buzzer akan berbunyi setiap 4 detik.
5. Pasang kembali steker maka sekitar 2 detik
kemudian led kuning INVERTER padam
sedangkan led hijau akan menyala.
6. Sekarang UPS siap menjalankan fungsinya.
Hubungkan peralatan yang akan diberi pasokan
daya pada stopkontak keluaran UPS
VII. TABLE OF STATUS INDICATOR / TABEL STATUS INDIKATOR
Remark :
L1 : Green Led (Line On) NTPL : Audible alarm sound every 4 seconds.
L2 : Yellow Led (Inverter) NTPC : Audible alarm sound every 1 second.
L3 : Red Led (Battery Low)
BUZZER LED
STATUS
CONDITION MAIN SWITCH NTPL NTPC L1 L2 L3 RECOMMENDED SOLUTION
Normal 1 0 0 1 0 0 -
No line voltage 1 1 0 0 1 0 -
Line voltage too low 1 1 0 0 1 0 Check the line power, make sure
between 175 -250 Vac.
Line voltage too high 1 1 0 0 1 0 Check the line power, < 250 Vac.
Inverter is on at low
battery voltage 1 0 1 0 1 1
Save your work now, the inverter
will be cut off.
1. Line power is
normal.
2. Low battery.
1 0 0 1 0 1 -

VIII. TROUBLE SHOOTING / PETUNJUK KETIDAKNORMALAN
SYSTEM PROBLEM CAUSE
RECOMMENDED
SOLUTION
“Green Led” indicator not light.
1. Main voltage < 175 Vac or >
250 Vac.
2. Problem in transfer switch
control.
1. Check your mains voltage.
2. If main voltage > 175 Vac and
< 250 Vac, call for service.
Main voltage >175 Vac, turn on
main switch, red led light on,
after ± 5 seconds go out, but
inverter does not work.
Battery voltage low. 1. Check battery voltage.
2. Charger battery ± 10 hour by
kept the main switch in on
position when AC mains
normal.
3. Call for service.
When AC main failure and
inverter does not work.
Problem in inverter circuit. Call for service.
Communication from UPS to
computer fail.
1. Interface cable not connected.
2. Software has not been
installed or configure properly.
3. Interface cable or monitor card
is broken.
1. Install the interface cable.
2. Install software (setting
software)
3. If the problem still occur, call
for service.
SERVICE CENTRE
ICA
Jln. Pinangsia Raya I No : 22BB
Jakarta – 11120
Phone : [phone] (Hunting)
