ICA CT Series User manual

UNINTERRUPTIBLE
POWER
SUPPLIES
CT 382 - B
CT 682 - B
CT 1082 - B
CT 1382 - B
CT 1682 - B
CT - SERIES
ICA
481-1120090-171Rev. 03

CONTENTS / DAFTAR ISI
I.
II.
III.
INTRODUCTION / PENDAHULUAN
TECHNICAL SPECIFICATION / SPESIFIKASI TEKNIK
FRONT PANEL & REAR PANEL VIEW /
TAMPAK PANEL DEPAN & PANEL BELAKANG
1
Page / Halaman
2
3
IV.
V.
VI.
VII.
VIII.
IX.
SAFETY NOTES / CATATAN KESELAMATAN
INSTALLATION / INSTALASI
START UP UPS / MENGHIDUPKAN UPS
OPERATION PROCEDURE / CARA MENGOPERASIKAN
TABLE OF INDICATOR STATUS / TABEL STATUS INDIKATOR
TROUBLE SHOOTING / KETIDAK NORMALAN
5
6
7
8
9
10

I. INTRODUCTION / PENDAHULUAN
1
UPS (Uninterruptible Power Supplies) can provide full
protection against all of power problem for your sensitive
equipment ranging from computer, computerized instrument,
PABX, facsimile, cash register to all electronic equipment.
This UPS consists of inverter, batteries, battery charger, control
circuit, stabilizer, transfer switch and indicator. When line power is
normal, the UPS filters line power input and by pass to output UPS
and at the same time the batteries is being chargered by battery
charger. And when line power fails (off, voltage too low), inverter
will supply regulated AC power to the load within 4 ms transfer
time so that the power supplied to the load is uninterrupted. And
when line power is normal automatically load gets from line power
again.
This UPS is also completed by interface for communication
with computer, with operating system Windows 95, 98, ME, Unix /
Linux and Windows NT4/2000. Information from UPS to
Computer is and .
<
power fail battery low
UPS (Uninterruptible Power Supplies) dapat melindungi
peralatan anda yang rentan terhadap gangguan kelistrikan seperti
computer, instrument terkomputerisasi, , faksimili, cash
register dan peralatan elektronik lainnya.
UPS ini dilengkapi interface untuk berkomunikasi dengan komputer,
dengan sistem operasi Windows 95, 98, ME, Unix/Linux maupun
Windows NT4/2000. Informasi yang diberikan kepada komputer
adalah dan .
PABX
<
listrik padam baterai hampir habis
UPS ini terdiri atas inverter, baterai, pengisi baterai, rangkaian
pengendali, stabilisator, saklar pengalih dan indikator. Saat listrik
jala-jala normal, UPS menyaring listrik masukan dan
menyalurkannya pada keluaran UPS, pada saat yang sama baterai
diisi oleh pengisi baterai. Manakala terjadi gangguan listrik (padam,
tegangan terlalu rendah), inverter seketika bekerja dengan waktu
alih 4ms sehingga pasokan listrik pada beban tidak terganggu /
terputus. Dan bila listrik jala-jala pulih maka otomatis beban
mendapat daya listrik jala-jala kembali.

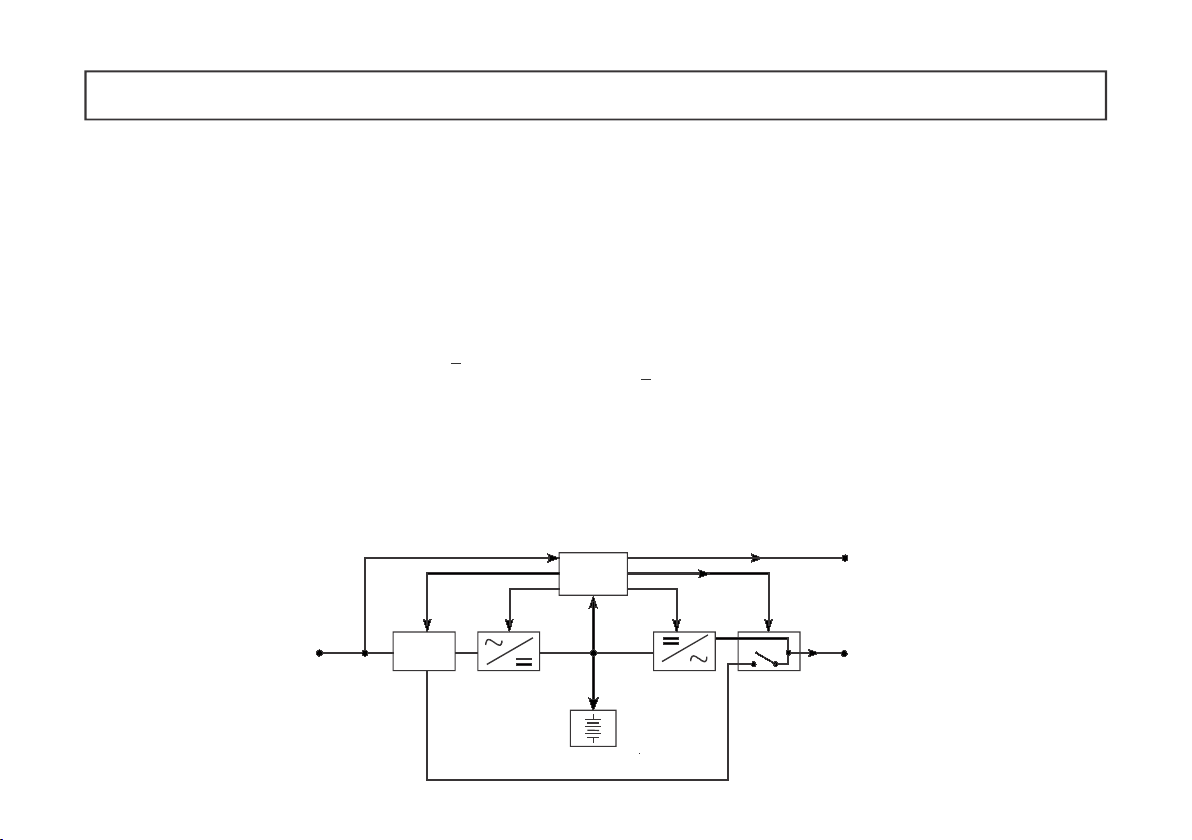

AC INPUT
TO COMPUTER
UPS OUTPUT
TRANSFER
SWITCH
INVERTERCHARGER
BATTERY
STABILIZER
&
INDICATOR
CONTROL CIRCUIT

2
50 ± 3
SYNTHESIZED SINEWAVE (STEP WAVE)
220 ± 5%
50
1,5
4
10
Led and Buzzer
0 - 40
> 80
Constant Voltage
A
Hz
A
A
V
Hz
VA/W
%
%
V
A
ms
Minutes
Minutes
C
mm
Kg
Max. Load & Charger
Fuse
Fuse
PWM
Maximum
Maximum
Nominal Load
Sealed Lead Acid Battery
Refer to Table of Indicator Status
DxWxH
Netto
Gross
Transfer Time
Back Up Time
Indicator
Operating Temperature
Dimension
Weight
A
C
I
N
DC
IN
I
N
V
O
U
T
C
H
G
Current
Frequency
Protection
Internal Battery
Protection
Wave Form
Voltage
Frequency
Power
Efficiency
Type
Voltage
Current
1,6
3,15 6,3 10
1x12V, 7AH 2x12V, 7AH 3x12V, 7AH 4x12V, 7AH 5x12V, 7AH
5030
600/300
340x95x145 390x145x195 430x175x230 445x175x230
6
7
14
15
20,3
22
23,5
25
28
30
13,5 27,0 40,5 54,0 67,5
1200/600 2000/1000 2600/1300 3200/1600
2,9 4,8 6,2 7,7
II. TECHNICAL SPECIFICATION / SPESIFIKASI TEKNIK
ITEM SPECIFICATION
UNIT
V 160 - 250
REMARKS
MODEL
Voltage
CT 382B CT 682B CT 1082B CT 1382B CT 1682B
Minutes

III. FRONT PANEL & REAR PANEL VIEW / TAMPAK PANEL DEPAN &
PANEL BELAKANG
3
1
2
3
4
59
6
8
7
FRONT PANEL VIEW
UPS CT382B, CT682B, CT1082B,
CT1382B, CT1682B
REAR PANEL VIEW
UPS CT382B
REAR PANEL VIEW
UPS CT682B
9 5
6
10

1. Main Switch /
Tombol Daya
2. Battery level /
Taraf baterai
3. Line on / Listrik
Jala-jala
4. Inverter on /
Inverter
5. USB port /
Port USB
6. Outlet / Stopkontak keluaran
7. AC cord input / Kabel input AC
8. Input fuse / Fuse input
: To turn on and off the UPS / Untuk
menghidupkan dan mematikan UPS
: Indicate status of battery (look at Table of
Indicator Status) / Menunjukkan keadaan baterai
(lihat Tabel Status Indikator)
: Green led, indicate output UPS from line power /
Led hijau, menunjukkan keluaran UPS berasal
dari listrik jala-jala
: Yellow led, indicate output UPS from inverter /
Led kuning, menunjukkan keluaran UPS berasal
dari inverter
: For communication between UPS and computer /
Untuk komunikasi antara UPS dengan komputer
4
5
6
11
9
10
REAR PANEL VIEW
UPS CT1082B, CT1382B,
CT1682B
9. Modem protector
port
: Internet modem protection / Perlindungan
modem internet
10. Inlet / Stopkontak masukan
11. Ventilation / Lubang angin
*
Please disconnect all communication connectors before
disconnecting main power cord from receptacle.
Notice :
Putuskan semua konektor komunikasi sebelum mencabut kabel daya
utama dari stopkontak.

IV. SAFETY NOTES / CATATAN KESELAMATAN
5
IV. 1. Electrical Safety
IV. 2. Deenergizing Safety IV. 2. Keselamatan Saat Membuang Arus Listrik
IV. 1. Keselamatan Listrik
!
!
!
!
!
Do not work alone under hazardous conditions.
High current through conductive materials could cause severe
burns.
Check that the power cord(s), plug(s), and socket are in good
condition.
When grounding cannot be verified, disconnect the equipment
from the utility power outlet before installing or connecting to
other equipment. Reconnect the power cord only after all
connections are made.
Connect the equipment to a three wire utility outlet (two pole
plus ground). The receptacle must be connected to appropriate
branch circuit/mains protection (fuse or circuit breaker).
Connection to any other type of receptacle may result in risk of
electrical shock.
!
!
If the UPS has an internal energy source (battery), the output
may be energized when the unit is not connected to a utility
power outlet.
To deenergize a pluggable UPS, press the OFF button or switch
to shut the equipment off. Unplug the UPS from the utility
power outlet. Disconnect the external batteries where applicable
and disconnect the internal battery. Push the ON button to
deenergize the capacitors.
!
!
Jika alat memiliki sumber energi internal (batterai), output
mungkin masih mengandung arus listrik walaupun unit tidak
terhubung dengan tegangan listrik AC.
Untuk membuang arus listrik dari UPS yang terhubung, tekan
tombol OFF untuk mematikan alat. Putuskan alat dari outlet
listrik AC. Lepaskan batterai dan putuskan batterai internal.
Tekan tombol ON untuk membuang listrik di dalam kapasitor.
!
!
!
!
!
Jangan bekerja sendiri dalam situasi berbahaya.
Tegangan tinggi melalui bahan konduktif dapat menyebabkan
luka bakar.
Periksa agar kabel listrik, fiting, dan soket berada dalam
kondisi baik.
Bila grounding tak dapat diverifikasi, putuskan hubungan
peralatan listrik dengan keluaran listrik AC sebelum memasang
atau menghubungkannya dengan peralatan lain. Hubungkan
kembali dengan kabel listrik hanya jika seluruhnya selesai
dihubungkan.
Hubungkan peralatan ke keluaran listrik AC tiga kabel (dua
kutub dan ground). Soket penerima harus terhubung secara
benar melalui sirkuit cabang/pelindung utama (sekring atau
pemutus arus). Hubungan ke soket penerima dalam bentuk
lainnya dapat menyebabkan bahaya sengatan listrik.

V. INSTALLATION / INSTALASI
6
IV. 3. Battery Safety IV. 3. Keselamatan Batterai
!
!
!
!
Repair are to be performed only by qualified personnel.
Do not dispose of batteries in a fire. The batteries may explode.
Do not open or mutilate batteries. They contain an electrolyte
that is toxic and harmful to the skin and eyes.
Replace batteries with the same number and type of batteries as
originally installed in the equipment.
!
!
!
!
Perbaikan hanya dilakukan oleh seorang teknisi yang memiliki
kualifikasi.
Jangan buang batterai ke dalam api, dapat meledak
Jangan membongkar batterai. Batterai mengandung elektrolit
yang beracun dan dapat merusak kulit dan mata.
Ganti batterai dengan nomor dan jenis yang sama seperti aslinya
terpasang dalam alat.
V.1 Unpacking and Inspection
V.2 UPS Installation V.2 Instalasi UPS
V.1 Buka kemasan dan Pemeriksaan
V.1.1
V.2.1 V.2.1
V.1.1
V.1.2
V.2.2 V.2.2
V.1.2
Unpack the packaging and check the package contents.
The contains of package ; UPS, user manual, warranty card,
input power cable, CD software and interface cable.
Location
This UPS Should be located in protected place.
Lokasi
Letakkan UPS ini pada tempat yang terlindung.
Buka kemasan dan periksa isi kemasannya.
Isi dari kemasan; UPS, buku petunjuk, kartu garansi, kabel
daya input, CD software dan kabel antarmuka..
Inspect the appearance of the UPS to see if there is any
damage during transportation. Do not on the unit and notify
the carrier and dealer immediately if there is any damage or
lacking of some parts.
Installation
This UPS must be connected to a power receptacle with
earth ground
a. Make sure Main Switch on the off position.
b. Connect the UPS to the available outlet.
Pemasangan
UPS ini harus dipasang pada stopkontak yang mempunyai
hubungan ke bumi (arde).
a. Pastikan Main Switch pada posisi off.
b. Hubungkan UPS dengan stopkontak yang tersedia.
Periksa penampilan UPS untuk mengetahui apakah terdapat
kerusakan akibat pengiriman. Jangan menghidupkan unit
dan langsung beritahukan kepada agen jika ditemukan
kerusakan ataupun kekurangan.

7
VI. START UPS / MENGHIDUPKAN UPS
1. Make sure Main Switch on the “off” position and no load is
connected to the outlet.
2. Connect inlet with power cord to a power receptacle with earth
ground.
3. Turn on the UPS by pressing power button. The red led in the
BATTERY LEVEL lights for about 5 seconds and will go out
when the battery is in good condition At the same time the
green led of LINE ON light (if line voltage > 170V) which
indicates UPS output is from line power.
4. Disconnect inlet from line power, the green led of LINE ON
will go out while the yellow led of INVERTER will light on.
5. Connect inlet to line power again and then after about 5 seconds
the yellow led of INVERTER will go out while the green led of
line on will light on.
6. Now your UPS is ready for operation. Connect the equipment
that is going to be supplied by the UPS into the UPS.
.
1. Pastikan tombol pada posisi “off” dan tidak ada beban yang
Terpasang pada stopkontak keluaran.
2. Hubungkan steker kabel daya ke stopkontak jala-jala yang
mempunyai arde.
3. Hidupkan UPS dengan menekan tombol daya. Led merah pada
TARAF BATERAI akan menyala sekitar 5 detik dan padam
kembali bila kondisi baterai baik. Bersamaan dengan itu led hijau
LISTRIK JALA-JALA menyala (bila tegangannya > 170V) yang
menunjukkan keluaran UPS berasal dari listrik jala-jala.
4. Cabut steker kabel daya dari stopkontak jala-jala maka led hijau
LISTRIK JALA-JALA padam sedangkan led kuning
INVERTER akan menyala.
5. Pasang kembali steker maka sekitar 5 detik kemudian led kuning
INVERTER padam sedangkan led hijau akan menyala.
6. Sekarang UPS siap menjalankan fungsinya. Hubungkan
peralatan yang akan diberi pasokan daya pada stopkontak
keluaran UPS.
V.3
Note : Catatan :
For further information, please read UPS software manual in pdf file. Untuk informasi lebih lanjut, silahkan baca pedoman
pemakaian perangkat lunak UPS dalam betuk file pdf.
V.3
UPS Management Software Perangkat lunak pengelolaan UPS
Choice the installation file agree with operating system on
your PC.
In installation progress will ask the serial number, fill the serial
number contained on CD software cover.
Pilih file instalasi sesuai dengan sistem operasi komputer anda.
Dalam proses instalasi akan ditanyakan nomor seri, masukkan
nomor seri yang tertera di bungkus CD software.

VII. OPERATION PROCEDURE / CARA MENGOPERASIKAN
8
1. Turn on procedure.
a. Press on power button at the front panel.
b. Turn on the load connected to the outlet.
2. When the line power is interrupted.
In case of line power is interrupted (off or voltage is too
low), inverter converts the battery power to AC power
automatically with transfer time 4 ms. Buzzer will
sound at interval 4 seconds. When the battery is near the
end of its capacity, buzzer will sound continuously. At
this time data should be stored and all load shutdown.
3. Turn off procedure.
a. Turn off all the load connected to the outlet.
b. Press on power button at the front panel.
<
Notes :
The UPS battery should charge for at least 10 hours to
ensure sufficient runtime. The unit is being charged
whenever it is connected to utility power, and UPS must be
turn ON.
Catatan :
Battery UPS harus di isi sekurangnya 10 jam untuk
memastikan UPS beroperasi dengan memadai. Unit akan
mengisi bilamana dihubungkan dengan sumber listrik, dan
UPS harus dihidupkan.
1. Cara menghidupkan
a. Tekan tombol daya pada panel depan.
b. Hidupkan beban yang terpasang pada stopkontak
keluaran
2. Saat listrik jala-jala terganggu.
Saat listrik jala-jala terganggu (padam atau tegangannya
terlalu rendah), inverter langsung bekerja dengan waktu
alih 4 ms mengubah daya baterai menjadi arus listrik
AC. Buzzer akan berbunyi putus-putus selang 4 detik.
Saat baterai hampir habis buzzer akan berbunyi
sinambung. Pada saat ini data harus sudah tersimpan dan
semua beban harus sudah dimatikan.
3. Cara mematikan.
a. Matikan semua beban yang terpasang pada UPS.
b. Tekan tombol daya pada panel depan.
<

VIII. TABLE OF INDICATOR STATUS / TABEL STATUS INDIKATOR
UPS Condition
Normal
No Line Voltage
Line Voltage too low
Line voltage too high
Normal, battery is full
Inverter is on at low
battery voltage
Line Voltage is normal,
Battery is voltage low
Remarks :
Note :
If indicates out of the table, turn off power button and call for service
1 L2
0 L3
X NP
L1 NTPL
NTPC
: Consists of LED ( L11, L12, L13, L14, L15, L16) : Audible alarm sounds every 4 seconds
: Audible alarm sounds every 1 second
: Don’t care, depends or battery conditions : Continuos sound
: Off : Yellow led ( look at page 3 no.4 )
: On : Green led ( look at page 3 no.3 )
1 0 0
0
0
0
0
1
1
0 X
XXXXX
XXXXX
XXXXX
11111
000001
000001
X X X X 0 1
0
0
1
1
0
1
0
Save your work now, the
inverter will be cut off
1
1
0
0
1
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
Power
Button
Buzzer
NP NTPL NTPC L11
L1
Led
L12 L13 L14 L15 L16 L2 L3 Remarks
9

IX. TROUBLE SHOOTING / KETIDAK NORMALAN
System
“ Line on” Indicator not light
Main voltage > 160 VAC, turn on Main
Switch, battery low light on after ± 5
seconds go out, but inverter does not work.
1. Battery voltage low
1. Check battery voltage.
2. Charger battery ± 10 hours by kept
the mains switch in on position when
AC mains normal.
3. Call for service.
1. Check battery fuse and replace with
the same rating.
2. If the fuse blown again, call for
service.
1. Install the interface cable.
2. See software manual.
3. If the problem still occurred, call for
service.
1. Interface cable not connected
2. Interface cable wrong or broken.
3. Software has not been installed or
configure properly.
Communication from UPS to computer fail.
1. Battery fuse broken.
2. Problem in inverter circuit
When AC main failure and inverter does not
work.
Problem cause
1. Main voltage < 160 VAC
2. Problem in transfer switch control
1. Check your mains voltage .
2. If your mains voltage >160 VAC, call
for service.
Recommended Solution
10

SERVICE CENTRE
ICA
Jln. Pinangsia Raya I No: 22BB
Jakarta - 11120
Phone : [phone] (Hunting)
Unuk informasi servis kota-kota lain, kunjungi
cari menu support.www.icaups.co.id
