ICA CN Series User manual

UNINTERRUPTIBLE
POWER
SUPPLY
ICA
481-11J0010-111REV.04

I. INTRODUCTION / PENDAHULUAN
UPS (Uninterruptible Power Supplies)
dapat melindungi peralatan anda yang
rentan terhadap gangguan kelistrikan
seperti: komputer, instrument
terkomputerisasi, PABX, faksimili, cash
register dan peralatan elektronik lainnya.
UPS ini terdiri atas inverter, baterai,
pengisi baterai, rangkaian pengendali,
stabilisator, saklar-pengalih dan indikator.
Saat listrik jala-jala normal, UPS menyaring
listrik masukan dan menyalurkannya pada
keluaran UPS, pada saat yang sama baterai
diisi oleh pengisi baterai. Manakala terjadi
gangguan listrik (padam, tegangan terlalu
rendah/tinggi), inverter seketika bekerja
dengan waktu alih 4 ms sehingga pasokan
listrik pada beban tidak terganggu/terputus.
Dan bila listrik jala-jala pulih maka
otomatis beban mendapat daya listrik jala-
jala kembali.
<
UPS (Uninterruptible Power Supplies)
can provide full protection against all of
power problem for your sensitive
equipment ranging from computer,
computerized instrument, PABX, facsimile,
cash register to all electronic equipment.
This UPS consists of inverter,
batteries, battery charger, control circuit,
stabilizer, transfer switch and indicator.
When line power is normal, the UPS filters
line power input and by pass to output UPS
and at the same time the batteries is being
charged by battery charger. And when line
power fails (off, voltage too low/high),
inverter will supply regulated AC power to
the load within 4 ms transfer time so that
the power supplied to the load is
uninterrupted. And when line power is
normal automatically load gets from line
power again.
<

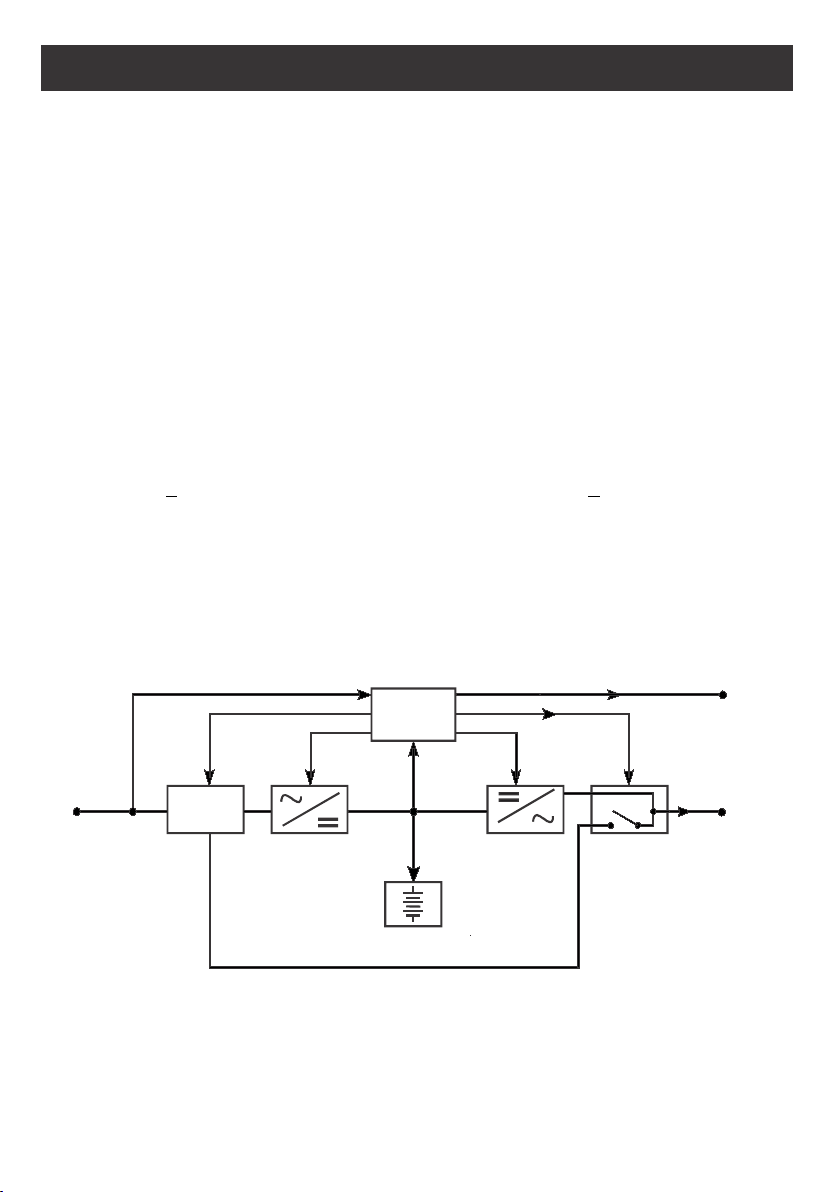

AC INPUT
TO COMPUTER
UPS OUTPUT
TRANSFER
SWITCH
INVERTER CHARGER
BATTERY
STABILIZER
&
INDICATOR
CONTROL CIRCUIT

II. TECHNICAL SPECIFICATION / SPESIFIKASI
TEKNIK
MODEL
ITEM
CAPACITY
Voltage
Current
Frequency
Protection
Internal Battery
Wave Form
Voltage
Frequency
Efficiency
Type
Voltage
Current
Transfer Time
Back Up Time
Indicator
Operation Temperature
Dimension
Weight
UNIT
VA/W
V
A
Hz
A
V
Hz
%
V
A
ms
min
0C
mm
Kg
SPECIFICATION
CN650 CN1300
650 / 325 1300 / 650
140 ~ 300
1.6 2.9
50 ± 3
3 5
Synthesized Sinewave (Step Wave)
220 ± 5%
50 ± 3
>80
Constant Voltage
13.7 27.4
1.2
10
Led & Buzzer
0 ~ 40
287 x 101 x 142.5 338 x 149 x 162
4.5 8.5
1 x 12V.7AH 2 x 12V. 7AH
REMARKS
Maximum
Max. Load &
Charger
Overload
Sealed Lead Acid
Battery
PWM
Maximum
Nominal Load
Refer to Table of
Status Indicator
D x W x H
< 4

1. Main Switch / : To turn on and turn off the UPS /
2. Green Led / : Indicate output UPS from line power /
3. Yellow Led / : Indicate output UPS from inverter /
.
4. Red Led / : Indicate overload & fault /
5. Outlet /
6. Fuse Input /
Tombol Daya
Untuk menghidupkan dan mematikan UPS
Led Hijau
Menunjukkan keluaran UPS dari listrik jala-jala.
Led Kuning
Menunjukkan keluaran UPS dari inverter
Led Merah
Menunjukkan keadaan beban lebih & ketidak
Normalan.
Stopkontak Keluaran
Input Fuse
7. AC Cord Input / Kabel Input AC
III. FRONT PANEL & REAR PANEL VIEW / TAMPAK
PANEL DEPAN & PANEL BELAKANG
FRONT PANEL VIEW
ICA
4 32 1
7
REAR PANEL VIEW
UPS CN650
6
5
REAR PANEL VIEW
UPS CN1300
5
6
7

Keselamatan ListrikElectrical Safety
IV. SAFETY NOTES / CATATAN KESELAMATAN
!
!
!
!
!
Do not work alone under hazardous
conditions.
High current through conductive materials
could cause severe burns.
Check that the power cord(s), plug(s), and
socket are in good condition.
When grounding cannot be verified,
disconnect the equipment from the utility
power outlet before installing or connecting
to other equipment. Reconnect the power
cord only after all connections are made.
Connect the equipment to a three wire
utility outlet (two pole plus ground). The
receptacle must be connected to appropriate
branch circuit/ mains protection (fuse or
circuit breaker). Connection to any other
type of receptacle may result in risk of
electrical shock.
!
!
!
!
!
Jangan bekerja sendiri dalam situasi
berbahaya.
Tegangan tinggi melalui bahan konduktif
dapat menyebabkan luka bakar.
Periksa agar kabel listrik, fiting, dan soket
berada dalam kondisi baik.
Bila grounding tak dapat diverifikasi,
putuskan hubungan peralatan listrik dengan
keluaran listrik AC sebelum memasang atau
menghubungkannya dengan peralatan lain.
Hubungkan kembali dengan kabel listrik
hanya jika seluruhnya selesai dihubungkan.
Hubungkan peralatan ke keluaran listrik AC
tiga kabel (dua kutub dan ground). Soket
penerima harus terhubung secara benar
melalui sirkuit cabang/ pelindung utama
(sekring atau pemutus arus). Hubungan ke
soket penerima dalam bentuk lainnya dapat
menyebabkan bahaya sengatan listrik.
!
!
If the UPS has an internal energy source
(battery), the output may be energized when
the unit is not connected to a utility power
outlet.
To deenergize a pluggable UPS, press the
OFF button or switch to shut the equipment
off. Unplug the UPS from the utility power
outlet. Disconnect the external batteries
where applicable and disconnect the internal
battery. Push the ON button to deenergize
the capacitors.
!
!
Jika alat memiliki sumber energi internal
(batterai), output mungkin masih
mengandung arus listrik walaupun unit tidak
terhubung dengan tegangan listrik AC.
Untuk membuang arus listrik dari UPS yang
terhubung, tekan tombol OFF untuk
mematikan alat. Putuskan alat dari outlet
listrik AC. Lepaskan batterai dan putuskan
batterai internal. Tekan tombol ON untuk
membuang listrik di dalam kapasitor.
!
!
!
!
Repair are to be performed only by qualified
personnel.
Do not dispose of batteries in a fire. The
batteries may explode.
Do not open or mutilate batteries. They
contain an electrolyte that is toxic and
harmful to the skin and eyes.
Replace batteries with the same number and
type of batteries as originally installed in the
equipment.
!
!
!
!
Perbaikan hanya dilakukan oleh seorang
teknisi yang memiliki kualifikasi.
Jangan buang batterai ke dalam api, dapat
meledak.
Jangan membongkar batterai. Batterai
mengandung elektrolit yang beracun dan
dapat merusak kulit dan mata.
Ganti batterai dengan nomor dan jenis yang
sama seperti aslinya terpasang dalam alat.
Battery Safety Keselamatan Batterai
Deenergizing Safety Keselamatan Saat Membuang Arus Listrik

1. Unpacking and Inspection.
Unpack the packaging and check the package
contents. The contains of package ; user
manual, warranty card, input power cable, CD
software and interface cable.
Inspect the appearance of the UPS to see if
there is any damage during transportation. Do
not on the unit and notify the carrier and
dealer immediately if there is any damage or
lacking of some parts.
2. UPS Installation.
This UPS should be located in protected place.
This UPS must be connected to a power
receptacle with earth ground.
a. Make sure main switch on the off position.
b. Connect the UPS to the available outlet.
1. Turn on procedure.
a. Press on main switch at the front panel.
b. Turn on the load connected to the outlet.
2. When the line power is interrupted.
In case of line power is interrupted (off or
voltage is too low/ high), inverter converts the
battery power to AC power automatically with
transfer time 4 ms. Buzzer will sound at
interval 4 seconds if the line power off or
< 1 V or > 0V. When the battery is near
the end of its capacity, buzzer will sound
continuously. At this time data should be
stored and all load shutdown.
3. Turn off procedure.
a. Turn off all the load connected to the outlet.
b. Press on power button at the front panel.
<
40 30
Notes :
The UPS battery should charge for at least 10
hours to ensure sufficient runtime. The unit is
being charged whenever it is connected to
utility power and UPS must be turn ON.
V. UPS INSTALLATION / PEMASANGAN UPS
VI. OPERATION PROCEDURE / CARA PENGOPERASIAN
1. Buka kemasan dan Pemeriksaan.
Buka kemasan dan periksa isinya. Isi dari
kemasan ; buku petunjuk, kartu garansi, kabel
daya input, CD software dan kabel antarmuka.
Periksa penampilan UPS untuk mengetahui
apakah terdapat kerusakan akibat pengiriman.
Jangan menghidupkan unit dan langsung
beritahukan kepada agen jika ditemukan
kerusakan ataupun kekurangan.
2. Instalasi UPS.
Letakkan UPS di tempat terlindung.
UPS harus dipasang pada stopkontak yang
mempunyai hubungan ke bumi (arde).
a. Pastikan main switch pada posisi off.
b. Hubungkan UPS dengan stopkontak yang
tersedia.
Catatan :
Baterai UPS harus di isi sekurangnya 10 jam
untuk memastikan UPS beroperasi dengan
memadai. Unit ini akan mengisi bilamana
dihubungkan dengan sumber listrik dan UPS
harus dihidupkan.
1. Cara Menghidupkan.
a. Tekan tombol daya pada panel depan.
b. Hidupkan beban yang terpasang pada
stopkontak keluaran.
2. Saat listrik jala-jala terganggu (padam atau
tegangannya terlalu rendah / tinggi), inverter
langsung bekerja dengan waktu alih 4 ms
mengubah daya baterai menjadi arus listrik
AC. Buzzer akan berbunyi putus - putus
selang 4 detik, jika listrik jala-jala mati atau
< 1 V atau > 0V. Saat baterai hampir habis
buzzer akan berbunyi sinambung. Pada saat ini
data harus sudah tersimpan dan semua beban
harus sudah dimatikan.
3. Cara mematikan.
a. Matikan semua beban yang terpasang pada
UPS.
b. Tekan tombol daya pada panel depan.
<
40 30

VIII. TABLE OF STATUS INDICATOR / TABEL
STATUS INDIKATOR
LED
L1 L2 L3
RECOMMENDED
SOLUTION
Check the line power, make sure
between 140-300 Vac.
Check the line power, < 300 Vac.
Save your work now, the inverter
will be cut off.
1 0 1 -
0
0
0
0
1
1
1
1
1
0
1
0
0
0
0
-
-
Remark :
L1 : Green Led (Line On) NTPL : Audible alarm sound every 4 seconds.
L2 : Yellow Led (Inverter) NTPC : Audible alarm sound every 1 second.
L3 : Red Led (Battery Low)
VII. START UP UPS / MENGHIDUPKAN UPS
1. Pastikan tombol pada posisi “off” dan tidak
ada beban yang terpasang pada stopkontak
keluaran.
2. Hubungkan steker kabel daya ke stopkontak
jala-jala yang mempunyai arde.
3. Hidupkan UPS dengan menekan tombol daya.
Led merah TEGANGAN BATERAI RENDAH
akan menyala sekitar 2 detik dan padam
kembali bila kondisi baterai baik. Bersamaan
dengan itu led hijau LISTRIK JALA-JALA
menyala (bila tegangannya > 140V dan
< 300V) yang menunjukkan keluaran UPS
berasal dari listrik jala-jala.
4. Cabut steker kabel daya dari stopkontak jala-
jala maka led hijau LISTRIK JALA-JALA
padam sedangkan led kuning INVERTER akan
menyala dan buzzer akan berbunyi setiap 4
detik.
5. Pasang kembali steker maka sekitar 2 detik
kemudian led kuning INVERTER padam
sedangkan led hijau akan menyala.
6. Sekarang UPS siap menjalankan fungsinya.
Hubungkan peralatan yang akan diberi pasokan
daya pada stopkontak keluaran UPS.
BUZZER
NTPL NTPC
MAIN
SWITCH
STATUS
CONDITION
Normal
No line voltage
Line voltage too
low
Line voltage too
high
Inverter is on at
low battery
1. Line power is
normal.
2. Low battery.
1
1
1
1
1
1 0 0
0 0
01
1 0
01
0 1
1. Make sure main switch on the “off” position
and no load is connected to the outlet.
2. Connect inlet with power cord to a power
receptacle with earth ground.
3. Turn on the UPS by pressing power button.
The red led of BATTERY LOW lights for
about 2 seconds and will go out when the
battery is in good condition At the same time
the green led of LINE ON light (if line
voltage > 140V and < 300V) which indicates
UPS output is from line power.
4. Disconnect inlet from line power, the green
led of LINE ON will go out while the yellow
led of INVERTER will light on and audible
alarm will sound every 4 seconds.
5. Connect inlet to line power again and then
after about 2 seconds the yellow led of
INVERTER will go out while the green led of
line on will light on.
6. Now your UPS is ready for operation.
Connect the equipment that is going to be
supplied by the UPS into the UPS.
.

RECOMMENDED
SOLUTION
1. Check your mains voltage.
2. If main voltage > 140 Vac
and < 300 Vac, call for
service.
1. Check battery voltage.
2. Charger battery ± 10 hour
by kept the main switch in
on position when AC mains
normal.
3. Call for service.
Call for service.
IX. TROUBLE SHOOTING / PETUNJUK
KETIDAK NORMALAN
SYSTEM PROBLEM CAUSE
“Green Led” indicator
not light.
Main voltage >140 Vac,
turn on main switch, red
led light on, after ± 5
seconds go out, but
inverter does not work.
When AC main failure
and inverter does not
work.
1. Main voltage < 140 Vac or
> 300 Vac.
2. Problem in transfer switch
control.
Battery voltage low.
Problem in inverter circuit.
SERVICE CENTRE
ICA
Jln. Pinangsia Raya I No: 22BB
Jakarta - 11120
Phone : [phone] (Hunting)
Notes :
For service information other cities, please visit “www.icaups.co.id” go to support menu.
------------------------------------------------------------------------------------------------------------------------
: Catatan
Untuk informasi servis kota-kota lain, silahkan kunjungi “www.icaups.co.id” cari menu support
