Icegame AF1000X User manual

1
AF1000X User Manual
Innovave Concepts In Entertainment
10123 Main street, Clarence, NY 14031
WWW.ICEGAME.COM
[phone] Monday through Friday 8:30am to 6:00pm Eastern Standard
ICE AIR FX

2
Table of Contents
Assembly 3-7
Main Board Layout 8
RGB Driver Board Layout 9
Programming 10-12
Deector Layout 13
Score Display Sengs 14
Parts 15-17
Warranty 18
Rev C 10/14/2015

3
Locate keys and Open
The keys are either located in the coin return of the coin door or screwed to the boom of the cabinet. There
should be two dierent types of keys. One set for the coin door and another to open the player’s puck doors.
OR
Locate the legs and feet.
The leg, feet, and hardware is located inside the
right side door.
Coin Door

4
Leg Assembly:
Aer removing the legs from the cabinet, remove the bolt using a 6mm Allen wrench on each leg. You will
have to also use a wrench to hold the adjustment rod from spinning out. Then place one feet per leg and
reaach the 6mm bolt. The adjustment rods are installed from the factory and can be adjusted for uneven
heights once installed to the cabinet.
X’s 4 per leg, 16 total.
Aaching the assembled Legs:
Using four 7/16 bolts and washers aach each leg onto the boom of the cabinet. Tighten all bolts.

5

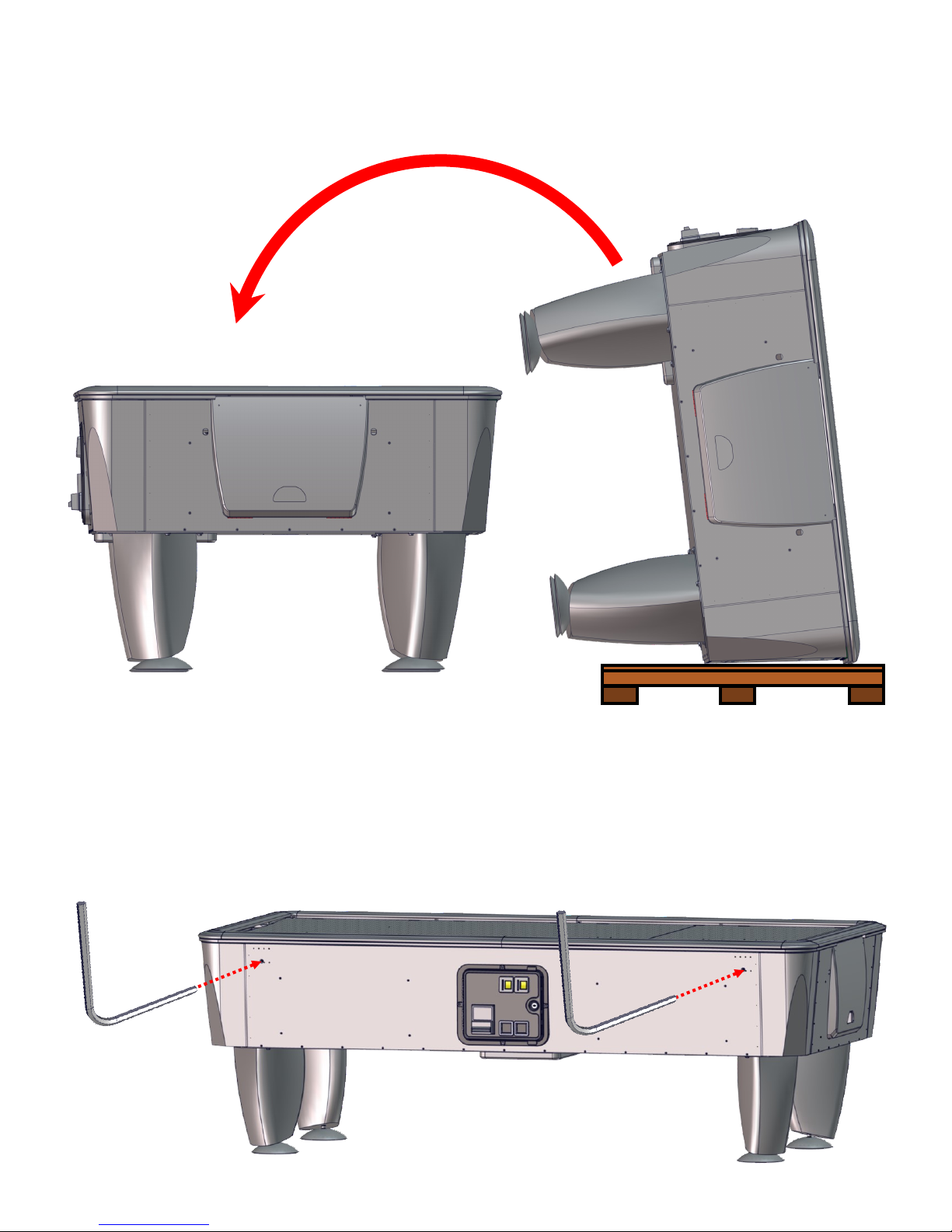

Posioning the Table
Flip the table onto its legs using at least four people on either side.
Opening The cabinet Top:
Located in the cash box is the Allen wrench key to open the cabinet top playeld. Insert the wrench as
shown and turn counter-clock-wise to unlock the playeld.

6

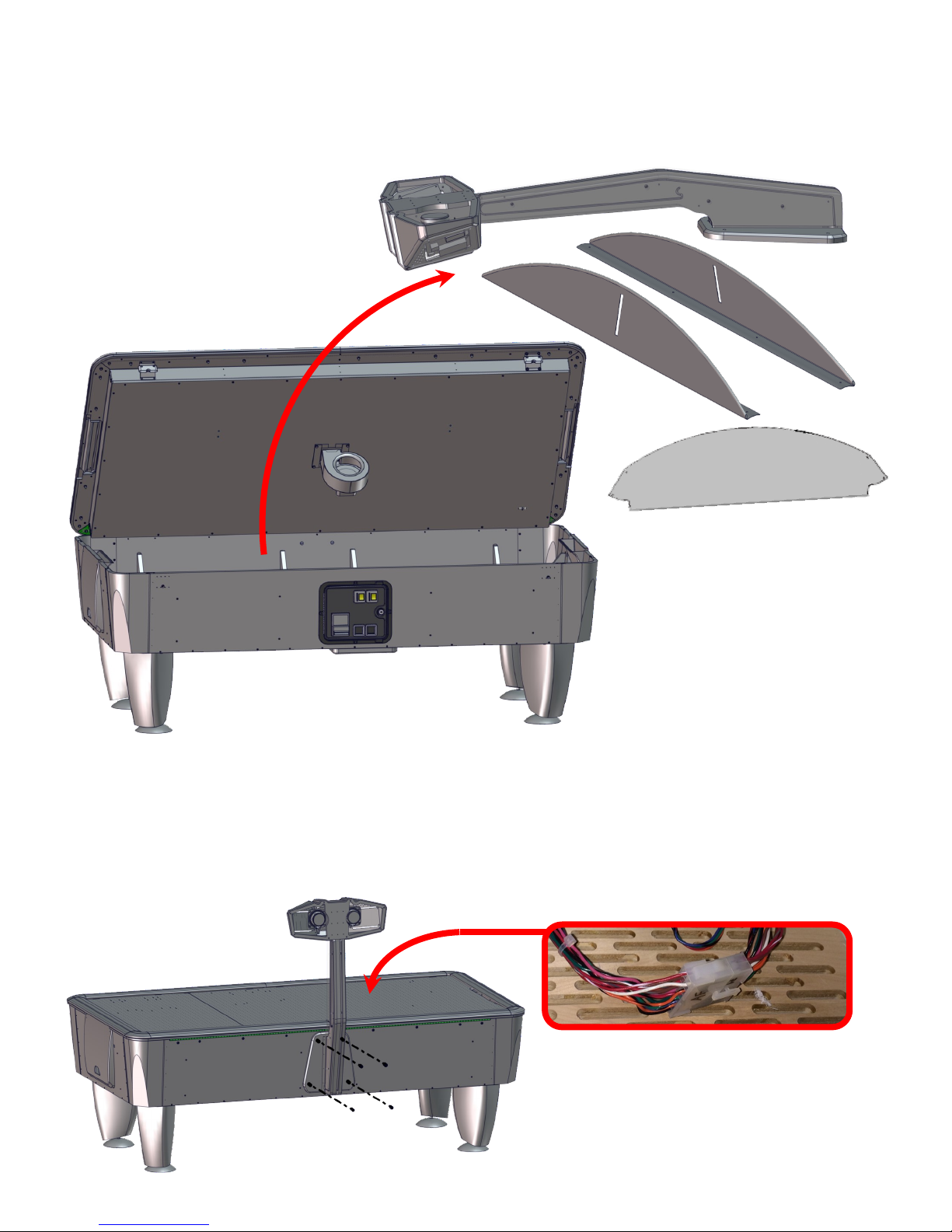

Locang the Score Head and sides:
The score head assembly is bolted to the boom of the cabinet. The side rails and divider are
aached with straps stapled to the boom of the cabinet.
Installing Score Head:
The score head is mounted on the opposite side of the coin door. Insert the wire harness from
the score header marquee into the cabinet. Then aach the Score Header Marquee using
four AA6584 1/4 20 black bolts and washers. Open the playeld back up and connect the
harness.

7
Aaching Side Guards:
Using four AA6032 8x1/2 Hex w/tek screws aach the side guards. Slide the playeld divider into the side
guard slot.
Slide the other side guard into the other end of the playeld divider and aach using AA6032 8x1/2 Hex
w/tek screws

8
FUSE 2
CN21
CN10
100 volts
230 Volts
120 volts
FUSE 1
CN23
CN24
CN22 CN15
CN19
CN9
CN2 CN7
CN1 CN8 CN13 CN11
8888
Down
Enter
ESC UP
Total
VOLUME CONTROL
Rev B board layout
red/white
brown/white
red/gray
brown/gray
right speaker +
right speaker -
left speaker +
left speaker -
CN19
CN8
pink
black
green
tan
white
+9 VDC
ground
data
clock
latch
AMP
1
6
1
2
3
4
5
6
1
2
3
4
5
6
CN13
blue/white
gray/brown
black/white
blue/black
gray/red
black
+24 VDC
score 1
ground
+24 VDC
score 2
ground
BLUE/BLACK
BLACK
LIGHT BLUE
BLACK/BLUE
PUCK MOTOR 1
PUCK MOTOR 2
CN15
CN23
Blue
Brown
1
2
3
4
5
6
7
8
CN11
white/brown
black/white
white/red
black
black
BLUE
BROWN
GREEN/YELLOW
CN21
AC Neutral
AC Hot
N/C
Earth Ground
AC Neutral Blower
AC Hot Blower
1
2
3
4
CN2
black
black
black/red
black/yellow
BROWN
BLUE
CN24
No connecon
AC hot to LED power supply
AC neutral to LED power supply
CN9
light blue
black
white
tan
yellow
green
1
2
3
4
5
6
7
8
9
10
Counter Negave
Not Used
Counter Posive
Not Used
Not Used
Coin signal
Ground
Not used
DBV
DBV ground
Not used
Ground

9
J1 J2
J7
J9
J8
12
11
22
3
3
44
55
66
77
88
12345
1
234
5
J1: Connector
Pin Color wire Descripon
1 Orange +12 volts
2 Yellow/red Red RGB LED
3Yellow/green Green RGB LED
4Yellow/blue Blue RGB LED
5Orange/black Marquee +12 volts
6Red/Black Marquee Red RGB LED
7Green/Black Marquee Green RGB LED
8Blue/Black Marquee Blue RGB LED
J2: Connector
Pin Color wire Descripon
1 Orange +12 volts
2 Yellow/red Red RGB LED
3Yellow/green Green RGB LED
4Yellow/blue Blue RGB LED
5Orange/black +12 volts
6Brown/red Red RGB LED
7Brown/green Green RGB LED
8Brown/blue Blue RGB LED
J7:
Pin Color wire Descripon
1Black Fused (7amps) +12 volts
2
3
4Black/white Ground
5Black/white Ground
J8:
Pin Color wire Descripon
1Orange Marquee +12
2Black Marquee ground
AR2035X
RGB Driver Board

10
CN1
CN4
CN2
CN3
Ticket PCB
4
1
Score PCB
CN1:
Pin Wire Color Descripon
1Black Ground
2Grey/red Power
3N/A No connecon
4Blue/black Sense
CN1: Connector ; Power
Pin Color wire Descripon
1 Green w/yellow Earth ground
2 N/A No connecon
3Blue Neutral AC
4Brown Hot AC
CN3: Connector ; Data to main board
Pin Color wire Descripon
1 light Blue +24 VDC
2Black Ground
3white data
4tan data
5yellow data
6green data
CN4: Connector ; Ticket dispensers
Pin Color wire Descripon
1Orange +12 VDC
2Black Ground
3Violet/white Ticket run line ; Goes High when ckets are owed.
4Violet/blue Notch Line ; Goes low when opc is not blocked.
5Orange +12 VDC
6Black Ground
7Yellow/white Ticket run line; Goes High when ckets are owed.
8Yellow/blue Notch line ; Goes low when opc is not blocked.

11

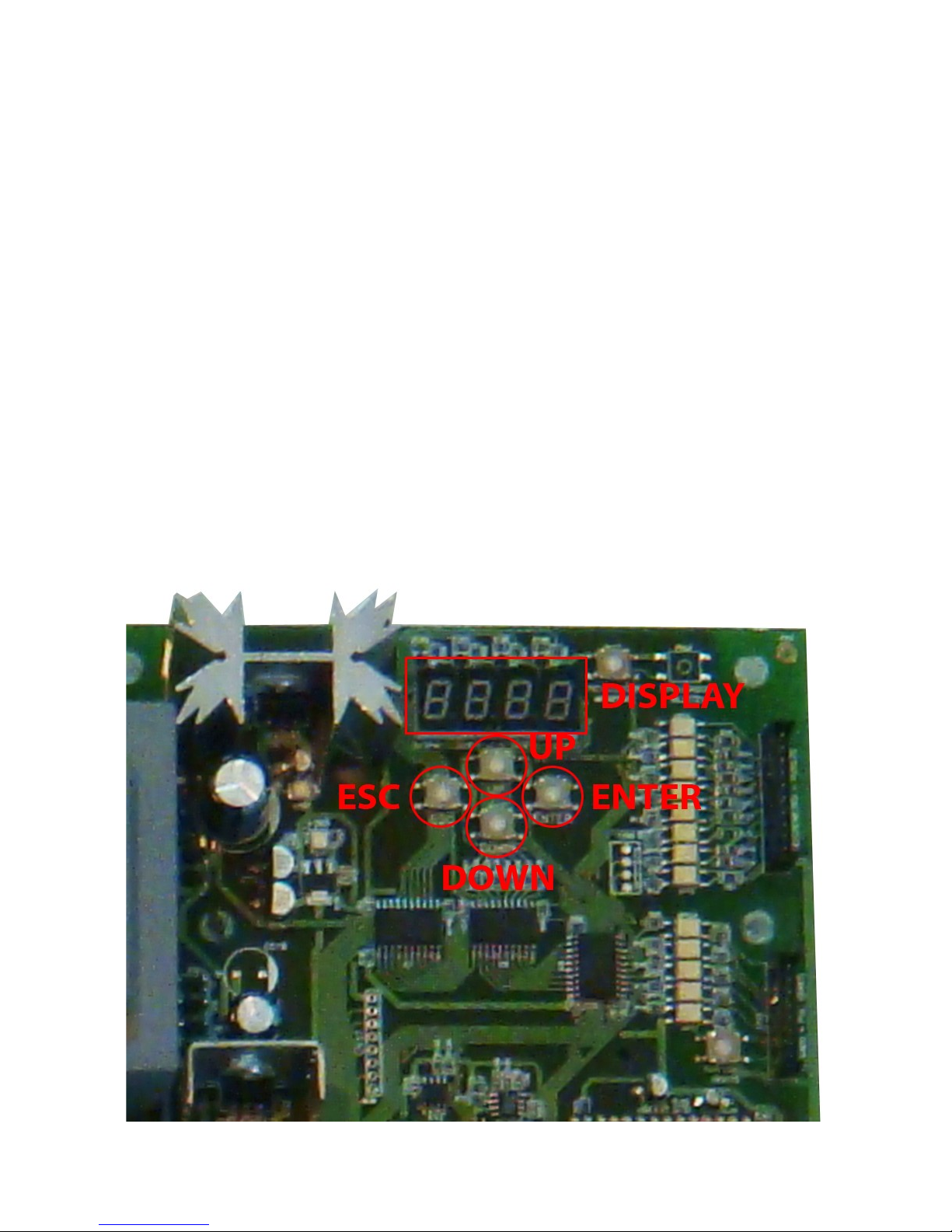

Programming:


“”. 







12















-















13










   
  
    





14
Ball Deector Mounng Posions
** NOTE ** Color has been changed to red to accent.
SA0185W
LONG
Tone Bar
SA0186W
SHORT Tone Bar
SABOLTKITNEW

15
Accessing the SA1228 Boards
Step 1: Remove the back cover. Step 2: Remove the standos that hold
the boards .
SA12228
Display Mounng posion determines dipswitch sengs.
SA12230
SA12230

16
AR2035X
LED Board
SA12226A
PCB Main
GF2010
Power supply
AF2007X
Power Module
WS1022
TICKETBIN (Opon)
SA6669W
Side Protector
SA5945W
Goal Door assembly
SA201605104906
Leg Purple
SA11149
Leg Leveler
AF5001
Coin Door

17
SA6689W
Side Rail
SA6689W
Side Rail SA10170
Corner
SA6688W
End Rail
AF7003
Playeld

18
Spare Parts List
ICE part Descripon
SA0259 Bright Yellow (hard/fast) puck
SA1006RF Player handle red
SA1007BF Player handle blue
E00724AFAX LED strip RGB 59 cuts
E00724AFBX LED strip dual 4 cuts
E00852AFX LED strip large white 19 cuts
AA5014 7/8 cam lock
SA0258 Puck Blue
SA11766 Cash Box
SA12344 Puck Motor
SA12220 Goal Sensor
SA204200000200
Playeld Motor
AF7000
Side Decal
AF7002
End Decal

19
WARRANTY POLICY
ICE Inc. warrants that all of its products will be free from defects in material and workmanship. When placing a
warranty request, please be prepared to provide the following informaon:
 Serial Number of Game or Bill of Sale
 Machine Type
 A Detailed Descripon of the Equipment Fault Symptoms
ICE product, including, Sam’s Billiards, Neolith, Game Concepts & Funway is warranted as follows:
 180 days on the Main PCB, Computers and Motors
 1 Year on LCD/LED Monitor Panels (through Manufacturer)
 90 days on all other electronic/mechanical components (i.e. DBV’s, Ticket Dispensers)
 30 days on all parts and repaired items
 ICE Inc shall not be obligated to furnish a warranty request under the following condions:
 Equipment has been subjected to unwarranted stress through abuse or neglect
 Equipment has been damaged as a result of arbitrary repair/modicaon aempts
 Equipment that has failed through normal wear and tear (bulbs, balls, buons, etc.)
ICE Inc. will assume no liability whatsoever for costs associated with labor to replace defecve parts or travel me
associated therein.
All defecve warranty covered components will be replaced with new or factory refurbished components equal to OEM
specicaons. ICE Inc. (or the manufacturer) will cover domesc (U.S.A.) UPS ground (or comparable shipping means)
freight costs to the customer during the warranty period. Expedited shipments are available for an addional charge at
the customer’s own expense.
Defecve parts are to be returned to ICE Inc. (or the manufacturer), at the customer’s expense, in a mely fashion.
They should be packaged following UPS guidelines to insure safe transit back to ICE. Adequate value freight insurance
should be used in case the shipper damages the item and a claim must be led.
ICE distributors are independent, privately owned and operated. In their judgment, they may sell parts and/or
accessories other than those manufactured by ICE Inc. We cannot be responsible for the quality, suitability or safety of
any non-ICE part, modicaon (including labor) that is performed by such a distributor.
Innovative Concepts in Entertainment
10123 Main St.
Clarence, NY 14031
Phone #: (716) - 759 – 0360
Fax #: (716) – 759 – 0884
www.icegame.com
