Icegame DODGEBALL ULTIMATE ARENA User manual

DB1200X Service Manual
Innovative Concepts in Entertainment
10123 Main Street
Clarence, New York 14031
[phone] 8:30am to 6:00pm EST
WWW.ICEGAME.COM

2
Table of Contents - REV E - 12/5/2022 1200x Deluxe model DODGEBALL
Safety and Warnings 3
Game description and operations 4
Hardware kit breakout 5 - 6
Game Assembly
Chapter 1 Steps 1 - 8 7 - 15
Chapter 2 Steps 9 - 16 16 - 21
Chapter 3 Steps 17 - 22 22 - 27
Chapter 4 Steps 23 - 26 28 - 32
Chapter 5 Steps 27 - 43 33 - 42
Chapter 6 Steps 44 - 51 43 - 47
Chapter 7 Steps 52 - 59 48 - 56
Chapter 8 Steps 60 - 63 57 - 60
Chapter 9 Steps 64 - 69 61 - 66
UCL connection 67
Locations for Program Settings - Diagnostics - Volume - Power controls 68
Entering Program Settings or Accounting Mode 69
Options defined 70
Diagnostics and Trouble shooting Guide 71 - 72
Target PCB ID Numbers 73
Target PCB Dip Switch Settings 74
Target Graphic part numbers 75
Graphic decal part numbers 76
Leader Board Assembly and Parts 77 - 78
Blocker arm and motor removal 79
Button Target breakdown 80
Target Assembly Breakdown 81
Ball gate Breakdown 82
Ball gate troubleshooting 83
Trouble Shooting Tips 84
Target Arms diagnostics and tips 85
Spare parts suggestion 86
Warranty 87

3
SAFETY AND WARNINGS BEFORE YOU BEGIN
WARNING: WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE USED.
FAILURE TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. FAILURE TO USE A
GROUNDED RECEPTACLE COULD ALSO CAUSE IMPROPER GAME OPERATION, OR DAMAGE TO
THE ELECTRONICS.
NOTE: THIS GAME IS INTENDED FOR INDOOR USE ONLY.
DO NOT DEFEAT OR REMOVE THE GROUNDING PRONG ON THE POWER CORD FOR THE SAME
REASON AS GIVEN ABOVE. USING AN IMPROPERLY GROUNDED GAME COULD VOID YOUR
WARRANTY.
HAVE A QUALIFIED ELECTRICIAN CHECK YOUR A.C. RECEPTACLE TO BE SURE THE GROUND
IS FUNCTIONING PROPERLY.
THIS GAME IS DESIGNED TO DISSIPATE STATIC ELECTRICITY THROUGH THE GROUNDING
PLANE OF THE GAME. IF THE A.C. GROUND DOES NOT WORK, THE GAME COULD DISCHARGE
STATIC ELECTRICITY THROUGH THE GAME CIRCUITRY, WHICH COULD CAUSE DAMAGE.
THE POWER SUPPLY IS NOT VOLTAGE ADJUSTABLE. TO OPERATE THE GAME AT VOLTAGES
OTHER THAN THOSE IT WAS DESIGNED FOR. PLEASE CONTACT OUR SERVICE DEPARTMENT
FOR VOLTAGE CONVERSION INFORMATION.
WARNING
DO NOT remove any of the components on the main board (e.g. compact flash and eproms)
while the game is powered on. This may cause permanent damage to the parts and the main
board. Removing any main board component part while powered on will void the warranty.
ALWAYS REMOVE POWER TO THE GAME, BEFORE ATTEMPTING ANY SERVICE,
UNLESS NEEDED FOR SPECIFIC TESTING. FAILURE TO OBSERVE THIS PRECAUTION
COULD RESULT IN SERIOUS INJURY TO YOURSELF OR OTHERS.
THIS GAME IS NOT SUITABLE FOR INSTALLATION IN AN AREA WHERE A WATER JET COULD BE
USED.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
AC Power Information
The games main fuse is accessed through the back of the game at the power mod. Above the
power cord is a small panel that contains the main fuse.
The value of the fuse for 120 volt users is 8 AMPS at 250Volt type slow blow.

4
The object of the game is to hit targets to score the most points possible using multipliers to increase
your score. The game can be played in either single training mode or competitive mode.
Points of the game:
● Arena Jumbotron - Players can compare their scores in competitive mode against others.
● Moving Targets - Red and Blue targets holes allow for point multipliers.
● LED RGB Tower - Attracts players to the game.
● Real Dodge ball – 24 real licensed dodge balls are used.
● Single or competition mode - Up to four players can join in, 2 on each side
● Power Requirements: 110v cabinet 8 AMPS, 220v cabinet 4 Amps required.
Theory of Operation:
The game has one main board (DB2034X) that has dual channel communication in a single wired
connection to communicate with the upper jumbotron display, the many target boards, and the two
player communication boards. Either of the four RJ45 connectors can be used. This board controls
the NEOPIXELS at P14 and RGB LED’s at P5 and P9 for the deluxe marquee model. J3 is the
audio line level out to the FE2006 amplifier. P15 controls two actuators wired in parallel using +12
volts.
Players and operators interact to the game through the DB2135X boards. Both boards have
dipswitches to configure which side (red or blue) they are installed in. Each board has two
communication connections at J2 and J4. They are RJ45 standard connections. P3 is used for the
UCL connection, coins, and ticket controls. P1 is used for Solo LEDs/button and Comp LED/button.
J6 has right LED/button and left LED/button connections. Both DB2135X boards (blue/left and red/
right) have the operator controls to program, see audits, enter diagnostics or reset settings. PROG,
SEL, UP, and DOWN buttons are used at blue side (left). The player buttons are also used during
Diagnostic, audits, and reset menus.
The jumbotron display is driven by WH2236X board. This board contains the programmed graphics
and texted used on the jumbotron. Twelve E01357 Dot matrix boards make up the display 6 per.
P1 and P2 connections drive the panels, 6 panels per assembly. A separate +5 VDC harness
powers the array which is fused by 6 amp Fast Blo located under the playfield accessed through a
panel.
The target boards (DB2033X) are linked in a daisy chain configuration. Each run connects to the
next target board. This is NOT is sequence to their locations. RJ45 connectors are color coded to
prevent the ability to loop back any chain connection. On power up, all target boards will report in to
the main board. Any board that does not respond will result in a COM error. Depending on their
location determines which connectors are used. In every configuration, P4 drives any display used.
P3 has RGB control, optic sensors, and switch inputs depending on location. P2 is for the target
motors (GF2008X) or the swing arm motor (FB2009DBX). J5 has more LED controls. A separate
+12 VDC harness powers all target boards and are fused by 6 AMP Fast Blo fuse either in the
playfield floor or at the front of the game.
All circuit boards can be upgraded by the operator with special files you copy onto a SDCARD. No
more swapping boards for program changes!

5
PC60622 1/4-20 X
1 (BLACK)
AA6584 1/4-20 X 2 (BLACK)
AA6125 1/4-20 X 2-1/2 black
DB3058 ABS black
washer
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
PC60636 1/4-20 X 3 (BLACK)
AA6369 - 1/4-20 X 3-1/2 BLACK
AA6966 1/4-20
nylock black nut
AA6281 1/4-20 X 1-1/2 BLACK
AA6030 - #8 1-1/4
black drywall screw
AA6177 - 8-32 x 1
pan head silver
AA6514 - 8 1/2
pan head silver
PC60614 1/4-20
Kept Nut
AA6630 1/4-20 x 4 black Allen

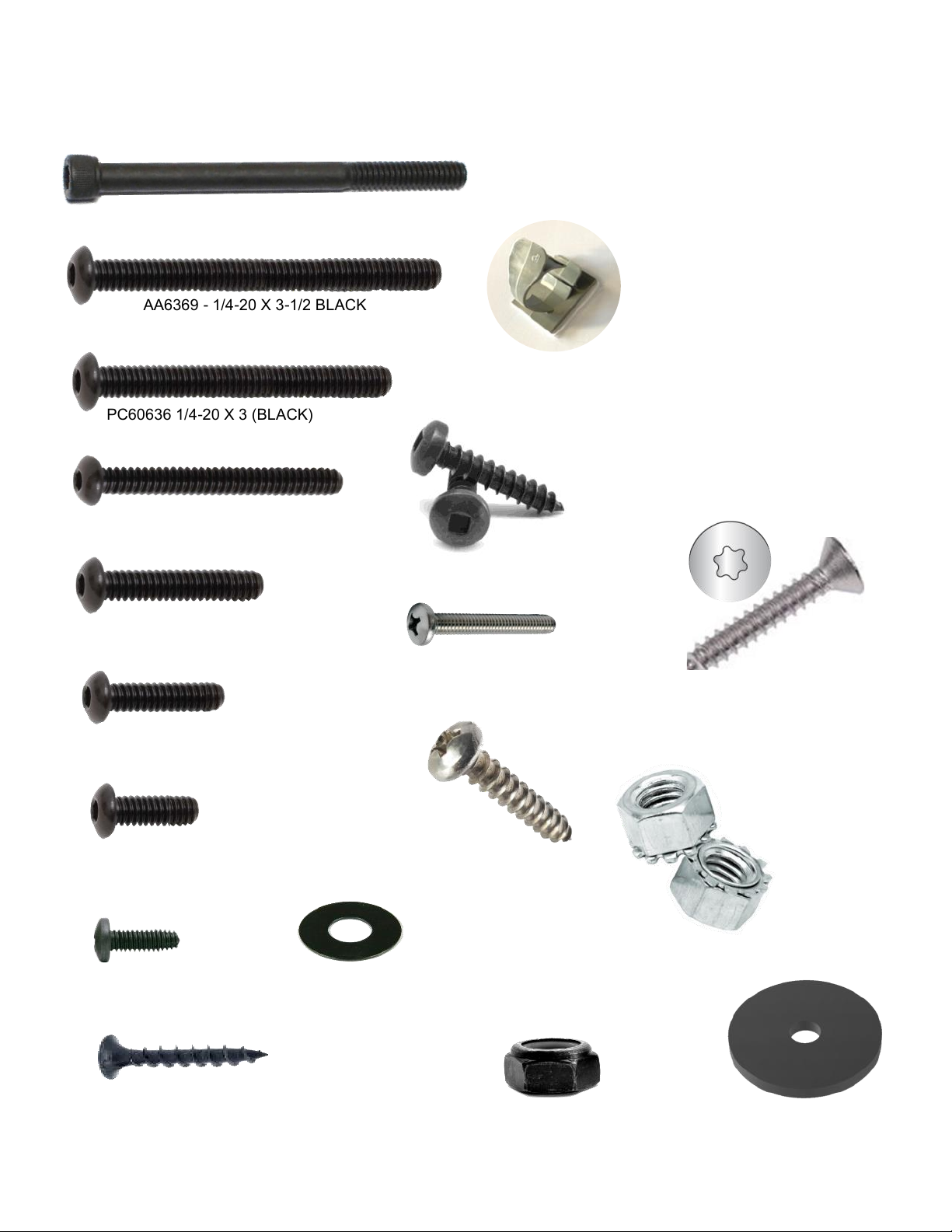

HARDWARE LIST
AA0655 - #8 X 3/4
Square pan head screw
AA6004 - 8-32 X 1/2
AA6883 10 X 1-1/2
Silver TORX
AA6516: 1/4-20 X
3/4 DOWEL NUT
silver
E08639 HARNESS
CLAMP
QTY: 3

6
AA6105 Latch tool
DB3024 - balls X’s 24 (4 boxes with 6 multicolored balls in each box)
18 balls installed in game, and 6 spare balls.
NON-HARDWARE ITEMS INCLUDED WITH PARTS PACK
GLASS
CLEAN
PC60601A
5/32 Allen wrench
AA6173
#2 Phillips BIT
AA6811
T-20 Torx Bit
AA6215
5/32 Security Allen Bit
PC60615A
#2 SQ DRIVE BIT
CG2027
9’ AC POWER
CORD

7

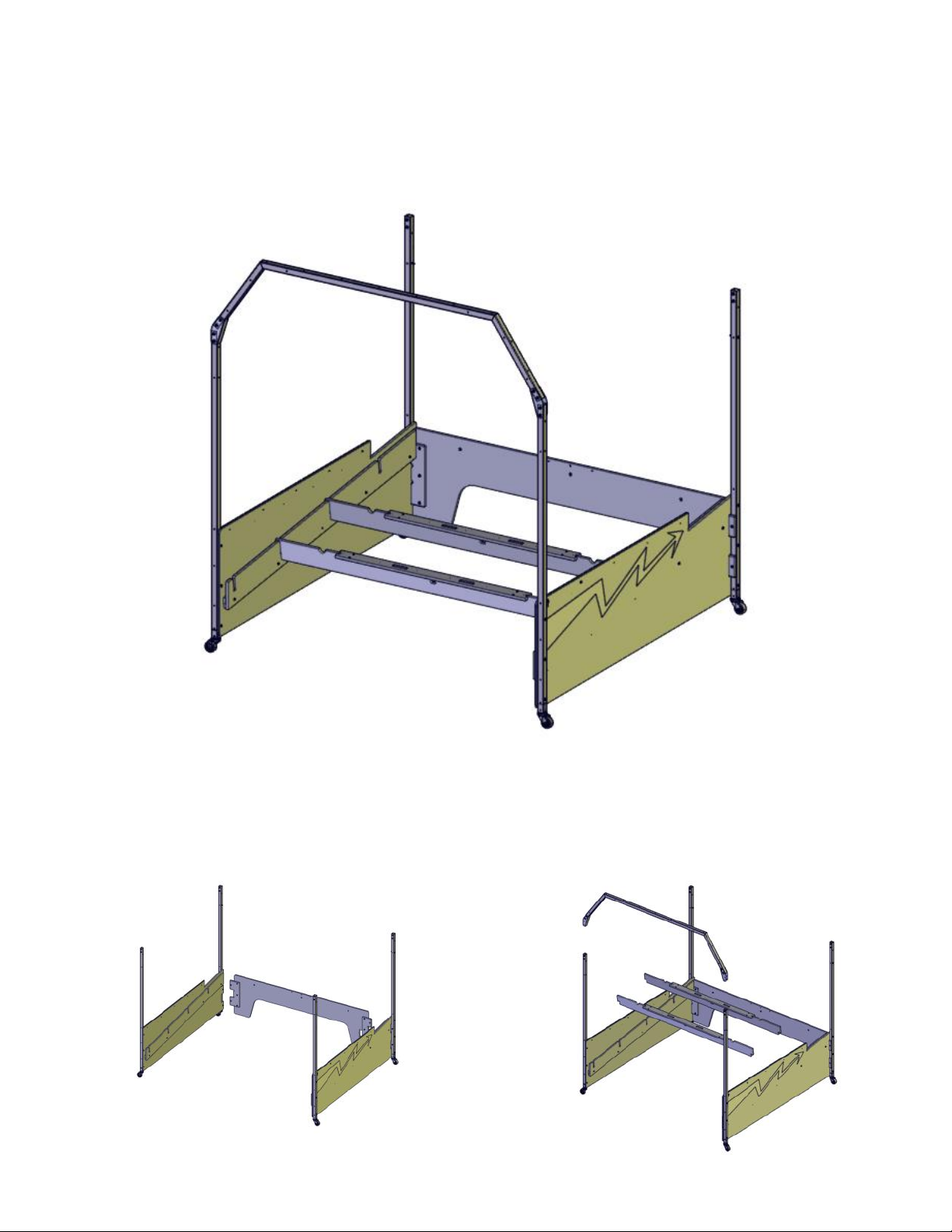

Assembly for Steps 1-8.
Chapter 1

8

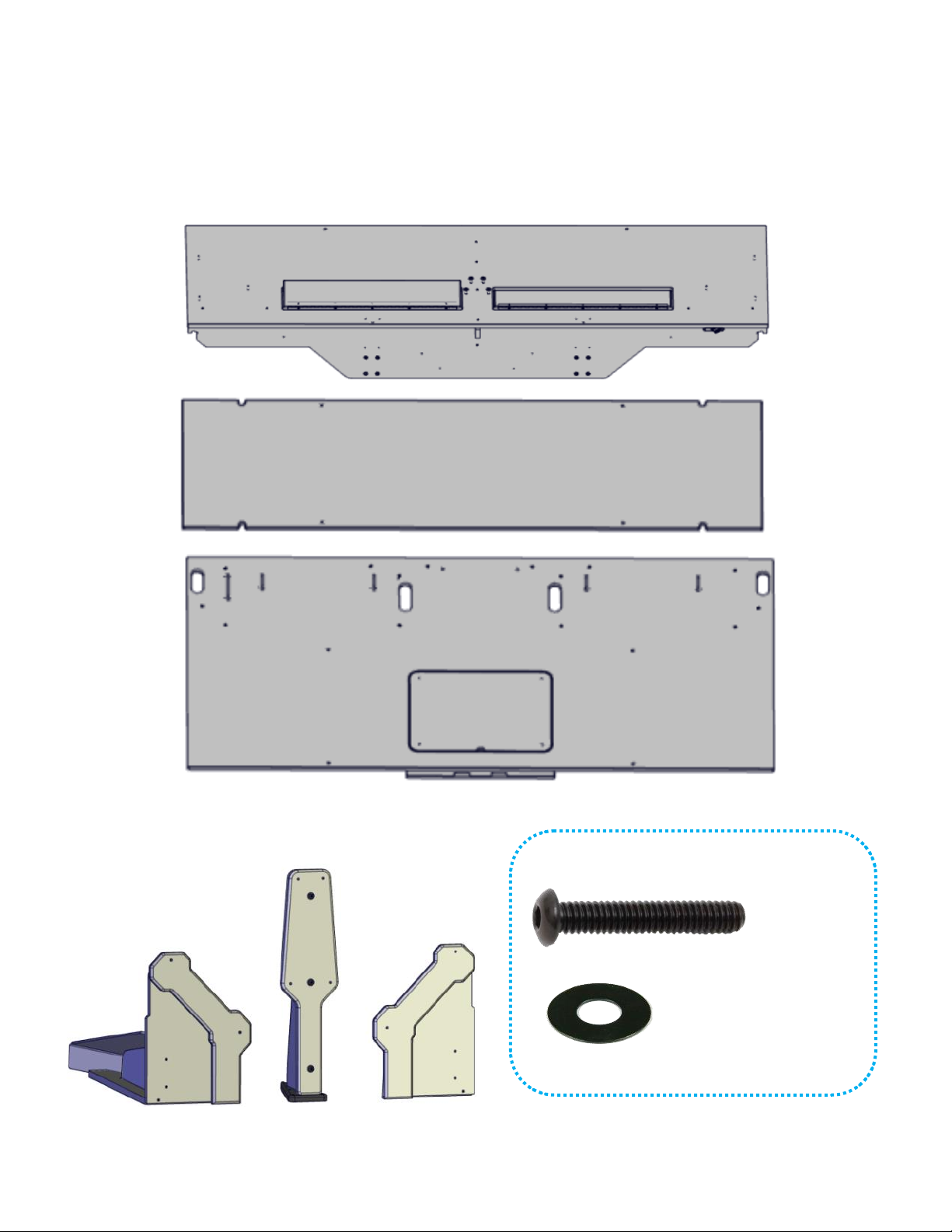

Parts Needed
Bundle 2
1S (X’s 2)
Pallet 1, Loose, 1F
Pallet 2
Bundle 2
2v & 2W
Pallet 1, loose, 1G
Pallet 1, loose, 1H.
Pallet 1
Bundle 1
1P (X’s4)
Pallet 2, loose, 2k
AA6966 1/4-20 black
nylon nut (QTY 4)
AA6125 1/4-20 X 2-1/2 black Allen
(QTY 26)
AA6212 1/4 X 3/4 black
washer (QTY 30)
HARDWARE NEEDED

9
AA6125 1/4-20 X 2-1/2 Black
AA6212 1/4 X 3/4
black washer
X’s 6
LEGS mount ON TOP!
Two slots are
created at the back.
STEP 1:
Attach two “1P” leg to the left wall “1G” panel, graphics facing up, using three AA6125 Allen bolts
and three AA6212 black flat washers on each “1P”leg. The legs should be on top of the outside of
the panel.
Graphics should be on facing at you. Db3179 & DB3007 should be facing ground.
1P
1G
1P

10
STEP 2:
Attach two “1P” legs to the right side wall ”1H”, graphics facing up, using three AA6125 Allen bolts
and three AA6212 black flat washers on each leg. The “1P” legs should be on top of the outside of
the panel.
Graphics should be on facing at you. Db3179 & DB3007 should be facing ground.
AA6125 1/4-20 X 2-1/2 Black
AA6212 1/4 X 3/4
black washer
X’s 6
LEGS mount ON TOP!
Two slots are
created at the back.
1P
1P1H

11
AA6584 1/4-20 X 2 (BLACK)
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
STEP 3:
Attach the two 2V and 2W brackets to each side of the rear wall panel (1F) using three AA6584
black Allen bolts and AA6212 black washers. Brackets when installed should be on the inside of the
panel. See mounted brackets and pay attention to the Square cut out on the right side.
2W2V
Back panel assembled.
X’s 6
Make sure square cutout is to the right when installing brackets.
Brackets go on the inside of the panel when mounted.

12

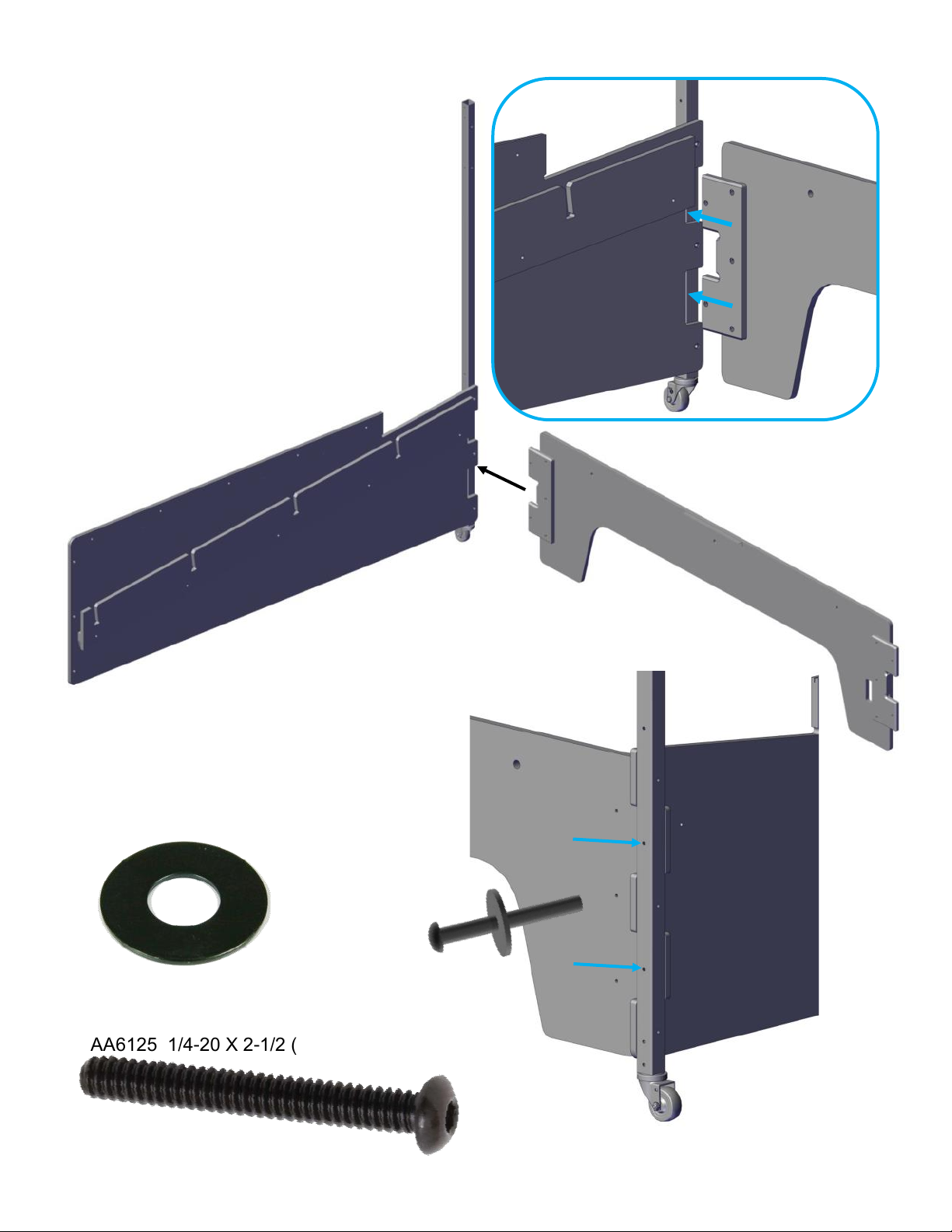

STEP 4:
Slide the back wall assembly into the left wall
back slots you created when you installed
the back legs.
STEP 5:
Secure the back wall to the left side wall
assembly using two AA6125 and two
AA6212 black flat washers.
AA6125 1/4-20 X 2-1/2 (BLACK)
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
X’s 2

13
AA6212 1/4 X 3/4
black washer

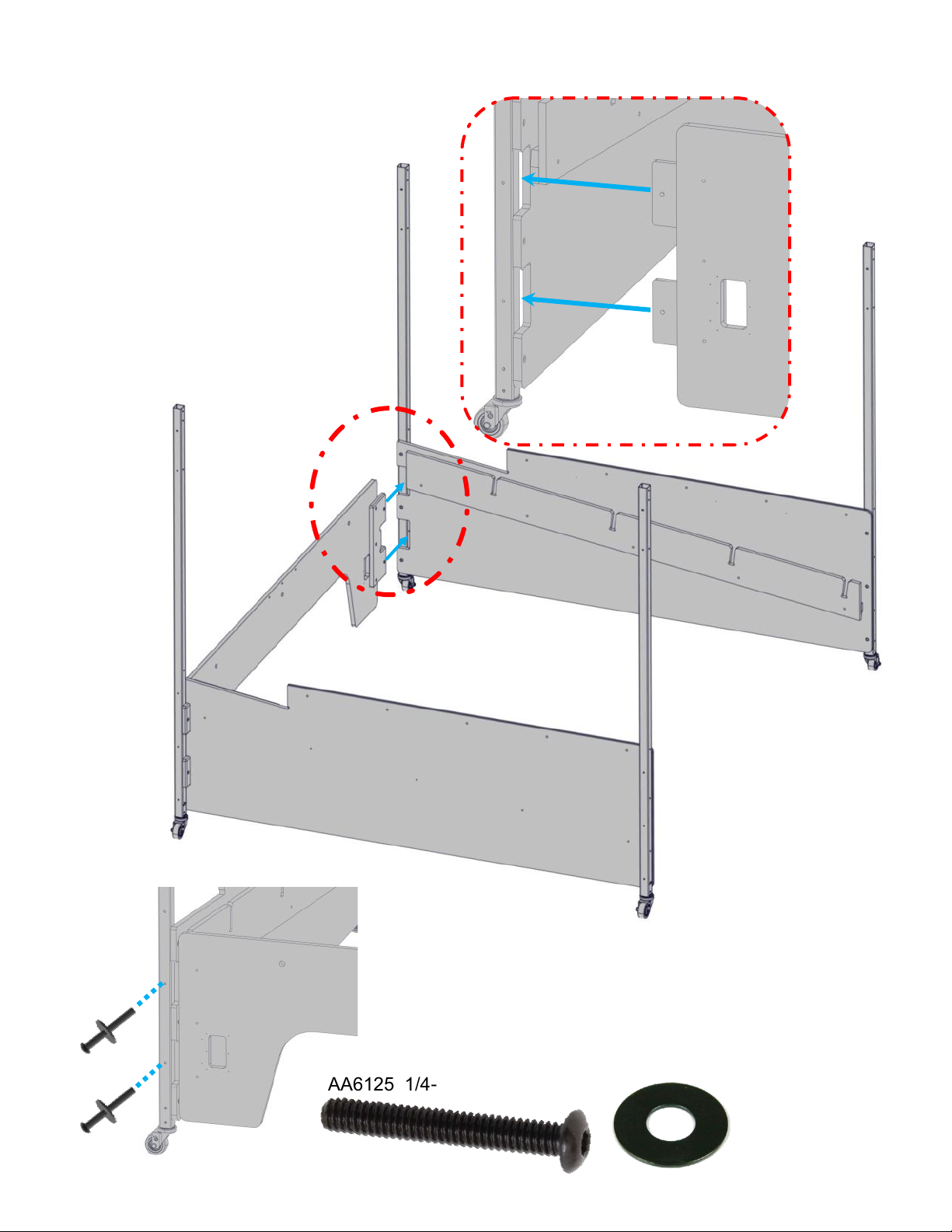

STEP 6:
Insert the other side of the back wall
assembly into the right wall slots.
AA6125 1/4-20 X 2-1/2 (BLACK)
Secure the back wall to the right wall assemblies using three
AA6125 and three AA6212 black flat washers.
X’s 2

14

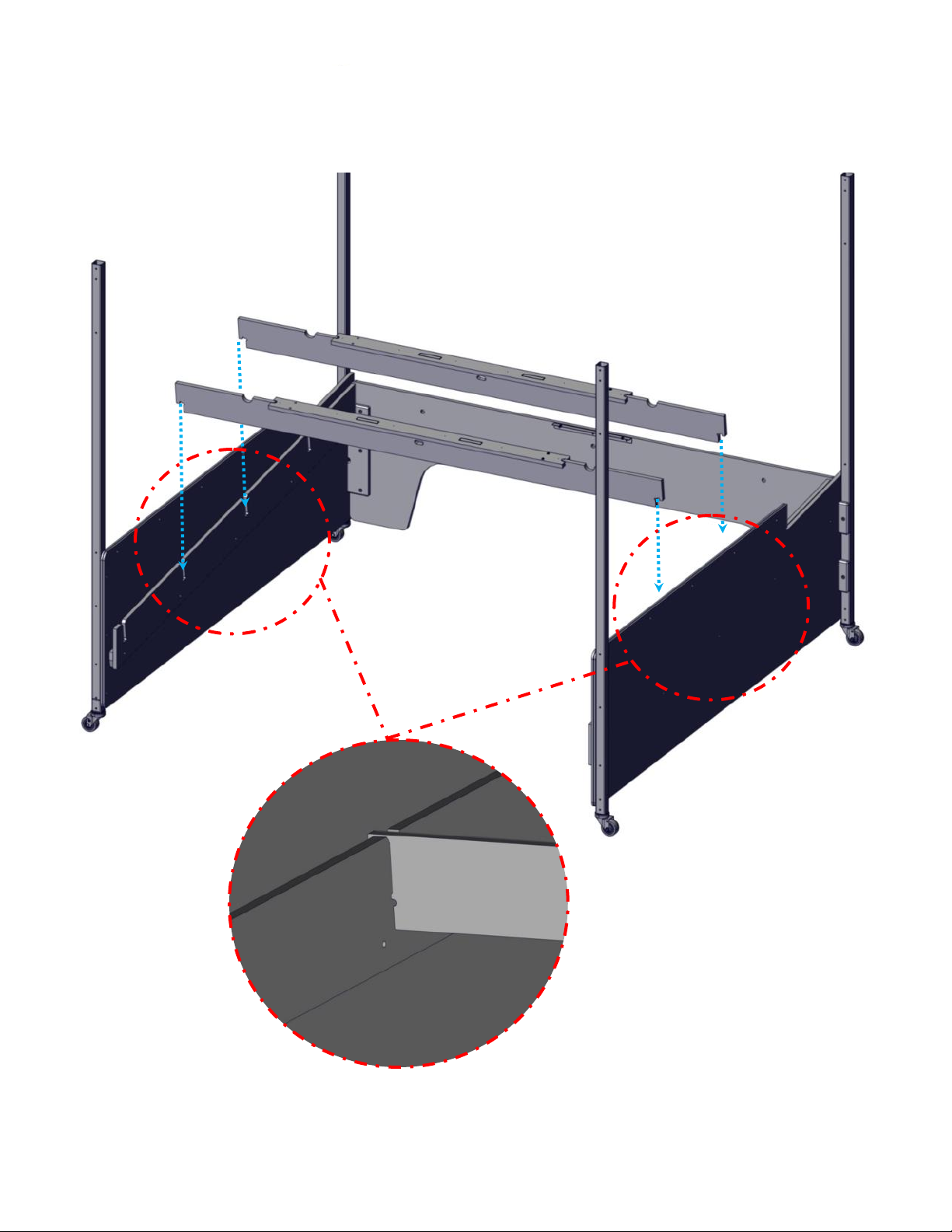

STEP 7:
Slide two 1S Joists into the two inner channels shown. NO HARDWARE is used to secure them.

15

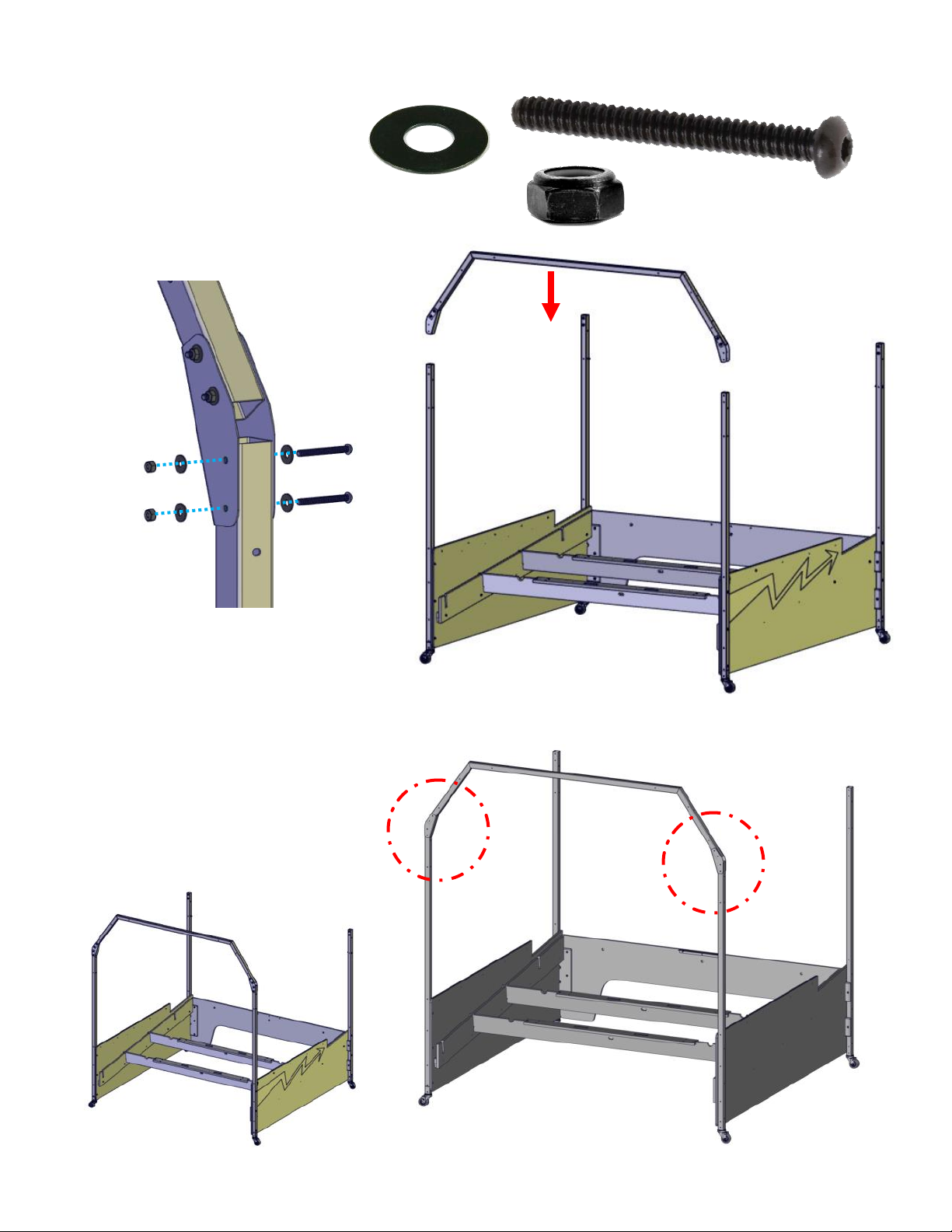

STEP 8:
Slide the upper support onto the
brackets at the front of the game.
Secure the support using two
AA6125 Allen bolts and AA6212
washers from the backside and
secure them with AA6966 nylon
nuts at the front.
TIGHTEN ALL HARDWARE
ONLY WHEN ALL BOLTS ARE
INSTALLED!
AA6966 1/4-20 black
nylon nut (QTY 4)
AA6125 1/4-20 X 2-1/2 black Allen (QTY 4)
AA6212 1/4 X 3/4 black
washer (QTY 8)
Completed

16
Assembly for Steps 9-16.
Chapter 2

17
Parts Needed
Pallet 2, loose, 2E
Pallet 1, loose, 1O
Pallet 1, loose, 1E
Pallet 1, loose, 1I Pallet 1, loose, 1J
Pallet 1, loose, 1k
QTY 18 : AA6212 1/4 X 3/4 black washer
QTY 18 : AA6584 1/4-20 X 2 (BLACK)
HARDWARE NEEDED

18
STEP 9:
Slide the power sub-floor (1E) into the rear channels.
Align the tabs into the slots. WATCH YOUR FINGERS!
AA6212 1/4 X 3/4
black washer
STEP 10:
Secure the power sub-floor (1E) using two AA6584 black Allen bolts and AA6212 black washers.
NOTE: Although all efforts we made to ensure quality in parts, before
installing this panel, inspect the panel for damage to wiring or mounting
holes not fully cleaned out.
X’s 2
AA6584 1/4-20 X 2 black Allen

19
STEP 11:
Locate the components shown below to assembly the ball gate assembly.
The two DB3186 ball deflectors are not installed at this time.
1K 1J1I
2E Ball gate assembly
AA6212 1/4 X 3/4 black
washer
AA6584 & AA6212
AA6584 1/4-20 X 2 BLACK
X’s 6
STEP 12:
Secure both left (1I) and right (1J) ball deflectors to the (2E) ball gate assembly using three AA6584
black Allen bolts and AA6212 black washers on each deflector. Hardware comes from the bottom
through the floor into the deflectors.
1I 1J
2E

20
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
AA6584 1/4-20 X 2 (BLACK)
STEP 13:
Attach the 1K center support with four AA6584 black Allen bolts and four AA6212 black washers
from the top and at the back of the support.
STEP 14:
Slide the 2E ball gate assembly into the front slot of the base cabinet. Watch your fingers!
DO NOT SECURE AT THIS TIME.
X’s 4
NOTE: Although all efforts we made to ensure quality in parts, before
installing this panel, inspect the panel for damage to wiring or mounting
holes not fully cleaned out.
1K
