Icegame Angry Birds Arcade User manual

Service Manual
Innovave Concepts in Entertainment
10123 Main Street
Clarence, New York 14031

2

3
Table of Contents
Safety, Warnings, and Power Requirements 4
Full Cabinet Assembly 5
Programming Options 16
Component Layout 21
Ball Tray 22
Safety Switch and Elevator 23
Elevator Tension Check 24
Ball Shooter Theory and Operation 25
Ball Shooter sensor 26
Horizontal and Vertical position
Solenoid Theory and Operation 27
Computer Power on Theory 28
Electronical Spares 29
Graphics Spares 30
Warranty 31
Rev B 1/25/16

4
SAFETY AND WARNINGS BEFORE YOU BEGIN
WARNING: WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE USED. FAIL-
URE TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. FAILURE TO USE A
GROUNDED RECEPTACLE COULD ALSO CAUSE IMPROPER GAME OPERATION, OR DAMAGE TO
THE ELECTRONICS.
NOTE: THIS GAME IS INTENDED FOR INDOOR USE ONLY.
DO NOT DEFEAT OR REMOVE THE GROUNDING PRONG ON THE POWER CORD FOR THE SAME
REASON AS GIVEN ABOVE. USING AN IMPROPERLY GROUNDED GAME COULD VOID YOUR WAR-
RANTY.
HAVE A QUALIFIED ELECTRICIAN CHECK YOUR A.C. RECEPTACLE TO BE SURE THE GROUND IS
FUNCTIONING PROPERLY.
THIS GAME IS DESIGNED TO DISSIPATE STATIC ELECTRICITY THROUGH THE GROUNDING PLANE
OF THE GAME. IF THE A.C. GROUND DOES NOT WORK, THE GAME COULD DISCHARGE STATIC
ELECTRICITY THROUGH THE GAME CIRCUITRY, WHICH COULD CAUSE DAMAGE.
THE POWER SUPPLY IS NOT VOLTAGE ADJUSTABLE. TO OPERATE THE GAME AT VOLTAGES OTH-
ER THAN THOSE IT WAS DESIGNED FOR. PLEASE CONTACT OUR SERVICE DEPARTMENT FOR
VOLTAGE CONVERSION INFORMATION.
WARNING
DO NOT remove any of the components on the main board (e.g. compact flash and eproms) while
the game is powered on. This may cause permanent damage to the parts and the main board. Re-
moving any main board component part while powered on will void the warranty.
ALWAYS REMOVE POWER TO THE GAME, BEFORE ATTEMPTING ANY SERVICE,
UNLESS NEEDED FOR SPECIFIC TESTING. FAILURE TO OBSERVE THIS PRECAUTION
COULD RESULT IN SERIOUS INJURY TO YOURSELF OR OTHERS.
THIS GAME IS NOT SUITABLE FOR INSTALLATION IN AN AREA WHERE A WATER JET COULD BE
USED.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or men-
tal capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
AC Power Information
The games main fuse is accessed through the back of the game at the power mod. Above the
power cord is a small panel that contains the main fuse.
The value of the fuse for 120 volt users is 6 AMPS at 250Volt type slow blow.
The value of the fuse for 230 users is 4 AMPS at 250Volt type slow blow.

5
See below for parts included to assembly your game. Before discarding any packaging be sure
to check for all the below items. Some items might already be installed onto your game.
If any parts are missing please contact ICE Service at [phone] Mon-Fri 9am to 6pm Eastern Standard.

6

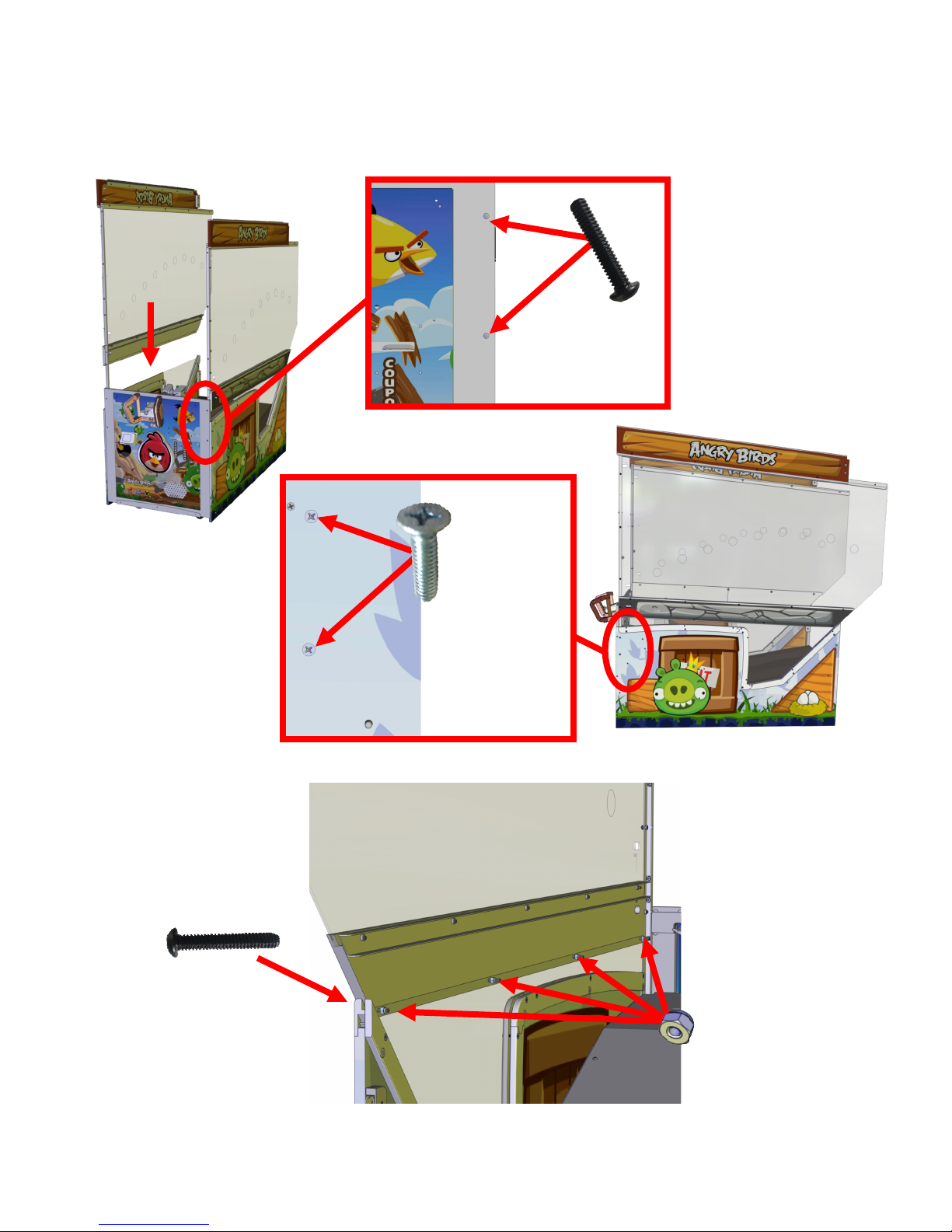

AA6211
¼-20 x 1 ¼ Allen
AA6645
¼-20 x 1 ½ Phillips
AA6281
¼-20 x 1 ½ Allen
OUTSIDE PC60604
¼-20 Nylon Nut
INSIDE
Your game might already be parally together and only the marquee and atrium needs to be installed. Skip
ahead to the steps required to install the marquee and atrium.
Step 1
Step 2
Step 3

7

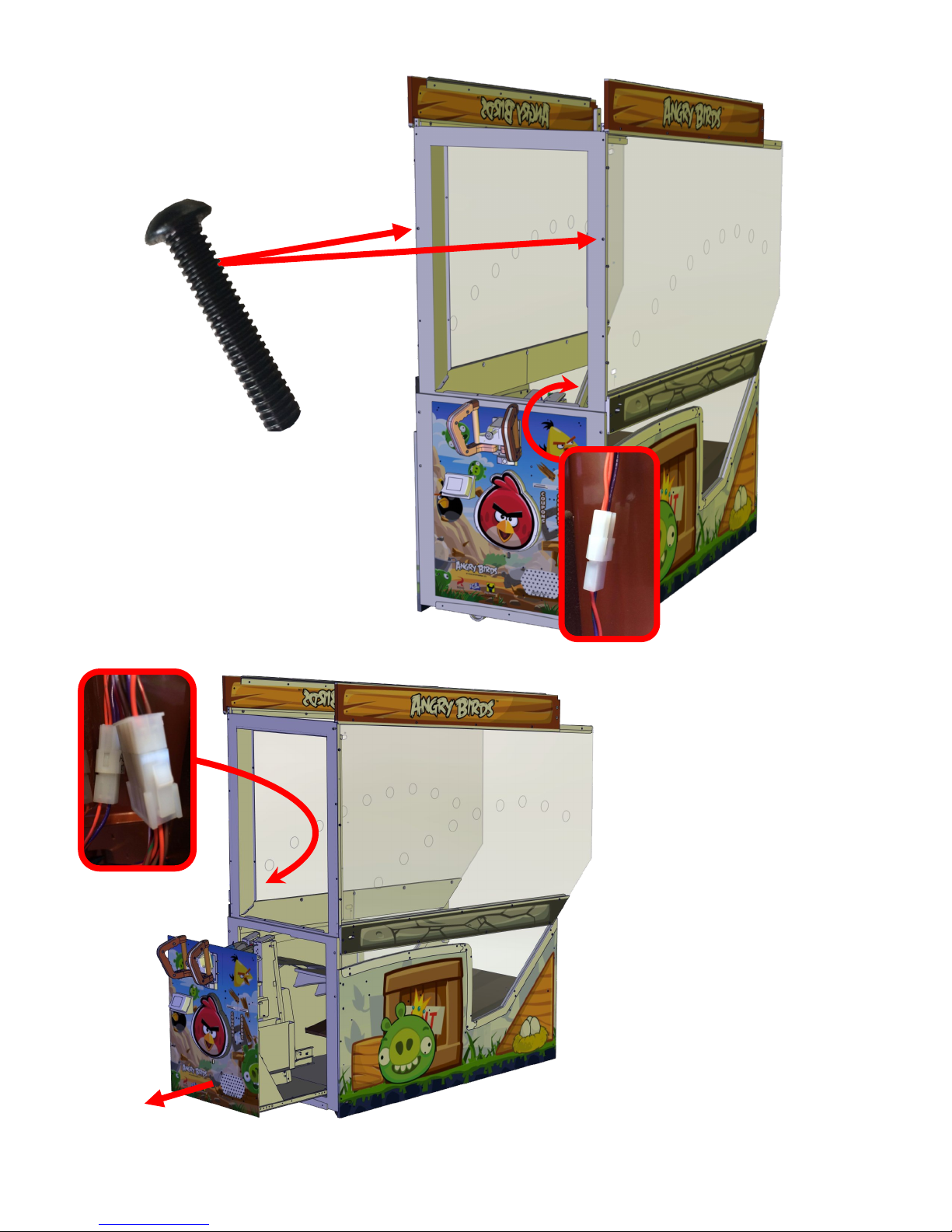

AA6211
¼-20 x 1 ¼ Allen
Step 4
Step 5

8
AA6211
¼-20 x 1 ¼ Allen
AA6212
Black washer
AA6211
¼-20 x 1 ¼ Allen
Step 6
Step 7

9
AA6211
¼-20 x 1 ¼ Allen
AA6212
Black washer
AA6211
¼-20 x 1 ¼ Allen
AA6212
Black washer
Step 8
Step 9

10

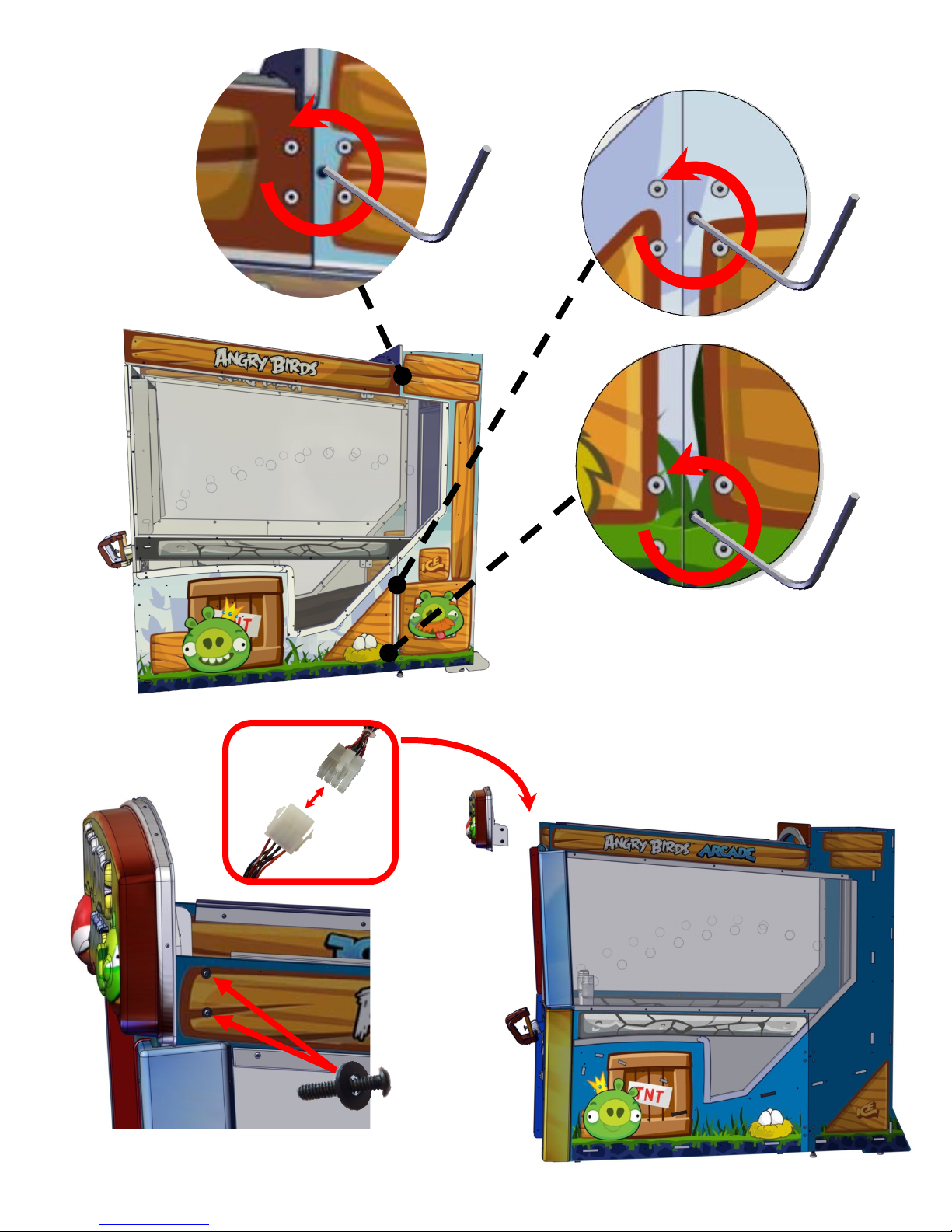

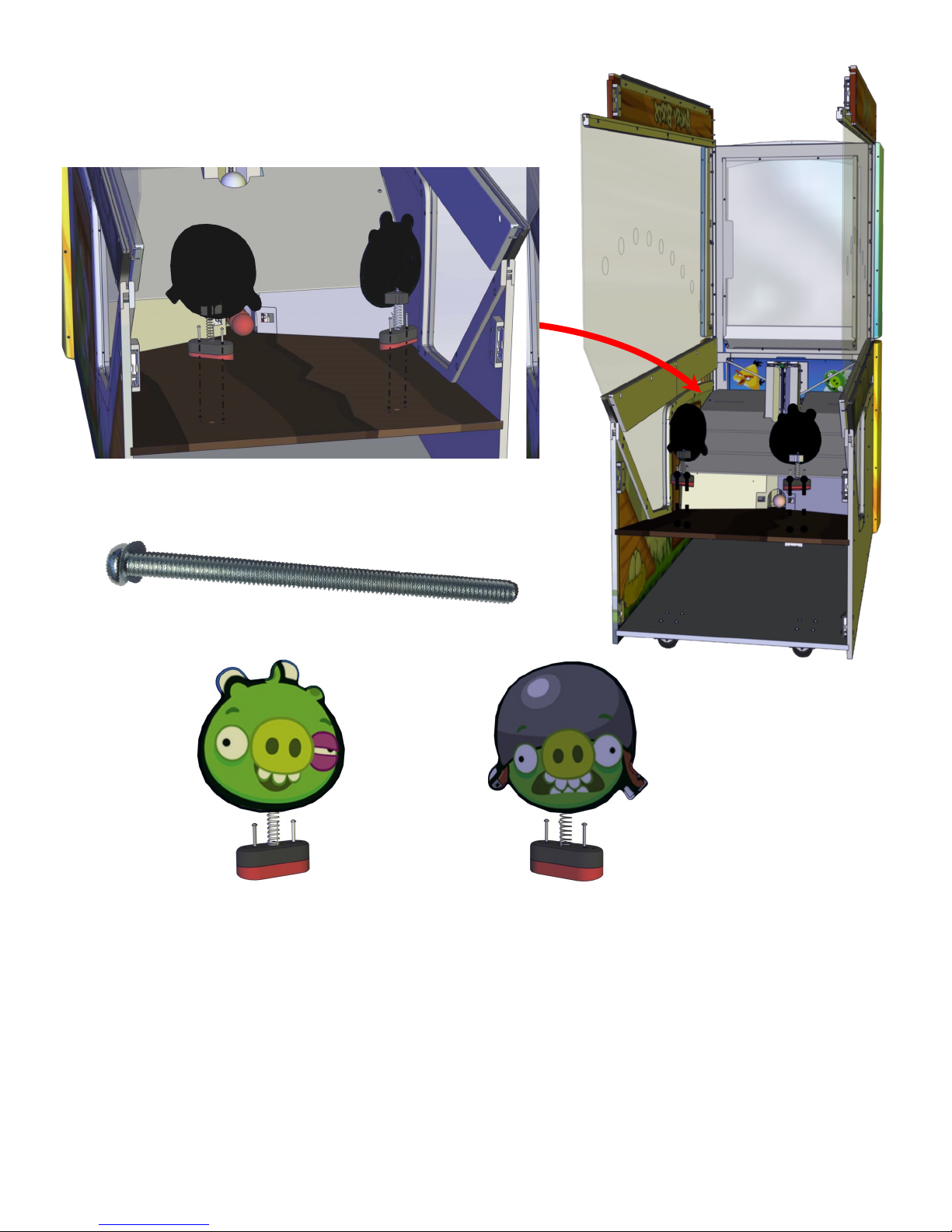

From front of game:
Black eyed pig goes to the le.
Helmet Head goes to the right.
Spring faces toward back of game.

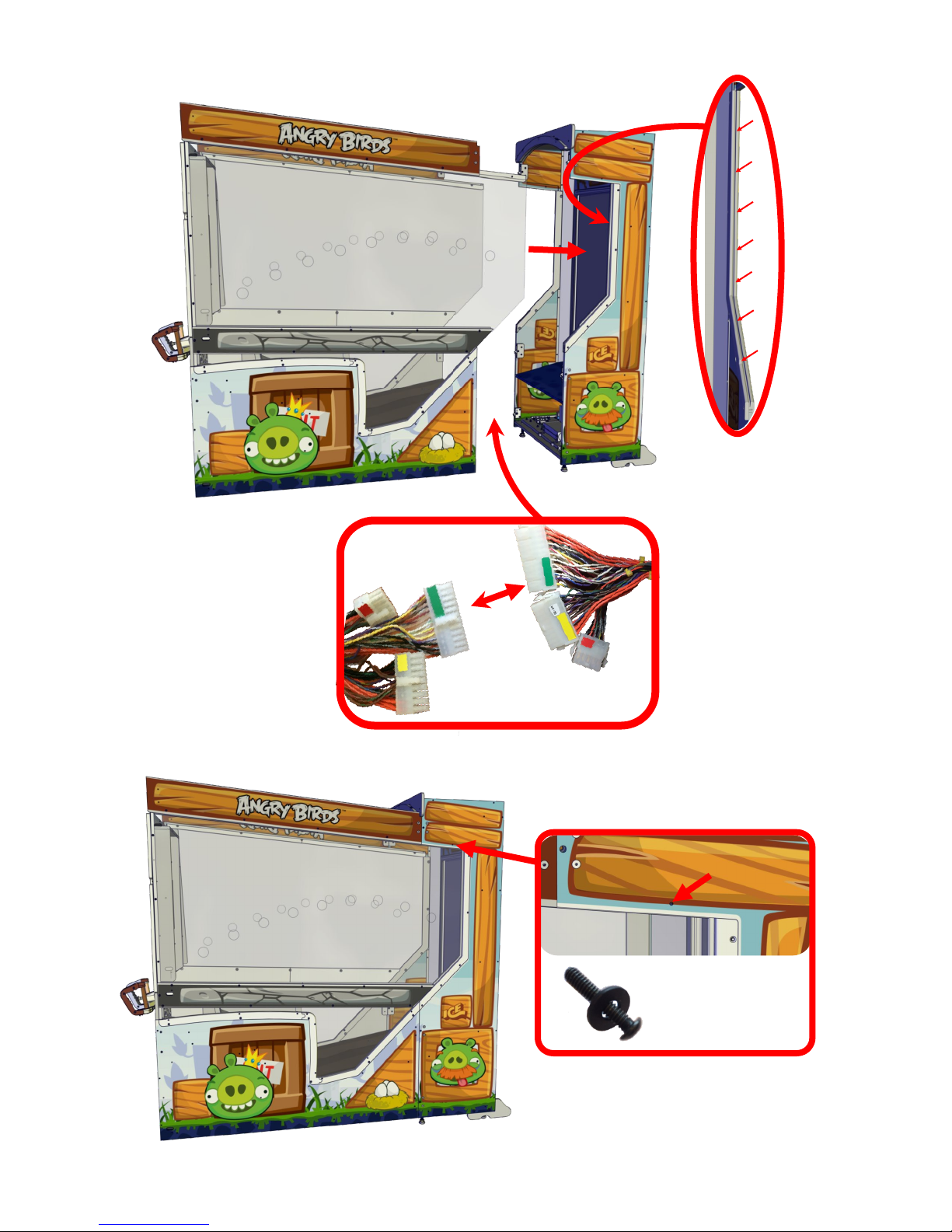

Connect Harnesses.
AA6770
Step 10

11
AA6211
¼-20 x 1 ¼ Allen
AA6212
Black washer
Both Sides
Step 11
Step 12

12
AA6270
¼-20 x 1¾ Allen
AA6212
¼ x ¾ Black washers
Both Sides
Step 13
Step 14

13

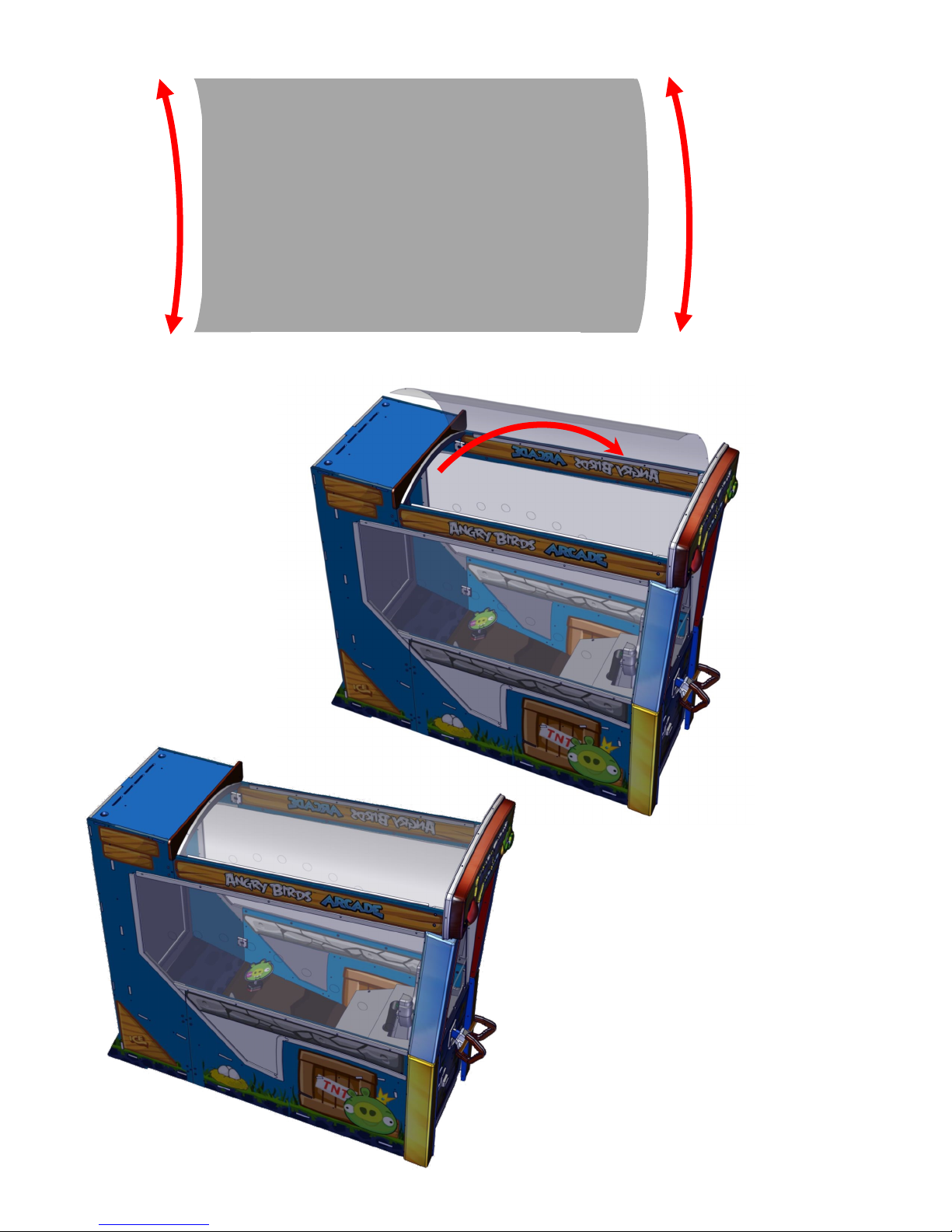

FRONT
BACK
Step 15

14

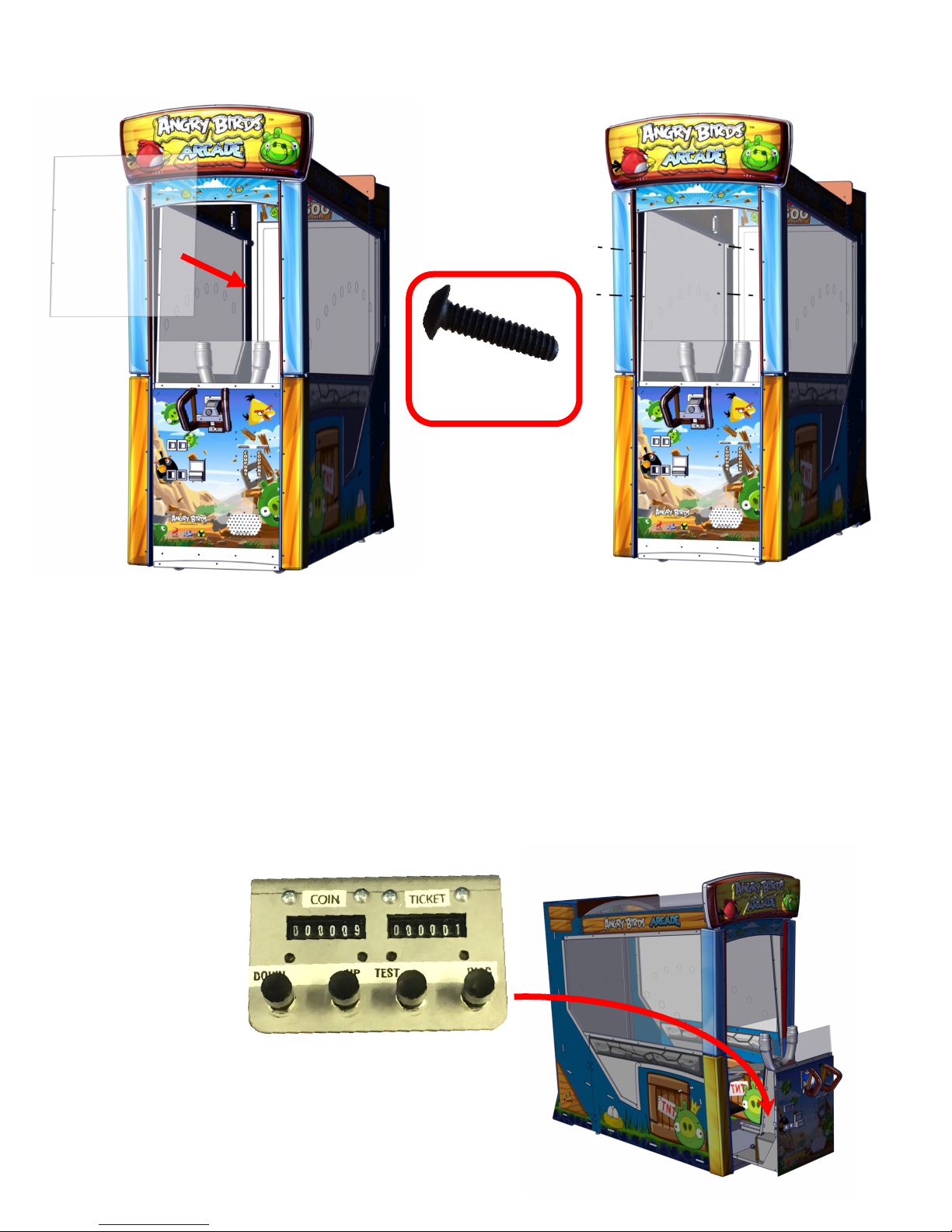

AA6724
10-24 x ¾ Allen
Step 16
Game controls and Meters
Unlock and open the front drawer to access the games’ operator control panel. Press the “DIAG” buon
to enter program mode. Then navigate the menus by pressing the “Up” and “Down” buons. Press the
“DIAG” buon again to select or change an opon. Press the “TEST” buon to exit out of a menu.
Pressing the “TEST” buon when in game mode will give a credit.
Pressing the “UP” and “DOWN” buons will also change the volume level when not in programming.

15
Angry Birds Programming:
There are a few opons that need to be congured before you can operate your Angry Bird game.
The rst opon you need to congure is what type of currency you will be accepng. The currency can be US
Dollars, foreign currency (select your country), coins, tokens, or swipes. For each of these you need to con-
gure what each pulse is worth. From the main menu navigate to the menu “Adjustments”[1], and then se-
lect “Coin Adjustments”[2]. Now select “Currency Type” [3] and pick which type of currency you will accept.
123
Now that you have selected the currency type you must dene what it is worth to the game and how much
each coin line is worth. This menu changes depending on what type of currency you have selected.
If you had selected “Swipe” as your currency, then you would select “Swipe Value” [1] and then dene what
each swipe is worth [2]. You would set each coin line equal to 1 Swipe [3]. So each me the game sees a
pulse on any coin line, it will consider this as 1 swipe and credit the game 1.00.
This doesn’t set the cost of play! “Player Cost Adjustments” determines the cost of play!
123

16
The next opon is to determine the cost of play. Under the main menu, select “Adjustments” [1], then
“Player Cost Adjustments” [2], and then “Game Cost” [3]. If you set the previous opons under “Coin Adjust-
ments” to 1 swipe per coin line and 1.00 per swipe, the game will credit each me a player swipes their card
if you set Game Cost to 1.00. If you wish to charge more per play, increase the value of the swipe and then
adjust the game cost to equal so that one swipe will always start a game.
123
The next opon is to select which Jack pot you want to use. Depending on your cost of game these values
can change. Select “Set Jackpot Mode” [1]. Then select your Jackpot amount. It is recommended to use 500
ckets if charging $1.00 per game [2] and 1000 ckets if charging $2.00 a game [3].
1
2
3

17

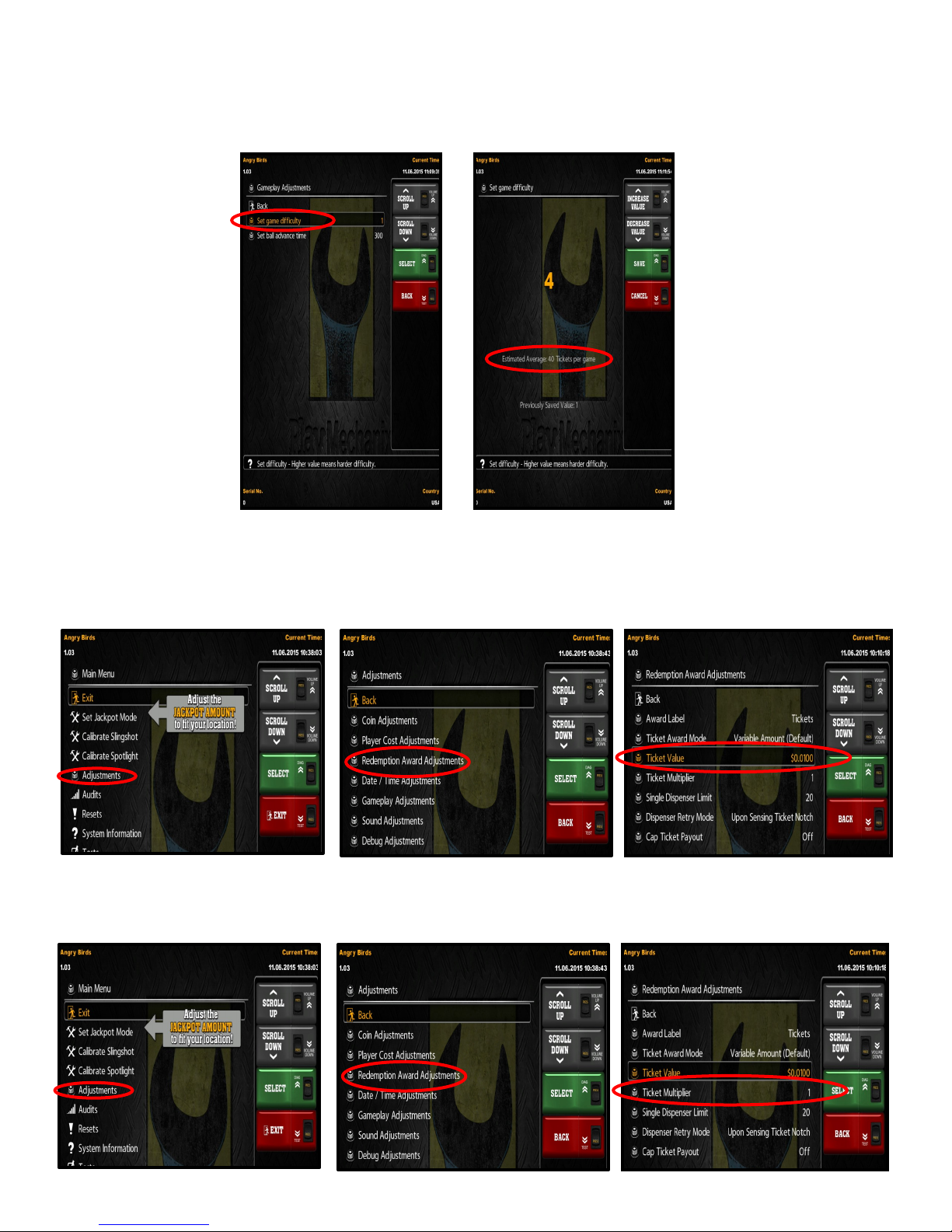

The next opon to set is the game’s diculty level. There are 10 dierent diculty levels to choose from.
The higher the diculty number the more dicult the game becomes. Each diculty level shows the aver-
age amount of ckets won on this seng. The higher the diculty seng, the less average amount of ckets
are won.
12
ADVANCE SETUP
In some cases you might have a dierent value cket. By default the game uses a cket value as .01 cent. If
your ckets are a dierent value, select “Adjustments” [1], then select “Redempon Award Adjustments” [2],
12
3
Another opon you might want to change is if you are using 2 point ckets or in other words ckets that are
worth two ckets. In this case, select “Adjustments” [1], “Redempon Award Adjustments”, and then you
12
3

18

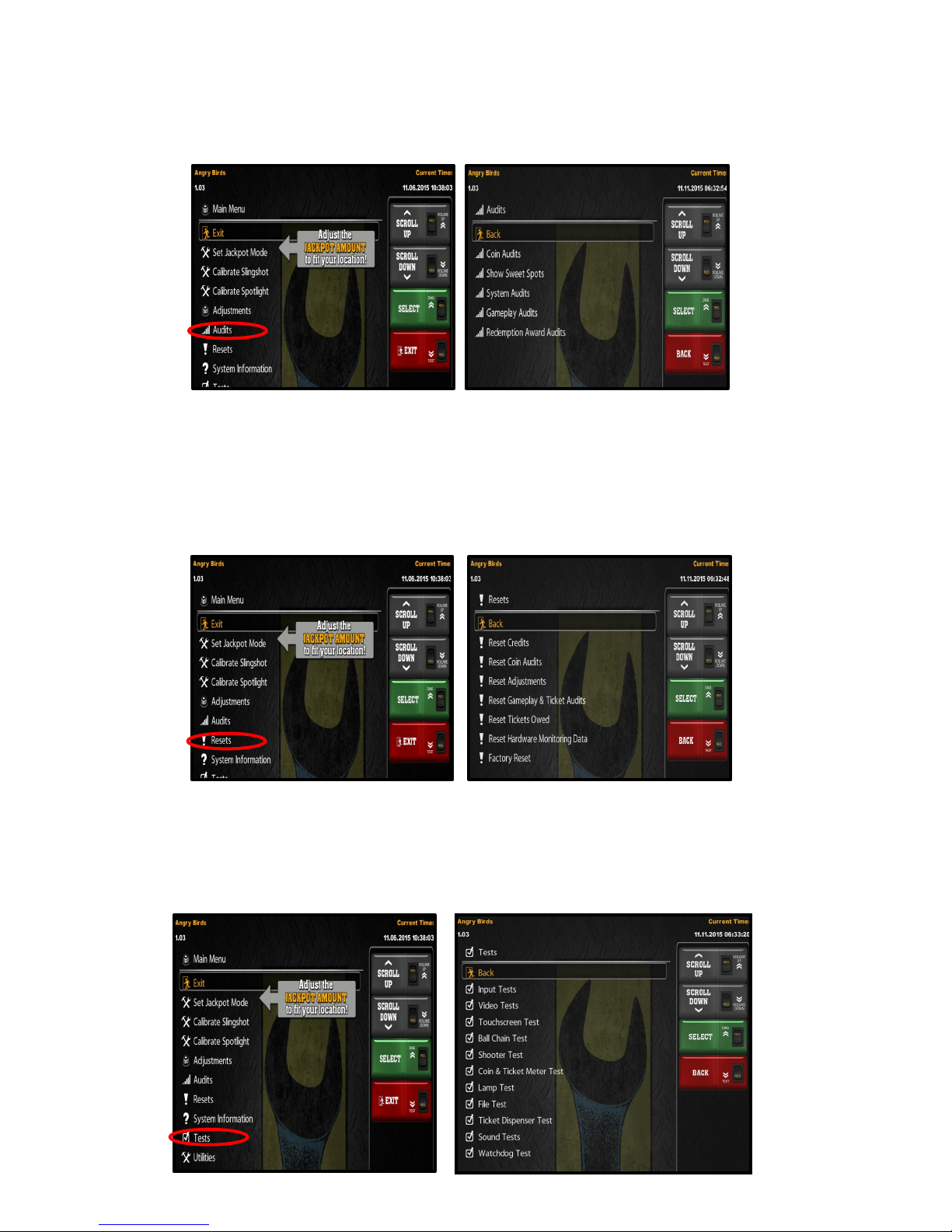

Audits
The game keeps records of money in, system info, gameplay, and ckets. This informaon is accessed from
the main menu by selecng “Audits” [1]. The next menu shows the available audits to view [2].
12
Reset
The reset menu allows you to reset coin audits, zero out any credits, cket plus game audits, any ckets
owed, hardware monitoring audits, and other adjustments. It also allows you to do a factory reset.
The reset menu is accessed from the main menu by selecng “Resets” [1]. The next menu shows the
available resets opons [2].
12
Tests
The game has many diagnosc tests to help in trouble shoong your game. The test menu is accessed from
the main menu by selecng “Tests” [1]. The next menu shows the available tests you can run [2].
12

19

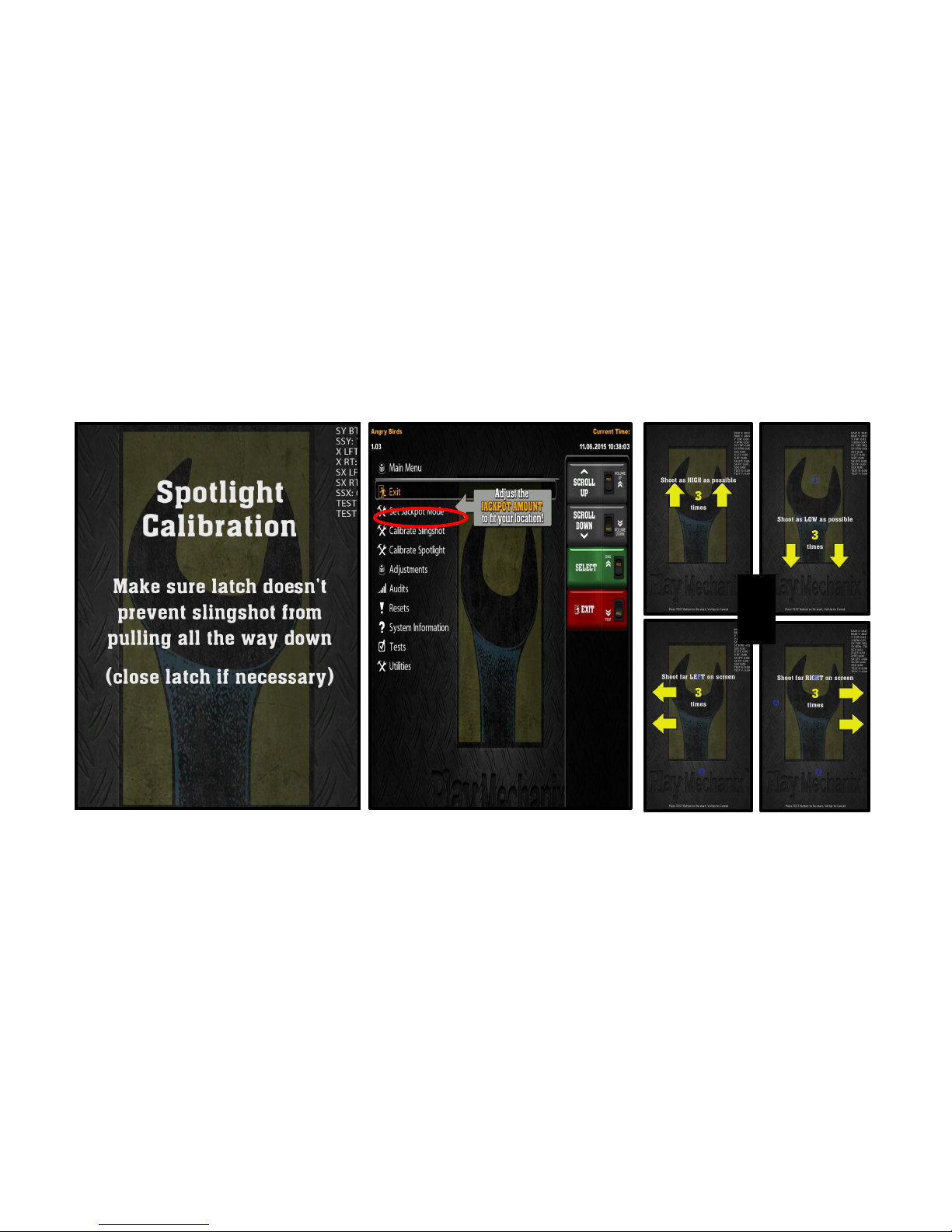

Calibraons
The game has two dierent calibraons which both need to be preformed if any work has been preformed
on the slingshot assembly or if the soware was reloaded or updated. Failure to do so will cause poor game
play and overall a terrible experience for the player. The slingshot will not funcon correctly.
The two dierent calibraons are the “Spot Light” and “Slingshot”. The spot light calibraon keeps the game
play centered while the slingshot calibraon aligns the minimum and maximum heights the game can use.
To preform the “Spot Light Calibraon”, from the main menu select “Calibraon Spotlight” [1]. Shoot balls 3
mes at the top, boom, le and right of the screen per instrucons [2]. Once nished, test the spot light
funcon [3]. The balls should shoot where the spot light is shown.
12

20

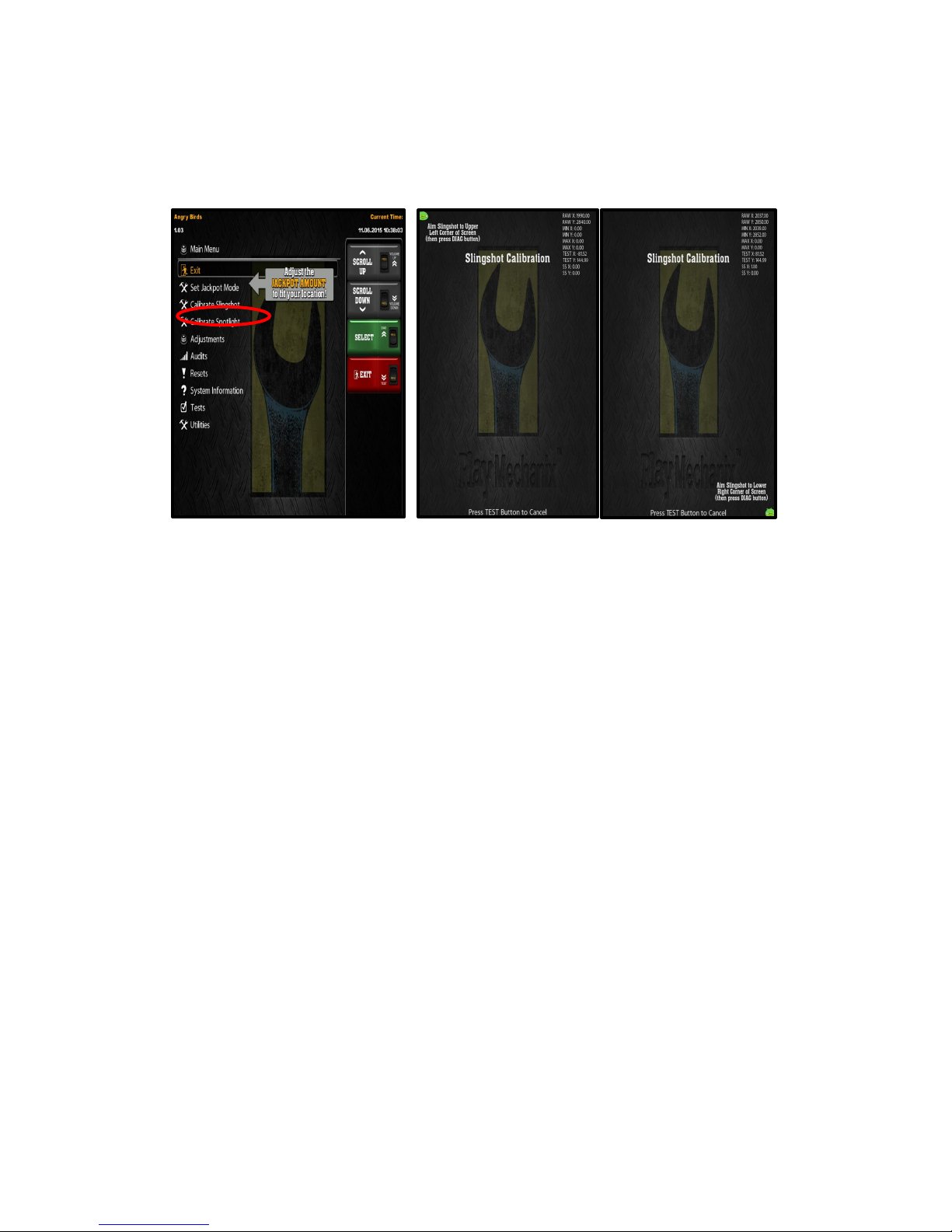

To preform the “Slingshot Calibraon”, from the main menu select “Calibraon Slingshot” [1]. Move the
sling shot assembly to the upper le corner and press “DIAG” buon [2]. Now aim the sling shot assembly to
the lower corner of the screen and press “DIAG” buon [3].
Again, make sure the latch for the lock prevent the slingshot from puling all the way down.
123
