icetro ISI-163TT User manual

ISI-163TT
● Read this manual carefully before using the product.
Keep the booklet in a safe place after reading.
● The product is to be used indoors.
Be sure to install it inside a building.
● Appearances, design, color, or parts may be changed
without prior notice for the most effective manufacturing process.
Soft Ice Cream Maker
User Manual

2
This Soft Ice Cream Maker has the following benefits:
1. Minimum noise and refreshing cooling system
With a high efficiency and low noise motor, we can achieve minimal noise
from the refreshing cooling system
2. MICOM control method
Use of an artificial intelligence control type achieves an optimal cooling system.
3. Body sensing button
The touch button provides a smoother operation.
4. Adopted agitator
Refrigerating temperature is being kept stable by adopting an agitator.
5. Independent cooling system
Separate systems are used for freezing and storage to give more convenience.

3
Dear customers;
Contents
Method of Use
Cleaning Method
ETC
Check prior to use 09
Button display description and functions 10
Functional description of the buttons 11~13
How to make soft ice cream 14
How to adjust the carburetor 15
Dasher cover assembly method 19~20
-Dasher assembly 19
-Dasher cover assembly 20
Installation method 21
Before requesting service 22
Error code types 23
Circuit diagram 24
Service for Refrigerant Lines 25~27
Removal and Replacement 28
of Compressor
Removal and Replacement 29
of Capillary Tube
Removal and Replacement 30
of Condenser'
Replacement of Fan motor 31
Refrigerant circuit 32
Product specification 33
Part list 34~37
What to watch out for 38
Warranty 39
Cleaning Method 16~18
- Wash mode 16~17
- Washing of each parts 18
- Condenser and filter 18
cleaning method
- Drain slug cleaning method 18
Thank you very much for purchasing a soft ice cream maker made by ICETRO. For correct use of the
product and its maintenance, please read this manual carefully. If a problem occurs while using the
product, you can refer to this manual for troubleshooting. This manual contains a product warranty, so
keep it safely for future reference. This product can be installed only by someone qualified for installation.
If use of parts and accessories not provided or approved by ICETRO or any part or accessories made by
ICETRO but remodeled by other person causes a problem, we are not responsible for it financially.
(The functions and specifications shown in this manual and on the web site are subject to change without
notice. Please visit our website at http://www.icetro.com to obtain the latest specifications.
Acknowledgment
Cautions for your safety 04~06
- Power supply related items 04
- Installation related items 05
- During use 05~06
Part names and controller 07~08

4
Cautions for your safety
These are safety related items. So, comply with them at all times!
They are meant to protect the safety of users and prevent property damages.
Please, read the cautionary items carefully for correct use.
If violated, it can cause
deathor severe injury.
If violated, it can cause sever
physical injury or property
damages.
If violated, it can cause
slight physical injury or
property damages.
Danger Warning Caution
Power supply related items
Install it independently with an
earth leakage circuit breaker
with more than 20~50[A].
It can cause electrical shocks or fire.
Do not pull on the power cord.
It can cause electrical shocks or fires.
Do not move the product by
pulling on the power cord.
It can cause electrical shocks or fires.
Do not touch the earth leakage
circuit breaker with your wet
hands.
It can cause electrical shocks or fires.
Do not bend the power cord too
much or cause damages or
deformation by pressing it under
aheavy object.
It can cause electrical shocks or fires.
Do not turn the power on/off with
the circuit breaker continuously.
It can cause electrical shocks or fires.
If there is water inside the
an earth leakage circuit breaker
turn off the earth leakage circuit
breaker and dry it before use.
It can cause electrical shocks or fires.
When you repair or inspect the
product or replace any parts, turn
off the earth leakage circui breaker.
It can cause electrical shocks or fires.
If you want to leave it unused for
along time, turn off the earth
leakage circuit breaker.
It can cause electrical shocks or fires.
Do not connect many electrical
products to the earth leakage
circuit breaker. Use it individually.
It can cause fires.
If the power cable is damaged,
then do not replace it on your
own. Call the service center for
cable replacement.
It can cause electrical shocks or fires.
Do not arbitrarily connect the
power cord or process it for use.
It can cause fires.
Use a power cable larger than 2.5㎟
The control box for the product
should be grounded.
It can cause electrical shocks or fires.

5
This product shows the best
performance at temperature of
10~30℃
The side and rear of the product
should be maintained at least 30cm
from the wall.
During use
Cautions for your safety
A/S
WASH ON/OFF
Do not install it near a heating
device.
Itcan cause fires.
Do not install it near dust, moisture
or rainwater (water) popping.
Itcan cause electrical shocks or fires.
Do not install it on a tilt.
“the appliance has to be placed
in a horizontal position” is sufficient.
Itcan cause physical injury or product
damages.
Do not use or store inflammable
gas or material near the product.
It can cause electrical shocks or fires.
Do not apply excessive force or
impact to the product.
It can cause damages to the product.
Installation related items
If the product has weird sounds or
burning smell or smoke, turn off
the earth leakage circuit breaker
immediately and call the service
center.
It can cause electrical shocks or fires.
Do not place water containers,
medicine, foods, small metal parts
or inflammable material on top of
the product.
If they go inside the product, it can cause
electrical shocks, fire and damages.
To have good quality soft cream,
it is recommended to clean it
everyday.
Otherwise, the ingredients can decay.
Do not place candle lights or
cigarettes light on top of the
product.
It can cause fires.
While operating the product,
please completely close the
upper cap.
Bugs or alien substances can enter
the product.
Do not obstruct the entrance of
the air vent.
If so, the performance will be degraded.
Don’t let a person who was not
educated the product or a child
touch or operate the machine.
Comply with the user guideline
suggested by the maker.
Otherwise, it can cause malfunctions
Please do not press“WASH”
button during empty condition which
the cylinder doesn’t contain any
ingredients or water.
The bearing of drum can be frayed
because there is no lubrication.
For your
information
● Clean the filter periodically. Otherwise, the cooling performance will degrade.
● Comply with the user guideline suggested by the maker.
Otherwise, it can cause malfunctions. Don’t let a person who was not educated.
everyday

6
Cautions for your safety
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
This appliance shall be installed in locations where it can be overseen by trained personnel.
This appliance shall be that access to the service area is restricted to persons having knowledge
and practical experience of the appliance, in particular as far as safety and hygiene are concerned.

7
Part names and controller
FRONT
LEFT RIGHT
Cover basket
Drain box
Dasher cover
Lever
Right
power switch
Left
power switch
Button display
510
745
509
100
127
77
45
Filter condenser
Drain slug
(Air cooled type only)
Rubber foot
800

8
Part names and controller
Included accessories
DASHER LUG FOAM
4EA
HINES
1EA
CARBURETOR TUBE
2EA
CARBURETOR TUBE
BODY
2EA
BRUSH
1EA
BRUSH 3
1EA
BRUSH 143
1EA
MANUAL
1EA
PATITION FOOD
2EA
BEARING DASHER
2EA
PACKING DOWN 143
2EA
PACKING PISTON
2EA
PACKING CARBURETOR
4EA
DASHER COVER PACKING
2EA
PACKING REMOVE HANDLE
1 EA

9
Check prior to use
【 The following must be checked before using the product! 】
Install it independently with an earth leakage circuit breaker with more than 20A
and provide anexternal grounding.
(Ask a qualied electrical technician for the installation.)
The power cable should be connected before the product can operate normally.
The air suction and discharge should be facilitated so that the cooling performance
can be optimized.
Do not skip filter cleaning to ensure good-quality ice cream.
The daily cleaning of the cylinder, carburetor, hopper, agitator, dasher, piston, and other parts
is recommended.
The condenser has to be cleaned more than once a month.
The cylinder, mix tank, impeller, dasher, and piston inside the product make contact
with the ingredients, so you should clean them once every day.
● Do not block the air vent.
● Regular filter cleaning (at least once a week)
● The condenser has to be cleaned once a month.
● Clean it at least once a day.
Please check the rating of the product before starting installation.

10
Each mode number and values are shown.
● AUTO : Displays the operational status.
● WASH :
It displays motor current during wash.
Displays the percentage of soft cream formation
in operation.
2-1: Displays the soft cream temperature
in the storage tank.
2-2: Displays the ingredient temperature
inside the cylinder.
2-3: Displays the condenser suction
temperature.
The "▼" and "▲" buttons are used to
change the setting in the upper
status display window.
Press the "▼" and "▲" buttons at the
same time for five seconds to lock or
unlock the touch buttons.
It is used to check the temperature
in the lower status display window.
It blinks when there are insufficient ingredients.
It blinks when there is no ingredient.
It is used to stand by with
ingredients stored in the
cylinder and hopper.
It is used to produce soft cream.
It is used to store ingredients.
It is used to wash the machine.
"Insufficient Ingredients" lamp
"No Ingredients" lamp
"STAND-BY" button
"AUTO" button
"REF" button
"WASH" button
"Left Status Display Window"
Button display description and functions
"Right Status Display Window"
"▼ and ▲" buttons
"Select" button

11
Functional description of the buttons
If you press the "Set" button lightly, you can
enter the mode to check the setting as below.
Use the“▼”and“▲”buttons to see the settings.
1-1: Check ice cream level settings
You can check the current setting for the ice cream. If the
displayed value is higher than the no-load current (1-2),
the ice cream becomes harder and if lower,
the ice cream becomes softer.
1-2: Check the ice cream default level
It is the no-load current of the dasher motor.
It is the current consumed by the dasher motor when the
ingredients are in the liquid status.
1-3 : Check the currently supplied voltage.
It is the power supplied to the machine.
If the voltage is not correct after installation,
call for service.
1-4 : Check the storage temperature in the mixing tank.
You can check the temperature inside the mixing tank.
1-5 : Check the voice announcement
You can check whether a voice announcement is available.
1-6 : Check the program version
You can check the versions of the main
PCB and the display PCB.
"n" is for the main PCB and "d" is
for the display PCB.
The soft cream level is set for the ingredients (vanilla) designated by the maker.
Depending on the ingredients, you will need to adjust it properly. Please follow the
instructions from our company when changing the level for the ingredients.
For Your
Information

12
Check the temperature and the record
Functional description of the buttons
Press the "Select" button to check the different temperaturesettings
mentioned below. The item number and the temperature
will be displayed in turns.
2-1 : Temperature of the mixing tank
2-2 : Temperature of the mixing tank sensor
2-3 : Condenser suction temperature (neighboring temperature)
2-1 : Temperature of the mixing tank
The sensor located at the bottom of the mixing tank
to measure the temperature of ingredients may display
temperatures different from the actual ones if there is
no ingredient in the mixing tank or mixer.
2-2 : Temperature of the cylinder
The sensor located at the bottom front of the cylinder
may display temperatures different from those of
the ingredients or the ice cream.
2-3 : Ambient temperature of the condenser
The sensor located in front of the condenser can measure
the temperature of the ambient air entering the condenser
and the recommended installation conditions as well.
If 2-3 is too high, an error may occur.
This error is caused by poor environmental conditions
(clearance, cleaning, ventilation, etc.).
You should install the machine according to the manufacturer's recommendation.
For Your
Information

13
Functional description of the buttons
Press the "Set" button for three seconds to enter the setting change
mode as follows.
Use the "▼" and "▲" to enter the password and use the "Set" button
to move to each item. When the display blinks, use "▼" and "▲" to
change the value and use the "Set" button to leave the item. Press
and hold the "Set" button for three seconds to leave the value change
mode.
Change the setting
3-1 : Adjust the soft cream level
This item is used to adjust the target current of the soft cream.
If the value is lower, the ice cream becomes softer. If the level is
too high, the quantity of produced ice creams may drop, it may
not be discharged or other malfunctions may occur.
Consult an engineer.
3-4 : Set the mixing tank temperature
This item is used to adjust the cooling temperature of the
ingredients in the mixing tank. The larger the number is,
the higher the storage temperature is. The smaller the number is,
the lower the storage temperature is.
If the temperature is too low, the ingredients may freeze.
If too high, they may spoil.
3-5-1 : Select a voice announcement option
You can turn on/off the voice announcement.
For your
information
The ice cream level (3-1) may vary according to ingredients or sugar content.
If it is high, the machine operates too much unnecessarily to make the ice cream soft.
Also, if the machine stays in the auto mode for two or three hours without discharging any
ice cream, this may make the ice cream softer depending on the ingredients.

14

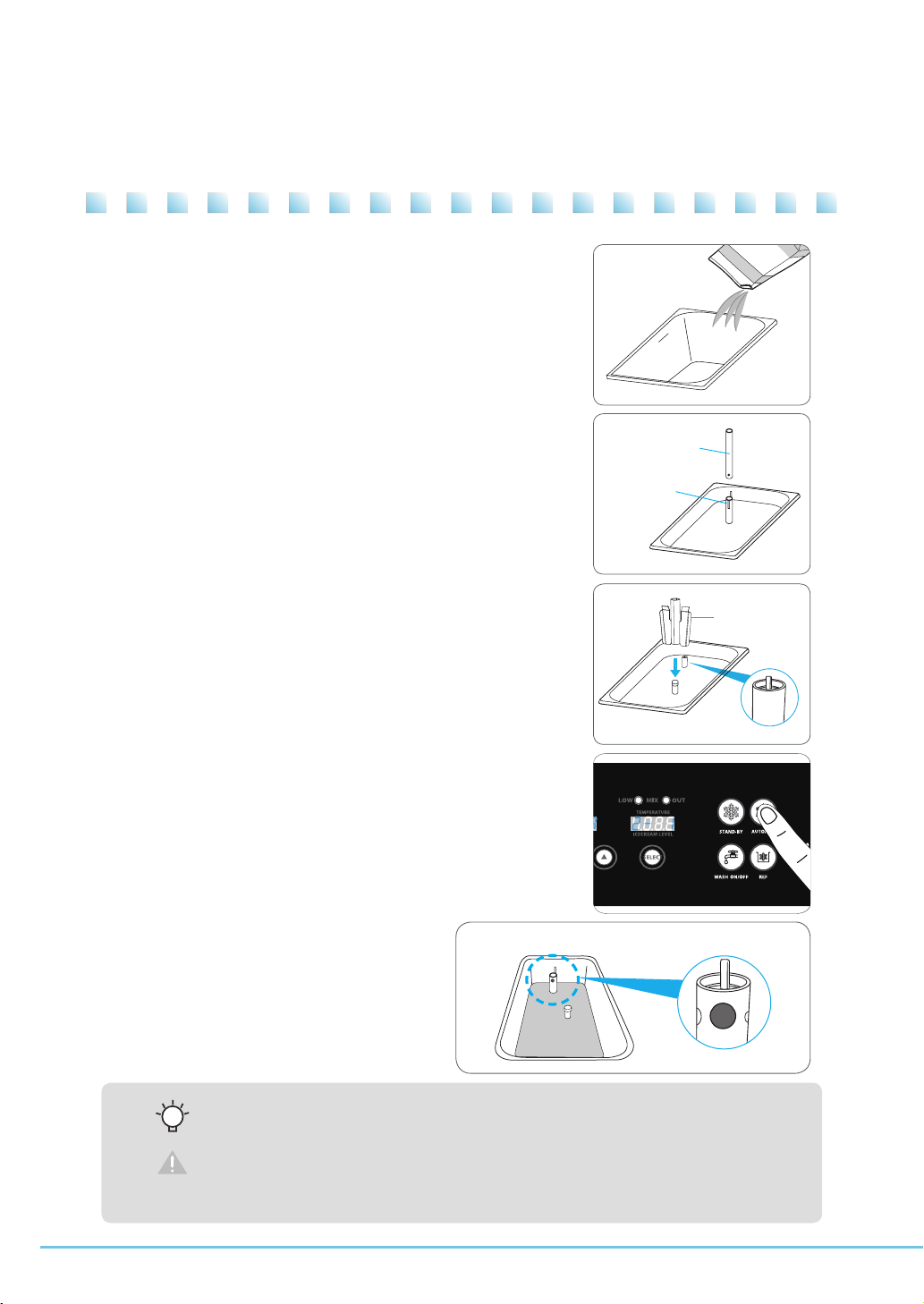

How to make soft ice cream
1. Open the top cover and pour ingredient
into the hopper tank.
※ Fill the ingredient bellow max level.
2. After pouring the mix, please insert the carburetor body
and carburetor tube into the hole in the hopper.
3. Close carburetor hole and apply impellers on the shaft
in the hopper.
4. Press AUTO button to start making soft ice cream.
● The smaller the carburetor hole is, the higher the overrun (air content) is.
Instead, in case of continuous sales, the ingredients supply gets slower and the soft ice
cream is let out slowly.
● The carburetor hole can get clogged, so check it and wash it periodically during use.
● The manufacturer shall not be responsible for any trouble (e.g., spoilage of materials,
overcooling, non-production of ice cream) caused by using materials in non-frozen
state (10℃).
For your
information
5. Please open the carburetor hole when
the ice cream level reaches at 100%.
Carburetor body
Carburetor
Carburetor tube
Impeller
Max

15
How to adjust the carburetor
The carburetor has two components.
The one inserted into the hopper is“BODY”with a“TUBE”going
into the body.
The tube is open on both sides and cannot be inserted in the
wrong direction.
The carburetor hole is opened.
Match the projecting part on the upper“BODY”to the upper part
of the "TUBE" without a hole so that the hole in the lower part of the
“BODY”is plugged.
Conditions : When making ice cream for the first time
The carburetor is set to a bigger hole.
Match the projecting part on the upper“BODY”to the big hole
in the upper part of the "TUBE" without a hole so that the hole in the
lower part of the“BODY”matches the big hole.
This is to minimize overrun and increase the ingredient for the
continuous making of ice cream.
Conditions : For operation
The carburetor is set to a smaller hole.
Match the projecting part on the upper“BODY”to the smaller
hole in the upper part of the "TUBE" without a hole so that the hole
in the lower part of the“BODY”matches the smaller hole.
This is to increase overrun and decrease the ingredient when
demand for ice cream is low.
Conditions : For operation
The carburetor is set to a medium-size hole.
Match the projecting part on the upper“BODY”to the medium-size
hole in the upper part of the "TUBE" without a hole so that the hole in
the lower part of the“BODY”matches the smaller hole.
This is to set medium overrun and ingredient.
Conditions : For operation
Even if overrun is improved with a smaller hole, the amount of ice cream may vary depending
on the amount of ingredient in the hopper.
The smaller the amount of ingredient that the hopper has, the bigger the overrun will become,
and vice versa.
For your
information
Carburetor tube body
Carburetor tube

16
Cleaning method
【 Wash mode 】
1. Press the wash button on the control panel.
(Wait until the soft cream in the cylinder is melted,
About 10 minutes.)
2. Remove the cover basket and
Take out the carburetor (tube+body)
Please do not let water or ice cream mix get
into the agitator shaft.
3. Remove the soft ice cream liquid in the mixing
tank and pour faucet water into it.
Repeat it two or three times until you get clean
water from it.
5. Press the 'WASH' button and finally discharge
the water from the mixing tank.
Use fauce twater to rinse off the cleaning
agent residuals.
6. Press the wash button to stop the product
and Release the four dasher cover bolts.
(do not turn off the power switch)
4. Clean out the raw materials and foreign objects from
around the level sensor, drain hole, and so forth from
inside the Mixing tank with a brush.
(The location of the level sensor may be different
depending on model types.)
Level sensor
Carburetor
Impeller

17
7. Separate the dasher cover from the main body.
Disassemble parts of dasher assay.
8. Brush off the inner area of the cylinder
and wipe it off with a soft cloth.
9. Disassemble the dasher assembly, wash
all the parts using neutral detergent and
wipe them with soft cloth.
10. Clean up the dasher with a soft cloth.
11. Extract a handle shaft and separate the lever
from the dasher cover.
【 Wash mode 】
Dasher lug form
Handle shaft
12. Pull out each piston from the dasher cover
and clean it up with brush (Please make sure
not to switch the middle piston with left
and the right piston.)
Cleaning method

18
Cleaning method
【 Washing of each parts 】
【 Condenser and filter cleaning method 】
【 Drain slug cleaning method 】
13. Disassemble the mixing shaft and wipe it off with a brush.
1. Pull out the condenser filter located on the right side
of the machine.
※ One time a week
14. Take out the piston of the dasher cover and clean
the edge of the piston with a soft towel.
2. Remove dust from the filter element or use a vacuum
cleaner, and wash it clean with water.
● Clean and dry the filter and insert in into the machine.
15. After cleaning off all parts, dry them and reassemble them
in the reverse order.
3. The condenser surface has lots of dust. Remove it by using
a household vacuum cleaner or hand held cleaner.
Clean and dry the filter and insert it into the machine.
Mixing shaft
Drain slug

19
Dasher and dasher cover assembly method
【 Dasher assembly 】
1. Please assemble the blades (LUG POM) on the dasher ass'y.
2. Please insert the assembled dasher into cylinder.
Dasher lug pom

20
【 Dasher cover assembly 】
1. Apply edible vegetable oil to the ring inserted
into the piston.
2. Insert the piston in the dasher cover.
※Please make sure not to switch the middle
piston with left and the right piston.
※ When reassembling, the (A) part of the middle
piston should be placed as shown in the (Picture 1).
When the Partition Food (rubber packing) is inserted fully,
please turn the piston to look forehand as shown in the
(Picture 2). (Prevention of the rubber from getting entangled)
3. Insert the discharge lever into the piston and then
insert the lever in line with the dasher cover and
the discharge lever.
4. Insert the packing dasher to the dasher cover.
5. Insert the mixing shaft and align the dasher bearing.
Mixing shaft
Dasher bearing
6. Fasten the two pairs of dasher cover bolts facing
each other diagonally.
If they are loose, then the soft cream can leak.
Fasten it tightly.
Dasher and dasher cover assembly method
(Picture 1) (Picture 2)
A
( Partition food)
