Icom IC-2710H User manual

INSTRUCTION MANUAL
iC- 2710h
DUAL BAND FM TRANSCEIVER
IC-2710H.qxd 02.2.8 16:55 Page A (1,1)

RWARNING! NEVER connect the transceiver to an
AC outlet. This may pose a fire hazard or result in an electric
shock.
RWARNING! NEVER operate the transceiver while
driving a vehicle. Safe driving requires your full attention—
anything less may result in an accident.
NEVER connect the transceiver to a power source of more
than 16 V DC. This connection will ruin the transceiver.
NEVER connect the transceiver to a power source using
reverse polarity. This connection will ruin the transceiver.
NEVER cut the DC power cable between the DC plug and
fuse holder. If an incorrect connection is made after cutting,
the transceiver might be damaged.
NEVER place the transceiver where normal operation of
the vehicle may be hindered or where it could cause bodily
injury.
NEVER let objects impede the operation of the cooling fan
on the rear panel.
DO NOT push the PTT when not actually desiring to transmit.
i
IMPORTANT
READ ALL INSTRUCTIONS carefully and completely before
using the transceiver.
SAVE THIS INSTRUCTION MANUAL—This instruction man-
ual contains important operating instructions for the
IC-2710H.
EXPLICIT DEFINITIONS
The explicit definitions below apply to this instruction manual.
CAUTIONS
WORD DEFINITION
RWARNING Personal injury, fire hazard or electric shock
may occur.
CAUTION Equipment damage may occur.
NOTE If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
The IC-2710H Europe versions comply with essential re-
quirements of the 89/336/EEC directive for Electromagnetic
Compatibility. This compliance is based on conformity with
the ETSI specification prEIS300 684 (EMC product standard
for Commercially Available Amateur Radio Equipment).
IC-2710H.qxd 02.2.8 16:55 Page i (1,1)

ii
UNPACKING

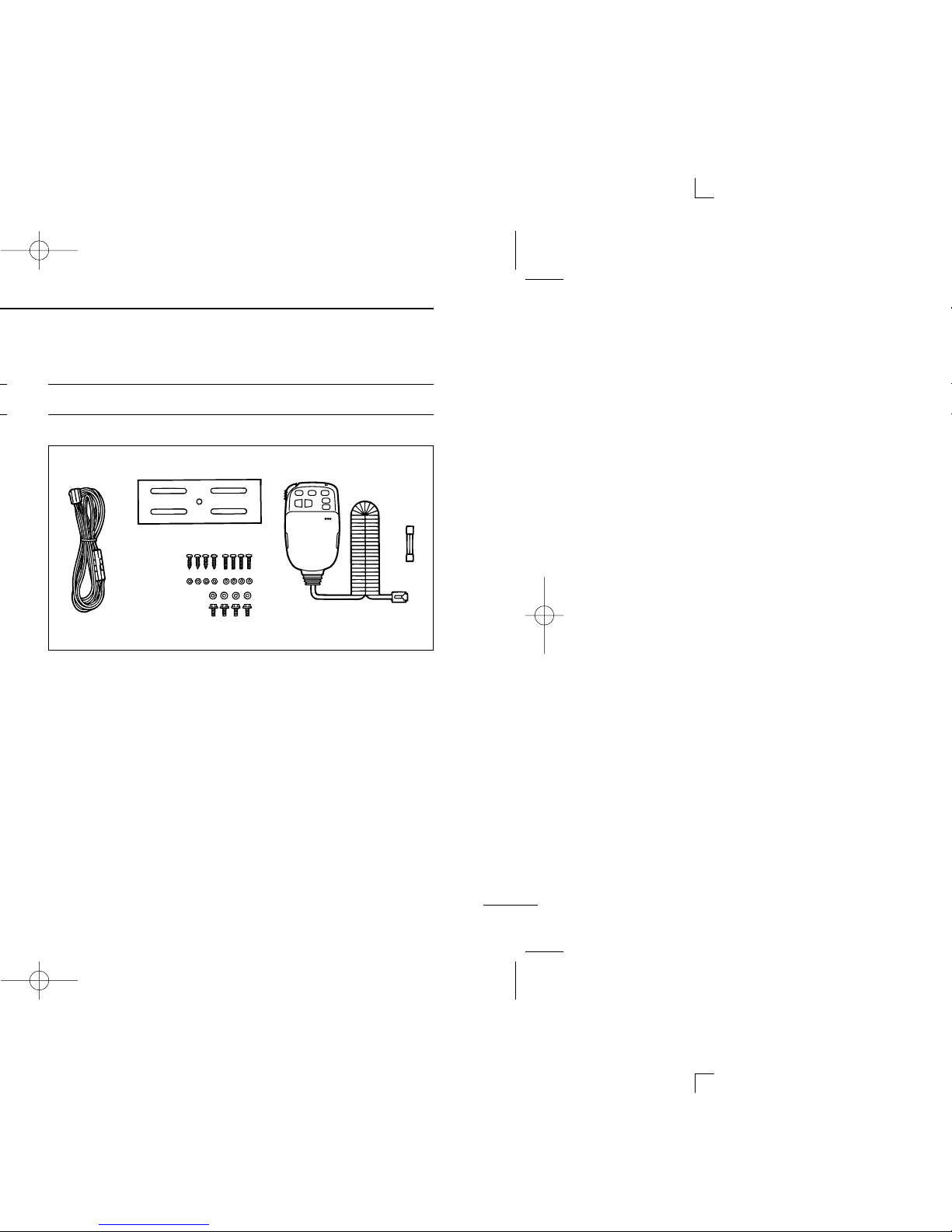

Accessories included with the transceiver:
Qty.
➀DC power cable (OPC-346)............................................. 1
➁Mobile mounting bracket ................................................. 1
➂Microphone (HM-98)........................................................ 1
➃Fuse (20 A)...................................................................... 1
➄Knob bolt (M4 x 8) ........................................................... 4
➅Mounting bolt (M5 x 12) ................................................... 4
➆Nut (M5)........................................................................... 4
➇Spring washer (M5) ......................................................... 4
➈Flat washer (M5).............................................................. 4
➉Self-tapping screws (A0 5 x 16)....................................... 4
DO NOT allow children to play with any radio equipment
containing a transmitter.
During mobile operation, DO NOT operate the transceiver
without running the vehicle’s engine. When transceiver power
is ON and your vehicle’s engine is OFF, the vehicle’s battery
will soon become exhausted.
BE CAREFUL! The transceiver will become hot when
operating it continuously for long periods.
AVOID using or placing the transceiver in areas with tem-
peratures below –10°C (+14°F) or above +60°C (+140°F) or
in areas subject to direct sunlight, such as the dashboard.
AVOID the use of chemical agents such as benzine or al-
cohol when cleaning, as they can damage the transceiver
surfaces.
USE Icom microphones only (supplied or optional). Other
manufacturer’s microphones have different pin assignments
and may damage the transceiver.
➀➁ ➂
➃
➄
➅➉
➆➇
➈
IC-2710H.qxd 02.2.8 16:55 Page ii (1,1)

TABLE OF CONTENTS
iii
IMPORTANT .................................................................................... i
EXPLICIT DEFINITIONS ................................................................. i
CAUTIONS ...................................................................................... i
UNPACKING ................................................................................... ii
TABLE OF CONTENTS ................................................................. iii

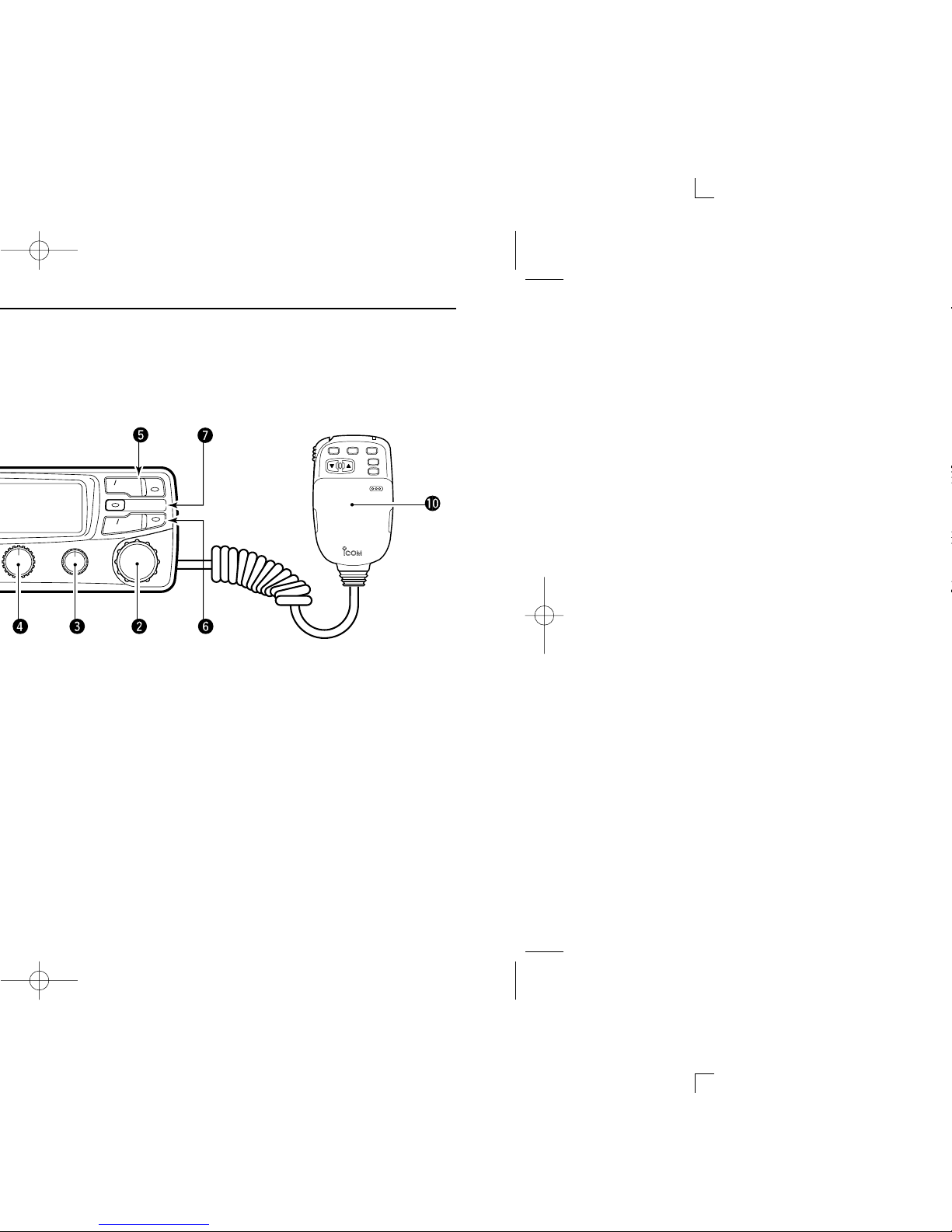

1 PANEL DESCRIPTION ....................................................... 1 – 8
■Front panel ........................................................................................... 1
■Function display ................................................................................... 3

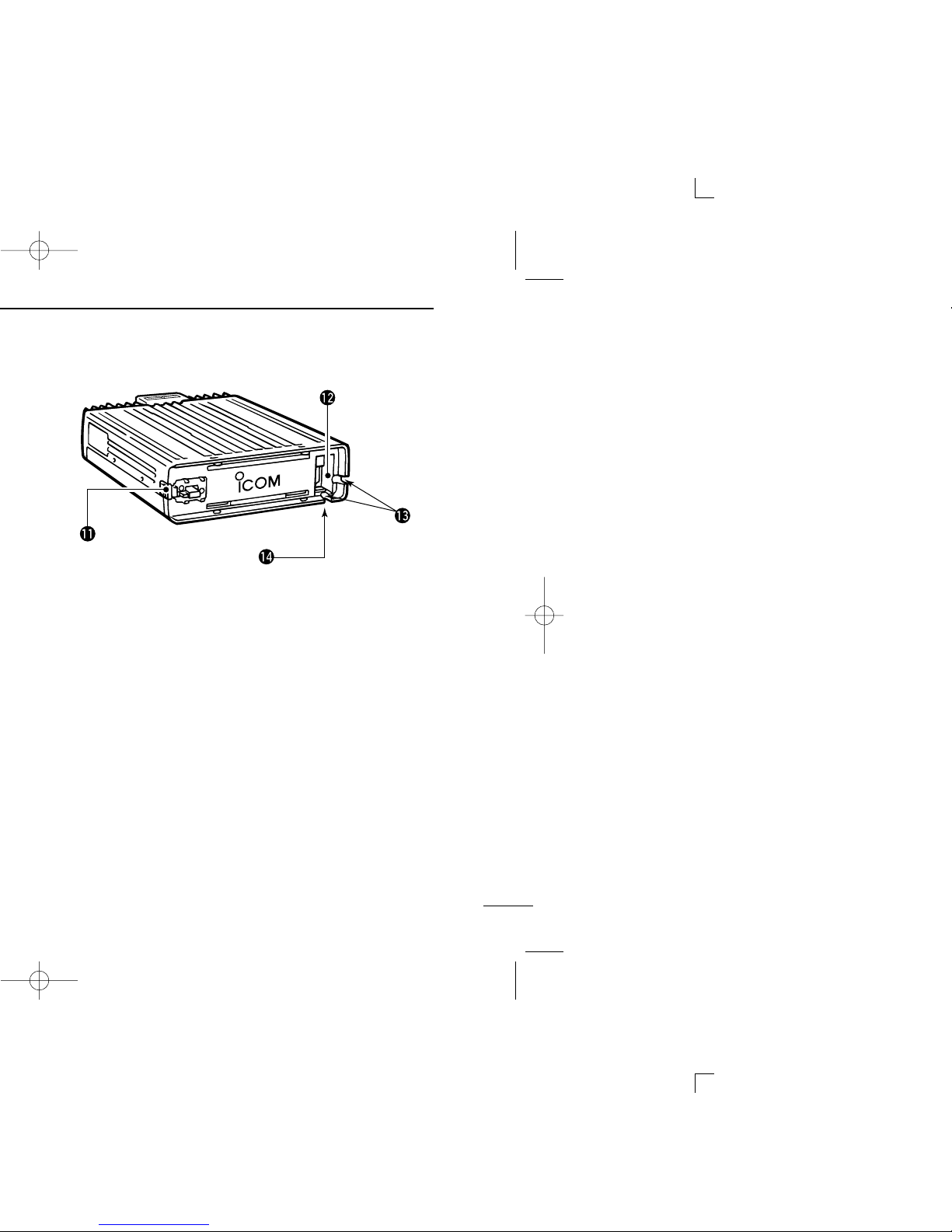

■Rear panel ............................................................................................ 5
■Microphone .......................................................................................... 6
■Microphone keypad .............................................................................. 7
2 INSTALLATION ................................................................. 9 – 14
■Installation methods ............................................................................. 9
■Location .............................................................................................. 10

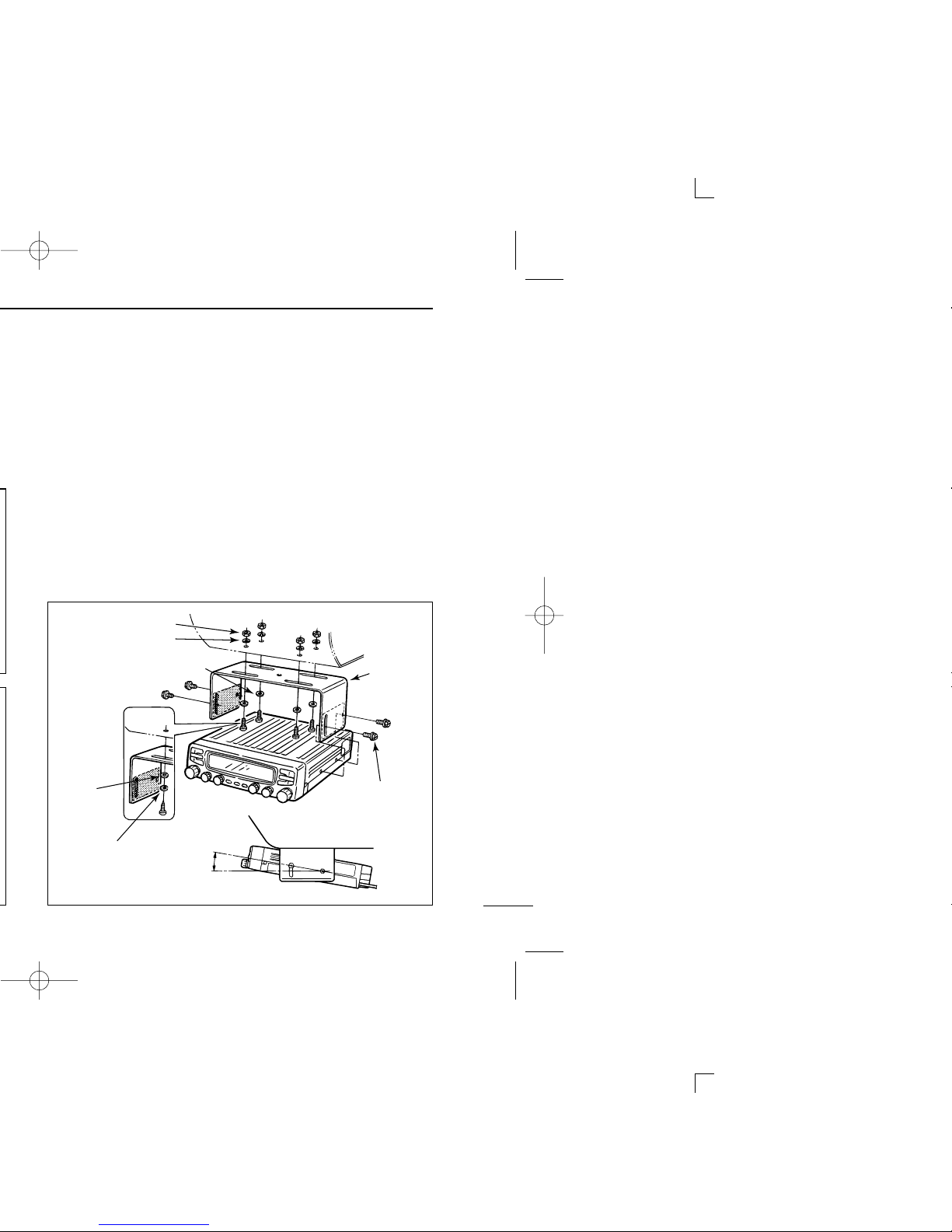

■Single body installation ...................................................................... 10
■Microphone connection ...................................................................... 11

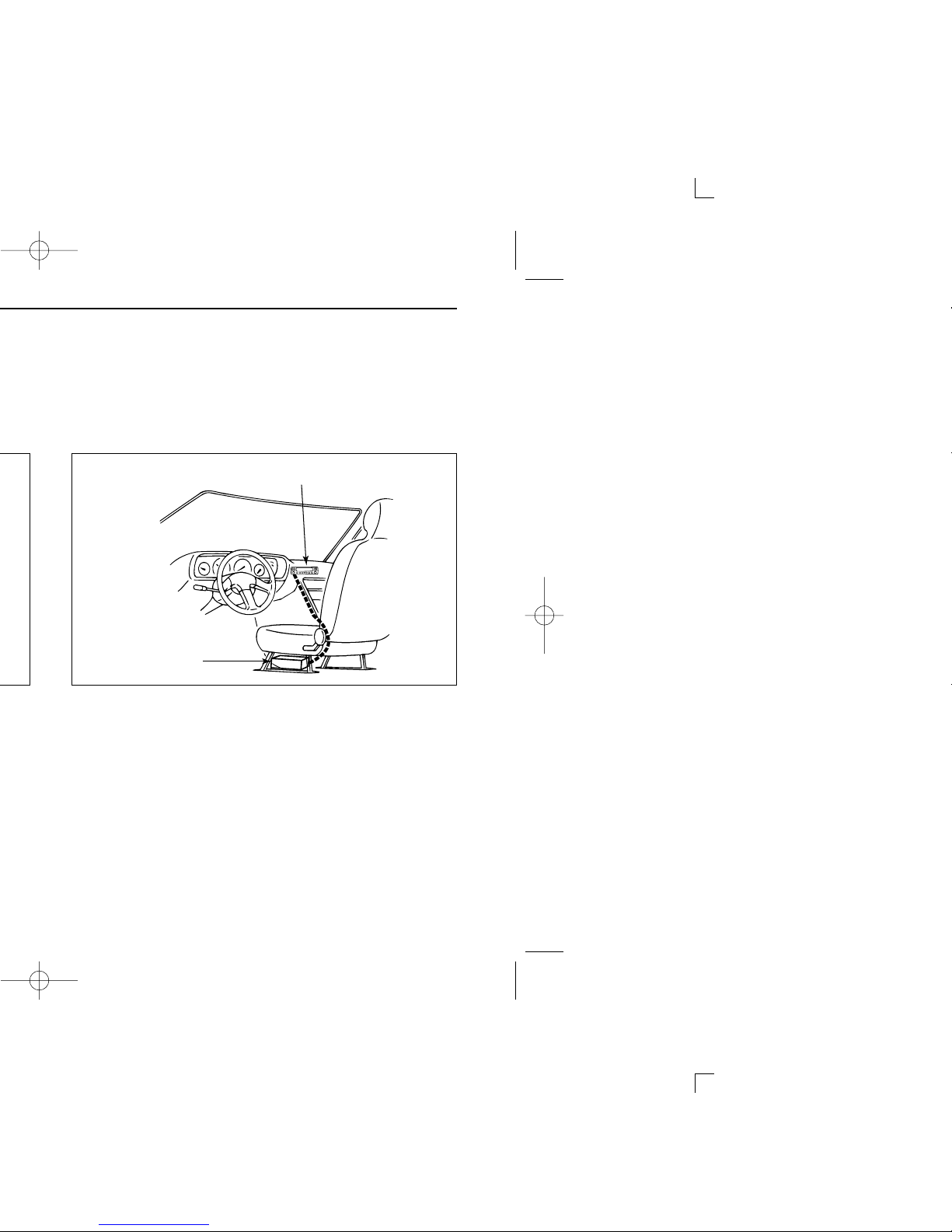

■Separate installation ........................................................................... 11

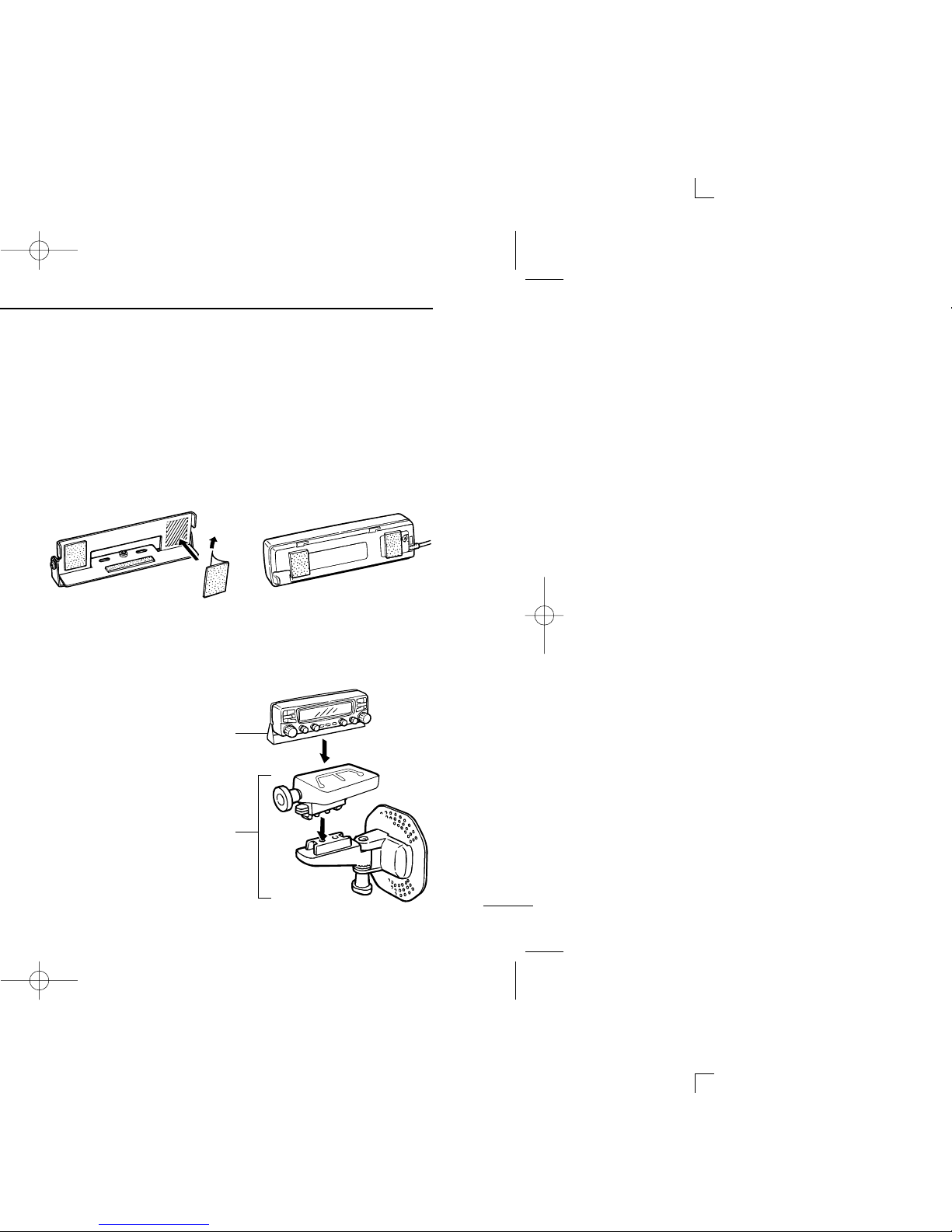

■Optional MB-58 installation ................................................................ 12
■Battery connection ............................................................................. 13

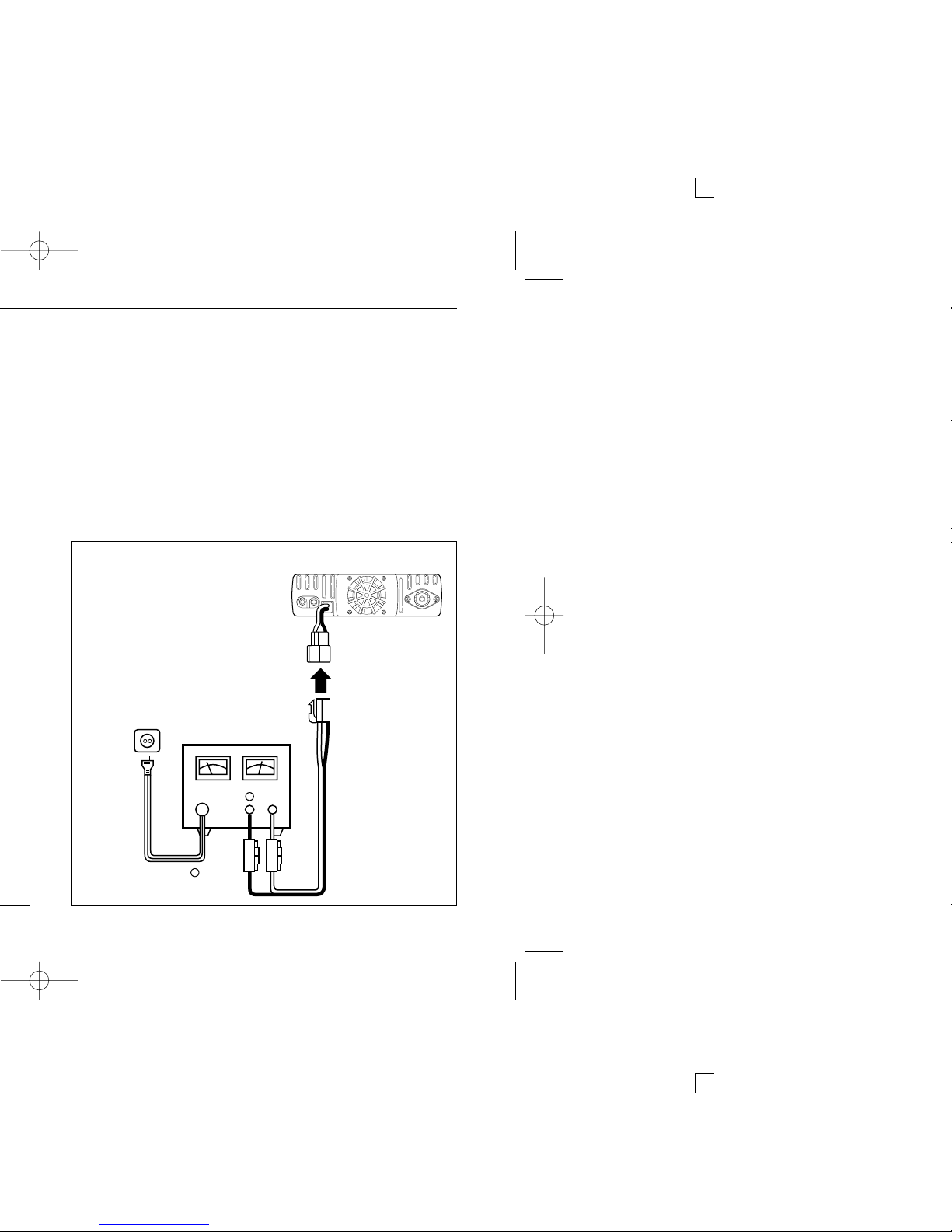

■DC power supply connection ............................................................. 13

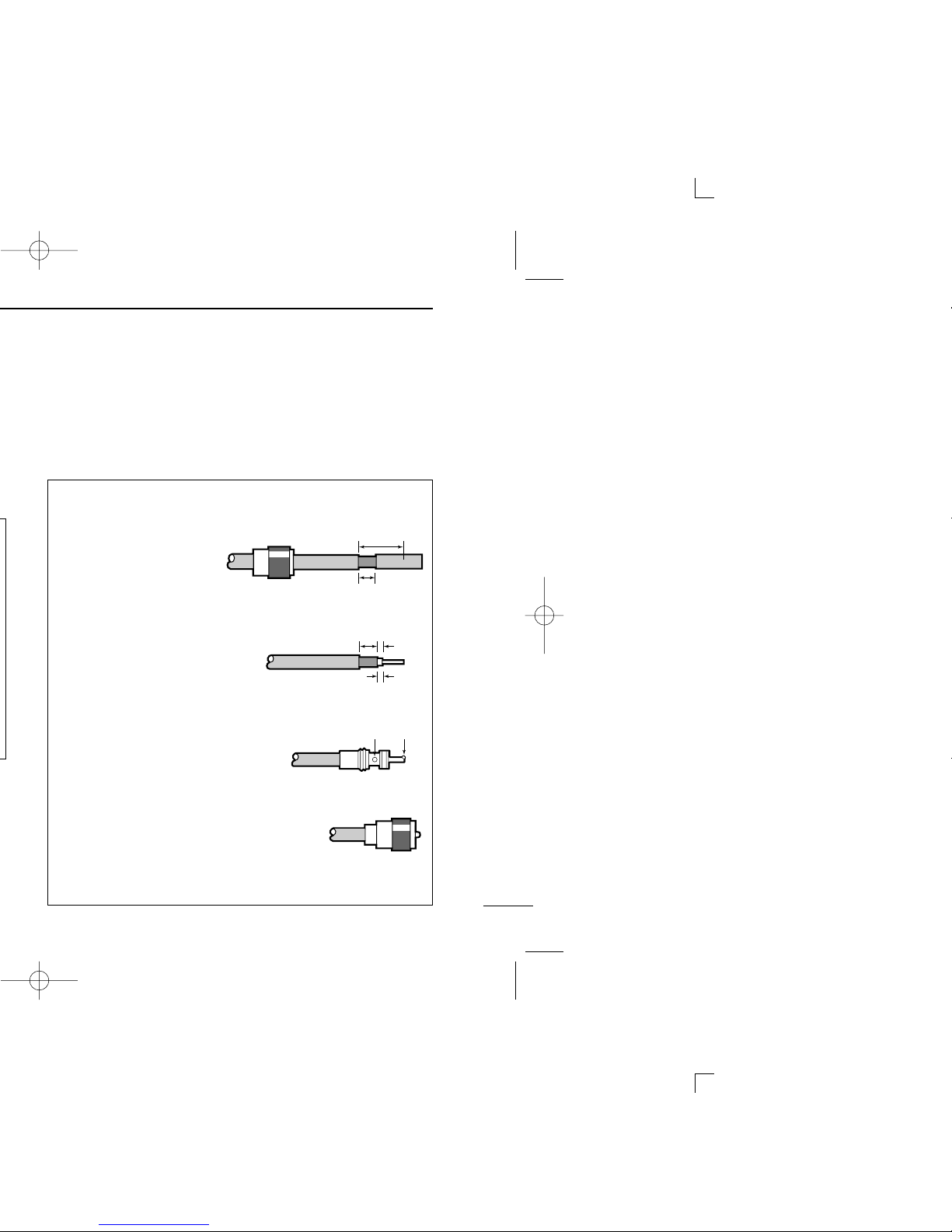

■Antenna installation ............................................................................ 14
3 SETTING A FREQUENCY .............................................. 15 – 19
■Preparation ......................................................................................... 15
■Lock functions .................................................................................... 16
■Using a tuning dial .............................................................................. 17
■Using [Y]/[Z] switches ....................................................................... 17
■Tuning step selection ......................................................................... 18
■Using the keypad ............................................................................... 19
4 BASIC OPERATION ....................................................... 20 – 26
■Receiving ........................................................................................... 20
■Monitor function .................................................................................. 21
■Audio mute function ........................................................................... 21
■Avionics band receive ........................................................................ 21
■Sub band access ................................................................................ 22
■Sub band mute/sub band busy beep ................................................. 23
■Para-watch ......................................................................................... 24
■Transmitting ........................................................................................ 25
■Selecting the output power ................................................................. 25
■Crossband full duplex ......................................................................... 26
■One-touch PTT function ..................................................................... 26
5 REPEATER OPERATION ............................................... 27 – 31
■Operation ........................................................................................... 27
■Subaudible tones ............................................................................... 29
■Offset frequency ................................................................................. 30
■Auto repeater ..................................................................................... 31
6 MEMORY OPERATION .................................................. 32 – 36
■General description ............................................................................ 32
■Memory channel selection ................................................................. 32
■Programming a memory channel ....................................................... 33
■Programming a memory channel via the microphone .......................... 34
■Transferring memory contents ........................................................... 35
■Memory clearing ................................................................................. 36
7 CALL CHANNEL OPERATION ...................................... 37 – 38
■Calling up a call channel contents ...................................................... 37
■Transferring call channel contents ..................................................... 37
■Programming a call channel ............................................................... 38
8 SCRATCH PAD MEMORY .............................................. 39 – 40
■What is a scratch pad memory? ......................................................... 39
IC-2710H.qxd 02.2.8 16:55 Page iii (1,1)

iv
■Calling up a scratch pad memory ....................................................... 39
■Transferring scratch pad memory contents ........................................ 40
9 SCAN OPERATION ........................................................ 41 – 46
■Scan types ......................................................................................... 41
■Start/stop scan ................................................................................... 42
■Programming scan edges .................................................................. 43
■Programming scan edges via the microphone ................................... 44
■Skip channel setting ........................................................................... 45
■Scan resume condition ....................................................................... 46
10 PRIORITY WATCH .......................................................... 47 – 48
■Priority watch types ............................................................................ 47
■Priority watch operation ...................................................................... 48
11 DTMF MEMORY ENCODER .......................................... 49 – 52
■Programming a DTMF code ............................................................... 49
■Clearing the DTMF memory contents ................................................ 49
■Programming a DTMF code via the microphone ............................... 50
■Transmitting a DTMF code ................................................................. 51
■DTMF speed ...................................................................................... 52
12 POCKET BEEP AND TONE SQUELCH ........................ 53 – 55
■Pocket beep operation ....................................................................... 53
■Tone squelch operation ...................................................................... 54
■Tone scan ........................................................................................... 55
13 PAGER AND CODE SQUELCH ..................................... 56 – 62
■Pager function .................................................................................... 56
■Code channels ................................................................................... 57
■Code programming ............................................................................ 58
■Pager operation .................................................................................. 59
■Code squelch function ........................................................................ 61
■Code squelch operation ..................................................................... 62
14 EXTERNAL DTMF REMOTE .......................................... 63 – 64
15 OPTIONAL UNIT INSTALLATION ......................................... 65
■Optional unit installation ..................................................................... 65
16 WIRELESS OPERATION ................................................ 66 – 71
■Connection ......................................................................................... 66
■HM-90
WIRELESS MICROPHONE ............................................................ 66
■EX-1759 installation ........................................................................... 67
■HM-90 switches .................................................................................. 68
■Microphone address ........................................................................... 71
17 OTHER FUNCTIONS ...................................................... 72 – 74
■Beep tones on/off ............................................................................... 72
■Time-out timer .................................................................................... 72
■Auto power-off .................................................................................... 73
■Cooling fan setting ............................................................................. 73
■Microphone [F-1]/[F-2] keys ............................................................... 74
■Display dimmer setting ....................................................................... 74
■Demonstration display ........................................................................ 74
18 MAINTENANCE .............................................................. 75 – 77
■Troubleshooting .................................................................................. 75
■Fuse replacement .............................................................................. 77
■Partial resetting .................................................................................. 77
■Total resetting ..................................................................................... 77
19 SPECIFICATIONS .................................................................. 78
20 OPTIONS ........................................................................ 79 – 80
21 MODE ARRANGEMENT CHART ................................... 81 – 82
IC-2710H.qxd 02.2.8 16:55 Page iv (1,1)

PANEL DESCRIPTION
1
1
qPOWER SWITCH [POWER]
Turns power ON and OFF when pushed for 1 sec.
wTUNING DIALS
➥Select the operating frequency (p. 17), the memory
channel (p. 32), the contents of the set mode display
(p. 82) and the scanning direction. (p. 42)
➥Select the main band when pushed. (p. 15)
➥When the sub band is selected, activate the sub band
function when pushed and held. (p. 22)
➥When the main band is selected, change the operating
band (for para watch) when pushed and held. (p. 24)
eSQUELCH CONTROLS [SQL(MONI)]
➥Vary the squelch level. (p. 20)
• RF attenuator activates and increases the attenuation when
rotated clockwise to the center position and further.
➥Toggles squelch opened and closed when pushed.
• Transmit frequency is automatically selected when squelch
opens.
rVOLUME CONTROLS [VOL(SET L)]/[VOL(SET D)]
➥Adjust the audio levels. (p. 20)
➥Select set mode when pushed. (p. 82)
➥Toggles the lock function ON/OFF when pushed and
held [SET(L)]. (p. 16)
➥Allows you to adjust the display brightness when
pushed and held [SET(D)]. (p. 74)
V MHz
SCAN
S.MW MW
LOW DUP POWER DTMF T
MONI
SQL
MONI
SQL
SET L
VOL
SET D
VOL
M CALL
PRIO
V MHz
SCAN
S.MW MW
M CALL
PRIO
LOCK
VFO
CALL
MR
SUB
BAND
F-2
F-1
Function display (p. 3)
■Front panel (remote controller)
IC-2710H.qxd 02.2.8 16:55 Page 1 (1,1)

1
PANEL DESCRIPTION
2
tVFO/MHz SWITCHES [V/MHz(SCAN)]
➥Select and toggle VFO mode and 1 MHz tuning display.
➥Start a scan when pushed and held. (p. 42)
yMEMORY/CALL CHANNEL SWITCHES
[M/CALL(PRIO)]
➥Select and toggle memory mode or a call channel.
(pgs. 32, 37)
➥Activate the priority watch function when pushed and
held. (p. 47)
uSELECT MEMORY/MEMORY WRITE SWITCHES
[S.MW(MW)]
➥Select a memory channel for programming. (p. 33)
➥Program selected memory when pushed and held. (p. 33)
iOUTPUT POWER/DUPLEX SWITCH [LOW(DUP)]
➥Each push changes the output power selection. (p. 25)
•There are 3 output powers available: low, mid and high.
➥Push and hold to select a duplex setting. (p. 27)
•There are 3 duplex settings available: minus duplex (“–
DUP”appears, plus duplex (“+ DUP”appears) and simplex.
oDTMF/TONE SWITCH [DTMF(T)]
➥Turns DTMF memory encoder ON and OFF for au-
topatch operation. (p. 49)
•When an optional UT-49 is installed, activates the DTMF
memory, pager or code squelch function in sequence.
➥Turns the subaudible tone encoder ON and OFF for re-
peater access when pushed and held. (p. 27)
•When an optional UT-104 is installed, activates the subaudi-
ble tone encoder, pocket beep or tone squelch function in
sequence.
!0 MICROPHONE
➥To connect the supplied microphone, detach the front
panel in advance.
➥Multi-function keypad can be accessed by removing
the keypad cover. (p. 7)
•Be careful not to lose the cover.
!1 FRONT PANEL RELEASE LATCH
While pushing this latch, slide the front panel to the left to
remove it.
!2 MICROPHONE CONNECTOR
Connect the supplied microphone or optional EX-1759
IN -
FRARED RECEIVER . (p. 11)
!3 CABLE GUTTERS
Pass the microphone cable through one of the gutters
when attaching the front panel.
!4 MICROPHONE RELEASE
Push to release the microphone.
IC-2710H.qxd 02.2.8 16:55 Page 2 (1,1)

1PANEL DESCRIPTION
3
qSUB BAND ACCESS INDICATORS (p. 22)
Appear when the sub band access function is activated
and indicate the function control band via the microphone
and some front panel switches (except transmitting).
wMAIN BAND INDICATORS (p. 15)
Indicate the main band for transmit and function control.
eTRANSMIT INDICATORS (p. 25)
➥Appear while transmitting.
➥Flash while transmitting with the one-touch PTT func-
tion (p. 26).
rFREQUENCY READOUTS
Show the operating frequency, set mode contents, etc.
•The decimal point of the frequency flashes while scanning.
(p. 42)
•“d”appears in place of the 100 MHz while the DTMF memory
function is in use; when optional units are installed, “P, ”or “C”
appears in place of the 100 MHz while the pager or code
squelch functions are in use, respectively. (pgs. 49, 59, 61)
tDUPLEX INDICATORS (p. 27)
“DUP–” or “DUP”appear during semi-duplex operation (re-
peater operation).
yTONE INDICATORS
➥“T”appears while the subaudible tone encoder is in
use. (p. 27)
➥“T SQL”appears while the optional tone squelch func-
tion is in use. (p. 54)
➥“T SQLS”appears while the optional pocket beep
function is in use. (p. 53)
BUSY
LOW LOW
MUTE
PRIO
DUP
SKIP SKIP
BUSY
MUTE
PRIO
–T SQL DUP –TSQL
TOT
AO
REMO
q
wert y ui
o
!0
!1
q
o
!0
!1
!2!3!4!5!6 !2!3!4!5!6!7
werty

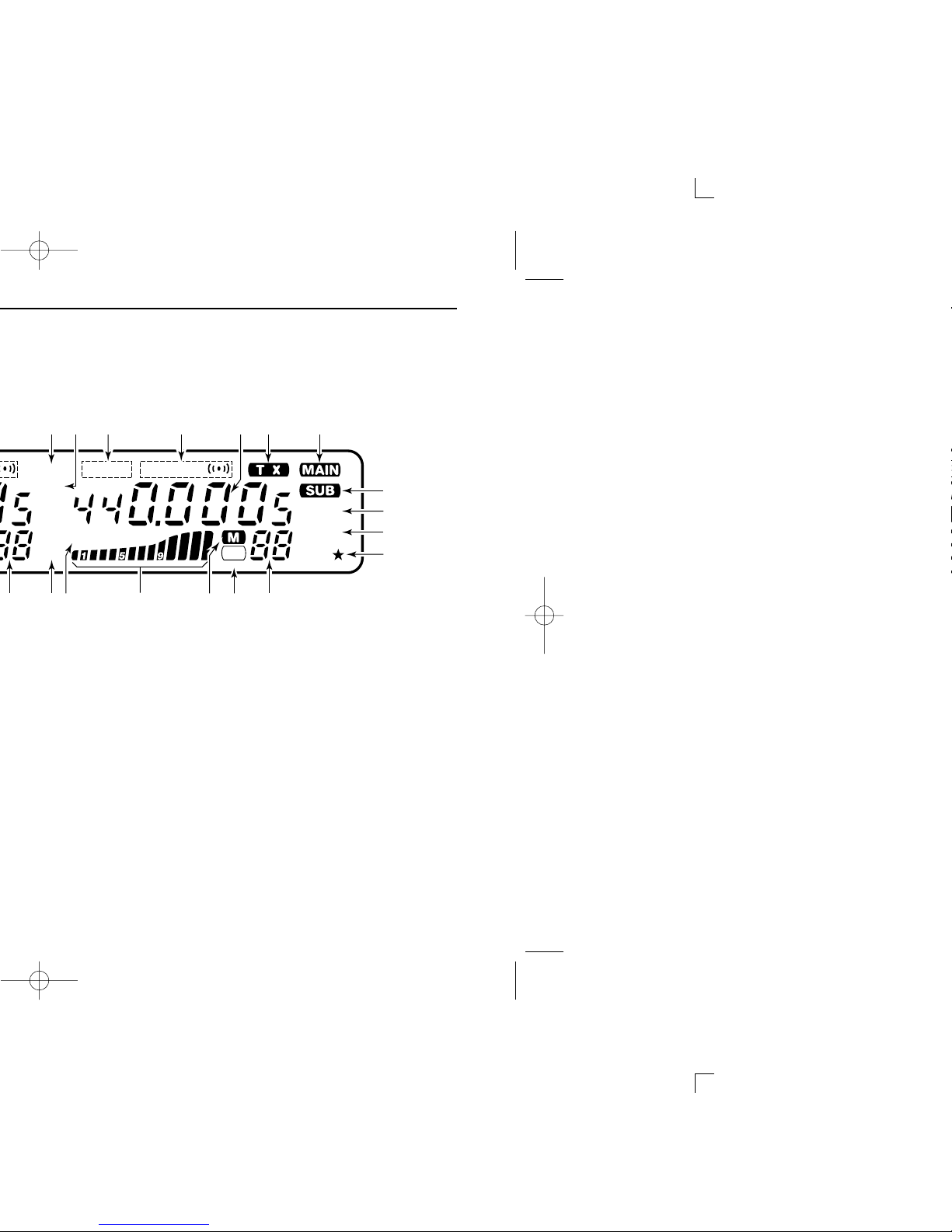

■Function display
IC-2710H.qxd 02.2.8 16:55 Page 3 (1,1)

4
1
PANEL DESCRIPTION
uEXTERNAL DTMF CONTROL INDICATOR (p. 63)
Appears when the optional external DTMF control function
is in use.
•Available for the U.S.A. version only.
iTOT (TIME-OUT TIMER) INDICATOR (p. 72)
Appears while the time-out timer has been activated.
oAUDIO MUTE INDICATORS (p. 21)
Appear when the audio mute function is activated via mi-
crophone control.
•This function is cancelled when any switch or control is oper-
ated.
!0 PRIORITY WATCH INDICATORS (p. 48)
Appear while the priority watch is activated; flash while the
watch is paused.
!1 OUTPUT POWER INDICATORS (p. 25)
➥“LOW”appears for low output power. (5 W)
➥“LOW ★”appears for mid output power. (10 W)
➥No indicator appears for high output power.
!2 MEMORY CHANNEL READOUTS
➥Show the selected memory channel numbers. (p. 32)
➥Only 2 capital “L”’s appear while the frequency lock
function is in use. (p. 16)
➥A capital “C”appears while on a call channel (p. 37)
➥“L1–L3”appear when a scratch pad memory is se-
lected. (p. 39)
➥A small “c”appears when VFO mode is selected from
the call channel or a scratch pad memory (pgs. 37, 39)
!3 SKIP INDICATORS (p. 45)
Appear when the displayed memory channel is specified
as a skip channel.
!4 MEMORY INDICATORS (p. 32)
Appear when memory mode is selected.
!5 S/RF INDICATORS (p. 25)
➥Show the relative signal strength while receiving sig-
nals.
➥Show the output power selection while transmitting.
!6 BUSY INDICATORS (p. 20)
Appear while a signal is being received or the squelch is
open.
!7 AUTO POWER-OFF INDICATOR (p. 73)
Appears while the auto power-off function is in use.
IC-2710H.qxd 02.2.8 16:55 Page 4 (1,1)

1PANEL DESCRIPTION
5

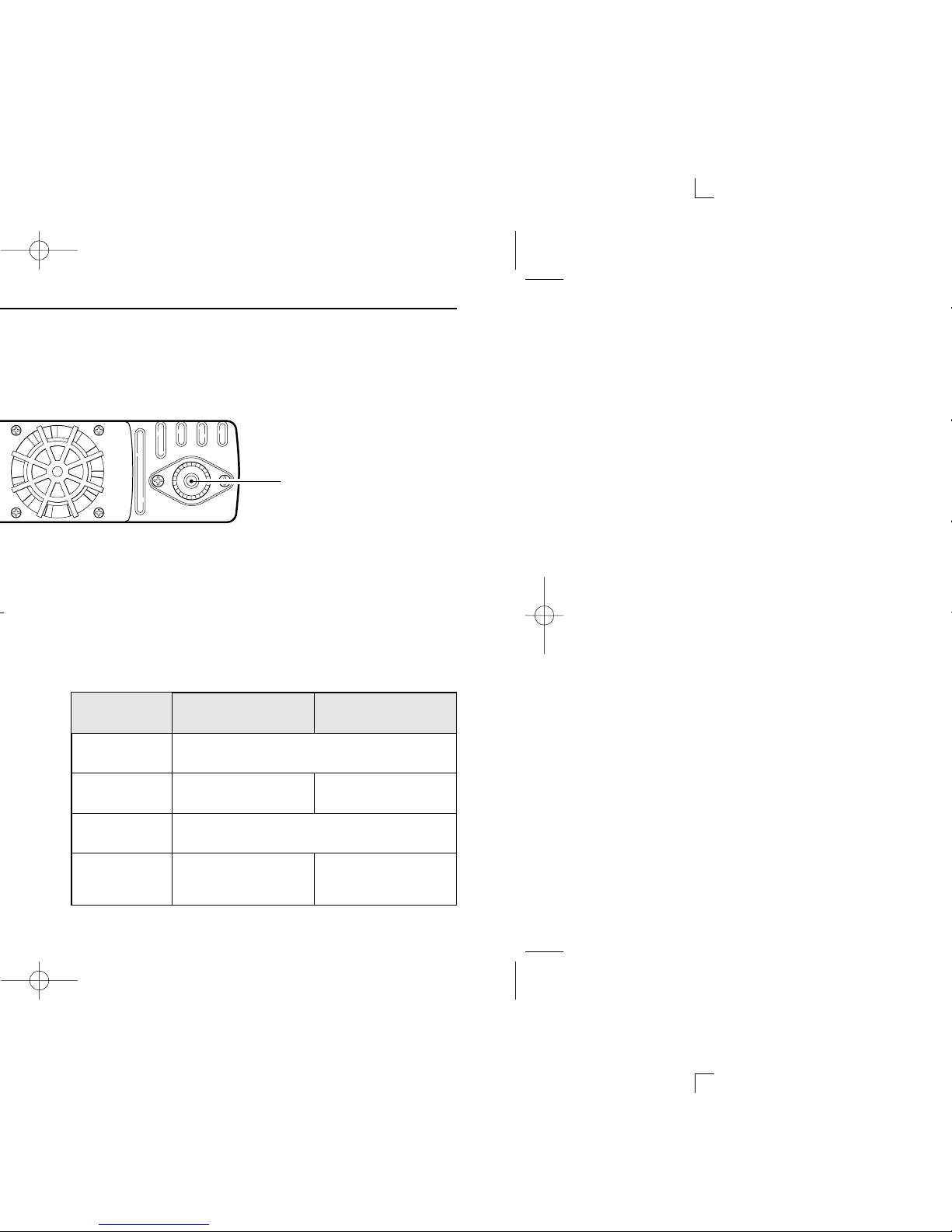

■Rear panel
q
w
e
r
qANTENNA CONNECTOR [ANT]
Accepts a 50 Ωdual band antenna with a PL-259 connec-
tor. (p. 14)
wSPEAKER JACK 1 [144 MHz SP]
Connects a 4–8 Ωspeaker, if required. Outputs the 144
MHz band’s audio. See the table at right for details.
eSPEAKER JACK 2 [430(440) MHz SP]
Connects a 4–8 Ωspeaker, if required. Outputs both
band’s audio when [430(440) MHz SP] has no connection.
rPOWER RECEPTACLE [DC13.8V]
Accepts 13.8 V DC with the supplied DC power cable.
DSpeaker information
Connected
speaker VHF band audio UHF band audio
With no exter-
nal speakers Internal speaker (mixed audio)
[144 MHz SP]
only External speaker
[430(440) MHz
SP] only External speaker (mixed audio)
2 external
speakers
External speaker via
[144 MHz SP]
External speaker via
[430(440) MHz SP]
Internal speaker
IC-2710H.qxd 02.2.8 16:55 Page 5 (1,1)

1
PANEL DESCRIPTION
6
■Microphone
LOCK
VFO
CALL
MR
SUB
BAND
MW
FUNC
A
CLR
D-OFF
B
SET
PTT-M
3
PRIO
DTMF
6
LOW
AFC-OFF
2
SCAN
CSQL
5
MID
AFC
1
MONI
PGR
4
HIGH
T-OFF
C
ENT
TSQL
9
SIMP
16 KEY LOCK
#
TSQLS
8
DUP+
TONE-2
0
TONE
7
DUP
TONE-1
F-2
F-1
DTMF-S
MUTE
D
SQLSQLVOLVOL
Mic element
q
w
ert
y
u
i
o
qUP/DOWN SWITCHES [Y]/[Z]
➥Push either switch to change the operating frequency,
memory channel, set mode contents, etc. (pgs. 17, 32)
➥Push and hold either switch to start scanning. (p. 42)
wPTT SWITCH
➥Push and hold to transmit; release to receive. (p. 25)
➥Toggles between transmitting and receiving while the
one-touch PTT function is in use. (p. 26)
eVFO SWITCH [VFO(LOCK)]
➥Push to select VFO mode.
➥Push and hold to toggle the lock function ON and OFF.
rMEMORY SWITCH [MR(CALL)]
➥Push to select memory mode. (p. 32)
➥Push and hold to select the call channel. (p. 37)
tACTIVITY INDICATOR
Lights red while a key is pushed; lights green while the
one-touch PTT function is in use.
yBAND SWITCH
➥Push to toggle the main band. (p. 15)
➥Push and hold to turn the sub band access function ON
and OFF. (p. 22)
uFUNCTION SWITCHES [F-1]/[F-2] (p. 74)
Assign your desired key function from the front panel
switches.
•Default settings are VHF and UHF tuning dials to [F-1] and [F-2],
respectively for quick band selection.
iFUNCTION INDICATOR
➥Lights yellow while [FUNC] is activated—indicates the
secondary function of switches can be accessed.
➥Lights green when [DTMF-S] is activated—DTMF sig-
nals can be transmitted with the keypad. (p. 51)
oKEYPAD
Used for controlling the transceiver, transmitting a DTMF
encoder, etc. See pgs. 7 and 8 for function details.
IC-2710H.qxd 02.2.8 16:55 Page 6 (1,1)

1PANEL DESCRIPTION
7
■Microphone keypad
FUNCTION SECONDARY FUNCTION (after )
FUNC
OTHER FUNCTIONS
Toggles between opening and closing the
accessed band’s squelch. (p. 20)
No secondary function.
After :
Transmit the appropriate
DTMF code or push [1] to
[8] to transmit the DTMF
memory contents when
the DTMF memory en-
coder is activated. (p. 51)
DTMF-S
•Starts and stops scanning. (p. 42)
•Starts tone scan when an optional tone
squelch is in use. (p. 55)
No secondary function.
Starts and stops priority watch. (p. 48) Turns the one-touch PTT function ON and
OFF. (p. 26)
Selects high output power. (p. 26) Turns the optional pager function ON.(p. 59)
Selects middle output power. (p. 26) Turns the optional code squelch function
ON. (p. 62)
Selects low output power. (p. 26) Turns the DTMF memory encoder function
ON. (p. 50)
Selects –duplex. (p. 28) Turns the subaudible tone encoder ON.
(p. 28)
Selects +duplex. (p. 28) Turns the optional pocket beep function ON.
(p. 53)
Selects simplex (p. 28) Turns the optional tone squelch function
ON. (p. 54)
Increases the audio output. (p. 20) While being pushed, transmits a 1750 Hz
tone. (p. 28)
AFC
1
MONI
AFC-OFF
2
SCAN
PTT-M
3
PRIO
PGR
4
HIGH
CSQL
5
MID
DTMF
6
LOW
TONE
7
DUP–
TSQLS
8
DUP+
TSQL
9
SIMP
TONE-2
0
VOL
KEY
IC-2710H.qxd 02.2.8 16:55 Page 7 (1,1)

1
PANEL DESCRIPTION
8
KEY FUNCTION SECONDARY FUNCTION (after )
FUNC
OTHER FUNCTIONS
•Clears a digit before entry. (p. 19)
•Cancels the scan, priority watch, pager,
code squelch or DTMF memory function.
(pgs. 42, 48, 51, 59, 62)
•Writes the VFO contents into the memory
channel or call channel. (pgs. 34, 38)
•Advances the memory channel number
when continuously pushed after program-
ming is completed. (p. 34)
After :
Transmit the appropriate
DTMF code. (p. 51)
DTMF-S
Enters set mode and advances the set
mode selection order. (p. 82)
Turns the pager, code squelch, DTMF mem-
ory or DTMF remote function OFF.
(pgs. 59, 62, 63)
•Sets the keypad for numeral input.
(p. 19)
•Decreases the set mode selection order
after entering set mode. (p. 82)
Turns the subaudible tone encoder, pocket
beep or tone squelch OFF. (pgs. 28, 53, 54)
Increases the squelch level. (p. 20)
•The [SQL] control on the front panel has prior-
ity when rotated.
Mutes both band’s audio signals. (p. 21)
•Mute function is released when any operation is
performed.
Decreases the squelch level. (p. 20)
•The [SQL] control on the front panel has prior-
ity when rotated.
Locks the digit keys on the keypad (including
the A–D, # and Mkeys. (p. 16)
Decreases the audio output. (p. 20) Sends a 1750 Hz tone signal for 1 sec.
(p. 28)
MW
A
CLR
D-OFF
B
SET
16 KEY LOCK
#
SQL
T-OFF
C
ENT
MUTE
D
SQL
TONE-1
M
VOL
IC-2710H.qxd 02.2.8 16:55 Page 8 (1,1)

DSeparate installation
•Optional OPC-600 SEPARATION CABLE (3.5 m; 11.5 ft) or
OPC-601 (7.0 m; 23.0 ft) is necessary.
•Optional MB-58
REMOTE CONTROLLER BRACKET is available
for front panel mounting.
•Optional MB-65
MOUNTING BASE is available for increasing
front panel mounting possibilities (MB-58 is necessary).
•Optional OPC-440
MICROPHONE CABLE (5.0 m; 16.4 ft) and
OPC-647 (2.5 m; 8.2 ft) are available to extend the micro-
phone cable.
•Optional OPC-441
SPEAKER CABLE (5.0 m; 16.4 ft) is avail-
able to extend the speaker cable.
INSTALLATION
2
9
■Installation methods
DSingle body installation
•It is not necessary to purchase a mounting bracket. The
supplied mounting bracket (or optional MB-17A) can be
used for installation.
Main body
Front panel
IC-2710H.qxd 02.2.8 16:55 Page 9 (1,1)

2
INSTALLATION
10
■Location
Select a location which can support the weight of the trans-
ceiver and does not interfere with driving in any way. We rec-
ommend the locations shown in the diagram below.
■Single body installation
➀Drill 4 holes where the mounting bracket is to be installed.
•Approx. 5.5–6 mm (3⁄16 in) when using nuts; approx. 2–3 mm (1⁄16
in) when using self-tapping screws.
➁Insert the supplied screws, nuts and washers through the
mounting bracket and tighten.
➂Adjust the angle for the clearest view of the function dis-
play.
NEVER place the transceiver or remote controller where
normal operation of the vehicle may be hindered or where
it could cause bodily injury.
NEVER place the transceiver or remote controller where
air bag deployment may be obstructed.
DO NOT place the transceiver or remote controller where
hot or cold air blows directly onto it.
AVOID placing the transceiver or remote controller in di-
rect sunlight.
•EXAMPLE INSTALLATION LOCATIONS
20°
Mounting nut
Mounting
bracket
When using
self-tapping
screws.
Nut
Spring washer
Flat washer
Flat washer
Spring
washer
IC-2710H.qxd 02.2.8 16:55 Page 10 (1,1)

2INSTALLATION
11
■Microphone connection
The microphone connector is located behind the front panel.
Connect the supplied microphone as follows:
➀Push the release button, then detach the remote controller
as shown below.
➁Connect the supplied microphone to the microphone con-
nector.
➂Reattach the remote controller to the main body.
➃To remove the microphone, push the release button as
above.
■Separate installation
Using an optional OPC-600/601 SEPARATION CABLE
, the front
panel can be separated from the main body, doubling as a re-
mote controller.
➀Detach the front panel as shown at left.
➁Connect a separation cable to the front panel and to the
main body using the supplied screws as illustrated below.
mic release
Push
Release
button
OPC-600 or OPC-601
Rear of front panel Main body
➀8 V OUT
➁Freq. up/down
➂8 V control IN
➃PTT
➄Mic AF (–)
➅Mic AF (+)
➆Ground
➇Data IN
➇➀
Microphone pin assignments
IC-2710H.qxd 02.2.8 16:55 Page 11 (1,1)

2
INSTALLATION
12
■Optional MB-58 installation
The optional MB-58 REMOTE CONTROLLER BRACKET is avail-
able for separate installation.
➀Drill 2 or 4 holes where the bracket or mounting base is to
be installed, respectively.
•Approx. 4 mm (1⁄8in) when using nuts; approx. 1–2 mm (1⁄16 in)
when using self-tapping screws.
➁Insert the supplied screws, bolts and washers through the
mounting base and tighten.
➂Adjust the angle for the clearest view of the function dis-
play and tighten 2 screws when the mounting base is used.
Bracket
When using self-
tapping screws.
Mounting
base
Mounting
bolt
➃Attach the supplied Velcro pads (large) to the remote con-
troller and bracket.
➄Attach the supplied Velcro pad (small) or rubber pad to the
bracket as shown below; then attach the remote controller.
DWhen using the MB-65
MB-58 IC-2710H remote controller
MB-58
MB-65
Adjust the viewing
angle for maximum
visibility of the
function display.
IC-2710H.qxd 02.2.8 16:55 Page 12 (1,1)

2INSTALLATION
13
■Battery connection ■DC power supply connection
Use a 13.8 V DC power supply with more than 12 A capabil-
ity. An optional IC-PS30
DC POWER SUPPLY
is available for
using the transceiver with a DC power supply in your home.
Make sure the ground terminal of the DC power supply is
grounded.
NEVER connect the transceiver directly to a 24 V battery.
DO NOT use the cigarette lighter socket for power con-
nections.
Attach a rubber grommet when passing the DC power
cable through a metal plate to prevent short circuits.
•CONNECTING TO A DC POWER SOURCE
See p. 77 for fuse replacement.
Fuses
20 A
black
red⊕
red
Grommet
⊕
−
black
−
12 V
Supplied
DC power cable
•CONNECTING TO A DC POWER SUPPLY
See p.77 for fuse replacement.
DC power
supply 13.8 V
to an
AC
outlet
Fuses
20 A
black
red⊕
−
⊕
−
IC-2710H.qxd 02.2.8 16:55 Page 13 (1,1)

2
INSTALLATION
14
■Antenna installation
DAntenna location
To obtain maximum performance from the transceiver, select
a high-quality antenna and mount it in a good location. A non-
radial antenna should be used when using a magnetic mount.
DAntenna splitter
You can use a dual band antenna because a duplexer is in-
stalled in the transceiver. However, an external duplexer must
be connected when using a separate antenna for each band.
DAntenna connector
The antenna uses a PL-259 connector.
30 mm
10 mm (soft solder)
10 mm
1–2 mm
solder solder
Soft
solder
Coupling ring
•PL-259 CONNECTOR
➀
➂
➃
➁
Slide the coupling ring
down. Strip the cable
jacket and soft solder.
Slide the connector
body on and solder it.
Screw the coupling
ring onto the connec-
tor body.
Strip the cable as
shown at right. Soft
solder the center con-
ductor.
(10 mm ≈3⁄8 in)
Roof-mount antenna
(Drill a hole or use a magnetic mount.)
Gutter-mount antenna
Trunk-mount
antenna
IC-2710H.qxd 02.2.8 16:55 Page 14 (1,1)

SETTING A FREQUENCY
3
15
■Preparation
DTurning power ON
Push [POWER] for 1 sec. to turn power ON.
DMain band
The IC-2710H can receive 144 MHz and 430(440) MHz band
signals simultaneously. Function access or frequency
changes affect the main band only. In addition, signals can
be transmitted on the main band only. Set the desired band
as the main band.
Push the desired band’s tuning dial to select the main band.
•“Q”indicates the main band.
Push [BAND] to toggle the main band selection
between the 144 and 430(440) MHz bands.
DVFO and memory modes
The transeiver has 2 normal operating modes: VFO mode
and memory mode. You can select VFO mode or memory
mode independently on each band.
Push the desired band’s [V/MHz] to select VFO mode when
the transceiver is not in VFO mode.
•If VFO mode is already selected, the digits below 100 kHz disap-
pear. In this case, push [V/MHz] again (or push twice depending on
version).
Push [VFO] to select VFO mode.
•The microphone controls the main band only (or using
sub band access; p. 22). Push [BAND] to toggle the
main band, then push [VFO], if necessary.
Push [POWER] for 1 sec.
BAND
Indicates memory modeVFO mode is selected
VFO
IC-2710H.qxd 02.2.8 16:55 Page 15 (1,1)
