Icom IC-706 User manual

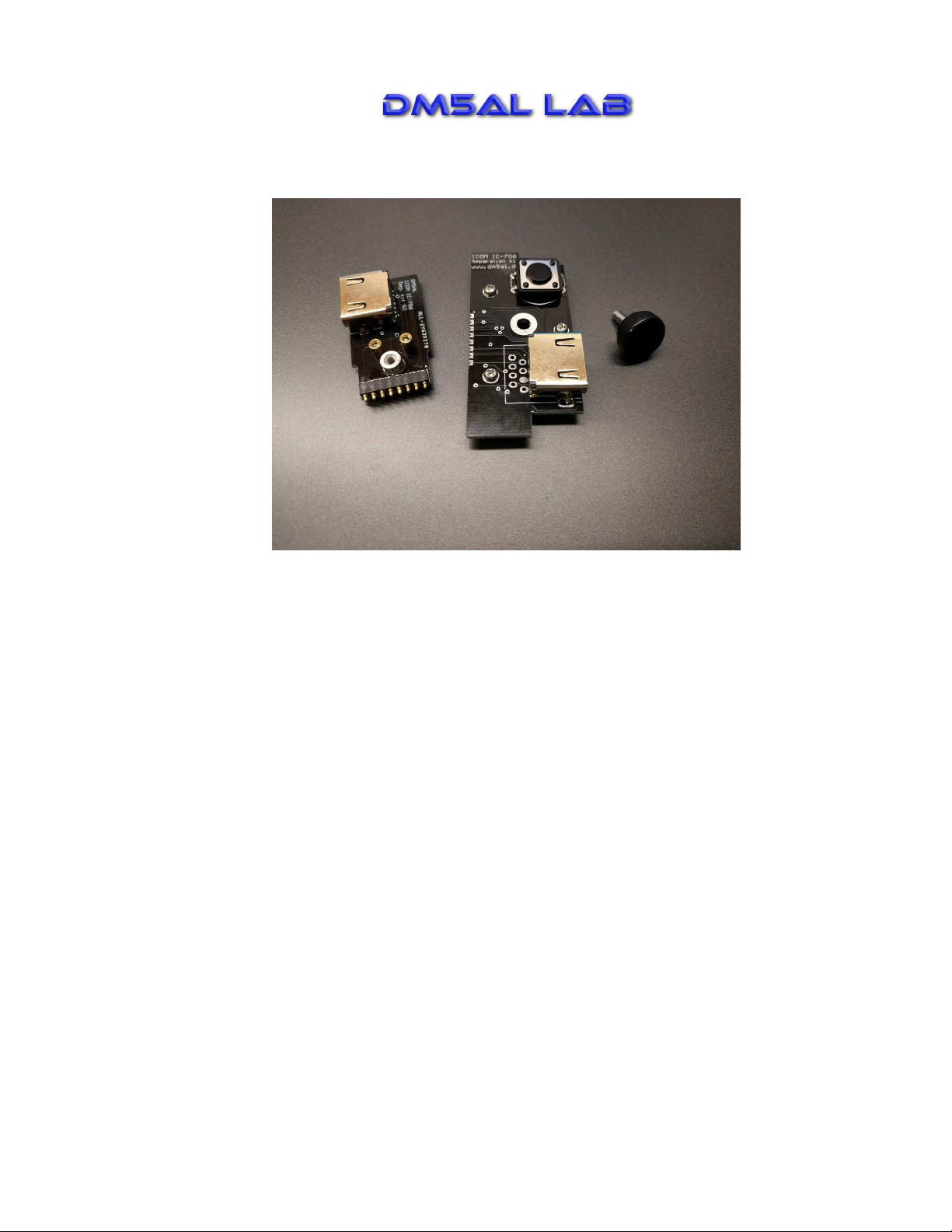

ICOM IC-706-HDMI Separation kit
Before you begin, please read this manual carefully!
1. OVERVIEW
This separation kits works with following transceivers:
- IC M IC-703
- IC M IC-703 Plus
- IC-706
- IC-706MkII
- IC-706MkIIG
Features:
- HDMI cable connectors;
- Additional Power button on a base unit adapter.
The separation kit uses a normal HDMI cable (not included) for connection between display and
base units. Quality of this cable affects overall transmit quality: with some cheap HDMI cables
weak digital noise may exist during transmission.
2. INSTA ATION
Attention: remove power before you install the separation kit!
Picture below show how to install the separation kit correctly:

1. Position base unit adapter as it shown on a picture below. Pogo pins must be positioned
strictly to half holes on the edge of the base unit adapter!
2. Push the base unit adapter and fix it with a thumb screw:
3.

4. Check that pogo pins points exactly to the edge connector of the base unit adapter:
5. Insert a head unit adapter until it is fixed with original locker:

6. Insert HDMI cable and power the device on.
3. HDMI CONNECTOR PINOUT
4. SUPPORT
Web: www.dm5al.de
email: su[email protected]
Whatsapp: [phone]
