Icom IC-M220 User manual

SERVICE
MANUAL
S-15506XZ-C1
October 2018
VHF MARINE TRANSCEIVERS
|M220
|M220G

INTRODUCTION
This service manual describes the latest technical
information for the IC-M220/IC-M220G VHF MARINE
TRANSCEIVERS at the time of publication.
MODEL VERSION VERSION
NUMBER GPS
IC-M220 USA #11 –
EXP #13
IC-M220G USA #21 ✔
To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.
SERVICE CAUTION
NEVER connect the transceiver to a DC power supply
that uses more than the specified voltage. This will
ruin the transceiver.
DO NOT reverse the polarities of the power supply
when directly applying power to the transceiver/circuit.
DO NOT apply an RF signal of more than 20 dBm
(100 mW) to the antenna connector. This could
damage the transceiver’s front-end.
ORDERING PARTS
Be sure to include the following four points when
ordering replacement parts:
1. 10-digit Icom part number
2. Component name
3. Equipment model name and unit name
4. Quantity required
<ORDER EXAMPLE>
1110010000 AT1846S IC-M220 MAIN UNIT 5 pieces
8930100330 4048 IC CLIP IC-M220 CHASSIS 1 piece
Addresses are provided on the inside back cover for
your convenience.
REPAIR NOTES
1. Make sure that the problem is internal before
disassembling the transceiver.
2. DO NOT open the transceiver until the transceiver
is disconnected from its power source.
3. DO NOT short any circuits or electronic parts.
4. DO NOT keep power ON for a long time when the
transceiver is defective.
5. NEVER directly transmit power into any test
equipment such as Standard Signal Generator or
a Sweep Generator, otherwise the RF power may
damage them.
6. ALWAYS connect a 40 dB attenuator between the
transceiver and such test equipment.
7. READ the instructions of the test equipment
thoroughly before connecting it to the transceiver.
8. If the front panel and chassis are separated and
reassembled, waterproof performance will not be
guaranteed unless the specified waterproof check
is performed.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the
United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries.
IC-M220/IC-M220G

TABLE OF CONTENTS
SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEWS
SECTION 3 DISASSEMBLY INSTRUCTIONS
SECTION 4 ADJUSTMENT PROCEDURE
4 -1 PREPA R ATI ON ……………………………………………………………………………………… 4-1
4-2 FREQUENCY ADJUSTMENTS …………………………………………………………………… 4-3
4-3 RECEIVE ADJUSTMENTS ………………………………………………………………………… 4-3
4-4 TRANSMIT ADJUSTMENTS ……………………………………………………………………… 4-5
SECTION 5 PARTS LIST
SECTION 6 MECANICAL PARTS
SECTION 7 BOARD LAYOUTS
SECTION 8 BLOCK DIAGRAM
SECTION 9 VOLTAGE DIAGRAM
DISTRIBUTORS ADDRESS

SECTION 1 SPECIFICATIONS
1-1
MGeneral
• Frequency coverage: TX 156.025 ~ 157.425 MHz
RX 156.050 ~ 163.275 MHz
DSC receiver 156.525 MHz
• Type of emission: 16K0G3E, 16K0G2B
• Antenna impedance: 50 Ω (nominal)
• Operating temperature range: −20ºC ~ +60ºC (−4ºF ~ +140ºF)
• Power supply voltage: 13.8 V DC nominal (11.7~15.9 V DC) negative ground
• Current drain: Receiving Maximum 1.2 A (at maximum audio)
Transmitting Maximum 5.0 A (at 25 W)
• Dimensions : 156.5 (W)×66.5 (H)×110.1 (D) mm (6.2 (W)×2.6 (H)×4.3 (D) inches)
• Weight (approximate):700 g (1 Ib 9 oz); including HM-237B
MTranssitter
• Output power: 25 W (High power)
1 W (Low power)
• Modulation: Analog Frequency modulation
DSC Frequency shift keying modulation
• Maximum frequency deviation: ±5 kHz
• Frequency tolerance: ±5 ppm
• Spurious emissions: Less than −60 dBc
• Adjacent channel power: More than 65 dB
• Audio harmonic distortion: Less than 10% (at 60% deviation)
• Residual modulation: More than 40 dB
• Audio frequency response :
+1 ~ −3 dB of 6 dB octave from 500 ~ 2500 Hz
• Input impedance (Microphone) :2 kΩ
MReceiver
• Sensitivity: Transceiver −13 dBμ typical (at 12 dB SINAD)
DSC receiver −5 dBμ emf typical (at 1% BER)
• Squelch sensitivity: Less than −10 dBμ
• Adjacent channel selectivity: Transceiver More than 68 dB
DSC receiver More than 68 dBμ emf (at 1% BER)
• Intermodulation: Transceiver More than 63 dB
DSC receiver More than 55 dBμ emf (at 1% BER)
• Hum and Noise: More than 40 dB
• Audio frequency response :
+1 ~ −3 dB of −6 dB octave from 500 ~ 2500 Hz
• Audio output power: 4.5 W typical (at 10% distortion into the 4 Ω load)
• Output impedance (Speaker):4 Ω
MGPS receiver (for only IC-M220G)
• Receive frequency: 1575.42 MHz
• Number of receive channels: For acquisition Maximum 24 channels
For calculation Maximum 12 channels
• Differential satellite: WAAS, EGNOS, MSAS, GAGAN
• GLONASS receive frequency: 1602 MHz
Measurements made in accordance with TIA-603/EIA-603B (transceiver) and IEC 62238 (DSC receiver, GPS receiver).
All stated specications are typical and subject to change without notice or obligation.

SECTION 2 INSIDE VIEWS
2-1
• MAIN UNIT (TOP VIEW)
• MAIN UNIT (BOTTOM VIEW)
J1
MAIN UNIT
AF AMPLIFIER
(IC701)
PRE DRIVER
(Q13)
Inside the shielded case.
+5 V REGULATOR
(IC512)
+3 V REGULATOR
(IC511)
POWER AMPLIFIER
(Q14)
Inside the shielded case.
YGR AMPLIFIER
(Q12)
MICROPHONE AMPLIFIER
(IC505)
26.0 MHz
REFERENCE OSCILLATOR
(X2)
ELECTRIC VOLUME
(IC506)
NMEA BUFFER
(IC551)
PHOTO COUPLER
(IC552)
POWER CONTROL
(Q511)
DIRECT CONVERSION IC
(IC301)
DIRECT CONVERSION IC
(IC201)
Inside the shielded case.
RF AMPLIFIER
(Q101)
PER AMPLIFIER
(IC702)
J2
AF MUTE
(IC703)
APC CONTROL
(IC2)
BANDPASS FILTER
(D16)
POWER CONTROL
(Q17)
BIAS CONTROL
(Q19)

2-2

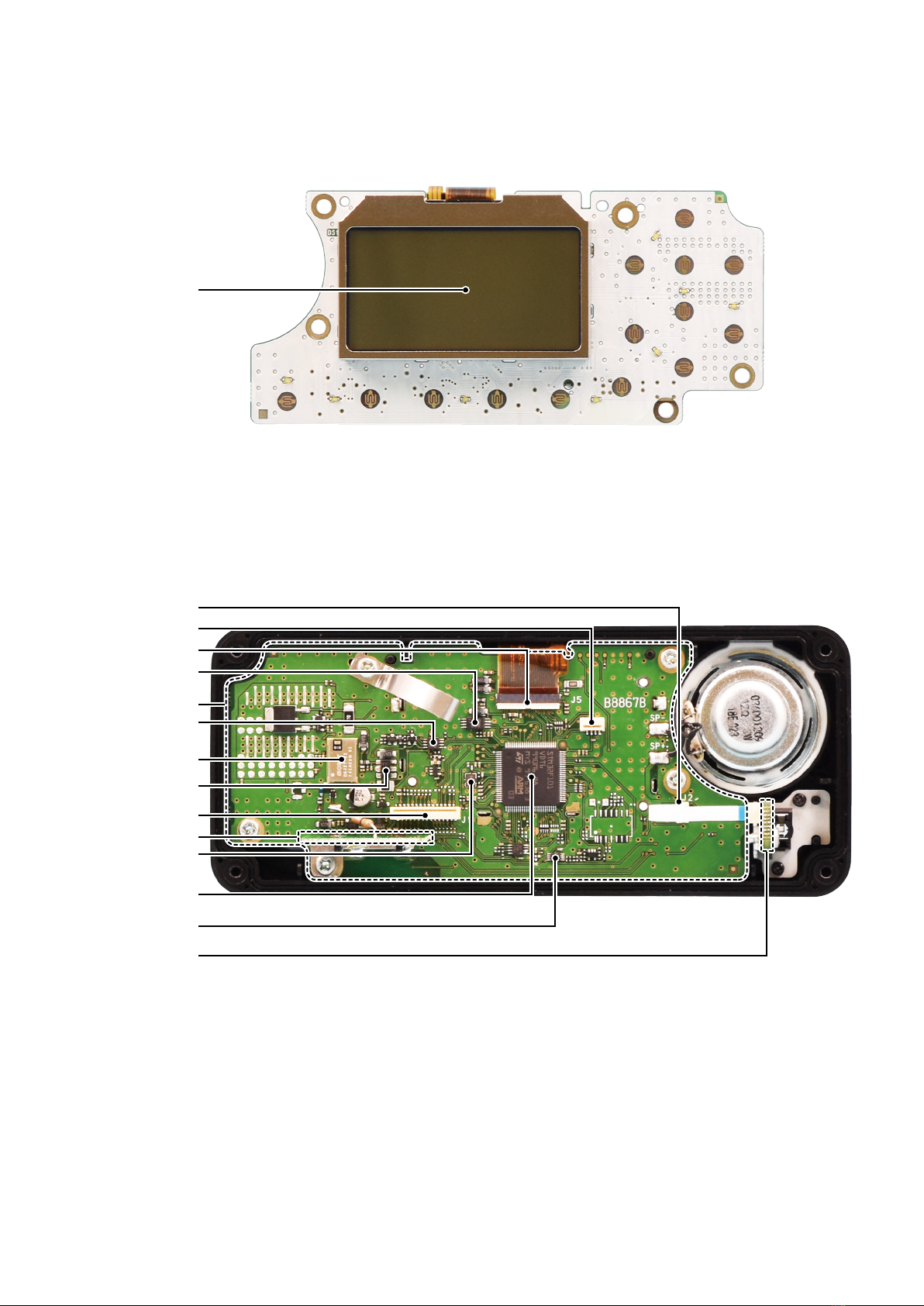

• LOGIC UNIT (TOP VIEW)
• LOGIC UNIT (BOTTOM VIEW)
3.3 V REGULATOR
(IC4)
7.9872 MHz
SYSTEM CLOCK
(X1)
LCD
(DS1)
EEPROM
(IC9)
NMEA BUFFER
(IC5)
J5
J4
J2
J1
CPU
(IC1)
DSC SWITCH
(IC3)
GPS RECEIVER IC*
(IC201)
GPS- ANT BOARD*
MIC-JACK BOARD
* Available only with the IC-M220G.
LOGIC UNIT

SECTION 3 DISASSEMBLY INSTRUCTIONS
3-1
1. REMOVING THE FRONT PANEL
1) Remove the 4 screws from the case.
2. REMOVING THE LOGIC UNIT
1) Unsolder the 2 points of the speaker cables, and
disconnect the flat cable from the LOGIC UNIT.
2) Separate the front panel from the case.
BE CAREFUL about the flat cable when separating the
front panel from the case.
3) Disconnect the flat cable from the LOGIC UNIT.
J1
Screws ×4
Front panel
Front panel
LOGIC UNIT
Flat cable
Case
Case
UNSOLDER
Solder
remover
J2
Front panel
Speaker cables
Flat cable
LOGIC UNIT
Front panel
LOGIC UNIT
Screws ×5
Earth spring
Case
J1
Screws ×4
Front panel
Front panel
LOGIC UNIT
Flat cable
Case
Case
UNSOLDER
Solder
remover
J2
Front panel
Speaker cables
Flat cable
LOGIC UNIT
Front panel
LOGIC UNIT
Screws ×5
Earth spring
Case
J1
Screws ×4
Front panel
Front panel
LOGIC UNIT
Flat cable
Case
Case
UNSOLDER
Solder
remover
J2
Front panel
Speaker cables
Flat cable
LOGIC UNIT
Front panel
LOGIC UNIT
Screws ×5
Earth spring
Case
J1
Screws ×4
Front panel
Front panel
LOGIC UNIT
Flat cable
Case
Case
UNSOLDER
Solder
remover
J2
Front panel
Speaker cables
Flat cable
LOGIC UNIT
Front panel
LOGIC UNIT
Screws ×5
Earth spring
Case
J1
Screws ×4
Front panel
Front panel
LOGIC UNIT
Flat cable
Case
Case
UNSOLDER
Solder
remover
J2
Front panel
Speaker cables
Flat cable
LOGIC UNIT
Front panel
LOGIC UNIT
Screws ×5
Earth spring
Case
2) Remove the 5 screws, and then remove the LOGIC
UNIT and the earth spring from the front panel.

3-2
4) Unsolder the 2 points of the antenna connector, and
remove the IC clip from the MAIN UNIT.
3. REMOVING THE MAIN UNIT
1) Remove the 4 screws from the case.
J2
DC power cables
Chassis
UNSOLDER
Solder
remover
MAIN UNIT
MAIN UNIT
MAIN UNIT
Antenna conector
Jumper wire
Chassis
IC clip
Data cable
Chassis
Screws ×6
UNSOLDER
Solder
remover
Screws ×4
Case
Case
Chassis
J2
DC power cables
Chassis
UNSOLDER
Solder
remover
MAIN UNIT
MAIN UNIT
MAIN UNIT
Antenna conector
Jumper wire
Chassis
IC clip
Data cable
Chassis
Screws ×6
UNSOLDER
Solder
remover
Screws ×4
Case
Case
Chassis
J2
DC power cables
Chassis
UNSOLDER
Solder
remover
MAIN UNIT
MAIN UNIT
MAIN UNIT
Antenna conector
Jumper wire
Chassis
IC clip
Data cable
Chassis
Screws ×6
UNSOLDER
Solder
remover
Screws ×4
Case
Case
Chassis
5) Remove the 6 screws, and then remove the MAIN UNIT
from the chassis.
3) Unsolder the 2 points of the DC power cables, and
disconnect the data cable from the MAIN UNIT.
2) Separate the chassis from the case.
J2
DC power cables
Chassis
UNSOLDER
Solder
remover
MAIN UNIT
MAIN UNIT
MAIN UNIT
Antenna conector
Jumper wire
Chassis
IC clip
Data cable
Chassis
Screws ×6
UNSOLDER
Solder
remover
Screws ×4
Case
Case
Chassis
J2
DC power cables
Chassis
UNSOLDER
Solder
remover
MAIN UNIT
MAIN UNIT
MAIN UNIT
Antenna conector
Jumper wire
Chassis
IC clip
Data cable
Chassis
Screws ×6
UNSOLDER
Solder
remover
Screws ×4
Case
Case
Chassis

SECTION 4 ADJUSTMENT PROCEDURE
4-1
4-1 PREPAR ATION
■REQUIRED EQUIPMENT
EQUIPMENT GRADE AND RANGE EQUIPMENT GRADE AND RANGE
Programming
software
CS-M220 PROGRAMMING
SOFTWARE (Revision 1.00 or later) JIG cable Modied OPC-2132 (See the illustration shown on page 4-2.)
Programming
cable OPC-478UC Standard signal
generator (SSG)
★
With the pseudo
random code sending
function or the pulse
duty setting function.
Frequency range: 0.1~300 MHz
Output level: –20 dBµ to 90 dBµ
(–127 to –17 dBm)
RF power meter
(50 Ω terminated)
Measuring range: 0.1 ~ 30 W
Frequency range: 100 ~ 300 MHz
SWR: Less than 1.2 : 1
AC millivoltmeter Measuring range: 10 mV to 10 V
Modulation
analyzer
Frequency range: 30 ~ 300 MHz
Measuring range: 0 to ±10 kHz Frequency counter Frequency range: 0.1 ~ 300 MHz Frequency accuracy: ±1 ppm or better
Oscilloscope Frequency range: DC ~ 20 MHz
Measuring range: 0.01 ~ 20 V Attenuator Power attenuation: 40 dB Capacity: More than 30 W
Audio generator
(AG)
Frequency range: 300 ~ 3000 Hz
Output level: 1 ~ 500 mV External speaker Input impedance: 4 Ω Capacity: More than 10 W
Spectrum analyzer Measuring range: Up to 3 GHz Distortion meter Measuring accuracy: 3% or less at 1 kHz
Input level: 50 mV to 20 V
Bit error meter Input level: 0.1 ~ 2.0 Vp-p
■CONNECTION
CLOCK
CLOCK
BIT ERROR METER
(0.1 ~ 2.0 Vp-p)
+−
DATA
Blue: SP+
White: NMEAO+
Brown: NMEAO−
Black: SP−
DISTORTION METER
(3% or less at 1 kHz/50 mV ~ 10 V)
Transceiver
Transceiver
DC power supply
13.8 V/10 A
–
+
CAUTION!
NEVER transmit while the SSG is
connected to the antenna connector. Loose couple
JIG cable
Modulation analyzer
30 ~ 300 MHz/0 to ±10 kHz
Spectrum analyzer
Up to 3 GHz
Attenuator
40 dB
RF power meter
0.1 ~ 30 W/50 Ω
Frequency
counter
Standard signal generator
–20 to 90 dBµ
(–127 to –17 dBm)
OPC- 478UC
PC
to USB port
AF out leadsNMEA out leads
+−
EXTERNAL SPEAKER
(10 W/4 Ω)
+
−

4-2
■JIG CABLE
■ADJUST UTILITY
TX OUTPUT POWER
DEVIATION (DSC)
MODULATION
SENSITIVITY
SQUELCH
+−
AC MILLIVOLTMETER
(10 mV to 10 V)
+−
AUDIO GENERATOR
(300~3000 Hz/1~500 mV)
3-conductor 3.5 (d) mm jack
(MIC)
(PTT)
(CLONE)
(GMD)
OPC-2132
PTT
Cut the cable and make the proper connections,
according to the diagram.
Brown
White
Red
Blue

4-3
ADJUSTMENT TRANSCEIVER’S
CONDITION OPER ATION ADJUSTMENT ITEM VALUE
REFERENCE
FREQUENCY
-Verication-
1 • Operating channel: 16
• Transmitting
• Connect the RF power meter
(or dummy load) to the antenna
connector.
• Loosely coupled the frequency
counter to the antenna connector.
• No audio signal is applied to the
FRONT MIC JACK.
–156.800 MHz
(±500 Hz)
4-3 RECEIVE ADJUSTMENTS
1) Select an adjustment item by pushing [↑]/[↓] on the PC keyboard.
2) Set or modify the adjustment value as specied by pushing [←]/[→], and then push [Enter] to store the value.
ADJUSTMENT TRANSCEIVER’S
CONDITION OPER ATION ADJUSTMENT ITEM VALUE
RECEIVE
SENSITIVITY
-Verication-
1 • Operating channel: 16
• Receiving
• Connect an standard signal generator
(SSG) to the antenna connector and
set it to:
Frequency: 156.800 MHz
Modulation: 1 kHz
Deviation: ±3.0 kHz
Level: –10 dBμ (–117 dBm)
• Connect the distortion meter to SP+
(blue) and SP− (black) lines of the AF
out leads.
– 12 dB SINAD
or better
(Band low) 2 • Operating channel: 01
• Receiving
• Set the SSG to:
Frequency: 156.050 MHz
(Band high) 3 • Operating channel: 88
• Receiving
• Set the SSG to:
Frequency: 157.425 MHz
SQUELCH
-Adjustment-
(Threshold)
1 • Operating channel: 16
• Receiving
• Set the SSG to:
Level: –13.5 dBµ (–120.5 dBm)
[RSSI
(Threshold)]
Push [Enter]
(Automatic
adjustment)
(Tight) 2 • Set the SSG to:
Level: –3.5 dBµ (–110.5 dBm)
[RSSI (Tight)]
-Verication- 3 • Operating channel: 16
• SQL: 10
• Receiving
•Set the SSG to:
Level: 0 dBµ (–107 dBm)
– Squelch
open
AUDIO OUTPUT
-Verication-
(Distortion)
1 • Operating channel: 16
• Audio output level: 19
• Receiving
•Set the SSG to:
Level: 60 dBµ (–47 dBm)
– 7 ~ 13%
distortion
(Output level) 2 More than
3.5 W (3.74 V)
RX SIGNAL-TO-
NOISE RATIO
-Verication-
1 • Operating channel: 16
• Receiving
•Set the SSG to:
Level: 40 dBµ (–67 dBm)
•Adjust the AF output to 50% of rated.
• Verify the AF output level di󰀨erence
when a modulated and an
unmodulated signal is received.
– More than
40 dB
RX POWER
CONSUMPTION
-Verication-
1 • Operating channel: 16
• Maximum AF volume
• Maximum LCD brightness
• Receiving
•Set the SSG to:
Level: 60 dBµ (–47 dBm)
• Connect the ammeter between the
DC power connector and the DC
power supply.
– Less than
1.2 A
WX Alert
-Verication-
1 • Operating channel: WX10
• Receiving
•Set the SSG to:
Frequency: 163.275 MHz
Modulation: 1.05 kHz
Deviation: ±3.0 kHz
Level: 0 dBµ (–107 dBm)
– WX Alert
sounds
4-2 FREQUENCY ADJUSTMENTS
1) Select an adjustment item using [↑]/[↓]/[←]/[→] on the PC’s keyboard.
2) Set or modify the adjustment value as specied using [Space]/[Back Space] on the PC’s keyboard.

4-4
ADJUSTMENT TRANSCEIVER’S
CONDITION OPER ATION ADJUSTMENT ITEM VALUE
BIT ERROR
RATIO
-Verication-
1 • Operating channel: 70
• Switch to [Inspection Mode]
and move the cursor to
[DSC Sensitivity].
• Receiving
• Connect an standard signal generator
(SSG) to the antenna connector and set it
to:
Frequency: 156.525 MHz
AFSK:
Modulation/Deviation
1.3 kHz/±2.6 kHz
2.1 k Hz / ±4.2 kHz
Signal †50% Duty or PN9
Modulation rate 1200 bps
Level: 0 dBµ (–107 dBm) emf
• Connect “DATA” terminal of the bit error
meter to NMEAO+ (white) and NMEAO−
(brown) lines of the NMEA out leads, and
“CLOCK” terminal of the SSG to “CLOCK”
terminal of the bit error meter.
– Less than
1%
† Selected by the SSG installed function.
4-3 RECEIVE ADJUSTMENTS (CONTINUED)
1) Select an adjustment item by pushing [↑]/[↓] on the PC keyboard.
2) Set or modify the adjustment value as specied by pushing [←]/[→], and then push [Enter] to store the value.

4-5
4-4 TRANSMIT ADJUSTMENTS
1) Select an adjustment item by pushing [↑]/[↓] on the PC keyboard.
2) Set or modify the adjustment value as specied by pushing [←]/[→], and then push [Enter] to store the value.
ADJUSTMENT TRANSCEIVER’S
CONDITION OPER ATION ADJUSTMENT ITEM VALUE
TX OUTPUT
POWER
-Adjustment-
(High power)
1 • Operating channel: 16
• Output power level: High
• Transmitting
• Connect the RF power meter to
the antenna connector.
[RF POWER
(High)]
23.5~24.2 W
(Low power) 2 • Operating channel: 16
• Output power level: Low
• Transmitting
[RF POWER
(Low)]
0.75 W
-Verication-
(High power,
Band low)
3 • Operating channel: 01
• Output power level: High
• Transmitting
–20~25 W
(High power,
Band high)
4 • Operating channel: 88
• Output power level: High
• Transmitting
(Low power,
Band low)
5 • Operating channel: 01
• Output power level: Low
• Transmitting
0.5~1.0 W
(Low power,
Band high)
6 • Operating channel: 88
• Output power level: Low
• Transmitting
TX POWER
CONSUMPTION
-Verication-
(High power)
1 • Operating channel: 16
• Output power level: High
• Maximum LCD brightness
• Transmitting
• Connect the ammeter between
the power cable of the transceiver
and the DC power supply
– Less than
4.5 A
(Low power) 2 • Operating channel: 16
• Output power level: Low
• Maximum LCD brightness
• Transmitting
Less than
1.2 A
(High power,
Band low)
3 • Operating channel: 01
• Output power level: High
• Maximum LCD brightness
• Transmitting
Less than
4.5 A
(High power,
Band high)
4 • Operating channel: 88
• Output power level: High
• Maximum LCD brightness
• Transmitting
(Low power,
Band Low)
5 • Operating channel: 01
• Output power level: Low
• Maximum LCD brightness
• Transmitting
Less than
1.2 A
(Low power,
Band high)
6 • Operating channel: 88
• Output power level: Low
• Maximum LCD brightness
• Transmitting
SPURIOUS
EMISSION
-Verication-
(High power)
1 • Operating channel: 16
• Output power level: High
• Without modulation
• Transmitting
• Connect the Spectrum analyzer to
the antenna connector through the
attenuator.
– Less than
–60 dBc
(Low power) 2 • Operating channel: 16
• Output power level: Low
• Without modulation
• Transmitting

4-6
4-4 TRANSMIT ADJUSTMENTS (CONTINUED)
1) Select an adjustment item by pushing [↑]/[↓] on the PC keyboard.
2) Set or modify the adjustment value as specied by pushing [←]/[→], and then push [Enter] to store the value.
ADJUSTMENT TRANSCEIVER’S
CONDITION OPER ATION ADJUSTMENT ITEM VALUE
DEVIATION
-Verication-
(Transceiver)
1 • Operating channel: 16
• Transmitting
• Connect the modulation analyzer to
the antenna connector through the
attenuator and set it to:
HPF: OFF
LPF: 20 kHz
De-emphasis: OFF
Detector: (P–P)/2
• Connect the audio generator and the
AC millivoltmeter to the FRONT MIC
JACK through the JIG cable, and set
it to:
Frequency: 1 kHz
Wave form: Sine wave
Level: 280 mV rms
–±3.9~±4.3 kHz
(DSC) 2 • Operating channel: 70
• Transmitting
–[DSC (1300Hz)] ±2.6 kHz ±10%
3[DSC (2100Hz)] ±4.2 kHz ±10%
MODULATION
SENSITIVITY
-Verication-
1 • Operating channel: 16
• Transmitting
•Set the audio generator to:
Level: 28 mV rms
[MSENS (INT)] ±2.7~±3.3 kHz
TX SIGNAL-TO-
NOISE RATIO
-Verication-
1 • Operating channel: 16
• Transmitting
• Connect the modulation analyzer to
the antenna connector through the
attenuator and set it to:
HPF: OFF
LPF: 20 kHz
De-emphasis: OFF
Detector: (P‒P)/2
•Connect the AC millivoltmeter to the
modulation analyzer.
• Connect the audio generator and the
AC millivoltmeter to the FRONT MIC
JACK, and set it to:
Frequency: 1 kHz
Wave form: Sine wave
•Adjust the audio generator output level
so that the deviation on the modulation
analyzer becomes ±3.0 kHz.
•The audio output level of the
modulation analyzer at this time is the
reference level (0 dB).
• Turn o󰀨 the output of the audio
generator and verify the di󰀨erence
between the audio output level of the
modulation analyzer at that time and
the reference level.
– More than
40 dB

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
REF
NO.
PART
NO. DESCRIPTION M. H/V
LOCATION
REF
NO.
PART
NO. DESCRIPTION M. H/V
LOCATION
5-1
R81 7030016110 S.RES RMC1/16S-473JTH (47 k) B 75.8/31.9
R82 7030016300 S.RES RMC1/16S-332JTH (3.3 k) B 73.7/28.3
R83 7030016330 S.RES RMC1/16S-153JTH (15 k) B 72.6/33.1
R84 7030016020 S.RES RMC1/16S-104JTH (100 k) B 72.6/34.0
R85 7030016390 S.RES RMC1/16S-184JTH (180 k) B 72.2/31.7
R86 7030015970 S.RES RMC1/16S-103JTH (10 k) B 76.7/31.9
R91 7030016000 S.RES RMC1/16S-823JTH (82 k) T 101.4/53.7
R99 7030016430 S.RES RMC1/16S-392JTH (3.9 k) B 88.5/35.7
R100 7030015910 S.RES RMC1/16S-101JTH (100) B 86.4/35.2
R101 7030016150 S.RES RMC1/16S-100JTH (10) B 95.5/35.6
R102 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 95.5/37.8
R103 7030016480 S.RES RMC1/16S-821JTH (820) B 97.8/39.8
R104 7030016170 S.RES RMC1/16S-560JTH (56) B 104.7/37.3
R105 7030016470 S.RES RMC1/16S-390JTH (39) B 99.1/40.2
R106 7030015900 S.RES RMC1/16S-470JTH (47) B 95.8/32.7
R107 7030016210 S.RES RMC1/16S-121JTH (120) B 96.3/33.9
R108 7030016210 S.RES RMC1/16S-121JTH (120) B 95.3/33.9
R109 7030016560 S.RES RMC1/16SJPTH B 96.0/43.4
R110 7030016560 S.RES RMC1/16SJPTH B 96.9/41.6
R111 7030015900 S.RES RMC1/16S-470JTH (47) B 95.9/30.5
R112 7030015900 S.RES RMC1/16S-470JTH (47) B 97.6/30.5
R211 7030015930 S.RES RMC1/16S-471JTH (470) B 88.5/29.1
R212 7030016150 S.RES RMC1/16S-100JTH (10) B 87.2/28.7
R213 7030015930 S.RES RMC1/16S-471JTH (470) B 87.6/27.3
R214 7030015910 S.RES RMC1/16S-101JTH (100) B 82.6/25.9
R220 7410001570 S.ARR MNR02M0APJ101 (100) T 79.3/25.1
R221 7410001570 S.ARR MNR02M0APJ101 (100) T 79.3/20.4
R223 7410001570 S.ARR MNR02M0APJ101 (100) T 81.7/17.4
R224 7030016050 S.RES RMC1/16S-102JTH (1 k) T 85.8/18.1
R231 7030016150 S.RES RMC1/16S-100JTH (10) T 55.8/19.0
R232 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 55.8/19.9
R233 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 55.8/18.1
R239 7030016560 S.RES RMC1/16SJPTH T 63.2/16.7
R240 7030016560 S.RES RMC1/16SJPTH T 64.7/18.0
R241 7030015970 S.RES RMC1/16S-103JTH (10 k) T 62.8/19.7
R242 7030015910 S.RES RMC1/16S-101JTH (100) T 63.7/19.7
R322 7030015910 S.RES RMC1/16S-101JTH (100) T 96.3/30.3
R323 7410001570 S.ARR MNR02M0APJ101 (100) T 99.8/22.9
R324 7030016050 S.RES RMC1/16S-102JTH (1 k) T 104.0/23.8
R326 7030016410 S.RES RMC1/16S-561JTH (560) T 105.7/21.6
R331 7030016410 S.RES RMC1/16S-561JTH (560) T 87.3/15.9
R333 7030016060 S.RES RMC1/16S-105JTH (1 M) T 88.1/9.5
R334 7030015910 S.RES RMC1/16S-101JTH (100) T 86.4/6.9
R341 7510001661 S.THR NTCG16 4LH 473JT T 74.0/17.6
R342 7030019760 S.RES RMC1/16K223FTP (22 k) T 72.9/14.8
R343 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 80.0/15.8
R344 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 80.0/14.9
R501 7030015980 S.RES RMC1/16S-333JTH (33 k) T 65.6/19.7
R502 7030016090 S.RES RMC1/16S-223JTH (22 k) T 65.6/21.4
R503 7030016090 S.RES RMC1/16S-223JTH (22 k) T 68.5/24.2
R504 7030015970 S.RES RMC1/16S-103JTH (10 k) T 65.9/18.4
R511 7030016440 S.RES RMC1/16S-272JTH (2.7K) B 26.8/12.2
R512 7030016060 S.RES RMC1/16S-105JTH (1 M) T 73.0/24.2
R513 7030016060 S.RES RMC1/16S-105JTH (1 M) T 73.4/25.5
R515 7030016020 S.RES RMC1/16S-104JTH (100 k) T 74.0/20.2
R523 7030016060 S.RES RMC1/16S-105JTH (1 M) T 70.3/24.2
R524 7030016060 S.RES RMC1/16S-105JTH (1 M) T 69.4/24.2
R527 7030015980 S.RES RMC1/16S-333JTH (33 k) T 71.7/25.5
R528 7030016050 S.RES RMC1/16S-102JTH (1 k) T 71.7/26.4
R551 7030016150 S.RES RMC1/16S-100JTH (10) B 21.2/23.7
R552 7030016150 S.RES RMC1/16S-100JTH (10) B 20.3/23.7
R553 7030016110 S.RES RMC1/16S-473JTH (47 k) T 10.3/11.2
R554 7030016640 S.RES RMC1/16S-1R0JTH (1) T 13.4/4.3
R555 7030016020 S.RES RMC1/16S-104JTH (100 k) T 13.4/6.0
R561 7030019410 S.RES RMC1/8-471JTP (470) B 20.4/17.6
R562 7030016420 S.RES RMC1/16S-182JTH (1.8 k) T 17.3/2.6
R563 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 14.6/2.6
R601 7030016560 S.RES RMC1/16SJPTH T 23.2/25.5
R602 7030016110 S.RES RMC1/16S-473JTH (47 k) T 26.5/17.1
R603 7030016110 S.RES RMC1/16S-473JTH (47 k) T 26.9/18.4
R611 7030016330 S.RES RMC1/16S-153JTH (15 k) T 29.7/23.8
R613 7030016330 S.RES RMC1/16S-153JTH (15 k) T 31.4/23.8
R731 7030016240 S.RES RMC1/16S-684JTH (680K) B 7.5/23.7
R732 7030016090 S.RES RMC1/16S-223JTH (22 k) B 8.0/25.9
R733 7030015980 S.RES RMC1/16S-333JTH (33 k) B 8.4/23.7
R735 7030016090 S.RES RMC1/16S-223JTH (22 k) B 14.5/25.0
R736 7030016090 S.RES RMC1/16S-223JTH (22 k) B 11.4/25.9
R737 7030016340 S.RES RMC1/16S-393JTH (39K) B 13.1/25.9
R738 7030015970 S.RES RMC1/16S-103JTH (10 k) B 11.8/29.5
R740 7030016040 S.RES RMC1/16S-224JTH (220 k) B 14.5/26.9
R744 7030016070 S.RES RMC1/16S-474JTH (470 k) B 10.1/27.4
R745 7030016560 S.RES RMC1/16SJPTH B 14.5/30.6
R746 7030016090 S.RES RMC1/16S-223JTH (22 k) B 15.4/30.6
R750 7030016470 S.RES RMC1/16S-390JTH (39) T 6.8/37.1
R751 7030015920 S.RES RMC1/16S-221JTH (220) T 10.0/35.6
R752 7030017480 S.RES RMC1/16-2R2JTP (2.2) T 18.8/34.0
R753 7030016640 S.RES RMC1/16S-1R0JTH (1) B 21.3/43.2
R801 7030016640 S.RES RMC1/16S-1R0JTH (1) T 24.9/2.1
C11 4030023090 S.CER 0402B102K500CT T 53.7/18.1
C12 4030023090 S.CER 0402B102K500CT T 52.9/23.0
C13 4550007260 S.TAN F931C475MAABMA T 50.1/20.5
C21 4030022540 S.CER 0402N3R0B500CT T 43.1/31.4
C24 4030022570 S.CER 0402N6R0C500CT T 40.8/32.7
C25 4030023090 S.CER 0402B102K500CT T 36.0/35.0
C27 4030022740 S.CER 0402N220J500CT T 34.2/33.3
C28 4030022630 S.CER 0402N100C500CT T 31.6/33.2
IC2 1110008890 S.IC NJU7056F3-TE2-#ZZZH B 74.0/31.2
IC201 1110010000 S.IC AT1846S T 84.5/22.5
IC301 1110010000 S.IC AT1846S T 102.0/28.0
IC302 1130019580 S.IC TC7SU04FULF T 86.3/9.3
IC504 1130015760 S.IC TC74VHC4066AFK (EK) T 71.0/19.5
IC505 1110008890 S.IC NJU7056F3-TE2-#ZZZH T 67.4/20.4
IC506 1110010010 S.IC U2429G-S08-R T 59.5/19.4
IC511 1180003980 S.REG XC6221A332MR-G T 25.9/24.5
IC512 1180002781 REG KIA7805API-U/PF
IC551 1120003230 S.IC UTRS485G-S08-R T 10.1/6.4
IC552 1170000352 S.IC PC357N6J000F T 16.0/8.1
IC701 1110009990 IC TDA2003L-TB5-T
IC702 1110008890 S.IC NJU7056F3-TE2-#ZZZH B 12.1/24.1
IC703 1130007021 S.IC TC7S66FU (TE85LF) B 12.1/27.7
Q10 1510001090 S.TRA KTA2015Y-RTK/P T 52.4/21.0
Q11 1590004070 S.TRA LDTC144EET1G T 51.8/17.3
Q12 1530004011 S.TRA KTC3770U-C-RTK/P T 37.5/33.2
Q13 1560002580 S.FET AFT05MS003NT1 T 37.2/45.7
Q14 1560002590 S.FET AFT05MS031NR1 T 54.0/45.5
Q16 1590004060 S.TRA LDTC114EET1G B 70.6/33.5
Q17 1590004060 S.TRA LDTC114EET1G B 78.3/31.5
Q18 1590004070 S.TRA LDTC144EET1G T 34.1/49.6
Q19 1590004070 S.TRA LDTC144EET1G B 32.3/48.3
Q101 1530004100 S.TRA MT3S20P (TE12LF) B 98.5/36.5
Q201 1590004040 S.TRA LDTA123YET1G B 79.1/27.9
Q202 1590004070 S.TRA LDTC144EET1G B 79.1/25.5
Q511 1590004070 S.TRA LDTC144EET1G T 28.1/16.9
Q512 1550000590 S.FET UT6401G-AG6-R T 25.9/20.6
D11 1750002540 S.DIO LRB520G-30T1G B 78.4/34.3
D12 1750002350 S.DIO MMBD352WT1 T 77.5/35.7
D13 1750002350 S.DIO MMBD352WT1 T 80.2/35.7
D14 1750002190 S.DIO JDP2S12CR (TE85LQ) T 89.4/44.3
D15 1750003520 S.DIO L5204FR T 94.0/39.1
D16 1750002350 S.DIO MMBD352WT1 B 92.7/41.9
D551 1750001810 S.DIO L1SS400T1G T 16.5/13.1
D601 1710001440 DIO 1N5402-F
X2 6050014830 S.XTA CR-1073 (26 MHz) T 83.4/6.6
L1 6200013750 S.COI MLK1005SR10JT T 35.5/33.7
L2 6200012880 S.COI 0.30-1.3-6TL 24.5N T 33.0/42.9
L3 6200013110 S.COI 0.35-1.6-9TL 52.0N T 41.4/42.3
L4 6200013030 S.COI 0.35-1.6-6TL 31.0N T 43.2/50.4
L5 6200013030 S.COI 0.35-1.6-6TL 31.0N T 63.5/41.0
L6 6200012390 S.COI 0.30-0.92-3TR 5.8N T 70.0/42.7
L7 6200012870 S.COI 0.30-1.4-5TR 23.5N T 69.6/48.6
L101 6200016650 S.COI LQW2BASR82J00L T 86.4/41.4
L102 6200014320 S.COI 0.80-3.0-5TR 41.0N T 81.3/41.3
L103 6200014330 S.COI 0.80-2.7-5TR 35.0N T 99.5/44.3
L105 6200012700 S.COI 0.50-2.0-6TL 35.0N T 90.1/40.1
L106 6200011670 S.COI LQW18AN82NG00D B 97.6/44.3
L107 6200010910 S.COI LQW18AN56NG00D B 101.8/37.8
L108 6200011670 S.COI LQW18AN82NG00D B 99.1/41.8
L109 6200011860 S.COI LQW18ANR47G00D T 90.3/36.8
L111 6200011650 S.COI LQW18AN68NG00D B 94.4/31.8
L112 6200011650 S.COI LQW18AN68NG00D B 96.5/31.6
L211 6200009290 S.COI LQW18AN47NG00D
(LQW1608A47NG00) T 89.7/25.6
L216 6200001981 S.COI NLV25T-1R0J-PF T 81.9/9.6
L217 6200001981 S.COI NLV25T-1R0J-PF T 94.5/15.4
L311 6200009290 S.COI LQW18AN47NG00D
(LQW1608A47NG00) T 106.5/32.0
L312 6200004660 S.COI MLF1608A 1R8K-T T 86.2/17.0
L313 6200004660 S.COI MLF1608A 1R8K-T T 104.6/22.7
R11 7030015970 S.RES RMC1/16S-103JTH (10 k) T 53.7/19.0
R12 7030016050 S.RES RMC1/16S-102JTH (1 k) T 52.0/19.0
R21 7030016560 S.RES RMC1/16SJPTH T 42.5/32.7
R22 7030015970 S.RES RMC1/16S-103JTH (10 k) T 38.1/31.4
R23 7030016330 S.RES RMC1/16S-153JTH (15 k) T 40.4/31.4
R24 7030016150 S.RES RMC1/16S-100JTH (10) T 38.1/30.5
R25 7030016560 S.RES RMC1/16SJPTH T 32.9/33.7
R26 7030015910 S.RES RMC1/16S-101JTH (100) T 41.3/34.0
R31 7030015910 S.RES RMC1/16S-101JTH (100) T 32.0/46.0
R32 7030016110 S.RES RMC1/16S-473JTH (47 k) T 32.0/48.7
R33 7030015970 S.RES RMC1/16S-103JTH (10 k) T 30.7/46.5
R34 7030016110 S.RES RMC1/16S-473JTH (47 k) T 32.0/49.6
R35 7030015970 S.RES RMC1/16S-103JTH (10 k) B 32.0/49.8
R44 7030015520 S.RES RMC1/16JPTP T 47.9/50.4
R45 7030015910 S.RES RMC1/16S-101JTH (100) T 48.2/41.0
R46 7030016020 S.RES RMC1/16S-104JTH (100 k) T 46.9/39.7
R47 7030015970 S.RES RMC1/16S-103JTH (10 k) T 46.0/39.7
R71 7030016420 S.RES RMC1/16S-182JTH (1.8 k) T 77.5/41.6
R72 7030016420 S.RES RMC1/16S-182JTH (1.8 k) T 77.5/39.9
R73 7030016420 S.RES RMC1/16S-182JTH (1.8 k) T 83.4/37.7
R74 7030016420 S.RES RMC1/16S-182JTH (1.8 k) T 81.7/37.7
R75 7030014850 S.RES RMC1/8K181FTP (180) B 83.6/37.2
R76 7030016020 S.RES RMC1/16S-104JTH (100 k) T 77.7/32.8
R78 7030015920 S.RES RMC1/16S-221JTH (220) B 76.7/33.6
R79 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 75.8/35.3
R80 7030016050 S.RES RMC1/16S-102JTH (1 k) B 75.8/33.6
SECTION 5 PARTS LIST
[MAIN UNIT] [MAIN UNIT]

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
REF
NO.
PARTS
NO. DESCRIPTION M.H/V
LOCATION
REF
NO.
PARTS
NO. DESCRIPTION M.H/V
LOCATION
5-2
[MAIN UNIT] [MAIN UNIT]
C30 4030022860 S.CER 0402N470J500CT T 39.5/34.0
C31 4030023090 S.CER 0402B102K500CT T 40.4/34.0
C41 4030023090 S.CER 0402B102K500CT T 33.0/39.4
C42 4030022810 S.CER 0402N330J500CT T 32.6/40.7
C46 4030023090 S.CER 0402B102K500CT T 32.0/46.9
C47 4030022940 S.CER 0402B104K100CT T 32.0/47.8
C48 4030023090 S.CER 0402B102K500CT B 32.0/50.7
C51 4030022640 S.CER 0402N101J500CT T 43.8/41.1
C52 4030023090 S.CER 0402B102K500CT T 43.8/40.2
C53 4030024530 S.CER C1608 JB 1C 225M-T T 44.3/39.1
C54 4030022640 S.CER 0402N101J500CT T 60.7/38.9
C55 4030023090 S.CER 0402B102K500CT T 60.7/39.8
C56 4030024530 S.CER C1608 JB 1C 225M-T T 60.2/40.9
C57 4030024540 S.CER C2012 JB 1C 106K-T T 59.9/34.7
C61 4030023670 S.CER 0603N330J500CT T 40.5/46.2
C62 4030023670 S.CER 0603N330J500CT T 41.9/46.2
C63 4030023500 S.CER 0603N150J500CT T 41.3/48.3
C67 4030022640 S.CER 0402N101J500CT T 49.6/39.7
C68 4030023090 S.CER 0402B102K500CT T 48.7/39.7
C69 4030022940 S.CER 0402B104K100CT T 47.8/39.7
C71 4030020340 S.CER GRM21A5C2E820JW01D T 65.9/40.9
C72 4030020330 S.CER GRM21A5C2E101JW01D T 67.8/43.0
C74 4030020340 S.CER GRM21A5C2E820JW01D T 70.9/45.5
C75 4030020400 S.CER GRM21A5C2E150JW01D T 68.6/51.4
C76 4030020330 S.CER GRM21A5C2E101JW01D T 76.4/46.3
C91 4030022750 S.CER 0402N221J500CT B 68.7/27.9
C92 4030023090 S.CER 0402B102K500CT B 69.6/27.9
C93 4030022860 S.CER 0402N470J500CT T 46.6/35.0
C94 4030023200 S.CER 0402B471 k500CT T 46.6/34.1
C95 4030023090 S.CER 0402B102K500CT T 46.6/33.2
C96 4030023820 S.CER 0603B104K250CT T 67.3/32.7
C97 4030025150 S.CER GRM31CR71H475KA12L T 67.4/34.5
C98 4030023090 S.CER 0402B102K500CT T 62.8/31.6
C111 4030020380 S.CER GRM21A5C2E180JW01D T 78.4/46.3
C112 4030020380 S.CER GRM21A5C2E180JW01D T 80.7/46.3
C113 4030020420 S.CER GRM21A7U2E102JW31D T 94.1/44.3
C114 4030020380 S.CER GRM21A5C2E180JW01D T 93.1/48.5
C115 4030023380 S.CER 0603N6R0C500CT T 97.2/48.5
C116 4030020390 S.CER GRM21A5C2E270JW01D T 97.2/50.6
C120 4030023090 S.CER 0402B102K500CT B 87.6/34.8
C121 4030020390 S.CER GRM21A5C2E270JW01D T 94.1/42.2
C122 4030022740 S.CER 0402N220J500CT T 92.6/38.8
C123 4030023130 S.CER 0402B222 k500CT T 95.4/38.8
C124 4030022560 S.CER 0402N5R0B500CT B 95.4/41.1
C125 4030022720 S.CER 0402N1R5B500CT B 96.0/42.5
C126 4030022600 S.CER 0402N9R0C500CT B 96.5/40.2
C127 4030022550 S.CER 0402N4R0B500CT B 96.4/44.7
C128 4030022550 S.CER 0402N4R0B500CT B 97.8/40.7
C129 4030022640 S.CER 0402N101J500CT B 100.0/40.2
C130 4030023130 S.CER 0402B222 k500CT B 100.9/40.2
C131 4030022660 S.CER 0402N120J500CT B 102.9/37.3
C132 4030022530 S.CER 0402N2R0B500CT B 103.8/37.3
C133 4030023130 S.CER 0402B222 k500CT B 102.0/40.2
C134 4030023030 S.CER 0402B103K250CT B 102.9/40.2
C135 4030023130 S.CER 0402B222 k500CT B 97.5/32.7
C136 4030022770 S.CER 0402N270J500CT B 94.4/33.9
C137 4030022680 S.CER 0402N150J500CT B 93.3/30.4
C138 4030022680 S.CER 0402N150J500CT B 104.3/32.8
C139 4030022720 S.CER 0402N1R5B500CT B 94.5/41.1
C140 4030023090 S.CER 0402B102K500CT T 86.9/39.1
C141 4030023090 S.CER 0402B102K500CT T 77.5/38.2
C142 4030023090 S.CER 0402B102K500CT T 80.0/37.7
C143 4030023090 S.CER 0402B102K500CT T 76.4/33.2
C144 4030023090 S.CER 0402B102K500CT T 77.7/33.7
C145 4030023090 S.CER 0402B102K500CT T 80.5/33.7
C146 4030023200 S.CER 0402B471 k500CT B 78.4/29.8
C147 4030023090 S.CER 0402B102K500CT B 78.0/33.2
C148 4030023090 S.CER 0402B102K500CT B 76.7/35.3
C149 4030022940 S.CER 0402B104K100CT B 76.2/30.6
C150 4030023090 S.CER 0402B102K500CT B 73.7/29.2
C151 4030023030 S.CER 0402B103K250CT B 82.5/35.6
C153 4030023030 S.CER 0402B103K250CT B 72.6/34.9
C154 4030022940 S.CER 0402B104K100CT B 71.3/31.7
C211 4030023090 S.CER 0402B102K500CT B 92.4/30.4
C212 4030022740 S.CER 0402N220J500CT T 90.1/26.7
C213 4030022740 S.CER 0402N220J500CT T 90.1/24.5
C214 4030023090 S.CER 0402B102K500CT T 88.8/24.1
C220 4030022100 S.CER GRM0332C1H100JA01D B 87.2/24.9
C221 4030022140 S.CER GRM033B31H102KA12D T 88.0/27.0
C222 4030022160 S.CER GRM033B31A104KE84D T 87.3/27.0
C223 4030022100 S.CER GRM0332C1H100JA01D B 87.0/22.9
C226 4030022140 S.CER GRM033B31H102KA12D T 89.1/22.2
C227 4030022160 S.CER GRM033B31A104KE84D T 89.1/21.5
C228 4030022940 S.CER 0402B104K100CT T 89.3/20.0
C229 4030022140 S.CER GRM033B31H102KA12D T 89.1/20.8
C231 4030022140 S.CER GRM033B31H102KA12D T 89.1/19.2
C232 4030022740 S.CER 0402N220J500CT T 84.4/17.4
C233 4030022750 S.CER 0402N221J500CT T 84.8/15.9
C234 4030022100 S.CER GRM0332C1H100JA01D T 83.3/16.7
C235 4030022140 S.CER GRM033B31H102KA12D T 83.3/17.4
C236 4030022160 S.CER GRM033B31A104KE84D T 80.2/17.8
C237 4030022100 S.CER GRM0332C1H100JA01D B 82.0/22.2
C238 4030022140 S.CER GRM033B31H102KA12D B 82.0/21.5
C239 4030022160 S.CER GRM033B31A104KE84D B 82.0/20.8
C241 4030023200 S.CER 0402B471 k500CT T 85.8/27.1
C243 4030022100 S.CER GRM0332C1H100JA01D T 84.4/27.0
C244 4030022140 S.CER GRM033B31H102KA12D T 83.7/27.0
C245 4030022160 S.CER GRM033B31A104KE84D B 85.1/25.0
C246 4550007260 S.TAN F931C475MAABMA T 81.0/12.0
C249 4550007260 S.TAN F931C475MAABMA B 76.9/27.1
C250 4550007260 S.TAN F931C475MAABMA T 96.8/15.3
C251 4030023030 S.CER 0402B103K250CT T 55.8/20.8
C252 4030025230 S.CER TMK107BJ105KAHT T 55.5/22.6
C253 4550007520 S.TAN F931A106MAABMA T 60.5/12.6
C254 4030022940 S.CER 0402B104K100CT T 59.3/14.2
C255 4030022940 S.CER 0402B104K100CT T 62.8/18.0
C256 4030022940 S.CER 0402B104K100CT T 63.7/18.0
C311 4030023090 S.CER 0402B102K500CT B 104.3/31.9
C312 4030022740 S.CER 0402N220J500CT T 107.6/32.3
C313 4030022740 S.CER 0402N220J500CT T 107.2/29.7
C314 4030023090 S.CER 0402B102K500CT T 106.3/29.7
C320 4030022100 S.CER GRM0332C1H100JA01D T 104.5/32.5
C321 4030022140 S.CER GRM033B31H102KA12D T 103.8/32.5
C322 4030022160 S.CER GRM033B31A104KE84D T 103.1/32.5
C323 4030022100 S.CER GRM0332C1H100JA01D B 104.5/28.3
C326 4030022140 S.CER GRM033B31H102KA12D T 106.5/27.7
C327 4030022160 S.CER GRM033B31A104KE84D T 106.5/27.0
C331 4030022140 S.CER GRM033B31H102KA12D T 106.5/26.3
C332 4030022740 S.CER 0402N220J500CT T 102.8/22.9
C333 4030022750 S.CER 0402N221J500CT T 103.3/21.6
C334 4030022100 S.CER GRM0332C1H100JA01D T 101.7/23.1
C335 4030022140 S.CER GRM033B31H102KA12D T 101.0/23.1
C336 4030022160 S.CER GRM033B31A104KE84D T 97.8/24.0
C337 4030022100 S.CER GRM0332C1H100JA01D B 98.7/28.1
C338 4030022140 S.CER GRM033B31H102KA12D B 98.7/27.4
C339 4030022160 S.CER GRM033B31A104KE84D B 98.7/26.7
C341 4030023090 S.CER 0402B102K500CT T 72.6/15.9
C343 4030022100 S.CER GRM0332C1H100JA01D T 102.2/32.5
C344 4030022140 S.CER GRM033B31H102KA12D T 101.5/32.5
C345 4030022160 S.CER GRM033B31A104KE84D T 100.8/32.5
C351 4030023030 S.CER 0402B103K250CT T 84.5/10.6
C352 4030023030 S.CER 0402B103K250CT T 85.5/6.9
C500 4030022940 S.CER 0402B104K100CT T 64.3/22.8
C501 4030022940 S.CER 0402B104K100CT T 64.3/21.9
C502 4030022910 S.CER 0402N681J500CT T 64.7/19.7
C508 4030022940 S.CER 0402B104K100CT T 68.1/15.5
C509 4030022940 S.CER 0402B104K100CT T 67.2/15.5
C510 4030022940 S.CER 0402B104K100CT T 66.3/15.5
C511 4030022940 S.CER 0402B104K100CT T 63.7/25.1
C512 4030022940 S.CER 0402B104K100CT T 63.7/24.2
C513 4030023030 S.CER 0402B103K250CT T 67.6/18.4
C514 4030022940 S.CER 0402B104K100CT T 68.1/17.2
C515 4030022940 S.CER 0402B104K100CT T 67.2/17.2
C516 4030022940 S.CER 0402B104K100CT T 73.4/26.4
C517 4030022940 S.CER 0402B104K100CT T 73.4/27.3
C518 4030022940 S.CER 0402B104K100CT T 73.4/28.2
C519 4030022940 S.CER 0402B104K100CT T 66.3/17.2
C555 4030022940 S.CER 0402B104K100CT T 13.4/2.6
C561 4030023090 S.CER 0402B102K500CT B 24.2/23.7
C562 4030023000 S.CER 0402B683K100CT T 16.8/14.2
C563 4030023090 S.CER 0402B102K500CT B 22.7/32.3
C564 4030023030 S.CER 0402B103K250CT T 18.2/2.6
C565 4030022940 S.CER 0402B104K100CT T 15.5/2.6
C566 4030023090 S.CER 0402B102K500CT T 16.4/2.6
C602 4030023030 S.CER 0402B103K250CT T 25.0/26.7
C603 4030022940 S.CER 0402B104K100CT T 25.0/27.6
C604 4030023030 S.CER 0402B103K250CT T 26.8/26.7
C605 4030022940 S.CER 0402B104K100CT T 26.8/27.6
C606 4550007520 S.TAN F931A106MAABMA T 28.8/27.2
C611 4510011180 S.ELE 6CE100FSS T 14.1/25.1
C612 4030023030 S.CER 0402B103K250CT T 5.6/29.4
C613 4030022940 S.CER 0402B104K100CT T 6.5/29.4
C614 4030023820 S.CER 0603B104K250CT T 5.7/25.2
C615 4030023030 S.CER 0402B103K250CT T 6.8/24.9
C616 4510009920 S.ELE 16 CE 100 LH T 16.0/18.4
C620 4030023090 S.CER 0402B102K500CT T 29.8/16.9
C621 4510010300 S.ELE 16 CE 470 AX T 39.6/24.3
C622 4030023820 S.CER 0603B104K250CT B 35.4/19.8
C623 4030023090 S.CER 0402B102K500CT B 36.5/19.5
C624 4030022640 S.CER 0402N101J500CT B 37.5/19.5
C625 4030023030 S.CER 0402B103K250CT B 62.3/23.0
C626 4030023090 S.CER 0402B102K500CT B 61.4/23.0
C627 4030022640 S.CER 0402N101J500CT B 60.5/23.0
C628 4030023030 S.CER 0402B103K250CT T 21.1/38.1
C629 4030023090 S.CER 0402B102K500CT T 21.1/37.2
C631 4030023090 S.CER 0402B102K500CT T 28.4/21.0
C637 4550008240 S.TAN F930G476MAA T 31.3/27.2
C732 4030022940 S.CER 0402B104K100CT B 9.7/25.9
C737 4030022940 S.CER 0402B104K100CT B 15.4/28.9
C738 4030022940 S.CER 0402B104K100CT B 15.4/32.3
C741 4030023030 S.CER 0402B103K250CT B 7.5/22.0
C742 4030022940 S.CER 0402B104K100CT B 9.7/25.0
C743 4030022750 S.CER 0402N221J500CT B 9.3/23.7
C745 4030022940 S.CER 0402B104K100CT B 10.1/29.1
C746 4030025230 S.CER TMK107BJ105KAHT B 15.0/23.4
C747 4030022940 S.CER 0402B104K100CT B 14.5/28.9
C748 4030022940 S.CER 0402B104K100CT B 14.5/32.3
C749 4030022810 S.CER 0402N330J500CT B 14.5/35.7
C750 4030023090 S.CER 0402B102K500CT B 15.4/35.7
C751 4510010300 S.ELE 16 CE 470 AX T 15.2/48.9
C752 4030023820 S.CER 0603B104K250CT T 8.5/45.0
C753 4030023090 S.CER 0402B102K500CT T 8.2/43.9
C754 4030024020 S.CER 0603B393K500CT T 9.1/37.1
C755 4510010160 S.ELE EEEFKJ331XAP T 14.4/31.8
C761 4510010300 S.ELE 16 CE 470 AX T 15.2/39.9
C762 4030023200 S.CER 0402B471 k500CT T 9.3/41.8
C763 4030023820 S.CER 0603B104K250CT B 21.3/45.6
C764 4030023820 S.CER 0603B104K250CT B 19.9/45.6
C766 4030022860 S.CER 0402N470J500CT T 24.3/34.7
C767 4030022940 S.CER 0402B104K100CT T 24.3/33.8
C771 4030022860 S.CER 0402N470J500CT B 28.7/33.4
C773 4030022860 S.CER 0402N470J500CT B 26.4/35.9
C801 4030023090 S.CER 0402B102K500CT T 24.5/12.2
C802 4030023090 S.CER 0402B102K500CT T 23.1/2.1
C804 4030023090 S.CER 0402B102K500CT T 24.0/2.1
C806 4030023090 S.CER 0402B102K500CT T 25.8/2.1
C807 4030023090 S.CER 0402B102K500CT T 26.3/12.5
C808 4030023090 S.CER 0402B102K500CT T 26.8/2.1
C809 4030023090 S.CER 0402B102K500CT T 27.3/12.5
C812 4030023090 S.CER 0402B102K500CT T 27.8/2.1

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
REF
NO.
PARTS
NO. DESCRIPTION M.H/V
LOCATION
REF
NO.
PARTS
NO. DESCRIPTION M.H/V
LOCATION
5-3
[MAIN UNIT] [LOGIC UNIT]
C813 4030023090 S.CER 0402B102K500CT T 29.3/12.5
C815 4030023090 S.CER 0402B102K500CT T 30.3/12.5
C816 4030023090 S.CER 0402B102K500CT T 30.8/2.1
C817 4030023090 S.CER 0402B102K500CT T 31.3/12.5
C818 4030023090 S.CER 0402B102K500CT T 31.8/2.1
C820 4030022740 S.CER 0402N220J500CT T 32.8/2.1
C821 4030022740 S.CER 0402N220J500CT T 33.3/12.5
C822 4030022740 S.CER 0402N220J500CT T 33.8/2.1
C823 4030022740 S.CER 0402N220J500CT T 34.3/12.5
C824 4030022740 S.CER 0402N220J500CT T 34.8/2.1
C825 4030023090 S.CER 0402B102K500CT T 35.3/12.5
C826 4030022740 S.CER 0402N220J500CT T 35.8/2.1
C827 4030023090 S.CER 0402B102K500CT T 36.3/12.5
C828 4030023090 S.CER 0402B102K500CT T 36.8/2.1
C829 4030023090 S.CER 0402B102K500CT T 37.3/12.5
J1 6510021722 S.CON 30FLT-SM2-TB (LF) (SN) (M) T 30.5/7.3
J2 6510021441 S.CON B6B-ZR-SM4-TF (LF) (SN) B 23.5/26.7
W1 7030014230 JUM RJ20S0OHM
EP2 6910014690 S.BEA MPZ1608S221A-T T 44.3/34.9
EP3 6910024810 S.BEA MPZ2012S300AT T 63.8/33.8
EP701 6910016330 S.BEA MMZ1005S 601CT-S B 14.5/34.0
IC1 1140018540 S.IC STM32F101VDT6 B 52.0/25.0
IC2 1110008940 S.IC NJU7057RB1-TE2-#ZMZH B 55.1/7.5
IC3 1130009981 S.IC TC7W53FK (TE85LF) B 46.0/5.6
IC4 1180003570 S.REG NJM2830U1-33-TE1-#ZZZB B 87.1/27.1
IC5 1130007421 S.IC TC7W14FU (TE12LF) B 75.6/33.2
IC9 1130019460 S.IC GT24C256A-2ZLI-TR B 65.3/38.1
IC10 1110007620 S.IC NJU7704F3-42A-TE1-#ZZZB B 75.2/26.3
IC14 1110008890 S.IC NJU7056F3-TE2-#ZZZH B 37.2/6.1
IC201 1190004600 S.IC GSU-141A-090C (CXD5431-02)
Only [#21] B 97.8/29.1
Q1 1520001030 S.TRA 2SB1182G-R-TN3-R B 113.5/39.2
Q2 1530004140 S.TRA L2SC4081RT1G B 103.6/37.2
Q3 1590001330 S.TRA DTA114EUA T106 B 80.8/34.2
Q4 1530004140 S.TRA L2SC4081RT1G B 84.4/34.2
D1 1750002030 S.ZEN DZ2J068M0L B 103.5/39.4
D3 1750001810 S.DIO L1SS400T1G B 86.3/34.1
D11 1750003230 S.ZEN DZ2J200M0L B 87.9/18.1
FI201 2040002420 S.SAW TA0757B Only [#21] B 100.1/21.0
X1 6050014240 S.XTA CR-1022 (7.9872 MHz) B 66.6/24.2
R11 7030016020 S.RES RMC1/16S-104JTH (100 k) B 47.9/37.2
R12 7030016020 S.RES RMC1/16S-104JTH (100 k) B 47.0/37.2
R13 7030016050 S.RES RMC1/16S-102JTH (1 k) B 40.5/26.0
R15 7030015910 S.RES RMC1/16S-101JTH (100)
Only [#21] B 40.5/28.9
R16 7410001440 S.ARR MNR04M0APJ101 (100) B 40.5/22.3
R17 7030015910 S.RES RMC1/16S-101JTH (100) B 49.6/35.8
R18 7410001580 S.ARR MNR02M0APJ102 (1 k) B 57.5/36.2
R23 7410001440 S.ARR MNR04M0APJ101 (100) B 48.7/12.5
R25 7030016050 S.RES RMC1/16S-102JTH (1 k) B 52.8/13.7
R26 7030016190 S.RES RMC1/16S-273JTH (27K) B 44.8/10.8
R27 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 45.3/9.5
R28 7030016020 S.RES RMC1/16S-104JTH (100 k) B 54.9/13.7
R30 7030016020 S.RES RMC1/16S-104JTH (100 k) B 51.9/13.7
R31 7030015970 S.RES RMC1/16S-103JTH (10 k) B 34.0/51.8
R32 7030015910 S.RES RMC1/16S-101JTH (100) B 83.0/20.1
R33 7030016560 S.RES RMC1/16SJPTH B 64.6/25.5
R34 7030015910 S.RES RMC1/16S-101JTH (100) B 64.2/23.5
R39 7030016560 S.RES RMC1/16SJPTH B 52.7/9.6
R40 7030016060 S.RES RMC1/16S-105JTH (1 M) B 102.9/41.1
R41 7030020560 S.RES RMC1/2-270JTE (27) B 96.2/39.4
R42 7030016100 S.RES RMC1/16S-334JTH (330 k) B 100.9/38.2
R43 7030015920 S.RES RMC1/16S-221JTH (220) B 100.9/39.1
R45 7030016280 S.RES RMC1/16S-331JTH (330) B 100.5/48.0
R46 7030016280 S.RES RMC1/16S-331JTH (330) B 103.4/16.8
R47 7030016280 S.RES RMC1/16S-331JTH (330) B 49.3/7.1
R48 7030016280 S.RES RMC1/16S-331JTH (330) B 8.5/11.0
R51 7030016790 S.RES RMC1/16S-335JTH (3.3 M) B 56.6/38.7
R52 7410001460 S.ARR MNR04M0APJ104 (100 k) B 45.2/37.4
R54 7030019490 S.RES RMC1/8K680FTP (68) B 41.6/47.5
R57 7030015970 S.RES RMC1/16S-103JTH (10 k) B 65.0/35.3
R58 7030015970 S.RES RMC1/16S-103JTH (10 k) B 64.1/35.3
R59 7030016110 S.RES RMC1/16S-473JTH (47 k) B 68.2/19.8
R60 7030016360 S.RES RMC1/16S-123JTH (12 k) B 43.0/37.2
R67 7030018300 S.RES RMC1/16K473FTP (47 k) B 76.6/29.9
R68 7030018300 S.RES RMC1/16K473FTP (47 k) B 73.6/29.9
R69 7030016330 S.RES RMC1/16S-153JTH (15 k) B 78.5/30.4
R73 7030016560 S.RES RMC1/16SJPTH B 58.8/7.4
R75 7030015910 S.RES RMC1/16S-101JTH (100) B 58.8/5.7
R76 7030015910 S.RES RMC1/16S-101JTH (100) B 51.3/4.9
R81 7030016020 S.RES RMC1/16S-104JTH (100 k) B 74.7/31.0
R82 7030016050 S.RES RMC1/16S-102JTH (1 k) B 82.6/32.8
R83 7030016150 S.RES RMC1/16S-100JTH (10) B 87.9/33.3
R84 7030016110 S.RES RMC1/16S-473JTH (47 k) B 82.6/34.5
R85 7030016110 S.RES RMC1/16S-473JTH (47 k) B 81.3/36.1
R86 7030016060 S.RES RMC1/16S-105JTH (1 M) B 72.7/35.3
R87 7030019710 S.RES RMC1/4-101JTE (100) B 87.3/22.9
R92 7030015910 S.RES RMC1/16S-101JTH (100) B 39.0/5.1
R93 7030016020 S.RES RMC1/16S-104JTH (100 k) B 39.0/6.8
R94 7030016090 S.RES RMC1/16S-223JTH (22 k) B 41.6/5.1
R95 7030016560 S.RES RMC1/16SJPTH B 42.9/4.7
R96 7030016090 S.RES RMC1/16S-223JTH (22 k) B 42.9/5.6
R97 7030016200 S.RES RMC1/16S-274JTH (270K) B 35.4/5.5
R98 7030016140 S.RES RMC1/16S-124JTH (120K) B 35.4/7.2
R104 7030016020 S.RES RMC1/16S-104JTH (100 k) B 83.0/19.2
R113 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 24.8/14.7
R114 7030016150 S.RES RMC1/16S-100JTH (10) B 11.7/16.9
R115 7030016560 S.RES RMC1/16SJPTH B 18.6/16.9
C1 4030023090 S.CER 0402B102K500CT B 64.5/28.0
C2 4030023030 S.CER 0402B103K250CT B 65.4/28.0
C3 4030022940 S.CER 0402B104K100CT B 67.2/28.0
C4 4030023090 S.CER 0402B102K500CT B 65.5/19.8
C5 4030023030 S.CER 0402B103K250CT B 66.4/19.8
C6 4030022940 S.CER 0402B104K100CT B 67.3/19.8
C7 4030023090 S.CER 0402B102K500CT B 57.4/14.2
C8 4030023030 S.CER 0402B103K250CT B 57.4/13.3
C9 4030022940 S.CER 0402B104K100CT B 57.4/12.4
C10 4030023090 S.CER 0402B102K500CT B 44.1/14.2
C11 4030023030 S.CER 0402B103K250CT B 44.1/13.3
C12 4030022940 S.CER 0402B104K100CT B 44.1/12.4
C13 4030023090 S.CER 0402B102K500CT B 40.2/30.9
C14 4030023030 S.CER 0402B103K250CT B 39.3/30.9
C15 4030022940 S.CER 0402B104K100CT B 38.4/30.9
C16 4030023090 S.CER 0402B102K500CT B 61.4/35.3

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
REF
NO.
PARTS
NO. DESCRIPTION M.H/V
LOCATION
REF
NO.
PARTS
NO. DESCRIPTION M.H/V
LOCATION
5-4
[LOGIC UNIT] [MIC-JACK UNIT]
C17 4030023030 S.CER 0402B103K250CT B 62.3/35.3
C18 4030022940 S.CER 0402B104K100CT B 63.2/35.3
C20 4550007260 S.TAN F931C475MAABMA B 64.7/41.0
C21 4550008260 S.TAN F921C334MPA B 56.4/40.1
C22 4550007390 S.TAN F931C225MAABMA B 63.8/46.3
C23 4550007390 S.TAN F931C225MAABMA B 63.8/48.4
C24 4030023090 S.CER 0402B102K500CT B 54.3/39.8
C25 4030022940 S.CER 0402B104K100CT B 59.4/39.8
C26 4550007260 S.TAN F931C475MAABMA B 63.8/50.5
C27 4030023030 S.CER 0402B103K250CT B 36.8/33.9
C28 4030023090 S.CER 0402B102K500CT B 43.3/45.0
C36 4030022980 S.CER 0402B473K100CT B 64.2/20.8
C37 4030022980 S.CER 0402B473K100CT B 64.2/21.7
C38 4030022980 S.CER 0402B473K100CT B 64.2/22.6
C40 4030023090 S.CER 0402B102K500CT B 28.0/51.8
C43 4030022630 S.CER 0402N100C500CT B 66.3/27.1
C44 4030022630 S.CER 0402N100C500CT B 63.7/25.5
C51 4030023090 S.CER 0402B102K500CT B 100.4/40.8
C52 4030022940 S.CER 0402B104K100CT B 101.3/36.9
C53 4030023090 S.CER 0402B102K500CT B 104.2/26.5
C54 4030023010 S.CER 0402B104K160CT B 101.7/48.0
C55 4030023090 S.CER 0402B102K500CT B 122.3/24.0
C56 4030023090 S.CER 0402B102K500CT B 43.3/42.4
C57 4030023010 S.CER 0402B104K160CT B 43.3/41.5
C58 4030023090 S.CER 0402B102K500CT B 43.3/40.6
C60 4030022940 S.CER 0402B104K100CT B 63.6/42.6
C61 4030023030 S.CER 0402B103K250CT B 43.4/38.5
C71 4030023000 S.CER 0402B683K100CT B 77.6/27.4
C72 4030025230 S.CER TMK107BJ105KAHT B 75.1/28.6
C73 4030025230 S.CER TMK107BJ105KAHT B 77.9/28.6
C74 4030023090 S.CER 0402B102K500CT B 74.8/24.5
C78 4030023030 S.CER 0402B103K250CT B 40.3/6.5
C81 4030022940 S.CER 0402B104K100CT B 54.5/5.3
C82 4030023090 S.CER 0402B102K500CT B 45.0/7.4
C84 4030023090 S.CER 0402B102K500CT B 59.2/8.7
C85 4030023090 S.CER 0402B102K500CT B 50.8/7.1
C86 4030023090 S.CER 0402B102K500CT B 91.1/27.6
C87 4030025230 S.CER TMK107BJ105KAHT B 91.4/25.8
C88 4550007260 S.TAN F931C475MAABMA B 87.0/30.7
C89 4030023030 S.CER 0402B103K250CT B 88.1/20.8
C90 4030025230 S.CER TMK107BJ105KAHT B 88.1/19.7
C91 4510009810 S.ELE EEEFK1E220R B 93.4/20.3
C92 4030022940 S.CER 0402B104K100CT B 76.0/35.4
C93 4030023090 S.CER 0402B102K500CT B 87.5/34.6
C111 4030023030 S.CER 0402B103K250CT B 87.1/14.7
C112 4550007260 S.TAN F931C475MAABMA B 88.7/14.1
C113 4030023030 S.CER 0402B103K250CT B 85.3/20.1
C114 4030023090 S.CER 0402B102K500CT B 85.3/19.2
C145 4030023090 S.CER 0402B102K500CT B 82.3/12.1
C147 4030023030 S.CER 0402B103K250CT B 83.3/12.1
C149 4030023090 S.CER 0402B102K500CT B 84.7/12.5
C150 4030023090 S.CER 0402B102K500CT B 86.5/12.5
C161 4030023090 S.CER 0402B102K500CT B 11.3/15.5
C162 4030022940 S.CER 0402B104K100CT B 10.8/16.9
C201 4030022750 S.CER 0402N221J500CT Only [#21] B 100.8/22.6
C205 4030022750 S.CER 0402N221J500CT Only [#21] B 92.9/27.6
C206 4030022940 S.CER 0402B104K100CT Only [#21] B 92.9/26.7
C207 4550007260 S.TAN F931C475MAABMA Only [#21] B 92.6/33.9
C208 4030022750 S.CER 0402N221J500CT Only [#21] B 102.4/29.9
C209 4030023090 S.CER 0402B102K500CT Only [#21] B 103.3/29.9
C210 4030022940 S.CER 0402B104K100CT Only [#21] B 104.2/29.9
J1 6510021722 S.CON 30FLT-SM2-TB (LF) (SN) (M) B 77.5/16.5
J2 6510022692 S.CON 06FLT-SM2-TB (LF) (SN) (M) B 15.0/16.2
J4 6510027111 S.CON 08FLT-SM2-TB (LF) (SN) (M) B 37.0/37.2
J5 6510032560 S.CON AYF532665T B 52.6/43.6
DS1 5030004390 LCD TS-GG132064061A
DS2 5040004210 S.LED CL-196TLY-CD-T T 106.0/32.9
DS3 5040004210 S.LED CL-196TLY-CD-T T 99.0/46.1
DS4 5040004210 S.LED CL-196TLY-CD-T T 118.1/29.2
DS5 5040004210 S.LED CL-196TLY-CD-T T 99.3/18.1
DS6 5040004210 S.LED CL-196TLY-CD-T T 84.6/6.4
DS7 5040004210 S.LED CL-196TLY-CD-T T 52.6/6.4
DS8 5040004210 S.LED CL-196TLY-CD-T T 20.6/6.4
DS9 5040004210 S.LED CL-196TLY-CD-T T 9.0/11.0
W1 8900019100 CAB OPC-2016 (P0.5N30L90)
EP8 6910019100 S.BEA MPZ1608S101AT B 64.1/43.7
EP12 6910016330 S.BEA MMZ1005S 601CT-S B 18.6/17.8
EP201 6910019100 S.BEA MPZ1608S101AT Only [#21] B 92.4/28.7
J1 6510022692 S.CON 06FLT-SM2-TB (LF) (SN) (M) B 2.6/5.2
J2 6450002460 CON HSJ1594-010160
W1 8910000070 FFC FFC-1008 (P0.5N6L50)

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
REF
NO.
PARTS
NO. DESCRIPTION M.H/V
LOCATION
5-5
[GPS-ANT UNIT] (for only IC-M220G)
L1 6200015480 S.COI MLG1005S 2N4C-T T 12.2/18.8
C1 4030022520 S.CER 0402N1R0B500CT T 16.7/14.1
C2 4030022610 S.CER 0402N0R3B500CT T 17.1/12.9
W1 7030014290 JUM RJ25S0OHM
EP2 3310004650 S.ANT ANT016008LCD1575MA1 T 17.1/18.8

6-1
REF
NO.
PART
NO. DESCRIPTION QT Y.
†: Sold as an option.
REF
NO.
PART
NO. DESCRIPTION QT Y.
[CHASSIS UNIT]
[MAIN UNIT]
REF
NO.
PART
NO. DESCRIPTION QT Y.
REF
NO.
PART
NO. DESCRIPTION QT Y.
*: Refer to "BOARD LAYOUTS" for the location.
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head BS: Brass NI: Nickel ZU: Zinc SUS: Stainless
J1 6510004882 MR-DSE-01-2 1
W1 8920002900 CAB-1359 1
MP1 8010024570 4048 CHASSIS 1
MP2 8930098330 3974 BUSH PLATE 1
MP3 8930034301 1542 ANT SEAL-1 1
MP4 8930100330 4048 IC CLIP 1
MP11 8010024420 3974 CASE ASSEMBLY 1
MP13 8930055070 2438 SHEET 1
MP14 8930049040 INSULATION SHEETFQ 1
MP15 8930098300 3974 PACKING (MTK) 1
MP16 8930060440 2685 R-PACKING (TOP) 1
MP21 8810008661 PH BT M3×8 NI-ZC3 6
MP22 8810010610 PH B0 M3×8 SUS S (BT) 2
MP23 8810010610 PH B0 M3×8 SUS S (BT) 4
MP24 8810010620 PH B0 M3×12 SUS S 4
J1* 6510021722 30FLT-SM2-TB (LF) (SN) (M) 1
J2* 6510021441 B6B-ZR-SM4-TF (LF) (SN) 1
W1* 7030014230 RJ20S0OHM 1
MP1* 8510016471 2775 VCO CASE-1 1
MP2* 8510016471 2775 VCO CASE-1 1
MP3 8510016461 2775 VCO COVER-1 1
MP5* 8410003140 4048 HEATSINK 1
MP6* 8510022640 4048 SHIELD CASE 1
MP7 8510022650 4048 SHIELD COVER 1
MP8 8930097540 SHIELD SPONGE (EI) 2
SECTION 6 MECANICAL PARTS
[FRONT UNIT]
REF
NO.
PARTS
NO. DESCRIPTION QT Y.
MP1 8210033830 4048 FRONT PANEL ASSEMBLY 1
SP1 2510002160 036D01209 1
W1 9035700010 22/00/030/W02/W02 2
MP3 8110011420 3974 DISTRESS COVER 1
MP4 8930098310 3974 SHAFT 1
MP5 8930098320 3974 SPRING 1
MP7 8930100130 4048 KEYBOARD (SC) 1
MP8 8930055842 2490 EARTH SPRING-2 1
MP9 8930100090 4048 MIC HOLDER 1
MP10 8930100260 4048 MIC SPONGE 1
MP11 8830003640 3360 NUT 1
MP21 8810008661 PH BT M3×8 NI-ZC3 5
MP22 8810011840 PH BT B0 2×5 NI-ZK3 2
MP23 8810008631 PH BT M3×6 NI-ZC3 1
[LOGIC UNIT]
REF
NO.
PART
NO. DESCRIPTION QT Y.
J1* 6510021722 30FLT-SM2-TB (LF) (SN) (M) 1
J2* 6510022692 06FLT-SM2-TB (LF) (SN) (M) 1
J4* 6510027111 08FLT-SM2-TB (LF) (SN) (M) 1
J5* 6510032560 AYF532665T 1
DS1 5030004390 TS-GG132064061A 1
W1 8900019100 OPC-2016 (P0.5N30L90) 1
[MIC-JACK]
REF
NO.
PART
NO. DESCRIPTION QT Y.
J1* 6510022692 06FLT-SM2-TB (LF) (SN) (M) 1
J2 6450002460 HSJ1594-010160 1
W1 8910000070 FFC-1008 (P0.5N6L50) 1
W1* 7030014290 RJ25S0OHM 1
EP2* 3310004650 ANT016008LCD1575MA1 1
MP1 8930100540 4048 GPS ANGLE 1
MP2 8810000101 PH M2×4 ZK3 2
MC1 ‒ HM-237B†1
W1 8900022320 OPC-2395 1
MP1 8950007310 3054 ACC KIT 6ITEM 1
MP2 8010017250 2040 MOBILE BRACKET 1
[GPS-ANT] (for only IC-M220G)
[ACCESSORIES]
MP2
Knob bolts Flat washers (M5)
Screws
(5×20 mm) Spring washers (M5)
W1MC1
MP1
Screws (3×16 mm)
Microphone hanger
