Icom IC-M302 User manual

SERVICE
MANUAL
VHF MARINE TRANSCEIVER
M302

INTRODUCTION DANGER
ORDERING PARTS REPAIR NOTES
This service manual describes the latest service information
for the IC-M302 VHF MARINE TRANSCEIVER at the time of
publication.
NEVER connect the transceiver to an AC outlet or to a DC
power supply that uses more than 16 V. Such a connection
could cause a fire or electric hazard.
DO NOT expose the transceiver to rain, snow or any liquids.
DO NOT reverse the polarities of the power supply when con-
necting the transceiver.
DO NOT apply an RF signal of more than 20 dBm (100mW)
to the antenna connector. This could damage the trans-
ceiver's front end.
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit order numbers
2. Component part number and name
3. Equipment model name and unit name
4. Quantity required
<SAMPLE ORDER>
2510001240 Speaker 045P0803 IC-M302 Front unit 5 pieces
8810004540 Screw BiH M3x8 SUS IC-M302 Chassis 10 pieces
Addresses are provided on the inside back cover for your
convenience.
1. Make sure a problem is internal before disassembling the
transceiver.
2. DO NOT open the transceiver until the transceiver is dis-
connected from its power source.
3. DO NOT force any of the variable components. Turn them
slowly and smoothly.
4. DO NOT short any circuits or electronic parts. An insulat-
ed turning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the trans-
ceiver is defective.
6. DO NOT transmit power into a signal generator or a
sweep generator.
7. ALWAYS connect a 30 dB to 40 dB attenuator between
the transceiver and a deviation meter or spectrum ana-
lyzer when using such test equipment.
8. READ the instructions of test equipment thoroughly
before connecting equipment to the transceiver.
To upgrade quality, all electrical or mechanical parts and
internal circuits are subject to change without notice or oblig-
ation.
MODEL VERSION COLOR
IC-M302
U.S.A
U.S.A–2
BLACK
WHITEU.S.A–1
GRAY

TABLE OF CONTENTS
SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEWS
SECTION 3 DISASSEMBLY INSTRUCTIONS
SECTION 4 CIRCUIT DESCRIPITON
4-1 RECEIVER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4-2 TRANSMITER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
4-3 PLL CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
4-4 DSC CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
4-5 LOGIC CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
4-6 POWER SUPPLY CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
4-7 PORT ALLOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
SECTION 5 ADJUSTMENT PROCEDURES
5-1 PREPARATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
5-2 PLL ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
5-3 TRANSMITTER ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
5-4 RECEIVER ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
SECTION 6 PARTS LIST
6-1 IC–M302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
6-2 HM–141 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7-1 CABINET PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
7-2 HM–141 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
SECTION 8 SEMI-CONDUCTOR INFORMATION
SECTION 9 BOARD LAYOUTS
9-1 MAIN UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
9-2 LOGIC UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
9-3 VR BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
9-4 SQL BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6
9-5 HM–141 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-7
SECTION 10 BLOCK DIAGRAM
SECTION 11 VOLTAGE DIAGRAM
11-1 GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
11-2 MAIN UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2
11-3 LOGIC UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3
11-4 VR / SQL BOARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-4
11-5 HM–141 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5

1 - 1
SECTION 1 SPECIFICATIONS
‘‘GENERAL
• Frequency coverage : 156.025–157.425 MHz (Tx)
156.050–163.275 MHz (Rx)
• Mode : 16K0G3E (FM)
16K0G2B (DSC)
• Usable channels : All USA, international and Canadian channels
plus 10 weather channels
• Power supply requirement : 13.8 V DC ±10 % (negative ground)
• Usable temperature range : –20˚C to +60˚C; –4˚F to +140˚F
• Current drain (at 13.8 V DC) : Transmit at 25 W 5.5 A (Max.)
Receive max. audio 1.5 A (Max.)
• Antenna impedance : 50 Ω(nominal)
• Input impedance (MIC) : 2 kΩ
• Output impedance (Audio) : 4 Ω
• Dimensions (projections not included) : 153(W) ×67(H) ×132(D) mm; 6(W)×25⁄8(H)×53⁄16(D) in
•Weight : Approx. 825 g; 1 lb 13 oz
‘‘TRANSMITTER
•Output power (at 13.8 V DC) : High 25 W
Low 1 W
•Modulation : Variable reactance frequency modulation
•Maximum frequency deviation : ±5.0 kHz
•Frequency tolerance : ±10 ppm
•Spurious emissions : –70 dBc (High power)
–56 dBc (Low power)
•Adjacent channel power : 70 dB
•Residual modulation : 40 dB
•Audio harmonic distortion : Less than 10% at 60% deviation
•Audio frequency response : +1 dB to –3 dB of 6 dB octave from 300 Hz to 2500 Hz
‘‘RECEIVER
•Receive system : Double conversion superheterodyne system
•Intermediate frequencies : 1st 21.7 MHz
2nd 450 kHz
•Sensitivity : 0.22 µV at 12 dB SINAD
•Squelch sensitivity : Less than 0.22 µV
•Adjacent channel selectivity : More than 70 dB
•Spurious response : More than70 dB
•Intermodulation rejection ratio : More than70 dB
•Hum and noise : More than40 dB
•Audio output power (at 13.8 V DC) : 4.5 W typical at 10% distortion with an 4 Ωload
•Audio frequency response : +1 dB to –3 dB of –6 dB octave from 300 Hz to 3000 Hz
Specifications are measured in accordance with TIA/EIA-603
All stated specifications are subject to change without notice or obligation.

1 - 2
*1Low power only, *2Momentary high power, *3Receive only
NOTE: Simplex channels 3, 21, 23, 61, 64, 81, 82 and 83 CANNOT be lawfully used by the general public in USA waters.
CAN
21A
21b
22A
23
24
25
25b
26
27
28
28b
60
61A
62A
64
64A
65A
66A*1
67
68
69
CAN
70*3
71
72
73
74
77*1
78A
79A
80A
81A
82A
83
83A
83b
84
85
86
87
88
CAN
01
02
03
04A
05A
06
07A
08
09
10
11
12
13*1
14
15*1
16
17*1
18A
19A
20*1
21
‘‘VHF MARINE CHANNEL LIST
USA
01A
03A
05A
06
07A
08
09
10
11
12
13*2
14
15*2
16
17*1
18A
19A
20
20A
INT
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15*1
16
17
18
19
20
21
Transmit
156.050
156.050
156.100
156.150
156.150
156.200
156.200
156.250
156.250
156.300
156.350
156.350
156.400
156.450
156.500
156.550
156.600
156.650
156.700
156.750
156.800
156.850
156.900
156.900
156.950
156.950
157.000
157.000
157.050
Receive
160.650
156.050
160.700
160.750
156.150
160.800
156.200
160.850
156.250
156.300
160.950
156.350
156.400
156.450
156.500
156.550
156.600
156.650
156.700
156.750
156.800
156.850
161.500
156.900
161.550
156.950
161.600
157.000
161.650
USA
21A
22A
23A
24
25
26
27
28
61A
63A
64A
65A
66A
67*2
68
69
INT
22
23
24
25
26
27
28
60
61
62
63
64
65
65A
66
66A
67
68
69
Transmit
157.050
Rx only
157.100
157.100
157.150
157.150
157.200
157.250
Rx only
157.300
157.350
157.400
Rx only
156.025
156.075
156.075
156.125
156.125
156.175
156.175
156.225
156.225
156.275
156.275
156.325
156.325
156.375
156.425
156.475
Receive
157.050
161.650
161.700
157.100
161.750
157.150
161.800
161.850
161.850
161.900
161.950
162.000
162.000
160.625
160.675
156.075
160.725
156.125
160.775
156.175
160.825
160.825
160.875
156.275
160.925
156.325
156.375
156.425
156.475
USA
70*3
71
72
73
74
77*1
78A
79A
80A
81A
82A
83A
84
84A
85
85A
86
86A
87
87A
88
88A
INT
70*3
71
72
73
74
77
78
79
80
81
82
83
84
85
86
87
88
Transmit
156.525
156.575
156.625
156.675
156.725
156.875
156.925
156.925
156.975
156.975
157.025
157.025
157.075
157.075
157.125
157.125
157.175
157.175
Rx only
157.225
157.225
157.275
157.275
157.325
157.325
157.375
157.375
157.425
157.425
Receive
156.525
156.575
156.625
156.675
156.725
156.875
161.525
156.925
161.575
156.975
161.625
157.025
161.675
157.075
161.725
157.125
161.775
157.175
161.775
161.825
157.225
161.875
157.275
161.925
157.325
161.975
157.375
162.025
157.425
Channel No. Frequency (MHz) Channel No. Frequency (MHz) Channel No. Frequency (MHz)
WX01
WX02
WX03
WX04
WX05
Transmit
Receive only
Receive only
Receive only
Receive only
Receive only
Receive
162.550
162.400
162.475
162.425
162.450
WX06
WX07
WX08
WX09
WX10
Transmit
Receive only
Receive only
Receive only
Receive only
Receive only
Receive
162.500
162.525
161.650
161.775
163.275
Frequency (MHz) Frequency (MHz)
Weather
channel Weather channel
‘‘WEATHER CHANNEL LIST

SECTION 2 INSIDE VIEWS
•MAIN UNIT
2 - 1
•FRONT UNIT
AF power amplifier
(IC6: LA4425A)
Antenna switch
(D1, D2: XB15A308)
PLL IC
(IC8: UPD3140GS)
Reference oscillator
(X2: CR-768)
VCO circuit
Crystal bandpass filter
(FI, FI2: FL-363)
YGR amplifier
(Q18: 2SC4226 R25)
+5V regulator
(IC9: TA7805S)
Pre-driver
(Q17: 2SC4215 O)
DSC decoder
(IC3: NJM2211M)
FM IF IC
(IC1: TA31136FN)
Analog switch
(IC7: TC4W66F)
Ceramic bandpass filter
(FI3: ALFY450E)
SQL board
LOGIC board
VR board
EEPROM
(IC4: BR24L32FV-W)
Dimmer controller
Q2: 2SB1132 R
Q3,Q4: 2SC4116 BL
Reset IC
(IC5: BD5242FVE-TR)
System clock
(X1: CR-769)
Photo coupler
(IC2: PC357N6T)
MAIN CPU
(IC1: M37560MFA-303GP)
Buffer amplifier
(IC6: NJM2904M)
Buffer amplifier
(IC3: TC7S14FU)
Speaker

SECTION 3 DISASSEMBLY INSTRUCTIONS
3 - 1
A
A
A
EC
E
B
D
G
F
speaker
to the DC Power supply
•REMOVING THE CASE
1Unscrew 8 screws, A, as shown below, and then remove
the case in the direction of the arrow.
•REMOVING THE MAIN UNIT
1Unsolder the external speaker cable, F(2 points), and
DC cable, G(2 points), on the bottom side.
2Unsolder the antenna connector, B(3 points).
3Remove a clip, C.
4Unscrew 2 screws, D, and 7 screws, E, to remove the
MAIN unit.
I
J
K
H
•REMOVING THE LOGIC BOARD
1Remove 2 cables, I, K.
2Unsolder 2 points, H.
3Unscrew 4 screws, J, to remove the LOGIC BOARD.

4 - 1
SECTION 4 CIRCUIT DESCRIPTION
4-1 RECEIVER CIRCUITS
4-1-1 ANTENNA SWITCHING CIRCUIT
(MAIN UNIT)
The antenna switching circuit functions as a low-pass filter
while receiving and as resonator circuit while transmitting.
The circuit does not allow transmit signals to enter receiver
circuits.
Received signals enter the MAIN unit from the antenna con-
nector and pass through the low-pass filter (L1, L2, C3–C5).
The signals are then applied to the RF circuit via the anten-
na switching circuit (D2).
4-1-2 RF CIRCUIT (MAIN UNIT)
The RF circuit amplifies signals within the range of frequen-
cy coverage and filters out-of-band signals.
The signals from the antenna switching circuit pass through
the *attenuator (R2, C9) and a tunable bandpass filter (D4,
L6, C12–C15) where the object signals are led to the RF
amplifier circuit (Q1).
(*Passing through the attenuator is [#10] ONLY.)
The amplified signals at Q1 are applied to other tunable
bandpass filter (D5–D7, L8, L9, C23–C26, C28–C32) to sup-
press unwanted signals and improve the selectivity. The sig-
nals are then applied to the 1st mixer circuit.
4-1-3 1ST MIXER AND 1ST IF CIRCUITS
(MAIN UNIT)
The 1st mixer circuit converts the received signal to a fixed
frequency of the 1st IF signal with a 1st LO (VCO output) fre-
quency. By changing the 1st LO frequency, only the desired
frequency will be passed through two crystal filters at the
next stage of the mixer.
The signals from the RF circuit are mixed with the VCO sig-
nals at the 1st mixer circuit (Q2) to produce a 21.7 MHz 1st
IF signal.
The 1st IF signal is applied to two crystal filters (FI1, FI2) to
suppress out-of-band signals and is then amplified at the IF
amplifier (Q4). The amplified signal is applied to the 2nd
mixer circuit (IC1).
4-1-4 2ND IF AND DEMODULATOR CIRCUITS
(MAIN UNIT)
The 2nd mixer circuit converts the 1st IF signal to a 2nd IF
signal. A double superheterodyne system (which converts
receive signals twice) improves the image rejection ratio and
obtains stable receiver gain.
The FM IF IC (IC1) contains the 2nd local oscillator, 2nd
mixer, limiter amplifier, quadrature detector, and noise
detector circuits, etc.
The 1st IF signal from Q4 is applied to the 2nd mixer section
of IC1 (pin 16), and is mixed with a 21.25 MHz 2nd LO sig-
nal generated at the PLL circuit using the reference fre-
quency (21.25 MHz) to produce a 450 kHz 2nd IF signal.
The 2nd IF signal from IC1 (pin 3) is passed through the
ceramic filter (FI3), where unwanted signals are sup-
pressed, and is then applied to the 2nd IF (limiter) amplifier
in IC1 (pin 5). The signal is applied to the FM detector sec-
tion in IC1 for demodulation into AF signals.
The FM detector circuit employs a quadrature detection
method (linear phase detection), which uses a ceramic dis-
criminator (X1) for phase delay to obtain a non-adjusting cir-
cuit. The detected signal from IC1 (pin 9) is applied to theAF
circuit.
Mixer
16
Limiter
amp.
2nd IF filter
450 kHz
PLL IC
IC8
X2
21.25 MHz
X1
(21.25 MHz)
RSSI
IC1 TA31136F
13 1st IF (21.7 MHz)
from the IF amplifier (Q4)
"SQL" signal to the CPU
(LOGIC board; IC1)
11109
87 5 3
"SQLV"signal to the R1
on the SQL board
R5
217 16
Active
filter
FI3
Noise
detector
FM
detector
C65
C75
C64
C73
R50
R48
R47
C74
R42
R44
C67
R49
R43
"WXDEC" signal to the
CPU (LOGIC board; IC1)
"DSCDEC" signal to the
CPU (LOGIC board; IC1)
"DETO" signal to the
AF mute switch (IC7)
LPF
BPF
DSC
DEC.
• 2ND IF AND DEMODULATOR CIRCUITS

4 - 2
4-1-5 AF AMPLIFIER CIRCUIT
(MAIN AND FRONT UNITS)
The AF amplifier circuit amplifies the detected signals to
drive a speaker. The AF circuit includes an AF mute circuit
for the squelch.
AF signals from IC1 (pin 9) are applied to the de-emphasis
circuit (R61, C89). The de-emphasis circuit is an integrated
circuit with frequency characteristic of –6 dB/octave.
The integrated signals pass through the high-pass filter (Q5,
R62–R67, C90, C91) to suppress unwanted lower noise sig-
nals.
The filtered signals are applied to theAF mute circuit (IC7B),
and then passes through the [VOLUME] control (VR board;
R1) via the “VOL1”signal. The signals are applied to the AF
power amplifier (IC6, pin 1). The output signal from IC6
(pin4) drives the internal (external) speaker.
4-1-6 SQUELCH CIRCUIT
(MAIN UNIT, LOGIC AND SQL BOARDS)
Asquelch circuit cuts out AF signals when no RF signals are
received. By detecting noise components in the AF signals,
the squelch circuit switches the AF mute switch.
A portion of the AF signals from the FM IF IC (IC1, pin 9)
pass through the squelch adjustment volume (SQL board;
R1), and are then applied to the active filter section (IC1, pin
8). The active filter section amplifies and filters noise com-
ponents. The filtered signals are applied to the noise detec-
tor section and output from pin 14 as the “SQL”signal. The
“SQL”signal is applied to the CPU (LOGIC board; IC1, pin
30). The CPU analyzes the noise condition and outputs the
“RMUTE”signal to toggle the AF mute switches (IC7B).
4-1-7 WEATHER ALERT DECODER CIRCUIT
(MAIN UNIT AND LOGIC BOARD)
When the weather alert function is activated and a 1050 Hz
alert tone from an NOAA weather radio broadcast is
received, the IC-M302 emits beep tones and indicates flash-
ing “ALT”on the display to inform of an emergency weather
report on the air.
AF signals from the FM IF IC (IC1, pin 9) pass through the
low-pass filter (IC2A) via the “DET”signal, and are then
applied to A/D port of the CPU (LOGIC board; IC1, pin 8) as
“WXDEC”signal. The CPU has the tone decoder function.
When a 1050 Hz signal is detected by software decode, the
CPU (LOGIC BOARD; IC1) controls beep tones and the
“ALT”indicator.
4-2 TRANSMITTER CIRCUITS
4-2-1 MICROPHONE AMPLIFIER CIRCUIT
(MAIN UNIT)
The microphone amplifier circuit amplifies audio signals with
+6 dB/octave pre-emphasis from the microphone to a level
needed at the modulation circuit.
The AF signals from the microphone are amplified at the
microphone amplifier (IC2B) via the analog switch (IC7A,
pins 1, 2). A capacitor (C223) and resistor (R167) are con-
nected to the amplifier to obtain the pre-emphasis charac-
teristics.
The amplified signals are applied to the IDC amplifier (IC2C,
pin 9) and are passed through the splatter filter (IC2D, pins
12, 14) to suppress unwanted 3 kHz or higher signals. The
filtered signals are then applied to the modulation circuit.
4-2-2 MODULATION CIRCUIT (MAIN UNIT)
The modulation circuit modulates the VCO oscillating signal
(RF signal) using the microphone audio signals.
Audio signals from the splatter filter (IC2D) pass through the
frequency deviation adjustment pot (R184) and are then
applied to the modulation circuit (D11, D12) to change the
reactance of D11–D14 and modulate the oscillated signal at
the VCO (Q13, Q14).
4-2-3 DRIVE AMPLIFIER CIRCUIT (MAIN UNIT)
The drive amplifier circuit amplifies the VCO oscillating sig-
nal to a level needed at the power amplifier.
The VCO output is buffer-amplified by Q15 and Q16, and is
then applied to the Tx/Rx switch (D16, D17). The transmit
signal from the Tx/Rx switch is amplified to the pre-drive
(Q17) and YGR (Q18) amplifiers to obtain an approximate
10 mW signal level. The amplified signal is then applied to
the RF power amplifier (IC4).
4-2-4 POWER AMPLIFIER CIRCUIT (MAIN UNIT)
The power amplifier circuit amplifies the driver signal to an
output power level.
IC4 is a power module which has amplification output capa-
bilities of about 25 W with 10 mW input. The output from IC4
(pin 4) is passed through the antenna switching circuit (D1)
and is then applied to the antenna connector via the low-
pass filter.
AF
MUTE BPF
IC6 R1 IC7 Q5
External SP
Internal SP
(FRONT unit)
HVS
AF
Amplifier
The detected signal from
the FM IF IC (IC1, pin 9)
de-emphasis
circuit
R61
C89
(VR board)
•AF AMPLIFIER CIRCUIT

4 - 3

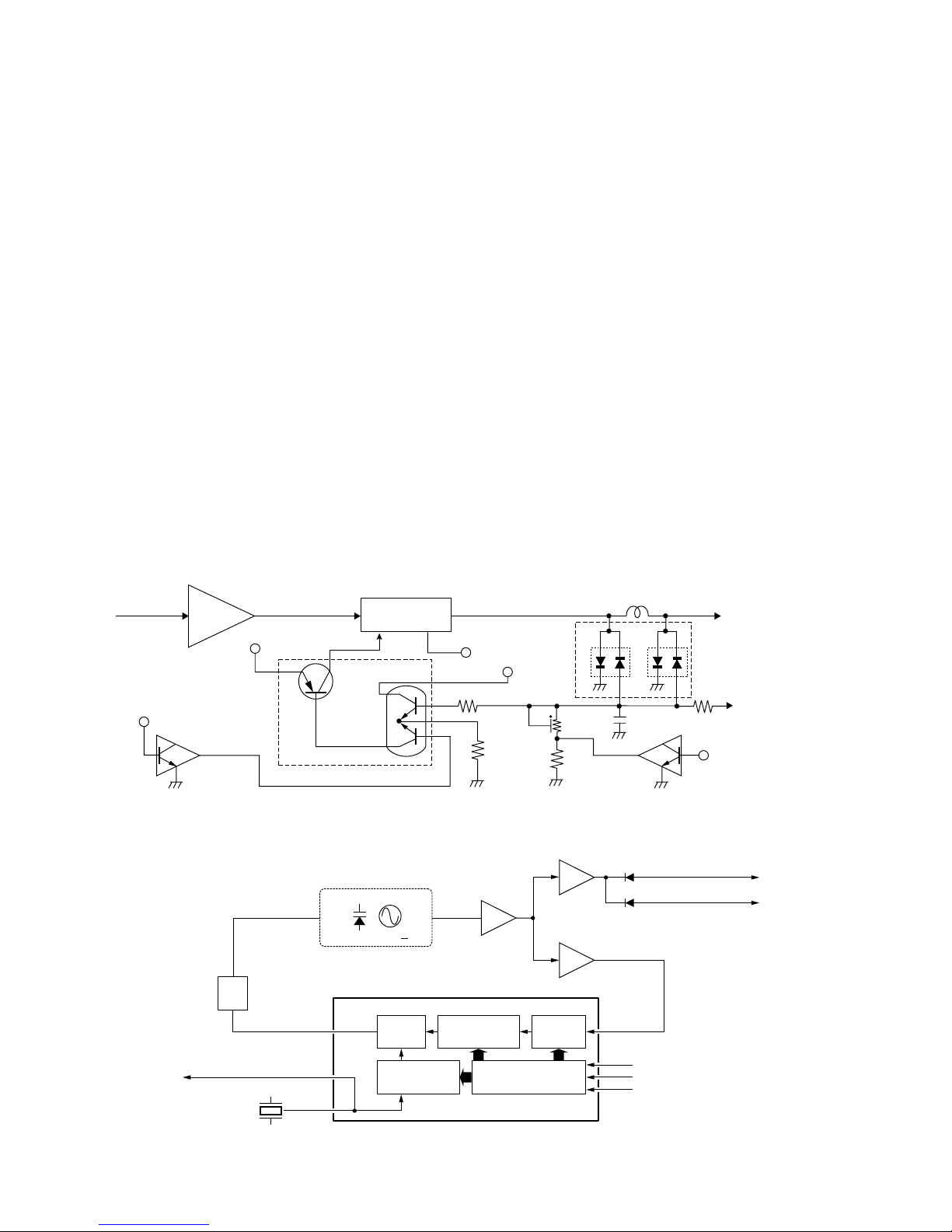

4-2-5 APC CIRCUIT (MAIN UNIT)
The APC circuit stabilizes transmit output power.
The RF output signal from the power amplifier (IC4) is
detected at the power detector circuit (D21, D22, L31) and
is then applied to one of the differential amplifier inputs
(Q21, pin 3) via the High/Low control circuit (Q22, R135).
The applied voltage controls the differential amplifier output
(Q21, pin 1) and the bias voltage control (Q23). Thus the
APC circuit maintains a constant output power.
4-3 PLL CIRCUITS
4-3-1 GENERAL (MAIN UNIT)
The PLL circuit provides stable oscillation of the transmit fre-
quency and receive 1st LO frequency. The PLL circuit com-
pares the phase of the divided VCO frequency to the refer-
ence frequency. The PLL output frequency is controlled by a
crystal oscillator and the divided ratio of the programmable
divider.
IC8 on the MAIN unit is a dual PLL IC which controls both
VCO circuits for Tx and Rx, and contains a prescaler, pro-
grammable counter, programmable divider, phase detector,
charge pump, etc.
The PLL circuit , using a one chip PLL IC (MAIN unit; IC8),
directly generates the transmit frequency and receive 1st IF
frequency with VCOs. The PLL sets the divided ratio based
on serial data from the CPU on the LOGIC BOARD and
compares the phases of VCO signals with the reference
oscillator frequency. The PLL IC detects the out-of-step
phase and output from pins 8 for Tx and Rx. The reference
frequency (21.25 MHz) is oscillated at X2 (MAIN unit).
4-3-2 TX AND RX LOOP (MAIN UNIT)
The generated signal at the VCO (Q13, Q14, D11–D14)
enters the PLL IC (IC8, pin 2) and is divided at the pro-
grammable divider section and is then applied to the phase
detector section.
The phase detector compares the input signal with a refer-
ence frequency, and then outputs the out-of-phase signal
(pulse-type signal) from pin 8.
The pulse-type signal is converted into DC voltage (lock
voltage) at the loop filter (R211–R213, C252, C254), and is
then applied to varactor diodes (D13, D14) of the VCO to
stabilize the oscillated frequency.
T5
D21 D22
L31
"TMUTE" signal from the CPU
(LOGIC board; IC1, pin 51)
HV
5V
1
23
4
H/L
"TXDET" signal to the CPU
(LOGIC board; IC1, pin 2)
Q23 Q21
Q20
Q22
C177
R139
R138
Q18
YGR
amp.
RF signal
from PLL to the antenna
RF detector
circuit
APC control circuit
Power module
IC4
R133
R136
R135
Shift register
Prescaler
Phase
detector
Loop
filter
Programmable
counter
Programmable
divider
X2
21.25 MHz
21.25 MHz signal to the
FM IF IC (IC1, pin 2)
VCO
Buffer
Buffer
Buffer Q16
Q26
Q15
3
4
5PSTB
IC8 (PLL IC)
PCK
PDATA
to transmitter circuit
to 1st mixer circuit
D17
D16
17
16
82
Q13, Q14, D11 D14
•APC CIRCUIT
•PLL CIRCUIT

4 - 4
4-3-4 VCO CIRCUIT (MAIN UNIT)
The VCO outputs from Q13, Q14 are buffer-amplified at the
buffer amplifiers (Q15 and Q16), and are then sent to the
Tx/Rx switch (D16 and D17). The receive LO signal is
applied to the 1st mixer circuit (Q2) through a low-pass filter,
and the transmit signal is applied to the pre-drive amplifier
(Q17).A portion of the VCO output is reapplied to the PLLIC
(IC8, pin 2) via the buffer amplifier (Q26).
4-4 DSC CIRCUITS
4-4-1 DSC ENCODE CIRCUIT
(LOGIC BOARD AND MAIN UNIT)
The DSC signal is created at the CPU (IC1, pin 9). The sig-
nal passes through the buffer amplifier (IC6A, pins 1, 3), and
is then applied to the D/A convertor (R176–R179) to convert
into the analog signal. The analog signal passes through the
low-pass filter (MAIN unit; IC2D, pins 12, 14), and is then
applied to the VCO circuit to modulate the DSC signal.
4-4-2 DSC DECODE CIRCUIT
(MAIN UNIT AND LOGIC BOARD)
The AF signal from the FM IF IC (IC1, pin 9) are filtered at
the low-pass filter (IC2A, pins 1, 3) to suppress unwanted
higher noise signals. The filtered signals are converted ana-
log signals into digital signals at the DSC decoder IC (IC3),
and are then applied to the CPU (LOGIC board; IC1, pin 22)
via the “DSCDEC”signal.
4-5 LOGIC CIRCUITS (LOGIC BOARD)
•CPU
IC1 is an 8 bit single chip micro-computer and contains LCD
driver, serial I/O, timer, A/D converter, programmable I/O,
ROM and RAM. The CPU controls to display characters on
the LCD too.
•SYSTEM CLOCK CIRCUIT
X1 is a ceramic oscillator and oscillate 7.9872 MHz system
clock for the CPU (IC1).
•RESET CIRCUIT
IC5 which is a reset IC outputs a reset signal (“HIGH”pulse
signal) to the CPU (IC1, pin 33) from pin 1 when the trans-
ceiver turns power ON.
•LOW BATTERY DETECTOR
“HVS”voltage is divided by R14 and R15, and is applied to
the low battery detector section in the CPU (IC1, pin 1).
•DIMMER CIRCUIT
CPU (IC1), Q2, Q3 and Q4 compose dimmer circuit. The cir-
cuit controls 4 steps LCD backlight (DS2–DS7).
•UART PORT
IC-M302 has the UART port which is used for cloning data
and NMEA interface. The signals pass through the photo
coupler circuit (IC2), and are then applied to the buffer
amplifier (IC3, pin 2). The amplified signals are applied to
the CPU (IC1, pin 20).
4-6 POWER SUPPLY CIRCUITS
LINE
HV
HVS
5V
T5
R5
R8
DESCRIPTION
The voltage from the connected DC power sup-
ply.
Same voltage as the HV line which is passed
through the [PWR] switch (VR-A board; R1).
Common 5 V converted from the HVS line at the
5V regulator circuit (MAIN unit; IC9).
Transmit 5 V controlled by the T5 control circuit
(MAIN unit; Q31, Q32) using the SEND signal
from CPU (LOGIC board; IC1). The controlled
voltage is applied to the transmitter circuit.
Receive 5 V controlled by the R5 control circuit
(MAIN unit; Q33, Q34) using the RCV signal
from CPU (LOGIC board; IC1). The controlled
voltage is applied to the receiver circuit.
Receive 8 V converted from the HVS and R5
lines at the R8 regulator circuit (MAIN unit; Q35,
Q36).

4 - 5
Pin Port Description
number name Pin Port Description number name
2
3
4
6
7
8
9
12
13
18
22
23
24
30
31
40
41
42
43
44
45
KEYM
TXDET
SQLV
PCK
PDATA
WXDEC
DSCENC
BEEP
PSTB
ECK
DSCDEC
UNLK
EDATA
SQL
PTT
SCAN
CH/WX
CH16
DN
UP
DSC
Input port for the HM-141 key signals.
Input port for the transmit detecting
signal.
High:While transmitting.
Input port for the squelch volume sig-
nal.
Outputs the clock signal to the PLL IC
(MAIN unit; IC8, pin 4).
Outputs data signals to the PLL IC
(MAIN unit; IC8, pin 5).
Input port for the WX alert decode sig-
nal.
Outputs the DSC encode signal.
Outputs beep audio signals.
High:While sounds beep audio.
Outputs strobe signals.for the PLL IC
(MAIN unit; IC8, pin 3).
Outputs the clock signal to the EEP-
ROM (IC4, pin 6).
Input port for the DSC decode signal.
Input port for the PLL unlock signal.
Low: While the PLL is unlocked.
I/O port for the EEPROM data signal.
Input port for the squelch level signal.
Input port for the HM-141 PTT switch.
Low: While the PTT switch is
pushed.
Input port for the SCAN switch.
Low: While the [SCAN] switch is
pushed.
Input port for the [CH/WX] switch.
Low: While the [CH/WX] switch is
pushed.
Input port for the [CH16] switch.
Low: While the [CH16] switch is
pushed.
Input port for the [√] switch.
Low: While the [√] switch is pushed.
Input port for the [∫] switch.
Low: While the [∫] switch is pushed.
Input port for the [DSC] switch.
Low: While the [DSC] switch is
pushed.
46
47
49
50
51
52
53
54
62–88
92–95
Input port for the [Distress] switch.
Low: While the [Distress] switch is
pushed.
Outputs the microphone muting circuit
(IC7) control signal.
Low: While transmitting the DSC sig-
nal.
•Outputs the transmit power control
signal.
•Outputs the receiver RF attenuator
control signal.
Low: While the attenuator is ON.
Outputs the receiver mute control sig-
nal.
Low: While muting.
Outputs the transmitter mute control
signal.
High:While muting.
Outputs the T5 regulator (MAIN unit;
Q31, Q32) control signal.
High:While transmitting
Outputs the R5 regulator (MAIN unit;
Q33, Q34) control signal.
High:While receiving.
Outputs special alarm audio signals
(ex. when receiving distress signal).
Low: While sounds special alarm.
Output LCD segment signals.
Output LCD common signals.
DTRS
PTTC
H/L
RMUTE
TMUTE
SEND
RCV
BPLVL
SEG1–
SEG27
COM3–
COM0
4-7 PORT ALLOCATIONS
4-7-1 CPU (LOGIC BOARD; IC1)
Pushed key Input voltage
[∫] 2.02 V ±0.12 V
[√] 3.00 V ±0.13 V
[Hi/Lo] 3.84 V ±0.10 V

5 - 1
SECTION 5 ADJUSTMENT PROCEDURES
5-1 PREPARATION
‘‘REQUIRED TEST EQUIPMENT
EQUIPMENT
DC power supply
RF power meter
(terminated type)
Frequency counter
FM deviation meter
DC voltmeter
Digital multi-meter
Distortion meter
GRADE AND RANGE
Output voltage : 13.8 V DC
Current capacity : 10 A or more
Measuring range : 1–50 W
Frequency range : 100–300 MHz
Impedance : 50 Ω
SWR : Less than 1.2 : 1
Frequency range : 0.1–300 MHz
Frequency accuracy: ±1 ppm or better
Sensitivity : 100 mV or better
Frequency range : 30–300 MHz
Measuring range : 0 to ±10 kHz
Input impedance : 50 kΩ/V DC or better
Input impedance : 10 MΩ/V DC or better
Frequency range : 1 kHz ±10 %
Measuring range : 1–100 %
EQUIPMENT
Audio generator
Standard signal
generator (SSG)
Oscilloscope
AC millivoltmeter
External speaker
Attenuator
Dummy load
GRADE AND RANGE
Frequency range : 300–3000 Hz
Measuring range : 1–500 mV
Frequency range : 0.1–300 MHz
Output level : 0.1 µV–32 mV
(–127 to –17 dBm)
Frequency range : DC–20 MHz
Measuring range : 0.01–20 V
Measuring range : 10 mV–10 V
Input impedance : 4 Ω
Capacity : 5 W or more
Power attenuation : 40 or 50 dB
Capacity : 50 W or more
Resistance : 50 Ω
Capacity : 100 W or more
‘‘CONNECTIONS
to the antenna connector
to DC cable
Standard signal
generator
17 to 125 dBm
(32 mV to 0.13 V)
CAUTION!
DO NOT transmit while the SSG is
connected to the antenna connector.
DC power supply
13.8 V /10 A
Frequency
counter
FM deviation
meter
Attenuator
40 dB or 50 dB
+
to EXT Speaker
Red cap
(EXT SP jack)
Red line
Black line
RF power meter
50 / 1 50 W
Distortion meter
Speaker

5 - 2
5-2 PLL ADJUSTMENTS
LOCK
VOLTAGE
REFERENCE
FREQUENCY
ADJUSTMENT
ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE POINT
UNIT LOCATION UNIT ADJUST
1
2
1
•Operating channel : ch16
•Receiving
•Operating channel : ch16
•Output power : Low
•Transmitting
•Operating channel : ch16
•Output power : Low
•Connect an RF power meter or a
50 Ωdummy load to the antenna
connector.
•Transmitting
MAIN
Rear
Panel
Connect a digital
multi-meter or oscil-
loscope to the
check point LV.
Loosely couple the
frequency counter
to the antenna con-
nector.
1.8 V
1.6 V
156.8000 MHz MAIN
Verify
C257
C36
Reference frequency
adjustment
CP1
PLL lock voltage
check point

5 - 3
5-3 TRANSMITTER ADJUSTMENTS
OUTPUT
POWER
FREQUENCY
DEVIATION
ADJUSTMENT
ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE POINT
UNIT LOCATION UNIT ADJUST
1
1
•Operating channel : ch16
•Output power : High
•Transmitting
•Operating channel : ch16
•Output power : Low
•Connect an audio generator to J2
(pin 3) on the MAIN unit with an
AC millivoltmeter and set as:
Frequency : 1 kHz
Level : 40 mV
•Set an FM deviation meter as:
HPF : OFF
LPF : 20 kHz
De-emphasis : OFF
Detector : (P–P)/2
•Transmitting
Rear
Panel
Rear
Panel
Connect an RF
power meter to the
antenna connector.
Connect an FM
deviation meter to
the antenna con-
nector through an
attenuator.
23.5 W
±4.3 kHz
MAIN
MAIN
R135
R184
R135
Output power
adjustment
R184
Frequency deviation
adjustment

5 - 4
5-4 RECEIVER ADJUSTMENT
SENSITIVITY •Operating channel : ch16
•[SQUELCH] control:
Max. counterclockwise
•Connect an SSG to the antenna
connector and set as:
Frequency : 156.800 MHz
Level : 1 µV*
(–107 dBm)
Modulation : 1 kHz
Deviation : ±3.0 kHz
•Receiving
ADJUSTMENT
ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE POINT
UNIT LOCATION UNIT ADJUST
1 MAIN •Connect the dis-
tortion meter to the
[EXT SP] jack with
a 4 Ωload.
•Connect a DC volt-
meter to the check
point RSSI.
Maximum voltage MAIN L6,
L7,
L8,
L9
*This output level of a standard signal generator (SSG) is indicated as SSG’s closed circuit.
L6
Receiver sensitivity
adjustment
L7
L8
L9

[LOGIC BOARD]
[VR BOARD]
R1 7210003140 VARIABLE TP96N97N-15SK-10KA-2685 T
J1 6510009490 CONNECTOR S5B-ZR T
EP1 0910056592 PCB B 6017B
R1 7210003150 VARIABLE TP96N97-15SK-10KB-2685 T
J1 6510009470 CONNECTOR S3B-ZR T
EP1 0910056602 PCB B 6018B
MC1 0800007150 MICROPHONE HM-141B ACC <FG> [Black]
0800007160 MICROPHONE HM-141W ACC <FG> [White]
0800007320 MICROPHONE HM-141G ACC <FG> [Gray]
SP1 2510001240 SPEAKER 045P0803 <FG>
W1 7120000470 JUMPER ERDS2T0
W2 7120000470 JUMPER ERDS2T0
W3 8900012410 CABLE OPC-1263 (N=30,L=110)
IC1 1140011800 S.IC M37560MFA-303GP (FX-2685A) T
IC2 1170000350 S.IC PC357N6T T
IC3 1130007430 S.IC TC7S14FU (TE85R) T
IC4 1130011570 S.IC BR24L32FV-WE2 T
IC5 1110006210 S.IC BD5242FVE-TR T
IC6 1110002700 S.IC NJM2904M-TE1 T
Q2 1520000460 S.TRANSISTOR 2SB1132 T100 R T
Q3 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R) T
Q4 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R) T
Q6 1590001050 S.TRANSISTOR DTC114TUA T106 T
D1 1750000550 S.DIODE 1SS355 TE-17 T
D2 1750000550 S.DIODE 1SS355 TE-17 T
D3 1750000150 S.DIODE DA204K T146 T
X1 6050011800 S.XTAL CR-769 (7.9872 MHz) T
S.=Surface mount
R1 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kΩ) T
R3 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R4 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R5 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R14 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) T
R15 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) T
R16 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R21 7030003250 S.RESISTOR ERJ3GEYJ 270 V (27 Ω) T
R22 7030003250 S.RESISTOR ERJ3GEYJ 270 V (27 Ω) T
R23 7030003250 S.RESISTOR ERJ3GEYJ 270 V (27 Ω) T
R24 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) T
R25 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) T
R26 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) T
R27 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) T
R28 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) T
R29 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) T
R30 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) T
R31 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) T
R35 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) T
R36 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) T
R37 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) T
R38 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) T
R40 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) T
R41 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R42 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R43 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R51 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) T
R52 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) T
R53 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R54 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) T
R55 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R56 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R61 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) T
R62 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R63 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R64 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R65 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) T
C1 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C2 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C3 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C4 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C5 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C6 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C7 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C11 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C12 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C13 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C14 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C16 4030006880 S.CERAMIC C1608 JB 1H 472K-T T
C17 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C18 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C21 4030008880 S.CERAMIC C1608 JB 1H 223K-T T
C22 4510005310 S.ELECTROLYTIC ECEV1CA220SR T
C23 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C25 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C26 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C31 4030009650 S.CERAMIC C1608 CH 1H 240J-T T
C32 4030007050 S.CERAMIC C1608 CH 1H 220J-T T
C41 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C42 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C43 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
J1 6510021720 S.CONNECTOR 30FLT-SM1-TB T
J2 6510015540 S.CONNECTOR B4B-ZR-SM3-TF T
DS1 5030002590 LCD IS08251E00V0 B
DS2 5040002310 S.LED SML-311YTT86 B
DS3 5040002310 S.LED SML-311YTT86 B
DS4 5040002660 S.LED FY1101F-TR (LED) B
DS5 5040002660 S.LED FY1101F-TR (LED) B
DS6 5040002660 S.LED FY1101F-TR (LED) B
DS7 5040002660 S.LED FY1101F-TR (LED) B
EP1 0910057311 PCB B 6096A
EP2 8930061040 LCD CONTACT SRCN-2685-SP-N-W B
6 - 1
SECTION 6 PARTS LIST
REF ORDER DESCRIPTION M.
NO. NO.
REF ORDER DESCRIPTION M.
NO. NO.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
REF ORDER DESCRIPTION M.
NO. NO.
[SQL BOARD]
REF ORDER DESCRIPTION M.
NO. NO.
[FRONT UNIT]
REF ORDER DESCRIPTION M.
NO. NO.
[LOGIC BOARD]
6-1 IC-M302

[MAIN UNIT]
IC1 1110003490 S.IC TA31136FN (D,EL) T
IC2 1110005320 S.IC NJM13403V-TE1 T
IC3 1110003650 S.IC NJM2211M-TE1 T
IC4 1150002170 IC S-AV35 (I) T
IC6 1110003090 IC LA4425A T
IC7 1140003830 S.IC TC4W66F (TE12L) T
IC8 1130007610 S.IC µPD3140GS-E1 (DS8) T
IC9 1110002020 IC TA7805S T
Q1 1580000540 S.FET 3SK131-T2-LA T
Q2 1580000540 S.FET 3SK131-T2-LA T
Q4 1530002600 S.TRANSISTOR 2SC4215-O (TE85R) T
Q5 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R) T
Q11 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R) T
Q12 1590000430 S.TRANSISTOR DTC144EUA T106 T
Q13 1530002920 S.TRANSISTOR 2SC4226-T1 R25 T
Q14 1530002920 S.TRANSISTOR 2SC4226-T1 R25 T
Q15 1530002600 S.TRANSISTOR 2SC4215-O (TE85R) T
Q16 1530002600 S.TRANSISTOR 2SC4215-O (TE85R) T
Q17 1530002600 S.TRANSISTOR 2SC4215-O (TE85R) T
Q18 1530002920 S.TRANSISTOR 2SC4226-T1 R25 T
Q20 1590000430 S.TRANSISTOR DTC144EUA T106 T
Q21 1590000670 S.TRANSISTOR FMW1 T148 T
Q22 1590000680 S.TRANSISTOR DTC114EUA T106 T
Q23 1510000920 S.TRANSISTOR 2SA1577 T106 Q T
Q25 1590000430 S.TRANSISTOR DTC144EUA T106 T
Q26 1530002600 S.TRANSISTOR 2SC4215-O (TE85R) T
Q31 1510000920 S.TRANSISTOR 2SA1577 T106 Q T
Q32 1590000430 S.TRANSISTOR DTC144EUA T106 T
Q33 1510000920 S.TRANSISTOR 2SA1577 T106 Q T
Q34 1590000430 S.TRANSISTOR DTC144EUA T106 T
Q35 1520000460 S.TRANSISTOR 2SB1132 T100 R T
Q36 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R) T
D1 1710001080 DIODE XB15A308 T
D2 1710001080 DIODE XB15A308 T
D4 1720000260 S.VARICAP 1SV214 (TPH2) T
D5 1720000260 S.VARICAP 1SV214 (TPH2) T
D6 1720000260 S.VARICAP 1SV214 (TPH2) T
D7 1720000260 S.VARICAP 1SV214 (TPH2) T
D9 1750000470 S.DIODE 1SS321 (TE85R) T
D11 1790000620 S.DIODE MA77 (TX) T
D12 1790000620 S.DIODE MA77 (TX) T
D13 1750000710 S.VARICAP HVC350BTRF T
D14 1750000710 S.VARICAP HVC350BTRF T
D16 1790000620 S.DIODE MA77 (TX) T
D17 1790000620 S.DIODE MA77 (TX) T
D21 1790000690 S.DIODE HSM88ASR-TR T
D22 1790000690 S.DIODE HSM88ASR-TR T
D25 1790000700 DIODE DSA3A1 T
D26 1750000150 S.DIODE DA204K T146 T
FI1 2030000270 MONOLITH FL-363 (21.7 MHz) T
FI2 2030000270 MONOLITH FL-363 (21.7 MHz) T
FI3 2020001680 CERAMIC ALFY450E T
X1 6070000200 DISCRIMINATOR
CDBLA450KCAY24-B0 (CDB450C24) T
X2 6050011760 S.XTAL CR-768 (21.250 MHz) T
L1 6110001600 COIL LA-243 T
L2 6110001600 COIL LA-243 T
L3 6110001600 COIL LA-243 T
L6 6150003820 COIL LS-440 T
L7 6150003820 COIL LS-440 T
L8 6150003820 COIL LS-440 T
L9 6150003820 COIL LS-440 T
L10 6200010090 S.COIL ELJND R82JF T
L12 6200009620 S.COIL MLG1608B 68NJ-T T
L13 6200009620 S.COIL MLG1608B 68NJ-T T
L21 6200003710 S.COIL NL 252018T-2R7J T
L22 6200008190 S.COIL 0.25-1.9-8TL 80N T
L23 6200009560 S.COIL MLG1608B R10J-T T
L26 6200009560 S.COIL MLG1608B R10J-T T
L28 6200009680 S.COIL MLG1608B 47NJ-T T
L29 6200009680 S.COIL MLG1608B 47NJ-T T
L31 6110001670 COIL LA-253 T
L32 6170000230 COIL LW-25 T
L35 6200009560 S.COIL MLG1608B R10J-T T
L36 6200009560 S.COIL MLG1608B R10J-T T
R4 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) T
R5 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) T
S.=Surface mount
6 - 2
REF ORDER DESCRIPTION M.
NO. NO.
[MAIN UNIT]
R6 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) T
R7 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) T
R8 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω) T
R9 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) T
R10 7030003260 S.RESISTOR ERJ3GEYJ 330 V (33 Ω) T
R12 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) T
R14 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) T
R16 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) T
R21 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) T
R25 7030003820 S.RESISTOR ERJ3GEYJ 155 V (1.5 MΩ) T
R26 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) T
R27 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) T
R28 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R31 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) T
R32 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) T
R33 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) T
R34 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) T
R35 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) T
R36 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) T
R37 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) T
R38 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) T
R41 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) T
R42 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) T
R43 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) T
R44 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) T
R45 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R46 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) T
R47 7510001510 S.THERMISTOR NTCG16 4LH 223KT T
R48 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) T
R49 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) T
R50 7030003730 S.RESISTOR ERJ3GEYJ 274 V (270 kΩ) T
R51 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) T
R53 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) T
R55 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R56 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R57 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R58 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R61 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) T
R62 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) T
R63 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) T
R64 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) T
R65 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) T
R66 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ) T
R67 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) T
R68 7030003860 S.RESISTOR ERJ3GE JPW V T
R71 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) T
R72 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) T
R73 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) T
R74 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) T
R75 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) T
R76 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) T
R78 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) T
R81 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) T
R82 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) T
R83 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) T
R84 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) T
R85 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) T
R86 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) T
R87 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) T
R88 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) T
R89 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) T
R91 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) T
R92 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) T
R93 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) T
R94 7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 Ω) T
R95 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) T
R96 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) T
R97 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) T
R102 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) T
R103 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) T
R106 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) T
R107 7030003270 S.RESISTOR ERJ3GEYJ 390 V (39 Ω) T
R108 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) T
R109 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) T
R110 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) T
R111 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R112 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R113 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) T
R116 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) T
R117 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) T
R122 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) T
R123 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) T
R124 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) T
R126 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) T
R127 7030000340 S.RESISTOR MCR10EZHJ 470 Ω(471) T
R130 7030001110 S.RESISTOR MCR50JZHJ 68 Ω(680) T
R131 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩT
R132 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩT
REF ORDER DESCRIPTION M.
NO. NO.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

[MAIN UNIT]
R133 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) T
R135 7310002670 S.TRIMMER RV-143 (RH03A3AS2) 471 T
R136 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) T
R137 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) T
R138 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R139 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) T
R140 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R141 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) T
R142 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ) T
R143 7510001710 S.THEMISTOR TN10-3C471JT T
R144 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) T
R151 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) T
R152 7030000100 S.RESISTOR MCR10EZHJ 4.7 Ω(4R7) T
R153 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) T
R154 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) T
R155 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) T
R156 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) T
R157 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R161 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) T
R162 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) T
R163 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) T
R164 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) T
R165 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ) T
R166 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) T
R167 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) T
R168 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) T
R169 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R170 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) T
R171 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R172 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) T
R173 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) T
R174 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) T
R175 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) T
R176 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) T
R177 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) T
R178 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) T
R179 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) T
R180 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ) T
R181 7510001670 S.THRMISTOR NTCG16 4BH 103KT T
R182 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) T
R183 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) T
R184 7310002600 S.TRIMMER RV-110 (RH03A3AS4X0AA) 473 T
R185 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ) T
R188 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) T
R189 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) T
R190 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) T
R191 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) T
R201 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) T
R202 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) T
R203 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) T
R204 7030003860 S.RESISTOR ERJ3GE JPW V T
R210 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) T
R211 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) T
R212 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) T
R213 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) T
R214 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) T
R215 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) T
R216 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) T
R221 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R222 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) T
R223 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) T
R224 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) T
R225 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ) T
R226 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) T
C3 4010007630 CERAMIC HM60SJ CH 270J 500V T
C4 4010005420 CERAMIC HM60SJ CH 040C 500V T
C5 4010008050 CERAMIC HM60SJ CH 180J 500V T
C6 4010005790 CERAMIC HM60SJ YB 102K 500V T
C7 4010007630 CERAMIC HM60SJ CH 270J 500V T
C8 4010008070 CERAMIC HM60SJ CH 220J 500V T
C12 4030006990 S.CERAMIC C1608 CH 1H 080D-T T
C13 4030007010 S.CERAMIC C1608 CH 1H 100D-T T
C14 4030007010 S.CERAMIC C1608 CH 1H 100D-T T
C15 4030009920 S.CERAMIC C1608 CH 1H 050B-T T
C16 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C17 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C18 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C19 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C20 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C21 4030009530 S.CERAMIC C1608 CH 1H 030B-T T
C22 4030007010 S.CERAMIC C1608 CH 1H 100D-T T
C23 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C24 4030009530 S.CERAMIC C1608 CH 1H 030B-T T
C25 4030009520 S.CERAMIC C1608 CH 1H 020B-T T
C26 4030007010 S.CERAMIC C1608 CH 1H 100D-T T
C28 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
S.=Surface mount
6 - 3
REF ORDER DESCRIPTION M.
NO. NO.
[MAIN UNIT]
C29 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T T
C30 4030009520 S.CERAMIC C1608 CH 1H 020B-T T
C31 4030007010 S.CERAMIC C1608 CH 1H 100D-T T
C32 4030009530 S.CERAMIC C1608 CH 1H 030B-T T
C34 4030009910 S.CERAMIC C1608 CH 1H 040B-T T
C35 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C36 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C42 4030009520 S.CERAMIC C1608 CH 1H 020B-T T
C44 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C46 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C47 4030007100 S.CERAMIC C1608 CH 1H 560J-T T
C48 4030007010 S.CERAMIC C1608 CH 1H 100D-T T
C49 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C50 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C51 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C55 4030009920 S.CERAMIC C1608 CH 1H 050B-T T
C59 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C60 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C61 4030008920 S.CERAMIC C1608 JB 1H 473K-T T
C63 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C64 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C65 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C67 4030007130 S.CERAMIC C1608 CH 1H 101J-T T
C68 4510004630
S.ELECTROLYTIC ECEV1CA100SR T
C70 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C71 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C72 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C73 4030007170 S.CERAMIC C1608 CH 1H 221J-T T
C74 4030007170 S.CERAMIC C1608 CH 1H 221J-T T
C75 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C76 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C77 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C80 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C82 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C83 4030009880 S.CERAMIC C1608 JB 1H 682K-T T
C84 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C85 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C88 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C89 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C90 4030008880 S.CERAMIC C1608 JB 1H 223K-T T
C91 4030008880 S.CERAMIC C1608 JB 1H 223K-T T
C92 4510004630
S.ELECTROLYTIC ECEV1CA100SR T
C93 4030011810 S.CERAMIC C1608 JB 1A 224K-T T
C95 4510004630 S.ELECTROLYTIC ECEV1CA100SR T
C96 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C97 4030008920 S.CERAMIC C1608 JB 1H 473K-T T
C99 4340000180 S.MYLAR ECHU 1C 333JB5 T
C100 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C101 4030006870 S.CERAMIC C1608 JB 1H 222K-T T
C102 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C103 4030011810 S.CERAMIC C1608 JB 1A 224K-T T
C111 4510004630
S.ELECTROLYTIC ECEV1CA100SR T
C112 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C113 4550006130 S.TANTALUM ECST1VY224R T
C114 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C115 4030007090 S.CERAMIC C1608 CH 1H 470J-T T
C116 4030007080 S.CERAMIC C1608 CH 1H 390J-T T
C117 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C119 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C120 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C121 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C122 4030017490 S.CERAMIC C1608 JB 1A 105K-T T
C124 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C125 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T T
C126 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C127 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T T
C128 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T T
C129 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C130 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C135 4030011770 S.CERAMIC C1608 CH 1H 060B-T T
C136 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C138 4030007050 S.CERAMIC C1608 CH 1H 220J-T T
C139 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C140 4030007090 S.CERAMIC C1608 CH 1H 470J-T T
C145 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C146 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C147 4030007090 S.CERAMIC C1608 CH 1H 470J-T T
C148 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C149 4030007050 S.CERAMIC C1608 CH 1H 220J-T T
C151 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C152 4030009530 S.CERAMIC C1608 CH 1H 030B-T T
C153 4030007090 S.CERAMIC C1608 CH 1H 470J-T T
C154 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C156 4030007050 S.CERAMIC C1608 CH 1H 220J-T T
C161 4550006700 S.TANTALUM ECST1AY106R T
C162 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C164 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C165 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
REF ORDER DESCRIPTION M.
NO. NO.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

[MAIN UNIT]
C166 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C167 4510005310 S.ELECTROLYTIC ECEV1CA220SR T
C171 4010008050 CERAMIC HM60SJ CH 180J 500V T
C172 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C173 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C174 4010005430 CERAMIC HM60SJ CH 050C 500V T
C175 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C176 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C177 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C178 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C179 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C180 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C181 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C182 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C183 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C185 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C198 4030007130 S.CERAMIC C1608 CH 1H 101J-T T
C199 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C201 4030007050 S.CERAMIC C1608 CH 1H 220J-T T
C202 4030007130 S.CERAMIC C1608 CH 1H 101J-T T
C203 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C205 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C206 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C207 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C208 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C211 4510004590 ELECTROLYTIC 16 MV 470 HC T
C212 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C213 4510004590
S.ELECTROLYTIC 16 MV 470 HC T
C214 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C215 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C216 4030017490 S.CERAMIC C1608 JB 1A 105K-T T
C217 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C220 4030011810 S.CERAMIC C1608 JB 1A 224K-T T
C221 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C222 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C223 4030006870 S.CERAMIC C1608 JB 1H 222K-T T
C224 4030007110 S.CERAMIC C1608 CH 1H 680J-T T
C226 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C227 4510004630
S.ELECTROLYTIC ECEV1CA100SR T
C229 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C230 4510004630 S.ELECTROLYTIC ECEV1CA100SR T
C231 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C232 4030009580 S.CERAMIC C1608 JB 1H 681K-T T
C233 4030010770 S.CERAMIC C1608 JB 1H 392K-T T
C234 4030007130 S.CERAMIC C1608 CH 1H 101J-T T
C235 4030008470 S.CERAMIC C1608 JB 1H 272K-T T
C236 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C241 4030009920 S.CERAMIC C1608 CH 1H 050B-T T
C242 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C243 4030007050 S.CERAMIC C1608 CH 1H 220J-T T
C244 4030007050 S.CERAMIC C1608 CH 1H 220J-T T
C245 4030007050 S.CERAMIC C1608 CH 1H 220J-T T
C246 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C247 4550006540 S.TANTALUM ECST1CY475R T
C248 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C249 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C250 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C252 4550000510 S.TANTALUM TEESVA 1V 473M8L T
C254 4550002980 S.TANTALUM TEESVA 1C 225M8L T
C255 4030006900 S.CERAMIC C1608 JB 1H 103K-T T
C257 4610001590 S.TRIMMER TZC3R100A110R00 T
C258 4030007020 S.CERAMIC C1608 CH 1H 120J-T T
C259 4030007040 S.CERAMIC C1608 CH 1H 180J-T T
C271 4510004630
S.ELECTROLYTIC ECEV1CA100SR T
C272 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C273 4510004630 S.ELECTROLYTIC ECEV1CA100SR T
C274 4030011600 S.CERAMIC C1608 JB 1E 104K-T T
C275 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C276 4510004630 S.ELECTROLYTIC ECEV1CA100SR T
C277 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C278 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C279 4510004630
S.ELECTROLYTIC ECEV1CA100SR T
C280 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C291 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C292 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C294 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C295 4030007090 S.CERAMIC C1608 CH 1H 470J-T T
C296 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C297 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C298 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C299 4030007090 S.CERAMIC C1608 CH 1H 470J-T T
C300 4030007090 S.CERAMIC C1608 CH 1H 470J-T T
C301 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C302 4030006850 S.CERAMIC C1608 JB 1H 471K-T T
C303 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C304 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C305 4030006860 S.CERAMIC C1608 JB 1H 102K-T T
C306 4030007090 S.CERAMIC C1608 CH 1H 470J-T T
S.=Surface mount
6 - 4
REF ORDER DESCRIPTION M.
NO. NO.
[MAIN UNIT]
J1 6510021720 S.CONNECTOR 30FLT-SM1-TB T
J2 6510023810 CONNECTOR B5B-PH-K-S T
W1 8900012400 CABLE OPC-1264 T
W2 7120000470 JUMPER ERDS2T0 T
EP1 0910056573 PCB B 6015C
REF ORDER DESCRIPTION M.
NO. NO.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
